SolverPerformance is the class returned by the LduMatrix solver containing performance statistics. More...

#include <SolverPerformance.H>

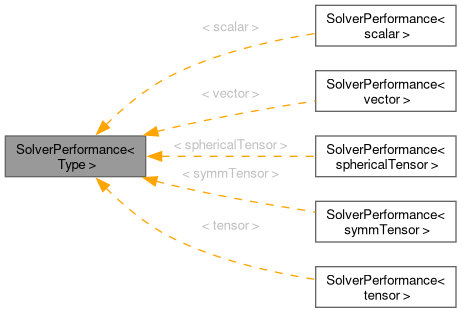

Inheritance diagram for SolverPerformance< Type >:

[legend]

Public Member Functions
	ClassName ("SolverPerformance")
	SolverPerformance ()
	SolverPerformance (const word &solverName, const word &fieldName, const Type &iRes=pTraits< Type >::zero, const Type &fRes=pTraits< Type >::zero, const labelType &nIter=pTraits< labelType >::zero, const bool converged=false, const bool singular=false)
const word &	solverName () const noexcept
	Return solver name.
word &	solverName () noexcept
	Return solver name.
const word &	fieldName () const noexcept
	Return field name.
const Type &	initialResidual () const noexcept
	Return initial residual.
Type &	initialResidual () noexcept
	Return initial residual.
const Type &	finalResidual () const noexcept
	Return final residual.
Type &	finalResidual () noexcept
	Return final residual.
const labelType &	nIterations () const noexcept
	Return number of iterations.
labelType &	nIterations () noexcept
	Return number of iterations.
bool	converged () const noexcept
	Has the solver converged?
bool	singular () const
	Is the matrix singular?
bool	checkConvergence (const Type &tolerance, const Type &relTolerance, const int logLevel=0)
	Check, store and return convergence.
bool	checkSingularity (const Type &residual)
	Singularity test.
void	print (Ostream &os) const
	Print summary of solver performance to the given stream.
void	replace (const label cmpt, const SolverPerformance< typename pTraits< Type >::cmptType > &sp)
	Replace component based on the minimal SolverPerformance.
SolverPerformance< typename pTraits< Type >::cmptType >	max ()
	Return the summary maximum of SolverPerformance<Type>.
bool	operator!= (const SolverPerformance< Type > &) const
Foam::SolverPerformance< Foam::scalar >	max ()
SolverPerformance< scalar >	max ()

Static Public Attributes
static const scalar	great_
	Large Type for the use in solvers.
static const scalar	small_
	Small Type for the use in solvers.
static const scalar	vsmall_
	Very small Type for the use in solvers.

Friends
SolverPerformance< Type >	Foam::max (const SolverPerformance< Type > &, const SolverPerformance< Type > &)
	Return the element-wise maximum of two SolverPerformance<Type>s.
Istream &	operator>> (Istream &, SolverPerformance< Type > &)
Ostream &	operator<< (Ostream &, const SolverPerformance< Type > &)

Detailed Description

template<class Type>
class Foam::SolverPerformance< Type >

SolverPerformance is the class returned by the LduMatrix solver containing performance statistics.

Source files

Definition at line 77 of file SolverPerformance.H.

Constructor & Destructor Documentation

◆ SolverPerformance() [1/2]

template<class Type>

SolverPerformance ( )

inline

Definition at line 118 of file SolverPerformance.H.

Referenced by max(), and operator!=().

Here is the caller graph for this function:

◆ SolverPerformance() [2/2]

template<class Type>

SolverPerformance	(	const word &	solverName,
		const word &	fieldName,
		const Type &	iRes = pTraits<Type>::zero,
		const Type &	fRes = pTraits<Type>::zero,
		const labelType &	nIter = pTraits<labelType>::zero,
		const bool	converged = false,
		const bool	singular = false )

inline

Definition at line 128 of file SolverPerformance.H.

Member Function Documentation

◆ ClassName()

template<class Type>

ClassName ( "SolverPerformance< Type >" )

◆ solverName() [1/2]

template<class Type>

const word & solverName ( ) const

inlinenoexcept

Return solver name.

Definition at line 154 of file SolverPerformance.H.

Referenced by operator!=(), faMatrix< Type >::solve(), fvMatrix< Type >::solveSegregated(), and solverInfo::updateSolverInfo().

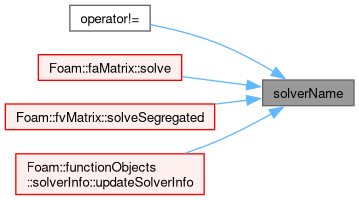

Here is the caller graph for this function:

◆ solverName() [2/2]

template<class Type>

word & solverName ( )

inlinenoexcept

Return solver name.

Definition at line 162 of file SolverPerformance.H.

◆ fieldName()

template<class Type>

const word & fieldName ( ) const

inlinenoexcept

Return field name.

Definition at line 171 of file SolverPerformance.H.

Referenced by operator!=(), and meshState::setSolverPerformance().

Here is the caller graph for this function:

◆ initialResidual() [1/2]

template<class Type>

const Type & initialResidual ( ) const

inlinenoexcept

Return initial residual.

Definition at line 180 of file SolverPerformance.H.

Referenced by advectionDiffusion::correct(), radiativeIntensityRay::correct(), age::execute(), operator!=(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), sensitivitySurface::smoothSensitivities(), adjointEikonalSolver::solve(), populationBalanceModel::solve(), elasticityMotionSolver::solve(), GAMGSolver::solve(), laplacianMotionSolver::solve(), PBiCCCG< Type, DType, LUType >::solve(), PBiCG::solve(), PBiCICG< Type, DType, LUType >::solve(), PCICG< Type, DType, LUType >::solve(), pLaplacianMotionSolver::solve(), SmoothSolver< Type, DType, LUType >::solve(), smoothSolver::solve(), Helmholtz::solveEqn(), shapeDesignVariables::solveMeshMovementEqn(), and solverInfo::updateSolverInfo().

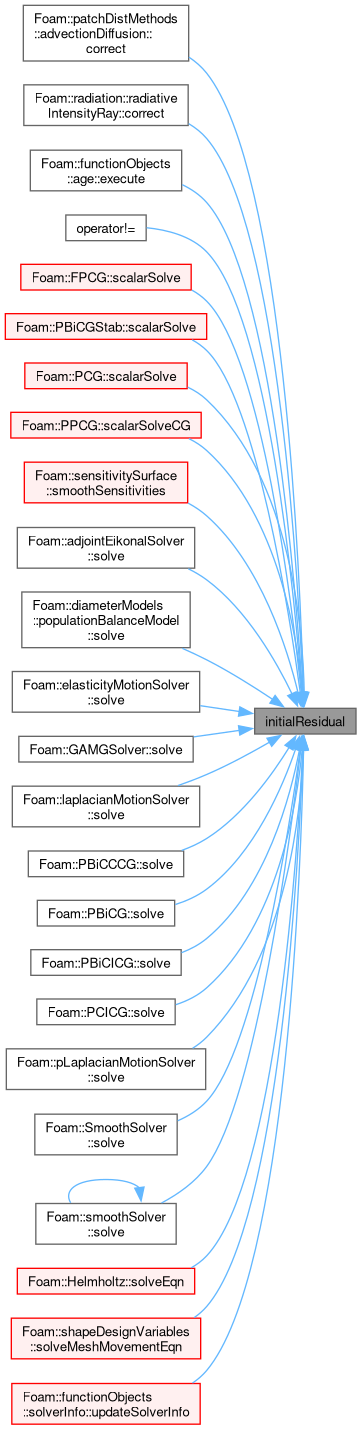

Here is the caller graph for this function:

◆ initialResidual() [2/2]

template<class Type>

Type & initialResidual ( )

inlinenoexcept

Return initial residual.

Definition at line 188 of file SolverPerformance.H.

◆ finalResidual() [1/2]

template<class Type>

const Type & finalResidual ( ) const

inlinenoexcept

Return final residual.

Definition at line 197 of file SolverPerformance.H.

Referenced by operator!=(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCCCG< Type, DType, LUType >::solve(), PBiCG::solve(), PBiCICG< Type, DType, LUType >::solve(), PCICG< Type, DType, LUType >::solve(), SmoothSolver< Type, DType, LUType >::solve(), smoothSolver::solve(), and solverInfo::updateSolverInfo().

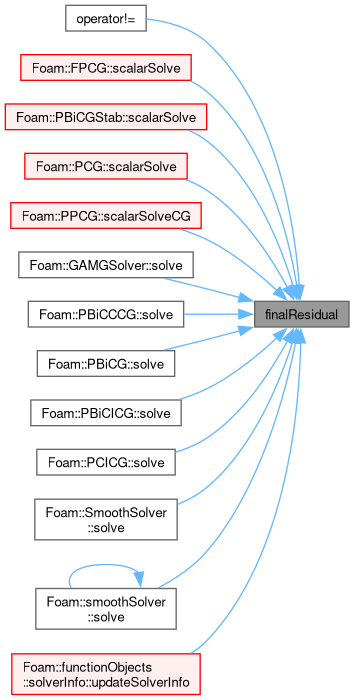

Here is the caller graph for this function:

◆ finalResidual() [2/2]

template<class Type>

Type & finalResidual ( )

inlinenoexcept

Return final residual.

Definition at line 205 of file SolverPerformance.H.

◆ nIterations() [1/2]

template<class Type>

const labelType & nIterations ( ) const

inlinenoexcept

Return number of iterations.

Definition at line 214 of file SolverPerformance.H.

Referenced by operator!=(), FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCCCG< Type, DType, LUType >::solve(), PBiCG::solve(), PBiCICG< Type, DType, LUType >::solve(), PCICG< Type, DType, LUType >::solve(), SmoothSolver< Type, DType, LUType >::solve(), smoothSolver::solve(), and solverInfo::updateSolverInfo().

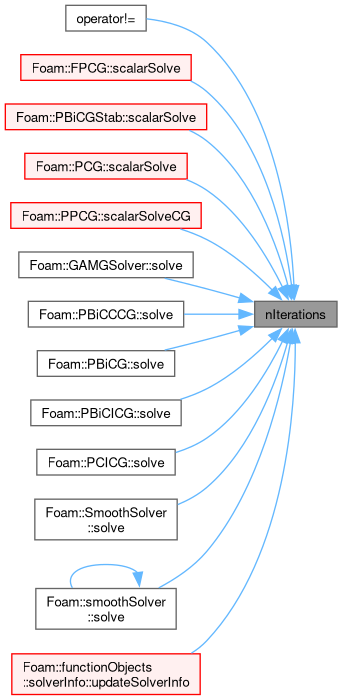

Here is the caller graph for this function:

◆ nIterations() [2/2]

template<class Type>

labelType & nIterations ( )

inlinenoexcept

Return number of iterations.

Definition at line 222 of file SolverPerformance.H.

◆ converged()

template<class Type>

bool converged ( ) const

inlinenoexcept

Has the solver converged?

Definition at line 231 of file SolverPerformance.H.

Referenced by operator!=(), and solverInfo::updateSolverInfo().

Here is the caller graph for this function:

◆ singular()

template<class Type>

bool singular ( ) const

Is the matrix singular?

Definition at line 44 of file SolverPerformance.C.

Referenced by checkSingularity(), max(), and operator!=().

Here is the caller graph for this function:

◆ checkConvergence()

template<class Type>

bool checkConvergence	(	const Type &	tolerance,
		const Type &	relTolerance,
		const int	logLevel = 0 )

Check, store and return convergence.

Definition at line 56 of file SolverPerformance.C.

References Foam::cmptMultiply(), Foam::endl(), Foam::Info, and small_.

Referenced by FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PPCG::scalarSolveCG(), GAMGSolver::solve(), PBiCCCG< Type, DType, LUType >::solve(), PBiCG::solve(), PBiCICG< Type, DType, LUType >::solve(), PCICG< Type, DType, LUType >::solve(), SmoothSolver< Type, DType, LUType >::solve(), and smoothSolver::solve().

Here is the call graph for this function:

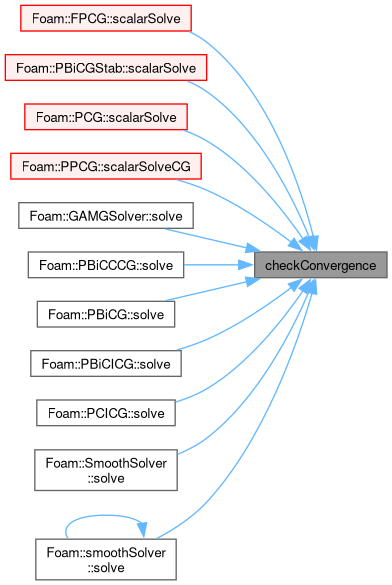

Here is the caller graph for this function:

◆ checkSingularity()

template<class Type>

bool checkSingularity ( const Type & residual )

Singularity test.

Definition at line 28 of file SolverPerformance.C.

References Foam::component(), singular(), and vsmall_.

Referenced by FPCG::scalarSolve(), PBiCGStab::scalarSolve(), PCG::scalarSolve(), PBiCCCG< Type, DType, LUType >::solve(), PBiCG::solve(), PBiCICG< Type, DType, LUType >::solve(), and PCICG< Type, DType, LUType >::solve().

Here is the call graph for this function:

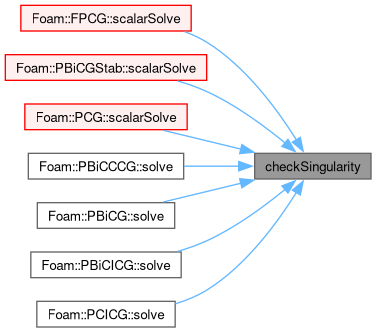

Here is the caller graph for this function:

◆ print()

template<class Type>

void print ( Ostream & os ) const

Print summary of solver performance to the given stream.

Definition at line 85 of file SolverPerformance.C.

References Foam::component(), Foam::endl(), and os().

Referenced by viewFactor::calculate(), faMatrix< Type >::solve(), faMatrix< scalar >::solve(), fvMatrix< Type >::fvSolver::solve(), GAMGSolver::solve(), fvMatrix< Type >::solveCoupled(), fvMatrix< Type >::solveSegregated(), and fvMatrix< scalar >::solveSegregated().

Here is the call graph for this function:

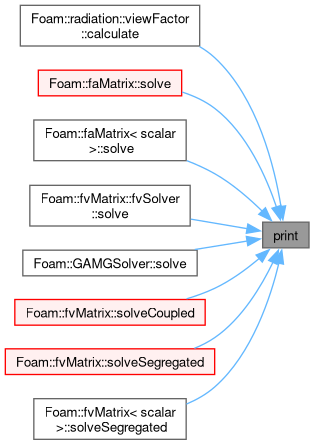

Here is the caller graph for this function:

◆ replace()

template<class Type>

void replace	(	const label	cmpt,
		const SolverPerformance< typename pTraits< Type >::cmptType > &	sp )

Replace component based on the minimal SolverPerformance.

Definition at line 118 of file SolverPerformance.C.

Referenced by faMatrix< Type >::solve(), and fvMatrix< Type >::solveSegregated().

Here is the caller graph for this function:

◆ max() [1/3]

template<class Type>

Foam::SolverPerformance< typename Foam::pTraits< Type >::cmptType > max ( )

Return the summary maximum of SolverPerformance<Type>.

Effectively it will mostly return solverPerformanceScalar

Definition at line 133 of file SolverPerformance.C.

References Foam::cmptMax(), singular(), and SolverPerformance().

Here is the call graph for this function:

◆ operator!=()

template<class Type>

bool operator!= ( const SolverPerformance< Type > & sp ) const

Definition at line 149 of file SolverPerformance.C.

References converged(), fieldName(), finalResidual(), initialResidual(), nIterations(), singular(), solverName(), and SolverPerformance().

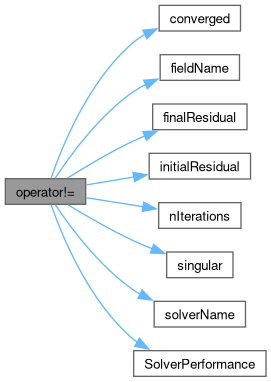

Here is the call graph for this function:

◆ max() [2/3]

Foam::SolverPerformance< Foam::scalar > max ( )

Definition at line 36 of file solverPerformance.C.

◆ max() [3/3]

SolverPerformance< scalar > max ( )

◆ Foam::max

template<class Type>

SolverPerformance< Type > Foam::max	(	const SolverPerformance< Type > &	,
		const SolverPerformance< Type > &	)

friend

Return the element-wise maximum of two SolverPerformance<Type>s.

◆ operator>>

template<class Type>

Istream & operator>>	(	Istream &	,
		SolverPerformance< Type > &	)

friend

◆ operator<<

template<class Type>

Ostream & operator<<	(	Ostream &	,
		const SolverPerformance< Type > &	)

friend

Member Data Documentation

◆ great_

template<class Type>

const scalar great_

static

Large Type for the use in solvers.

Definition at line 103 of file SolverPerformance.H.

Referenced by FPCG::scalarSolve(), PCG::scalarSolve(), PBiCICG< Type, DType, LUType >::solve(), and PCICG< Type, DType, LUType >::solve().

◆ small_

template<class Type>

const scalar small_

static

Small Type for the use in solvers.

Definition at line 108 of file SolverPerformance.H.

Referenced by checkConvergence(), and LduMatrix< scalar, scalar, scalar >::solver::readControls().

◆ vsmall_

template<class Type>

const scalar vsmall_

static

Very small Type for the use in solvers.

Definition at line 113 of file SolverPerformance.H.

Referenced by checkSingularity(), PBiCICG< Type, DType, LUType >::solve(), and PCICG< Type, DType, LUType >::solve().

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/LduMatrix/LduMatrix/SolverPerformance.H
src/OpenFOAM/matrices/LduMatrix/LduMatrix/SolverPerformance.C
