A dynamic list of packed unsigned integers, with the number of bits per item specified by the <Width> template parameter. More...

#include <PackedList.H>

Inheritance diagram for PackedList< Width >:

[legend]

Collaboration diagram for PackedList< Width >:

[legend]

Classes
class	reference
	A reference supporting read/write access to an entry. More...
struct	hasher
	Hashing functor for PackedList. More...

Public Types
typedef unsigned int	block_type
	The storage block type for bit elements.
typedef unsigned int	const_reference

Public Member Functions
constexpr	PackedList () noexcept
	Default construct, zero-sized and no allocation.
	PackedList (const label numElem)
	Construct for given number of elements, initializes values to 0.
	PackedList (const label numElem, const unsigned int val)
	Construct for given number of elements, and the specified value for each element.
	PackedList (Istream &is)
	Construct from Istream.
	PackedList (const PackedList< Width > &list)
	Copy construct.
	PackedList (PackedList< Width > &&list)
	Move construct.
	PackedList (const PackedList< Width > &list, const labelUList &addr)
	Copy construct a subset.
template<class Addr>
	PackedList (const PackedList< Width > &list, const IndirectListBase< label, Addr > &addr)
	Copy construct a subset.
	PackedList (const PackedList< Width > &list, const labelRange &range)
	Copy construct a subset range.
	PackedList (const labelUList &values)
	Construct from a list of values.
template<class Addr>
	PackedList (const IndirectListBase< label, Addr > &values)
	Construct from a indirect list of values.
autoPtr< PackedList< Width > >	clone () const
	Clone.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).

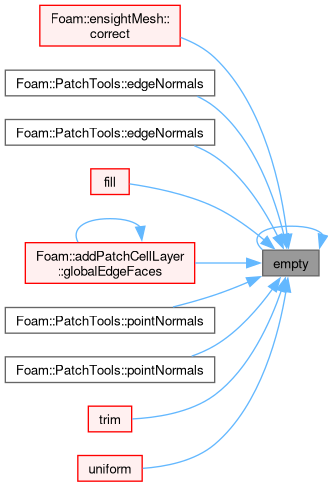

bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	Number of entries.
label	capacity () const noexcept
	Number of elements that can be stored without reallocating.

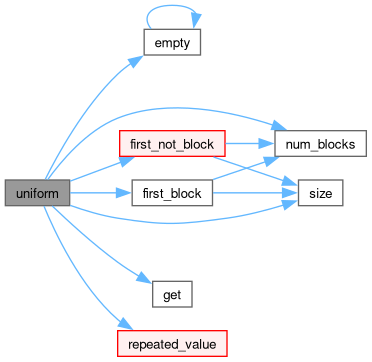

bool	uniform () const
	True if all entries have identical values (and list is non-empty).
bool	equal (const PackedList< Width > &other) const
	Test for equality of sizes and the bits set.

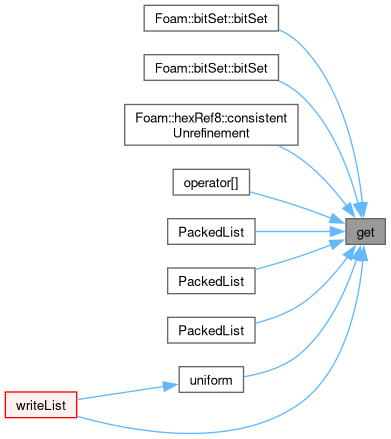

unsigned int	get (const label i) const
	Get value at index i or 0 for out-of-range.

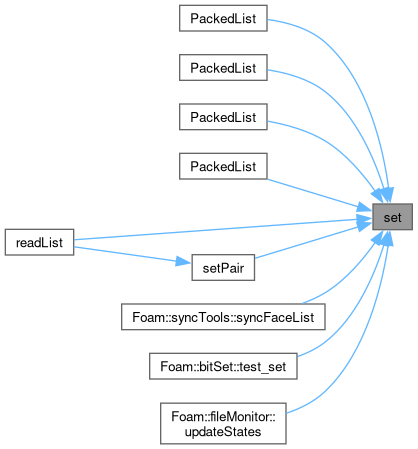

bool	set (const label i, unsigned int val=~0u)
	Set value at index i, default value set is the max_value.
bool	unset (const label i)
	Unset the entry at index i.
labelList	values () const
	Return the values as a list of labels.
template<class IntType = unsigned int>

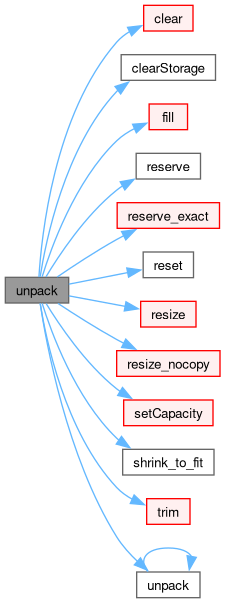

List< IntType >	unpack () const
	Return the values as a list of integral type.
template<class IntType = unsigned int>
List< IntType >	unpack (const labelRange &range) const
	Return the range of values as a list of integral type.
template<class IntType = unsigned int>
List< IntType >	unpack (const labelUList &locations) const
	Extract the values for the specified locations as a list of integral type.

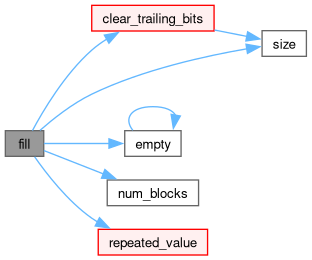

void	fill (const unsigned int val)
	Assign all entries to the given value.
bool	trim (label minpos=-1)
	Trim any trailing zero elements, optionally specifying a a minimum position, below which trimming will not occur.

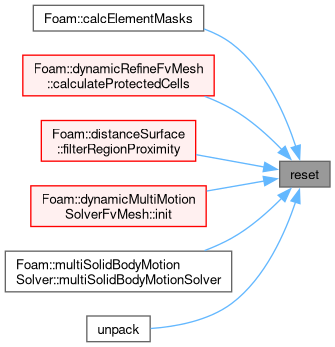

void	reset ()
	Clear all bits but do not adjust the addressable size.
void	setCapacity (const label numElem)
	Alter the size of the underlying storage.

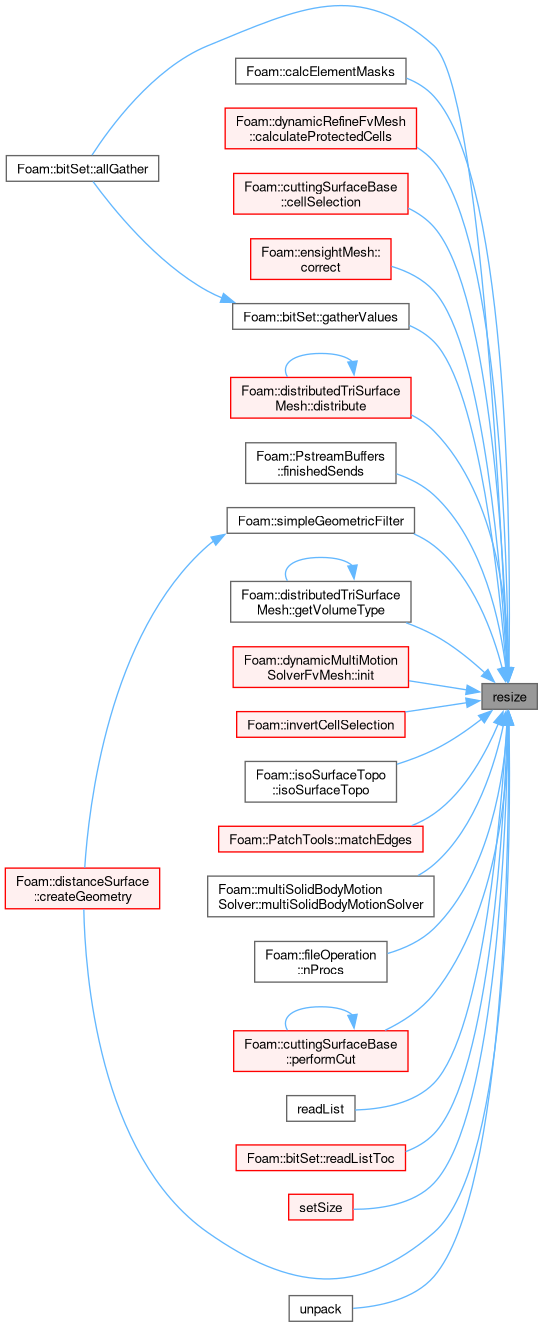

void	resize (const label numElem, const unsigned int val=0u)
	Reset addressable list size, does not shrink the allocated size.
void	resize_nocopy (const label numElem)
	Currently identical to resize. Subject to future change (Oct-2021).
void	reserve (const label numElem)
	Reserve allocation space for at least this size (uses a size doubling strategy).
void	reserve_exact (const label numElem)
	Reserve allocation space for at least this size (uses the specified size without any other resizing strategy).
void	clear ()
	Clear the list, i.e. set addressable size to zero.

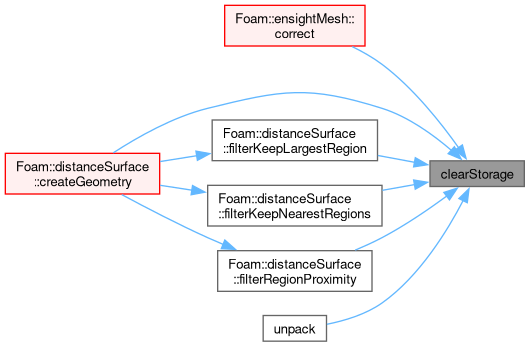

void	clearStorage ()
	Clear the list and delete storage.
void	shrink_to_fit ()
	Shrink the allocated space to what is actually used.
void	shrink ()
	Alias for shrink_to_fit().
void	swap (PackedList< Width > &rhs)
	Swap contents with argument.
void	transfer (PackedList< Width > &rhs)
	Transfer the contents of the argument list into this list and annul the argument list.

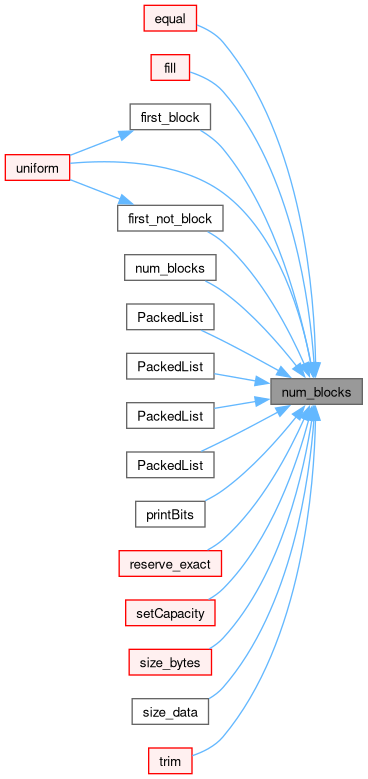

label	num_blocks () const noexcept
	The number of internal storage blocks.
const List< block_type > &	storage () const noexcept
	Return the underlying storage blocks.
List< block_type > &	storage () noexcept
	Return the underlying storage blocks.
const block_type *	cdata () const noexcept
	A const pointer to the raw storage.
block_type *	data () noexcept
	A pointer to the raw storage.
const char *	cdata_bytes () const noexcept
	A const pointer to the raw storage, reinterpreted as byte data.
char *	data_bytes () noexcept
	A pointer to the raw storage, reinterpreted as byte data.
std::streamsize	size_data () const noexcept
	The number of integer blocks addressed in the raw storage. Same as num_blocks().

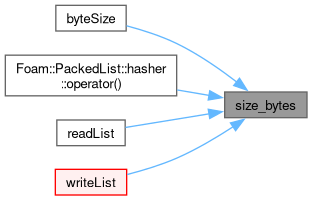

std::streamsize	size_bytes () const noexcept
	The number of bytes addressed in the raw storage including any padding.
std::streamsize	byteSize () const noexcept
	Same as size_bytes().
Ostream &	printBits (Ostream &os, bool debugOutput=false) const
	Print bit patterns, optionally with extra debug.

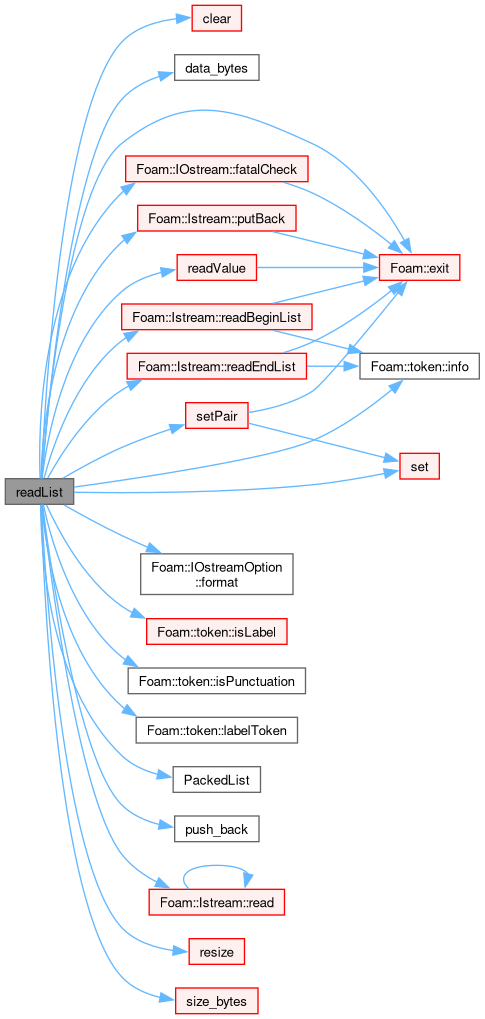

Istream &	readList (Istream &is)
	Clear list and read from stream.

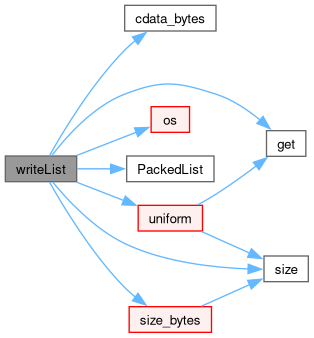

Ostream &	writeList (Ostream &os, label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
void	writeEntry (const word &keyword, Ostream &os) const
	Write as a dictionary entry with keyword.
void	push_back (const unsigned int val)
	Append a value at the end of the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
unsigned int	remove ()
	Remove and return the last element.
unsigned int	operator[] (const label i) const
	Identical to get() - get value at index.
reference	operator[] (const label i)
	Non-const access to value at index.
void	operator= (const PackedList< Width > &list)
	Copy assignment.
void	operator= (PackedList< Width > &&list)
	Move assignment.
void	operator= (const unsigned int val)
	Assign all entries to the given value. fill().
InfoProxy< PackedList< Width > >	info () const noexcept
	Return info proxy, used to print information to a stream.
void	assign (const unsigned int val)
	Deprecated(2020-11) use fill().
void	assign (const PackedList< Width > &rhs)
	Deprecated(2020-11) use operator=.
void	setSize (const label n, unsigned int val=0u)
	Alias for resize().
PackedList< Width > &	append (const unsigned int val)
	Append a value at the end of the list.
template<class IntType>
Foam::List< IntType >	unpack () const
template<class IntType>
Foam::List< IntType >	unpack (const labelRange &range) const
template<class IntType>
Foam::List< IntType >	unpack (const labelUList &locations) const
Public Member Functions inherited from PackedListCore
	ClassNameNoDebug ("PackedList")
	Define template name.

Static Public Member Functions
static constexpr label	num_blocks (label numElem) noexcept
	Calculate the number of blocks required to _address_ the requested number of elements.
static constexpr block_type	mask_lower (unsigned elementOffset)
	Masking for all bits below the element offset.

Static Public Attributes
static constexpr unsigned	bits_per_block = (std::numeric_limits<block_type>::digits)
	The number of bits in a single block.
static constexpr unsigned	element_width = (Width)
	The width of an individual element (in bits).
static constexpr unsigned	elem_per_block = (bits_per_block / Width)
	The number of elements stored per data block.
static constexpr block_type	max_value = ((1u << Width) - 1)
	The max value for an element which is also the bit-mask of the individual element.

Protected Types
typedef List< block_type >	block_container
	The internal container for storing the blocks.

Protected Member Functions

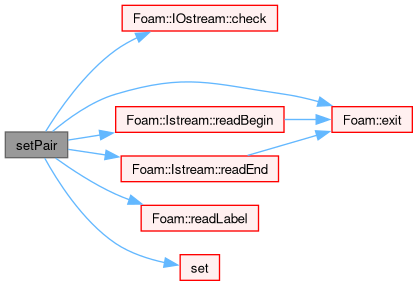

void	setPair (Istream &is)
	Read an index/value pair and set accordingly.
void	writeEntry (Ostream &os) const
	Write as a dictionary entry.
void	clear_trailing_bits ()
	Clear any partial rubbish in the last addressable block.
void	copyAssign (const PackedList< Width > &rhs)
	Copy assignment.
label	first_block () const
	Find the first block with a '1' bit.
label	first_not_block () const
	Find the first block with a '0' bit.
unsigned int	repeated_value (unsigned val)
unsigned int	readValue (Istream &is)
void	setPair (Istream &is)

Static Protected Member Functions
static unsigned int	repeated_value (unsigned val)
	Enforce non-zero Width to fit within the block storage and require at least 2 items per storage block for general efficiency.
static unsigned int	readValue (Istream &is)
	Read a list entry (allows for specialization).

Protected Attributes
block_container	blocks_
	The blocks of raw data.
label	size_
	Number of entries used.

Friends
Ostream &	operator<< (Ostream &os, const InfoProxy< PackedList< Width > > &info)
Istream &	operator>> (Istream &is, PackedList< Width > &list)

Detailed Description

template<unsigned Width>
class Foam::PackedList< Width >

A dynamic list of packed unsigned integers, with the number of bits per item specified by the <Width> template parameter.

Resizing is similar to DynamicList so that clear() and resize() affect the addressed size, but not the allocated size. The reserve() and setCapacity() methods can be used to influence the allocation.

Note: In a const context, the '[]' operator simply returns the stored value, with out-of-range elements returned as zero.

In a non-const context, the '[]' operator returns a reference to an existing value. When accessing out-of-range elements, some caution is required to ensure that the const version of the [] operator is actually being called. The get() method is functionally identical the the '[]' operator, but is always const access.

The set() and unset() methods return a bool if the value changed.

With const access, the get() method and 'operator[]' are identical. With non-const access, the 'operator[]' may be marginally slower get().

The set() method may be marginally faster than using the 'operator[]' supports auto-vivification and also returns a bool if the value changed, which can be useful for branching on changed values.

list.set(5, 4);
changed = list.set(5, 8);
if (changed) ...

In a const context, reading an out-of-range element returns zero without affecting the list size. For example,

list.resize(4);
Info<< list.get(10) << "\n";    // print zero, but doesn't adjust list
list.set(8);                    // auto-vivify

Also note that all unused internal storage elements are guaranteed to always be bit-wise zero. This property must not be violated by any inheriting classes.

Note: Iterators for this class have been intentionally removed, for performance reasons.

See also: Foam::BitOps Foam::DynamicList

Source files

Definition at line 143 of file PackedList.H.

Member Typedef Documentation

◆ block_type

template<unsigned Width>

typedef unsigned int block_type

The storage block type for bit elements.

Note: Type name compatibility with boost::dynamic_bitset

Definition at line 156 of file PackedList.H.

◆ block_container

template<unsigned Width>

typedef List<block_type> block_container

protected

The internal container for storing the blocks.

Definition at line 219 of file PackedList.H.

◆ const_reference

template<unsigned Width>

typedef unsigned int const_reference

Definition at line 302 of file PackedList.H.

Constructor & Destructor Documentation

◆ PackedList() [1/11]

template<unsigned Width>

PackedList ( )

inlineconstexprnoexcept

Default construct, zero-sized and no allocation.

Definition at line 237 of file PackedListI.H.

References blocks_, Foam::noexcept, and size_.

Referenced by append(), assign(), copyAssign(), equal(), info(), PackedList< Width >::hasher::operator()(), operator<<, operator=(), operator=(), operator>>, PackedList(), PackedList(), PackedList(), PackedList(), readList(), swap(), transfer(), and writeList().

Here is the caller graph for this function:

◆ PackedList() [2/11]

template<unsigned Width>

PackedList ( const label numElem )

inlineexplicit

Construct for given number of elements, initializes values to 0.

Definition at line 245 of file PackedListI.H.

References blocks_, num_blocks(), and size_.

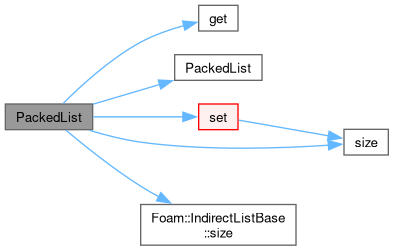

Here is the call graph for this function:

◆ PackedList() [3/11]

template<unsigned Width>

PackedList	(	const label	numElem,
		const unsigned int	val )

inline

Construct for given number of elements, and the specified value for each element.

Definition at line 253 of file PackedListI.H.

References blocks_, num_blocks(), operator=(), and size_.

Here is the call graph for this function:

◆ PackedList() [4/11]

template<unsigned Width>

PackedList ( Istream & is )

inline

Construct from Istream.

Definition at line 270 of file PackedListI.H.

References blocks_, and size_.

◆ PackedList() [5/11]

template<unsigned Width>

PackedList ( const PackedList< Width > & list )

inline

Copy construct.

Definition at line 280 of file PackedListI.H.

◆ PackedList() [6/11]

template<unsigned Width>

PackedList ( PackedList< Width > && list )

inline

Move construct.

Definition at line 288 of file PackedListI.H.

References blocks_, PackedList(), and size_.

Here is the call graph for this function:

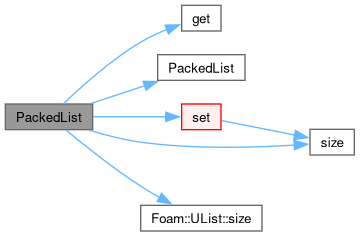

◆ PackedList() [7/11]

template<unsigned Width>

PackedList	(	const PackedList< Width > &	list,
		const labelUList &	addr )

Copy construct a subset.

Definition at line 26 of file PackedList.C.

References get(), PackedList(), set(), size(), and UList< T >::size().

Here is the call graph for this function:

◆ PackedList() [8/11]

template<unsigned Width>

template<class Addr>

PackedList	(	const PackedList< Width > &	list,
		const IndirectListBase< label, Addr > &	addr )

Copy construct a subset.

Definition at line 45 of file PackedList.C.

References get(), PackedList(), set(), IndirectListBase< T, Addr >::size(), and size().

Here is the call graph for this function:

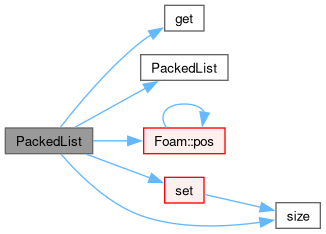

◆ PackedList() [9/11]

template<unsigned Width>

PackedList	(	const PackedList< Width > &	list,
		const labelRange &	range )

Copy construct a subset range.

Definition at line 63 of file PackedList.C.

References get(), PackedList(), Foam::pos(), range, set(), and size().

Here is the call graph for this function:

◆ PackedList() [10/11]

template<unsigned Width>

PackedList ( const labelUList & values )

inlineexplicit

Construct from a list of values.

Definition at line 298 of file PackedListI.H.

References blocks_, num_blocks(), size(), size_, and values().

Here is the call graph for this function:

◆ PackedList() [11/11]

template<unsigned Width>

template<class Addr>

PackedList ( const IndirectListBase< label, Addr > & values )

inlineexplicit

Construct from a indirect list of values.

Definition at line 318 of file PackedListI.H.

References blocks_, num_blocks(), set(), size(), size_, and values().

Here is the call graph for this function:

Member Function Documentation

◆ num_blocks() [1/2]

template<unsigned Width>

constexpr label num_blocks ( label numElem )

inlinestaticconstexprnoexcept

Calculate the number of blocks required to _address_ the requested number of elements.

We calculate this:

(numElem / elem_per_block)

+ (numElem % elem_per_block) ? 1 : 0

Foam::PackedList::elem_per_block

static constexpr unsigned elem_per_block

The number of elements stored per data block.

Definition PackedList.H:174

But avoiding the modulus operation

Definition at line 196 of file PackedList.H.

References elem_per_block.

Referenced by equal(), fill(), first_block(), first_not_block(), num_blocks(), PackedList(), PackedList(), PackedList(), PackedList(), printBits(), reserve_exact(), setCapacity(), size_bytes(), size_data(), trim(), and uniform().

Here is the caller graph for this function:

◆ mask_lower()

template<unsigned Width>

constexpr block_type mask_lower ( unsigned elementOffset )

inlinestaticconstexpr

Masking for all bits below the element offset.

Ill-defined when elementOffset is out of range.

Definition at line 206 of file PackedList.H.

References bits_per_block.

Referenced by clear_trailing_bits(), and first_not_block().

Here is the caller graph for this function:

◆ repeated_value() [1/2]

template<unsigned Width>

unsigned int repeated_value ( unsigned val )

inlinestaticprotected

Enforce non-zero Width to fit within the block storage and require at least 2 items per storage block for general efficiency.

Thus 1/2 of the base storage size is (sizeof(block_type)*8/2), or (sizeof(block_type) << 2)

A fill value for complete blocks

Definition at line 27 of file PackedListI.H.

References Foam::BitOps::repeat_value().

Referenced by fill(), and uniform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readValue() [1/2]

template<unsigned Width>

unsigned int readValue ( Istream & is )

inlinestaticprotected

Read a list entry (allows for specialization).

Definition at line 34 of file PackedListI.H.

References Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, max_value, and Foam::readLabel().

Referenced by readList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setPair() [1/2]

template<unsigned Width>

void setPair ( Istream & is )

inlineprotected

Read an index/value pair and set accordingly.

For bool specialization, read a single index value

Definition at line 51 of file PackedListI.H.

References IOstream::check(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FUNCTION_NAME, max_value, Istream::readBegin(), Istream::readEnd(), Foam::readLabel(), and set().

Referenced by readList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeEntry() [1/2]

template<unsigned Width>

void writeEntry ( Ostream & os ) const

protected

Write as a dictionary entry.

Definition at line 27 of file PackedListIO.C.

References os().

Here is the call graph for this function:

◆ clear_trailing_bits()

template<unsigned Width>

void clear_trailing_bits ( )

inlineprotected

Clear any partial rubbish in the last addressable block.

This rubbish may have arisen from block-wise operations etc.

Definition at line 76 of file PackedListI.H.

References blocks_, elem_per_block, mask_lower(), and size().

Referenced by fill().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ copyAssign()

template<unsigned Width>

void copyAssign ( const PackedList< Width > & rhs )

inlineprotected

Copy assignment.

Definition at line 135 of file PackedListI.H.

References blocks_, PackedList(), Foam::rhs(), and size_.

Referenced by operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ first_block()

template<unsigned Width>

Foam::label first_block ( ) const

inlineprotected

Find the first block with a '1' bit.

Returns: block number or -1 for an list or if all bits are OFF.

Definition at line 144 of file PackedListI.H.

References blocks_, num_blocks(), and size().

Referenced by uniform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ first_not_block()

template<unsigned Width>

Foam::label first_not_block ( ) const

inlineprotected

Find the first block with a '0' bit.

Returns: block number or -1 for an list or if all bits are ON.

Definition at line 164 of file PackedListI.H.

References blocks_, elem_per_block, mask_lower(), num_blocks(), and size().

Referenced by uniform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone()

template<unsigned Width>

Foam::autoPtr< Foam::PackedList< Width > > clone ( ) const

inline

Clone.

Definition at line 341 of file PackedListI.H.

References Foam::New().

Here is the call graph for this function:

◆ checkIndex()

template<unsigned Width>

void checkIndex ( const label i ) const

inline

Check index is within valid range [0,size).

Definition at line 419 of file PackedListI.H.

References FatalErrorInFunction, and size_.

Referenced by operator[]().

Here is the caller graph for this function:

◆ empty()

template<unsigned Width>

bool empty ( ) const

inlinenoexcept

True if the list is empty (ie, size() is zero).

Definition at line 387 of file PackedList.H.

References empty(), Foam::noexcept, and size_.

Referenced by ensightMesh::correct(), PatchTools::edgeNormals(), PatchTools::edgeNormals(), empty(), fill(), addPatchCellLayer::globalEdgeFaces(), PatchTools::pointNormals(), PatchTools::pointNormals(), trim(), and uniform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size()

template<unsigned Width>

label size ( ) const

inlinenoexcept

Number of entries.

Definition at line 392 of file PackedList.H.

References Foam::noexcept, and size_.

Referenced by AMICache::AMICache(), bitSet::andEq(), Foam::apply(), bitSet::bound(), polyDualMesh::calcFeatures(), meshRefinement::calculateEdgeWeights(), primitiveMesh::checkClosedBoundary(), clear_trailing_bits(), equal(), bitSet::extend(), fill(), addPatchCellLayer::findDuplicatedPoints(), PstreamBuffers::finishedSends(), first_block(), first_not_block(), meshRefinement::gAverage(), bitSet::intersects(), Foam::invert(), bitSet::minusEq(), num_blocks(), noiseModel::octaves(), PackedList< Width >::hasher::operator()(), Foam::operator<<(), bitSet::orEq(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), printBits(), ensightCase::printTimeset(), remove(), Foam::reorder(), resize(), set(), addPatchCellLayer::setRefinement(), size_bytes(), size_data(), syncTools::syncEdgeList(), syncTools::syncFaceList(), syncTools::syncPointList(), trim(), uniform(), unset(), meshRefinement::weightedSum(), AMICache::writeData(), writeList(), bitSet::writeListToc(), and bitSet::xorEq().

Here is the caller graph for this function:

◆ capacity()

template<unsigned Width>

Foam::label capacity ( ) const

inlinenoexcept

Number of elements that can be stored without reallocating.

Definition at line 437 of file PackedListI.H.

References blocks_, elem_per_block, and Foam::noexcept.

Referenced by Foam::operator<<().

Here is the caller graph for this function:

◆ uniform()

template<unsigned Width>

bool uniform ( ) const

True if all entries have identical values (and list is non-empty).

Definition at line 85 of file PackedList.C.

References blocks_, elem_per_block, empty(), first_block(), first_not_block(), get(), max_value, num_blocks(), repeated_value(), and size().

Referenced by writeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ equal()

template<unsigned Width>

bool equal ( const PackedList< Width > & other ) const

Test for equality of sizes and the bits set.

Definition at line 147 of file PackedList.C.

References blocks_, num_blocks(), PackedList(), Foam::rhs(), and size().

Referenced by Foam::operator!=(), and Foam::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get()

template<unsigned Width>

unsigned int get ( const label i ) const

inline

Get value at index i or 0 for out-of-range.

Never auto-vivify entries.

Definition at line 674 of file PackedListI.H.

Referenced by bitSet::bitSet(), bitSet::bitSet(), hexRef8::consistentUnrefinement(), operator[](), PackedList(), PackedList(), PackedList(), uniform(), and writeList().

Here is the caller graph for this function:

◆ set()

template<unsigned Width>

bool set	(	const label	i,
		unsigned int	val = ~0u )

inline

Set value at index i, default value set is the max_value.

Does auto-vivify for non-existent, non-zero entries.

Returns: true if value changed.

Definition at line 696 of file PackedListI.H.

References Foam::endl(), size(), size_, and WarningInFunction.

Referenced by PackedList(), PackedList(), PackedList(), PackedList(), readList(), setPair(), syncTools::syncFaceList(), bitSet::test_set(), and fileMonitor::updateStates().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unset()

template<unsigned Width>

bool unset ( const label i )

inline

Unset the entry at index i.

Never auto-vivify entries.

Returns: true if the value changed.

Definition at line 728 of file PackedListI.H.

References PackedList< Width >::reference::set(), and size().

Here is the call graph for this function:

◆ values()

template<unsigned Width>

Foam::labelList values ( ) const

Return the values as a list of labels.

Definition at line 170 of file PackedList.C.

References unpack().

Referenced by PackedList(), and PackedList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unpack() [1/6]

template<unsigned Width>

template<class IntType = unsigned int>

List< IntType > unpack ( ) const

Return the values as a list of integral type.

The default integral type is unsigned int.

References unpack().

Referenced by unpack(), unpack(), unpack(), and values().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unpack() [2/6]

template<unsigned Width>

template<class IntType = unsigned int>

List< IntType > unpack ( const labelRange & range ) const

Return the range of values as a list of integral type.

The default integral type is unsigned int.

References range, and unpack().

Here is the call graph for this function:

◆ unpack() [3/6]

template<unsigned Width>

template<class IntType = unsigned int>

List< IntType > unpack ( const labelUList & locations ) const

Extract the values for the specified locations as a list of integral type.

The default integral type is unsigned int.

References clear(), clearStorage(), fill(), reserve(), reserve_exact(), reset(), resize(), resize_nocopy(), setCapacity(), shrink_to_fit(), trim(), and unpack().

Here is the call graph for this function:

◆ fill()

template<unsigned Width>

void fill ( const unsigned int val )

inline

Assign all entries to the given value.

Definition at line 784 of file PackedListI.H.

References blocks_, clear_trailing_bits(), empty(), num_blocks(), repeated_value(), and size().

Referenced by assign(), operator=(), and unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ trim()

template<unsigned Width>

bool trim ( label minpos = -1 )

inline

Trim any trailing zero elements, optionally specifying a a minimum position, below which trimming will not occur.

Returns: true if trimming changed the size.

Definition at line 90 of file PackedListI.H.

References blocks_, elem_per_block, empty(), num_blocks(), size(), and size_.

Referenced by Foam::reorder(), and unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset()

template<unsigned Width>

void reset ( )

inline

Clear all bits but do not adjust the addressable size.

Note: Method name compatibility with boost::dynamic_bitset

Definition at line 570 of file PackedListI.H.

References blocks_.

Referenced by Foam::calcElementMasks(), dynamicRefineFvMesh::calculateProtectedCells(), distanceSurface::filterRegionProximity(), dynamicMultiMotionSolverFvMesh::init(), multiSolidBodyMotionSolver::multiSolidBodyMotionSolver(), and unpack().

Here is the caller graph for this function:

◆ setCapacity()

template<unsigned Width>

void setCapacity ( const label numElem )

inline

Alter the size of the underlying storage.

The addressed size will be truncated if needed to fit, but will remain otherwise untouched.

Definition at line 517 of file PackedListI.H.

References blocks_, and num_blocks().

Referenced by unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resize()

template<unsigned Width>

void resize	(	const label	numElem,
		const unsigned int	val = 0u )

inline

Reset addressable list size, does not shrink the allocated size.

Optionally specify a value for new elements.

Definition at line 454 of file PackedListI.H.

References reserve(), size(), and size_.

Referenced by bitSet::allGather(), Foam::calcElementMasks(), dynamicRefineFvMesh::calculateProtectedCells(), cuttingSurfaceBase::cellSelection(), ensightMesh::correct(), distanceSurface::createGeometry(), distributedTriSurfaceMesh::distribute(), PstreamBuffers::finishedSends(), bitSet::gatherValues(), distributedTriSurfaceMesh::getVolumeType(), dynamicMultiMotionSolverFvMesh::init(), Foam::invertCellSelection(), isoSurfaceTopo::isoSurfaceTopo(), PatchTools::matchEdges(), multiSolidBodyMotionSolver::multiSolidBodyMotionSolver(), fileOperation::nProcs(), cuttingSurfaceBase::performCut(), readList(), bitSet::readListToc(), setSize(), Foam::simpleGeometricFilter(), and unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ resize_nocopy()

template<unsigned Width>

void resize_nocopy ( const label numElem )

inline

Currently identical to resize. Subject to future change (Oct-2021).

Definition at line 444 of file PackedListI.H.

References resize().

Referenced by unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reserve()

template<unsigned Width>

void reserve ( const label numElem )

inline

Reserve allocation space for at least this size (uses a size doubling strategy).

Never shrinks the allocated size.

Definition at line 532 of file PackedListI.H.

References blocks_.

Referenced by Foam::reorder(), and unpack().

Here is the caller graph for this function:

◆ reserve_exact()

template<unsigned Width>

void reserve_exact ( const label numElem )

inline

Reserve allocation space for at least this size (uses the specified size without any other resizing strategy).

Never shrinks the allocated size.

Definition at line 551 of file PackedListI.H.

References blocks_, and num_blocks().

Referenced by unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear()

template<unsigned Width>

void clear ( )

inline

Clear the list, i.e. set addressable size to zero.

Does not adjust the underlying storage

Definition at line 577 of file PackedListI.H.

References reset(), and size_.

Referenced by dynamicRefineFvMesh::calculateProtectedCells(), readList(), bitSet::readListToc(), and unpack().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearStorage()

template<unsigned Width>

void clearStorage ( )

inline

Clear the list and delete storage.

Definition at line 585 of file PackedListI.H.

References blocks_, and size_.

Referenced by ensightMesh::correct(), distanceSurface::createGeometry(), distanceSurface::filterKeepLargestRegion(), distanceSurface::filterKeepNearestRegions(), distanceSurface::filterRegionProximity(), and unpack().

Here is the caller graph for this function:

◆ shrink_to_fit()

template<unsigned Width>

void shrink_to_fit ( )

inline

Shrink the allocated space to what is actually used.

Definition at line 593 of file PackedListI.H.

Referenced by shrink(), and unpack().

Here is the caller graph for this function:

◆ shrink()

template<unsigned Width>

void shrink ( )

inline

Alias for shrink_to_fit().

Definition at line 545 of file PackedList.H.

References shrink(), and shrink_to_fit().

Referenced by shrink().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ swap()

template<unsigned Width>

void swap ( PackedList< Width > & rhs )

inline

Swap contents with argument.

Definition at line 647 of file PackedListI.H.

References PackedList(), and Foam::rhs().

Referenced by bitSet::swap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transfer()

template<unsigned Width>

void transfer ( PackedList< Width > & rhs )

inline

Transfer the contents of the argument list into this list and annul the argument list.

Definition at line 660 of file PackedListI.H.

References PackedList(), and Foam::rhs().

Referenced by operator=(), and bitSet::transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ num_blocks() [2/2]

template<unsigned Width>

Foam::label num_blocks ( ) const

inlinenoexcept

The number of internal storage blocks.

Definition at line 605 of file PackedListI.H.

References Foam::noexcept, num_blocks(), and size().

Here is the call graph for this function:

◆ storage() [1/2]

template<unsigned Width>

const List< block_type > & storage ( ) const

inlinenoexcept

Return the underlying storage blocks.

Definition at line 569 of file PackedList.H.

References blocks_, Foam::noexcept, and storage().

Referenced by storage(), and fileMonitor::updateStates().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ storage() [2/2]

template<unsigned Width>

List< block_type > & storage ( )

inlinenoexcept

Return the underlying storage blocks.

Manipulate with utmost caution

Definition at line 576 of file PackedList.H.

References blocks_, and Foam::noexcept.

◆ cdata()

template<unsigned Width>

const block_type * cdata ( ) const

inlinenoexcept

A const pointer to the raw storage.

Definition at line 581 of file PackedList.H.

References blocks_, and Foam::noexcept.

Referenced by PackedList< Width >::hasher::operator()().

Here is the caller graph for this function:

◆ data()

template<unsigned Width>

block_type * data ( )

inlinenoexcept

A pointer to the raw storage.

Definition at line 586 of file PackedList.H.

References blocks_, and Foam::noexcept.

◆ cdata_bytes()

template<unsigned Width>

const char * cdata_bytes ( ) const

inlinenoexcept

A const pointer to the raw storage, reinterpreted as byte data.

Definition at line 612 of file PackedListI.H.

References Foam::noexcept.

Referenced by writeList().

Here is the caller graph for this function:

◆ data_bytes()

template<unsigned Width>

char * data_bytes ( )

inlinenoexcept

A pointer to the raw storage, reinterpreted as byte data.

Definition at line 619 of file PackedListI.H.

References blocks_, and Foam::noexcept.

Referenced by readList().

Here is the caller graph for this function:

◆ size_data()

template<unsigned Width>

std::streamsize size_data ( ) const

inlinenoexcept

The number of integer blocks addressed in the raw storage. Same as num_blocks().

Definition at line 626 of file PackedListI.H.

References Foam::noexcept, num_blocks(), and size().

Here is the call graph for this function:

◆ size_bytes()

template<unsigned Width>

std::streamsize size_bytes ( ) const

inlinenoexcept

The number of bytes addressed in the raw storage including any padding.

Definition at line 633 of file PackedListI.H.

References Foam::noexcept, num_blocks(), and size().

Referenced by byteSize(), PackedList< Width >::hasher::operator()(), readList(), and writeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ byteSize()

template<unsigned Width>

std::streamsize byteSize ( ) const

inlinenoexcept

Same as size_bytes().

Definition at line 640 of file PackedListI.H.

References Foam::noexcept, and size_bytes().

Here is the call graph for this function:

◆ printBits()

template<unsigned Width>

Foam::Ostream & printBits	(	Ostream &	os,
		bool	debugOutput = false ) const

Print bit patterns, optionally with extra debug.

Definition at line 36 of file PackedListIO.C.

References token::BEGIN_LIST, blocks_, token::END_LIST, Foam::nl, num_blocks(), os(), Foam::BitOps::print(), and size().

Here is the call graph for this function:

◆ readList()

template<unsigned Width>

Foam::Istream & readList ( Istream & is )

Clear list and read from stream.

Definition at line 57 of file PackedListIO.C.

References token::BEGIN_BLOCK, token::BEGIN_LIST, IOstreamOption::BINARY, clear(), data_bytes(), token::END_BLOCK, token::END_LIST, Foam::exit(), IOstream::fatalCheck(), Foam::FatalIOError, FatalIOErrorInFunction, IOstreamOption::format(), FUNCTION_NAME, token::info(), token::isLabel(), token::isPunctuation(), token::labelToken(), Foam::nl, PackedList(), push_back(), Istream::putBack(), Istream::read(), Istream::readBeginList(), Istream::readEndList(), readValue(), resize(), set(), setPair(), and size_bytes().

Here is the call graph for this function:

◆ writeList()

template<unsigned Width>

Foam::Ostream & writeList	(	Ostream &	os,
		label	shortLen = 0 ) const

Write List, with line-breaks in ASCII when length exceeds shortLen.

Using '0' suppresses line-breaks entirely.

Definition at line 171 of file PackedListIO.C.

References token::BEGIN_BLOCK, token::BEGIN_LIST, IOstreamOption::BINARY, cdata_bytes(), token::END_BLOCK, token::END_LIST, get(), Foam::nl, os(), PackedList(), size(), size_bytes(), token::SPACE, and uniform().

Referenced by Foam::operator<<(), and Foam::operator<<().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeEntry() [2/2]

template<unsigned Width>

void writeEntry	(	const word &	keyword,
		Ostream &	os ) const

Write as a dictionary entry with keyword.

Definition at line 262 of file PackedListIO.C.

References os().

Here is the call graph for this function:

◆ push_back()

template<unsigned Width>

void push_back ( const unsigned int val )

inline

Append a value at the end of the list.

Definition at line 740 of file PackedListI.H.

Referenced by append(), and readList().

Here is the caller graph for this function:

◆ pop_back()

template<unsigned Width>

void pop_back ( label n = 1 )

inline

Reduce size by 1 or more elements. Can be called on an empty list.

Definition at line 751 of file PackedListI.H.

◆ remove()

template<unsigned Width>

unsigned int remove ( )

inline

Remove and return the last element.

Definition at line 765 of file PackedListI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, PackedList< Width >::reference::get(), resize(), and size().

Here is the call graph for this function:

◆ operator[]() [1/2]

template<unsigned Width>

unsigned int operator[] ( const label i ) const

inline

Identical to get() - get value at index.

Never auto-vivify entries.

Definition at line 811 of file PackedListI.H.

References get().

Here is the call graph for this function:

◆ operator[]() [2/2]

template<unsigned Width>

Foam::PackedList< Width >::reference operator[] ( const label i )

inline

Non-const access to value at index.

Fatal for out-of-range indices

Definition at line 819 of file PackedListI.H.

References checkIndex().

Here is the call graph for this function:

◆ operator=() [1/3]

template<unsigned Width>

void operator= ( const PackedList< Width > & list )

inline

Copy assignment.

Definition at line 829 of file PackedListI.H.

References copyAssign(), PackedList(), and Foam::rhs().

Referenced by bitSet::operator=(), and PackedList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [2/3]

template<unsigned Width>

void operator= ( PackedList< Width > && list )

inline

Move assignment.

Definition at line 836 of file PackedListI.H.

References PackedList(), Foam::rhs(), and transfer().

Here is the call graph for this function:

◆ operator=() [3/3]

template<unsigned Width>

void operator= ( const unsigned int val )

inline

Assign all entries to the given value. fill().

Definition at line 843 of file PackedListI.H.

References fill().

Here is the call graph for this function:

◆ info()

template<unsigned Width>

InfoProxy< PackedList< Width > > info ( ) const

inlinenoexcept

Return info proxy, used to print information to a stream.

Definition at line 761 of file PackedList.H.

References info(), Foam::noexcept, and PackedList().

Referenced by info(), and operator<<.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assign() [1/2]

template<unsigned Width>

void assign ( const unsigned int val )

inline

Deprecated(2020-11) use fill().

Deprecated: (2020-11) use fill()

Definition at line 807 of file PackedList.H.

References fill().

Here is the call graph for this function:

◆ assign() [2/2]

template<unsigned Width>

void assign ( const PackedList< Width > & rhs )

inline

Deprecated(2020-11) use operator=.

Deprecated: (2020-11) use operator=

Definition at line 814 of file PackedList.H.

References PackedList(), and Foam::rhs().

Here is the call graph for this function:

◆ setSize()

template<unsigned Width>

void setSize	(	const label	n,
		unsigned int	val = 0u )

inline

Alias for resize().

Definition at line 819 of file PackedList.H.

References n, and resize().

Referenced by meshRefinement::markOutsideFaces().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ append()

template<unsigned Width>

PackedList< Width > & append ( const unsigned int val )

inline

Append a value at the end of the list.

FOAM_DEPRECATED_FOR(2022-10, "push_back()")

Definition at line 826 of file PackedList.H.

References PackedList(), and push_back().

Here is the call graph for this function:

◆ unpack() [4/6]

template<unsigned Width>

template<class IntType>

Foam::List< IntType > unpack ( ) const

Definition at line 179 of file PackedList.C.

◆ unpack() [5/6]

template<unsigned Width>

template<class IntType>

Foam::List< IntType > unpack ( const labelRange & range ) const

Definition at line 235 of file PackedList.C.

◆ unpack() [6/6]

template<unsigned Width>

template<class IntType>

Foam::List< IntType > unpack ( const labelUList & locations ) const

Definition at line 269 of file PackedList.C.

◆ repeated_value() [2/2]

unsigned int repeated_value ( unsigned val )

inlineprotected

Definition at line 216 of file PackedListI.H.

◆ readValue() [2/2]

unsigned int readValue ( Istream & is )

inlineprotected

Definition at line 221 of file PackedListI.H.

◆ setPair() [2/2]

void setPair ( Istream & is )

inlineprotected

Definition at line 226 of file PackedListI.H.

◆ operator<<

template<unsigned Width>

Ostream & operator<<	(	Ostream &	os,
		const InfoProxy< PackedList< Width > > &	info )

friend

References info(), os(), and PackedList().

◆ operator>>

template<unsigned Width>

Istream & operator>>	(	Istream &	is,
		PackedList< Width > &	list )

friend

References PackedList().

Member Data Documentation

◆ bits_per_block

template<unsigned Width>

unsigned bits_per_block = (std::numeric_limits<block_type>::digits)

staticconstexpr

The number of bits in a single block.

Note: Type name compatibility with boost::dynamic_bitset

Definition at line 163 of file PackedList.H.

Referenced by mask_lower().

◆ element_width

template<unsigned Width>

unsigned element_width = (Width)

staticconstexpr

The width of an individual element (in bits).

Definition at line 169 of file PackedList.H.

◆ elem_per_block

template<unsigned Width>

unsigned elem_per_block = (bits_per_block / Width)

staticconstexpr

The number of elements stored per data block.

Definition at line 174 of file PackedList.H.

Referenced by bitSet::assign(), capacity(), clear_trailing_bits(), first_not_block(), num_blocks(), trim(), and uniform().

◆ max_value

template<unsigned Width>

block_type max_value = ((1u << Width) - 1)

staticconstexpr

The max value for an element which is also the bit-mask of the individual element.

Eg, for Width=2: ((1 << 2) - 1) == 0b0011

Definition at line 182 of file PackedList.H.

Referenced by PackedList< Width >::reference::get(), readValue(), PackedList< Width >::reference::set(), setPair(), uniform(), and PackedList< 1 >::unpack().

◆ blocks_

template<unsigned Width>

block_container blocks_

protected

The blocks of raw data.

Definition at line 224 of file PackedList.H.

Referenced by bitSet::andEq(), capacity(), cdata(), clear_trailing_bits(), clearStorage(), copyAssign(), data(), data_bytes(), equal(), fill(), first_block(), first_not_block(), bitSet::intersects(), bitSet::minusEq(), bitSet::orEq(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), printBits(), reserve(), reserve_exact(), reset(), setCapacity(), storage(), storage(), trim(), uniform(), and bitSet::xorEq().

◆ size_

template<unsigned Width>

label size_

protected

Number of entries used.

Definition at line 229 of file PackedList.H.

Referenced by checkIndex(), clear(), clearStorage(), copyAssign(), empty(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), PackedList(), resize(), set(), size(), and trim().

The documentation for this class was generated from the following files:

src/OpenFOAM/containers/Bits/PackedList/PackedList.H
src/OpenFOAM/containers/Bits/PackedList/PackedList.C
src/OpenFOAM/containers/Bits/PackedList/PackedListI.H
src/OpenFOAM/containers/Bits/PackedList/PackedListIO.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ block_type

◆ block_container

◆ const_reference

Constructor & Destructor Documentation

◆ PackedList() [1/11]

◆ PackedList() [2/11]

◆ PackedList() [3/11]

◆ PackedList() [4/11]

◆ PackedList() [5/11]

◆ PackedList() [6/11]

◆ PackedList() [7/11]

◆ PackedList() [8/11]

◆ PackedList() [9/11]

◆ PackedList() [10/11]

◆ PackedList() [11/11]

Member Function Documentation

◆ num_blocks() [1/2]

◆ mask_lower()

◆ repeated_value() [1/2]

◆ readValue() [1/2]

◆ setPair() [1/2]

◆ writeEntry() [1/2]

◆ clear_trailing_bits()

◆ copyAssign()

◆ first_block()

◆ first_not_block()

◆ clone()

◆ checkIndex()

◆ empty()

◆ size()

◆ capacity()

◆ uniform()

◆ equal()

◆ get()

◆ set()

◆ unset()

◆ values()

◆ unpack() [1/6]

◆ unpack() [2/6]

◆ unpack() [3/6]

◆ fill()

◆ trim()

◆ reset()

◆ setCapacity()

◆ resize()

◆ resize_nocopy()

◆ reserve()

◆ reserve_exact()

◆ clear()

◆ clearStorage()

◆ shrink_to_fit()

◆ shrink()

◆ swap()

◆ transfer()

◆ num_blocks() [2/2]

◆ storage() [1/2]

◆ storage() [2/2]

◆ cdata()

◆ data()

◆ cdata_bytes()

◆ data_bytes()

◆ size_data()

◆ size_bytes()

◆ byteSize()

◆ printBits()

◆ readList()

◆ writeList()

◆ writeEntry() [2/2]
