Wave propagation of information along patch. Every iteration information goes through one layer of faces. Templated on information that is transferred. More...

#include <PatchEdgeFaceWave.H>

Inheritance diagram for PatchEdgeFaceWave< PrimitivePatchType, Type, TrackingData >:

[legend]

Collaboration diagram for PatchEdgeFaceWave< PrimitivePatchType, Type, TrackingData >:

[legend]

Public Member Functions
	PatchEdgeFaceWave (const polyMesh &mesh, const PrimitivePatchType &patch, const labelList &initialEdges, const List< Type > &initialEdgesInfo, UList< Type > &allEdgeInfo, UList< Type > &allFaceInfo, const label maxIter, TrackingData &td=PatchEdgeFaceWaveBase::dummyTrackData_)
	Construct from patch, list of changed edges with the Type for these edges.
	PatchEdgeFaceWave (const polyMesh &mesh, const PrimitivePatchType &patch, UList< Type > &allEdgeInfo, UList< Type > &allFaceInfo, TrackingData &td=PatchEdgeFaceWaveBase::dummyTrackData_)
	Construct from patch.
UList< Type > &	allEdgeInfo () const noexcept
	Access allEdgeInfo.
UList< Type > &	allFaceInfo () const noexcept
	Access allFaceInfo.
const TrackingData &	data () const noexcept
	Additional data to be passed into container.
void	setEdgeInfo (const labelUList &changedEdges, const UList< Type > &changedEdgesInfo)
	Copy initial data into allEdgeInfo_.
label	edgeToFace ()
	Propagate from edge to face.
label	faceToEdge ()
	Propagate from face to edge.
label	iterate (const label maxIter)
	Iterate until no changes or maxIter reached.
Public Member Functions inherited from PatchEdgeFaceWaveBase
	ClassName ("PatchEdgeFaceWave")
	Runtime type information.
	PatchEdgeFaceWaveBase (const polyMesh &mesh, const label nEdges, const label nFaces)
	Construct with mesh reference and set initial sizes.
const polyMesh &	mesh () const noexcept
	Return access to the mesh.
label	nChangedEdges () const noexcept
	Current number of changed edges.
label	nChangedFaces () const noexcept
	Current number of changed faces.
label	nUnvisitedFaces () const noexcept
	Number of unvisited faces, i.e. faces that were not (yet) reached from walking across patch.
label	nUnvisitedEdges () const noexcept

Additional Inherited Members
Static Public Member Functions inherited from PatchEdgeFaceWaveBase
static scalar	propagationTol () noexcept
	Access to propagation tolerance.
static scalar	setPropagationTol (const scalar tol) noexcept
	Change propagation tolerance, return previous value.
Static Public Attributes inherited from PatchEdgeFaceWaveBase
static label	dummyTrackData_ = 12345
	Default trackData value (for default template argument).
Protected Attributes inherited from PatchEdgeFaceWaveBase
const polyMesh &	mesh_
	Reference to mesh.
bitSet	changedEdge_
	Track if edge has changed.
bitSet	changedFace_
	Track if face has changed.
DynamicList< label >	changedEdges_
	List of changed edges.
DynamicList< label >	changedFaces_
	List of changed faces.
label	nUnvisitedEdges_
	Number of unvisited edges.
label	nUnvisitedFaces_
	Number of unvisited faces.
Static Protected Attributes inherited from PatchEdgeFaceWaveBase
static scalar	propagationTol_ = 0.01
	Relative tolerance.

Detailed Description

template<class PrimitivePatchType, class Type, class TrackingData = label>
class Foam::PatchEdgeFaceWave< PrimitivePatchType, Type, TrackingData >

Wave propagation of information along patch. Every iteration information goes through one layer of faces. Templated on information that is transferred.

Source files

Definition at line 199 of file PatchEdgeFaceWave.H.

Constructor & Destructor Documentation

◆ PatchEdgeFaceWave() [1/2]

template<class PrimitivePatchType, class Type, class TrackingData>

PatchEdgeFaceWave	(	const polyMesh &	mesh,
		const PrimitivePatchType &	patch,
		const labelList &	initialEdges,
		const List< Type > &	initialEdgesInfo,
		UList< Type > &	allEdgeInfo,
		UList< Type > &	allFaceInfo,
		const label	maxIter,
		TrackingData &	td = PatchEdgeFaceWaveBase::dummyTrackData_ )

Construct from patch, list of changed edges with the Type for these edges.

Obtains work arrays to operate on, one of size number of patch edges, the other number of patch faces. Iterates until nothing changes or maxIter reached. (maxIter can be 0)

Definition at line 261 of file PatchEdgeFaceWave.C.

References allEdgeInfo(), allFaceInfo(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, iterate(), PatchTools::matchEdges(), PatchEdgeFaceWaveBase::mesh(), PatchEdgeFaceWaveBase::mesh_, PatchEdgeFaceWaveBase::nChangedEdges(), PatchEdgeFaceWaveBase::nChangedFaces(), Foam::nl, PatchEdgeFaceWaveBase::PatchEdgeFaceWaveBase(), Foam::Pout, setEdgeInfo(), and td().

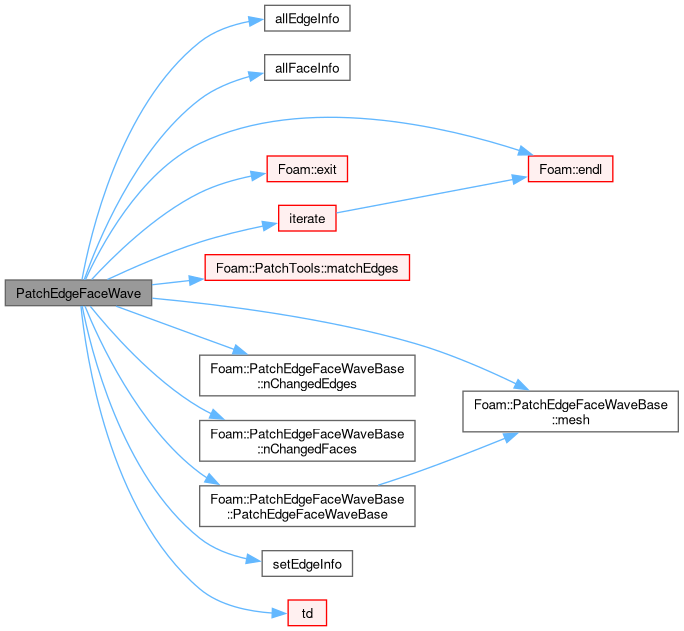

Here is the call graph for this function:

◆ PatchEdgeFaceWave() [2/2]

template<class PrimitivePatchType, class Type, class TrackingData>

PatchEdgeFaceWave	(	const polyMesh &	mesh,
		const PrimitivePatchType &	patch,
		UList< Type > &	allEdgeInfo,
		UList< Type > &	allFaceInfo,
		TrackingData &	td = PatchEdgeFaceWaveBase::dummyTrackData_ )
