Mesh consisting of general polyhedral cells. More...
#include <polyMesh.H>
Public Types | |
| enum | readUpdateState { UNCHANGED , POINTS_MOVED , TOPO_CHANGE , TOPO_PATCH_CHANGE } |
| Enumeration defining the state of the mesh after a read update. More... | |
| enum | cellDecomposition { FACE_PLANES , FACE_CENTRE_TRIS , FACE_DIAG_TRIS , CELL_TETS } |
| Enumeration defining the decomposition of the cell for. More... | |
| typedef polyMesh | Mesh |
| The mesh type. | |
| typedef polyBoundaryMesh | BoundaryMesh |
| The boundary type associated with the mesh. | |
| Public Types inherited from IOobject | |
| enum | objectState : char { GOOD , BAD } |
| Enumeration defining the valid states of an IOobject. More... | |
| enum | fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 } |
| Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More... | |
| Public Types inherited from IOobjectOption | |
| enum | readOption : unsigned char { NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 , LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 } |
| Enumeration defining read preferences. More... | |
| enum | writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 } |
| Enumeration defining write preferences. More... | |
| enum | registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 } |
| Enumeration for use with registerObject(). Values map to bool (false/true). More... | |
| enum class | Layout : unsigned char { regular , global } |
| The layout of the case structure. More... | |
| Public Types inherited from HashTable< regIOobject * > | |
| typedef HashTable< regIOobject *, word, Foam::Hash< word > > | this_type |
| The template instance used for this HashTable. | |
| using | node_type |
| A table entry (node) that encapsulates the key/val tuple with an additional linked-list entry for hash collisions. | |
| typedef word | key_type |
| The second template parameter, type of keys used. | |
| typedef regIOobject * | mapped_type |
| The first template parameter, type of objects contained. | |
| typedef regIOobject * | value_type |
| Same as mapped_type for OpenFOAM HashTables. | |
| typedef Foam::Hash< word > | hasher |
| The third template parameter, the hash index method. | |
| typedef regIOobject ** | pointer |
| Pointer type for storing into value_type objects. | |
| typedef regIOobject *& | reference |
| Reference to the stored value_type. | |
| typedef const regIOobject ** | const_pointer |
| Const pointer type for the stored value_type. | |
| typedef const regIOobject *& | const_reference |
| Const reference to the stored value_type. | |
| typedef label | difference_type |
| The type to represent the difference between two iterators. | |
| typedef label | size_type |
| The type that can represent the size of a HashTable. | |
| using | key_iterator |
| Forward iterator returning the key. | |
| using | const_key_iterator |
| Forward const iterator returning the key. | |
Public Member Functions | |
| TypeName ("polyMesh") | |
| Runtime type information. | |

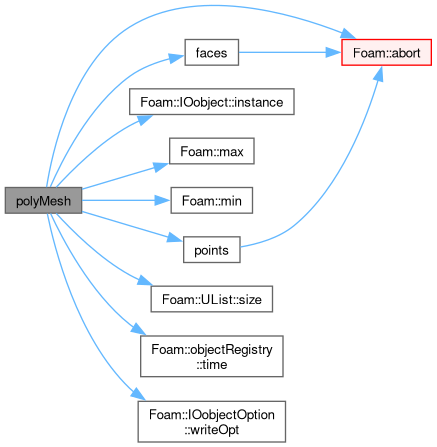

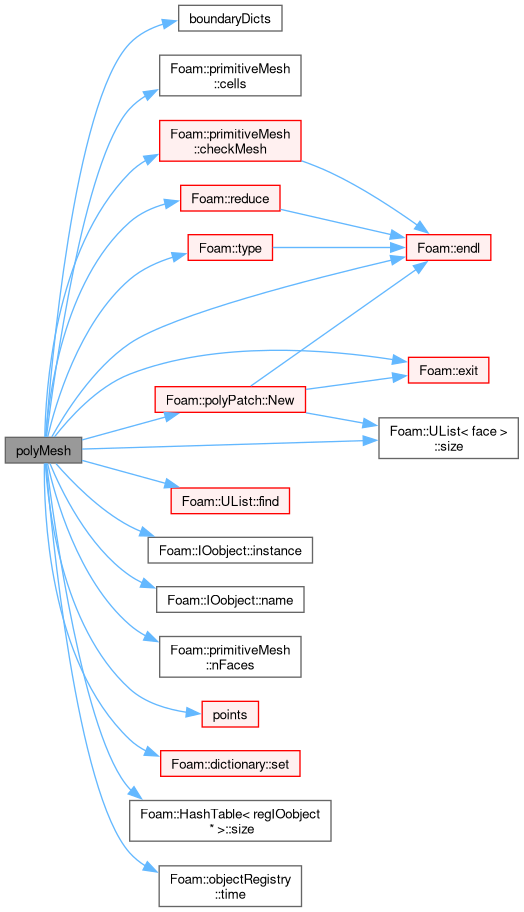

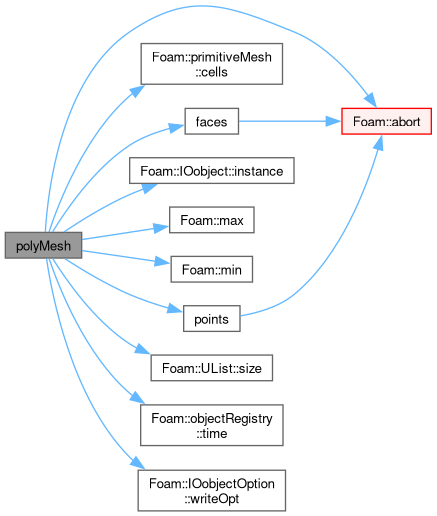

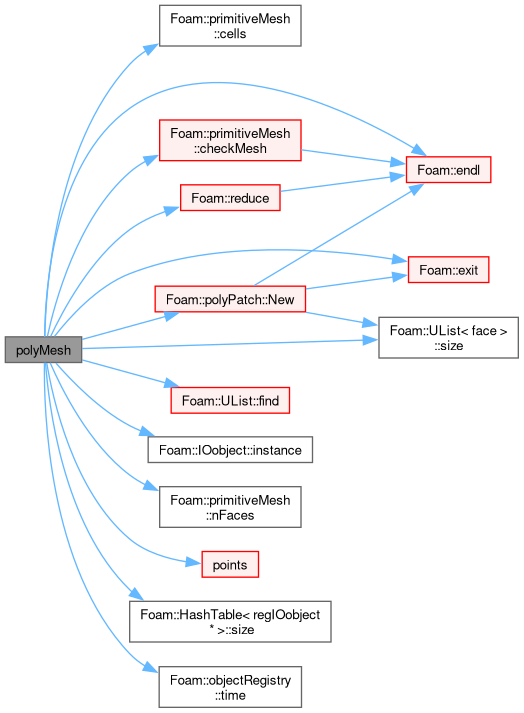

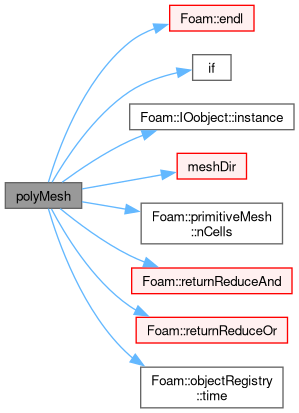

| polyMesh (const IOobject &io, const bool doInit=true) | |
| Read construct from IOobject. | |
| polyMesh (const IOobject &io, const Foam::zero, const bool syncPar=true) | |
| Construct from IOobject or as zero-sized mesh. | |
| polyMesh (const IOobject &io, pointField &&points, faceList &&faces, labelList &&owner, labelList &&neighbour, const bool syncPar=true) | |
| Construct from IOobject and components. | |
| polyMesh (const IOobject &io, pointField &&points, faceList &&faces, cellList &&cells, const bool syncPar=true) | |
| Construct without boundary with cells rather than owner/neighbour. | |
| polyMesh (const IOobject &io, pointField &&points, const cellShapeList &shapes, const faceListList &boundaryFaces, const wordList &boundaryPatchNames, const wordList &boundaryPatchTypes, const word &defaultBoundaryPatchName, const word &defaultBoundaryPatchType, const wordList &boundaryPatchPhysicalTypes, const bool syncPar=true) | |
| Construct from cell shapes. | |
| polyMesh (const IOobject &io, pointField &&points, const cellShapeList &shapes, const faceListList &boundaryFaces, const wordList &boundaryPatchNames, const PtrList< dictionary > &boundaryDicts, const word &defaultBoundaryPatchName, const word &defaultBoundaryPatchType, const bool syncPar=true) | |
| Construct from cell shapes, with patch information in dictionary format. | |
| virtual | ~polyMesh () |
| Destructor. | |
| virtual const fileName & | dbDir () const |
| Override the objectRegistry dbDir for a single-region case. | |

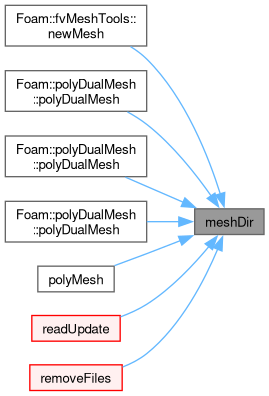

| fileName | meshDir () const |
| Return the local mesh directory (dbDir()/meshSubDir). | |

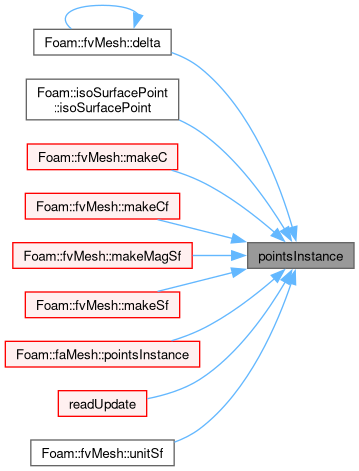

| const fileName & | pointsInstance () const |
| Return the current instance directory for points. | |
| const fileName & | facesInstance () const |
| Return the current instance directory for faces. | |

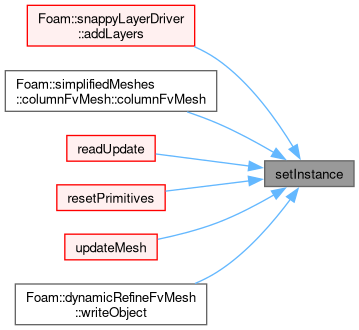

| void | setInstance (const fileName &instance, const IOobjectOption::writeOption wOpt=IOobject::AUTO_WRITE) |
| Set the instance for mesh files. | |

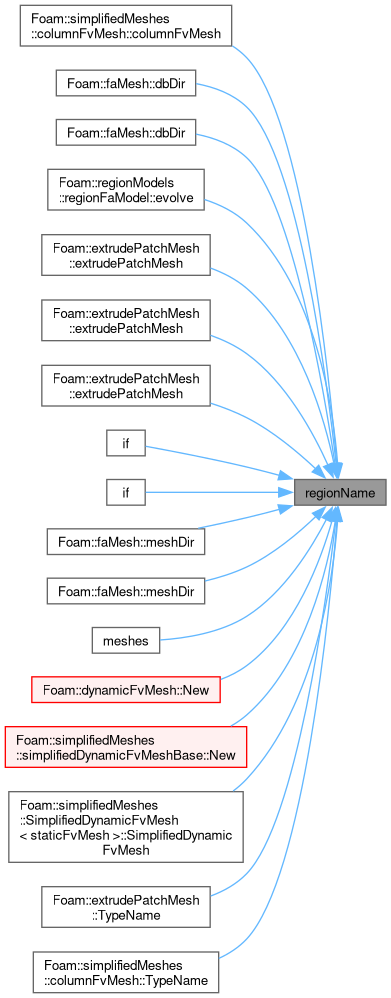

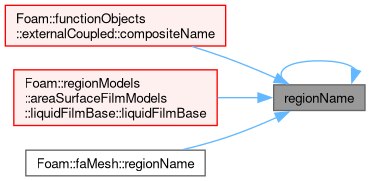

| const word & | regionName () const |
| The mesh region name or word::null if polyMesh::defaultRegion. | |
| virtual const meshState & | data () const noexcept |
| Const reference to the mesh and solver state data. | |
| virtual meshState & | data () noexcept |
| Reference to the mesh and solver state data. | |
| virtual const pointField & | points () const |
| Return raw points. | |
| virtual bool | upToDatePoints (const regIOobject &io) const |
| Return true if io is up-to-date with points. | |
| virtual void | setUpToDatePoints (regIOobject &io) const |
| Set io to be up-to-date with points. | |
| virtual const faceList & | faces () const |
| Return raw faces. | |

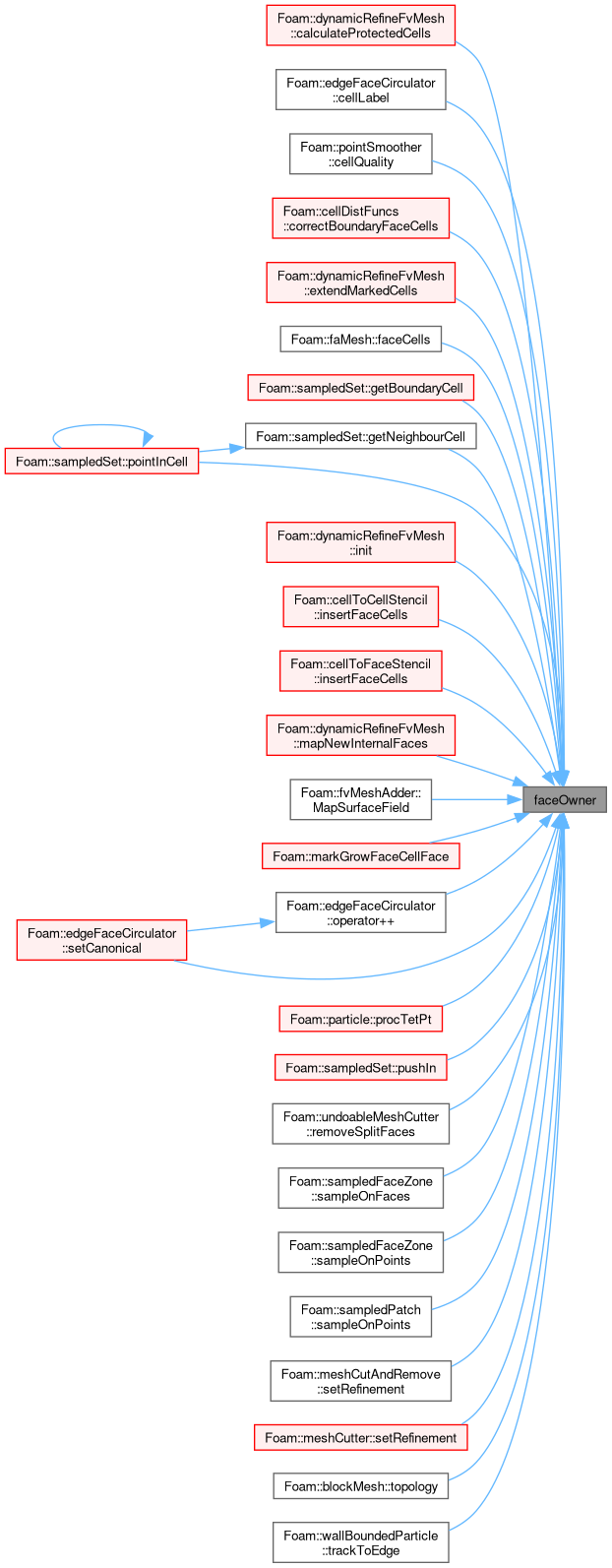

| virtual const labelList & | faceOwner () const |
| Return face owner. | |

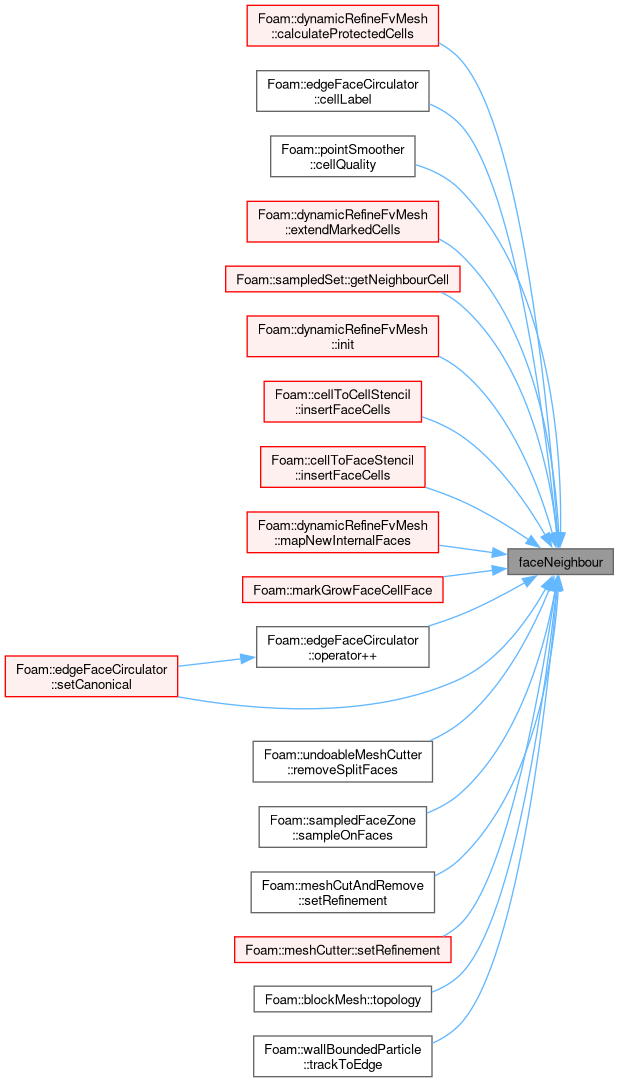

| virtual const labelList & | faceNeighbour () const |
| Return face neighbour. | |

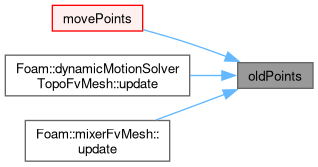

| virtual const pointField & | oldPoints () const |
| Return old points (mesh motion). | |
| virtual const pointField & | oldCellCentres () const |
| Return old cellCentres (mesh motion). | |
| const polyBoundaryMesh & | boundaryMesh () const noexcept |
| Return boundary mesh. | |

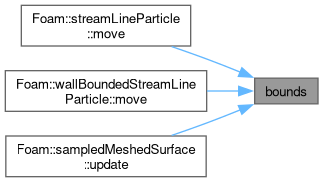

| const boundBox & | bounds () const noexcept |
| Return mesh bounding box. | |
| const Vector< label > & | geometricD () const |
| Return the vector of geometric directions in mesh. | |
| label | nGeometricD () const |
| Return the number of valid geometric dimensions in the mesh. | |
| const Vector< label > & | solutionD () const |
| Return the vector of solved-for directions in mesh. | |
| label | nSolutionD () const |
| Return the number of valid solved-for dimensions in the mesh. | |

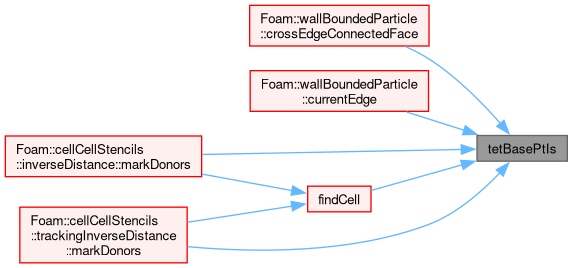

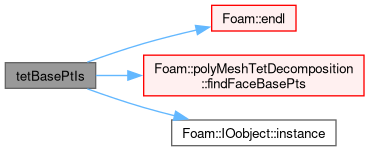

| const labelIOList & | tetBasePtIs () const |
| Return the tetBasePtIs. | |
| const indexedOctree< treeDataCell > & | cellTree () const |
| Return the cell search tree. | |

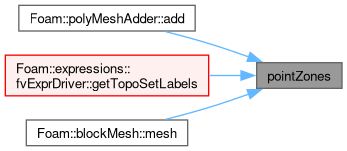

| const pointZoneMesh & | pointZones () const noexcept |
| Return point zone mesh. | |

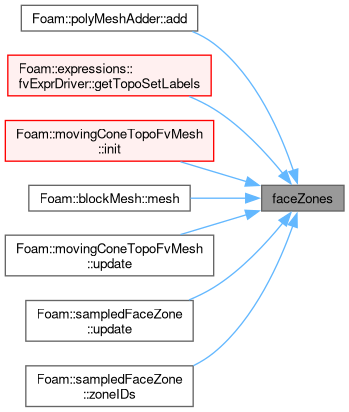

| const faceZoneMesh & | faceZones () const noexcept |
| Return face zone mesh. | |

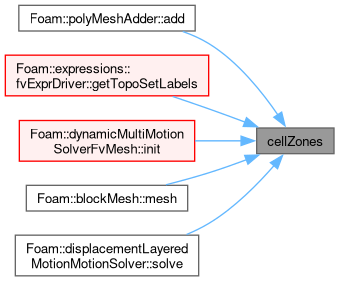

| const cellZoneMesh & | cellZones () const noexcept |
| Return cell zone mesh. | |
| const objectRegistry & | thisDb () const noexcept |
| Return the object registry. | |
| label | comm () const noexcept |
| The communicator used for parallel communication. | |
| label & | comm () noexcept |
| The communicator used for parallel communication. | |
| bool | hasGlobalData () const noexcept |
| Is demand-driven parallel info available? | |

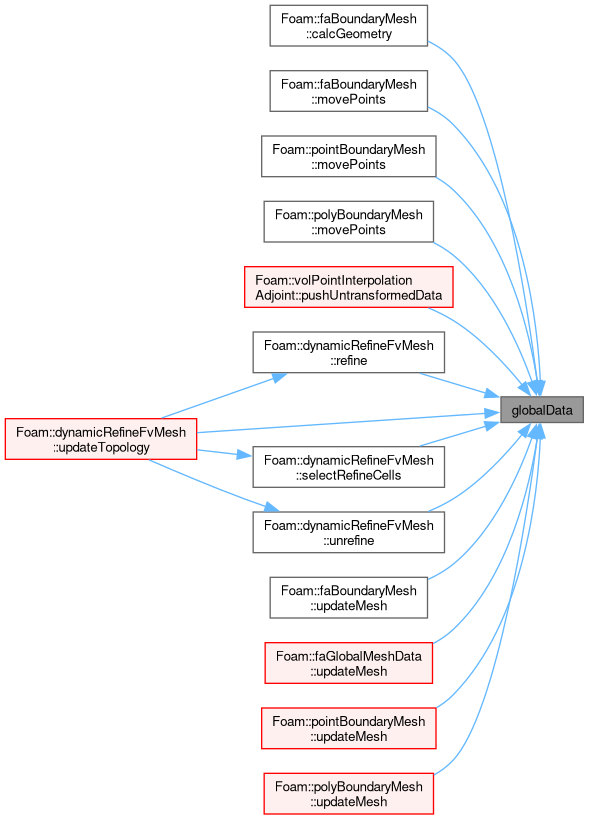

| const globalMeshData & | globalData () const |
| Return parallel info (demand-driven). | |
| virtual bool | dynamic () const |
| Is mesh dynamic. | |

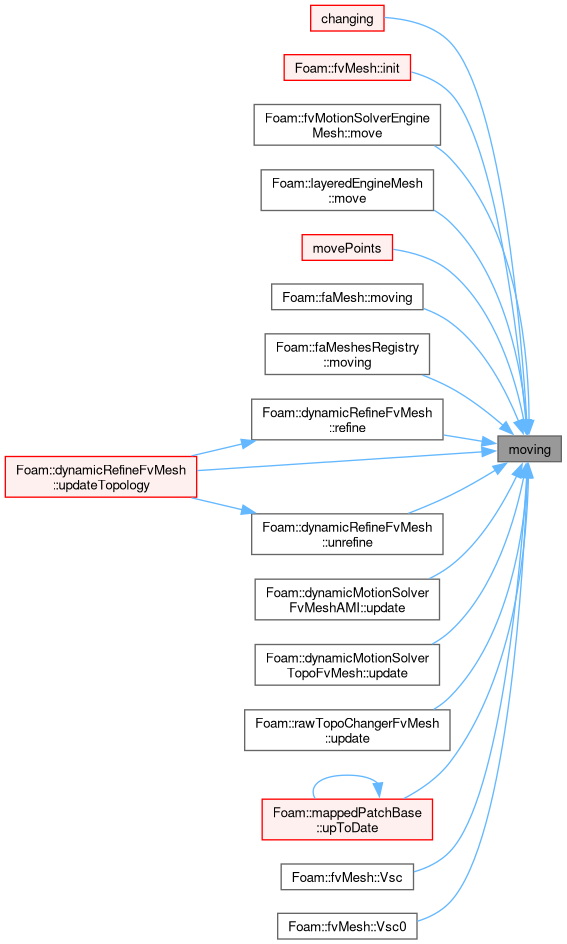

| bool | moving () const noexcept |
| Is mesh moving. | |
| bool | moving (const bool on) noexcept |
| Set the mesh to be moving. | |

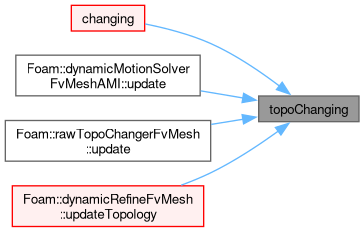

| bool | topoChanging () const noexcept |
| Is mesh topology changing. | |
| bool | topoChanging (const bool on) noexcept |
| Set the mesh topology to be changing. | |

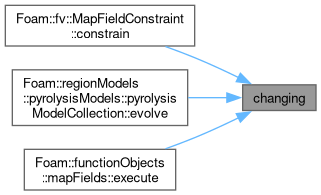

| bool | changing () const noexcept |
| Is mesh changing (topology changing and/or moving). | |

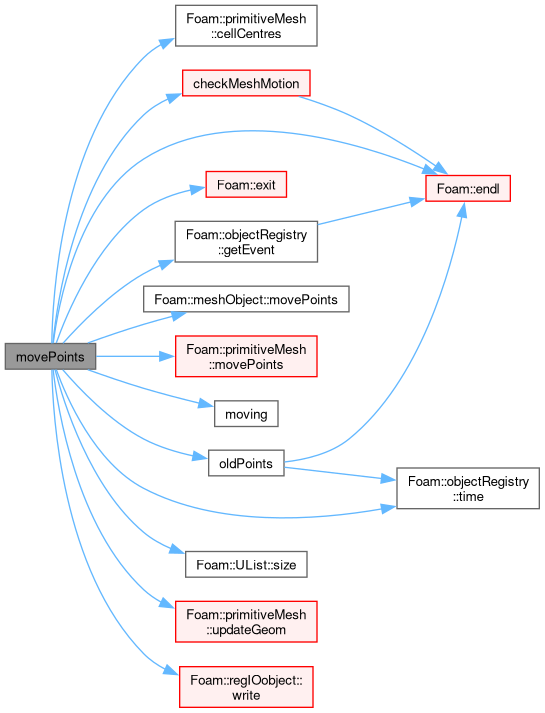

| virtual void | movePoints (const pointField &) |
| Move points. | |
| void | resetMotion () const |
| Reset motion. | |
| pointZoneMesh & | pointZones () noexcept |
| Return non-const access to the pointZones. | |
| faceZoneMesh & | faceZones () noexcept |
| Return non-const access to the faceZones. | |
| cellZoneMesh & | cellZones () noexcept |
| Return non-const access to the cellZones. | |
| void | addPatches (polyPatchList &plist, const bool validBoundary=true) |
| Add boundary patches. | |
| void | addPatches (const List< polyPatch * > &p, const bool validBoundary=true) |
| Add boundary patches. | |
| void | addZones (PtrList< pointZone > &&pz, PtrList< faceZone > &&fz, PtrList< cellZone > &&cz) |
| Add mesh zones. | |
| void | addZones (const List< pointZone * > &pz, const List< faceZone * > &fz, const List< cellZone * > &cz) |
| Add mesh zones. | |
| virtual bool | init (const bool doInit) |
| Initialise all non-demand-driven data. | |

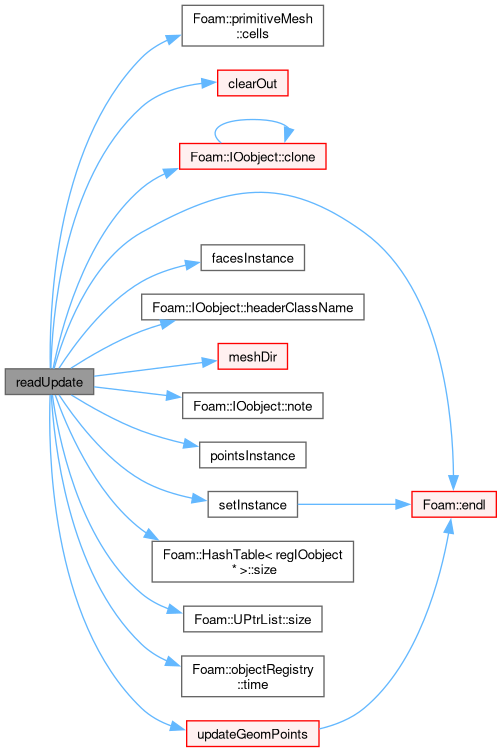

| virtual readUpdateState | readUpdate () |
| Update the mesh based on the mesh files saved in. | |

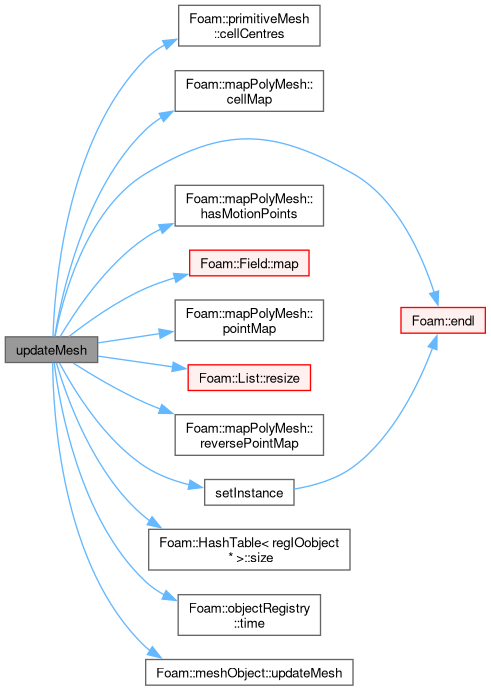

| virtual void | updateMesh (const mapPolyMesh &mpm) |
| Update the mesh corresponding to given map. | |
| void | removeBoundary () |
| Remove boundary patches. | |

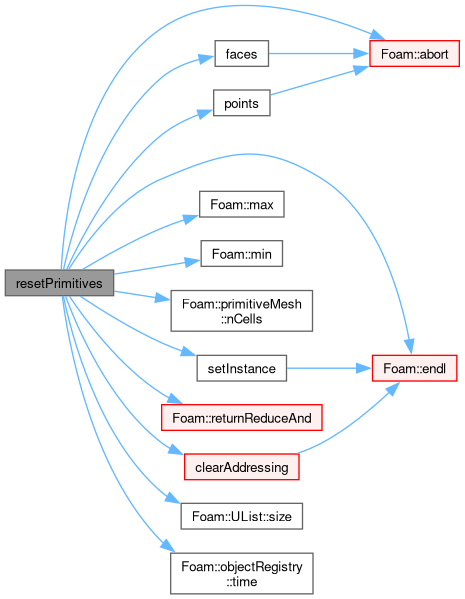

| void | resetPrimitives (autoPtr< pointField > &&points, autoPtr< faceList > &&faces, autoPtr< labelList > &&owner, autoPtr< labelList > &&neighbour, const labelUList &patchSizes, const labelUList &patchStarts, const bool validBoundary=true) |
| Reset mesh primitive data. Assumes all patch info correct. | |

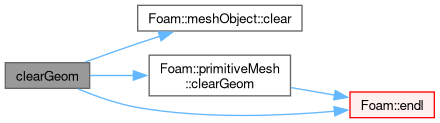

| void | clearGeom () |
| Clear geometry. | |

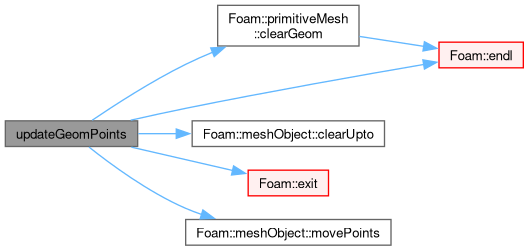

| void | updateGeomPoints (pointIOField &&newPoints, autoPtr< labelIOList > &newTetBasePtIsPtr) |
| Update geometry points; keep topology. Optionally with new face decomposition. | |

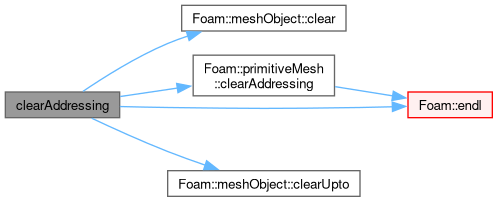

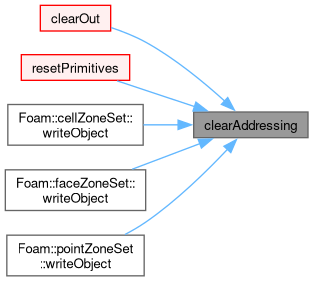

| void | clearAddressing (const bool isMeshUpdate=false) |
| Clear addressing. | |
| void | clearOut (const bool isMeshUpdate=false) |
| Clear all geometry and addressing. | |
| void | clearPrimitives () |
| Clear primitive data (points, faces and cells). | |
| void | clearTetBasePtIs () |
| Clear tet base points. | |
| void | clearCellTree () |
| Clear cell tree data. | |

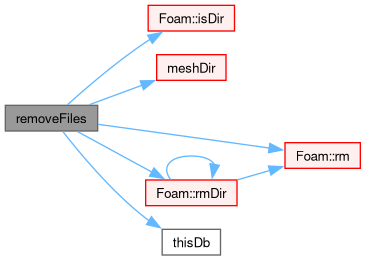

| void | removeFiles (const fileName &instanceDir) const |
| Remove all files from mesh instance. | |
| void | removeFiles () const |
| Remove all files from mesh instance(). | |
| bool | hasTetBasePtIs () const |
| virtual bool | checkFaceOrthogonality (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check non-orthogonality. | |

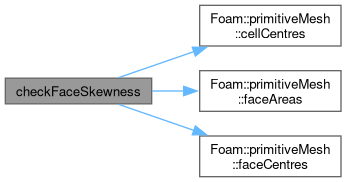

| virtual bool | checkFaceSkewness (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check face skewness. | |
| virtual bool | checkEdgeAlignment (const bool report, const Vector< label > &directions, labelHashSet *setPtr) const |
| Check edge alignment for 1D/2D cases. | |
| virtual bool | checkCellDeterminant (const bool report, labelHashSet *setPtr) const |

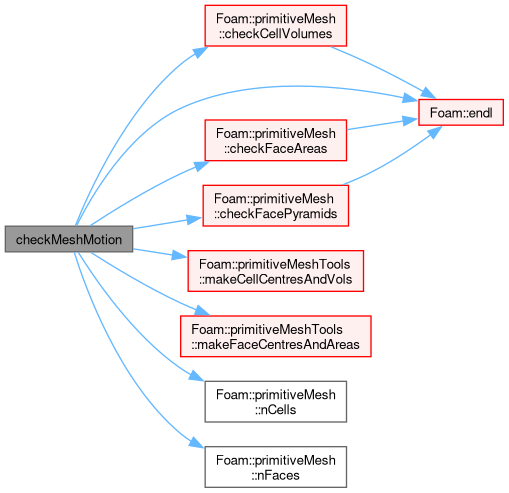

| virtual bool | checkMeshMotion (const pointField &newPoints, const bool report=false, const bool detailedReport=false) const |
| Check mesh motion for correctness given motion points. | |

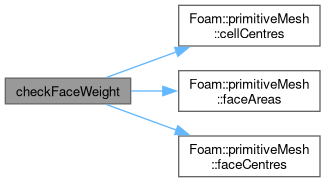

| virtual bool | checkFaceWeight (const bool report, const scalar minWeight=0.05, labelHashSet *setPtr=nullptr) const |
| Check for face weights. | |
| virtual bool | checkVolRatio (const bool report, const scalar minRatio=0.01, labelHashSet *setPtr=nullptr) const |
| Check for neighbouring cell volumes. | |
| void | findCellFacePt (const point &p, label &celli, label &tetFacei, label &tetPti) const |
| Find the cell, tetFacei and tetPti for point p. | |

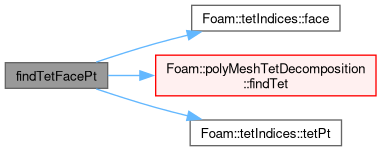

| void | findTetFacePt (const label celli, const point &p, label &tetFacei, label &tetPti) const |
| Find the tetFacei and tetPti for point p in celli. | |

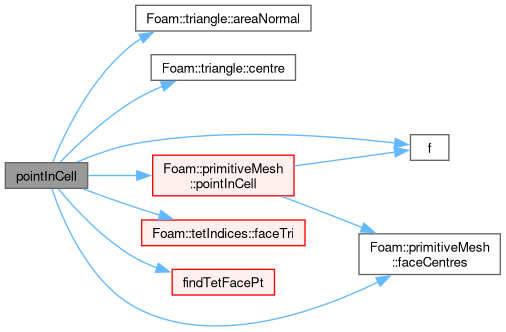

| bool | pointInCell (const point &p, label celli, const cellDecomposition=CELL_TETS) const |
| Test if point p is in the celli. | |

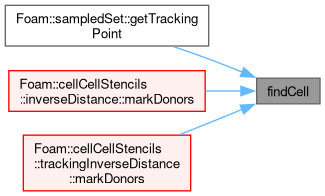

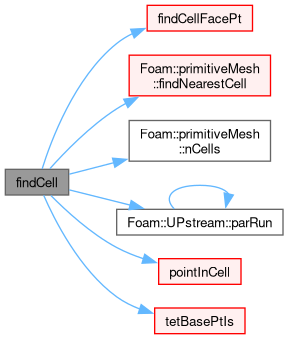

| label | findCell (const point &p, const cellDecomposition=CELL_TETS) const |
| Find cell enclosing this location and return index. | |
| virtual bool | writeObject (IOstreamOption streamOpt, const bool writeOnProc=true) const |
| Write items held in the objectRegistry. Normally includes mesh components (points, faces, etc) and any registered fields. | |
| Public Member Functions inherited from objectRegistry | |
| TypeName ("objectRegistry") | |
| Declare type name for this IOobject. | |
| objectRegistry (const Time &db, const label initialCapacity=128) | |
| Construct the time objectRegistry, with estimated table capacity (default: 128). | |
| objectRegistry (const IOobject &io, const label initialCapacity=128) | |
| Construct sub-registry given an IObject to describe the registry, with estimated table capacity (default: 128). | |
| virtual | ~objectRegistry () |
| Destructor, with checkOut() for all objects that are ownedByRegistry. | |
| const objectRegistry & | thisDb () const noexcept |
| Return the object registry. | |
| const objectRegistry & | parent () const noexcept |
| Return the parent objectRegistry. | |
| const Time & | time () const noexcept |
| Return time registry. | |
| bool | isTimeDb () const noexcept |
| True if the registry is Time. | |
| IOobject | newIOobject (const word &name, IOobjectOption ioOpt) const |
| Create an IOobject at the current time instance (timeName) with the specified options. | |
| IOobject | newIOobject (const word &name, IOobjectOption::readOption rOpt=IOobjectOption::NO_READ, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, IOobjectOption::registerOption regOpt=IOobjectOption::NO_REGISTER) const |
| Create an IOobject at the current time instance (timeName). | |
| HashTable< wordHashSet > | classes () const |
| A summary hash of classes used and their associated object names. | |
| template<class MatchPredicate> | |
| HashTable< wordHashSet > | classes (const MatchPredicate &matchName) const |
| A summary hash of classes used and their associated object names, restricted to objects that have a matching object name. | |
| template<class Type, bool Strict = false> | |
| UPtrList< const Type > | cobjects () const |
Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| template<class Type, bool Strict = false> | |
| UPtrList< Type > | objects () |
Return unsorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| template<class Type, class MatchPredicate> | |
| UPtrList< const Type > | cobjects (const MatchPredicate &matchName) const |
Return unsorted list of objects with a class satisfying isA<Type> that also have a matching object name. | |
| template<class Type, class MatchPredicate> | |
| UPtrList< Type > | objects (const MatchPredicate &matchName) |
Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name. | |
| template<class Type, bool Strict = false> | |
| UPtrList< const Type > | csorted () const |
Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| template<class Type, bool Strict = false> | |
| UPtrList< Type > | sorted () |
Return sorted list of objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| UPtrList< const regIOobject > | csorted () const |
| Return sorted list of objects. | |
| UPtrList< regIOobject > | sorted () |
| Return sorted list of objects. | |
| template<class Type, class MatchPredicate> | |
| UPtrList< const Type > | csorted (const MatchPredicate &matchName) const |
Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name. | |
| template<class Type, class MatchPredicate> | |
| UPtrList< Type > | sorted (const MatchPredicate &matchName) |
Return sorted list of objects with a class satisfying isA<Type> that also have a matching object name. | |
| label | count (const char *clsName) const |
| The number of objects of the given class name. | |
| template<class MatchPredicate> | |
| label | count (const MatchPredicate &matchClass) const |
| The number of objects of the given class name. | |
| template<class MatchPredicate1, class MatchPredicate2> | |
| label | count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| The number of objects of the given class name. | |
| template<class Type> | |
| label | count (const bool strict=false) const |
The names of objects with a class satisfying isA<Type>. | |
| template<class Type, class MatchPredicate> | |
| label | count (const MatchPredicate &matchName) const |
The names of objects with a class satisfying isA<Type> that also have a matching object name. | |
| wordList | names () const |
| The unsorted names of all objects. | |
| wordList | names (const char *clsName) const |
| The unsorted names of objects with the given class name. | |
| template<class MatchPredicate> | |
| wordList | names (const MatchPredicate &matchClass) const |
| The unsorted names of objects with a matching class name. | |
| template<class MatchPredicate1, class MatchPredicate2> | |
| wordList | names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| The unsorted names of objects with a matching class name that also have a matching object name. | |
| template<class Type> | |
| wordList | names () const |
The unsorted names of objects with a class satisfying isA<Type>. | |
| template<class Type, class MatchPredicate> | |
| wordList | names (const MatchPredicate &matchName) const |
The unsorted names of objects with a class satisfying isA<Type> that also have a matching object name. | |
| wordList | sortedNames () const |
| The sorted names of all objects. | |
| wordList | sortedNames (const char *clsName) const |
| The sorted names of objects with the given class name. | |
| template<class MatchPredicate> | |
| wordList | sortedNames (const MatchPredicate &matchClass) const |
| The sorted names objects with a matching class name. | |
| template<class MatchPredicate1, class MatchPredicate2> | |
| wordList | sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| The sorted names of objects with a matching class name that also have a matching object name. | |
| template<class Type> | |
| wordList | sortedNames () const |
The sorted names of objects with a class satisfying isA<Type>. | |
| template<class Type, class MatchPredicate> | |
| wordList | sortedNames (const MatchPredicate &matchName) const |
The sorted names of objects with a class satisfying isA<Type> that also have a matching object name. | |
| const objectRegistry & | subRegistry (const word &name, const bool forceCreate=false, const bool recursive=false) const |
| Lookup and return a const sub-objectRegistry. | |
| template<class Type, bool Strict = false> | |
| HashTable< const Type * > | lookupClass () const |
Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| template<class Type, bool Strict = false> | |
| HashTable< Type * > | lookupClass () |
Return all objects with a class satisfying isA<Type> or isType<Type> (with Strict). | |
| template<class Type> | |
| HashTable< const Type * > | lookupClass (const bool strict) const |
Return all objects with a class satisfying isA<Type>. | |
| template<class Type> | |
| HashTable< Type * > | lookupClass (const bool strict) |
Return all objects with a class satisfying isA<Type>. | |
| const regIOobject * | cfindIOobject (const word &name, const bool recursive=false) const |
| Return const pointer to the regIOobject. | |
| bool | contains (const word &name, const bool recursive=false) const |
| Does the registry contain the regIOobject object (by name). | |
| template<class Type> | |
| bool | foundObject (const word &name, const bool recursive=false) const |
| Contains the named Type? | |
| template<class Type> | |
| const Type * | cfindObject (const word &name, const bool recursive=false) const |
| Return const pointer to the object of the given Type. | |
| template<class Type> | |
| const Type * | findObject (const word &name, const bool recursive=false) const |
| Return const pointer to the object of the given Type. | |
| template<class Type> | |
| Type * | findObject (const word &name, const bool recursive=false) |
| Return non-const pointer to the object of the given Type. | |
| template<class Type> | |
| Type * | getObjectPtr (const word &name, const bool recursive=false) const |
| Return non-const pointer to the object of the given Type, using a const-cast to have it behave like a mutable. | |
| template<class Type> | |
| const Type & | lookupObject (const word &name, const bool recursive=false) const |
| Lookup and return const reference to the object of the given Type. Fatal if not found or the wrong type. | |
| template<class Type> | |
| Type & | lookupObjectRef (const word &name, const bool recursive=false) const |
| Lookup and return non-const reference to the object of the given Type. Fatal if not found or the wrong type. | |
| label | getEvent () const |
| Return new event number. | |
| bool | checkIn (regIOobject *io) const |
| Add a regIOobject to registry. A nullptr is ignored. | |
| bool | checkIn (regIOobject &io) const |
| Add a regIOobject to registry. | |
| bool | checkOut (regIOobject *io) const |
| Remove a regIOobject from registry and free memory if the object is ownedByRegistry. A nullptr is ignored. | |
| bool | checkOut (regIOobject &io) const |
| Remove a regIOobject from registry and free memory if the object is ownedByRegistry. | |
| bool | checkOut (const word &key) const |
| Remove a regIOobject by name from registry and free memory if the object is ownedByRegistry. | |
| void | clear () |
| Clear all entries from the registry. | |
| void | clearStorage () |
| Clear all entries from the registry and the table itself. | |
| bool | erase (const iterator &iter) |
| Erase an entry specified by the given iterator. | |
| bool | erase (const word &key) |
| Erase an entry specified by the given key. | |
| label | erase (std::initializer_list< word > keys) |
| Remove entries given by the listed keys. | |
| label | erase (const UList< word > &keys) |
| Remove entries given by the listed keys. | |
| virtual void | rename (const word &newName) |
| Rename. | |
| bool | is_cacheTemporaryObject (const word &name) const |
| True if given name is in the cacheTemporaryObjects set. | |
| bool | is_cacheTemporaryObject (const regIOobject *io) const |
| True if name of object is in the cacheTemporaryObjects set. | |
| bool | is_cacheTemporaryObject (const regIOobject &io) const |
| True if name of object is in the cacheTemporaryObjects set. | |
| template<class Type> | |
| bool | cacheTemporaryObject (Type &obj) const |
| Cache the given object. Moves content and stores. | |
| void | resetCacheTemporaryObject (const regIOobject *io) const |
| Reset the cache state of the given object (nullptr is ignored). | |
| void | resetCacheTemporaryObject (const regIOobject &io) const |
| Reset the cache state of the given object in the cacheTemporaryObjects set. | |
| bool | checkCacheTemporaryObjects () const |
| Check that all objects specified in the cacheTemporaryObjects were also cached. | |
| virtual bool | modified () const |
| Return true if any of the object's files have been modified. | |
| void | readModifiedObjects () |
| Read the objects that have been modified. | |
| virtual bool | readIfModified () |
| Read object if modified. | |
| virtual bool | writeData (Ostream &) const |
| The writeData function is required by regIOobject but not used. | |
| bool | found (const word &name, bool recursive=false) const |
| Same as contains(). | |
| template<class Type> | |
| const Type * | lookupObjectPtr (const word &name, bool recursive=false) const |
| Deprecated(2018-10) find object. | |
| template<class Type> | |
| Type * | lookupObjectRefPtr (const word &name, bool recursive=false) const |
| Deprecated(2018-10) get object pointer, ignoring constness. | |
| template<class Type> | |
| UPtrList< const Type > | sorted () const |
| Deprecated(2023-07) use csorted() method. | |
| UPtrList< const regIOobject > | sorted () const |
| Deprecated(2023-07) use csorted() method. | |
| template<class Type, class MatchPredicate> | |
| UPtrList< const Type > | sorted (const MatchPredicate &matchName) const |
| Deprecated(2023-07) use csorted() method. | |
| template<class MatchPredicate> | |
| Foam::HashTable< Foam::wordHashSet > | classesImpl (const objectRegistry &list, const MatchPredicate &matchName) |
| template<class MatchPredicate1, class MatchPredicate2> | |
| Foam::label | countImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) |
| template<class Type, class MatchPredicate> | |
| Foam::label | countTypeImpl (const objectRegistry &list, const MatchPredicate &matchName) |
| template<class MatchPredicate1, class MatchPredicate2> | |
| Foam::wordList | namesImpl (const objectRegistry &list, const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName, const bool doSort) |
| template<class Type, class MatchPredicate> | |
| Foam::wordList | namesTypeImpl (const objectRegistry &list, const MatchPredicate &matchName, const bool doSort) |
| template<class Type, class MatchPredicate> | |
| Foam::UPtrList< Type > | objectsTypeImpl (const bool strict, const objectRegistry &list, const MatchPredicate &matchName, const bool doSort) |
| template<class Type> | |
| Foam::HashTable< Type * > | lookupClassTypeImpl (const bool strict, const objectRegistry &list) |
| template<class MatchPredicate> | |
| Foam::HashTable< Foam::wordHashSet > | classes (const MatchPredicate &matchName) const |
| template<class MatchPredicate> | |
| Foam::label | count (const MatchPredicate &matchClass) const |
| template<class MatchPredicate1, class MatchPredicate2> | |
| Foam::label | count (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| template<class Type, class MatchPredicate> | |
| Foam::label | count (const MatchPredicate &matchName) const |
| template<class Type> | |
| Foam::label | count (const bool strict) const |
| template<class Type, bool Strict> | |
| Foam::UPtrList< const Type > | cobjects () const |
| template<class Type, bool Strict> | |
| Foam::UPtrList< Type > | objects () |
| template<class Type, bool Strict> | |
| Foam::UPtrList< const Type > | csorted () const |
| template<class Type, bool Strict> | |
| Foam::UPtrList< Type > | sorted () |
| template<class Type, class MatchPredicate> | |
| Foam::UPtrList< const Type > | cobjects (const MatchPredicate &matchName) const |
| template<class Type, class MatchPredicate> | |
| Foam::UPtrList< Type > | objects (const MatchPredicate &matchName) |
| template<class Type, class MatchPredicate> | |
| Foam::UPtrList< const Type > | csorted (const MatchPredicate &matchName) const |
| template<class Type, class MatchPredicate> | |
| Foam::UPtrList< Type > | sorted (const MatchPredicate &matchName) |
| template<class MatchPredicate> | |
| Foam::wordList | names (const MatchPredicate &matchClass) const |
| template<class MatchPredicate1, class MatchPredicate2> | |
| Foam::wordList | names (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| template<class Type> | |
| Foam::wordList | names () const |
| template<class Type, class MatchPredicate> | |
| Foam::wordList | names (const MatchPredicate &matchName) const |
| template<class MatchPredicate> | |
| Foam::wordList | sortedNames (const MatchPredicate &matchClass) const |
| template<class MatchPredicate1, class MatchPredicate2> | |
| Foam::wordList | sortedNames (const MatchPredicate1 &matchClass, const MatchPredicate2 &matchName) const |
| template<class Type> | |
| Foam::wordList | sortedNames () const |
| template<class Type, class MatchPredicate> | |
| Foam::wordList | sortedNames (const MatchPredicate &matchName) const |
| template<class Type, bool Strict> | |
| Foam::HashTable< const Type * > | lookupClass () const |
| template<class Type, bool Strict> | |
| Foam::HashTable< Type * > | lookupClass () |
| template<class Type> | |
| Foam::HashTable< const Type * > | lookupClass (const bool strict) const |
| template<class Type> | |
| Foam::HashTable< Type * > | lookupClass (const bool strict) |
| Public Member Functions inherited from regIOobject | |
| void | operator= (const regIOobject &)=delete |
| No copy assignment. | |
| TypeName ("regIOobject") | |
| Runtime type information. | |
| regIOobject (const IOobject &io, const bool isTimeObject=false) | |
| Construct from IOobject. The optional flag adds special handling if the object is the top-level regIOobject (eg, Time). | |
| regIOobject (const regIOobject &rio) | |
| Copy construct. | |
| regIOobject (const regIOobject &rio, bool registerCopy) | |
| Copy construct, transferring registry registration to the copy if registerCopy is true. | |
| regIOobject (const word &newName, const regIOobject &, bool registerCopy) | |
| Copy construct with new name, transferring registry registration to the copy if registerCopy is true. | |
| regIOobject (const IOobject &io, const regIOobject &rio) | |
| Copy construct with new IO parameters. | |
| virtual | ~regIOobject () |
| Destructor. | |
| bool | checkIn () |
| Add object to registry, if not already registered. | |
| bool | checkOut () |
| Remove object from registry, and remove all file watches. | |
| virtual void | addWatch () |
| Add file watch on object (if registered and READ_IF_MODIFIED). | |
| bool | registered () const noexcept |
| Query the registered state (ie, has been checked in). This is not necessarily the same as registerObject(), which is just a stated preference. | |
| bool | ownedByRegistry () const noexcept |
| Is this object owned by the registry? | |
| bool | store () |
| Register object with its registry and transfer ownership to the registry. | |
| void | release (const bool unregister=false) noexcept |
| Set object as not ownedByRegistry. | |
| label | eventNo () const noexcept |
| Event number at last update. | |
| label & | eventNo () noexcept |
| Event number at last update. | |
| bool | upToDate (const regIOobject &) const |
| Return true if up-to-date with respect to given object. | |
| bool | upToDate (const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| bool | upToDate (const regIOobject &, const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| bool | upToDate (const regIOobject &, const regIOobject &, const regIOobject &, const regIOobject &) const |
| Return true if up-to-date with respect to given objects. | |
| void | setUpToDate () |
| Set as up-to-date. | |
| const dictionary * | findMetaData () const noexcept |
| Return pointer to meta-data or nullptr. | |
| dictionary & | getMetaData () noexcept |
| Get or create meta-data. | |
| void | removeMetaData () |
| Remove meta-data. | |
| virtual void | updateMetaData () |
| Update internal meta-data (eg, prior to writing). | |
| virtual fileName | filePath () const |
| Return complete path + object name if the file exists. | |
| bool | headerOk () |
| Read and check header info. Does not check the headerClassName. | |
| Istream & | readStream (const word &, const bool readOnProc=true) |
| Return Istream and check object type against that given. | |
| void | close () |
| Close Istream. | |
| virtual bool | readData (Istream &) |
| Virtual readData function. | |
| virtual bool | read () |
| Read object. | |
| virtual label | addWatch (const fileName &) |
| Add file watch for fileName on object if not yet watched. | |
| const labelList & | watchIndices () const noexcept |
| Read access to file-monitoring handles. | |
| labelList & | watchIndices () noexcept |
| Write access to file-monitoring handles. | |
| virtual bool | write (const bool writeOnProc=true) const |
| Write using setting from DB. | |
| virtual bool | global () const |
| Is object global. | |
| void | operator= (const IOobject &io) |
| Copy assignment. | |
| virtual bool | writeObject (IOstreamOption::streamFormat fmt, IOstreamOption::versionNumber ver, IOstreamOption::compressionType cmp, const bool writeOnProc) const |
| Write using given format, version and compression. | |
| Public Member Functions inherited from IOobject | |
| TypeName ("IOobject") | |
| Declare type-name, virtual type (with debug switch). | |
| IOobject (const IOobject &)=default | |
| Copy construct. | |
| virtual | ~IOobject ()=default |
| Destructor. | |
| IOobject (const word &name, const fileName &instance, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from name, instance, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from name, instance, local, registry, io options. | |
| IOobject (const fileName &path, const objectRegistry ®istry, IOobjectOption ioOpt=IOobjectOption()) | |
| Construct from path, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from name, instance, registry, io options. | |
| IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from name, instance, local, registry, io options. | |
| IOobject (const fileName &path, const objectRegistry ®istry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false) | |
| Construct from path, registry, io options. | |
| IOobject (const IOobject &io, const objectRegistry ®istry) | |
| Copy construct, resetting registry. | |
| IOobject (const IOobject &io, const word &name) | |
| Copy construct, resetting name. | |
| IOobject (const IOobject &io, const word &name, const fileName &local) | |
| Copy construct, resetting name and local component. | |
| IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt) | |
| Copy construct, resetting read/write options. | |
| IOobject (const IOobject &io, IOobjectOption::registerOption regOpt) | |
| Copy construct, resetting register option. | |
| autoPtr< IOobject > | clone () const |
| Clone. | |
| autoPtr< IOobject > | clone (const objectRegistry ®istry) const |
| Clone resetting registry. | |
| const objectRegistry & | db () const noexcept |
| Return the local objectRegistry. | |
| const Time & | time () const noexcept |
| Return Time associated with the objectRegistry. | |
| const word & | name () const noexcept |
| Return the object name. | |
| const word & | headerClassName () const noexcept |
| Return name of the class name read from header. | |
| word & | headerClassName () noexcept |
| Modifiable access to the class name read from header. | |
| const string & | note () const noexcept |
| Return the optional note. | |
| string & | note () noexcept |
| Modifiable access to the optional note. | |
| unsigned | labelByteSize () const noexcept |
| The sizeof (label) in bytes, possibly read from the header. | |
| unsigned | scalarByteSize () const noexcept |
| The sizeof (scalar) in bytes, possibly read from the header. | |
| void | resetHeader (const word &newName=word::null) |
| Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file. | |
| bool | hasHeaderClass () const noexcept |
| True if headerClassName() is non-empty (after reading). | |
| bool | isHeaderClass (const word &expectedType) const |
| Check if headerClassName() equals the expected type. Always true if the expected type is empty. | |
| template<class Type> | |
| bool | isHeaderClass () const |
Check if headerClassName() equals Type::typeName Always true for a void type. | |
| word | group () const |
| Return group (extension part of name). | |
| word | member () const |
| Return member (name without the extension). | |
| const fileName & | rootPath () const noexcept |
| Return the Time::rootPath(). | |
| const fileName & | caseName () const noexcept |
| Return the Time::caseName(). | |
| const fileName & | globalCaseName () const noexcept |
| Return the Time::globalCaseName(). | |
| const fileName & | caseName (IOobjectOption::Layout) const noexcept |
| Return the Time::caseName() - normal or global. | |
| const fileName & | instance () const noexcept |
| Read access to instance path component. | |
| fileName & | instance () noexcept |
| Modifiable access to instance path component. | |
| scalar | instanceValue () const |
| Return the scalar value of the instance component (or 0), which often corresponds to a time index/value. | |
| const fileName & | local () const noexcept |
| Read access to local path component. | |
| fileName & | local () noexcept |
| Modifiable access to the local path component. | |
| fileName | path () const |
| The complete path for the object (with instance, local,...). | |
| fileName | globalPath () const |
| The complete global path for the object (with instance, local,...). | |
| fileName | path (IOobjectOption::Layout) const |
| The complete path (normal or global) for the object. | |
| fileName | path (const word &instance, const fileName &local=fileName::null) const |
| The complete path with alternative instance and local. | |
| fileName | globalPath (const word &instance, const fileName &local=fileName::null) const |
| The complete global path with alternative instance and local. | |
| fileName | path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const |
| The complete path (normal or global) with alternative instance and local. | |
| fileName | objectPath () const |
| The complete path + object name. | |
| fileName | globalObjectPath () const |
| The complete global path + object name. | |
| fileName | objectPath (IOobjectOption::Layout) const |
| The complete path (normal or global) + object name. | |
| fileName | objectPath (IOobjectOption::Layout, const word &instance) const |
| The complete path (normal or global) + object name with alternative instance. | |
| fileName | objectPath (const word &instance) const |
| The complete path + object name with alternative instance. | |
| fileName | globalObjectPath (const word &instance) const |
| The complete global path + object name with alternative instance. | |
| fileName | objectRelPath () const |
| The object path relative to the case. | |
| fileName | localFilePath (const word &typeName, const bool search=true) const |
| Redirect to fileHandler filePath, searching locally. | |
| fileName | globalFilePath (const word &typeName, const bool search=true) const |
| Redirect to fileHandler filePath, searching up if in parallel. | |
| IOstreamOption | parseHeader (const dictionary &headerDict) |
| Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics. | |
| bool | readHeader (Istream &is) |
| Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics. | |
| bool | readHeader (dictionary &headerDict, Istream &is) |
| Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics. | |
| template<class Type> | |
| bool | typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true) |
Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks. | |
| template<class Type, bool Searching> | |
| bool | typeHeaderOk (const bool checkType=true, const bool verbose=true) |
Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks. | |
| template<class Type> | |
| fileName | typeFilePath (const bool search=true) const |
| Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait. | |
| template<class Type> | |
| void | warnNoRereading () const |
| Helper: warn that type does not support re-reading. | |
| bool | writeHeader (Ostream &os) const |
| Write header with current type(). | |
| bool | writeHeader (Ostream &os, const word &objectType) const |
| Write header with override of type. | |
| void | writeHeader (dictionary &dict, IOstreamOption streamOpt) const |
| Write header into a dictionary with current type() and given output format. | |
| void | writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const |
| Write header into a dictionary with override of type and given output format. | |
| bool | good () const noexcept |
| Did last readHeader() succeed? | |
| bool | bad () const noexcept |
| Did last readHeader() fail? | |
| InfoProxy< IOobject > | info () const noexcept |
| Return info proxy, for printing information to a stream. | |
| void | operator= (const IOobject &io) |
| Copy assignment, copies all values (except the registry). | |
| template<class Type> | |
| bool | isHeaderClassName () const |
| Same as isHeaderClass(). | |
| template<class StringType> | |
| Foam::word | groupName (StringType base, const word &group) |
| template<class Type> | |
| Foam::fileName | typeFilePath (const bool search) const |
| Public Member Functions inherited from IOobjectOption | |
| constexpr | IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options. | |
| constexpr | IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Construct NO_WRITE with specified read/register options. | |
| constexpr | IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept |
| Construct NO_READ with specified write/register options. | |
| constexpr | IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept |
| Construct (NO_READ, NO_WRITE) with specified register option. | |
| constexpr | IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept |
| Construct from components with specified register option as bool. | |
| constexpr | IOobjectOption (bool registerObject, bool globalObject=false) noexcept |
| Construct (NO_READ, NO_WRITE) with specified register option as bool. | |
| readOption | readOpt () const noexcept |
| Get the read option. | |
| readOption | readOpt (readOption opt) noexcept |
| Set the read option. | |
| writeOption | writeOpt () const noexcept |
| Get the write option. | |
| writeOption | writeOpt (writeOption opt) noexcept |
| Set the write option. | |
| bool | registerObject () const noexcept |
| Should objects created with this IOobject be registered? | |
| bool | registerObject (bool on) noexcept |
| Change registration preference. | |
| bool | globalObject () const noexcept |
| True if object is treated the same for all processors. | |
| bool | globalObject (bool on) noexcept |
| Change global-object status. | |
| bool | isAnyRead () const noexcept |
| True if any reading may be required (ie, != NO_READ). | |
| bool | isReadRequired () const noexcept |
| True if (MUST_READ | READ_MODIFIED) bits are set. | |
| bool | isReadOptional () const noexcept |
| True if (LAZY_READ) bits are set [same as READ_IF_PRESENT]. | |
| readOption & | readOpt () noexcept |
| Access to the read option. | |
| writeOption & | writeOpt () noexcept |
| Access to the write option. | |
| bool & | registerObject () noexcept |
| Access to the register object option. | |
| bool & | globalObject () noexcept |
| Access to the global object option. | |
| Public Member Functions inherited from HashTable< regIOobject * > | |
| Foam::List< word > | sortedToc (const Compare &comp) const |
| Foam::List< word > | tocKeys (const UnaryPredicate &pred, const bool invert) const |
| Foam::List< word > | tocValues (const UnaryPredicate &pred, const bool invert) const |
| Foam::List< word > | tocEntries (const BinaryPredicate &pred, const bool invert) const |
| Foam::label | countKeys (const UnaryPredicate &pred, const bool invert) const |
| Foam::label | countValues (const UnaryPredicate &pred, const bool invert) const |
| Foam::label | countEntries (const BinaryPredicate &pred, const bool invert) const |
| Foam::label | erase (InputIter first, InputIter last) |
| Foam::label | erase (const FixedList< word, N > &keys) |
| Foam::label | erase (const HashTable< AnyType, word, AnyHash > &other) |
| Foam::label | retain (const HashTable< AnyType, word, AnyHash > &other) |
| Foam::label | filterKeys (const UnaryPredicate &pred, const bool pruning) |
| Foam::label | filterValues (const UnaryPredicate &pred, const bool pruning) |
| Foam::label | filterEntries (const BinaryPredicate &pred, const bool pruning) |
| constexpr | HashTable () noexcept |
| Default construct: empty without allocation (capacity=0). | |
| ~HashTable () | |
| Destructor. | |
| bool | empty () const noexcept |
| True if the hash table is empty. | |
| label | size () const noexcept |
| The number of elements in table. | |
| label | capacity () const noexcept |
| The size of the underlying table (the number of buckets). | |
| regIOobject *& | at (const word &key) |
| Find and return a hashed entry. FatalError if it does not exist. | |
| bool | contains (const word &key) const |
| True if hashed key is contained (found) in table. | |
| iterator | find (const word &key) |
| Find and return an iterator set at the hashed entry. | |
| const_iterator | cfind (const word &key) const |
| Find and return an const_iterator set at the hashed entry. | |
| const regIOobject *& | lookup (const word &key, const regIOobject *&deflt) const |
| Return hashed entry if it exists, or return the given default. | |
| List< word > | toc () const |
| The table of contents (the keys) in unsorted order. | |
| UPtrList< const node_type > | csorted () const |
| Const access to the hash-table contents in sorted order (sorted by keys). | |
| UPtrList< node_type > | sorted () |
| Non-const access to the hash-table contents in sorted order (sorted by keys). | |
| bool | emplace (const word &key, Args &&... args) |
| Emplace insert a new entry, not overwriting existing entries. | |
| bool | emplace_set (const word &key, Args &&... args) |
| Emplace set an entry, overwriting any existing entries. | |
| bool | insert (const word &key, const regIOobject *&obj) |
| Copy insert a new entry, not overwriting existing entries. | |
| bool | set (const word &key, const regIOobject *&obj) |
| Copy assign a new entry, overwriting existing entries. | |
| void | clear () |
| Remove all entries from table. | |
| void | clearStorage () |
| Remove all entries from table and the table itself. | |
| void | setCapacity (label newCapacity) |
| Change the hash table capacity (number of buckets). | |
| void | resize (label newCapacity) |
| Rehash the hash table with new number of buckets. Currently identical to setCapacity(). | |
| void | reserve (label numEntries) |
| Reserve space for at least the specified number of elements (not the number of buckets) and regenerates the hash table. | |
| void | swap (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs) noexcept |
| Swap contents into this table. | |
| void | transfer (HashTable< regIOobject *, word, Foam::Hash< word > > &rhs) |
| Transfer contents into this table. | |
| void | merge (HashTable< regIOobject *, word, Foam::Hash< word > > &source) |
Attempts to extract entries from source parameter and insert them into this, does not overwrite existing entries. The source will contains any items that could not be merged. | |
| regIOobject *& | operator[] (const word &key) |
| Find and return a hashed entry. FatalError if it does not exist. | |
| regIOobject *& | operator() (const word &key) |
| Return existing entry or create a new entry. | |
| void | operator= (const this_type &rhs) |
| Copy assign. | |
| bool | operator== (const this_type &rhs) const |
| Equality. Tables are equal if all keys and values are equal, independent of order or underlying storage size. | |
| bool | operator!= (const this_type &rhs) const |
| The opposite of the equality operation. | |
| this_type & | operator+= (const this_type &rhs) |
| Add entries into this HashTable. | |
| const_iterator_pair< const_key_iterator, this_type > | keys () const |
| A const iterator begin/end pair for iterating over keys. | |
| iterator | begin () |
| iterator set to the beginning of the HashTable | |
| const_iterator | cbegin () const |
| const_iterator set to the beginning of the HashTable | |
| iterator | end () noexcept |
| iterator to signal the end (for any HashTable) | |
| constexpr const_iterator | cend () const noexcept |
| const_iterator to signal the end (for any HashTable) | |
| Ostream & | printInfo (Ostream &os) const |
| Print information. | |
| Ostream & | writeKeys (Ostream &os, const label shortLen=0) const |
| Write unordered keys (list), with line-breaks when length exceeds shortLen. | |
| bool | found (const word &key) const |
| Same as contains(). | |
| Public Member Functions inherited from HashTableCore | |
| ClassName ("HashTable") | |
| Declare type-name (with debug switch). | |
| constexpr | HashTableCore () noexcept=default |
| Default construct. | |
| Public Member Functions inherited from primitiveMesh | |
| ClassName ("primitiveMesh") | |
| primitiveMesh (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells) | |
| Construct from components. | |
| virtual | ~primitiveMesh () |
| Destructor. | |
| void | reset (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells) |
| Reset this primitiveMesh given the primitive array sizes. | |
| void | reset (const label nPoints, const label nInternalFaces, const label nFaces, const label nCells, cellList &cells) |
| Reset this primitiveMesh given the primitive array sizes and cells. | |
| void | resetGeometry (pointField &&faceCentres, pointField &&faceAreas, pointField &&cellCentres, scalarField &&cellVolumes) |
| Reset the local geometry. | |
| label | nPoints () const noexcept |
| Number of mesh points. | |
| label | nEdges () const |
| Number of mesh edges. | |
| label | nFaces () const noexcept |
| Number of mesh faces. | |
| label | nCells () const noexcept |
| Number of mesh cells. | |
| label | nInternalFaces () const noexcept |
| Number of internal faces. | |
| label | nBoundaryFaces () const noexcept |
| Number of boundary faces (== nFaces - nInternalFaces). | |
| label | nInternalPoints () const noexcept |
| Points not on boundary. | |
| label | nInternal0Edges () const |
| Internal edges (i.e. not on boundary face) using no boundary point. | |
| label | nInternal1Edges () const |
| Internal edges using 0 or 1 boundary point. | |
| label | nInternalEdges () const |
| Internal edges using 0,1 or 2 boundary points. | |
| const cellShapeList & | cellShapes () const |
| Return cell shapes. | |
| const edgeList & | edges () const |
| Return mesh edges. Uses calcEdges. | |
| const labelListList & | cellCells () const |
| const labelListList & | edgeCells () const |
| const labelListList & | pointCells () const |
| const cellList & | cells () const |
| const labelListList & | edgeFaces () const |
| const labelListList & | pointFaces () const |
| const labelListList & | cellEdges () const |
| const labelListList & | faceEdges () const |
| const labelListList & | pointEdges () const |
| const labelListList & | pointPoints () const |
| const labelListList & | cellPoints () const |
| const vectorField & | cellCentres () const |
| const vectorField & | faceCentres () const |
| const scalarField & | cellVolumes () const |
| const vectorField & | faceAreas () const |
| void | movePoints (const pointField &p, const pointField &oldP) |
| Move points. | |
| bool | isInternalFace (const label faceIndex) const noexcept |
| Return true if given face label is internal to the mesh. | |
| virtual bool | checkUpperTriangular (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check face ordering. | |
| virtual bool | checkCellsZipUp (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check cell zip-up. | |
| virtual bool | checkFaceVertices (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check uniqueness of face vertices. | |
| virtual bool | checkPoints (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check for unused points. | |
| virtual bool | checkFaceFaces (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check face-face connectivity. | |
| virtual bool | checkClosedBoundary (const bool report=false) const |
| Check boundary for closedness. | |
| virtual bool | checkClosedCells (const bool report=false, labelHashSet *setPtr=nullptr, labelHashSet *highAspectSetPtr=nullptr, const Vector< label > &solutionD=Vector< label >::one) const |
| Check cells for closedness. | |
| virtual bool | checkFaceAreas (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check for negative face areas. | |
| virtual bool | checkCellVolumes (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check for negative cell volumes. | |
| virtual bool | checkFacePyramids (const bool report=false, const scalar minPyrVol=-SMALL, labelHashSet *setPtr=nullptr) const |
| Check face pyramid volume. | |
| virtual bool | checkFaceAngles (const bool report=false, const scalar maxSin=10, labelHashSet *setPtr=nullptr) const |
| Check face angles. | |
| virtual bool | checkFaceFlatness (const bool report, const scalar warnFlatness, labelHashSet *setPtr) const |
| Check face warpage: decompose face and check ratio between. | |
| virtual bool | checkPointNearness (const bool report, const scalar reportDistSqr, labelHashSet *setPtr=nullptr) const |
| Check for point-point-nearness,. | |
| virtual bool | checkEdgeLength (const bool report, const scalar minLenSqr, labelHashSet *setPtr=nullptr) const |
| Check edge length. | |
| virtual bool | checkConcaveCells (const bool report=false, labelHashSet *setPtr=nullptr) const |
| Check for concave cells by the planes of faces. | |
| virtual bool | checkTopology (const bool report=false) const |
| Check mesh topology for correctness. | |
| virtual bool | checkGeometry (const bool report=false) const |
| Check mesh geometry (& implicitly topology) for correctness. | |
| virtual bool | checkMesh (const bool report=false) const |
| Check mesh for correctness. Returns false for no error. | |
| boundBox | cellBb (const label celli) const |
| The bounding box for given cell index. | |
| bool | pointInCellBB (const point &p, label celli, scalar inflationFraction=0) const |
| Return true if the point in the cell bounding box. | |
| bool | pointInCell (const point &p, label celli) const |
| Return true if the point is in the cell. | |
| label | findNearestCell (const point &location) const |
| Find the cell with the nearest cell centre to location. | |
| label | findCell (const point &location) const |
| Find cell enclosing this location (-1 if not in mesh). | |
| void | printAllocated () const |
| Print a list of all the currently allocated mesh data. | |
| bool | hasCellShapes () const noexcept |
| bool | hasEdges () const noexcept |
| bool | hasCellCells () const noexcept |
| bool | hasEdgeCells () const noexcept |
| bool | hasPointCells () const noexcept |
| bool | hasCells () const noexcept |
| bool | hasEdgeFaces () const noexcept |
| bool | hasPointFaces () const noexcept |
| bool | hasCellEdges () const noexcept |
| bool | hasFaceEdges () const noexcept |
| bool | hasPointEdges () const noexcept |
| bool | hasPointPoints () const noexcept |
| bool | hasCellPoints () const noexcept |
| bool | hasCellCentres () const noexcept |
| bool | hasCellVolumes () const noexcept |
| bool | hasFaceCentres () const noexcept |
| bool | hasFaceAreas () const noexcept |
| const labelList & | cellCells (const label celli, DynamicList< label > &) const |
| cellCells using cells. | |
| const labelList & | cellCells (const label celli) const |
| const labelList & | cellPoints (const label celli, labelHashSet &, DynamicList< label > &) const |
| cellPoints using cells | |
| const labelList & | cellPoints (const label celli) const |
| const labelList & | pointCells (const label pointi, DynamicList< label > &) const |
| pointCells using pointFaces | |
| const labelList & | pointCells (const label pointi) const |
| const labelList & | pointPoints (const label pointi, DynamicList< label > &) const |
| pointPoints using edges, pointEdges | |
| const labelList & | pointPoints (const label pointi) const |
| const labelList & | faceEdges (const label facei, DynamicList< label > &) const |
| faceEdges using pointFaces, edges, pointEdges | |
| const labelList & | faceEdges (const label facei) const |
| const labelList & | edgeFaces (const label edgeI, DynamicList< label > &) const |
| edgeFaces using pointFaces, edges, pointEdges | |
| const labelList & | edgeFaces (const label edgeI) const |
| const labelList & | edgeCells (const label edgeI, DynamicList< label > &) const |
| edgeCells using pointFaces, edges, pointEdges | |
| const labelList & | edgeCells (const label edgeI) const |
| const labelList & | cellEdges (const label celli, labelHashSet &, DynamicList< label > &) const |
| cellEdges using cells, pointFaces, edges, pointEdges | |
| const labelList & | cellEdges (const label celli) const |
| virtual void | updateGeom () |
| Update all geometric data. | |
| void | clearGeom () |
| Clear geometry. | |
| void | clearCellGeom () |
| Clear cell-based geometry only. | |
| void | clearAddressing () |
| Clear topological data. | |
| void | clearOut () |
| Clear all geometry and addressing unnecessary for CFD. | |
Static Public Member Functions | |
| static fileName | meshDir (const word ®ion) |
| Return the local mesh directory name (eg, "polyMesh") after applying filter for defaultRegion. | |
| static const word & | regionName (const word ®ion) |
| The mesh region name or word::null if polyMesh::defaultRegion. | |
| Static Public Member Functions inherited from regIOobject | |
| template<class Type> | |
| static Type & | store (Type *p) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (std::unique_ptr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (autoPtr< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (autoPtr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (refPtr< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (refPtr< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (tmp< Type > &ptr) |
| Transfer pointer ownership to its registry. | |
| template<class Type> | |
| static Type & | store (tmp< Type > &&ptr) |
| Transfer pointer ownership to its registry. | |
| Static Public Member Functions inherited from IOobject | |
| static bool | bannerEnabled () noexcept |
| Status of output file banner. | |
| static bool | bannerEnabled (bool on) noexcept |
| Enable/disable output file banner. | |
| static bool | fileModificationChecking_masterOnly () noexcept |
| Test fileModificationChecking for master-only. | |
| static bool | fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name) |
| Split path into instance, local, name components. | |
| template<class StringType> | |
| static word | groupName (StringType base, const word &group) |
| Create dot-delimited name.group string. | |
| static word | group (const word &name) |
| Return group (extension part of name). | |
| static word | member (const word &name) |
| Return member (name without the extension). | |
| static word | scopedName (const std::string &scope, const word &name) |
| Create scope:name or scope_name string. | |
| static word | scopedName (const std::string &scope, const word &name1, const word &name2) |
| Create scope:name1:name2 or scope_name1_name2 string. | |
| static IOobject | selectIO (const IOobject &io, const fileName &altFile, const word &ioName="") |
| Return the IOobject, but also consider an alternative file name. | |
| static Ostream & | writeBanner (Ostream &os, const bool noSyntaxHint=false) |
| Write the standard OpenFOAM file/dictionary banner. | |
| static Ostream & | writeDivider (Ostream &os) |
| Write the standard file section divider. | |
| static Ostream & | writeEndDivider (Ostream &os) |
| Write the standard end file divider. | |
| Static Public Member Functions inherited from IOobjectOption | |
| static bool | isAnyRead (readOption opt) noexcept |
| True if any reading may be required (ie, != NO_READ). | |
| static bool | isReadRequired (readOption opt) noexcept |
| True if (MUST_READ | READ_MODIFIED) bits are set. | |
| static bool | isReadOptional (readOption opt) noexcept |
| True if (LAZY_READ) bits are set [same as READ_IF_PRESENT]. | |
| static readOption | lazierRead (readOption opt) noexcept |
| Downgrade readOption optional (LAZY_READ), leaves NO_READ intact. | |
| Static Public Member Functions inherited from HashTableCore | |
| static label | canonicalSize (const label size) noexcept |
| Return a canonical (power-of-two) of the requested size. | |
| Static Public Member Functions inherited from primitiveMesh | |
| static void | calcCells (cellList &, const labelUList &own, const labelUList &nei, const label nCells=-1) |
| Helper function to calculate cell-face addressing from. | |
| static bool | calcPointOrder (label &nInternalPoints, labelList &pointMap, const faceList &, const label nInternalFaces, const label nPoints) |
| Helper function to calculate point ordering. Returns true. | |
| static scalar | setClosedThreshold (const scalar) |
| Set the closedness ratio warning threshold. | |
| static scalar | setAspectThreshold (const scalar) |
| Set the aspect ratio warning threshold. | |
| static scalar | setNonOrthThreshold (const scalar) |
| Set the non-orthogonality warning threshold in degrees. | |
| static scalar | setSkewThreshold (const scalar) |
| Set the skewness warning threshold as percentage. | |
Static Public Attributes | |
| static word | defaultRegion = "region0" |
| Return the default region name. | |
| static word | meshSubDir = "polyMesh" |
| Return the mesh sub-directory name (usually "polyMesh"). | |
| Static Public Attributes inherited from IOobject | |
| static const Enum< fileCheckTypes > | fileCheckTypesNames |
| Names for the fileCheckTypes. | |
| static char | scopeSeparator |
| Character for scoping object names (':' or '_'). | |
| static fileCheckTypes | fileModificationChecking |
| Type of file modification checking. | |
| static float | fileModificationSkew |
| Time skew (seconds) for file modification checks. | |
| static int | maxFileModificationPolls |
| Max number of times to poll for file modification changes. | |
| Static Public Attributes inherited from HashTableCore | |
| static constexpr int32_t | maxTableSize = (1 << (32-3)) |
| Maximum allowable internal table size (must be a power of two!). | |
| Static Public Attributes inherited from primitiveMesh | |
| static const unsigned | cellsPerEdge_ = 4 |
| Estimated number of cells per edge. | |
| static const unsigned | cellsPerPoint_ = 8 |
| Estimated number of cells per point. | |
| static const unsigned | facesPerCell_ = 6 |
| Estimated number of faces per cell. | |
| static const unsigned | facesPerEdge_ = 4 |
| Estimated number of faces per edge. | |
| static const unsigned | facesPerPoint_ = 12 |
| Estimated number of faces per point. | |
| static const unsigned | edgesPerCell_ = 12 |
| Estimated number of edges per cell. | |
| static const unsigned | edgesPerFace_ = 4 |
| Estimated number of edges per cell. | |
| static const unsigned | edgesPerPoint_ = 6 |
| Estimated number of edges per point. | |
| static const unsigned | pointsPerCell_ = 8 |
| Estimated number of points per cell. | |
| static const unsigned | pointsPerFace_ = 4 |
| Estimated number of points per face. | |
Additional Inherited Members | |
| Protected Member Functions inherited from regIOobject | |
| bool | readHeaderOk (const IOstreamOption::streamFormat fmt, const word &typeName) |
| Helper: check readOpt flags and read if necessary. | |
| Protected Member Functions inherited from IOobject | |
| void | setBad (const string &s) |
| Set the object state to bad. | |
| Protected Member Functions inherited from primitiveMesh | |
| void | calcFaceCentresAndAreas () const |
| Calculate face centres and areas. | |
| void | calcCellCentresAndVols () const |
| Calculate cell centres and volumes. | |
| void | calcEdgeVectors () const |
| Calculate edge vectors. | |
| bool | checkDuplicateFaces (const label, const Map< label > &, label &nBaffleFaces, labelHashSet *) const |
| Check if all points on face are shared with another face. | |
| bool | checkCommonOrder (const label, const Map< label > &, labelHashSet *) const |
| Check that shared points are in consecutive order. | |
| bool | checkClosedBoundary (const vectorField &areas, const bool report, const bitSet &internalOrCoupledFaces) const |
| Check boundary for closedness. | |
| bool | checkClosedCells (const vectorField &faceAreas, const scalarField &cellVolumes, const bool report, labelHashSet *setPtr, labelHashSet *aspectSetPtr, const Vector< label > &meshD) const |
| Check cells for closedness. | |
| bool | checkFaceAreas (const vectorField &faceAreas, const bool report, const bool detailedReport, labelHashSet *setPtr) const |
| Check for negative face areas. | |
| bool | checkCellVolumes (const scalarField &vols, const bool report, const bool detailedReport, labelHashSet *setPtr) const |
| Check for negative cell volumes. | |
| bool | checkFaceOrthogonality (const vectorField &fAreas, const vectorField &cellCtrs, const bool report, labelHashSet *setPtr) const |
| Check for non-orthogonality. | |
| bool | checkFacePyramids (const pointField &points, const vectorField &ctrs, const bool report, const bool detailedReport, const scalar minPyrVol, labelHashSet *setPtr) const |
| Check face pyramid volume. | |
| bool | checkFaceSkewness (const pointField &points, const vectorField &fCtrs, const vectorField &fAreas, const vectorField &cellCtrs, const bool report, labelHashSet *setPtr) const |
| Check face skewness. | |
| bool | checkFaceAngles (const pointField &points, const vectorField &faceAreas, const bool report, const scalar maxDeg, labelHashSet *setPtr) const |
| Check face angles. | |
| bool | checkFaceFlatness (const pointField &points, const vectorField &faceCentres, const vectorField &faceAreas, const bool report, const scalar warnFlatness, labelHashSet *setPtr) const |
| Check face warpage. | |
| bool | checkConcaveCells (const vectorField &fAreas, const pointField &fCentres, const bool report, labelHashSet *setPtr) const |
| Check for concave cells by the planes of faces. | |
| primitiveMesh () | |
| Construct null. | |
| Static Protected Member Functions inherited from IOobject | |
| static void | writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr) |
| Helper: write content for FoamFile IOobject header with optional meta information. | |
| static void | writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr) |
| Helper: write dictionary content for FoamFile header with optional meta information. | |
| Static Protected Attributes inherited from regIOobject | |
| static bool | masterOnlyReading = false |
| To flag master-only reading of objects. | |
| Static Protected Attributes inherited from primitiveMesh | |
| static scalar | closedThreshold_ = 1.0e-6 |
| Static data to control mesh checking. | |
| static scalar | aspectThreshold_ = 1000 |
| Aspect ratio warning threshold. | |
| static scalar | nonOrthThreshold_ = 70 |
| Non-orthogonality warning threshold in deg. | |
| static scalar | skewThreshold_ = 4 |
| Skewness warning threshold. | |
| static scalar | planarCosAngle_ = 1.0e-6 |
| Threshold where faces are considered coplanar. | |
| typedef polyMesh Mesh |
The mesh type.
Definition at line 390 of file polyMesh.H.
| typedef polyBoundaryMesh BoundaryMesh |
The boundary type associated with the mesh.
Definition at line 395 of file polyMesh.H.
| enum readUpdateState |
Enumeration defining the state of the mesh after a read update.
Used for post-processing applications, where the mesh needs to update based on the files written in time directories
| Enumerator | |
|---|---|
| UNCHANGED | |
| POINTS_MOVED | |
| TOPO_CHANGE | |
| TOPO_PATCH_CHANGE | |
Definition at line 91 of file polyMesh.H.
| enum cellDecomposition |
Enumeration defining the decomposition of the cell for.
inside/outside test
| Enumerator | |
|---|---|
| FACE_PLANES | |
| FACE_CENTRE_TRIS | |
| FACE_DIAG_TRIS | |
| CELL_TETS | |
Definition at line 104 of file polyMesh.H.
|
explicit |
Read construct from IOobject.
Definition at line 166 of file polyMesh.C.
References Foam::endl(), if(), IOobject::instance(), io, meshDir(), meshSubDir, IOobjectOption::MUST_READ, primitiveMesh::nCells(), IOobjectOption::NO_WRITE, IOobjectOption::READ_IF_PRESENT, Foam::returnReduceAnd(), Foam::returnReduceOr(), objectRegistry::time(), timeIndex, WarningInFunction, and Foam::Zero.
| polyMesh | ( | const IOobject & | io, |
| const Foam::zero | , | ||
| const bool | syncPar = true ) |
Construct from IOobject or as zero-sized mesh.
Boundary is added using addPatches() member function
Definition at line 677 of file polyMesh.C.
References io.
| polyMesh | ( | const IOobject & | io, |
| pointField && | points, | ||
| faceList && | faces, | ||
| labelList && | owner, | ||
| labelList && | neighbour, | ||
| const bool | syncPar = true ) |
Construct from IOobject and components.
Boundary is added using addPatches() member function
Definition at line 361 of file polyMesh.C.
References Foam::abort(), faces(), Foam::FatalError, FatalErrorInFunction, forAll, IOobject::instance(), io, Foam::max(), meshSubDir, Foam::min(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, points(), UList< T >::size(), objectRegistry::time(), timeIndex, IOobjectOption::writeOpt(), and Foam::Zero.
| polyMesh | ( | const IOobject & | io, |
| pointField && | points, | ||
| faceList && | faces, | ||
| cellList && | cells, | ||
| const bool | syncPar = true ) |
Construct without boundary with cells rather than owner/neighbour.
Boundary is added using addPatches() member function
Definition at line 511 of file polyMesh.C.
References Foam::abort(), primitiveMesh::cells(), faces(), Foam::FatalError, FatalErrorInFunction, forAll, IOobject::instance(), io, Foam::max(), meshSubDir, Foam::min(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, points(), UList< T >::size(), objectRegistry::time(), timeIndex, IOobjectOption::writeOpt(), and Foam::Zero.
| polyMesh | ( | const IOobject & | io, |
| pointField && | points, | ||
| const cellShapeList & | shapes, | ||
| const faceListList & | boundaryFaces, | ||
| const wordList & | boundaryPatchNames, | ||
| const wordList & | boundaryPatchTypes, | ||
| const word & | defaultBoundaryPatchName, | ||
| const word & | defaultBoundaryPatchType, | ||
| const wordList & | boundaryPatchPhysicalTypes, | ||
| const bool | syncPar = true ) |
Construct from cell shapes.
Definition at line 432 of file polyMeshFromShapeMesh.C.
References IOobjectOption::AUTO_WRITE, primitiveMesh::cells(), primitiveMesh::checkMesh(), DebugInfo, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), forAll, Foam::Info, IOobject::instance(), io, meshSubDir, polyPatch::New(), primitiveMesh::nFaces(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, points(), Foam::reduce(), HashTable< regIOobject * >::size(), UList< T >::size(), objectRegistry::time(), timeIndex, WarningInFunction, and Foam::Zero.
| polyMesh | ( | const IOobject & | io, |
| pointField && | points, | ||
| const cellShapeList & | shapes, | ||
| const faceListList & | boundaryFaces, | ||
| const wordList & | boundaryPatchNames, | ||
| const PtrList< dictionary > & | boundaryDicts, | ||
| const word & | defaultBoundaryPatchName, | ||
| const word & | defaultBoundaryPatchType, | ||
| const bool | syncPar = true ) |
Construct from cell shapes, with patch information in dictionary format.
Definition at line 710 of file polyMeshFromShapeMesh.C.
References IOobjectOption::AUTO_WRITE, boundaryDicts(), primitiveMesh::cells(), primitiveMesh::checkMesh(), DebugInfo, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), forAll, Foam::Info, IOobject::instance(), io, meshSubDir, IOobject::name(), polyPatch::New(), primitiveMesh::nFaces(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, points(), Foam::reduce(), dictionary::set(), HashTable< regIOobject * >::size(), UList< T >::size(), objectRegistry::time(), timeIndex, Foam::type(), WarningInFunction, and Foam::Zero.
|
virtual |
Destructor.
Definition at line 787 of file polyMesh.C.
References clearOut(), and resetMotion().
| TypeName | ( | "polyMesh" | ) |
Runtime type information.
|
virtual |
Override the objectRegistry dbDir for a single-region case.
Reimplemented from objectRegistry.
Definition at line 815 of file polyMesh.C.
References objectRegistry::dbDir(), defaultRegion, IOobject::name(), and objectRegistry::parent().
Referenced by meshDir().
| Foam::fileName meshDir | ( | ) | const |
Return the local mesh directory (dbDir()/meshSubDir).
Definition at line 826 of file polyMesh.C.
References dbDir(), and meshSubDir.
Referenced by fvMeshTools::newMesh(), polyDualMesh::polyDualMesh(), polyDualMesh::polyDualMesh(), polyDualMesh::polyDualMesh(), polyMesh(), readUpdate(), and removeFiles().
| const Foam::fileName & pointsInstance | ( | ) | const |
Return the current instance directory for points.
Used in the construction of geometric mesh data dependent on points
Definition at line 838 of file polyMesh.C.
Referenced by fvMesh::delta(), isoSurfacePoint::isoSurfacePoint(), fvMesh::makeC(), fvMesh::makeCf(), fvMesh::makeMagSf(), fvMesh::makeSf(), faMesh::pointsInstance(), readUpdate(), and fvMesh::unitSf().
| const Foam::fileName & facesInstance | ( | ) | const |
Return the current instance directory for faces.
Definition at line 844 of file polyMesh.C.
Referenced by faMesh::facesInstance(), readUpdate(), and hexRef8Data::updateMesh().
| void setInstance | ( | const fileName & | instance, |
| const IOobjectOption::writeOption | wOpt = IOobject::AUTO_WRITE ) |
Set the instance for mesh files.
Definition at line 28 of file polyMeshIO.C.
References DebugInFunction, and Foam::endl().
Referenced by snappyLayerDriver::addLayers(), columnFvMesh::columnFvMesh(), readUpdate(), resetPrimitives(), updateMesh(), and dynamicRefineFvMesh::writeObject().
|
static |
Return the local mesh directory name (eg, "polyMesh") after applying filter for defaultRegion.
Definition at line 802 of file polyMesh.C.
References defaultRegion, and meshSubDir.
|
static |
The mesh region name or word::null if polyMesh::defaultRegion.
Definition at line 796 of file polyMesh.C.
References defaultRegion, and word::null.
Referenced by columnFvMesh::columnFvMesh(), faMesh::dbDir(), faMesh::dbDir(), regionFaModel::evolve(), extrudePatchMesh::extrudePatchMesh(), extrudePatchMesh::extrudePatchMesh(), extrudePatchMesh::extrudePatchMesh(), if(), if(), faMesh::meshDir(), faMesh::meshDir(), meshes(), dynamicFvMesh::New(), simplifiedDynamicFvMeshBase::New(), SimplifiedDynamicFvMesh< staticFvMesh >::SimplifiedDynamicFvMesh(), extrudePatchMesh::TypeName(), and columnFvMesh::TypeName().
| const Foam::word & regionName | ( | ) | const |
The mesh region name or word::null if polyMesh::defaultRegion.
Definition at line 832 of file polyMesh.C.
References IOobject::name(), and regionName().
Referenced by externalCoupled::compositeName(), liquidFilmBase::liquidFilmBase(), faMesh::regionName(), and regionName().
|
inlinevirtualnoexcept |
Const reference to the mesh and solver state data.
Definition at line 559 of file polyMesh.H.
References Foam::noexcept.
Referenced by faMesh::data(), fvMesh::fvMesh(), and fvMesh::fvMesh().
|
inlinevirtualnoexcept |
Reference to the mesh and solver state data.
Definition at line 564 of file polyMesh.H.
References Foam::noexcept.
|
virtual |
Return raw points.
Implements primitiveMesh.
Definition at line 1063 of file polyMesh.C.
References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.
Referenced by fvMesh::ClassName(), distanceSurface::createGeometry(), volumetricBSplinesMotionSolver::curPoints(), geomCellLooper::cut(), dynamicFvMesh::declareRunTimeSelectionTable(), simplifiedFvMesh::declareRunTimeSelectionTable(), dynamicFvMesh::dynamicFvMesh(), dynamicFvMesh::dynamicFvMesh(), dynamicMotionSolverFvMesh::dynamicMotionSolverFvMesh(), dynamicMotionSolverFvMeshAMI::dynamicMotionSolverFvMeshAMI(), faceCoupleInfo::faceCoupleInfo(), FaceInteraction< CloudType >::FaceInteraction(), fvMesh::fvMesh(), fvMesh::fvMesh(), fvMesh::fvMesh(), fvMesh::fvMesh(), wallBoundedParticle::isTriAlongTrack(), volPointInterpolationAdjoint::makeBoundaryWeights(), faMesh::movePoints(), treeDataCell::findIntersectOp::operator()(), tetOverlapVolume::overlappingCells(), polyMesh(), polyMesh(), polyMesh(), polyMesh(), resetPrimitives(), edgeFaceCirculator::setCanonical(), boundaryMesh::setFeatureEdges(), meshCutAndRemove::setRefinement(), meshCutter::setRefinement(), simplifiedFvMesh::simplifiedFvMesh(), staticFvMesh::staticFvMesh(), blockMesh::topology(), wallBoundedParticle::trackFaceTri(), wallBoundedParticle::trackToEdge(), dynamicMotionSolverFvMesh::TypeName(), dynamicMotionSolverFvMeshAMI::TypeName(), staticFvMesh::TypeName(), inverseDistance::update(), trackingInverseDistance::update(), dynamicMotionSolverListFvMesh::update(), and meshToMeshMethod::writeConnectivity().
|
virtual |
Return true if io is up-to-date with points.
Definition at line 1076 of file polyMesh.C.
References io.
Referenced by mappedPatchBase::upToDate().
|
virtual |
|
virtual |
Return raw faces.
Implements primitiveMesh.
Definition at line 1088 of file polyMesh.C.
References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.
Referenced by fvMesh::ClassName(), inversePointDistanceDiffusivity::correct(), wallBoundedParticle::crossDiagonalEdge(), wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::currentEdge(), dynamicFvMesh::declareRunTimeSelectionTable(), simplifiedFvMesh::declareRunTimeSelectionTable(), dynamicFvMesh::dynamicFvMesh(), dynamicFvMesh::dynamicFvMesh(), dynamicMotionSolverFvMesh::dynamicMotionSolverFvMesh(), dynamicMotionSolverFvMeshAMI::dynamicMotionSolverFvMeshAMI(), faceCoupleInfo::faceCoupleInfo(), FaceInteraction< CloudType >::FaceInteraction(), sampledSet::findNearFace(), fvMesh::fvMesh(), fvMesh::fvMesh(), fvMesh::fvMesh(), fvMesh::fvMesh(), wallBoundedParticle::hitProcessorPatch(), dynamicMultiMotionSolverFvMesh::init(), dynamicRefineFvMesh::init(), interfaceTrackingFvMesh::interfaceTrackingFvMesh(), treeDataCell::findIntersectOp::operator()(), treeDataFace::overlaps(), polyMesh(), polyMesh(), particle< Type >::procTetPt(), resetPrimitives(), edgeFaceCirculator::sameOrder(), edgeFaceCirculator::setCanonical(), meshCutAndRemove::setRefinement(), meshCutter::setRefinement(), simplifiedFvMesh::simplifiedFvMesh(), staticFvMesh::staticFvMesh(), blockMesh::topology(), wallBoundedParticle::trackToEdge(), dynamicMotionSolverFvMesh::TypeName(), dynamicMotionSolverFvMeshAMI::TypeName(), staticFvMesh::TypeName(), and meshToMeshMethod::writeConnectivity().
|
virtual |
Return face owner.
Implements primitiveMesh.
Definition at line 1101 of file polyMesh.C.
Referenced by dynamicRefineFvMesh::calculateProtectedCells(), edgeFaceCirculator::cellLabel(), pointSmoother::cellQuality(), cellDistFuncs::correctBoundaryFaceCells(), dynamicRefineFvMesh::extendMarkedCells(), faMesh::faceCells(), sampledSet::getBoundaryCell(), sampledSet::getNeighbourCell(), dynamicRefineFvMesh::init(), cellToCellStencil::insertFaceCells(), cellToFaceStencil::insertFaceCells(), dynamicRefineFvMesh::mapNewInternalFaces(), fvMeshAdder::MapSurfaceField(), Foam::markGrowFaceCellFace(), edgeFaceCirculator::operator++(), sampledSet::pointInCell(), particle< Type >::procTetPt(), sampledSet::pushIn(), undoableMeshCutter::removeSplitFaces(), sampledFaceZone::sampleOnFaces(), sampledFaceZone::sampleOnPoints(), sampledPatch::sampleOnPoints(), edgeFaceCirculator::setCanonical(), meshCutAndRemove::setRefinement(), meshCutter::setRefinement(), blockMesh::topology(), and wallBoundedParticle::trackToEdge().
|
virtual |
Return face neighbour.
Implements primitiveMesh.
Definition at line 1107 of file polyMesh.C.
Referenced by dynamicRefineFvMesh::calculateProtectedCells(), edgeFaceCirculator::cellLabel(), pointSmoother::cellQuality(), dynamicRefineFvMesh::extendMarkedCells(), sampledSet::getNeighbourCell(), dynamicRefineFvMesh::init(), cellToCellStencil::insertFaceCells(), cellToFaceStencil::insertFaceCells(), dynamicRefineFvMesh::mapNewInternalFaces(), Foam::markGrowFaceCellFace(), edgeFaceCirculator::operator++(), undoableMeshCutter::removeSplitFaces(), sampledFaceZone::sampleOnFaces(), edgeFaceCirculator::setCanonical(), meshCutAndRemove::setRefinement(), meshCutter::setRefinement(), blockMesh::topology(), and wallBoundedParticle::trackToEdge().
|
virtual |
Return old points (mesh motion).
Implements primitiveMesh.
Definition at line 1113 of file polyMesh.C.
References Foam::endl(), objectRegistry::time(), and WarningInFunction.
Referenced by movePoints(), dynamicMotionSolverTopoFvMesh::update(), and mixerFvMesh::update().
|
virtual |
Return old cellCentres (mesh motion).
Definition at line 1135 of file polyMesh.C.
References primitiveMesh::cellCentres().
|
inlinenoexcept |
Return boundary mesh.
Definition at line 609 of file polyMesh.H.
References Foam::noexcept.
Referenced by fvMeshAdder::add(), polyMeshAdder::add(), polyMeshAdder::add(), fvMesh::addFvPatches(), addPatches(), cellToCellStencil::allCoupledFacesPatch(), cellToFaceStencil::allCoupledFacesPatch(), assemblyFaceAreaPairGAMGAgglomeration::assemblyFaceAreaPairGAMGAgglomeration(), extrudePatchMesh::bottomPatch(), volPointInterpolationAdjoint::calcBoundaryAddressing(), inverseFaceDistanceDiffusivity::correct(), inversePointDistanceDiffusivity::correct(), patchInjection::correct(), cellDistFuncs::correctBoundaryCells(), cellDistFuncs::correctBoundaryFaceCells(), cellDistFuncs::correctBoundaryPointCells(), Foam::createReconstructMap(), fvMesh::fvMesh(), cellDistFuncs::getPatchIDs(), cellDistFuncs::getPatchIDs(), hexCellFvMesh::hexCellFvMesh(), fvBoundaryMesh::indices(), fvBoundaryMesh::indices(), fvBoundaryMesh::indices(), injectionModelList::info(), transferModelList::info(), marchingCells::initialise(), PDRblock::innerMesh(), patchTransformedInterpolation::interpolate(), volPointInterpolationAdjoint::interpolateBoundaryField(), regionModel::interRegionAMI(), mappedPatchBase::lookupPatch(), Foam::MapConsistentSubMesh(), dynamicRefineFvMesh::mapNewInternalFaces(), mappedPatchFieldBase< Type >::mappedField(), cellDistFuncs::maxPatchSize(), regionModel::nbrCoupledPatchID(), sampledPatch::patchIDs(), boundaryMesh::patchify(), wallBoundedParticle::patchInteraction(), fvMesh::readUpdate(), sampledMeshedSurface::sampleOnFaces(), sampledFaceZone::sampleOnPoints(), sampledPatch::sampleOnPoints(), sampledPatchInternalField::sampleOnPoints(), mappedPatchBase::samplePolyPatch(), lumpedPointDisplacementPointPatchVectorField::setPatchControls(), meshCutAndRemove::setRefinement(), thermoSingleLayer::Sh(), extrudePatchMesh::sidesPatch(), thermalBaffle::solveEnergy(), thermoSingleLayer::Srho(), thermoSingleLayer::Srho(), cellDistFuncs::sumPatchSize(), blockMesh::topology(), extrudePatchMesh::topPatch(), sampledFaceZone::update(), sampledPatch::update(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), thermoSingleLayer::updateSurfaceTemperatures(), kinematicSingleLayer::updateSurfaceVelocities(), cellToCellStencil::validBoundaryFaces(), cellToFaceStencil::validBoundaryFaces(), and Sampled< Type >::value().
|
inlinenoexcept |
Return mesh bounding box.
Definition at line 617 of file polyMesh.H.
References Foam::noexcept.
Referenced by streamLineParticle::move(), wallBoundedStreamLineParticle::move(), and sampledMeshedSurface::update().
| const Foam::Vector< Foam::label > & geometricD | ( | ) | const |
Return the vector of geometric directions in mesh.
Defined according to the presence of empty and wedge patches. 1 indicates unconstrained direction and -1 a constrained direction.
Definition at line 850 of file polyMesh.C.
Referenced by checkCellDeterminant(), and nGeometricD().
| Foam::label nGeometricD | ( | ) | const |
Return the number of valid geometric dimensions in the mesh.
Definition at line 861 of file polyMesh.C.
References Foam::cmptSum(), geometricD(), and VectorSpace< Vector< Cmpt >, Cmpt, 3 >::one.
Referenced by inverseDistance::update().
| const Foam::Vector< Foam::label > & solutionD | ( | ) | const |
Return the vector of solved-for directions in mesh.
Differs from geometricD in that it includes for wedge cases the circumferential direction in case of swirl. 1 indicates valid direction and -1 an invalid direction.
Definition at line 867 of file polyMesh.C.
Referenced by nSolutionD(), and fvMesh::validComponents().
| Foam::label nSolutionD | ( | ) | const |
Return the number of valid solved-for dimensions in the mesh.
Definition at line 878 of file polyMesh.C.
References Foam::cmptSum(), VectorSpace< Vector< Cmpt >, Cmpt, 3 >::one, and solutionD().
| const Foam::labelIOList & tetBasePtIs | ( | ) | const |
Return the tetBasePtIs.
Definition at line 884 of file polyMesh.C.
References Foam::endl(), polyMeshTetDecomposition::findFaceBasePts(), IOobject::instance(), meshSubDir, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and WarningInFunction.
Referenced by wallBoundedParticle::crossEdgeConnectedFace(), wallBoundedParticle::currentEdge(), findCell(), inverseDistance::markDonors(), and trackingInverseDistance::markDonors().
| const Foam::indexedOctree< Foam::treeDataCell > & cellTree | ( | ) | const |
Return the cell search tree.
Definition at line 924 of file polyMesh.C.
References CELL_TETS, e, boundBox::inflate(), points, and rndGen.
Referenced by findCellFacePt(), and tetOverlapVolume::overlappingCells().
|
inlinenoexcept |
Return point zone mesh.
Definition at line 663 of file polyMesh.H.
References Foam::noexcept.
Referenced by polyMeshAdder::add(), fvExprDriver::getTopoSetLabels(), and blockMesh::mesh().
|
inlinenoexcept |
Return face zone mesh.
Definition at line 671 of file polyMesh.H.
References Foam::noexcept.
Referenced by polyMeshAdder::add(), fvExprDriver::getTopoSetLabels(), movingConeTopoFvMesh::init(), blockMesh::mesh(), movingConeTopoFvMesh::update(), sampledFaceZone::update(), and sampledFaceZone::zoneIDs().
|
inlinenoexcept |
Return cell zone mesh.
Definition at line 679 of file polyMesh.H.
References Foam::noexcept.
Referenced by polyMeshAdder::add(), fvExprDriver::getTopoSetLabels(), dynamicMultiMotionSolverFvMesh::init(), blockMesh::mesh(), and displacementLayeredMotionMotionSolver::solve().
|
inlinenoexcept |
Return the object registry.
Definition at line 690 of file polyMesh.H.
References Foam::noexcept.
Referenced by faMesh::mesh(), removeFiles(), and fvMesh::thisDb().
|
inlinenoexcept |
The communicator used for parallel communication.
Definition at line 701 of file polyMesh.H.
References Foam::noexcept.
Referenced by fvMesh::comm(), and processorPolyPatch::comm().
|
inlinenoexcept |
The communicator used for parallel communication.
Definition at line 706 of file polyMesh.H.
References Foam::noexcept.
|
noexcept |
Is demand-driven parallel info available?
Definition at line 1290 of file polyMesh.C.
References Foam::noexcept.
| const Foam::globalMeshData & globalData | ( | ) | const |
Return parallel info (demand-driven).
Definition at line 1296 of file polyMesh.C.
References Foam::endl(), and Foam::Pout.
Referenced by faBoundaryMesh::calcGeometry(), faBoundaryMesh::movePoints(), pointBoundaryMesh::movePoints(), polyBoundaryMesh::movePoints(), volPointInterpolationAdjoint::pushUntransformedData(), dynamicRefineFvMesh::refine(), dynamicRefineFvMesh::selectRefineCells(), dynamicRefineFvMesh::unrefine(), faBoundaryMesh::updateMesh(), faGlobalMeshData::updateMesh(), pointBoundaryMesh::updateMesh(), polyBoundaryMesh::updateMesh(), and dynamicRefineFvMesh::updateTopology().
|
inlinevirtual |
Is mesh dynamic.
Reimplemented in dynamicFvMesh, engineMesh, and staticFvMesh.
Definition at line 724 of file polyMesh.H.
References dynamic().
Referenced by dynamic().
|
inlinenoexcept |
Is mesh moving.
Definition at line 732 of file polyMesh.H.
References Foam::noexcept.
Referenced by changing(), fvMesh::init(), fvMotionSolverEngineMesh::move(), layeredEngineMesh::move(), movePoints(), faMesh::moving(), faMeshesRegistry::moving(), dynamicRefineFvMesh::refine(), dynamicRefineFvMesh::unrefine(), dynamicMotionSolverFvMeshAMI::update(), dynamicMotionSolverTopoFvMesh::update(), rawTopoChangerFvMesh::update(), dynamicRefineFvMesh::updateTopology(), mappedPatchBase::upToDate(), fvMesh::Vsc(), and fvMesh::Vsc0().
|
inlinenoexcept |
Set the mesh to be moving.
Definition at line 740 of file polyMesh.H.
|
inlinenoexcept |
Is mesh topology changing.
Definition at line 750 of file polyMesh.H.
References Foam::noexcept.
Referenced by changing(), dynamicMotionSolverFvMeshAMI::update(), rawTopoChangerFvMesh::update(), and dynamicRefineFvMesh::updateTopology().
|
inlinenoexcept |
Set the mesh topology to be changing.
Definition at line 758 of file polyMesh.H.
|
inlinenoexcept |
Is mesh changing (topology changing and/or moving).
Definition at line 768 of file polyMesh.H.
References moving(), Foam::noexcept, and topoChanging().
Referenced by MapFieldConstraint< Type >::constrain(), pyrolysisModelCollection::evolve(), and mapFields::execute().
|
virtual |
Move points.
Reimplemented in fvMesh.
Definition at line 1153 of file polyMesh.C.
References IOobjectOption::AUTO_WRITE, primitiveMesh::cellCentres(), checkMeshMotion(), DebugInFunction, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, objectRegistry::getEvent(), Foam::Info, InfoInFunction, meshObject::movePoints(), primitiveMesh::movePoints(), moving(), Foam::nl, oldPoints(), UList< T >::size(), objectRegistry::time(), timeIndex, primitiveMesh::updateGeom(), regIOobject::write(), and Foam::Zero.
Referenced by fvMesh::movePoints().
| void resetMotion | ( | ) | const |
Reset motion.
Definition at line 1282 of file polyMesh.C.
Referenced by polyMeshAdder::add(), clearPrimitives(), and ~polyMesh().
|
inlinenoexcept |
Return non-const access to the pointZones.
Definition at line 789 of file polyMesh.H.
References Foam::noexcept.
|
inlinenoexcept |
Return non-const access to the faceZones.
Definition at line 797 of file polyMesh.H.
References Foam::noexcept.
|
inlinenoexcept |
Return non-const access to the cellZones.
Definition at line 805 of file polyMesh.H.
References Foam::noexcept.
| void addPatches | ( | polyPatchList & | plist, |
| const bool | validBoundary = true ) |
Add boundary patches.
Definition at line 955 of file polyMesh.C.
References Foam::abort(), boundaryMesh(), Foam::FatalError, FatalErrorInFunction, HashTable< regIOobject * >::size(), and Foam::Zero.
Referenced by fvMesh::addFvPatches(), addPatches(), and PDRblock::innerMesh().
Add boundary patches.
Definition at line 1033 of file polyMesh.C.
References addPatches(), and p.
Add mesh zones.
Definition at line 993 of file polyMesh.C.
References Foam::abort(), IOobjectOption::AUTO_WRITE, Foam::FatalError, and FatalErrorInFunction.
Referenced by addZones(), and blockMesh::mesh().
| void addZones | ( | const List< pointZone * > & | pz, |
| const List< faceZone * > & | fz, | ||
| const List< cellZone * > & | cz ) |
Add mesh zones.
Definition at line 1046 of file polyMesh.C.
References addZones().
|
virtual |
Initialise all non-demand-driven data.
Reimplemented from primitiveMesh.
Reimplemented in dynamicFvMesh, dynamicMotionSolverFvMesh, dynamicMotionSolverFvMeshAMI, dynamicMotionSolverListFvMesh, dynamicMotionSolverTopoFvMesh, dynamicMultiMotionSolverFvMesh, dynamicRefineFvMesh, fvMesh, interfaceTrackingFvMesh, and movingConeTopoFvMesh.
Definition at line 341 of file polyMesh.C.
References primitiveMesh::init().
Referenced by fvMesh::init().
|
virtual |
Update the mesh based on the mesh files saved in.
time directories
Reimplemented in fvMesh.
Definition at line 68 of file polyMeshIO.C.
References cells, primitiveMesh::cells(), clearOut(), IOobject::clone(), DebugInFunction, Foam::endl(), facesInstance(), forAll, IOobject::headerClassName(), Foam::Info, meshDir(), meshSubDir, IOobjectOption::MUST_READ, name, Foam::nl, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::note(), POINTS_MOVED, pointsInstance(), IOobjectOption::READ_IF_PRESENT, setInstance(), HashTable< regIOobject * >::size(), UPtrList< T >::size(), objectRegistry::time(), TOPO_CHANGE, TOPO_PATCH_CHANGE, UNCHANGED, update_meshZones, updateGeomPoints(), WarningInFunction, and Foam::Zero.
Referenced by fvMesh::readUpdate().
|
virtual |
Update the mesh corresponding to given map.
Reimplemented in fvMesh.
Definition at line 32 of file polyMeshUpdate.C.
References primitiveMesh::cellCentres(), mapPolyMesh::cellMap(), DebugInFunction, Foam::endl(), forAll, mapPolyMesh::hasMotionPoints(), Field< Type >::map(), newPointi, mapPolyMesh::pointMap(), List< T >::resize(), mapPolyMesh::reversePointMap(), setInstance(), HashTable< regIOobject * >::size(), objectRegistry::time(), timeName, meshObject::updateMesh(), and Foam::Zero.
Referenced by fvMesh::updateMesh().
| void removeBoundary | ( | ) |
Remove boundary patches.
Definition at line 32 of file polyMeshClear.C.
References primitiveMesh::clearOut(), DebugInFunction, and Foam::endl().
Referenced by fvMesh::removeFvBoundary().
| void resetPrimitives | ( | autoPtr< pointField > && | points, |
| autoPtr< faceList > && | faces, | ||
| autoPtr< labelList > && | owner, | ||
| autoPtr< labelList > && | neighbour, | ||
| const labelUList & | patchSizes, | ||
| const labelUList & | patchStarts, | ||
| const bool | validBoundary = true ) |
Reset mesh primitive data. Assumes all patch info correct.
(so does e.g. parallel communication). If not use validBoundary=false
Definition at line 688 of file polyMesh.C.
References Foam::abort(), clearAddressing(), Foam::endl(), faces(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::max(), Foam::min(), primitiveMesh::nCells(), nPoints, points(), Foam::returnReduceAnd(), setInstance(), UList< T >::size(), objectRegistry::time(), and timeName.
Referenced by polyMeshAdder::add().
| void clearGeom | ( | ) |
Clear geometry.
Definition at line 44 of file polyMeshClear.C.
References meshObject::clear(), primitiveMesh::clearGeom(), DebugInFunction, Foam::endl(), and Foam::Zero.
Referenced by clearOut().
| void updateGeomPoints | ( | pointIOField && | newPoints, |
| autoPtr< labelIOList > & | newTetBasePtIsPtr ) |
Update geometry points; keep topology. Optionally with new face decomposition.
Definition at line 65 of file polyMeshClear.C.
References primitiveMesh::clearGeom(), meshObject::clearUpto(), DebugInFunction, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, meshObject::movePoints(), and Foam::Zero.
Referenced by readUpdate().
| void clearAddressing | ( | const bool | isMeshUpdate = false | ) |
Clear addressing.
Definition at line 143 of file polyMeshClear.C.
References meshObject::clear(), primitiveMesh::clearAddressing(), meshObject::clearUpto(), DebugInFunction, Foam::endl(), and Foam::Zero.
Referenced by clearOut(), resetPrimitives(), cellZoneSet::writeObject(), faceZoneSet::writeObject(), and pointZoneSet::writeObject().
| void clearOut | ( | const bool | isMeshUpdate = false | ) |
Clear all geometry and addressing.
Definition at line 213 of file polyMeshClear.C.
References clearAddressing(), and clearGeom().
Referenced by readUpdate(), and ~polyMesh().
| void clearPrimitives | ( | ) |
Clear primitive data (points, faces and cells).
Definition at line 200 of file polyMeshClear.C.
References resetMotion().
| void clearTetBasePtIs | ( | ) |
Clear tet base points.
Definition at line 220 of file polyMeshClear.C.
References DebugInFunction, and Foam::endl().
| void clearCellTree | ( | ) |
Clear cell tree data.
Definition at line 228 of file polyMeshClear.C.
References DebugInFunction, and Foam::endl().
| void removeFiles | ( | const fileName & | instanceDir | ) | const |
Remove all files from mesh instance.
Definition at line 1314 of file polyMesh.C.
References Foam::isDir(), meshDir(), Foam::rm(), Foam::rmDir(), and thisDb().
Referenced by removeFiles().
| void removeFiles | ( | ) | const |
Remove all files from mesh instance().
Definition at line 1338 of file polyMesh.C.
References IOobject::instance(), and removeFiles().
|
inline |
Definition at line 945 of file polyMesh.H.
|
virtual |
Check non-orthogonality.
Reimplemented from primitiveMesh.
Definition at line 676 of file polyMeshCheck.C.
References primitiveMesh::cellCentres(), and primitiveMesh::faceAreas().
|
virtual |
Check face skewness.
Reimplemented from primitiveMesh.
Definition at line 693 of file polyMeshCheck.C.
References primitiveMesh::cellCentres(), primitiveMesh::faceAreas(), primitiveMesh::faceCentres(), and points.
|
virtual |
Check edge alignment for 1D/2D cases.
Definition at line 712 of file polyMeshCheck.C.
References points.
|
virtual |
Definition at line 729 of file polyMeshCheck.C.
References primitiveMesh::faceAreas(), and geometricD().
|
virtual |
Check mesh motion for correctness given motion points.
Definition at line 775 of file polyMeshCheck.C.
References cellVols, primitiveMesh::checkCellVolumes(), primitiveMesh::checkFaceAreas(), primitiveMesh::checkFacePyramids(), Foam::endl(), primitiveMeshTools::makeCellCentresAndVols(), primitiveMeshTools::makeFaceCentresAndAreas(), primitiveMesh::nCells(), primitiveMesh::nFaces(), and Foam::Pout.
Referenced by movePoints().
|
virtual |
Check for face weights.
Definition at line 745 of file polyMeshCheck.C.
References primitiveMesh::cellCentres(), primitiveMesh::faceAreas(), and primitiveMesh::faceCentres().
|
virtual |
Check for neighbouring cell volumes.
Definition at line 764 of file polyMeshCheck.C.
References primitiveMesh::cellVolumes().
| void findCellFacePt | ( | const point & | p, |
| label & | celli, | ||
| label & | tetFacei, | ||
| label & | tetPti ) const |
Find the cell, tetFacei and tetPti for point p.
Definition at line 1344 of file polyMesh.C.
References cellTree(), findTetFacePt(), p, and tree().
Referenced by findCell().
| void findTetFacePt | ( | const label | celli, |
| const point & | p, | ||
| label & | tetFacei, | ||
| label & | tetPti ) const |
Find the tetFacei and tetPti for point p in celli.
tetFacei and tetPtI are set to -1 if not found
Definition at line 1369 of file polyMesh.C.
References tetIndices::face(), polyMeshTetDecomposition::findTet(), mesh, p, and tetIndices::tetPt().
Referenced by findCellFacePt(), pointInCell(), and sampledSet::pushIn().
| bool pointInCell | ( | const point & | p, |
| label | celli, | ||
| const cellDecomposition | decompMode = CELL_TETS ) const |
Test if point p is in the celli.
Definition at line 1385 of file polyMesh.C.
References triangle< Point, PointRef >::areaNormal(), CELL_TETS, cells, triangle< Point, PointRef >::centre(), f(), FACE_CENTRE_TRIS, FACE_DIAG_TRIS, FACE_PLANES, primitiveMesh::faceCentres(), tetIndices::faceTri(), findTetFacePt(), forAll, p, primitiveMesh::pointInCell(), and points.
Referenced by findCell().
| Foam::label findCell | ( | const point & | p, |
| const cellDecomposition | decompMode = CELL_TETS ) const |
Find cell enclosing this location and return index.
If not found -1 is returned
Definition at line 1495 of file polyMesh.C.
References CELL_TETS, FACE_DIAG_TRIS, findCellFacePt(), primitiveMesh::findNearestCell(), primitiveMesh::nCells(), p, UPstream::parRun(), pointInCell(), and tetBasePtIs().
Referenced by sampledSet::getTrackingPoint(), inverseDistance::markDonors(), and trackingInverseDistance::markDonors().
|
virtual |
Write items held in the objectRegistry. Normally includes mesh components (points, faces, etc) and any registered fields.
Reimplemented from objectRegistry.
Reimplemented in dynamicOversetFvMesh, dynamicRefineFvMesh, fvMesh, and staticOversetFvMesh.
Definition at line 1576 of file polyMesh.C.
References objectRegistry::writeObject().
Referenced by fvMesh::writeObject().
|
static |
Return the default region name.
Definition at line 406 of file polyMesh.H.
Referenced by regIOobject::checkIn(), blockMesh::ClassName(), Foam::createField(), faMesh::dbDir(), faMeshRegistry::dbDir(), dbDir(), Foam::defineRunTimeSelectionTable(), pointBoundaryMesh::findPatchID(), polyBoundaryMesh::findPatchID(), hexCellFvMesh::hexCellFvMesh(), reader::mesh(), faMesh::mesh(), faMesh::mesh(), FIREMeshReader::mesh(), meshReader::mesh(), faMesh::meshDir(), meshDir(), dynamicFvMesh::New(), regionName(), setRegistry(), fvMatrix< scalar >::solver(), fvMatrix< Type >::solveSegregatedOrCoupled(), faMesh::TryNew(), columnFvMesh::TypeName(), and volFieldValue::writeValues().
|
static |
Return the mesh sub-directory name (usually "polyMesh").
Definition at line 411 of file polyMesh.H.
Referenced by refinementHistory::add(), refinementHistory::apply(), advectionDiffusion::correct(), fvMesh::delta(), dynamicInkJetFvMesh::dynamicInkJetFvMesh(), topoSet::findIOobject(), topoSet::findIOobject(), isoSurfacePoint::isoSurfacePoint(), solidBodyMotionDisplacementPointPatchVectorField::localPoints0(), fvMesh::makeC(), fvMesh::makeCf(), fvMesh::makeMagSf(), fvMesh::makeSf(), meshDir(), meshDir(), shapeDesignVariables::moveMesh(), points0MotionSolver::points0IO(), polyDualMesh::polyDualMesh(), polyDualMesh::polyDualMesh(), polyDualMesh::polyDualMesh(), polyMesh(), polyMesh(), polyMesh(), polyMesh(), polyMesh(), fvMeshTools::readProcAddressing(), readUpdate(), hexRef8::removeFiles(), meshRefinement::removeFiles(), refinementHistory::removeFiles(), topoSet::removeFiles(), globalMeshData::sharedPointGlobalLabels(), singleCellFvMesh::singleCellFvMesh(), singleCellFvMesh::singleCellFvMesh(), singleCellFvMesh::singleCellFvMesh(), elasticityMotionSolver::solve(), tetBasePtIs(), fvMesh::unitSf(), fvExprDriver::updateSet(), fvMeshTools::writeProcAddressing(), and cellCellStencil::zoneID().
1.16.1
