PatchFunction1 with the code supplied by an on-the-fly compiled C++ expression. More...

#include <CodedField.H>

Inheritance diagram for CodedField< Type >:

[legend]

Collaboration diagram for CodedField< Type >:

[legend]

Public Member Functions
	TypeName ("coded")
	Runtime type information.
	CodedField (const polyPatch &pp, const word &redirectType, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from entry name and dictionary.
	CodedField (const CodedField< Type > &rhs, const polyPatch &pp)
	Copy construct, setting patch.
	CodedField (const CodedField< Type > &rhs)
	Copy construct.
virtual tmp< PatchFunction1< Type > >	clone () const
	Return a clone.
virtual tmp< PatchFunction1< Type > >	clone (const polyPatch &pp) const
	Return a clone, setting the patch.
virtual	~CodedField ()=default
	Destructor.
virtual bool	uniform () const
	Is value uniform (i.e. independent of coordinate).
virtual tmp< Field< Type > >	value (const scalar x) const
	Return CodedField value.
virtual tmp< Field< Type > >	integrate (const scalar x1, const scalar x2) const
	Integrate between two values.
virtual void	autoMap (const FieldMapper &mapper)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const PatchFunction1< Type > &pf1, const labelList &addr)
	Reverse map the given PatchFunction1 onto this PatchFunction1.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
Public Member Functions inherited from PatchFunction1< Type >
	TypeName ("PatchFunction1") declareRunTimeSelectionTable(autoPtr
	Runtime type information.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	PatchFunction1 (const PatchFunction1< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	PatchFunction1 (const PatchFunction1< Type > &rhs)
	Copy construct.
virtual	~PatchFunction1 ()=default
	Destructor.
virtual bool	constant () const
	Is value constant (i.e. independent of x).
virtual bool	good () const
	Can function be evaluated?
virtual tmp< pointField >	localPosition (const pointField &globalPos) const
	Helper: optionally convert coordinates to local coordinates.
virtual tmp< Field< Type > >	transform (const Field< Type > &fld) const
	Apply optional transformation.
virtual tmp< Field< Type > >	transform (const tmp< Field< Type > > &tfld) const
	Apply optional transformation.
Public Member Functions inherited from patchFunction1Base
	patchFunction1Base (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	patchFunction1Base (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	patchFunction1Base (const patchFunction1Base &rhs)
	Copy construct.
	patchFunction1Base (const patchFunction1Base &rhs, const polyPatch &pp)
	Copy construct setting patch.
virtual	~patchFunction1Base ()=default
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const polyPatch &	patch () const noexcept
	Reference to the patch.
bool	faceValues () const noexcept
	Generate face or point values on patch?
label	size () const
	Number of faces or points on the patch.
const objectRegistry *	whichDb () const
	Return the associated registry (ie, the mesh).
const objectRegistry &	obr () const
	Return the object registry (ie, the mesh).
const Time &	time () const
	Return false: function not created with time database.
virtual void	userTimeToTime (const Time &t)
	Convert time.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Attributes
static constexpr const char *const	codeTemplateC = "codedPatchFunction1Template.C"
	Name of the C code template to be used.
static constexpr const char *const	codeTemplateH = "codedPatchFunction1Template.H"
	Name of the H code template to be used.

Protected Member Functions
virtual dlLibraryTable &	libs () const
	Mutable access to the loaded dynamic libraries.
virtual string	description () const
	Description (type + name) for the output.
virtual void	clearRedirect () const
	Clear redirected object(s).
virtual const dictionary &	codeContext () const
	Additional 'codeContext' dictionary to pass through.
virtual const dictionary &	codeDict (const dictionary &dict) const
virtual const dictionary &	codeDict () const
virtual void	prepare (dynamicCode &, const dynamicCodeContext &) const
	Adapt the context for the current object.
void	operator= (const CodedField< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from PatchFunction1< Type >
void	operator= (const PatchFunction1< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from patchFunction1Base
void	operator= (const patchFunction1Base &)=delete
	No copy assignment.
Protected Member Functions inherited from codedBase
dynamicCodeContext &	codeContext ()
	Access to the dynamic code context.
void	setCodeContext (const dictionary &dict)
	Set code context from a dictionary.
void	append (const std::string &str)
	Add content to SHA1 hashing.
void	updateLibrary (const word &name, const dynamicCodeContext &context) const
	Update library as required, using the given context.
void	updateLibrary (const word &name, const dictionary &dict) const
	Update library as required, using the given code dictionary to use for the context.
void	updateLibrary (const word &name) const
	Update library as required, using the predefined context or use the codeDict() to generate one.
	ClassName ("codedBase")
	Runtime type information.
	codedBase (const codedBase &)=delete
	No copy construct.
void	operator= (const codedBase &)=delete
	No copy assignment.
	codedBase ()=default
	Default construct.
virtual	~codedBase ()=default
	Destructor.

Additional Inherited Members
Public Types inherited from PatchFunction1< Type >
typedef Field< Type >	returnType
	The return type is a field of values.
Static Public Member Functions inherited from PatchFunction1< Type >
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun)
	Clone a PatchFunction1.
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun, const polyPatch &pp)
	Clone a PatchFunction1 with a patch.
static autoPtr< PatchFunction1< Type > >	New (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Selector.
static autoPtr< PatchFunction1< Type > >	NewCompat (const polyPatch &pp, const word &entryName, std::initializer_list< std::pair< const char *, int > > compat, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Compatibility selector.
static autoPtr< PatchFunction1< Type > >	NewIfPresent (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	An optional selector.
static refPtr< PatchFunction1< Type > >	New (HashPtrTable< PatchFunction1< Type > > &cache, const polyPatch &pp, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const bool faceValues=true, const bool mandatory=true)
	Selector with external storage. This also allows wildcard matches in a dictionary.
Public Attributes inherited from PatchFunction1< Type >
	PatchFunction1
	dictionary
const polyPatch &	pp
const polyPatch const word &	type
const polyPatch const word const word &	entryName
const polyPatch const word const word const dictionary &	dict
const polyPatch const word const word const dictionary const bool	faceValues
const polyPatch const word const word const dictionary const bool	pp
const polyPatch const word const word const dictionary const bool	type
const polyPatch const word const word const dictionary const bool	entryName
const polyPatch const word const word const dictionary const bool	dict
Static Protected Member Functions inherited from codedBase
static void	writeCodeDict (Ostream &os, const dictionary &dict)
	Write code-dictionary contents.
static const dictionary &	codeDict (const objectRegistry &obr, const word &dictName="codeDict")
	Return "codeDict" from objectRegistry or read from disk.
Protected Attributes inherited from PatchFunction1< Type >
coordinateScaling< Type >	coordSys_
	Optional local coordinate system and scaling.
Protected Attributes inherited from patchFunction1Base
const word	name_
	Name of entry.
const polyPatch &	patch_
	Reference to the patch.
const bool	faceValues_
	Generate face or point values on patch.

Detailed Description

template<class Type>
class Foam::PatchFunction1Types::CodedField< Type >

PatchFunction1 with the code supplied by an on-the-fly compiled C++ expression.

The code entries:

codeInclude	:	include files
codeOptions	:	compiler line: added to EXE_INC (Make/options)
codeLibs	:	linker line: added to LIB_LIBS (Make/options)
localCode	:	c++; local static functions
code	:	c++; return the patch values at (scalar x)

Usage

Example:

<patchName>
{
    type            uniformFixedValue;
    uniformValue
    {
        type  coded;
        name  myExpression;  // Name of generated PatchFunction1

        code
        #{
            const polyPatch& pp = this->patch();
            Pout<< "** Patch size:" << pp.size() << endl;
            return tmp<vectorField>::New(pp.size(), vector(1, 0, 0))
        #};

        //codeInclude
        //#{
        //    #include "volFields.H"
        //#};

        //codeOptions
        //#{
        //    -I$(LIB_SRC)/finiteVolume/lnInclude
        //#};
    }
}

Note: The code context dictionary is simply the dictionary used to specify the PatchFunction1 coefficients.

See also: Foam::dynamicCode Foam::codedFixedValue Foam::functionEntries::codeStream

Source files

Definition at line 120 of file CodedField.H.

Constructor & Destructor Documentation

◆ CodedField() [1/3]

template<class Type>

CodedField	(	const polyPatch &	pp,
		const word &	redirectType,
		const word &	entryName,
		const dictionary &	dict,
		const bool	faceValues = true )

Construct from entry name and dictionary.

Definition at line 139 of file CodedField.C.

References codedBase::codedBase(), PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, PatchFunction1< Type >::PatchFunction1, PatchFunction1< Type >::pp, codedBase::setCodeContext(), and codedBase::updateLibrary().

Referenced by CodedField(), CodedField(), operator=(), and TypeName().

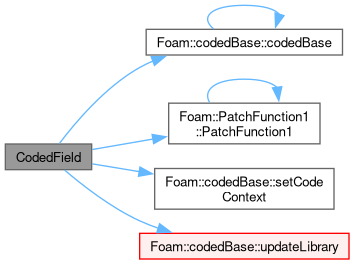

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CodedField() [2/3]

template<class Type>

CodedField	(	const CodedField< Type > &	rhs,
		const polyPatch &	pp )

explicit

Copy construct, setting patch.

Definition at line 162 of file CodedField.C.

References codedBase::codedBase(), CodedField(), PatchFunction1< Type >::PatchFunction1, PatchFunction1< Type >::pp, and Foam::rhs().

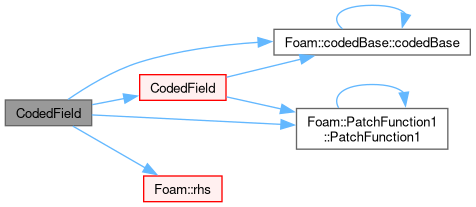

Here is the call graph for this function:

◆ CodedField() [3/3]

template<class Type>

CodedField ( const CodedField< Type > & rhs )

explicit

Copy construct.

Definition at line 176 of file CodedField.C.

References CodedField(), patchFunction1Base::patch(), and Foam::rhs().

Here is the call graph for this function:

◆ ~CodedField()

template<class Type>

virtual ~CodedField ( )

virtualdefault

Destructor.

Member Function Documentation

◆ libs()

template<class Type>

Foam::dlLibraryTable & libs ( ) const

protectedvirtual

Mutable access to the loaded dynamic libraries.

Implements codedBase.

Definition at line 29 of file CodedField.C.

References patchFunction1Base::patch_.

◆ description()

template<class Type>

Foam::string description ( ) const

protectedvirtual

Description (type + name) for the output.

Implements codedBase.

Definition at line 37 of file CodedField.C.

◆ clearRedirect()

template<class Type>

void clearRedirect ( ) const

protectedvirtual

Clear redirected object(s).

Implements codedBase.

Definition at line 44 of file CodedField.C.

◆ codeContext()

template<class Type>

const Foam::dictionary & codeContext ( ) const

protectedvirtual

Additional 'codeContext' dictionary to pass through.

Definition at line 52 of file CodedField.C.

◆ codeDict() [1/2]

template<class Type>

const Foam::dictionary & codeDict ( const dictionary & dict ) const

protectedvirtual

Definition at line 61 of file CodedField.C.

References PatchFunction1< Type >::dict, and PatchFunction1< Type >::dictionary.

Referenced by codeDict().

Here is the caller graph for this function:

◆ codeDict() [2/2]

template<class Type>

const Foam::dictionary & codeDict ( ) const

protectedvirtual

Implements codedBase.

Definition at line 80 of file CodedField.C.

References codeDict().

Here is the call graph for this function:

◆ prepare()

template<class Type>

void prepare	(	dynamicCode &	dynCode,
		const dynamicCodeContext &	context ) const

protectedvirtual

Adapt the context for the current object.

Implements codedBase.

Definition at line 87 of file CodedField.C.

References dynamicCode::addCompileFile(), dynamicCode::addCopyFile(), dynamicCodeContext::code(), codeTemplateC, codeTemplateH, DetailInfo, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, dynamicCodeContext::libs(), dynamicCodeContext::options(), patchFunction1Base::patch_, dynamicCode::setFieldTemplates(), dynamicCode::setFilterVariable(), dynamicCode::setMakeOptions(), and dynamicCodeContext::sha1().

Here is the call graph for this function:

◆ operator=()

template<class Type>

void operator= ( const CodedField< Type > & )

protecteddelete

No copy assignment.

References CodedField().

Here is the call graph for this function:

◆ TypeName()

template<class Type>

TypeName ( "coded" )

Runtime type information.

References CodedField(), PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, PatchFunction1< Type >::pp, and Foam::rhs().

Here is the call graph for this function:

◆ clone() [1/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( ) const

inlinevirtual

Return a clone.

Implements PatchFunction1< Type >.

Definition at line 240 of file CodedField.H.

References PatchFunction1< Type >::Clone().

Here is the call graph for this function:

◆ clone() [2/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( const polyPatch & pp ) const

inlinevirtual

Return a clone, setting the patch.

Implements PatchFunction1< Type >.

Definition at line 248 of file CodedField.H.

References PatchFunction1< Type >::Clone(), and PatchFunction1< Type >::pp.

Here is the call graph for this function:

◆ uniform()

template<class Type>

virtual bool uniform ( ) const

inlinevirtual

Is value uniform (i.e. independent of coordinate).

Implements PatchFunction1< Type >.

Definition at line 265 of file CodedField.H.

◆ value()

template<class Type>

Foam::tmp< Foam::Field< Type > > value ( const scalar x ) const

virtual

Return CodedField value.

Reimplemented from PatchFunction1< Type >.

Definition at line 233 of file CodedField.C.

References codedBase::updateLibrary(), and x.

Here is the call graph for this function:

◆ integrate()

template<class Type>

Foam::tmp< Foam::Field< Type > > integrate	(	const scalar	x1,
		const scalar	x2 ) const

virtual

Integrate between two values.

Reimplemented from PatchFunction1< Type >.

Definition at line 247 of file CodedField.C.

References codedBase::updateLibrary().

Here is the call graph for this function:

◆ autoMap()

template<class Type>

void autoMap ( const FieldMapper & mapper )

virtual

Map (and resize as needed) from self given a mapping object.

Reimplemented from PatchFunction1< Type >.

Definition at line 261 of file CodedField.C.

References PatchFunction1< Type >::autoMap().

Here is the call graph for this function:

◆ rmap()

template<class Type>

void rmap	(	const PatchFunction1< Type > &	pf1,
		const labelList &	addr )

virtual

Reverse map the given PatchFunction1 onto this PatchFunction1.

Reimplemented from PatchFunction1< Type >.

Definition at line 275 of file CodedField.C.

References PatchFunction1< Type >::PatchFunction1, and PatchFunction1< Type >::rmap().

Here is the call graph for this function:

◆ writeData()

template<class Type>

void writeData ( Ostream & os ) const

virtual

Write in dictionary format.

Reimplemented from PatchFunction1< Type >.

Definition at line 290 of file CodedField.C.

References name, and os().

Here is the call graph for this function:

Member Data Documentation

◆ codeTemplateC

template<class Type>

const char* const codeTemplateC = "codedPatchFunction1Template.C"

staticconstexpr

Name of the C code template to be used.

Definition at line 193 of file CodedField.H.

Referenced by prepare().

◆ codeTemplateH

template<class Type>

const char* const codeTemplateH = "codedPatchFunction1Template.H"

staticconstexpr

Name of the H code template to be used.

Definition at line 199 of file CodedField.H.

Referenced by prepare().

The documentation for this class was generated from the following files:

src/meshTools/PatchFunction1/CodedField/CodedField.H
src/meshTools/PatchFunction1/CodedField/CodedField.C

Public Member Functions

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CodedField() [1/3]

◆ CodedField() [2/3]

◆ CodedField() [3/3]

◆ ~CodedField()

Member Function Documentation

◆ libs()

◆ description()

◆ clearRedirect()

◆ codeContext()

◆ codeDict() [1/2]

◆ codeDict() [2/2]

◆ prepare()

◆ operator=()

◆ TypeName()

◆ clone() [1/2]

◆ clone() [2/2]

◆ uniform()

◆ value()

◆ integrate()

◆ autoMap()

◆ rmap()

◆ writeData()

Member Data Documentation

◆ codeTemplateC

◆ codeTemplateH
