Top level data entry class for use in dictionaries. Provides a mechanism to specify a variable as a certain type, e.g. constant or time varying, and provide functions to return the (interpolated) value, and integral between limits. More...

#include <PatchFunction1.H>

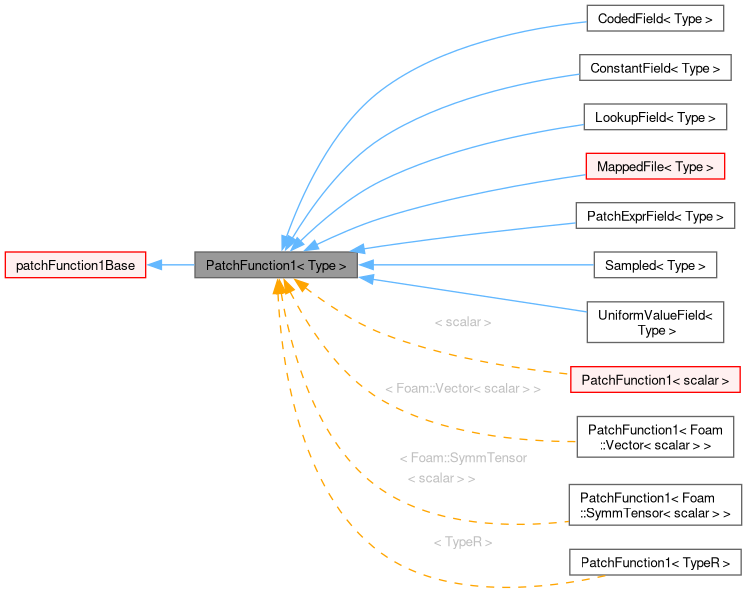

Inheritance diagram for PatchFunction1< Type >:

[legend]

Collaboration diagram for PatchFunction1< Type >:

[legend]

Public Types
typedef Field< Type >	returnType
	The return type is a field of values.

Public Member Functions
	TypeName ("PatchFunction1") declareRunTimeSelectionTable(autoPtr
	Runtime type information.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	PatchFunction1 (const PatchFunction1< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	PatchFunction1 (const PatchFunction1< Type > &rhs)
	Copy construct.
virtual tmp< PatchFunction1< Type > >	clone () const =0
	Return a clone.
virtual tmp< PatchFunction1< Type > >	clone (const polyPatch &pp) const =0
	Return a clone, setting patch.
virtual	~PatchFunction1 ()=default
	Destructor.
virtual bool	constant () const
	Is value constant (i.e. independent of x).
virtual bool	good () const
	Can function be evaluated?
virtual bool	uniform () const =0
	Is value uniform (i.e. independent of coordinate).
virtual tmp< Field< Type > >	value (const scalar x) const
	Return value as a function of (scalar) independent variable.
virtual tmp< Field< Type > >	integrate (const scalar x1, const scalar x2) const
	Integrate between two (scalar) values.
virtual tmp< pointField >	localPosition (const pointField &globalPos) const
	Helper: optionally convert coordinates to local coordinates.
virtual tmp< Field< Type > >	transform (const Field< Type > &fld) const
	Apply optional transformation.
virtual tmp< Field< Type > >	transform (const tmp< Field< Type > > &tfld) const
	Apply optional transformation.
virtual void	autoMap (const FieldMapper &mapper)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const PatchFunction1< Type > &rhs, const labelList &addr)
	Reverse map the given PatchFunction1 onto this PatchFunction1.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
Public Member Functions inherited from patchFunction1Base
	patchFunction1Base (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	patchFunction1Base (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	patchFunction1Base (const patchFunction1Base &rhs)
	Copy construct.
	patchFunction1Base (const patchFunction1Base &rhs, const polyPatch &pp)
	Copy construct setting patch.
virtual	~patchFunction1Base ()=default
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const polyPatch &	patch () const noexcept
	Reference to the patch.
bool	faceValues () const noexcept
	Generate face or point values on patch?
label	size () const
	Number of faces or points on the patch.
const objectRegistry *	whichDb () const
	Return the associated registry (ie, the mesh).
const objectRegistry &	obr () const
	Return the object registry (ie, the mesh).
const Time &	time () const
	Return false: function not created with time database.
virtual void	userTimeToTime (const Time &t)
	Convert time.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Member Functions
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun)
	Clone a PatchFunction1.
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun, const polyPatch &pp)
	Clone a PatchFunction1 with a patch.
static autoPtr< PatchFunction1< Type > >	New (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Selector.
static autoPtr< PatchFunction1< Type > >	NewCompat (const polyPatch &pp, const word &entryName, std::initializer_list< std::pair< const char *, int > > compat, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Compatibility selector.
static autoPtr< PatchFunction1< Type > >	NewIfPresent (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	An optional selector.
static refPtr< PatchFunction1< Type > >	New (HashPtrTable< PatchFunction1< Type > > &cache, const polyPatch &pp, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const bool faceValues=true, const bool mandatory=true)
	Selector with external storage. This also allows wildcard matches in a dictionary.

Public Attributes
	PatchFunction1
	dictionary
const polyPatch &	pp
const polyPatch const word &	type
const polyPatch const word const word &	entryName
const polyPatch const word const word const dictionary &	dict
const polyPatch const word const word const dictionary const bool	faceValues
const polyPatch const word const word const dictionary const bool	pp
const polyPatch const word const word const dictionary const bool	type
const polyPatch const word const word const dictionary const bool	entryName
const polyPatch const word const word const dictionary const bool	dict

Protected Member Functions
void	operator= (const PatchFunction1< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from patchFunction1Base
void	operator= (const patchFunction1Base &)=delete
	No copy assignment.

Protected Attributes
coordinateScaling< Type >	coordSys_
	Optional local coordinate system and scaling.
Protected Attributes inherited from patchFunction1Base
const word	name_
	Name of entry.
const polyPatch &	patch_
	Reference to the patch.
const bool	faceValues_
	Generate face or point values on patch.

Friends
Ostream &	operator<< (Ostream &os, const PatchFunction1< Type > &rhs)
	Ostream Operator.

Detailed Description

template<class Type>
class Foam::PatchFunction1< Type >

Top level data entry class for use in dictionaries. Provides a mechanism to specify a variable as a certain type, e.g. constant or time varying, and provide functions to return the (interpolated) value, and integral between limits.

Extends the Function1 class by adding autoMap and rMap functions

Source files

See also: Foam::Function1

Definition at line 66 of file PatchFunction1.H.

Member Typedef Documentation

◆ returnType

template<class Type>

typedef Field<Type> returnType

The return type is a field of values.

Definition at line 111 of file PatchFunction1.H.

Constructor & Destructor Documentation

◆ PatchFunction1() [1/4]

template<class Type>

PatchFunction1	(	const polyPatch &	pp,
		const word &	entryName,
		const bool	faceValues = true )

Construct from polyPatch and entry name.

References entryName, faceValues, PatchFunction1, and pp.

Here is the call graph for this function:

◆ PatchFunction1() [2/4]

template<class Type>

PatchFunction1	(	const polyPatch &	pp,
		const word &	entryName,
		const dictionary &	dict,
		const bool	faceValues = true )

Construct from polyPatch, dictionary and entry name.

References dict, dictionary, entryName, faceValues, PatchFunction1, and pp.

Here is the call graph for this function:

◆ PatchFunction1() [3/4]

template<class Type>

PatchFunction1	(	const PatchFunction1< Type > &	rhs,
		const polyPatch &	pp )

explicit

Copy construct setting patch.

References PatchFunction1, pp, and Foam::rhs().

Here is the call graph for this function:

◆ PatchFunction1() [4/4]

template<class Type>

PatchFunction1 ( const PatchFunction1< Type > & rhs )

explicit

Copy construct.

References PatchFunction1, and Foam::rhs().

Here is the call graph for this function:

◆ ~PatchFunction1()

template<class Type>

virtual ~PatchFunction1 ( )

virtualdefault

Destructor.

Member Function Documentation

◆ operator=()

template<class Type>

void operator= ( const PatchFunction1< Type > & )

protecteddelete

No copy assignment.

References PatchFunction1.

Here is the call graph for this function:

◆ TypeName()

template<class Type>

TypeName ( "PatchFunction1< Type >" )

Runtime type information.

Declare runtime constructor selection table

References declareRunTimeSelectionTable.

◆ clone() [1/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( ) const

pure virtual

Return a clone.

Implemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

References clone(), and PatchFunction1.

Referenced by clone(), and clone().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone() [2/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( const polyPatch & pp ) const

pure virtual

Return a clone, setting patch.

Implemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

References clone(), PatchFunction1, and pp.

Here is the call graph for this function:

◆ Clone() [1/2]

template<class Type>

template<class Derived>

tmp< PatchFunction1< Type > > Clone ( const Derived & fun )

inlinestatic

Clone a PatchFunction1.

Definition at line 193 of file PatchFunction1.H.

References Clone().

Referenced by Clone(), CodedField< Type >::clone(), CodedField< Type >::clone(), ConstantField< Type >::clone(), ConstantField< Type >::clone(), LookupField< Type >::clone(), MappedFile< Type >::clone(), MappedFile< Type >::clone(), PatchExprField< Type >::clone(), PatchExprField< Type >::clone(), Sampled< Type >::clone(), Sampled< Type >::clone(), UniformValueField< Type >::clone(), and UniformValueField< Type >::clone().

Here is the call graph for this function:

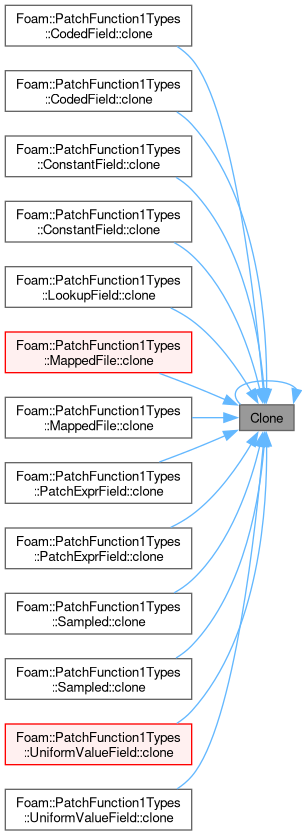

Here is the caller graph for this function:

◆ Clone() [2/2]

template<class Type>

template<class Derived>

tmp< PatchFunction1< Type > > Clone	(	const Derived &	fun,
		const polyPatch &	pp )

inlinestatic

Clone a PatchFunction1 with a patch.

Definition at line 203 of file PatchFunction1.H.

References pp.

◆ New() [1/2]

template<class Type>

Foam::autoPtr< Foam::PatchFunction1< Type > > New	(	const polyPatch &	pp,
		const word &	entryName,
		const dictionary &	dict,
		const bool	faceValues = true,
		const bool	mandatory = true )

static

Selector.

Definition at line 160 of file PatchFunction1New.C.

References dict, dictionary, entryName, faceValues, keyType::LITERAL, and pp.

◆ NewCompat()

template<class Type>

Foam::autoPtr< Foam::PatchFunction1< Type > > NewCompat	(	const polyPatch &	pp,
		const word &	entryName,
		std::initializer_list< std::pair< const char *, int > >	compat,
		const dictionary &	dict,
		const bool	faceValues = true,
		const bool	mandatory = true )

static

Compatibility selector.

Definition at line 183 of file PatchFunction1New.C.

References dict, dictionary, entryName, faceValues, keyType::LITERAL, and pp.

◆ NewIfPresent()

template<class Type>

Foam::autoPtr< Foam::PatchFunction1< Type > > NewIfPresent	(	const polyPatch &	pp,
		const word &	entryName,
		const dictionary &	dict,
		const bool	faceValues = true )

static

An optional selector.

Definition at line 207 of file PatchFunction1New.C.

References dict, dictionary, entryName, faceValues, and pp.

Referenced by surfaceSlipDisplacementPointPatchVectorField::surfaceSlipDisplacementPointPatchVectorField(), turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::turbulentTemperatureCoupledBaffleMixedFvPatchScalarField(), and turbulentTemperatureRadCoupledMixedFvPatchScalarField::turbulentTemperatureRadCoupledMixedFvPatchScalarField().

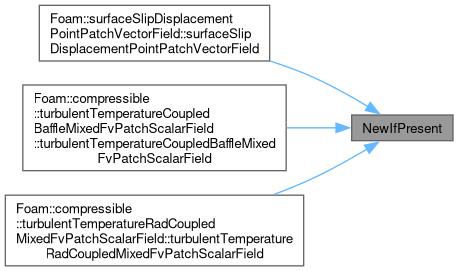

Here is the caller graph for this function:

◆ New() [2/2]

template<class Type>

Foam::refPtr< Foam::PatchFunction1< Type > > New	(	HashPtrTable< PatchFunction1< Type > > &	cache,
		const polyPatch &	pp,
		const word &	entryName,
		const dictionary &	dict,
		enum keyType::option	matchOpt = keyType::LITERAL,
		const bool	faceValues = true,
		const bool	mandatory = true )

static

Selector with external storage. This also allows wildcard matches in a dictionary.

Definition at line 222 of file PatchFunction1New.C.

◆ constant()

template<class Type>

virtual bool constant ( ) const

inlinevirtual

Is value constant (i.e. independent of x).

Reimplemented in ConstantField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

Definition at line 275 of file PatchFunction1.H.

◆ good()

template<class Type>

virtual bool good ( ) const

inlinevirtual

Can function be evaluated?

Reimplemented in UniformValueField< Type >.

Definition at line 280 of file PatchFunction1.H.

◆ uniform()

template<class Type>

bool uniform ( ) const

pure virtual

Is value uniform (i.e. independent of coordinate).

Implemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

Definition at line 76 of file PatchFunction1.C.

References coordSys_.

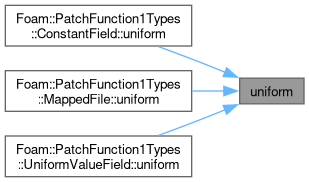

Referenced by ConstantField< Type >::uniform(), MappedFile< Type >::uniform(), and UniformValueField< Type >::uniform().

Here is the caller graph for this function:

◆ value()

template<class Type>

Foam::tmp< Foam::Field< Type > > value ( const scalar x ) const

virtual

Return value as a function of (scalar) independent variable.

Reimplemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

Definition at line 83 of file PatchFunction1.C.

References NotImplemented, and x.

◆ integrate()

template<class Type>

Foam::tmp< Foam::Field< Type > > integrate	(	const scalar	x1,
		const scalar	x2 ) const

virtual

Integrate between two (scalar) values.

Reimplemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

Definition at line 94 of file PatchFunction1.C.

References NotImplemented.

◆ localPosition()

template<class Type>

Foam::tmp< Foam::pointField > localPosition ( const pointField & globalPos ) const

virtual

Helper: optionally convert coordinates to local coordinates.

Definition at line 107 of file PatchFunction1.C.

References coordSys_.

◆ transform() [1/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > transform ( const Field< Type > & fld ) const

virtual

Apply optional transformation.

Definition at line 137 of file PatchFunction1.C.

References coordSys_, faceValues, fld(), and patchFunction1Base::patch_.

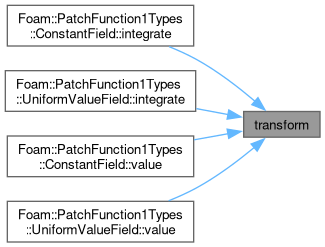

Referenced by ConstantField< Type >::integrate(), UniformValueField< Type >::integrate(), ConstantField< Type >::value(), and UniformValueField< Type >::value().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ transform() [2/2]

template<class Type>

Foam::tmp< Foam::Field< Type > > transform ( const tmp< Field< Type > > & tfld ) const

virtual

Apply optional transformation.

Definition at line 114 of file PatchFunction1.C.

References tmp< T >::clear(), coordSys_, faceValues, and patchFunction1Base::patch_.

Here is the call graph for this function:

◆ autoMap()

template<class Type>

void autoMap ( const FieldMapper & mapper )

virtual

Map (and resize as needed) from self given a mapping object.

Reimplemented in CodedField< Type >, ConstantField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, and UniformValueField< Type >.

Definition at line 159 of file PatchFunction1.C.

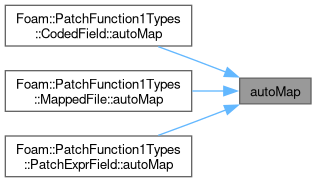

Referenced by CodedField< Type >::autoMap(), MappedFile< Type >::autoMap(), and PatchExprField< Type >::autoMap().

Here is the caller graph for this function:

◆ rmap()

template<class Type>

void rmap	(	const PatchFunction1< Type > &	rhs,
		const labelList &	addr )

virtual

Reverse map the given PatchFunction1 onto this PatchFunction1.

Reimplemented in CodedField< Type >, ConstantField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, and UniformValueField< Type >.

Definition at line 164 of file PatchFunction1.C.

References PatchFunction1, and Foam::rhs().

Referenced by CodedField< Type >::rmap(), MappedFile< Type >::rmap(), and PatchExprField< Type >::rmap().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeData()

template<class Type>

void writeData ( Ostream & os ) const

virtual

Write in dictionary format.

Reimplemented in CodedField< Type >, ConstantField< Type >, LookupField< Type >, MappedFile< Type >, MappedFile< scalar >, PatchExprField< Type >, Sampled< Type >, and UniformValueField< Type >.

Definition at line 173 of file PatchFunction1.C.

References coordSys_, and os().

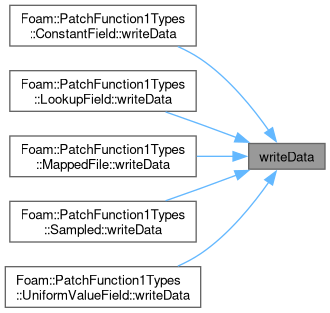

Referenced by ConstantField< Type >::writeData(), LookupField< Type >::writeData(), MappedFile< Type >::writeData(), Sampled< Type >::writeData(), and UniformValueField< Type >::writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator<<

template<class Type>

Ostream & operator<<	(	Ostream &	os,
		const PatchFunction1< Type > &	rhs )

friend

Ostream Operator.

References os(), PatchFunction1, and Foam::rhs().

Member Data Documentation

◆ coordSys_

template<class Type>

coordinateScaling<Type> coordSys_

protected

Optional local coordinate system and scaling.

Definition at line 93 of file PatchFunction1.H.

Referenced by ConstantField< Type >::integrate(), localPosition(), transform(), transform(), uniform(), ConstantField< Type >::value(), and writeData().

◆ PatchFunction1

template<class Type>

PatchFunction1

Definition at line 125 of file PatchFunction1.H.

References PatchFunction1.

Referenced by clone(), clone(), CodedField< Type >::CodedField(), CodedField< Type >::CodedField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), LookupField< Type >::LookupField(), LookupField< Type >::LookupField(), MappedFile< Type >::MappedFile(), operator<<, operator=(), PatchExprField< Type >::PatchExprField(), PatchExprField< Type >::PatchExprField(), PatchFunction1(), PatchFunction1(), PatchFunction1(), PatchFunction1(), PatchFunction1, rmap(), CodedField< Type >::rmap(), ConstantField< Type >::rmap(), MappedFile< Type >::rmap(), PatchExprField< Type >::rmap(), UniformValueField< Type >::rmap(), Sampled< Type >::Sampled(), Sampled< Type >::Sampled(), UniformValueField< Type >::UniformValueField(), and UniformValueField< Type >::UniformValueField().

◆ dictionary

template<class Type>

dictionary

◆ pp [1/2]

template<class Type>

const polyPatch& pp

Definition at line 128 of file PatchFunction1.H.

Referenced by Clone(), clone(), CodedField< Type >::clone(), ConstantField< Type >::clone(), LookupField< Type >::clone(), MappedFile< Type >::clone(), PatchExprField< Type >::clone(), Sampled< Type >::clone(), UniformValueField< Type >::clone(), CodedField< Type >::CodedField(), CodedField< Type >::CodedField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), LookupField< Type >::LookupField(), LookupField< Type >::LookupField(), MappedFile< Type >::MappedFile(), MappedFile< Type >::MappedFile(), MappedFile< Type >::MappedFile(), New(), NewCompat(), NewIfPresent(), LookupField< Type >::operator=(), MappedFile< Type >::operator=(), PatchExprField< Type >::operator=(), Sampled< Type >::operator=(), UniformValueField< Type >::operator=(), PatchExprField< Type >::PatchExprField(), PatchExprField< Type >::PatchExprField(), PatchFunction1(), PatchFunction1(), PatchFunction1(), Sampled< Type >::Sampled(), Sampled< Type >::Sampled(), CodedField< Type >::TypeName(), ConstantField< Type >::TypeName(), UniformValueField< Type >::UniformValueField(), and UniformValueField< Type >::UniformValueField().

◆ type [1/2]

template<class Type>

const polyPatch const word& type

Definition at line 129 of file PatchFunction1.H.

◆ entryName [1/2]

template<class Type>

const polyPatch const word const word& entryName

◆ dict [1/2]

template<class Type>

const polyPatch const word const word const dictionary& dict

◆ faceValues

template<class Type>

const polyPatch const word const word const dictionary const bool faceValues

Definition at line 132 of file PatchFunction1.H.

Referenced by CodedField< Type >::CodedField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), ConstantField< Type >::ConstantField(), LookupField< Type >::LookupField(), MappedFile< Type >::MappedFile(), MappedFile< Type >::MappedFile(), New(), NewCompat(), NewIfPresent(), LookupField< Type >::operator=(), MappedFile< Type >::operator=(), PatchExprField< Type >::operator=(), Sampled< Type >::operator=(), UniformValueField< Type >::operator=(), PatchExprField< Type >::PatchExprField(), PatchFunction1(), PatchFunction1(), Sampled< Type >::Sampled(), transform(), transform(), CodedField< Type >::TypeName(), ConstantField< Type >::TypeName(), UniformValueField< Type >::UniformValueField(), LookupField< Type >::value(), and Sampled< Type >::value().

◆ pp [2/2]

template<class Type>

const polyPatch const word const word const dictionary const bool pp

Definition at line 134 of file PatchFunction1.H.

◆ type [2/2]

template<class Type>

const polyPatch const word const word const dictionary const bool type

Definition at line 134 of file PatchFunction1.H.

◆ entryName [2/2]

template<class Type>

const polyPatch const word const word const dictionary const bool entryName

Definition at line 134 of file PatchFunction1.H.

◆ dict [2/2]

template<class Type>

const polyPatch const word const word const dictionary const bool dict

Definition at line 134 of file PatchFunction1.H.

The documentation for this class was generated from the following files:

src/meshTools/PatchFunction1/PatchFunction1/PatchFunction1.H
src/meshTools/PatchFunction1/PatchFunction1/PatchFunction1.C
src/meshTools/PatchFunction1/PatchFunction1/PatchFunction1New.C

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Typedef Documentation

◆ returnType

Constructor & Destructor Documentation

◆ PatchFunction1() [1/4]

◆ PatchFunction1() [2/4]

◆ PatchFunction1() [3/4]

◆ PatchFunction1() [4/4]

◆ ~PatchFunction1()

Member Function Documentation

◆ operator=()

◆ TypeName()

◆ clone() [1/2]

◆ clone() [2/2]

◆ Clone() [1/2]

◆ Clone() [2/2]

◆ New() [1/2]

◆ NewCompat()

◆ NewIfPresent()

◆ New() [2/2]

◆ constant()

◆ good()

◆ uniform()

◆ value()

◆ integrate()

◆ localPosition()

◆ transform() [1/2]

◆ transform() [2/2]

◆ autoMap()

◆ rmap()

◆ writeData()

Friends And Related Symbol Documentation

◆ operator<<

Member Data Documentation

◆ coordSys_

◆ PatchFunction1

◆ dictionary

◆ pp [1/2]

◆ type [1/2]

◆ entryName [1/2]

◆ dict [1/2]

◆ faceValues

◆ pp [2/2]

◆ type [2/2]

◆ entryName [2/2]

◆ dict [2/2]
