Templated function that returns a constant value. More...

#include <ConstantField.H>

Inheritance diagram for ConstantField< Type >:

Collaboration diagram for ConstantField< Type >:

Public Member Functions
	TypeName ("constant")
	Runtime type information.
	ConstantField (const polyPatch &pp, const word &entryName, const Type &uniformValue, const dictionary &dict=dictionary::null, const bool faceValues=true)
	Construct from a uniform value.
	ConstantField (const polyPatch &pp, const word &entryName, const bool isUniform, const Type &uniformValue, const Field< Type > &fieldValues, const dictionary &dict=dictionary::null, const bool faceValues=true)
	Construct from components.
	ConstantField (const polyPatch &pp, const word &redirectType, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from entry name and dictionary.
	ConstantField (const polyPatch &pp, const entry *eptr, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from primitive entry, entry name and dictionary.
	ConstantField (const ConstantField< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	ConstantField (const ConstantField< Type > &rhs)
	Copy construct.
virtual tmp< PatchFunction1< Type > >	clone () const
	Return a clone.
virtual tmp< PatchFunction1< Type > >	clone (const polyPatch &pp) const
	Return a clone, setting the patch.
virtual	~ConstantField ()=default
	Destructor.
virtual bool	constant () const
	Value is independent of x.
virtual bool	uniform () const
	Is value uniform (i.e. independent of coordinate).
virtual tmp< Field< Type > >	value (const scalar x) const
	Return constant value.
virtual tmp< Field< Type > >	integrate (const scalar x1, const scalar x2) const
	Integrate between two values.
virtual void	autoMap (const FieldMapper &mapper)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const PatchFunction1< Type > &pf1, const labelList &addr)
	Reverse map the given PatchFunction1 onto this PatchFunction1.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
Public Member Functions inherited from PatchFunction1< Type >
	TypeName ("PatchFunction1") declareRunTimeSelectionTable(autoPtr
	Runtime type information.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	PatchFunction1 (const PatchFunction1< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	PatchFunction1 (const PatchFunction1< Type > &rhs)
	Copy construct.
virtual	~PatchFunction1 ()=default
	Destructor.
virtual bool	good () const
	Can function be evaluated?
virtual tmp< pointField >	localPosition (const pointField &globalPos) const
	Helper: optionally convert coordinates to local coordinates.
virtual tmp< Field< Type > >	transform (const Field< Type > &fld) const
	Apply optional transformation.
virtual tmp< Field< Type > >	transform (const tmp< Field< Type > > &tfld) const
	Apply optional transformation.
Public Member Functions inherited from patchFunction1Base
	patchFunction1Base (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	patchFunction1Base (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	patchFunction1Base (const patchFunction1Base &rhs)
	Copy construct.
	patchFunction1Base (const patchFunction1Base &rhs, const polyPatch &pp)
	Copy construct setting patch.
virtual	~patchFunction1Base ()=default
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const polyPatch &	patch () const noexcept
	Reference to the patch.
bool	faceValues () const noexcept
	Generate face or point values on patch?
label	size () const
	Number of faces or points on the patch.
const objectRegistry *	whichDb () const
	Return the associated registry (ie, the mesh).
const objectRegistry &	obr () const
	Return the object registry (ie, the mesh).
const Time &	time () const
	Return false: function not created with time database.
virtual void	userTimeToTime (const Time &t)
	Convert time.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Public Types inherited from PatchFunction1< Type >
typedef Field< Type >	returnType
	The return type is a field of values.
Static Public Member Functions inherited from PatchFunction1< Type >
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun)
	Clone a PatchFunction1.
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun, const polyPatch &pp)
	Clone a PatchFunction1 with a patch.
static autoPtr< PatchFunction1< Type > >	New (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Selector.
static autoPtr< PatchFunction1< Type > >	NewCompat (const polyPatch &pp, const word &entryName, std::initializer_list< std::pair< const char *, int > > compat, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Compatibility selector.
static autoPtr< PatchFunction1< Type > >	NewIfPresent (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	An optional selector.
static refPtr< PatchFunction1< Type > >	New (HashPtrTable< PatchFunction1< Type > > &cache, const polyPatch &pp, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const bool faceValues=true, const bool mandatory=true)
	Selector with external storage. This also allows wildcard matches in a dictionary.
Public Attributes inherited from PatchFunction1< Type >
	PatchFunction1
	dictionary
const polyPatch &	pp
const polyPatch const word &	type
const polyPatch const word const word &	entryName
const polyPatch const word const word const dictionary &	dict
const polyPatch const word const word const dictionary const bool	faceValues
const polyPatch const word const word const dictionary const bool	pp
const polyPatch const word const word const dictionary const bool	type
const polyPatch const word const word const dictionary const bool	entryName
const polyPatch const word const word const dictionary const bool	dict
Protected Member Functions inherited from PatchFunction1< Type >
void	operator= (const PatchFunction1< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from patchFunction1Base
void	operator= (const patchFunction1Base &)=delete
	No copy assignment.
Protected Attributes inherited from PatchFunction1< Type >
coordinateScaling< Type >	coordSys_
	Optional local coordinate system and scaling.
Protected Attributes inherited from patchFunction1Base
const word	name_
	Name of entry.
const polyPatch &	patch_
	Reference to the patch.
const bool	faceValues_
	Generate face or point values on patch.

Detailed Description

template<class Type>
class Foam::PatchFunction1Types::ConstantField< Type >

Templated function that returns a constant value.

Usage - for entry <entryName> returning the value <value>:

    <entryName>    constant  <value>;

or

    <entryName>
    {
        type    constant;
        value   <value>;
    }

Source files

Definition at line 62 of file ConstantField.H.

Constructor & Destructor Documentation

◆ ConstantField() [1/6]

template<class Type>

ConstantField	(	const polyPatch &	pp,
		const word &	entryName,
		const Type &	uniformValue,
		const dictionary &	dict = dictionary::null,
		const bool	faceValues = true )

Construct from a uniform value.

Definition at line 26 of file ConstantField.C.

References PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, PatchFunction1< Type >::PatchFunction1, PatchFunction1< Type >::pp, and patchFunction1Base::size().

Referenced by ConstantField(), ConstantField(), and TypeName().

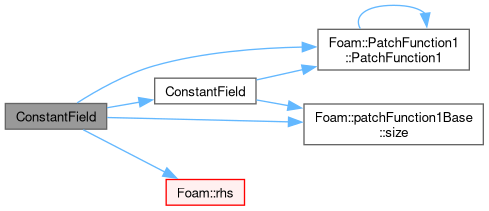

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConstantField() [2/6]

template<class Type>

ConstantField	(	const polyPatch &	pp,
		const word &	entryName,
		const bool	isUniform,
		const Type &	uniformValue,
		const Field< Type > &	fieldValues,
		const dictionary &	dict = dictionary::null,
		const bool	faceValues = true )
