Patch value mapping from a set of values stored in a file and a set of unstructured points using the following directory structure: More...

#include <MappedFile.H>

Inheritance diagram for MappedFile< Type >:

[legend]

Collaboration diagram for MappedFile< Type >:

[legend]

Public Member Functions
	TypeName ("mappedFile")
	Runtime type information.
void	operator= (const MappedFile< Type > &)=delete
	No copy assignment.
	MappedFile (const polyPatch &pp, const word &redirectType, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from entry name and dictionary.
	MappedFile (const polyPatch &pp, const word &entryName, const dictionary &dict, const word &fieldTableName, const bool faceValues=true)
	Construct from entry name and dictionary.
	MappedFile (const MappedFile< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	MappedFile (const MappedFile< Type > &rhs)
	Copy construct.
virtual tmp< PatchFunction1< Type > >	clone () const
	Return a clone.
virtual tmp< PatchFunction1< Type > >	clone (const polyPatch &pp) const
	Return a clone, setting the patch.
virtual	~MappedFile ()=default
	Destructor.
virtual bool	constant () const
	Value is independent of x if there is only a single sample time.
virtual bool	uniform () const
	Is value uniform (i.e. independent of coordinate).
virtual tmp< Field< Type > >	value (const scalar) const
	Return MappedFile value.
virtual tmp< Field< Type > >	integrate (const scalar x1, const scalar x2) const
	Integrate between two values.
virtual void	autoMap (const FieldMapper &mapper)
	Map (and resize as needed) from self given a mapping object.
virtual void	rmap (const PatchFunction1< Type > &pf1, const labelList &addr)
	Reverse map the given PatchFunction1 onto this PatchFunction1.
virtual void	writeEntries (Ostream &os) const
	Write coefficient entries in dictionary format.
virtual void	writeData (Ostream &os) const
	Write in dictionary format.
Public Member Functions inherited from PatchFunction1< Type >
	TypeName ("PatchFunction1") declareRunTimeSelectionTable(autoPtr
	Runtime type information.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	PatchFunction1 (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	PatchFunction1 (const PatchFunction1< Type > &rhs, const polyPatch &pp)
	Copy construct setting patch.
	PatchFunction1 (const PatchFunction1< Type > &rhs)
	Copy construct.
virtual	~PatchFunction1 ()=default
	Destructor.
virtual bool	good () const
	Can function be evaluated?
virtual tmp< pointField >	localPosition (const pointField &globalPos) const
	Helper: optionally convert coordinates to local coordinates.
virtual tmp< Field< Type > >	transform (const Field< Type > &fld) const
	Apply optional transformation.
virtual tmp< Field< Type > >	transform (const tmp< Field< Type > > &tfld) const
	Apply optional transformation.
Public Member Functions inherited from patchFunction1Base
	patchFunction1Base (const polyPatch &pp, const word &entryName, const bool faceValues=true)
	Construct from polyPatch and entry name.
	patchFunction1Base (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	Construct from polyPatch, dictionary and entry name.
	patchFunction1Base (const patchFunction1Base &rhs)
	Copy construct.
	patchFunction1Base (const patchFunction1Base &rhs, const polyPatch &pp)
	Copy construct setting patch.
virtual	~patchFunction1Base ()=default
	Destructor.
const word &	name () const noexcept
	The name of the entry.
const polyPatch &	patch () const noexcept
	Reference to the patch.
bool	faceValues () const noexcept
	Generate face or point values on patch?
label	size () const
	Number of faces or points on the patch.
const objectRegistry *	whichDb () const
	Return the associated registry (ie, the mesh).
const objectRegistry &	obr () const
	Return the object registry (ie, the mesh).
const Time &	time () const
	Return false: function not created with time database.
virtual void	userTimeToTime (const Time &t)
	Convert time.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Public Types inherited from PatchFunction1< Type >
typedef Field< Type >	returnType
	The return type is a field of values.
Static Public Member Functions inherited from PatchFunction1< Type >
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun)
	Clone a PatchFunction1.
template<class Derived>
static tmp< PatchFunction1< Type > >	Clone (const Derived &fun, const polyPatch &pp)
	Clone a PatchFunction1 with a patch.
static autoPtr< PatchFunction1< Type > >	New (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Selector.
static autoPtr< PatchFunction1< Type > >	NewCompat (const polyPatch &pp, const word &entryName, std::initializer_list< std::pair< const char *, int > > compat, const dictionary &dict, const bool faceValues=true, const bool mandatory=true)
	Compatibility selector.
static autoPtr< PatchFunction1< Type > >	NewIfPresent (const polyPatch &pp, const word &entryName, const dictionary &dict, const bool faceValues=true)
	An optional selector.
static refPtr< PatchFunction1< Type > >	New (HashPtrTable< PatchFunction1< Type > > &cache, const polyPatch &pp, const word &entryName, const dictionary &dict, enum keyType::option matchOpt=keyType::LITERAL, const bool faceValues=true, const bool mandatory=true)
	Selector with external storage. This also allows wildcard matches in a dictionary.
Public Attributes inherited from PatchFunction1< Type >
	PatchFunction1
	dictionary
const polyPatch &	pp
const polyPatch const word &	type
const polyPatch const word const word &	entryName
const polyPatch const word const word const dictionary &	dict
const polyPatch const word const word const dictionary const bool	faceValues
const polyPatch const word const word const dictionary const bool	pp
const polyPatch const word const word const dictionary const bool	type
const polyPatch const word const word const dictionary const bool	entryName
const polyPatch const word const word const dictionary const bool	dict
Protected Member Functions inherited from PatchFunction1< Type >
void	operator= (const PatchFunction1< Type > &)=delete
	No copy assignment.
Protected Member Functions inherited from patchFunction1Base
void	operator= (const patchFunction1Base &)=delete
	No copy assignment.
Protected Attributes inherited from PatchFunction1< Type >
coordinateScaling< Type >	coordSys_
	Optional local coordinate system and scaling.
Protected Attributes inherited from patchFunction1Base
const word	name_
	Name of entry.
const polyPatch &	patch_
	Reference to the patch.
const bool	faceValues_
	Generate face or point values on patch.

Detailed Description

template<class Type>
class Foam::PatchFunction1Types::MappedFile< Type >

Patch value mapping from a set of values stored in a file and a set of unstructured points using the following directory structure:

    constant/boundaryData/\<patchName\>/points
    constant/boundaryData/\<patchName\>/\<time\>/\<field\>

Options:

Property	Description	Type	Reqd	Deflt
`mapMethod`	Mapping method	word	no	planar
`offset`	Time-varying offset values to interpolated data	Function1<Type>	no	-
`fieldTable`	Name of field data table	word	no	field-name
`points`	Name of the points file	word	no	points
`perturb`	Perturbation fraction of bounding box	scalar	no	1e-5
`setAverage`	Adjust mapped field to maintain average value	scalar	no	false

Options for the mapMethod entry:

Property	Description
`nearest`	Use nearest points only (avoids triangulation)
`planar`	Interpolation using 2D Delaunay triangulation

Options for reading and filtering:

Property	Description
`sampleFormat`	The surfaceReader format (eg, ensight)
`sampleFile`	<case>/foo/bar/window.case
`filterRadius`	Search radius [m] for median filter neighbours
`filterSweeps`	Filter sweeps for median filter
`readOptions`	Format options for surfaceReader format (eg, ensight)

Note: The MappedFile handling currently has two different reading types: a builtin boundaryData reader (default) and a surfaceReader (specified by sampleFormat and sampleFile keywords). The generic surfaceReader handling does not support field averaging.

Source files

Definition at line 170 of file MappedFile.H.

Constructor & Destructor Documentation

◆ MappedFile() [1/4]

template<class Type>

MappedFile	(	const polyPatch &	pp,
		const word &	redirectType,
		const word &	entryName,
		const dictionary &	dict,
		const bool	faceValues = true )

Construct from entry name and dictionary.

Definition at line 128 of file MappedFile.C.

References PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, and PatchFunction1< Type >::pp.

◆ MappedFile() [2/4]

template<class Type>

MappedFile	(	const polyPatch &	pp,
		const word &	entryName,
		const dictionary &	dict,
		const word &	fieldTableName,
		const bool	faceValues = true )

Construct from entry name and dictionary.

Definition at line 150 of file MappedFile.C.

References PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, and PatchFunction1< Type >::pp.

◆ MappedFile() [3/4]

template<class Type>

MappedFile	(	const MappedFile< Type > &	rhs,
		const polyPatch &	pp )

explicit

Copy construct setting patch.

Definition at line 172 of file MappedFile.C.

References clone(), PatchFunction1< Type >::PatchFunction1, PatchFunction1< Type >::pp, and Foam::rhs().

Here is the call graph for this function:

◆ MappedFile() [4/4]

template<class Type>

MappedFile ( const MappedFile< Type > & rhs )

explicit

Copy construct.

Definition at line 209 of file MappedFile.C.

References patchFunction1Base::patch(), and Foam::rhs().

Here is the call graph for this function:

◆ ~MappedFile()

template<class Type>

virtual ~MappedFile ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "mappedFile" )

Runtime type information.

◆ operator=()

template<class Type>

void operator= ( const MappedFile< Type > & )

delete

No copy assignment.

References PatchFunction1< Type >::dict, PatchFunction1< Type >::dictionary, PatchFunction1< Type >::entryName, PatchFunction1< Type >::faceValues, PatchFunction1< Type >::pp, and Foam::rhs().

Here is the call graph for this function:

◆ clone() [1/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( ) const

inlinevirtual

Return a clone.

Implements PatchFunction1< Type >.

Definition at line 357 of file MappedFile.H.

References PatchFunction1< Type >::Clone(), and patchFunction1Base::patch().

Referenced by MappedFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clone() [2/2]

template<class Type>

virtual tmp< PatchFunction1< Type > > clone ( const polyPatch & pp ) const

inlinevirtual

Return a clone, setting the patch.

Implements PatchFunction1< Type >.

Definition at line 365 of file MappedFile.H.

References PatchFunction1< Type >::Clone(), and PatchFunction1< Type >::pp.

Here is the call graph for this function:

◆ constant()

template<class Type>

virtual bool constant ( ) const

inlinevirtual

Value is independent of x if there is only a single sample time.

Reimplemented from PatchFunction1< Type >.

Definition at line 382 of file MappedFile.H.

◆ uniform()

template<class Type>

virtual bool uniform ( ) const

inlinevirtual

Is value uniform (i.e. independent of coordinate).

Implements PatchFunction1< Type >.

Definition at line 390 of file MappedFile.H.

References PatchFunction1< Type >::uniform().

Here is the call graph for this function:

◆ value()

template<class Type>

Foam::tmp< Foam::Field< Type > > value ( const scalar x ) const

virtual

Return MappedFile value.

Reimplemented from PatchFunction1< Type >.

Definition at line 650 of file MappedFile.C.

References DebugInfo, Foam::endl(), fld(), Foam::gAverage(), Foam::gMinMax(), Foam::gWeightedAverage(), limits, Foam::mag(), Foam::New(), patchFunction1Base::patch_, Foam::Pout, s(), Foam::transform(), and x.

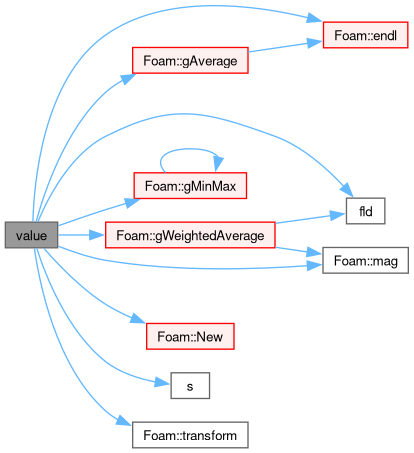

Here is the call graph for this function:

◆ integrate()

template<class Type>

Foam::tmp< Foam::Field< Type > > integrate	(	const scalar	x1,
		const scalar	x2 ) const

virtual

Integrate between two values.

Reimplemented from PatchFunction1< Type >.

Definition at line 758 of file MappedFile.C.

References NotImplemented.

◆ autoMap()

template<class Type>

void autoMap ( const FieldMapper & mapper )

virtual

Map (and resize as needed) from self given a mapping object.

Reimplemented from PatchFunction1< Type >.

Definition at line 221 of file MappedFile.C.

References PatchFunction1< Type >::autoMap().

Here is the call graph for this function:

◆ rmap()

template<class Type>

void rmap	(	const PatchFunction1< Type > &	pf1,
		const labelList &	addr )

virtual

Reverse map the given PatchFunction1 onto this PatchFunction1.

Reimplemented from PatchFunction1< Type >.

Definition at line 245 of file MappedFile.C.

References PatchFunction1< Type >::PatchFunction1, Foam::refCast(), PatchFunction1< Type >::rmap(), and patchFunction1Base::size().

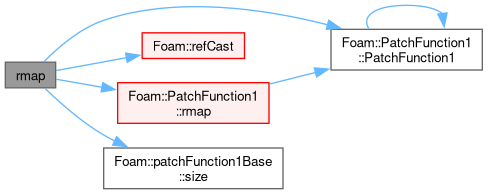

Here is the call graph for this function:

◆ writeEntries()

template<class Type>

void writeEntries ( Ostream & os ) const

virtual

Write coefficient entries in dictionary format.

Definition at line 770 of file MappedFile.C.

References e, name, and os().

Referenced by writeData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeData()

template<class Type>

void writeData ( Ostream & os ) const

virtual

Write in dictionary format.

Reimplemented from PatchFunction1< Type >.

Definition at line 819 of file MappedFile.C.

References Ostream::beginBlock(), name, os(), Foam::type(), PatchFunction1< Type >::writeData(), and writeEntries().

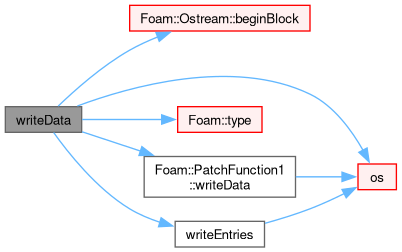

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/PatchFunction1/MappedFile/MappedFile.H
src/meshTools/PatchFunction1/MappedFile/MappedFile.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MappedFile() [1/4]

◆ MappedFile() [2/4]

◆ MappedFile() [3/4]

◆ MappedFile() [4/4]

◆ ~MappedFile()

Member Function Documentation

◆ TypeName()

◆ operator=()

◆ clone() [1/2]

◆ clone() [2/2]

◆ constant()

◆ uniform()

◆ value()

◆ integrate()

◆ autoMap()

◆ rmap()

◆ writeEntries()

◆ writeData()
