Variant of pointEdgePoint with some transported additional data. Templated on the transported data type. More...

#include <PointData.H>

Inheritance diagram for PointData< DataType >:

Collaboration diagram for PointData< DataType >:

Public Member Functions
	PointData ()=default
	Default construct.
	PointData (const point &origin, const scalar distSqr, const DataType &data)
	Construct from origin, distance and data.
const DataType &	data () const noexcept
DataType &	data () noexcept
bool	operator== (const PointData< DataType > &) const
	Test for equality.
bool	operator!= (const PointData< DataType > &) const
	Test for inequality.
template<class TrackingData>
void	transform (const tensor &rotTensor, TrackingData &td)
	Apply rotation matrix to the data.
template<class TrackingData>
bool	updatePoint (const polyMesh &mesh, const label pointI, const label edgeI, const PointData< DataType > &edgeInfo, const scalar tol, TrackingData &td)
	Influence of edge on point.
template<class TrackingData>
bool	updatePoint (const polyMesh &mesh, const label pointI, const PointData< DataType > &newPointInfo, const scalar tol, TrackingData &td)
	Influence of different value on same point.
template<class TrackingData>
bool	updatePoint (const PointData< DataType > &newPointInfo, const scalar tol, TrackingData &td)
	Influence of different value on same point.
template<class TrackingData>
bool	updateEdge (const polyMesh &mesh, const label edgeI, const label pointI, const PointData< DataType > &pointInfo, const scalar tol, TrackingData &td)
	Influence of point on edge.
Public Member Functions inherited from pointEdgePoint
	pointEdgePoint ()
	Default construct. Max point.
	pointEdgePoint (const point &origin, const scalar distSqr)
	Construct from origin, distance.
const point &	origin () const noexcept
point &	origin () noexcept
scalar	distSqr () const noexcept
scalar &	distSqr () noexcept
bool	operator== (const pointEdgePoint &) const
	Test for equality.
bool	operator!= (const pointEdgePoint &) const
	Test for inequality.
template<class TrackingData>
bool	valid (TrackingData &td) const
	Changed or contains original (invalid) value.
template<class TrackingData>
bool	sameGeometry (const pointEdgePoint &, const scalar tol, TrackingData &td) const
	Check for identical geometrical data (eg, cyclics checking).
template<class TrackingData>
void	leaveDomain (const polyPatch &patch, const label patchPointi, const point &pos, TrackingData &td)
	Convert origin to relative vector to leaving point.
template<class TrackingData>
void	enterDomain (const polyPatch &patch, const label patchPointi, const point &pos, TrackingData &td)
	Convert relative origin to absolute by adding entering point.
template<class TrackingData>
void	transform (const tensor &rotTensor, TrackingData &td)
	Apply rotation matrix to origin.
template<class TrackingData>
bool	updatePoint (const polyMesh &mesh, const label pointi, const label edgeI, const pointEdgePoint &edgeInfo, const scalar tol, TrackingData &td)
	Influence of edge on point.
template<class TrackingData>
bool	updatePoint (const polyMesh &mesh, const label pointi, const pointEdgePoint &newPointInfo, const scalar tol, TrackingData &td)
	Influence of different value on same point.
template<class TrackingData>
bool	updatePoint (const pointEdgePoint &newPointInfo, const scalar tol, TrackingData &td)
	Influence of different value on same point.
template<class TrackingData>
bool	updateEdge (const polyMesh &mesh, const label edgeI, const label pointi, const pointEdgePoint &pointInfo, const scalar tol, TrackingData &td)
	Influence of point on edge.
template<class TrackingData>
bool	equal (const pointEdgePoint &, TrackingData &td) const
	Test for equality, with TrackingData.

Friends
Ostream &	operator<< (Ostream &, const PointData< DataType > &)
Istream &	operator>> (Istream &, PointData< DataType > &)

Detailed Description

template<class DataType>
class Foam::PointData< DataType >

Variant of pointEdgePoint with some transported additional data. Templated on the transported data type.

Source files

Definition at line 58 of file PointData.H.

Constructor & Destructor Documentation

◆ PointData() [1/2]

template<class DataType>

PointData ( )

default

Default construct.

References data(), pointEdgePoint::distSqr(), and pointEdgePoint::origin().

Referenced by operator!=(), operator<<, operator==(), operator>>, updateEdge(), updatePoint(), updatePoint(), and updatePoint().

Here is the call graph for this function:

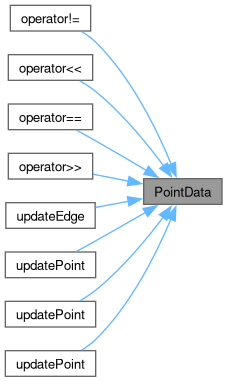

Here is the caller graph for this function:

◆ PointData() [2/2]

template<class DataType>

PointData	(	const point &	origin,
		const scalar	distSqr,
		const DataType &	data )

inline

Construct from origin, distance and data.

Definition at line 28 of file PointDataI.H.

References data(), pointEdgePoint::distSqr(), pointEdgePoint::origin(), and pointEdgePoint::pointEdgePoint().

Here is the call graph for this function:

Member Function Documentation

◆ data() [1/2]

template<class DataType>

const DataType & data ( ) const

inlinenoexcept

Definition at line 94 of file PointData.H.

References Foam::noexcept.

Referenced by operator==(), PointData(), and PointData().

Here is the caller graph for this function:

◆ data() [2/2]

template<class DataType>

DataType & data ( )

inlinenoexcept

Definition at line 96 of file PointData.H.

References Foam::noexcept.

◆ operator==()

template<class DataType>

bool operator== ( const PointData< DataType > & rhs ) const

inline

Test for equality.

Definition at line 179 of file PointDataI.H.

References data(), pointEdgePoint::operator==(), PointData(), and Foam::rhs().

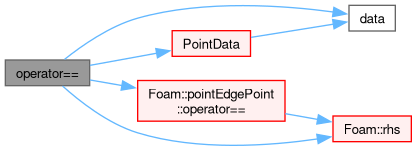

Here is the call graph for this function:

◆ operator!=()

template<class DataType>

bool operator!= ( const PointData< DataType > & rhs ) const

inline

Test for inequality.

Definition at line 189 of file PointDataI.H.

References PointData(), and Foam::rhs().

Here is the call graph for this function:

◆ transform()

template<class DataType>

template<class TrackingData>

void transform	(	const tensor &	rotTensor,
		TrackingData &	td )

inline

Apply rotation matrix to the data.

Definition at line 44 of file PointDataI.H.

References td(), pointEdgePoint::transform(), and Foam::transform().

Here is the call graph for this function:

◆ updatePoint() [1/3]

template<class DataType>

template<class TrackingData>

bool updatePoint	(	const polyMesh &	mesh,
		const label	pointI,
		const label	edgeI,
		const PointData< DataType > &	edgeInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of edge on point.

Definition at line 57 of file PointDataI.H.

References mesh, PointData(), td(), and pointEdgePoint::updatePoint().

Here is the call graph for this function:

◆ updatePoint() [2/3]

template<class DataType>

template<class TrackingData>

bool updatePoint	(	const polyMesh &	mesh,
		const label	pointI,
		const PointData< DataType > &	newPointInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of different value on same point.

Merge new and old info.

Definition at line 91 of file PointDataI.H.

References mesh, PointData(), td(), and pointEdgePoint::updatePoint().

Here is the call graph for this function:

◆ updatePoint() [3/3]

template<class DataType>

template<class TrackingData>

bool updatePoint	(	const PointData< DataType > &	newPointInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of different value on same point.

No information about current position whatsoever.

Definition at line 123 of file PointDataI.H.

References PointData(), td(), and pointEdgePoint::updatePoint().

Here is the call graph for this function:

◆ updateEdge()

template<class DataType>

template<class TrackingData>

bool updateEdge	(	const polyMesh &	mesh,
		const label	edgeI,
		const label	pointI,
		const PointData< DataType > &	pointInfo,
		const scalar	tol,
		TrackingData &	td )

inline

Influence of point on edge.

Definition at line 143 of file PointDataI.H.

References mesh, PointData(), td(), and pointEdgePoint::updateEdge().

Here is the call graph for this function:

◆ operator<<

template<class DataType>

Ostream & operator<<	(	Ostream &	,
		const PointData< DataType > &	)

friend

References PointData().

◆ operator>>

template<class DataType>

Istream & operator>>	(	Istream &	,
		PointData< DataType > &	)

friend

References mesh, PointData(), and td().

The documentation for this class was generated from the following files:

src/mesh/snappyHexMesh/externalDisplacementMeshMover/medialAxisMeshMover.H
src/meshTools/algorithms/PointEdgeWave/PointData.H
src/meshTools/algorithms/PointEdgeWave/PointDataI.H
