PstreamBuffers Class Reference

Buffers for inter-processor communications streams (UOPstream, UIPstream). More...

#include <PstreamBuffers.H>

Public Member Functions
	ClassName ("PstreamBuffers")
	PstreamBuffers (UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, int tag=UPstream::msgType(), int communicator=UPstream::worldComm, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY)
	Construct given communication type (default: nonBlocking), message tag, communicator (default: worldComm), IO format (default: binary).
	PstreamBuffers (int communicator, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, int tag=UPstream::msgType(), IOstreamOption::streamFormat fmt=IOstreamOption::BINARY)
	Construct given communicator, communication type (default: nonBlocking), message tag, IO format (default: binary).
	PstreamBuffers (int communicator, int tag, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, IOstreamOption::streamFormat fmt=IOstreamOption::BINARY)
	Construct given communicator, message tag, communication type (default: nonBlocking), IO format (default: binary).
	~PstreamBuffers ()
	Destructor - checks that all data have been consumed.
IOstreamOption::streamFormat	format () const noexcept
	The associated buffer format (ascii | binary).
UPstream::commsTypes	commsType () const noexcept
	The communications type of the stream.
int	tag () const noexcept
	The transfer message tag.
int	comm () const noexcept
	The communicator index.
int	nProcs () const noexcept
	Number of ranks associated with PstreamBuffers.
UPstream::rangeType	allProcs () const noexcept
	Range of ranks indices associated with PstreamBuffers.
UPstream::rangeType	subProcs () const noexcept
	Range of sub-processes indices associated with PstreamBuffers.
bool	finished () const noexcept
	True if finishedSends() or finishedNeighbourSends() has been called.
bool	allowClearRecv () const noexcept
	Is clearStorage of individual receive buffer by external hooks allowed? (default: true).
bool	hasSendData () const
	True if any (local) send buffers have data.
bool	hasRecvData () const
	True if any (local) recv buffers have unconsumed data. Must call finishedSends() or other finished.. method first!
label	sendDataCount (const label proci) const
	Number of send bytes for the specified processor.
label	recvDataCount (const label proci) const
	Number of unconsumed receive bytes for the specified processor. Must call finishedSends() or other finished.. method first!
labelList	recvDataCounts () const
	Number of unconsumed receive bytes for all processors. Must call finishedSends() or other finished.. method first!
label	maxRecvCount () const
	Maximum receive size from any rocessor rank. Must call finishedSends() or other finished.. method first!
label	maxNonLocalRecvCount () const
	Maximum receive size, excluding current processor rank Must call finishedSends() or other finished.. method first!
label	maxNonLocalRecvCount (const label excludeProci) const
	Maximum receive size, excluding the specified processor rank Must call finishedSends() or other finished.. method first!
const UList< char >	peekRecvData (const label proci) const
	Number of unconsumed receive bytes for the specified processor. Must call finishedSends() or other finished.. method first!
void	clear ()
	Clear all send/recv buffers and reset states.
void	clearSends ()
	Clear all send buffers (does not remove buffer storage).
void	clearRecvs ()
	Clear all recv buffer and positions (does not remove buffer storage).
void	clearSend (const label proci)
	Clear an individual send buffer (eg, data not required).
void	clearRecv (const label proci)
	Clear an individual receive buffer (eg, data not required).
void	clearStorage ()
	Clear storage for all send/recv buffers and reset states.
bool	allowClearRecv (bool on) noexcept
	Change allowClearRecv, return previous value.
void	initRegisterSend ()
	Initialise registerSend() bookkeeping by mark all send buffers as 'unregistered'.
void	registerSend (const label proci, const bool toggleOn=true)
	Toggle an individual send buffer as 'registered'. The setting is sticky (does not turn off).
void	clearUnregistered ()
	Clear any 'unregistered' send buffers.
void	finishedSends (const bool wait=true)
	Mark the send phase as being finished.
void	finishedSendsNBX (const bool wait=true)
	Mark the send phase as being finished.
void	finishedSends (labelList &recvSizes, const bool wait=true)
	Mark the send phase as being finished. Recovers the sizes (bytes) received.
void	finishedSendsNBX (labelList &recvSizes, const bool wait=true)
	Mark the send phase as being finished. Recovers the sizes (bytes) received.
void	finishedNeighbourSends (const labelUList &neighProcs, const bool wait=true)
	Mark the send phase as being finished, with communication being limited to a known subset of send/recv ranks.
void	finishedNeighbourSends (const labelUList &neighProcs, labelList &recvSizes, const bool wait=true)
	Mark the send phase as being finished, with communication being limited to a known subset of send/recv ranks. Recovers the sizes (bytes) received.
bool	finishedSends (bitSet &sendConnections, DynamicList< label > &sendProcs, DynamicList< label > &recvProcs, const bool wait=true)
	A caching version that uses a limited send/recv connectivity.
void	finishedGathers (const bool wait=true)
	Mark all sends to master as done.
void	finishedGathers (labelList &recvSizes, const bool wait=true)
	Mark all sends to master as done. Recovers the sizes (bytes) received.
void	finishedScatters (const bool wait=true)
	Mark all sends to sub-procs as done.
void	finishedScatters (labelList &recvSizes, const bool wait=true)
	Mark all sends to sub-procs as done. Recovers the sizes (bytes) received.

Static Public Attributes
static int	algorithm
	Preferred exchange algorithm (may change or be removed in future).

Friends
class	UOPstreamBase
class	UIPstreamBase

Detailed Description

Buffers for inter-processor communications streams (UOPstream, UIPstream).

Use UOPstream to stream data into buffers, call finishedSends() to notify that data is in buffers and then use IUPstream to get data out of received buffers. Works with both buffered and non-blocking. Does not make much sense with scheduled since there you would not need these explicit buffers.

Example usage:

PstreamBuffers pBufs;

for (const int proci : UPstream::allProcs())
{
    if (proci != UPstream::myProcNo())
    {
        someObject vals;

        UOPstream send(proci, pBufs);
        send << vals;
    }
}

pBufs.finishedSends();   // no-op for buffered

for (const int proci : UPstream::allProcs())
{
    if (proci != UPstream::myProcNo())
    {
        UIPstream recv(proci, pBufs);
        someObject vals(recv);
    }
}

There are special versions of finishedSends() for restricted neighbour communication as well as for special one-to-all and all-to-one communication patterns. For example,

PstreamBuffers pBufs;

if (UPstream::master())
{
    someObject vals;
    for (const int proci : UPstream::subProcs())
    {
        UOPstream send(proci, pBufs);
        send << vals;
    }
}

pBufs.finishedScatters();

if (!UPstream::master())
{
    UIPstream recv(UPstream::masterNo(), pBufs);
    someObject vals(recv);
}

Additionally there are some situations that use speculative sends that may not actually be required. In this case, it is possible to mark all sends as initially unregistered and subsequently mark the "real" sends as registered.

For example,

PstreamBuffers pBufs;

pBufs.initRegisterSend();

for (const polyPatch& pp : patches)
{
    const auto* ppp = isA<processorPolyPatch>(pp);
    if (ppp)
    {
        const label nbrProci = ppp->neighbProcNo();

        // Gather some patch information...
        UOPstream toNbr(nbrProci, pBufs);
        toNbr << patchInfo;

        // The send is needed if patchInfo is non-empty
        pBufs.registerSend(nbrProci, !patchInfo.empty());
    }
}

// optional:  pBufs.clearUnregistered();

pBufs.finishedSends();

...

Source files

• PstreamBuffers.H
• PstreamBuffers.C

Definition at line 147 of file PstreamBuffers.H.

Constructor & Destructor Documentation

PstreamBuffers() [1/3]

PstreamBuffers ( UPstream::commsTypes commsType = UPstream::commsTypes::nonBlocking, int tag = UPstream::msgType(), int communicator = UPstream::worldComm, IOstreamOption::streamFormat fmt = IOstreamOption::BINARY )

explicit

Construct given communication type (default: nonBlocking), message tag, communicator (default: worldComm), IO format (default: binary).

Definition at line 292 of file PstreamBuffers.C.

References commsType(), DebugPoutInFunction, Foam::endl(), nProcs(), and tag().

Referenced by PstreamBuffers(), and PstreamBuffers().

Here is the call graph for this function:

Here is the caller graph for this function:

PstreamBuffers() [2/3]

PstreamBuffers ( int communicator, UPstream::commsTypes commsType = UPstream::commsTypes::nonBlocking, int tag = UPstream::msgType(), IOstreamOption::streamFormat fmt = IOstreamOption::BINARY )

inlineexplicit

Construct given communicator, communication type (default: nonBlocking), message tag, IO format (default: binary).

Definition at line 315 of file PstreamBuffers.H.

References IOstreamOption::BINARY, commsType(), UPstream::msgType(), UPstream::nonBlocking, PstreamBuffers(), and tag().

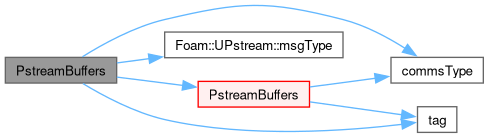

Here is the call graph for this function:

PstreamBuffers() [3/3]

PstreamBuffers ( int communicator, int tag, UPstream::commsTypes commsType = UPstream::commsTypes::nonBlocking, IOstreamOption::streamFormat fmt = IOstreamOption::BINARY )

inline

Construct given communicator, message tag, communication type (default: nonBlocking), IO format (default: binary).

Definition at line 330 of file PstreamBuffers.H.

References IOstreamOption::BINARY, commsType(), UPstream::nonBlocking, PstreamBuffers(), and tag().

Here is the call graph for this function:

~PstreamBuffers()

~PstreamBuffers

(

)

Destructor - checks that all data have been consumed.

Definition at line 321 of file PstreamBuffers.C.

References Foam::abort(), DebugPoutInFunction, Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::nl, and Foam::pos().

Here is the call graph for this function:

Member Function Documentation

ClassName()

ClassName

(

"PstreamBuffers"

)

format()

IOstreamOption::streamFormat format ( ) const

inlinenoexcept

The associated buffer format (ascii | binary).

Definition at line 355 of file PstreamBuffers.H.

References Foam::noexcept.

commsType()

UPstream::commsTypes commsType ( ) const

inlinenoexcept

The communications type of the stream.

Definition at line 360 of file PstreamBuffers.H.

References Foam::noexcept.

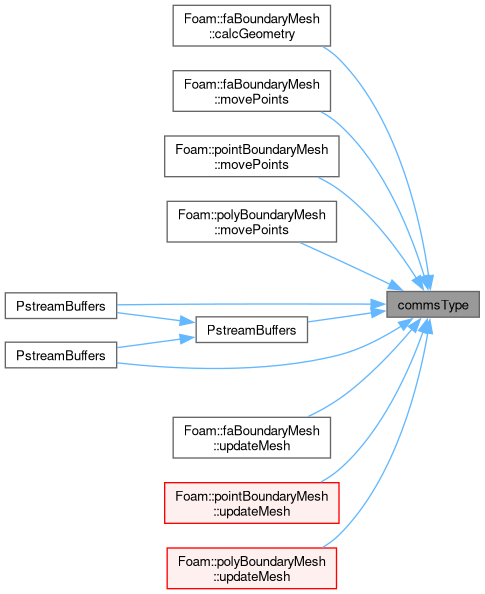

Referenced by faBoundaryMesh::calcGeometry(), faBoundaryMesh::movePoints(), pointBoundaryMesh::movePoints(), polyBoundaryMesh::movePoints(), PstreamBuffers(), PstreamBuffers(), PstreamBuffers(), faBoundaryMesh::updateMesh(), pointBoundaryMesh::updateMesh(), and polyBoundaryMesh::updateMesh().

Here is the caller graph for this function:

tag()

int tag ( ) const

inlinenoexcept

The transfer message tag.

Definition at line 365 of file PstreamBuffers.H.

References Foam::noexcept.

Referenced by PstreamBuffers(), PstreamBuffers(), and PstreamBuffers().

Here is the caller graph for this function:

comm()

int comm ( ) const

inlinenoexcept

The communicator index.

Definition at line 370 of file PstreamBuffers.H.

References Foam::noexcept.

nProcs()

int nProcs ( ) const

inlinenoexcept

Number of ranks associated with PstreamBuffers.

Definition at line 375 of file PstreamBuffers.H.

References Foam::noexcept.

Referenced by finishedSends(), processorFaPatch::initGeometry(), processorPolyPatch::initGeometry(), processorFaPatch::initUpdateMesh(), processorPolyPatch::initUpdateMesh(), and PstreamBuffers().

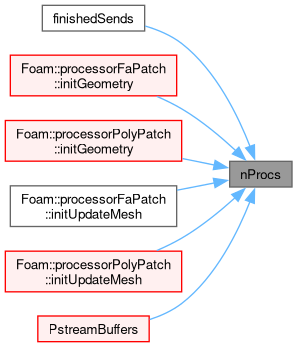

Here is the caller graph for this function:

allProcs()

UPstream::rangeType allProcs ( ) const

inlinenoexcept

Range of ranks indices associated with PstreamBuffers.

Definition at line 383 of file PstreamBuffers.H.

References Foam::noexcept.

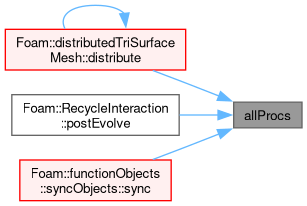

Referenced by distributedTriSurfaceMesh::distribute(), RecycleInteraction< CloudType >::postEvolve(), and syncObjects::sync().

Here is the caller graph for this function:

subProcs()

UPstream::rangeType subProcs ( ) const

inlinenoexcept

Range of sub-processes indices associated with PstreamBuffers.

Definition at line 392 of file PstreamBuffers.H.

References Foam::noexcept.

Referenced by masterUncollatedFileOperation::readHeader().

Here is the caller graph for this function:

finished()

bool finished ( ) const

noexcept

True if finishedSends() or finishedNeighbourSends() has been called.

Definition at line 846 of file PstreamBuffers.C.

References Foam::noexcept.

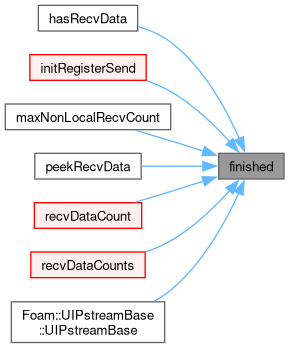

Referenced by hasRecvData(), initRegisterSend(), maxNonLocalRecvCount(), peekRecvData(), recvDataCount(), recvDataCounts(), and UIPstreamBase::UIPstreamBase().

Here is the caller graph for this function:

allowClearRecv() [1/2]

bool allowClearRecv ( ) const

noexcept

Is clearStorage of individual receive buffer by external hooks allowed? (default: true).

Definition at line 852 of file PstreamBuffers.C.

References Foam::noexcept.

hasSendData()

bool hasSendData

(

)

const

True if any (local) send buffers have data.

Definition at line 475 of file PstreamBuffers.C.

hasRecvData()

bool hasRecvData

(

)

const

True if any (local) recv buffers have unconsumed data. Must call finishedSends() or other finished.. method first!

Definition at line 488 of file PstreamBuffers.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, finished(), and forAll.

Here is the call graph for this function:

sendDataCount()

Foam::label sendDataCount

(

const label

proci

)

const

Number of send bytes for the specified processor.

Definition at line 512 of file PstreamBuffers.C.

recvDataCount()

Foam::label recvDataCount

(

const label

proci

)

const

Number of unconsumed receive bytes for the specified processor. Must call finishedSends() or other finished.. method first!

Definition at line 518 of file PstreamBuffers.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and finished().

Referenced by distributedTriSurfaceMesh::distribute(), masterUncollatedFileOperation::NewIFstream(), RecycleInteraction< CloudType >::postEvolve(), masterUncollatedFileOperation::read(), box::setRefineFlags(), syncTools::syncEdgeMap(), and syncTools::syncPointMap().

Here is the call graph for this function:

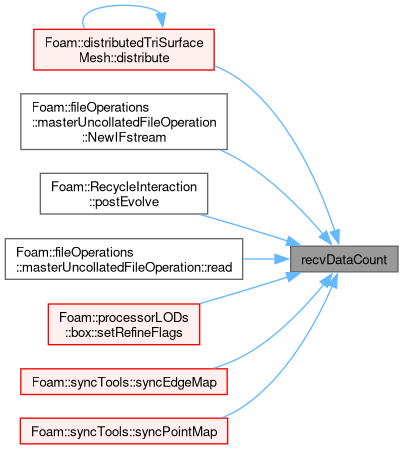

Here is the caller graph for this function:

recvDataCounts()

Foam::labelList recvDataCounts

(

)

const

Number of unconsumed receive bytes for all processors. Must call finishedSends() or other finished.. method first!

Definition at line 541 of file PstreamBuffers.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, finished(), forAll, and Foam::Zero.

Referenced by fvMeshDistribute::distribute().

Here is the call graph for this function:

Here is the caller graph for this function:

maxRecvCount()

Foam::label maxRecvCount

(

)

const

Maximum receive size from any rocessor rank. Must call finishedSends() or other finished.. method first!

Definition at line 599 of file PstreamBuffers.C.

References maxNonLocalRecvCount().

Here is the call graph for this function:

maxNonLocalRecvCount() [1/2]

Foam::label maxNonLocalRecvCount

(

)

const

Maximum receive size, excluding current processor rank Must call finishedSends() or other finished.. method first!

Definition at line 606 of file PstreamBuffers.C.

References maxNonLocalRecvCount(), and UPstream::myProcNo().

Referenced by maxNonLocalRecvCount(), and maxRecvCount().

Here is the call graph for this function:

Here is the caller graph for this function:

maxNonLocalRecvCount() [2/2]

Foam::label maxNonLocalRecvCount

(

const label

excludeProci

)

const

Maximum receive size, excluding the specified processor rank Must call finishedSends() or other finished.. method first!

Definition at line 569 of file PstreamBuffers.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, finished(), forAll, and Foam::max().

Here is the call graph for this function:

peekRecvData()

const Foam::UList< char > peekRecvData

(

const label

proci

)

const

Number of unconsumed receive bytes for the specified processor. Must call finishedSends() or other finished.. method first!

The method is only useful in limited situations, such as when PstreamBuffers has been used to fill contiguous data (eg, using OPstream::write).

Definition at line 613 of file PstreamBuffers.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, finished(), and Foam::pos().

Here is the call graph for this function:

clear()

void clear

(

)

Clear all send/recv buffers and reset states.

Does not remove the buffer storage.

Definition at line 394 of file PstreamBuffers.C.

References clearRecvs(), and clearSends().

Referenced by fvMeshDistribute::distribute(), inverseDistance::markDonors(), trackingInverseDistance::markDonors(), inverseDistance::markPatchesAsHoles(), and trackingInverseDistance::markPatchesAsHoles().

Here is the call graph for this function:

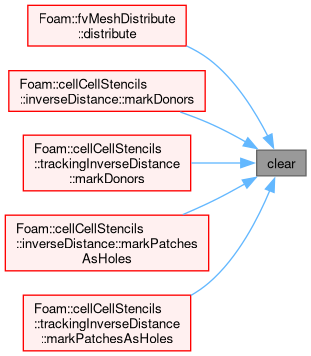

Here is the caller graph for this function:

clearSends()

void clearSends

(

)

Clear all send buffers (does not remove buffer storage).

Definition at line 375 of file PstreamBuffers.C.

Referenced by clear().

Here is the caller graph for this function:

clearRecvs()

void clearRecvs

(

)

Clear all recv buffer and positions (does not remove buffer storage).

Definition at line 384 of file PstreamBuffers.C.

References Foam::Zero.

Referenced by clear().

Here is the caller graph for this function:

clearSend()

void clearSend

(

const label

proci

)

Clear an individual send buffer (eg, data not required).

Definition at line 415 of file PstreamBuffers.C.

clearRecv()

void clearRecv

(

const label

proci

)

Clear an individual receive buffer (eg, data not required).

Does not remove the buffer storage.

Definition at line 426 of file PstreamBuffers.C.

clearStorage()

void clearStorage

(

)

Clear storage for all send/recv buffers and reset states.

Definition at line 433 of file PstreamBuffers.C.

References Foam::Zero.

allowClearRecv() [2/2]

bool allowClearRecv ( bool on )

noexcept

Change allowClearRecv, return previous value.

Definition at line 858 of file PstreamBuffers.C.

initRegisterSend()

void initRegisterSend

(

)

Initialise registerSend() bookkeeping by mark all send buffers as 'unregistered'.

Usually called immediately after construction or clear().

Definition at line 451 of file PstreamBuffers.C.

References finished().

Referenced by syncTools::syncEdgeMap(), and syncTools::syncPointMap().

Here is the call graph for this function:

Here is the caller graph for this function:

registerSend()

void registerSend	(	const label	proci,
		const bool	toggleOn = true )

Toggle an individual send buffer as 'registered'. The setting is sticky (does not turn off).

Definition at line 465 of file PstreamBuffers.C.

Referenced by syncTools::syncEdgeMap(), and syncTools::syncPointMap().

Here is the caller graph for this function:

clearUnregistered()

void clearUnregistered

(

)

Clear any 'unregistered' send buffers.

Definition at line 402 of file PstreamBuffers.C.

finishedSends() [1/3]

void finishedSends

(

const bool

wait = true

)

Mark the send phase as being finished.

Non-blocking mode: populates receive buffers using all-to-all or NBX (depending on tuning parameters).

Parameters

wait	wait for requests to complete (in non-blocking mode)

Definition at line 641 of file PstreamBuffers.C.

References DebugPoutInFunction, and Foam::endl().

Referenced by faBoundaryMesh::calcGeometry(), distributedTriSurfaceMesh::distribute(), fvMeshDistribute::distribute(), mapDistributeBase::distribute(), mapDistributeBase::distribute(), mapDistributeBase::distribute(), refinementHistory::distribute(), box::doRefineBoxes(), finishedSends(), finishedSendsNBX(), inverseDistance::markDonors(), trackingInverseDistance::markDonors(), inverseDistance::markPatchesAsHoles(), trackingInverseDistance::markPatchesAsHoles(), faBoundaryMesh::movePoints(), pointBoundaryMesh::movePoints(), polyBoundaryMesh::movePoints(), masterUncollatedFileOperation::NewIFstream(), RecycleInteraction< CloudType >::postEvolve(), mapDistributeBase::send(), box::setRefineFlags(), syncObjects::sync(), faBoundaryMesh::updateMesh(), pointBoundaryMesh::updateMesh(), and polyBoundaryMesh::updateMesh().

Here is the call graph for this function:

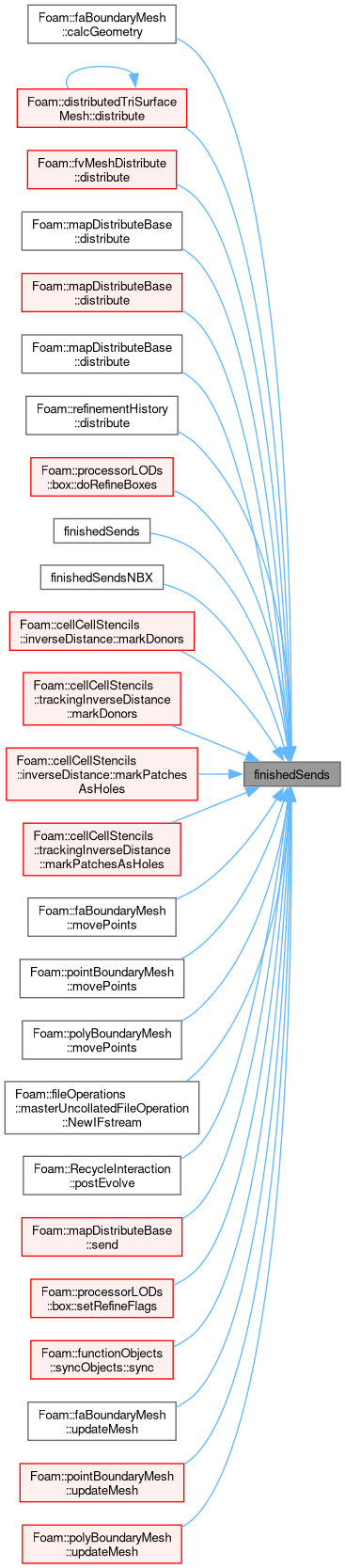

Here is the caller graph for this function:

finishedSendsNBX() [1/2]

void finishedSendsNBX

(

const bool

wait = true

)

Mark the send phase as being finished.

Non-blocking mode: populates receive buffers using NBX.

Parameters

wait	wait for requests to complete (in non-blocking mode)

Definition at line 654 of file PstreamBuffers.C.

References DebugPoutInFunction, and Foam::endl().

Referenced by finishedSendsNBX().

Here is the call graph for this function:

Here is the caller graph for this function:

finishedSends() [2/3]

void finishedSends	(	labelList &	recvSizes,
		const bool	wait = true )

Mark the send phase as being finished. Recovers the sizes (bytes) received.

Non-blocking mode: populates receive buffers using all-to-all or NBX (depending on tuning parameters).

Warning

currently only valid for non-blocking comms.

Parameters

[out]	recvSizes	the sizes (bytes) received
	wait	wait for requests to complete (in non-blocking mode)

Definition at line 667 of file PstreamBuffers.C.

References UPstream::commsTypeNames, DebugPoutInFunction, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, UPstream::nonBlocking, and List< T >::resize_nocopy().

Here is the call graph for this function:

finishedSendsNBX() [2/2]

void finishedSendsNBX	(	labelList &	recvSizes,
		const bool	wait = true )

Mark the send phase as being finished. Recovers the sizes (bytes) received.

Non-blocking mode: populates receive buffers using NBX.

Warning

currently only valid for non-blocking comms.

Parameters

[out]	recvSizes	the sizes (bytes) received
	wait	wait for requests to complete (in non-blocking mode)

References finishedGathers(), finishedNeighbourSends(), finishedScatters(), finishedSends(), and finishedSendsNBX().

Here is the call graph for this function:

finishedNeighbourSends() [1/2]

void finishedNeighbourSends	(	const labelUList &	neighProcs,
		const bool	wait = true )

Mark the send phase as being finished, with communication being limited to a known subset of send/recv ranks.

Non-blocking mode: populates receive buffers.

Warning

currently only valid for non-blocking comms.

Note

Same as finishedSends with identical sendProcs/recvProcs

Parameters

neighProcs	ranks used for sends/recvs
wait	wait for requests to complete (in non-blocking mode)

Definition at line 709 of file PstreamBuffers.C.

Referenced by finishedSendsNBX(), syncTools::syncBoundaryFaceList(), syncTools::syncEdgeMap(), and syncTools::syncPointMap().

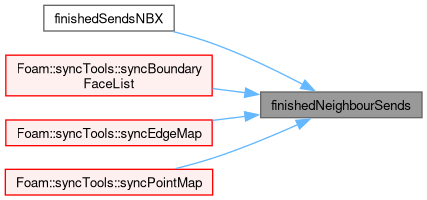

Here is the caller graph for this function:

finishedNeighbourSends() [2/2]

void finishedNeighbourSends	(	const labelUList &	neighProcs,
		labelList &	recvSizes,
		const bool	wait = true )

Mark the send phase as being finished, with communication being limited to a known subset of send/recv ranks. Recovers the sizes (bytes) received.

Non-blocking mode: it will populate receive buffers.

Warning

currently only valid for non-blocking mode.

Parameters

	neighProcs	ranks used for sends/recvs
[out]	recvSizes	the sizes (bytes) received
	wait	wait for requests to complete (in non-blocking mode)

Definition at line 698 of file PstreamBuffers.C.

finishedSends() [3/3]

bool finishedSends	(	bitSet &	sendConnections,
		DynamicList< label > &	sendProcs,
		DynamicList< label > &	recvProcs,
		const bool	wait = true )

A caching version that uses a limited send/recv connectivity.

Non-blocking mode: populates receive buffers.

Returns

True if the send/recv connectivity changed

Warning

currently only valid for non-blocking comms.

Parameters

sendConnections	inter-rank connections (on/off) for sending ranks
sendProcs	ranks used for sends
recvProcs	ranks used for recvs
wait	wait for requests to complete (in non-blocking mode)

Definition at line 720 of file PstreamBuffers.C.

References DynamicList< T, SizeMin >::clear(), finishedSends(), forAll, nProcs(), DynamicList< T, SizeMin >::push_back(), UPstream::reduceOr(), PackedList< Width >::resize(), bitSet::set(), and PackedList< Width >::size().

Here is the call graph for this function:

finishedGathers() [1/2]

void finishedGathers

(

const bool

wait = true

)

Mark all sends to master as done.

Non-blocking mode: populates receive buffers. Can use recvDataCount, maxRecvCount etc to recover sizes received.

Parameters

wait	wait for requests to complete (in non-blocking mode)

Warning

currently only valid for non-blocking comms.

Definition at line 785 of file PstreamBuffers.C.

Referenced by finishedSendsNBX(), lduPrimitiveMesh::gather(), and energySpectrum::write().

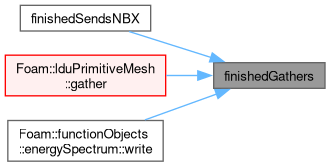

Here is the caller graph for this function:

finishedGathers() [2/2]

void finishedGathers	(	labelList &	recvSizes,
		const bool	wait = true )

Mark all sends to master as done. Recovers the sizes (bytes) received.

Non-blocking mode: populates receive buffers (all-to-one).

Warning

currently only valid for non-blocking comms.

Parameters

[out]	recvSizes	the sizes (bytes) received
	wait	wait for requests to complete (in non-blocking mode)

Definition at line 799 of file PstreamBuffers.C.

References UPstream::commsTypeNames, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, and UPstream::nonBlocking.

Here is the call graph for this function:

finishedScatters() [1/2]

void finishedScatters

(

const bool

wait = true

)

Mark all sends to sub-procs as done.

Non-blocking mode: populates receive buffers. Can use recvDataCount, maxRecvCount etc to recover sizes received.

Parameters

wait	wait for requests to complete (in non-blocking mode)

Warning

currently only valid for non-blocking comms.

Definition at line 792 of file PstreamBuffers.C.

Referenced by finishedSendsNBX(), masterUncollatedFileOperation::read(), and masterUncollatedFileOperation::readHeader().

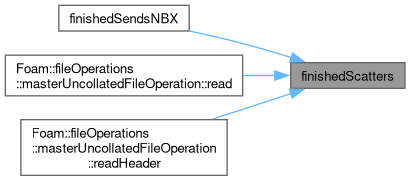

Here is the caller graph for this function:

finishedScatters() [2/2]

void finishedScatters	(	labelList &	recvSizes,
		const bool	wait = true )

Mark all sends to sub-procs as done. Recovers the sizes (bytes) received.

Non-blocking mode: populates receive buffers (all-to-one).

Warning

currently only valid for non-blocking comms.

Parameters

[out]	recvSizes	the sizes (bytes) received
	wait	wait for requests to complete (in non-blocking mode)

Definition at line 821 of file PstreamBuffers.C.

References UPstream::commsTypeNames, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, and UPstream::nonBlocking.

Here is the call graph for this function:

Friends And Related Symbol Documentation

UOPstreamBase

friend class UOPstreamBase

friend

Definition at line 279 of file PstreamBuffers.H.

References UOPstreamBase.

Referenced by UOPstreamBase.

UIPstreamBase

friend class UIPstreamBase

friend

Definition at line 280 of file PstreamBuffers.H.

References UIPstreamBase.

Referenced by UIPstreamBase.

Member Data Documentation

algorithm

int algorithm

static

Preferred exchange algorithm (may change or be removed in future).

Definition at line 294 of file PstreamBuffers.H.

Referenced by argList::parse(), and registerOptSwitch().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/db/IOstreams/Pstreams/PstreamBuffers.H
• src/OpenFOAM/db/IOstreams/Pstreams/PstreamBuffers.C
