Renormalization group k-epsilon turbulence model for incompressible and compressible flows. More...

#include <RNGkEpsilon.H>

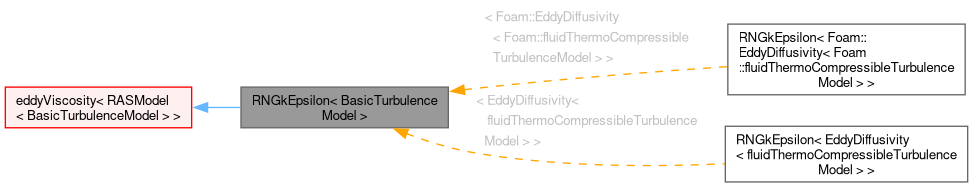

Inheritance diagram for RNGkEpsilon< BasicTurbulenceModel >:

[legend]

Collaboration diagram for RNGkEpsilon< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("RNGkEpsilon")
	Runtime type information.
	RNGkEpsilon (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~RNGkEpsilon ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
virtual void	correctNut ()
virtual tmp< fvScalarMatrix >	kSource () const
virtual tmp< fvScalarMatrix >	epsilonSource () const

Protected Attributes
dimensionedScalar	Cmu_
dimensionedScalar	C1_
dimensionedScalar	C2_
dimensionedScalar	C3_
dimensionedScalar	sigmak_
dimensionedScalar	sigmaEps_
dimensionedScalar	eta0_
dimensionedScalar	beta_
volScalarField	k_
volScalarField	epsilon_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::RNGkEpsilon< BasicTurbulenceModel >

Renormalization group k-epsilon turbulence model for incompressible and compressible flows.

Reference:

    Yakhot, V., Orszag, S. A., Thangam, S.,
    Gatski, T. B., & Speziale, C. G. (1992).
    Development of turbulence models for shear flows
    by a double expansion technique.
    Physics of Fluids A: Fluid Dynamics (1989-1993), 4(7), 1510-1520.

For the RDT-based compression term:
    El Tahry, S. H. (1983).
    k-epsilon equation for compressible reciprocating engine flows.
    Journal of Energy, 7(4), 345-353.

The default model coefficients are

    RNGkEpsilonCoeffs
    {
        Cmu         0.0845;
        C1          1.42;
        C2          1.68;
        C3          -0.33;
        sigmak      0.71942;
        sigmaEps    0.71942;
        eta0        4.38;
        beta        0.012;
    }

Source files

Definition at line 84 of file RNGkEpsilon.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 132 of file RNGkEpsilon.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 133 of file RNGkEpsilon.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 134 of file RNGkEpsilon.H.

Constructor & Destructor Documentation

◆ RNGkEpsilon()

template<class BasicTurbulenceModel>

RNGkEpsilon	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 71 of file RNGkEpsilon.C.

References alpha, beta_, Foam::bound(), C1_, C2_, C3_, Cmu_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, eta0_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, phi, rho, sigmaEps_, sigmak_, timeName, and U.

Here is the call graph for this function:

◆ ~RNGkEpsilon()

template<class BasicTurbulenceModel>

virtual ~RNGkEpsilon ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 36 of file RNGkEpsilon.C.

References Cmu_, optionList::correct(), epsilon_, k_, options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, and Foam::sqr().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource ( ) const

protectedvirtual

Definition at line 47 of file RNGkEpsilon.C.

References Foam::dimTime, Foam::dimVolume, k_, and tmp< T >::New().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ epsilonSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > epsilonSource ( ) const

protectedvirtual

Definition at line 58 of file RNGkEpsilon.C.

References Foam::dimTime, Foam::dimVolume, epsilon_, and tmp< T >::New().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "RNGkEpsilon< BasicTurbulenceModel >" )

Runtime type information.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 206 of file RNGkEpsilon.C.

References beta_, C1_, C2_, C3_, Cmu_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), eta0_, read(), sigmaEps_, and sigmak_.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DkEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k.

Definition at line 177 of file RNGkEpsilon.H.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DepsilonEff ( ) const

inline

Return the effective diffusivity for epsilon.

Definition at line 192 of file RNGkEpsilon.H.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 207 of file RNGkEpsilon.H.

◆ epsilon()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 215 of file RNGkEpsilon.H.

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 227 of file RNGkEpsilon.C.

References Foam::fvc::absolute(), alpha, beta_, Foam::bound(), C1_, C2_, C3_, tmp< T >::clear(), Cmu_, correct(), correctNut(), Foam::fvm::ddt(), DepsilonEff(), Foam::devTwoSymm(), Foam::fvc::div(), Foam::fvm::div(), divU, DkEff(), eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, epsilonSource(), eta0_, fvOptions, Foam::fvc::grad(), k_, kSource(), Foam::fvm::laplacian(), Foam::mag(), options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut(), nut, eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, eddyViscosity< RASModel< BasicTurbulenceModel > >::R(), R, tmp< T >::ref(), rho, IOobject::scopedName(), solve(), Foam::fvm::Sp(), Foam::sqr(), Foam::sqrt(), Foam::fvm::SuSp(), Foam::type(), and U.

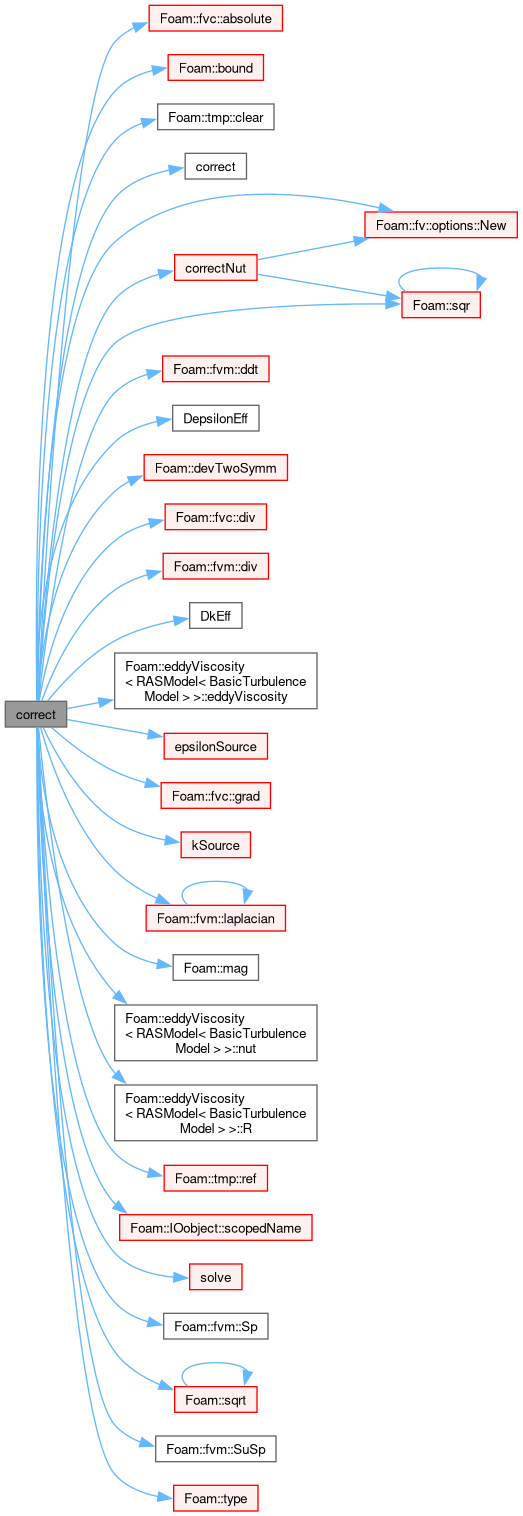

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

template<class BasicTurbulenceModel>

dimensionedScalar Cmu_

protected

Definition at line 107 of file RNGkEpsilon.H.

Referenced by correct(), correctNut(), read(), and RNGkEpsilon().

◆ C1_

template<class BasicTurbulenceModel>

dimensionedScalar C1_

protected

Definition at line 108 of file RNGkEpsilon.H.

Referenced by correct(), read(), and RNGkEpsilon().

◆ C2_

template<class BasicTurbulenceModel>

dimensionedScalar C2_

protected

Definition at line 109 of file RNGkEpsilon.H.

Referenced by correct(), read(), and RNGkEpsilon().

◆ C3_

template<class BasicTurbulenceModel>

dimensionedScalar C3_

protected

Definition at line 110 of file RNGkEpsilon.H.

Referenced by correct(), read(), and RNGkEpsilon().

◆ sigmak_

template<class BasicTurbulenceModel>

dimensionedScalar sigmak_

protected

Definition at line 111 of file RNGkEpsilon.H.

Referenced by read(), and RNGkEpsilon().

◆ sigmaEps_

template<class BasicTurbulenceModel>

dimensionedScalar sigmaEps_

protected

Definition at line 112 of file RNGkEpsilon.H.

Referenced by read(), and RNGkEpsilon().

◆ eta0_

template<class BasicTurbulenceModel>

dimensionedScalar eta0_

protected

Definition at line 113 of file RNGkEpsilon.H.

Referenced by correct(), read(), and RNGkEpsilon().

◆ beta_

template<class BasicTurbulenceModel>

dimensionedScalar beta_

protected

Definition at line 114 of file RNGkEpsilon.H.

Referenced by correct(), read(), and RNGkEpsilon().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Definition at line 119 of file RNGkEpsilon.H.

Referenced by correct(), correctNut(), kSource(), and RNGkEpsilon().

◆ epsilon_

template<class BasicTurbulenceModel>

volScalarField epsilon_

protected

Definition at line 120 of file RNGkEpsilon.H.

Referenced by correct(), correctNut(), epsilonSource(), and RNGkEpsilon().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/RAS/RNGkEpsilon/RNGkEpsilon.H
src/TurbulenceModels/turbulenceModels/RAS/RNGkEpsilon/RNGkEpsilon.C
