Variant of the standard k-epsilon turbulence model with additional source terms to handle the changes in turbulence in porous regions represented by the powerLawLopesdaCosta porosity model. More...

#include <kEpsilonLopesdaCosta.H>

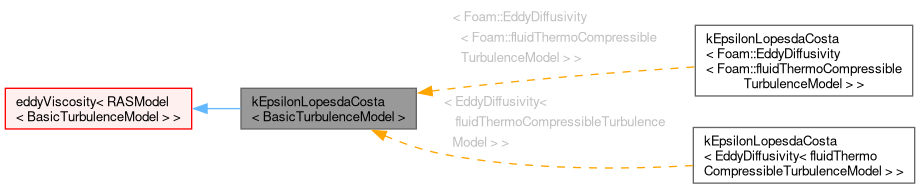

Inheritance diagram for kEpsilonLopesdaCosta< BasicTurbulenceModel >:

[legend]

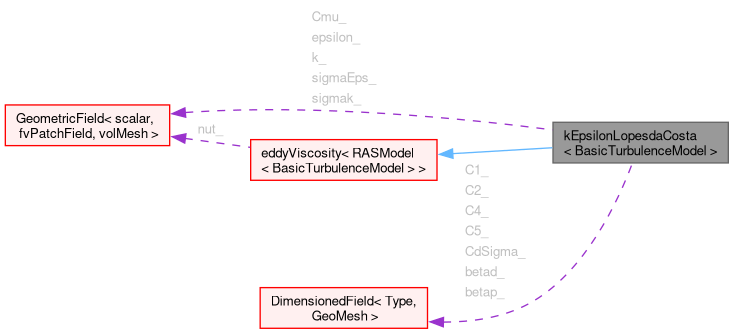

Collaboration diagram for kEpsilonLopesdaCosta< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("kEpsilonLopesdaCosta")
	Runtime type information.
	kEpsilonLopesdaCosta (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kEpsilonLopesdaCosta ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
void	setPorosityCoefficient (volScalarField::Internal &C, const porosityModels::powerLawLopesdaCosta &pm)
void	setCdSigma (volScalarField::Internal &C, const porosityModels::powerLawLopesdaCosta &pm)
void	setPorosityCoefficients ()
virtual void	correctNut ()
virtual tmp< fvScalarMatrix >	kSource (const volScalarField::Internal &magU, const volScalarField::Internal &magU3) const
virtual tmp< fvScalarMatrix >	epsilonSource (const volScalarField::Internal &magU, const volScalarField::Internal &magU3) const

Protected Attributes
volScalarField	Cmu_
volScalarField::Internal	C1_
volScalarField::Internal	C2_
volScalarField	sigmak_
volScalarField	sigmaEps_
volScalarField::Internal	CdSigma_
volScalarField::Internal	betap_
volScalarField::Internal	betad_
volScalarField::Internal	C4_
volScalarField::Internal	C5_
volScalarField	k_
volScalarField	epsilon_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::kEpsilonLopesdaCosta< BasicTurbulenceModel >

Variant of the standard k-epsilon turbulence model with additional source terms to handle the changes in turbulence in porous regions represented by the powerLawLopesdaCosta porosity model.

Reference:

    Costa, J. C. P. L. D. (2007).
    Atmospheric flow over forested and non-forested complex terrain.

The default model coefficients are

    kEpsilonLopesdaCostaCoeffs
    {
        Cmu         0.09;
        C1          1.44;
        C2          1.92;
        sigmak      1.0;
        sigmaEps    1.3;
    }

See also: Foam::RASModels::kEpsilon Foam::porosityModels::powerLawLopesdaCosta

Source files

Definition at line 79 of file kEpsilonLopesdaCosta.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 156 of file kEpsilonLopesdaCosta.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 157 of file kEpsilonLopesdaCosta.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 158 of file kEpsilonLopesdaCosta.H.

Constructor & Destructor Documentation

◆ kEpsilonLopesdaCosta()

template<class BasicTurbulenceModel>

kEpsilonLopesdaCosta	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 172 of file kEpsilonLopesdaCosta.C.

References alpha, betad_, betap_, Foam::bound(), C1_, C2_, C4_, C5_, CdSigma_, Cmu_, Foam::dimLength, Foam::dimless, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, phi, rho, setPorosityCoefficients(), sigmaEps_, sigmak_, timeName, and U.

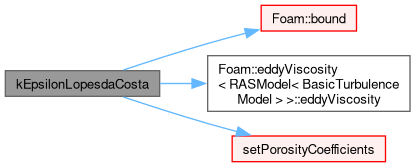

Here is the call graph for this function:

◆ ~kEpsilonLopesdaCosta()

template<class BasicTurbulenceModel>

virtual ~kEpsilonLopesdaCosta ( )

virtualdefault

Destructor.

Member Function Documentation

◆ setPorosityCoefficient()

template<class BasicTurbulenceModel>

void setPorosityCoefficient	(	volScalarField::Internal &	C,
		const porosityModels::powerLawLopesdaCosta &	pm )

protected

Definition at line 37 of file kEpsilonLopesdaCosta.C.

References cells, porosityModel::cellZoneIDs(), porosityModel::dict(), dictionary::found(), and dictionary::get().

Referenced by setPorosityCoefficients().

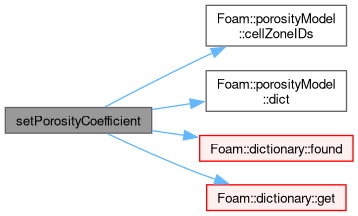

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setCdSigma()

template<class BasicTurbulenceModel>

void setCdSigma	(	volScalarField::Internal &	C,
		const porosityModels::powerLawLopesdaCosta &	pm )

protected

Definition at line 63 of file kEpsilonLopesdaCosta.C.

References cells, porosityModel::cellZoneIDs(), porosityModel::dict(), forAll, dictionary::found(), dictionary::get(), and powerLawLopesdaCostaZone::Sigma().

Referenced by setPorosityCoefficients().

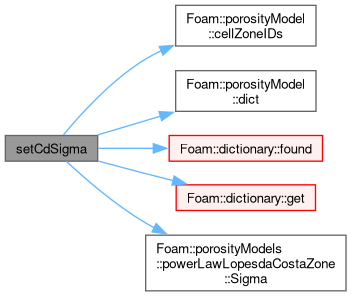

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setPorosityCoefficients()

template<class BasicTurbulenceModel>

void setPorosityCoefficients ( )

protected

Definition at line 91 of file kEpsilonLopesdaCosta.C.

References betad_, betap_, C1_, C2_, C4_, C5_, CdSigma_, Cmu_, forAll, fvOptions, Foam::isA(), explicitPorositySource::model(), options::New(), optionList::optionList(), Foam::refCast(), setCdSigma(), setPorosityCoefficient(), sigmaEps_, and sigmak_.

Referenced by kEpsilonLopesdaCosta().

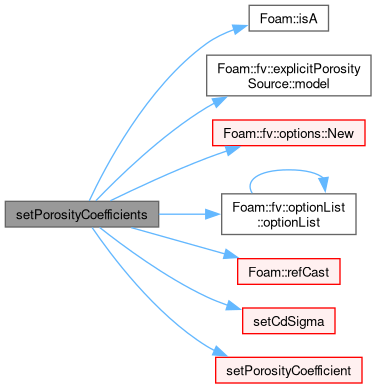

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 131 of file kEpsilonLopesdaCosta.C.

References Cmu_, optionList::correct(), epsilon_, k_, options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, and Foam::sqr().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource	(	const volScalarField::Internal &	magU,
		const volScalarField::Internal &	magU3 ) const

protectedvirtual

Definition at line 142 of file kEpsilonLopesdaCosta.C.

References betad_, betap_, CdSigma_, k_, and Foam::fvm::Su().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ epsilonSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > epsilonSource	(	const volScalarField::Internal &	magU,
		const volScalarField::Internal &	magU3 ) const

protectedvirtual

Definition at line 154 of file kEpsilonLopesdaCosta.C.

References betad_, betap_, C4_, C5_, CdSigma_, epsilon_, k_, and Foam::fvm::Su().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "kEpsilonLopesdaCosta< BasicTurbulenceModel >" )

Runtime type information.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 373 of file kEpsilonLopesdaCosta.C.

References eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), and read().

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DkEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k.

Definition at line 201 of file kEpsilonLopesdaCosta.H.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DepsilonEff ( ) const

inline

Return the effective diffusivity for epsilon.

Definition at line 216 of file kEpsilonLopesdaCosta.H.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 231 of file kEpsilonLopesdaCosta.H.

◆ epsilon()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 239 of file kEpsilonLopesdaCosta.H.

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 385 of file kEpsilonLopesdaCosta.C.

References Foam::fvc::absolute(), alpha, Foam::bound(), C1_, C2_, tmp< T >::clear(), correct(), correctNut(), Foam::fvm::ddt(), DepsilonEff(), Foam::devTwoSymm(), Foam::fvc::div(), Foam::fvm::div(), divU, DkEff(), eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, epsilonSource(), fvOptions, Foam::fvc::grad(), k_, kSource(), Foam::fvm::laplacian(), Foam::mag(), options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, Foam::pow3(), tmp< T >::ref(), rho, solve(), Foam::fvm::Sp(), Foam::fvm::SuSp(), and U.

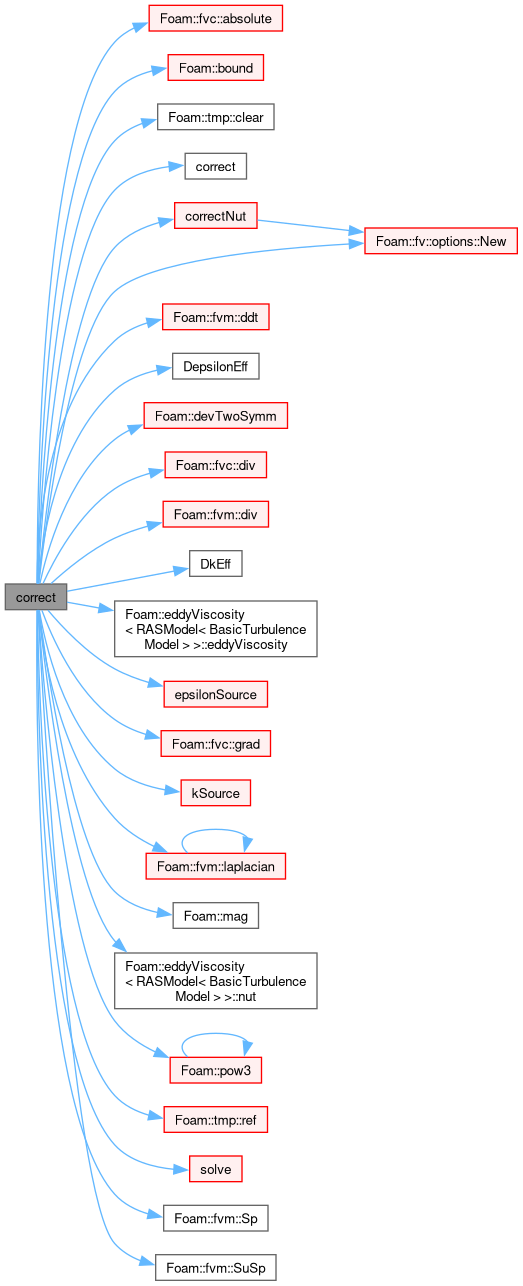

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

template<class BasicTurbulenceModel>

volScalarField Cmu_

protected

Definition at line 102 of file kEpsilonLopesdaCosta.H.

Referenced by correctNut(), kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ C1_

template<class BasicTurbulenceModel>

volScalarField::Internal C1_

protected

Definition at line 103 of file kEpsilonLopesdaCosta.H.

Referenced by correct(), kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ C2_

template<class BasicTurbulenceModel>

volScalarField::Internal C2_

protected

Definition at line 104 of file kEpsilonLopesdaCosta.H.

Referenced by correct(), kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ sigmak_

template<class BasicTurbulenceModel>

volScalarField sigmak_

protected

Definition at line 105 of file kEpsilonLopesdaCosta.H.

Referenced by kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ sigmaEps_

template<class BasicTurbulenceModel>

volScalarField sigmaEps_

protected

Definition at line 106 of file kEpsilonLopesdaCosta.H.

Referenced by kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ CdSigma_

template<class BasicTurbulenceModel>

volScalarField::Internal CdSigma_

protected

Definition at line 110 of file kEpsilonLopesdaCosta.H.

Referenced by epsilonSource(), kEpsilonLopesdaCosta(), kSource(), and setPorosityCoefficients().

◆ betap_

template<class BasicTurbulenceModel>

volScalarField::Internal betap_

protected

Definition at line 111 of file kEpsilonLopesdaCosta.H.

Referenced by epsilonSource(), kEpsilonLopesdaCosta(), kSource(), and setPorosityCoefficients().

◆ betad_

template<class BasicTurbulenceModel>

volScalarField::Internal betad_

protected

Definition at line 112 of file kEpsilonLopesdaCosta.H.

Referenced by epsilonSource(), kEpsilonLopesdaCosta(), kSource(), and setPorosityCoefficients().

◆ C4_

template<class BasicTurbulenceModel>

volScalarField::Internal C4_

protected

Definition at line 113 of file kEpsilonLopesdaCosta.H.

Referenced by epsilonSource(), kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ C5_

template<class BasicTurbulenceModel>

volScalarField::Internal C5_

protected

Definition at line 114 of file kEpsilonLopesdaCosta.H.

Referenced by epsilonSource(), kEpsilonLopesdaCosta(), and setPorosityCoefficients().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Definition at line 119 of file kEpsilonLopesdaCosta.H.

Referenced by correct(), correctNut(), epsilonSource(), kEpsilonLopesdaCosta(), and kSource().

◆ epsilon_

template<class BasicTurbulenceModel>

volScalarField epsilon_

protected

Definition at line 120 of file kEpsilonLopesdaCosta.H.

Referenced by correct(), correctNut(), epsilonSource(), and kEpsilonLopesdaCosta().

The documentation for this class was generated from the following files:

src/atmosphericModels/turbulenceModels/RAS/kEpsilonLopesdaCosta/kEpsilonLopesdaCosta.H
src/atmosphericModels/turbulenceModels/RAS/kEpsilonLopesdaCosta/kEpsilonLopesdaCosta.C

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ alphaField

◆ rhoField

◆ transportModel

Constructor & Destructor Documentation

◆ kEpsilonLopesdaCosta()

◆ ~kEpsilonLopesdaCosta()

Member Function Documentation

◆ setPorosityCoefficient()

◆ setCdSigma()

◆ setPorosityCoefficients()

◆ correctNut()

◆ kSource()

◆ epsilonSource()

◆ TypeName()

◆ read()

◆ DkEff()

◆ DepsilonEff()

◆ k()

◆ epsilon()

◆ correct()

Member Data Documentation

◆ Cmu_

◆ C1_

◆ C2_

◆ sigmak_

◆ sigmaEps_

◆ CdSigma_

◆ betap_

◆ betad_

◆ C4_

◆ C5_

◆ k_

◆ epsilon_
