The k-epsilon-phit-f turbulence closure model for incompressible and compressible flows. More...

#include <kEpsilonPhitF.H>

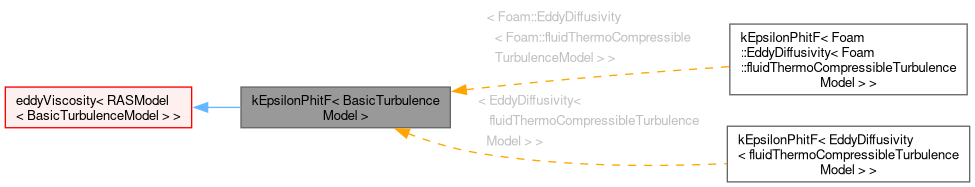

Inheritance diagram for kEpsilonPhitF< BasicTurbulenceModel >:

[legend]

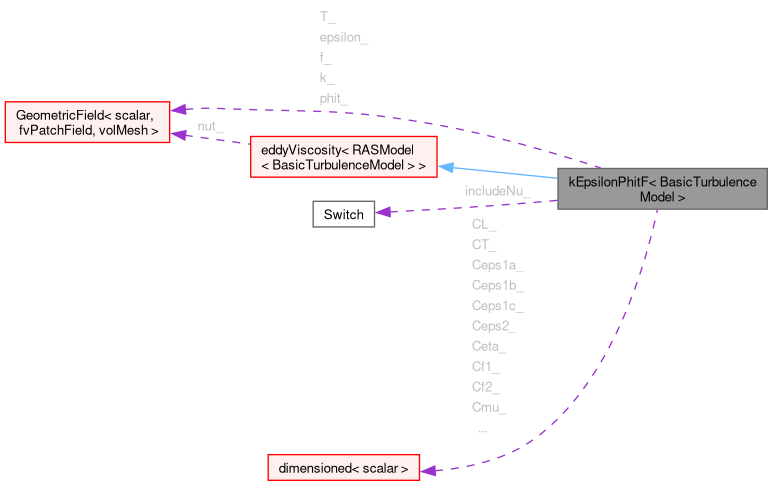

Collaboration diagram for kEpsilonPhitF< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("kEpsilonPhitF")
	Runtime type information.
	kEpsilonPhitF (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~kEpsilonPhitF ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
tmp< volScalarField >	DkEff () const
	Return the effective diffusivity for k (LUU:Eq. 3).
tmp< volScalarField >	DepsilonEff () const
	Return the effective diffusivity for epsilon (LUU:Eq. 4).
tmp< volScalarField >	DphitEff () const
	Return the effective diffusivity for phit (LUU:Eq. 17).
virtual tmp< volScalarField >	k () const
	Return the turbulent kinetic energy field.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulent kinetic energy dissipation rate field.
virtual tmp< volScalarField >	phit () const
	Return the normalised wall-normal fluctuating velocity scale field.
virtual tmp< volScalarField >	f () const
	Return the elliptic relaxation factor field.
virtual void	correct ()
	Solve the transport equations and correct the turbulent viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
virtual void	correctNut ()
	Update nut with the latest available k, phit, and T.
tmp< volScalarField >	Ts () const
	Return the turbulent time scale, T.
tmp< volScalarField >	Ls () const
	Return the turbulent length scale, L.

Protected Attributes
Switch	includeNu_
dimensionedScalar	Cmu_
dimensionedScalar	Ceps1a_
dimensionedScalar	Ceps1b_
dimensionedScalar	Ceps1c_
dimensionedScalar	Ceps2_
dimensionedScalar	Cf1_
dimensionedScalar	Cf2_
dimensionedScalar	CL_
dimensionedScalar	Ceta_
dimensionedScalar	CT_
dimensionedScalar	sigmaK_
dimensionedScalar	sigmaEps_
dimensionedScalar	sigmaPhit_
volScalarField	k_
	Turbulent kinetic energy [m2/s2].
volScalarField	epsilon_
	Turbulent kinetic energy dissipation rate [m2/s3].
volScalarField	phit_
	Normalised wall-normal fluctuating velocity scale [-].
volScalarField	f_
	Elliptic relaxation factor [1/s].
volScalarField	T_
	Turbulent time scale [s].
dimensionedScalar	phitMin_
dimensionedScalar	fMin_
dimensionedScalar	TMin_
dimensionedScalar	L2Min_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::kEpsilonPhitF< BasicTurbulenceModel >

The k-epsilon-phit-f turbulence closure model for incompressible and compressible flows.

The model is a three-transport-equation linear-eddy-viscosity turbulence closure model alongside an elliptic relaxation equation.

Input fields

k	:	Turbulent kinetic energy [m2/s2]
epsilon	:	Turbulent kinetic energy dissipation rate [m2/s3]
phit	:	Normalised wall-normal fluctuating velocity scale [-]
f	:	Elliptic relaxation factor [1/s]

Reference:

        Standard model (Tag:LUU):
            Laurence, D. R., Uribe, J. C., & Utyuzhnikov, S. V. (2005).
            A robust formulation of the v2-f model.
            Flow, Turbulence and Combustion, 73(3-4), 169–185.
            DOI:10.1007/s10494-005-1974-8

The default model coefficients are (LUU:Eqs. 19-20):

        kEpsilonPhitFCoeffs
        {
            includeNu   true;    // include nu in (LUU: Eq. 17), see Notes
            Cmu         0.22;    // Turbulent viscosity constant
            Ceps1a      1.4;     // Model constant for epsilon
            Ceps1b      1.0;     // Model constant for epsilon
            Ceps1c      0.05;    // Model constant for epsilon
            Ceps2       1.9;     // Model constant for epsilon
            Cf1         1.4;     // Model constant for f
            Cf2         0.3;     // Model constant for f
            CL          0.25;    // Model constant for L
            Ceta        110.0;   // Model constant for L
            CT          6.0;     // Model constant for T
            sigmaK      1.0;     // Turbulent Prandtl number for k
            sigmaEps    1.3;     // Turbulent Prandtl number for epsilon
            sigmaPhit   1.0;     // Turbulent Prandtl number for phit = sigmaK
        }

Note: The name of the original variable replacing 'v2' is 'phi' (LUU:Eq. 14). However, the name 'phi' preexisted in OpenFOAM; therefore, this name was replaced by 'phit' herein.

Including nu in DphitEff even though it is not present in (LUU:Eq. 17) provided higher level of resemblance to benchmarks for the tests considered, particularly for the peak skin friction (yet, pressure-related predictions were unaffected). Users can switch off nu in DphitEff by using includeNu entry in kEpsilonPhitFCoeffs as shown above in order to follow the reference paper thereat. includeNu is left true by default. See GitLab issue #1560.

Source files

See also: kEpsilon.C

Definition at line 127 of file kEpsilonPhitF.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 223 of file kEpsilonPhitF.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 224 of file kEpsilonPhitF.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 225 of file kEpsilonPhitF.H.

Constructor & Destructor Documentation

◆ kEpsilonPhitF()

template<class BasicTurbulenceModel>

kEpsilonPhitF	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 92 of file kEpsilonPhitF.C.

References alpha, Foam::bound(), Ceps1a_, Ceps1b_, Ceps1c_, Ceps2_, Ceta_, Cf1_, Cf2_, CL_, Cmu_, CT_, Foam::dimLength, Foam::dimTime, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, Foam::exit(), f_, Foam::FatalError, FatalErrorInFunction, fMin_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, includeNu_, k_, L2Min_, Foam::mag(), Foam::nl, phi, phit_, phitMin_, rho, sigmaEps_, sigmaK_, sigmaPhit_, Foam::sqr(), T_, timeName, TMin_, U, and Foam::Zero.

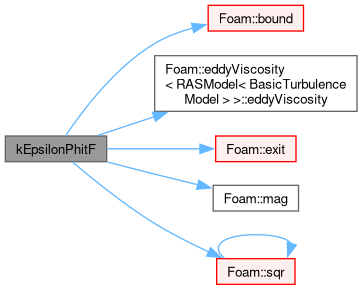

Here is the call graph for this function:

◆ ~kEpsilonPhitF()

template<class BasicTurbulenceModel>

virtual ~kEpsilonPhitF ( )

virtualdefault

Destructor.

Member Function Documentation

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Update nut with the latest available k, phit, and T.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 35 of file kEpsilonPhitF.C.

References Cmu_, optionList::correct(), k_, options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phit_, and T_.

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Ts()

template<class BasicTurbulenceModel>

tmp< volScalarField > Ts ( ) const

protected

Return the turbulent time scale, T.

Definition at line 47 of file kEpsilonPhitF.C.

References CT_, epsilon_, k_, Foam::max(), nu, Foam::sqrt(), and Foam::Zero.

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Ls()

template<class BasicTurbulenceModel>

tmp< volScalarField > Ls ( ) const

protected

Return the turbulent length scale, L.

Definition at line 67 of file kEpsilonPhitF.C.

References Ceta_, CL_, epsilon_, k_, Foam::max(), nu, Foam::pow(), Foam::pow025(), Foam::pow3(), and Foam::Zero.

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "kEpsilonPhitF< BasicTurbulenceModel >" )

Runtime type information.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 341 of file kEpsilonPhitF.C.

References Ceps1a_, Ceps1b_, Ceps1c_, Ceps2_, Ceta_, Cf1_, Cf2_, CL_, Cmu_, CT_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), includeNu_, read(), sigmaEps_, sigmaK_, and sigmaPhit_.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DkEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DkEff ( ) const

inline

Return the effective diffusivity for k (LUU:Eq. 3).

Definition at line 268 of file kEpsilonPhitF.H.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DepsilonEff ( ) const

inline

Return the effective diffusivity for epsilon (LUU:Eq. 4).

Definition at line 283 of file kEpsilonPhitF.H.

Referenced by correct().

Here is the caller graph for this function:

◆ DphitEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DphitEff ( ) const

inline

Return the effective diffusivity for phit (LUU:Eq. 17).

Definition at line 298 of file kEpsilonPhitF.H.

Referenced by correct().

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulent kinetic energy field.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 314 of file kEpsilonPhitF.H.

◆ epsilon()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulent kinetic energy dissipation rate field.

Definition at line 322 of file kEpsilonPhitF.H.

◆ phit()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > phit ( ) const

inlinevirtual

Return the normalised wall-normal fluctuating velocity scale field.

Definition at line 330 of file kEpsilonPhitF.H.

◆ f()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > f ( ) const

inlinevirtual

Return the elliptic relaxation factor field.

Definition at line 338 of file kEpsilonPhitF.H.

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the transport equations and correct the turbulent viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 368 of file kEpsilonPhitF.C.

References Foam::fvc::absolute(), alpha, Foam::bound(), Ceps1a_, Ceps1b_, Ceps1c_, Ceps2_, Cf1_, Cf2_, tmp< T >::clear(), correct(), correctNut(), Foam::fvm::ddt(), DepsilonEff(), Foam::dev(), Foam::fvc::div(), Foam::fvm::div(), divU, DkEff(), DphitEff(), eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, f_, fMin_, fvOptions, Foam::fvc::grad(), k_, L2Min_, Foam::fvc::laplacian(), Foam::fvm::laplacian(), Ls(), options::New(), nu, eddyViscosity< RASModel< BasicTurbulenceModel > >::nut(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, phit_, phitMin_, tmp< T >::ref(), rho, sigmaPhit_, solve(), Foam::fvm::Sp(), Foam::sqr(), Foam::sqrt(), Foam::fvm::SuSp(), Foam::symm(), T_, TMin_, Ts(), Foam::type(), and U.

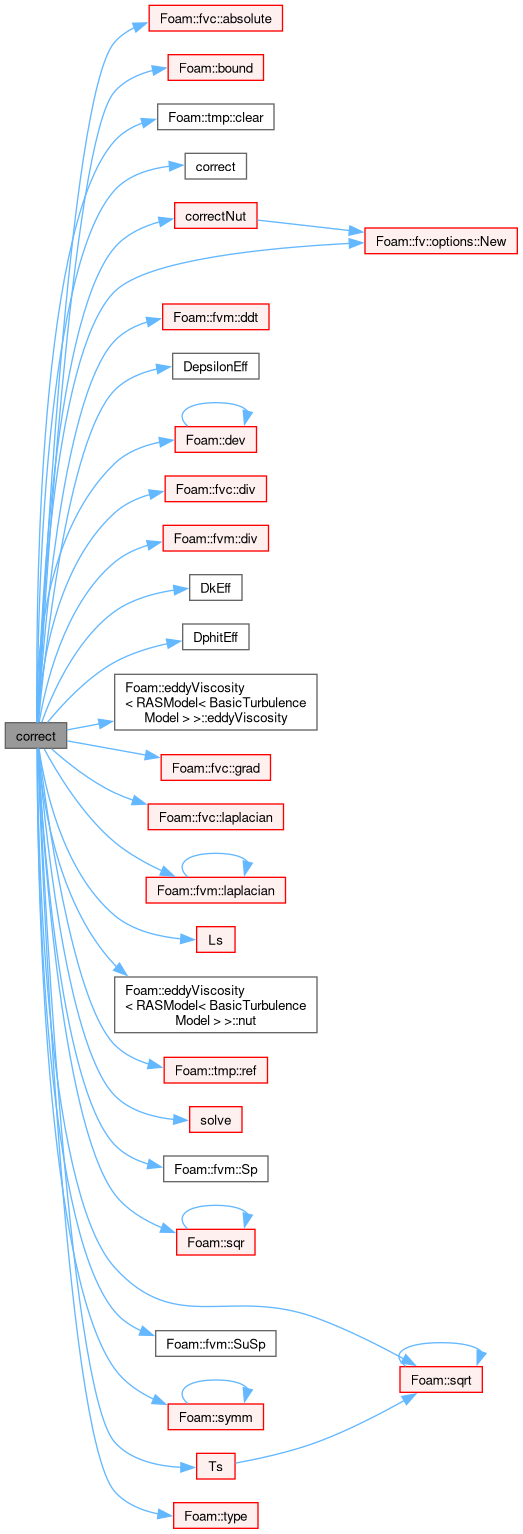

Here is the call graph for this function:

Member Data Documentation

◆ includeNu_

template<class BasicTurbulenceModel>

Switch includeNu_

protected

Definition at line 148 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), and read().

◆ Cmu_

template<class BasicTurbulenceModel>

dimensionedScalar Cmu_

protected

Definition at line 152 of file kEpsilonPhitF.H.

Referenced by correctNut(), kEpsilonPhitF(), and read().

◆ Ceps1a_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps1a_

protected

Definition at line 153 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ Ceps1b_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps1b_

protected

Definition at line 154 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ Ceps1c_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps1c_

protected

Definition at line 155 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ Ceps2_

template<class BasicTurbulenceModel>

dimensionedScalar Ceps2_

protected

Definition at line 156 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ Cf1_

template<class BasicTurbulenceModel>

dimensionedScalar Cf1_

protected

Definition at line 157 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ Cf2_

template<class BasicTurbulenceModel>

dimensionedScalar Cf2_

protected

Definition at line 158 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ CL_

template<class BasicTurbulenceModel>

dimensionedScalar CL_

protected

Definition at line 159 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), Ls(), and read().

◆ Ceta_

template<class BasicTurbulenceModel>

dimensionedScalar Ceta_

protected

Definition at line 160 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), Ls(), and read().

◆ CT_

template<class BasicTurbulenceModel>

dimensionedScalar CT_

protected

Definition at line 161 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), read(), and Ts().

◆ sigmaK_

template<class BasicTurbulenceModel>

dimensionedScalar sigmaK_

protected

Definition at line 162 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), and read().

◆ sigmaEps_

template<class BasicTurbulenceModel>

dimensionedScalar sigmaEps_

protected

Definition at line 163 of file kEpsilonPhitF.H.

Referenced by kEpsilonPhitF(), and read().

◆ sigmaPhit_

template<class BasicTurbulenceModel>

dimensionedScalar sigmaPhit_

protected

Definition at line 164 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), and read().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Turbulent kinetic energy [m2/s2].

Definition at line 172 of file kEpsilonPhitF.H.

Referenced by correct(), correctNut(), kEpsilonPhitF(), Ls(), and Ts().

◆ epsilon_

template<class BasicTurbulenceModel>

volScalarField epsilon_

protected

Turbulent kinetic energy dissipation rate [m2/s3].

Definition at line 177 of file kEpsilonPhitF.H.

Referenced by correct(), kEpsilonPhitF(), Ls(), and Ts().

◆ phit_

template<class BasicTurbulenceModel>

volScalarField phit_

protected

Normalised wall-normal fluctuating velocity scale [-].

Definition at line 182 of file kEpsilonPhitF.H.

Referenced by correct(), correctNut(), and kEpsilonPhitF().

◆ f_

template<class BasicTurbulenceModel>

volScalarField f_

protected

Elliptic relaxation factor [1/s].

Definition at line 187 of file kEpsilonPhitF.H.

Referenced by correct(), and kEpsilonPhitF().

◆ T_

template<class BasicTurbulenceModel>

volScalarField T_

protected

Turbulent time scale [s].

Definition at line 192 of file kEpsilonPhitF.H.

Referenced by correct(), correctNut(), and kEpsilonPhitF().

◆ phitMin_

template<class BasicTurbulenceModel>

dimensionedScalar phitMin_

protected

Definition at line 197 of file kEpsilonPhitF.H.

Referenced by correct(), and kEpsilonPhitF().

◆ fMin_

template<class BasicTurbulenceModel>

dimensionedScalar fMin_

protected

Definition at line 198 of file kEpsilonPhitF.H.

Referenced by correct(), and kEpsilonPhitF().

◆ TMin_

template<class BasicTurbulenceModel>

dimensionedScalar TMin_

protected

Definition at line 199 of file kEpsilonPhitF.H.

Referenced by correct(), and kEpsilonPhitF().

◆ L2Min_

template<class BasicTurbulenceModel>

dimensionedScalar L2Min_

protected

Definition at line 200 of file kEpsilonPhitF.H.

Referenced by correct(), and kEpsilonPhitF().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/RAS/kEpsilonPhitF/kEpsilonPhitF.H
src/TurbulenceModels/turbulenceModels/RAS/kEpsilonPhitF/kEpsilonPhitF.C

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ alphaField

◆ rhoField

◆ transportModel

Constructor & Destructor Documentation

◆ kEpsilonPhitF()

◆ ~kEpsilonPhitF()

Member Function Documentation

◆ correctNut()

◆ Ts()

◆ Ls()

◆ TypeName()

◆ read()

◆ DkEff()

◆ DepsilonEff()

◆ DphitEff()

◆ k()

◆ epsilon()

◆ phit()

◆ f()

◆ correct()

Member Data Documentation

◆ includeNu_

◆ Cmu_

◆ Ceps1a_

◆ Ceps1b_

◆ Ceps1c_

◆ Ceps2_

◆ Cf1_

◆ Cf2_

◆ CL_

◆ Ceta_

◆ CT_

◆ sigmaK_

◆ sigmaEps_

◆ sigmaPhit_

◆ k_

◆ epsilon_

◆ phit_

◆ f_

◆ T_

◆ phitMin_

◆ fMin_

◆ TMin_

◆ L2Min_
