Mixture k-epsilon turbulence model for two-phase gas-liquid systems. More...

#include <mixtureKEpsilon.H>

Inheritance diagram for mixtureKEpsilon< BasicTurbulenceModel >:

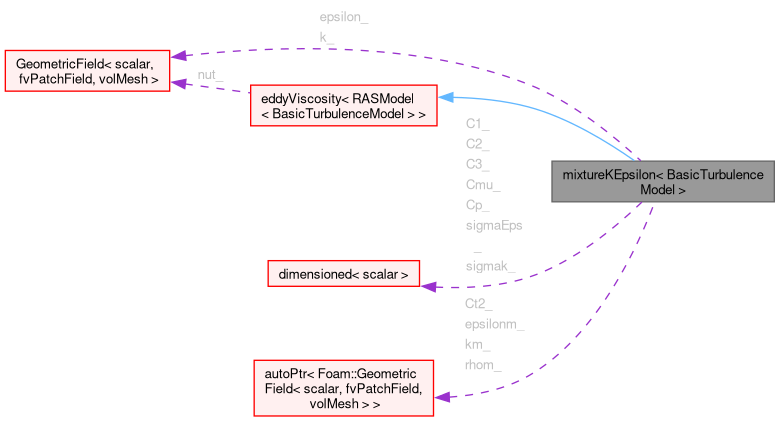

Collaboration diagram for mixtureKEpsilon< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("mixtureKEpsilon")
	Runtime type information.
	mixtureKEpsilon (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName, const word &type=typeName)
	Construct from components.
virtual	~mixtureKEpsilon ()=default
	Destructor.
virtual bool	read ()
	Re-read model coefficients if they have changed.
virtual tmp< volScalarField >	k () const
	Return the turbulence kinetic energy.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
	eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~eddyViscosity ()=default
	Destructor.
virtual tmp< volScalarField >	nut () const
	Return the turbulence viscosity.
virtual tmp< volSymmTensorField >	R () const
	Return the Reynolds stress tensor.
virtual void	validate ()
	Validate the turbulence fields after construction.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
	linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~linearViscousStress ()=default
	Destructor.
virtual tmp< volSymmTensorField >	devRhoReff () const
	Return the effective stress tensor.
virtual tmp< volSymmTensorField >	devRhoReff (const volVectorField &U) const
	Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix >	divDevRhoReff (volVectorField &U) const
	Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix >	divDevRhoReff (const volScalarField &rho, volVectorField &U) const
	Return the source term for the momentum equation.

Protected Member Functions
wordList	epsilonBoundaryTypes (const volScalarField &epsilon) const
void	correctInletOutlet (volScalarField &vsf, const volScalarField &refVsf) const
void	initMixtureFields ()
virtual void	correctNut ()
tmp< volScalarField >	Ct2 () const
tmp< volScalarField >	rholEff () const
tmp< volScalarField >	rhogEff () const
tmp< volScalarField >	rhom () const
tmp< volScalarField >	mix (const volScalarField &fc, const volScalarField &fd) const
tmp< volScalarField >	mixU (const volScalarField &fc, const volScalarField &fd) const
tmp< surfaceScalarField >	mixFlux (const surfaceScalarField &fc, const surfaceScalarField &fd) const
tmp< volScalarField >	bubbleG () const
virtual tmp< fvScalarMatrix >	kSource () const
virtual tmp< fvScalarMatrix >	epsilonSource () const
tmp< volScalarField >	DkEff (const volScalarField &nutm) const
	Return the effective diffusivity for k.
tmp< volScalarField >	DepsilonEff (const volScalarField &nutm) const
	Return the effective diffusivity for epsilon.

Protected Attributes
dimensionedScalar	Cmu_
dimensionedScalar	C1_
dimensionedScalar	C2_
dimensionedScalar	C3_
dimensionedScalar	Cp_
dimensionedScalar	sigmak_
dimensionedScalar	sigmaEps_
volScalarField	k_
volScalarField	epsilon_
autoPtr< volScalarField >	Ct2_
autoPtr< volScalarField >	rhom_
autoPtr< volScalarField >	km_
autoPtr< volScalarField >	epsilonm_
Protected Attributes inherited from eddyViscosity< RASModel< BasicTurbulenceModel > >
volScalarField	nut_

Detailed Description

template<class BasicTurbulenceModel>
class Foam::RASModels::mixtureKEpsilon< BasicTurbulenceModel >

Mixture k-epsilon turbulence model for two-phase gas-liquid systems.

The basic structure of the model is based on:

    Behzadi, A., Issa, R. I., & Rusche, H. (2004).
    Modelling of dispersed bubble and droplet flow at high phase fractions.
    Chemical Engineering Science, 59(4), 759-770.

but an effective density for the gas is used in the averaging and an alternative model for bubble-generated turbulence from:

    Lahey Jr, R. T. (2005).
    The simulation of multidimensional multiphase flows.
    Nuclear Engineering and Design, 235(10), 1043-1060.

The default model coefficients are

    mixtureKEpsilonCoeffs
    {
        Cmu         0.09;
        C1          1.44;
        C2          1.92;
        C3          C2;
        sigmak      1.0;
        sigmaEps    1.3;
    }

Source files

Definition at line 82 of file mixtureKEpsilon.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 210 of file mixtureKEpsilon.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 211 of file mixtureKEpsilon.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 212 of file mixtureKEpsilon.H.

Constructor & Destructor Documentation

◆ mixtureKEpsilon()

template<class BasicTurbulenceModel>

mixtureKEpsilon	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName,
		const word &	type = typeName )

Construct from components.

Definition at line 42 of file mixtureKEpsilon.C.

References alpha, Foam::bound(), C1_, C2_, C3_, Cmu_, Cp_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, k_, phi, rho, sigmaEps_, sigmak_, timeName, and U.

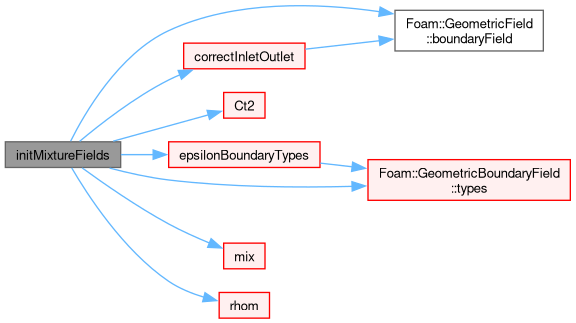

Here is the call graph for this function:

◆ ~mixtureKEpsilon()

template<class BasicTurbulenceModel>

virtual ~mixtureKEpsilon ( )

virtualdefault

Destructor.

Member Function Documentation

◆ epsilonBoundaryTypes()

template<class BasicTurbulenceModel>

wordList epsilonBoundaryTypes ( const volScalarField & epsilon ) const

protected

Definition at line 168 of file mixtureKEpsilon.C.

References epsilon(), forAll, Foam::isA(), and GeometricBoundaryField< Type, PatchField, GeoMesh >::types().

Referenced by initMixtureFields().

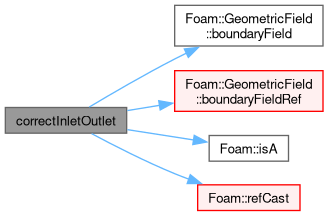

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctInletOutlet()

template<class BasicTurbulenceModel>

void correctInletOutlet	(	volScalarField &	vsf,
		const volScalarField &	refVsf ) const

protected

Definition at line 190 of file mixtureKEpsilon.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), forAll, Foam::isA(), and Foam::refCast().

Referenced by initMixtureFields().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ initMixtureFields()

template<class BasicTurbulenceModel>

void initMixtureFields ( )

protected

Definition at line 218 of file mixtureKEpsilon.C.

References IOobjectOption::AUTO_WRITE, GeometricField< Type, PatchField, GeoMesh >::boundaryField(), correctInletOutlet(), Ct2(), Ct2_, epsilon_, epsilonBoundaryTypes(), epsilonm_, k_, km_, mix(), IOobjectOption::READ_IF_PRESENT, rhom(), rhom_, and GeometricBoundaryField< Type, PatchField, GeoMesh >::types().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correctNut()

template<class BasicTurbulenceModel>

void correctNut ( )

protectedvirtual

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 329 of file mixtureKEpsilon.C.

References Cmu_, optionList::correct(), epsilon_, k_, options::New(), eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, and Foam::sqr().

Here is the call graph for this function:

◆ Ct2()

template<class BasicTurbulenceModel>

tmp< volScalarField > Ct2 ( ) const

protected

Definition at line 371 of file mixtureKEpsilon.C.

References beta(), Cmu_, Foam::exp(), fluid, Foam::mag(), Foam::refCast(), liquid::rho(), Foam::sqr(), and Foam::sqrt().

Referenced by correct(), and initMixtureFields().

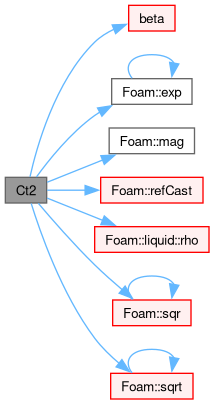

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rholEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > rholEff ( ) const

protected

Definition at line 398 of file mixtureKEpsilon.C.

References fluid, and Foam::refCast().

Referenced by correct(), mix(), mixFlux(), mixU(), and rhom().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rhogEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > rhogEff ( ) const

protected

Definition at line 407 of file mixtureKEpsilon.C.

References virtualMassModel::Cvm(), fluid, and Foam::refCast().

Referenced by correct(), mix(), mixFlux(), mixU(), and rhom().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rhom()

template<class BasicTurbulenceModel>

tmp< volScalarField > rhom ( ) const

protected

Definition at line 420 of file mixtureKEpsilon.C.

References alphal, rhogEff(), and rholEff().

Referenced by correct(), and initMixtureFields().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mix()

template<class BasicTurbulenceModel>

tmp< volScalarField > mix	(	const volScalarField &	fc,
		const volScalarField &	fd ) const

protected

Definition at line 430 of file mixtureKEpsilon.C.

References alphal, rhogEff(), rholEff(), and rhom_.

Referenced by correct(), and initMixtureFields().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mixU()

template<class BasicTurbulenceModel>

tmp< volScalarField > mixU	(	const volScalarField &	fc,
		const volScalarField &	fd ) const

protected

Definition at line 444 of file mixtureKEpsilon.C.

References alphal, Ct2_, rhogEff(), and rholEff().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mixFlux()

template<class BasicTurbulenceModel>

tmp< surfaceScalarField > mixFlux	(	const surfaceScalarField &	fc,
		const surfaceScalarField &	fd ) const

protected

Definition at line 460 of file mixtureKEpsilon.C.

References alphal, Ct2_, Foam::fvc::interpolate(), rhogEff(), and rholEff().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bubbleG()

template<class BasicTurbulenceModel>

tmp< volScalarField > bubbleG ( ) const

protected

Definition at line 482 of file mixtureKEpsilon.C.

References bubbleG(), Cp_, drag, fluid, Foam::mag(), Foam::pow(), Foam::pow3(), Foam::refCast(), and liquid::rho().

Referenced by bubbleG(), epsilonSource(), and kSource().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ kSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > kSource ( ) const

protectedvirtual

Definition at line 520 of file mixtureKEpsilon.C.

References bubbleG(), km_, rhom_, and Foam::fvm::Su().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ epsilonSource()

template<class BasicTurbulenceModel>

tmp< fvScalarMatrix > epsilonSource ( ) const

protectedvirtual

Definition at line 527 of file mixtureKEpsilon.C.

References bubbleG(), C3_, epsilonm_, km_, rhom_, and Foam::fvm::Su().

Referenced by correct().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DkEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DkEff ( const volScalarField & nutm ) const

inlineprotected

Return the effective diffusivity for k.

Definition at line 181 of file mixtureKEpsilon.H.

References sigmak_.

Referenced by correct().

Here is the caller graph for this function:

◆ DepsilonEff()

template<class BasicTurbulenceModel>

tmp< volScalarField > DepsilonEff ( const volScalarField & nutm ) const

inlineprotected

Return the effective diffusivity for epsilon.

Definition at line 196 of file mixtureKEpsilon.H.

References sigmaEps_.

Referenced by correct().

Here is the caller graph for this function:

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "mixtureKEpsilon< BasicTurbulenceModel >" )

Runtime type information.

References alpha, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, phi, turbulenceModel::propertiesName, rho, and U.

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Re-read model coefficients if they have changed.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 309 of file mixtureKEpsilon.C.

References C1_, C2_, C3_, Cmu_, Cp_, eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), read(), sigmaEps_, and sigmak_.

Referenced by read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ k()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > k ( ) const

inlinevirtual

Return the turbulence kinetic energy.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 255 of file mixtureKEpsilon.H.

References k_.

◆ epsilon()

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > epsilon ( ) const

inlinevirtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 263 of file mixtureKEpsilon.H.

References epsilon_.

Referenced by epsilonBoundaryTypes().

Here is the caller graph for this function:

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implements eddyViscosity< RASModel< BasicTurbulenceModel > >.

Definition at line 534 of file mixtureKEpsilon.C.

References Foam::fvc::absolute(), alphal, Foam::bound(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), C1_, C2_, tmp< T >::clear(), correct(), GeometricField< Type, PatchField, GeoMesh >::correctBoundaryConditions(), Ct2(), Ct2_, Foam::fvm::ddt(), DepsilonEff(), Foam::devTwoSymm(), Foam::fvc::div(), Foam::fvm::div(), DkEff(), eddyViscosity< RASModel< BasicTurbulenceModel > >::eddyViscosity(), epsilon_, epsilonm_, epsilonSource(), GeometricBoundaryField< Type, PatchField, GeoMesh >::evaluateCoupled(), fluid, fvOptions, Foam::fvc::grad(), initMixtureFields(), k_, km_, kSource(), Foam::fvm::laplacian(), mix(), mixFlux(), mixU(), options::New(), nu, eddyViscosity< RASModel< BasicTurbulenceModel > >::nut_, phi, phig(), tmp< T >::ref(), Foam::refCast(), rhogEff(), rholEff(), rhom(), rhom_, solve(), Foam::fvm::Sp(), Foam::fvm::SuSp(), and GeometricBoundaryField< Type, PatchField, GeoMesh >::updateCoeffs().

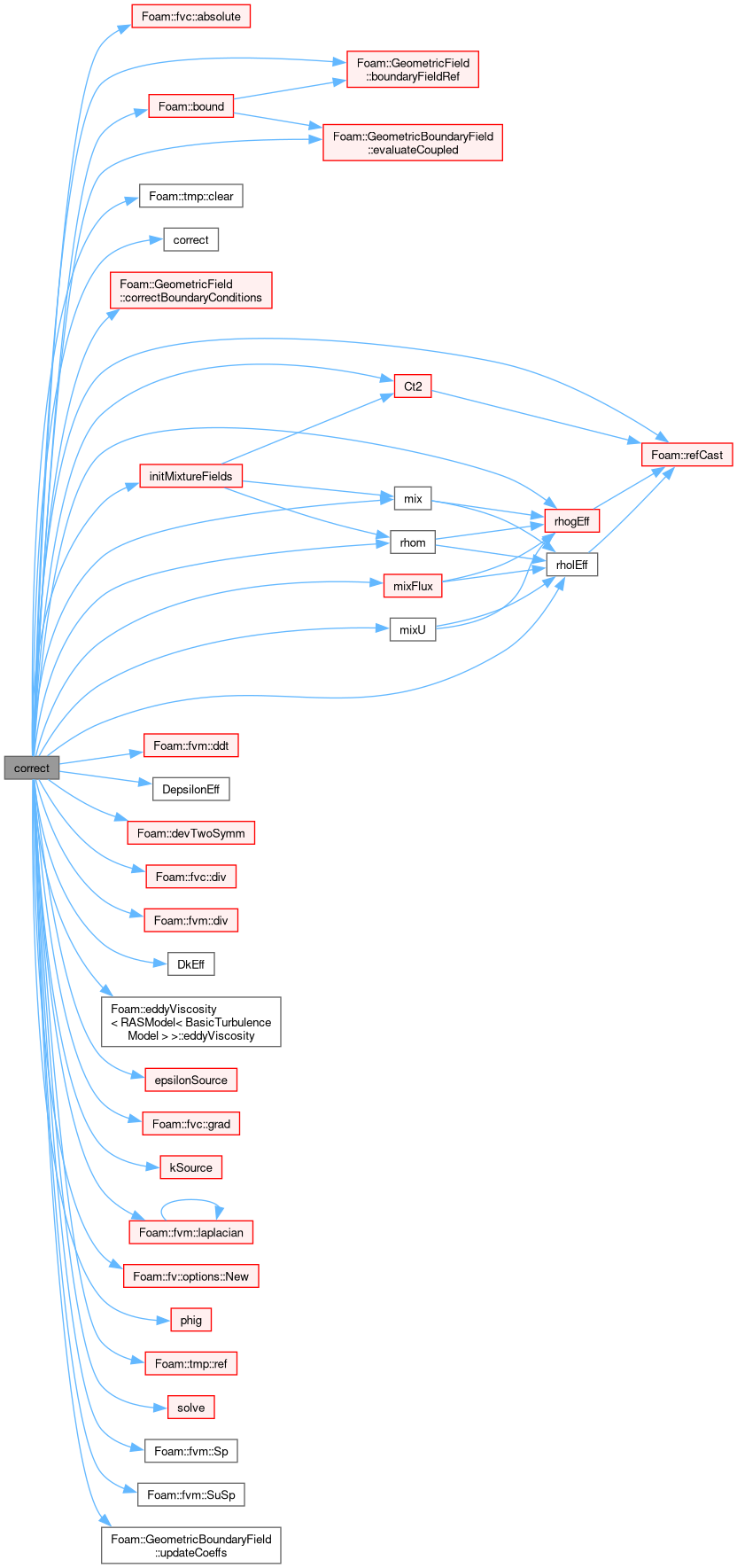

Here is the call graph for this function:

Member Data Documentation

◆ Cmu_

template<class BasicTurbulenceModel>

dimensionedScalar Cmu_

protected

Definition at line 115 of file mixtureKEpsilon.H.

Referenced by correctNut(), Ct2(), mixtureKEpsilon(), and read().

◆ C1_

template<class BasicTurbulenceModel>

dimensionedScalar C1_

protected

Definition at line 116 of file mixtureKEpsilon.H.

Referenced by correct(), mixtureKEpsilon(), and read().

◆ C2_

template<class BasicTurbulenceModel>

dimensionedScalar C2_

protected

Definition at line 117 of file mixtureKEpsilon.H.

Referenced by correct(), mixtureKEpsilon(), and read().

◆ C3_

template<class BasicTurbulenceModel>

dimensionedScalar C3_

protected

Definition at line 118 of file mixtureKEpsilon.H.

Referenced by epsilonSource(), mixtureKEpsilon(), and read().

◆ Cp_

template<class BasicTurbulenceModel>

dimensionedScalar Cp_

protected

Definition at line 119 of file mixtureKEpsilon.H.

Referenced by bubbleG(), mixtureKEpsilon(), and read().

◆ sigmak_

template<class BasicTurbulenceModel>

dimensionedScalar sigmak_

protected

Definition at line 120 of file mixtureKEpsilon.H.

Referenced by DkEff(), mixtureKEpsilon(), and read().

◆ sigmaEps_

template<class BasicTurbulenceModel>

dimensionedScalar sigmaEps_

protected

Definition at line 121 of file mixtureKEpsilon.H.

Referenced by DepsilonEff(), mixtureKEpsilon(), and read().

◆ k_

template<class BasicTurbulenceModel>

volScalarField k_

protected

Definition at line 125 of file mixtureKEpsilon.H.

Referenced by correct(), correctNut(), initMixtureFields(), k(), and mixtureKEpsilon().

◆ epsilon_

template<class BasicTurbulenceModel>

volScalarField epsilon_

protected

Definition at line 126 of file mixtureKEpsilon.H.

Referenced by correct(), correctNut(), epsilon(), initMixtureFields(), and mixtureKEpsilon().

◆ Ct2_

template<class BasicTurbulenceModel>

autoPtr<volScalarField> Ct2_

protected

Definition at line 130 of file mixtureKEpsilon.H.

Referenced by correct(), initMixtureFields(), mixFlux(), and mixU().

◆ rhom_

template<class BasicTurbulenceModel>

autoPtr<volScalarField> rhom_

protected

Definition at line 131 of file mixtureKEpsilon.H.

Referenced by correct(), epsilonSource(), initMixtureFields(), kSource(), and mix().

◆ km_

template<class BasicTurbulenceModel>

autoPtr<volScalarField> km_

protected

Definition at line 132 of file mixtureKEpsilon.H.

Referenced by correct(), epsilonSource(), initMixtureFields(), and kSource().

◆ epsilonm_

template<class BasicTurbulenceModel>

autoPtr<volScalarField> epsilonm_

protected

Definition at line 133 of file mixtureKEpsilon.H.

Referenced by correct(), epsilonSource(), and initMixtureFields().

The documentation for this class was generated from the following files:

src/TurbulenceModels/phaseCompressible/RAS/mixtureKEpsilon/mixtureKEpsilon.H
src/TurbulenceModels/phaseCompressible/RAS/mixtureKEpsilon/mixtureKEpsilon.C

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ alphaField

◆ rhoField

◆ transportModel

Constructor & Destructor Documentation

◆ mixtureKEpsilon()

◆ ~mixtureKEpsilon()

Member Function Documentation

◆ epsilonBoundaryTypes()

◆ correctInletOutlet()

◆ initMixtureFields()

◆ correctNut()

◆ Ct2()

◆ rholEff()

◆ rhogEff()

◆ rhom()

◆ mix()

◆ mixU()

◆ mixFlux()

◆ bubbleG()

◆ kSource()

◆ epsilonSource()

◆ DkEff()

◆ DepsilonEff()

◆ TypeName()

◆ read()

◆ k()

◆ epsilon()

◆ correct()

Member Data Documentation

◆ Cmu_

◆ C1_

◆ C2_

◆ C3_

◆ Cp_

◆ sigmak_

◆ sigmaEps_

◆ k_

◆ epsilon_

◆ Ct2_

◆ rhom_

◆ km_

◆ epsilonm_
