Base class supporting Shape sensitivity derivatives. More...

#include <ShapeSensitivitiesBase.H>

Inheritance diagram for ShapeSensitivitiesBase:

[legend]

Collaboration diagram for ShapeSensitivitiesBase:

[legend]

Public Member Functions
	TypeName ("ShapeSensitivitiesBase")
	Runtime type information.
	ShapeSensitivitiesBase (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Construct from components.
virtual	~ShapeSensitivitiesBase ()=default
	Destructor.
virtual bool	readDict (const dictionary &dict)
	Read dict if changed.
const labelHashSet &	sensitivityPatchIDs () const
	Get patch IDs on which sensitivities are computed.
void	setSensitivityPatchIDs (const labelHashSet &sensPatchIDs)
	Overwrite sensitivityPatchIDs.
virtual const labelHashSet &	geometryVariationIntegrationPatches () const
	Return set of patches on which to compute direct sensitivities.
virtual void	accumulateIntegrand (const scalar dt)
	Accumulate sensitivity integrands.
void	clearSensitivities ()
	Zero sensitivity fields and their constituents.
virtual void	write (const word &baseName=word::null)
	Write sensitivity fields.
tmp< volVectorField >	getWallFaceSensVec ()
	Get wall face sensitivity vectors field.
tmp< volScalarField >	getWallFaceSensNormal ()
	Get wall face sensitivity projected to normal field.
tmp< volVectorField >	getWallFaceSensNormalVec ()
	Get wall face normal sens as vectors field.
tmp< pointVectorField >	getWallPointSensVec ()
	Get wall point sensitivity vectors field.
tmp< pointScalarField >	getWallPointSensNormal ()
	Get wall point sensitivity projected to normal field.
tmp< pointVectorField >	getWallPointSensNormalVec ()
	Get wall point sens as vectors field.
virtual const boundaryVectorField &	getWallFaceSensVecBoundary () const
	Get wall face sensitivity vectors field.
virtual const boundaryScalarField &	getWallFaceSensNormalBoundary () const
	Get wall face sensitivity projected to normal field.
virtual const boundaryVectorField &	getWallFaceSensNormalVecBoundary () const
	Get wall face normal sens as vectors field.
Public Member Functions inherited from adjointSensitivity
	TypeName ("adjointSensitivity")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, adjointSensitivity, dictionary,(const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver),(mesh, dict, adjointSolver))
	adjointSensitivity (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Construct from components.
virtual	~adjointSensitivity ()=default
	Destructor.
const adjointSolver &	getAdjointSolver () const
	Const access to adjoint solver.
adjointSolver &	getAdjointSolver ()
	Non-const access to adjoint solver.
bool	includeDistance () const
	Should the adjoint eikonal PDE should be solved.
autoPtr< adjointEikonalSolver > &	getAdjointEikonalSolver ()
	Return the adjoint eikonal solver.
autoPtr< adjointMeshMovementSolver > &	getAdjointMeshMovementSolver ()
	Return the adjoint eikonal solver.
void	setSuffix (const word &suffix)
	Set suffix.
const word &	getSuffix () const
	Get suffix.
virtual bool	computeDxDbInternalField () const
	Should the parameterization compute the internalField of dxdb.
virtual void	assembleSensitivities (autoPtr< designVariables > &designVars)
	Assemble sensitivities.
virtual const scalarField &	calculateSensitivities (autoPtr< designVariables > &designVars)
	Calculates and returns sensitivity fields.
const scalarField &	getSensitivities () const
	Returns the sensitivity fields.
const autoPtr< volTensorField > &	gradDxDbMult () const
autoPtr< volTensorField > &	gradDxDbMult ()
const autoPtr< scalarField > &	divDxDbMult () const
const autoPtr< boundaryVectorField > &	dxdbMult () const
const autoPtr< boundaryVectorField > &	dSfdbMult () const
const autoPtr< boundaryVectorField > &	dnfdbMult () const
const autoPtr< boundaryVectorField > &	dxdbDirectMult () const
const autoPtr< pointBoundaryVectorField > &	pointDxDbDirectMult () const
const autoPtr< boundaryVectorField > &	bcDxDbMult () const
const autoPtr< vectorField > &	optionsDxDbMult () const
Public Member Functions inherited from sensitivity
	TypeName ("sensitivity")
	Runtime type information.
	sensitivity (const fvMesh &mesh, const dictionary &dict)
	Construct from components.
virtual	~sensitivity ()=default
	Destructor.
const fvMesh &	mesh () const
	Return reference to mesh.
const dictionary &	dict () const
	Return the construction dictionary.
const autoPtr< volScalarField > &	fieldSensPtr () const
	Get the fieldSensPtr.

Protected Member Functions
void	allocateEikonalSolver ()
	Allocate the adjoint eikonal solver.
bool	hasMultiplier (bool(objective::*hasFunction)() const)
	Check if any of the available objective has a certain multiplier, provided through a function object.
template<class Type>
void	constructAndWriteSensitivityField (const autoPtr< typename GeometricField< Type, fvPatchField, volMesh >::Boundary > &sensFieldPtr, const word &name) const
	Constructs volField based on boundaryField and writes it.
template<class Type>
void	constructAndWriteSensitivtyPointField (const autoPtr< List< Field< Type > > > &sensFieldPtr, const word &name) const
	Constructs pointField based on boundaryField and writes it.
template<class Type>
tmp< GeometricField< Type, fvPatchField, volMesh > >	constructVolSensitivtyField (const autoPtr< typename GeometricField< Type, fvPatchField, volMesh >::Boundary > &sensFieldPtr, const word &name) const
	Constructs volField based on boundaryField and writes it.
void	writeFaceBasedSens () const
	Write face-based sensitivities, if present.
void	writePointBasedSens () const
	Write point-based sensitivities, if present.
void	clearSurfaceFields ()
	Clear surface/point fields.
void	allocateMultipliers ()
	Allocate multiplier fields.
void	clearMultipliers ()
	Clear multipliers.

Protected Attributes
labelHashSet	sensitivityPatchIDs_
	Patches on which to compute shape sensitivities.
bool	writeAllSurfaceFiles_
	Whether to write all surface sensitivity fields.
autoPtr< boundaryVectorField >	wallFaceSensVecPtr_
	Wall face sens w.r.t. (x,y.z).
autoPtr< boundaryScalarField >	wallFaceSensNormalPtr_
	Wall face sens projected to normal.
autoPtr< boundaryVectorField >	wallFaceSensNormalVecPtr_
	Normal sens as vectors.
autoPtr< pointBoundaryVectorField >	wallPointSensVecPtr_
	Wall point sens w.r.t. (x,y.z).
autoPtr< pointBoundaryScalarField >	wallPointSensNormalPtr_
	Wall point sens projected to normal.
autoPtr< pointBoundaryVectorField >	wallPointSensNormalVecPtr_
	Normal sens as vectors.
Protected Attributes inherited from adjointSensitivity
adjointSolver &	adjointSolver_
	Reference to the underlaying adjoint solver.
scalarField	derivatives_
	The sensitivity derivative values.
word	suffix_
	Append this word to files related to the sensitivities.
bool	includeDistance_
	Include distance variation in sensitivity computations.
autoPtr< adjointEikonalSolver >	eikonalSolver_
	Adjoint eikonal equation solver.
autoPtr< adjointMeshMovementSolver >	adjointMeshMovementSolver_
	Adjoint grid displacement solver.
autoPtr< volTensorField >	gradDxDbMult_
	Multiplier of grad(dx/b).
autoPtr< scalarField >	divDxDbMult_
	Multiplier of div(dx/db).
autoPtr< boundaryVectorField >	dxdbMult_
	Multiplier of face dx/db.
autoPtr< boundaryVectorField >	dSfdbMult_
	Multiplier of dSf/db.
autoPtr< boundaryVectorField >	dnfdbMult_
	Multiplier of dnf/db.
autoPtr< boundaryVectorField >	dxdbDirectMult_
	Multiplier of dCf/db, found in the objective function.
autoPtr< pointBoundaryVectorField >	pointDxDbDirectMult_
	Multiplier of dx/db computed at points, found in the objective function.
autoPtr< boundaryVectorField >	bcDxDbMult_
	Multiplier of dx/db, coming from boundary conditions that depend on the geometry, like rotatingWallVelocity.
autoPtr< vectorField >	optionsDxDbMult_
	dx/db multiplier coming from fvOptions
Protected Attributes inherited from sensitivity
const fvMesh &	mesh_
dictionary	dict_
bool	writeFieldSens_
autoPtr< volScalarField >	fieldSensPtr_

Additional Inherited Members
Static Public Member Functions inherited from adjointSensitivity
static autoPtr< adjointSensitivity >	New (const fvMesh &mesh, const dictionary &dict, adjointSolver &adjointSolver)
	Return a reference to the selected turbulence model.

Detailed Description

Base class supporting Shape sensitivity derivatives.

Reference:

    For the FI formulation see
        Kavvadias, I., Papoutsis-Kiachagias, E., & Giannakoglou, K. (2015).
        On the proper treatment of grid sensitivities in continuous adjoint
        methods for shape optimization.
        Journal of Computational Physics, 301, 1–18.
        http://doi.org/10.1016/j.jcp.2015.08.012

    The ESI formulation is derived in a slightly different way than the
    one described in this paper, to provide a common mathematical
    formulation for both low- and high-Re meshes and to produce numerically
    identical results as the FI formulation. In brief, the boundary-bound
    part of the sensitivities is the patchInternalField of the tensor
    multiplying grad(dxdb) in the FI formulation.

Source files

Definition at line 75 of file ShapeSensitivitiesBase.H.

Constructor & Destructor Documentation

◆ ShapeSensitivitiesBase()

ShapeSensitivitiesBase	(	const fvMesh &	mesh,
		const dictionary &	dict,
		adjointSolver &	adjointSolver )

Construct from components.

Definition at line 272 of file ShapeSensitivitiesBase.C.

References allocateEikonalSolver(), allocateMultipliers(), sensitivity::dict(), sensitivity::mesh(), Foam::name(), sensitivityPatchIDs_, wallFaceSensNormalPtr_, wallFaceSensNormalVecPtr_, wallFaceSensVecPtr_, wallPointSensNormalPtr_, wallPointSensNormalVecPtr_, wallPointSensVecPtr_, and writeAllSurfaceFiles_.

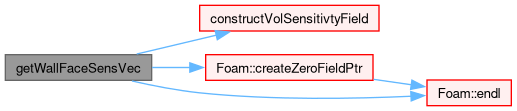

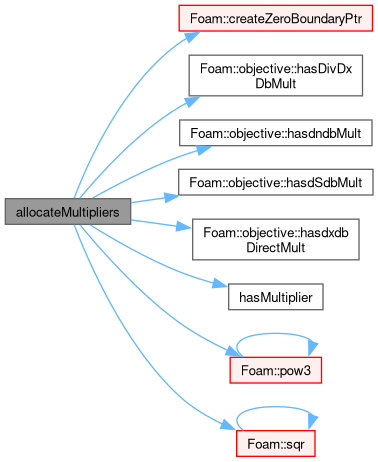

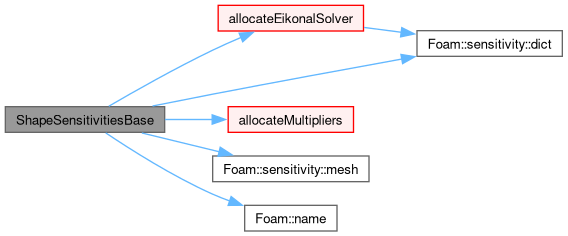

Here is the call graph for this function:

◆ ~ShapeSensitivitiesBase()

virtual ~ShapeSensitivitiesBase ( )

virtualdefault

Destructor.

References sensitivity::dict().

Here is the call graph for this function:

Member Function Documentation

◆ allocateEikonalSolver()

void allocateEikonalSolver ( )

protected

Allocate the adjoint eikonal solver.

Definition at line 39 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::adjointSolver_, sensitivity::dict(), adjointSensitivity::eikonalSolver_, geometryVariationIntegrationPatches(), adjointSensitivity::includeDistance_, and sensitivity::mesh_.

Referenced by readDict(), and ShapeSensitivitiesBase().

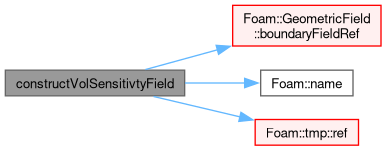

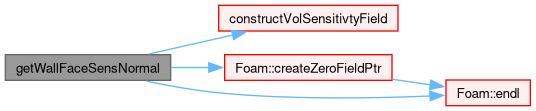

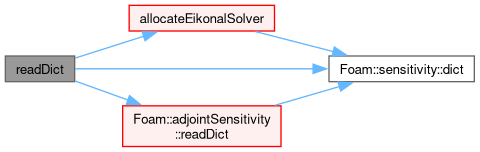

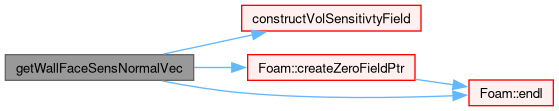

Here is the call graph for this function:

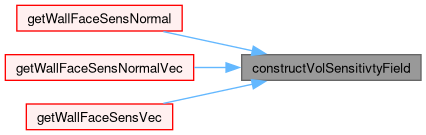

Here is the caller graph for this function:

◆ hasMultiplier()

bool hasMultiplier ( bool(objective::* hasFunction )() const )

protected

Check if any of the available objective has a certain multiplier, provided through a function object.

Definition at line 58 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::adjointSolver_.

Referenced by allocateMultipliers(), and sensitivityShapeESI::sensitivityShapeESI().

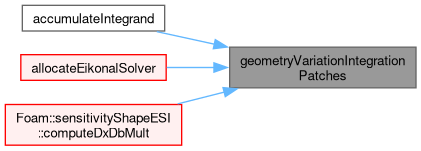

Here is the caller graph for this function:

◆ constructAndWriteSensitivityField()

template<class Type>

void constructAndWriteSensitivityField	(	const autoPtr< typename GeometricField< Type, fvPatchField, volMesh >::Boundary > &	sensFieldPtr,
		const word &	name ) const

protected

Constructs volField based on boundaryField and writes it.

Definition at line 33 of file ShapeSensitivitiesBaseTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), Foam::dimless, sensitivity::mesh_, Foam::name(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, sensitivityPatchIDs_, regIOobject::write(), and Foam::Zero.

Referenced by writeFaceBasedSens().

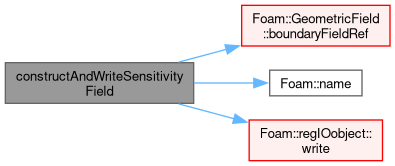

Here is the call graph for this function:

Here is the caller graph for this function:

◆ constructAndWriteSensitivtyPointField()

template<class Type>

void constructAndWriteSensitivtyPointField	(	const autoPtr< List< Field< Type > > > &	sensFieldPtr,
		const word &	name ) const

protected

Constructs pointField based on boundaryField and writes it.

Definition at line 66 of file ShapeSensitivitiesBaseTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), Foam::dimless, sensitivity::mesh_, Foam::name(), MeshObject< polyMesh, UpdateableMeshObject, pointMesh >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), sensitivityPatchIDs_, regIOobject::write(), and Foam::Zero.

Referenced by writePointBasedSens().

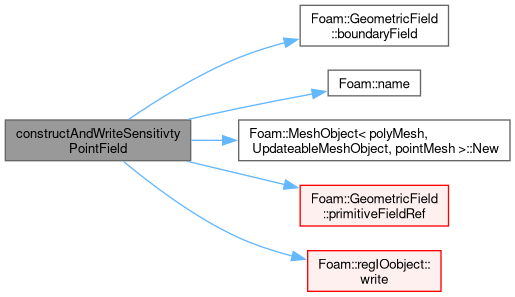

Here is the call graph for this function:

Here is the caller graph for this function:

◆ constructVolSensitivtyField()

template<class Type>

tmp< GeometricField< Type, fvPatchField, volMesh > > constructVolSensitivtyField	(	const autoPtr< typename GeometricField< Type, fvPatchField, volMesh >::Boundary > &	sensFieldPtr,
		const word &	name ) const

protected

Constructs volField based on boundaryField and writes it.

Definition at line 105 of file ShapeSensitivitiesBaseTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), forAll, sensitivity::mesh_, Foam::name(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, tmp< T >::ref(), and sensitivityPatchIDs_.

Referenced by getWallFaceSensNormal(), getWallFaceSensNormalVec(), and getWallFaceSensVec().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeFaceBasedSens()

void writeFaceBasedSens ( ) const

protected

Write face-based sensitivities, if present.

Definition at line 74 of file ShapeSensitivitiesBase.C.

References constructAndWriteSensitivityField(), adjointSensitivity::suffix_, wallFaceSensNormalPtr_, wallFaceSensNormalVecPtr_, wallFaceSensVecPtr_, and writeAllSurfaceFiles_.

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writePointBasedSens()

void writePointBasedSens ( ) const

protected

Write point-based sensitivities, if present.

Definition at line 111 of file ShapeSensitivitiesBase.C.

References constructAndWriteSensitivtyPointField(), adjointSensitivity::suffix_, wallPointSensNormalPtr_, wallPointSensNormalVecPtr_, wallPointSensVecPtr_, and writeAllSurfaceFiles_.

Referenced by write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearSurfaceFields()

void clearSurfaceFields ( )

protected

Clear surface/point fields.

Definition at line 151 of file ShapeSensitivitiesBase.C.

References wallFaceSensNormalPtr_, wallFaceSensNormalVecPtr_, wallFaceSensVecPtr_, wallPointSensNormalPtr_, wallPointSensNormalVecPtr_, wallPointSensVecPtr_, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

Referenced by clearSensitivities().

Here is the caller graph for this function:

◆ allocateMultipliers()

void allocateMultipliers ( )

protected

Allocate multiplier fields.

Definition at line 192 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::bcDxDbMult_, Foam::createZeroBoundaryPtr(), Foam::dimLength, Foam::dimTime, adjointSensitivity::divDxDbMult_, adjointSensitivity::dnfdbMult_, adjointSensitivity::dSfdbMult_, adjointSensitivity::dxdbDirectMult_, adjointSensitivity::gradDxDbMult_, objective::hasDivDxDbMult(), objective::hasdndbMult(), objective::hasdSdbMult(), objective::hasdxdbDirectMult(), hasMultiplier(), sensitivity::mesh_, IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, adjointSensitivity::optionsDxDbMult_, Foam::pow3(), Foam::sqr(), and Foam::Zero.

Referenced by ShapeSensitivitiesBase().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clearMultipliers()

void clearMultipliers ( )

protected

Clear multipliers.

Definition at line 231 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::bcDxDbMult_, adjointSensitivity::divDxDbMult_, adjointSensitivity::dnfdbMult_, adjointSensitivity::dSfdbMult_, adjointSensitivity::dxdbDirectMult_, adjointSensitivity::dxdbMult_, adjointSensitivity::eikonalSolver_, field(), adjointSensitivity::gradDxDbMult_, adjointSensitivity::optionsDxDbMult_, adjointSensitivity::pointDxDbDirectMult_, and Foam::Zero.

Referenced by clearSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "ShapeSensitivitiesBase" )

Runtime type information.

References sensitivity::dict(), and sensitivity::mesh().

Here is the call graph for this function:

◆ readDict()

bool readDict ( const dictionary & dict )

virtual

Read dict if changed.

Reimplemented from adjointSensitivity.

Reimplemented in sensitivityShapeESI, and sensitivitySurfacePoints.

Definition at line 307 of file ShapeSensitivitiesBase.C.

References allocateEikonalSolver(), sensitivity::dict(), sensitivity::dict_, adjointSensitivity::eikonalSolver_, adjointSensitivity::includeDistance_, sensitivity::mesh_, adjointSensitivity::readDict(), keyType::REGEX_RECURSIVE, sensitivityPatchIDs_, and writeAllSurfaceFiles_.

Referenced by sensitivityShapeESI::readDict().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sensitivityPatchIDs()

const labelHashSet & sensitivityPatchIDs ( ) const

inline

Get patch IDs on which sensitivities are computed.

Definition at line 262 of file ShapeSensitivitiesBase.H.

References sensitivityPatchIDs_.

◆ setSensitivityPatchIDs()

void setSensitivityPatchIDs ( const labelHashSet & sensPatchIDs )

inline

Overwrite sensitivityPatchIDs.

Definition at line 270 of file ShapeSensitivitiesBase.H.

References sensitivityPatchIDs_.

◆ geometryVariationIntegrationPatches()

const Foam::labelHashSet & geometryVariationIntegrationPatches ( ) const

virtual

Return set of patches on which to compute direct sensitivities.

Reimplemented in sensitivitySurfacePoints.

Definition at line 340 of file ShapeSensitivitiesBase.C.

References sensitivityPatchIDs_.

Referenced by accumulateIntegrand(), allocateEikonalSolver(), and sensitivityShapeESI::computeDxDbMult().

Here is the caller graph for this function:

◆ accumulateIntegrand()

void accumulateIntegrand ( const scalar dt )

virtual

Accumulate sensitivity integrands.

Common function for the FI and E-SI approaches

Implements adjointSensitivity.

Definition at line 346 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::adjointSolver_, adjointSensitivity::bcDxDbMult_, adjointSensitivity::divDxDbMult_, adjointSensitivity::dnfdbMult_, adjointSensitivity::dSfdbMult_, adjointSensitivity::dxdbDirectMult_, adjointSensitivity::eikonalSolver_, geometryVariationIntegrationPatches(), adjointSensitivity::gradDxDbMult_, adjointSensitivity::optionsDxDbMult_, and adjointSensitivity::pointDxDbDirectMult_.

Here is the call graph for this function:

◆ clearSensitivities()

void clearSensitivities ( )

virtual

Zero sensitivity fields and their constituents.

Reimplemented from adjointSensitivity.

Definition at line 380 of file ShapeSensitivitiesBase.C.

References clearMultipliers(), adjointSensitivity::clearSensitivities(), and clearSurfaceFields().

Here is the call graph for this function:

◆ write()

void write ( const word & baseName = word::null )

virtual

Write sensitivity fields.

If valid, copies boundaryFields to volFields and writes them.

Reimplemented from adjointSensitivity.

Reimplemented in sensitivitySurfacePoints.

Definition at line 388 of file ShapeSensitivitiesBase.C.

References adjointSensitivity::write(), writeFaceBasedSens(), and writePointBasedSens().

Referenced by sensitivitySurfacePoints::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWallFaceSensVec()

Foam::tmp< Foam::volVectorField > getWallFaceSensVec ( )

Get wall face sensitivity vectors field.

Definition at line 397 of file ShapeSensitivitiesBase.C.

References constructVolSensitivtyField(), Foam::createZeroFieldPtr(), Foam::dimless, Foam::endl(), sensitivity::mesh_, adjointSensitivity::suffix_, wallFaceSensVecPtr_, and WarningInFunction.

Referenced by getWallPointSensVec().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWallFaceSensNormal()

Foam::tmp< Foam::volScalarField > getWallFaceSensNormal ( )

Get wall face sensitivity projected to normal field.

Definition at line 428 of file ShapeSensitivitiesBase.C.

References constructVolSensitivtyField(), Foam::createZeroFieldPtr(), Foam::dimless, Foam::endl(), sensitivity::mesh_, adjointSensitivity::suffix_, wallFaceSensNormalPtr_, and WarningInFunction.

Referenced by getWallPointSensNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWallFaceSensNormalVec()

Foam::tmp< Foam::volVectorField > getWallFaceSensNormalVec ( )

Get wall face normal sens as vectors field.

Definition at line 458 of file ShapeSensitivitiesBase.C.

References constructVolSensitivtyField(), Foam::createZeroFieldPtr(), Foam::dimless, Foam::endl(), sensitivity::mesh_, adjointSensitivity::suffix_, wallFaceSensNormalVecPtr_, and WarningInFunction.

Referenced by getWallPointSensNormalVec().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getWallPointSensVec()

Foam::tmp< Foam::pointVectorField > getWallPointSensVec ( )

Get wall point sensitivity vectors field.

Uses volPointInterpolation

Definition at line 490 of file ShapeSensitivitiesBase.C.

References getWallFaceSensVec(), volPointInterpolation::interpolate(), and sensitivity::mesh_.

Here is the call graph for this function:

◆ getWallPointSensNormal()

Foam::tmp< Foam::pointScalarField > getWallPointSensNormal ( )

Get wall point sensitivity projected to normal field.

Uses volPointInterpolation

Definition at line 500 of file ShapeSensitivitiesBase.C.

References getWallFaceSensNormal(), volPointInterpolation::interpolate(), and sensitivity::mesh_.

Here is the call graph for this function:

◆ getWallPointSensNormalVec()

Foam::tmp< Foam::pointVectorField > getWallPointSensNormalVec ( )

Get wall point sens as vectors field.

Uses volPointInterpolation

Definition at line 510 of file ShapeSensitivitiesBase.C.

References getWallFaceSensNormalVec(), volPointInterpolation::interpolate(), and sensitivity::mesh_.

Here is the call graph for this function:

◆ getWallFaceSensVecBoundary()

const Foam::boundaryVectorField & getWallFaceSensVecBoundary ( ) const

virtual

Get wall face sensitivity vectors field.

Definition at line 520 of file ShapeSensitivitiesBase.C.

References wallFaceSensVecPtr_.

◆ getWallFaceSensNormalBoundary()

const Foam::boundaryScalarField & getWallFaceSensNormalBoundary ( ) const

virtual

Get wall face sensitivity projected to normal field.

Definition at line 527 of file ShapeSensitivitiesBase.C.

References wallFaceSensNormalPtr_.

◆ getWallFaceSensNormalVecBoundary()

const Foam::boundaryVectorField & getWallFaceSensNormalVecBoundary ( ) const

virtual

Get wall face normal sens as vectors field.

Definition at line 534 of file ShapeSensitivitiesBase.C.

References wallFaceSensNormalVecPtr_.

Member Data Documentation

◆ sensitivityPatchIDs_

labelHashSet sensitivityPatchIDs_

protected

Patches on which to compute shape sensitivities.

Definition at line 87 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurface::assembleSensitivities(), sensitivitySurfacePoints::assembleSensitivities(), sensitivitySurface::computeFaceDerivativesSize(), sensitivitySurfacePoints::computePointDerivativesSize(), constructAndWriteSensitivityField(), constructAndWriteSensitivtyPointField(), constructVolSensitivtyField(), geometryVariationIntegrationPatches(), readDict(), sensitivityPatchIDs(), setSensitivityPatchIDs(), ShapeSensitivitiesBase(), sensitivitySurface::smoothSensitivities(), and sensitivitySurfacePoints::write().

◆ writeAllSurfaceFiles_

bool writeAllSurfaceFiles_

protected

Whether to write all surface sensitivity fields.

Definition at line 92 of file ShapeSensitivitiesBase.H.

Referenced by readDict(), ShapeSensitivitiesBase(), writeFaceBasedSens(), and writePointBasedSens().

◆ wallFaceSensVecPtr_

autoPtr<boundaryVectorField> wallFaceSensVecPtr_

protected

Wall face sens w.r.t. (x,y.z).

Definition at line 103 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurface::assembleSensitivities(), clearSurfaceFields(), getWallFaceSensVec(), getWallFaceSensVecBoundary(), sensitivitySurface::sensitivitySurface(), ShapeSensitivitiesBase(), sensitivitySurface::smoothSensitivities(), and writeFaceBasedSens().

◆ wallFaceSensNormalPtr_

autoPtr<boundaryScalarField> wallFaceSensNormalPtr_

protected

Wall face sens projected to normal.

Definition at line 108 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurface::assembleSensitivities(), clearSurfaceFields(), getWallFaceSensNormal(), getWallFaceSensNormalBoundary(), sensitivitySurface::sensitivitySurface(), ShapeSensitivitiesBase(), and writeFaceBasedSens().

◆ wallFaceSensNormalVecPtr_

autoPtr<boundaryVectorField> wallFaceSensNormalVecPtr_

protected

Normal sens as vectors.

Definition at line 113 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurface::assembleSensitivities(), clearSurfaceFields(), getWallFaceSensNormalVec(), getWallFaceSensNormalVecBoundary(), sensitivitySurface::sensitivitySurface(), ShapeSensitivitiesBase(), and writeFaceBasedSens().

◆ wallPointSensVecPtr_

autoPtr<pointBoundaryVectorField> wallPointSensVecPtr_

protected

Wall point sens w.r.t. (x,y.z).

Definition at line 121 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurface::assembleSensitivities(), sensitivitySurfacePoints::assembleSensitivities(), clearSurfaceFields(), sensitivitySurfacePoints::finalisePointSensitivities(), sensitivitySurfacePoints::sensitivitySurfacePoints(), ShapeSensitivitiesBase(), and writePointBasedSens().

◆ wallPointSensNormalPtr_

autoPtr<pointBoundaryScalarField> wallPointSensNormalPtr_

protected

Wall point sens projected to normal.

Definition at line 126 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurfacePoints::assembleSensitivities(), clearSurfaceFields(), sensitivitySurfacePoints::sensitivitySurfacePoints(), ShapeSensitivitiesBase(), and writePointBasedSens().

◆ wallPointSensNormalVecPtr_

autoPtr<pointBoundaryVectorField> wallPointSensNormalVecPtr_

protected

Normal sens as vectors.

Definition at line 131 of file ShapeSensitivitiesBase.H.

Referenced by sensitivitySurfacePoints::assembleSensitivities(), clearSurfaceFields(), sensitivitySurfacePoints::sensitivitySurfacePoints(), ShapeSensitivitiesBase(), and writePointBasedSens().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/shape/shapeSensitivityBase/ShapeSensitivitiesBase.H
src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/shape/shapeSensitivityBase/ShapeSensitivitiesBase.C
src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/adjointSensitivity/shape/shapeSensitivityBase/ShapeSensitivitiesBaseTemplates.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ShapeSensitivitiesBase()

◆ ~ShapeSensitivitiesBase()

Member Function Documentation

◆ allocateEikonalSolver()

◆ hasMultiplier()

◆ constructAndWriteSensitivityField()

◆ constructAndWriteSensitivtyPointField()

◆ constructVolSensitivtyField()

◆ writeFaceBasedSens()

◆ writePointBasedSens()

◆ clearSurfaceFields()

◆ allocateMultipliers()

◆ clearMultipliers()

◆ TypeName()

◆ readDict()

◆ sensitivityPatchIDs()

◆ setSensitivityPatchIDs()

◆ geometryVariationIntegrationPatches()

◆ accumulateIntegrand()

◆ clearSensitivities()

◆ write()

◆ getWallFaceSensVec()

◆ getWallFaceSensNormal()

◆ getWallFaceSensNormalVec()

◆ getWallPointSensVec()

◆ getWallPointSensNormal()

◆ getWallPointSensNormalVec()

◆ getWallFaceSensVecBoundary()

◆ getWallFaceSensNormalBoundary()

◆ getWallFaceSensNormalVecBoundary()

Member Data Documentation

◆ sensitivityPatchIDs_

◆ writeAllSurfaceFiles_

◆ wallFaceSensVecPtr_

◆ wallFaceSensNormalPtr_

◆ wallFaceSensNormalVecPtr_

◆ wallPointSensVecPtr_

◆ wallPointSensNormalPtr_

◆ wallPointSensNormalVecPtr_
