Single kinetic rate devolatisation model. More...

#include <SingleKineticRateDevolatilisation.H>

Inheritance diagram for SingleKineticRateDevolatilisation< CloudType >:

Collaboration diagram for SingleKineticRateDevolatilisation< CloudType >:

Public Member Functions
	TypeName ("singleKineticRateDevolatilisation")
	Declare type-name, virtual type (with debug switch).
	SingleKineticRateDevolatilisation (const dictionary &dict, CloudType &owner)
	Construct from dictionary.
virtual autoPtr< DevolatilisationModel< CloudType > >	clone () const
	Construct and return a clone.
virtual	~SingleKineticRateDevolatilisation ()=default
	Destructor.
virtual void	calculate (const scalar dt, const scalar age, const scalar mass0, const scalar mass, const scalar T, const scalarField &YGasEff, const scalarField &YLiquidEff, const scalarField &YSolidEff, label &canCombust, scalarField &dMassDV) const
	Update model.
Public Member Functions inherited from DevolatilisationModel< CloudType >
	TypeName ("devolatilisationModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, DevolatilisationModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table.
	DevolatilisationModel (CloudType &owner)
	Construct null from owner.
	DevolatilisationModel (const dictionary &dict, CloudType &owner, const word &type)
	Construct from dictionary.
	DevolatilisationModel (const DevolatilisationModel< CloudType > &dm)
	Construct copy.
virtual	~DevolatilisationModel ()
	Destructor.
void	addToDevolatilisationMass (const scalar dMass)
	Add to devolatilisation mass.
virtual void	info ()
	Write injection info.
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Additional Inherited Members
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Static Public Member Functions inherited from DevolatilisationModel< CloudType >
static autoPtr< DevolatilisationModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.
Protected Attributes inherited from DevolatilisationModel< CloudType >
scalar	dMass_
	Mass of lagrangian phase converted.
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Detailed Description

template<class CloudType>
class Foam::SingleKineticRateDevolatilisation< CloudType >

Single kinetic rate devolatisation model.

acts on a per-specie basis
Rate given by Arrhenius eqn

kappa = A1.exp(- E/R.T)

Where: kappa = rate constant A1 = activation energy (user input) E = pre-exponential factor (user input) R = universal gas constant T = temperature

Usage:

SingleKineticRateDevolatilisationCoeffs { volatileData ( (CH4 12 0.5) // (name A1 E) (CO2 12 0.5) // (name A1 E) );

volatileResidualCoeff 1e-6; }

Definition at line 70 of file SingleKineticRateDevolatilisation.H.

Constructor & Destructor Documentation

◆ SingleKineticRateDevolatilisation()

template<class CloudType>

SingleKineticRateDevolatilisation	(	const dictionary &	dict,
		CloudType &	owner )

Construct from dictionary.

Definition at line 26 of file SingleKineticRateDevolatilisation.C.

References subModelBase::coeffDict(), DevolatilisationModel< CloudType >::DevolatilisationModel(), subModelBase::dict(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and CloudSubModelBase< CloudType >::owner().

Referenced by clone().

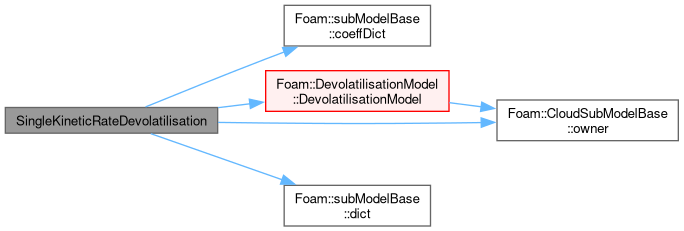

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~SingleKineticRateDevolatilisation()

template<class CloudType>

virtual ~SingleKineticRateDevolatilisation ( )

virtualdefault

Destructor.

References Foam::T().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class CloudType>

TypeName ( "singleKineticRateDevolatilisation" )

Declare type-name, virtual type (with debug switch).

References subModelBase::dict(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< DevolatilisationModel< CloudType > > clone ( ) const

inlinevirtual

Construct and return a clone.

Implements DevolatilisationModel< CloudType >.

Definition at line 230 of file SingleKineticRateDevolatilisation.H.

References SingleKineticRateDevolatilisation().

Here is the call graph for this function:

◆ calculate()

template<class CloudType>

void calculate	(	const scalar	dt,
		const scalar	age,
		const scalar	mass0,
		const scalar	mass,
		const scalar	T,
		const scalarField &	YGasEff,
		const scalarField &	YLiquidEff,
		const scalarField &	YSolidEff,
		label &	canCombust,
		scalarField &	dMassDV ) const

virtual

Update model.

Implements DevolatilisationModel< CloudType >.

Definition at line 70 of file SingleKineticRateDevolatilisation.C.

References Foam::exp(), forAll, Foam::min(), and Foam::T().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/ReactingMultiphase/DevolatilisationModel/SingleKineticRateDevolatilisation/SingleKineticRateDevolatilisation.H
src/lagrangian/intermediate/submodels/ReactingMultiphase/DevolatilisationModel/SingleKineticRateDevolatilisation/SingleKineticRateDevolatilisation.C
