Templated 3D spatial tensor derived from MatrixSpace used to represent transformations of spatial vectors and the angular and linear inertia of rigid bodies. More...

#include <SpatialTensor.H>

Inheritance diagram for SpatialTensor< Cmpt >:

[legend]

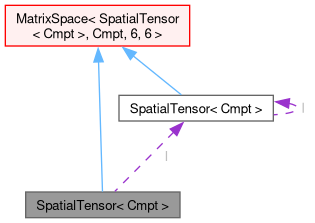

Collaboration diagram for SpatialTensor< Cmpt >:

[legend]

Public Member Functions
	SpatialTensor ()=default
	Default Construct.
	SpatialTensor (const Foam::zero)
	Construct initialized to zero.
	SpatialTensor (const typename SpatialTensor::msType &)
	Construct given MatrixSpace of the same rank.
	SpatialTensor (const Tensor< Cmpt > &t00, const Tensor< Cmpt > &t01, const Tensor< Cmpt > &t10, const Tensor< Cmpt > &t11)
	Construct given 4 tensor blocks.
	SpatialTensor (const Cmpt &t00, const Cmpt &t01, const Cmpt &t02, const Cmpt &t03, const Cmpt &t04, const Cmpt &t05, const Cmpt &t10, const Cmpt &t11, const Cmpt &t12, const Cmpt &t13, const Cmpt &t14, const Cmpt &t15, const Cmpt &t20, const Cmpt &t21, const Cmpt &t22, const Cmpt &t23, const Cmpt &t24, const Cmpt &t25, const Cmpt &t30, const Cmpt &t31, const Cmpt &t32, const Cmpt &t33, const Cmpt &t34, const Cmpt &t35, const Cmpt &t40, const Cmpt &t41, const Cmpt &t42, const Cmpt &t43, const Cmpt &t44, const Cmpt &t45, const Cmpt &t50, const Cmpt &t51, const Cmpt &t52, const Cmpt &t53, const Cmpt &t54, const Cmpt &t55)
	Construct given 36 components.
	SpatialTensor (Istream &)
	Construct from Istream.
Public Member Functions inherited from MatrixSpace< SpatialTensor< Cmpt >, Cmpt, 6, 6 >
Foam::MatrixSpace< SpatialTensor< Cmpt >, Cmpt, Mrows, Ncols >::template ConstBlock< SubTensor, BRowStart, BColStart >	block () const
Foam::MatrixSpace< SpatialTensor< Cmpt >, Cmpt, Mrows, Ncols >::template Block< SubTensor, BRowStart, BColStart >	block ()
	MatrixSpace ()=default
	Default construct.
const Cmpt &	elmt () const noexcept
	Fast const element access using compile-time addressing.
const Cmpt &	xx () const noexcept
const Cmpt &	xy () const noexcept
const Cmpt &	xz () const noexcept
const Cmpt &	yx () const noexcept
const Cmpt &	yy () const noexcept
const Cmpt &	yz () const noexcept
const Cmpt &	zx () const noexcept
const Cmpt &	zy () const noexcept
const Cmpt &	zz () const noexcept
typeOfTranspose< Cmpt, SpatialTensor< Cmpt > >::type	T () const
	Return the transpose of the matrix.
const Cmpt &	operator() (const direction i, const direction j) const
	(i, j) const element access operator
void	operator= (Foam::zero)
	Assignment to zero.
void	operator&= (const MatrixSpace< SpatialTensor< Cmpt >, Cmpt, Ncols, Ncols > &matrix)
	Inner product with a compatible square matrix.
Public Member Functions inherited from VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >
const Foam::VectorSpace< SpatialTensor< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< SpatialTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< SpatialTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< SpatialTensor< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Attributes
static constexpr direction	rank = 2
	Rank of Tensor is 2.
static const SpatialTensor	I
	Identity matrix for square matrices.
Static Public Attributes inherited from MatrixSpace< SpatialTensor< Cmpt >, Cmpt, 6, 6 >
static constexpr direction	mRows
static constexpr direction	nCols
Static Public Attributes inherited from VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const SpatialTensor< Cmpt >	zero
static const SpatialTensor< Cmpt >	one
static const SpatialTensor< Cmpt >	max
static const SpatialTensor< Cmpt >	min
static const SpatialTensor< Cmpt >	rootMax
static const SpatialTensor< Cmpt >	rootMin

Additional Inherited Members
Public Types inherited from MatrixSpace< SpatialTensor< Cmpt >, Cmpt, 6, 6 >
typedef MatrixSpace< SpatialTensor< Cmpt >, Cmpt, Mrows, Ncols >	msType
	MatrixSpace type.
Public Types inherited from VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >
typedef VectorSpace< SpatialTensor< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.
Static Public Member Functions inherited from MatrixSpace< SpatialTensor< Cmpt >, Cmpt, 6, 6 >
static direction	m () noexcept
	The number of rows.
static direction	n () noexcept
	The number of columns.
static msType	identity ()
	An identity matrix for square matrix-spaces.
Static Public Member Functions inherited from VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static SpatialTensor< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.
Public Attributes inherited from VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::SpatialTensor< Cmpt >

Templated 3D spatial tensor derived from MatrixSpace used to represent transformations of spatial vectors and the angular and linear inertia of rigid bodies.

Reference:

    Featherstone, R. (2008).
    Rigid body dynamics algorithms.
    Springer.

Source files

See also: Foam::MatrixSpace Foam::Tensor Foam::SpatialVector

Definition at line 63 of file SpatialTensor.H.

Constructor & Destructor Documentation

◆ SpatialTensor() [1/6]

template<class Cmpt>

SpatialTensor ( )

default

Default Construct.

Referenced by SpatialTensor(), SpatialTensor(), and SpatialTensor().

Here is the caller graph for this function:

◆ SpatialTensor() [2/6]

template<class Cmpt>

SpatialTensor ( const Foam::zero )

inline

Construct initialized to zero.

Definition at line 26 of file SpatialTensorI.H.

References SpatialTensor(), and Foam::Zero.

Here is the call graph for this function:

◆ SpatialTensor() [3/6]

template<class Cmpt>

SpatialTensor ( const typename SpatialTensor< Cmpt >::msType & ms )

inline

Construct given MatrixSpace of the same rank.

Definition at line 33 of file SpatialTensorI.H.

References SpatialTensor().

Here is the call graph for this function:

◆ SpatialTensor() [4/6]

template<class Cmpt>

SpatialTensor	(	const Tensor< Cmpt > &	t00,
		const Tensor< Cmpt > &	t01,
		const Tensor< Cmpt > &	t10,
		const Tensor< Cmpt > &	t11 )

inline

Construct given 4 tensor blocks.

Definition at line 43 of file SpatialTensorI.H.

References VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >::v_, Tensor< Cmpt >::xx(), Tensor< Cmpt >::xy(), Tensor< Cmpt >::xz(), Tensor< Cmpt >::yx(), Tensor< Cmpt >::yy(), Tensor< Cmpt >::yz(), Tensor< Cmpt >::zx(), Tensor< Cmpt >::zy(), and Tensor< Cmpt >::zz().

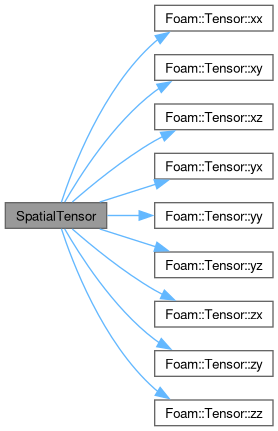

Here is the call graph for this function:

◆ SpatialTensor() [5/6]

template<class Cmpt>

SpatialTensor	(	const Cmpt &	t00,
		const Cmpt &	t01,
		const Cmpt &	t02,
		const Cmpt &	t03,
		const Cmpt &	t04,
		const Cmpt &	t05,
		const Cmpt &	t10,
		const Cmpt &	t11,
		const Cmpt &	t12,
		const Cmpt &	t13,
		const Cmpt &	t14,
		const Cmpt &	t15,
		const Cmpt &	t20,
		const Cmpt &	t21,
		const Cmpt &	t22,
		const Cmpt &	t23,
		const Cmpt &	t24,
		const Cmpt &	t25,
		const Cmpt &	t30,
		const Cmpt &	t31,
		const Cmpt &	t32,
		const Cmpt &	t33,
		const Cmpt &	t34,
		const Cmpt &	t35,
		const Cmpt &	t40,
		const Cmpt &	t41,
		const Cmpt &	t42,
		const Cmpt &	t43,
		const Cmpt &	t44,
		const Cmpt &	t45,
		const Cmpt &	t50,
		const Cmpt &	t51,
		const Cmpt &	t52,
		const Cmpt &	t53,
		const Cmpt &	t54,
		const Cmpt &	t55 )

inline

Construct given 36 components.

Definition at line 72 of file SpatialTensorI.H.

References VectorSpace< SpatialTensor< Cmpt >, Cmpt, Mrows *Ncols >::v_.

◆ SpatialTensor() [6/6]

template<class Cmpt>

SpatialTensor ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 120 of file SpatialTensorI.H.

References SpatialTensor().

Here is the call graph for this function:

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 2

staticconstexpr

Rank of Tensor is 2.

Definition at line 75 of file SpatialTensor.H.

◆ I

template<class Cmpt>

const SpatialTensor I

static

Identity matrix for square matrices.

Definition at line 83 of file SpatialTensor.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/spatialVectorAlgebra/SpatialTensor/SpatialTensor.H
src/OpenFOAM/primitives/spatialVectorAlgebra/SpatialTensor/SpatialTensorI.H
