#include <SpecieMixture.H>

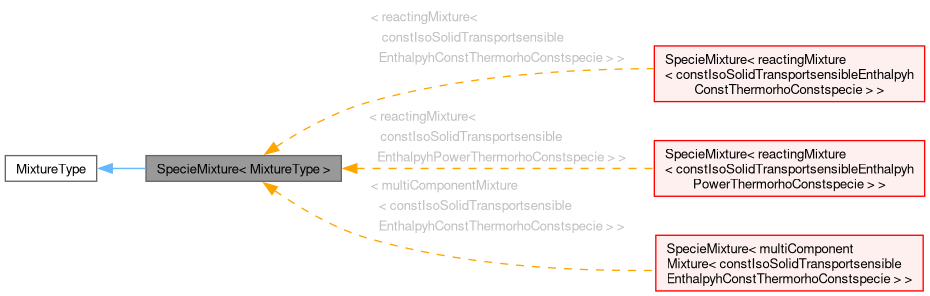

Inheritance diagram for SpecieMixture< MixtureType >:

[legend]

Collaboration diagram for SpecieMixture< MixtureType >:

Public Member Functions
	SpecieMixture (const dictionary &thermoDict, const fvMesh &mesh, const word &phaseName)
	Construct from dictionary, mesh and phase name.
virtual	~SpecieMixture ()=default
	Destructor.
virtual scalar	W (const label speciei) const
	Molecular weight of the given specie [kg/kmol].
virtual scalar	Hc (const label speciei) const
	Chemical enthalpy [J/kg].
virtual scalar	Cp (const label speciei, const scalar p, const scalar T) const
	Heat capacity at constant pressure [J/(kg K)].
virtual scalar	Cv (const label speciei, const scalar p, const scalar T) const
	Heat capacity at constant volume [J/(kg K)].
virtual scalar	HE (const label speciei, const scalar p, const scalar T) const
	Enthalpy/Internal energy [J/kg].
virtual scalar	Ha (const label speciei, const scalar p, const scalar T) const
	Absolute enthalpy [J/kg].
virtual scalar	Hs (const label speciei, const scalar p, const scalar T) const
	Sensible enthalpy [J/kg].
virtual scalar	S (const label speciei, const scalar p, const scalar T) const
	Entropy [J/(kg K)].
virtual scalar	Es (const label speciei, const scalar p, const scalar T) const
	Sensible internal energy [J/kg].
virtual scalar	G (const label speciei, const scalar p, const scalar T) const
	Gibbs free energy [J/kg].
virtual scalar	A (const label speciei, const scalar p, const scalar T) const
	Helmholtz free energy [J/kg].
virtual scalar	mu (const label speciei, const scalar p, const scalar T) const
	Dynamic viscosity [kg/m/s].
virtual scalar	kappa (const label speciei, const scalar p, const scalar T) const
	Thermal conductivity [W/m/K].
virtual scalar	alphah (const label speciei, const scalar p, const scalar T) const
	Thermal diffusivity of enthalpy [kg/m/s].
virtual scalar	rho (const label speciei, const scalar p, const scalar T) const
	Density [kg/m3].
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const label patchi) const =0
	Heat capacity at constant pressure for patch [J/kg/K].
virtual tmp< volScalarField >	Cp () const =0
	Heat capacity at constant pressure for patch [J/kg/K].
virtual tmp< scalarField >	Cv (const scalarField &p, const scalarField &T, const label patchi) const =0
	Heat capacity at constant volume for patch [J/kg/K].
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const labelList &cells) const =0
	Heat capacity at constant pressure at p and T [J/kg/K].
virtual tmp< volScalarField >	Cv () const =0
	Heat capacity at constant volume [J/kg/K].
virtual tmp< volScalarField >	W () const =0
	Molecular weight of the given specie [kg/kmol].
virtual tmp< scalarField >	kappa (const label patchi) const =0
	Thermal diffusivity for temperature.
virtual tmp< volScalarField >	kappa () const =0
	Thermal diffusivity for temperature of mixture [J/m/s/K].

Detailed Description

template<class MixtureType>
class Foam::SpecieMixture< MixtureType >

Foam::SpecieMixture.

Source files

Definition at line 56 of file SpecieMixture.H.

Constructor & Destructor Documentation

◆ SpecieMixture()

template<class MixtureType>

SpecieMixture	(	const dictionary &	thermoDict,
		const fvMesh &	mesh,
		const word &	phaseName )

Construct from dictionary, mesh and phase name.

Definition at line 28 of file SpecieMixture.C.

References mesh, and thermoDict.

◆ ~SpecieMixture()

template<class MixtureType>

virtual ~SpecieMixture ( )

virtualdefault

Destructor.

Member Function Documentation

◆ W() [1/2]

template<class MixtureType>

Foam::scalar W ( const label speciei ) const

virtual

Molecular weight of the given specie [kg/kmol].

Definition at line 47 of file SpecieMixture.C.

◆ Hc()

template<class MixtureType>

Foam::scalar Hc ( const label speciei ) const

virtual

Chemical enthalpy [J/kg].

Definition at line 57 of file SpecieMixture.C.

◆ Cp() [1/4]

template<class MixtureType>

Foam::scalar Cp	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Heat capacity at constant pressure [J/(kg K)].

Definition at line 64 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cv() [1/3]

template<class MixtureType>

Foam::scalar Cv	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Heat capacity at constant volume [J/(kg K)].

Definition at line 76 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ HE()

template<class MixtureType>

Foam::scalar HE	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Enthalpy/Internal energy [J/kg].

Definition at line 88 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ Ha()

template<class MixtureType>

Foam::scalar Ha	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Absolute enthalpy [J/kg].

Definition at line 100 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ Hs()

template<class MixtureType>

Foam::scalar Hs	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Sensible enthalpy [J/kg].

Definition at line 112 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ S()

template<class MixtureType>

Foam::scalar S	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Entropy [J/(kg K)].

Definition at line 124 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ Es()

template<class MixtureType>

Foam::scalar Es	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Sensible internal energy [J/kg].

Definition at line 136 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ G()

template<class MixtureType>

Foam::scalar G	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Gibbs free energy [J/kg].

Definition at line 148 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ A()

template<class MixtureType>

Foam::scalar A	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Helmholtz free energy [J/kg].

Definition at line 160 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ mu()

template<class MixtureType>

Foam::scalar mu	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Dynamic viscosity [kg/m/s].

Definition at line 172 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ kappa() [1/3]

template<class MixtureType>

Foam::scalar kappa	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Thermal conductivity [W/m/K].

Definition at line 184 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ alphah()

template<class MixtureType>

Foam::scalar alphah	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Thermal diffusivity of enthalpy [kg/m/s].

Definition at line 196 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ rho()

template<class MixtureType>

Foam::scalar rho	(	const label	speciei,
		const scalar	p,
		const scalar	T ) const

virtual

Density [kg/m3].

Definition at line 208 of file SpecieMixture.C.

References p, and Foam::T().

Here is the call graph for this function:

◆ Cp() [2/4]

template<class MixtureType>

virtual tmp< scalarField > Cp	(	const scalarField &	p,
		const scalarField &	T,
		const label	patchi ) const

pure virtual

Heat capacity at constant pressure for patch [J/kg/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ Cp() [3/4]

template<class MixtureType>

virtual tmp< volScalarField > Cp ( ) const

pure virtual

Heat capacity at constant pressure for patch [J/kg/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ Cv() [2/3]

template<class MixtureType>

virtual tmp< scalarField > Cv	(	const scalarField &	p,
		const scalarField &	T,
		const label	patchi ) const

pure virtual

Heat capacity at constant volume for patch [J/kg/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ Cp() [4/4]

template<class MixtureType>

virtual tmp< scalarField > Cp	(	const scalarField &	p,
		const scalarField &	T,
		const labelList &	cells ) const

pure virtual

Heat capacity at constant pressure at p and T [J/kg/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ Cv() [3/3]

template<class MixtureType>

virtual tmp< volScalarField > Cv ( ) const

pure virtual

Heat capacity at constant volume [J/kg/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ W() [2/2]

template<class MixtureType>

virtual tmp< volScalarField > W ( ) const

pure virtual

Molecular weight of the given specie [kg/kmol].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ kappa() [2/3]

template<class MixtureType>

virtual tmp< scalarField > kappa ( const label patchi ) const

pure virtual

Thermal diffusivity for temperature.

of mixture for patch [J/m/s/K]

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

◆ kappa() [3/3]

template<class MixtureType>

virtual tmp< volScalarField > kappa ( ) const

pure virtual

Thermal diffusivity for temperature of mixture [J/m/s/K].

Implemented in heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >, heThermo< solidReactionThermo, SpecieMixturereactingMixtureconstIsoSolidTransportsensibleEnthalpyhPowerThermorhoConstspecie >, and heThermo< solidThermo, SpecieMixturemultiComponentMixtureconstIsoSolidTransportsensibleEnthalpyhConstThermorhoConstspecie >.

The documentation for this class was generated from the following files:

src/thermophysicalModels/reactionThermo/mixtures/SpecieMixture/SpecieMixture.H
src/thermophysicalModels/reactionThermo/mixtures/SpecieMixture/SpecieMixture.C
