Simplified diagonal-based incomplete LU preconditioner for asymmetric matrices. More...

#include <TDILUPreconditioner.H>

Inheritance diagram for TDILUPreconditioner< Type, DType, LUType >:

Collaboration diagram for TDILUPreconditioner< Type, DType, LUType >:

Public Member Functions
	TypeName ("DILU")
	Runtime type information.
	TDILUPreconditioner (const typename LduMatrix< Type, DType, LUType >::solver &sol, const dictionary &preconditionerDict)
	Construct from matrix components and preconditioner data dictionary.
virtual	~TDILUPreconditioner ()=default
virtual void	precondition (Field< Type > &wA, const Field< Type > &rA) const
	Return wA the preconditioned form of residual rA.
virtual void	preconditionT (Field< Type > &wT, const Field< Type > &rT) const
	Return wT the transpose-matrix preconditioned form of.
Public Member Functions inherited from LduMatrix< Type, DType, LUType >::preconditioner
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, preconditioner, symMatrix,(const solver &sol, const dictionary &preconditionerDict),(sol, preconditionerDict))
	declareRunTimeSelectionTable (autoPtr, preconditioner, asymMatrix,(const solver &sol, const dictionary &preconditionerDict),(sol, preconditionerDict))
	preconditioner (const solver &sol)
	Construct for given solver.
virtual	~preconditioner ()=default
	Destructor.
virtual void	read (const dictionary &)
	Read and reset the preconditioner parameters from the given dictionary.

Static Public Member Functions
static void	calcInvD (Field< DType > &rD, const LduMatrix< Type, DType, LUType > &matrix)
	Calculate the reciprocal of the preconditioned diagonal.
Static Public Member Functions inherited from LduMatrix< Type, DType, LUType >::preconditioner
static autoPtr< preconditioner >	New (const solver &sol, const dictionary &preconditionerDict)
	Return a new preconditioner.

Additional Inherited Members
Protected Attributes inherited from LduMatrix< Type, DType, LUType >::preconditioner
const solver &	solver_
	Reference to the base-solver this preconditioner is used with.

Detailed Description

template<class Type, class DType, class LUType>
class Foam::TDILUPreconditioner< Type, DType, LUType >

Simplified diagonal-based incomplete LU preconditioner for asymmetric matrices.

The inverse (reciprocal for scalar) of the preconditioned diagonal is calculated and stored.

Source files

Definition at line 52 of file TDILUPreconditioner.H.

Constructor & Destructor Documentation

◆ TDILUPreconditioner()

template<class Type, class DType, class LUType>

TDILUPreconditioner	(	const typename LduMatrix< Type, DType, LUType >::solver &	sol,
		const dictionary &	preconditionerDict )

Construct from matrix components and preconditioner data dictionary.

Definition at line 26 of file TDILUPreconditioner.C.

References calcInvD(), Foam::diag(), LduMatrix< Type, DType, LUType >::solver::matrix(), and LduMatrix< Type, DType, LUType >::preconditioner::preconditioner().

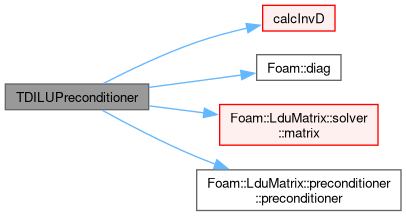

Here is the call graph for this function:

◆ ~TDILUPreconditioner()

template<class Type, class DType, class LUType>

virtual ~TDILUPreconditioner ( )

virtualdefault

Member Function Documentation

◆ TypeName()

template<class Type, class DType, class LUType>

TypeName ( "DILU" )

Runtime type information.

◆ calcInvD()

template<class Type, class DType, class LUType>

void calcInvD	(	Field< DType > &	rD,
		const LduMatrix< Type, DType, LUType > &	matrix )

static

Calculate the reciprocal of the preconditioned diagonal.

Definition at line 42 of file TDILUPreconditioner.C.

References UList< T >::begin(), Foam::dot(), Foam::inv(), LduMatrix< Type, DType, LUType >::lduAddr(), LduMatrix< Type, DType, LUType >::lower(), lduAddressing::lowerAddr(), UList< T >::size(), LduMatrix< Type, DType, LUType >::upper(), and lduAddressing::upperAddr().

Referenced by TDILUPreconditioner().

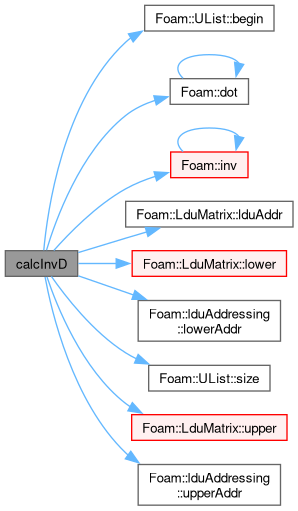

Here is the call graph for this function:

Here is the caller graph for this function:

◆ precondition()

template<class Type, class DType, class LUType>

void precondition	(	Field< Type > &	wA,
		const Field< Type > &	rA ) const

virtual

Return wA the preconditioned form of residual rA.

Implements LduMatrix< Type, DType, LUType >::preconditioner.

Definition at line 75 of file TDILUPreconditioner.C.

References UList< T >::begin(), Foam::dot(), UList< T >::size(), and LduMatrix< Type, DType, LUType >::preconditioner::solver_.

Here is the call graph for this function:

◆ preconditionT()

template<class Type, class DType, class LUType>

void preconditionT	(	Field< Type > &	wT,
		const Field< Type > &	rT ) const

virtual

Return wT the transpose-matrix preconditioned form of.

residual rT.

Reimplemented from LduMatrix< Type, DType, LUType >::preconditioner.

Definition at line 125 of file TDILUPreconditioner.C.

References UList< T >::begin(), Foam::dot(), UList< T >::size(), and LduMatrix< Type, DType, LUType >::preconditioner::solver_.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/LduMatrix/Preconditioners/DILUPreconditioner/TDILUPreconditioner.H
src/OpenFOAM/matrices/LduMatrix/Preconditioners/DILUPreconditioner/TDILUPreconditioner.C
