lduAddressing Class Referenceabstract

The class contains the addressing required by the lduMatrix: upper, lower and losort. More...

#include <lduAddressing.H>

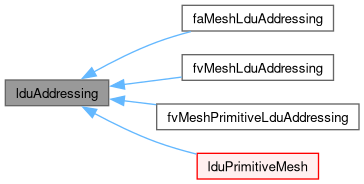

Inheritance diagram for lduAddressing:
Inheritance graph
[legend]

Public Member Functions

 lduAddressing (const lduAddressing &)=delete
 No copy construct.
void operator= (const lduAddressing &)=delete
 No copy assignment.
 lduAddressing (const label nEqns) noexcept
 Construct with size (number of equations).
virtual ~lduAddressing ()=default
 Destructor.
label size () const noexcept
 Return number of equations.
virtual const labelUList & lowerAddr () const =0
 Return lower addressing.
virtual const labelUList & upperAddr () const =0
 Return upper addressing.
virtual const labelUList & patchAddr (const label patchNo) const =0
 Return patch to internal addressing given patch number.
virtual const lduSchedule & patchSchedule () const =0
 Return patch field evaluation schedule.
void clearOut ()
 Clear additional addressing.
const labelUList & losortAddr () const
 Return losort addressing.
const labelUList & ownerStartAddr () const
 Return owner start addressing.
const labelUList & losortStartAddr () const
 Return losort start addressing.
const labelUList & lowerCSRAddr () const
 Return CSR addressing.
label triIndex (const label a, const label b) const
 Return off-diagonal index given owner and neighbour label.
Tuple2< label, scalar > band () const
 Calculate bandwidth and profile of addressing.
template<class Type>
void map (const UList< Type > &faceVals, List< Type > &vals) const
 Helper to convert lower addressing & data into CSR format.

Detailed Description

The class contains the addressing required by the lduMatrix: upper, lower and losort.

The addressing can be created in two ways: either with references to upper and lower in which case it stores references or from labelLists, in which case it stores the addressing itself. Additionally, the losort addressing belongs to the class is as on lazy evaluation.

The ordering of owner addresses is such that the labels are in increasing order, with groups of identical labels for edges "owned" by the same point. The neighbour labels are also ordered in ascending order but only for groups of edges belonging to each point. An example is given below:

    owner     neighbour
    0         1
    0         20
    1         2
    1         21
    2         3
    2         22
    3         4
    3         23
    4         5
    4         24
    5         6
    5         25
    6         7
    6         26
    7         8
    7         27
    8         9
    8         28
    9         10
    9         29

There exists an alternative way of addressing the owner list: instead of repeating the same label in the owner list, it is possible to address the start of each point neighbours in the neighbour list. This reduces the size of owner addressing from a list over all edges to a list over all points + 1:

    Owner start list: 0 2 4 6 8 10 12 14 16 18

We shall use the second form of the addressing for fast lookup of edge label from the known owner and neighbour, using the following algorithm:

  1. take the owner label and position the start of lookup using the owner start list
  2. loop through all neighbours of this owner (ending at the start of lookup of owner + 1) until the match with current neighbour is found. The index used on the neighbour list for the match is the edge index.

While owner start addressing allows us to find the edge owned by the points, it is also necessary to find the edges for which the point is a neighbour. Losort addressing lists the edges neighboured by the point and we shall use the same trick as above to address into this list. Thus, for every point the losort start gives the address of the first face to neighbour this point.

Instead of using losort to lookup the face and then using the lowerAddr to find the neighbour cell one can also directly lookup the neighbour cell using the lowerCSRAddr (upperAddr is already in CSR order).

Source files

Definition at line 114 of file lduAddressing.H.

Constructor & Destructor Documentation

◆ lduAddressing() [1/2]

lduAddressing ( const lduAddressing & )
delete

No copy construct.

References lduAddressing().

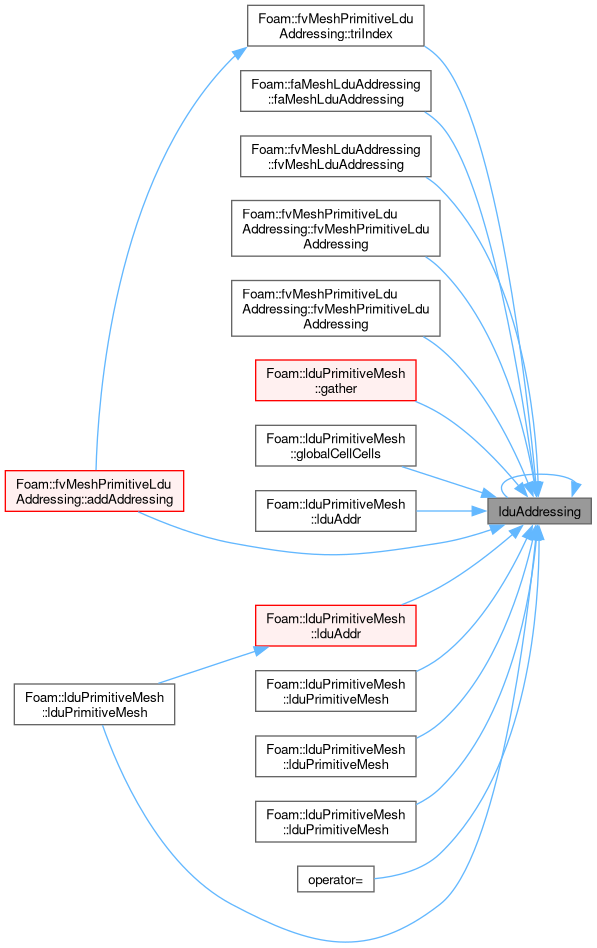

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), faMeshLduAddressing::faMeshLduAddressing(), fvMeshLduAddressing::fvMeshLduAddressing(), fvMeshPrimitiveLduAddressing::fvMeshPrimitiveLduAddressing(), fvMeshPrimitiveLduAddressing::fvMeshPrimitiveLduAddressing(), lduPrimitiveMesh::gather(), lduPrimitiveMesh::globalCellCells(), lduPrimitiveMesh::lduAddr(), lduPrimitiveMesh::lduAddr(), lduAddressing(), lduPrimitiveMesh::lduPrimitiveMesh(), lduPrimitiveMesh::lduPrimitiveMesh(), lduPrimitiveMesh::lduPrimitiveMesh(), lduPrimitiveMesh::lduPrimitiveMesh(), operator=(), and fvMeshPrimitiveLduAddressing::triIndex().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ lduAddressing() [2/2]

lduAddressing ( const label nEqns)
inlineexplicitnoexcept

Construct with size (number of equations).

Definition at line 192 of file lduAddressing.H.

References Foam::noexcept.

◆ ~lduAddressing()

virtual ~lduAddressing ( )
virtualdefault

Destructor.

Member Function Documentation

◆ operator=()

void operator= ( const lduAddressing & )
delete

No copy assignment.

References lduAddressing().

Here is the call graph for this function:

◆ size()

label size ( ) const
inlinenoexcept

Return number of equations.

Definition at line 209 of file lduAddressing.H.

References Foam::noexcept.

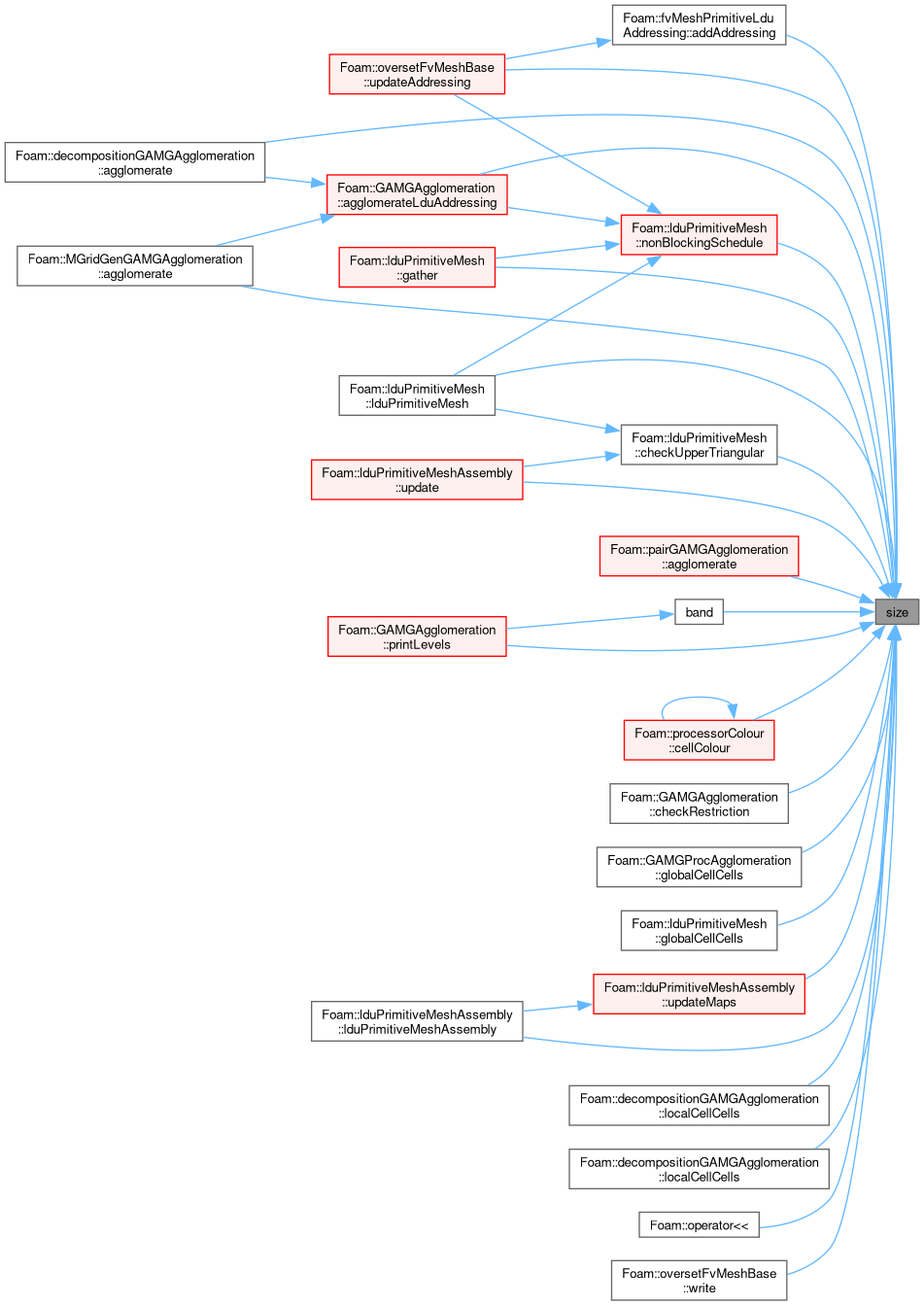

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), decompositionGAMGAgglomeration::agglomerate(), MGridGenGAMGAgglomeration::agglomerate(), pairGAMGAgglomeration::agglomerate(), GAMGAgglomeration::agglomerateLduAddressing(), band(), processorColour::cellColour(), GAMGAgglomeration::checkRestriction(), lduPrimitiveMesh::checkUpperTriangular(), lduPrimitiveMesh::gather(), GAMGProcAgglomeration::globalCellCells(), lduPrimitiveMesh::globalCellCells(), lduPrimitiveMesh::lduPrimitiveMesh(), lduPrimitiveMeshAssembly::lduPrimitiveMeshAssembly(), decompositionGAMGAgglomeration::localCellCells(), decompositionGAMGAgglomeration::localCellCells(), lduPrimitiveMesh::nonBlockingSchedule(), Foam::operator<<(), GAMGAgglomeration::printLevels(), lduPrimitiveMeshAssembly::update(), oversetFvMeshBase::updateAddressing(), lduPrimitiveMeshAssembly::updateMaps(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ lowerAddr()

virtual const labelUList & lowerAddr ( ) const
pure virtual

Return lower addressing.

Implemented in faMeshLduAddressing, fvMeshLduAddressing, fvMeshPrimitiveLduAddressing, and lduPrimitiveMesh.

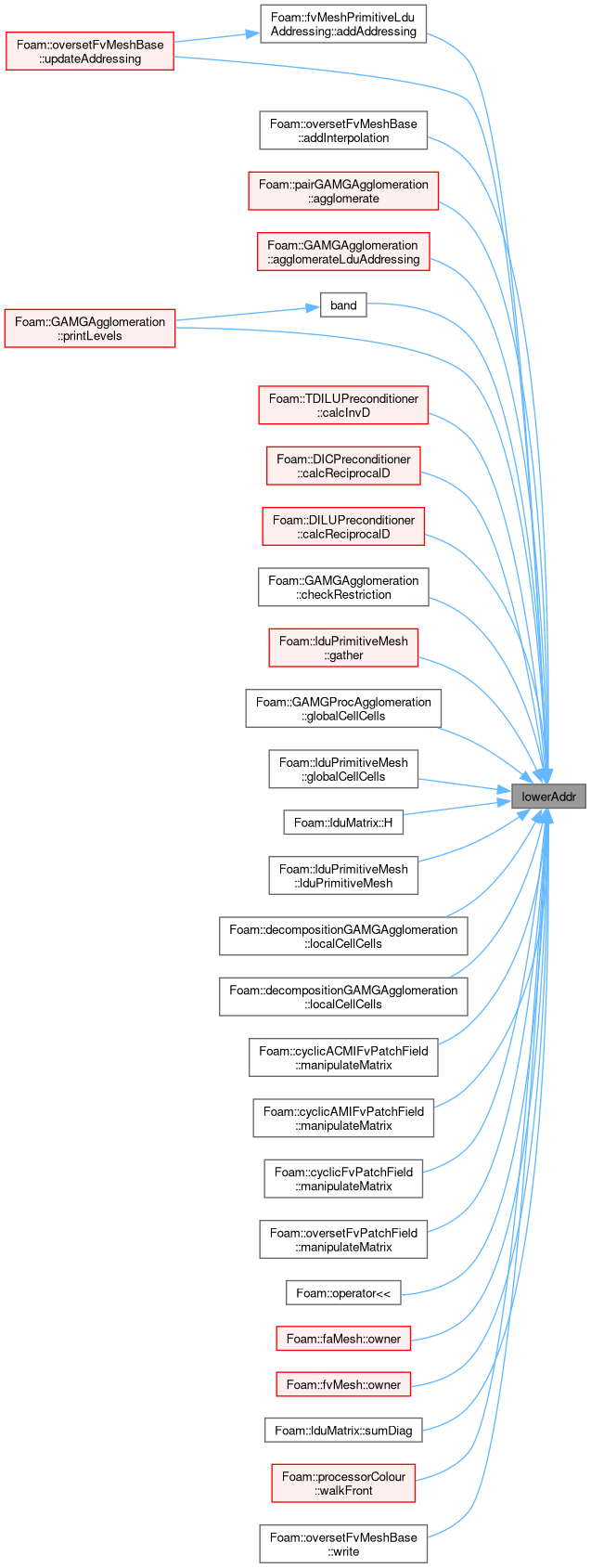

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), oversetFvMeshBase::addInterpolation(), pairGAMGAgglomeration::agglomerate(), GAMGAgglomeration::agglomerateLduAddressing(), band(), TDILUPreconditioner< Type, DType, LUType >::calcInvD(), DICPreconditioner::calcReciprocalD(), DILUPreconditioner::calcReciprocalD(), GAMGAgglomeration::checkRestriction(), lduPrimitiveMesh::gather(), GAMGProcAgglomeration::globalCellCells(), lduPrimitiveMesh::globalCellCells(), lduMatrix::H(), lduPrimitiveMesh::lduPrimitiveMesh(), decompositionGAMGAgglomeration::localCellCells(), decompositionGAMGAgglomeration::localCellCells(), cyclicACMIFvPatchField< Type >::manipulateMatrix(), cyclicAMIFvPatchField< Type >::manipulateMatrix(), cyclicFvPatchField< Type >::manipulateMatrix(), oversetFvPatchField< Type >::manipulateMatrix(), Foam::operator<<(), faMesh::owner(), fvMesh::owner(), GAMGAgglomeration::printLevels(), lduMatrix::sumDiag(), oversetFvMeshBase::updateAddressing(), processorColour::walkFront(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ upperAddr()

virtual const labelUList & upperAddr ( ) const
pure virtual

Return upper addressing.

Implemented in faMeshLduAddressing, fvMeshLduAddressing, fvMeshPrimitiveLduAddressing, and lduPrimitiveMesh.

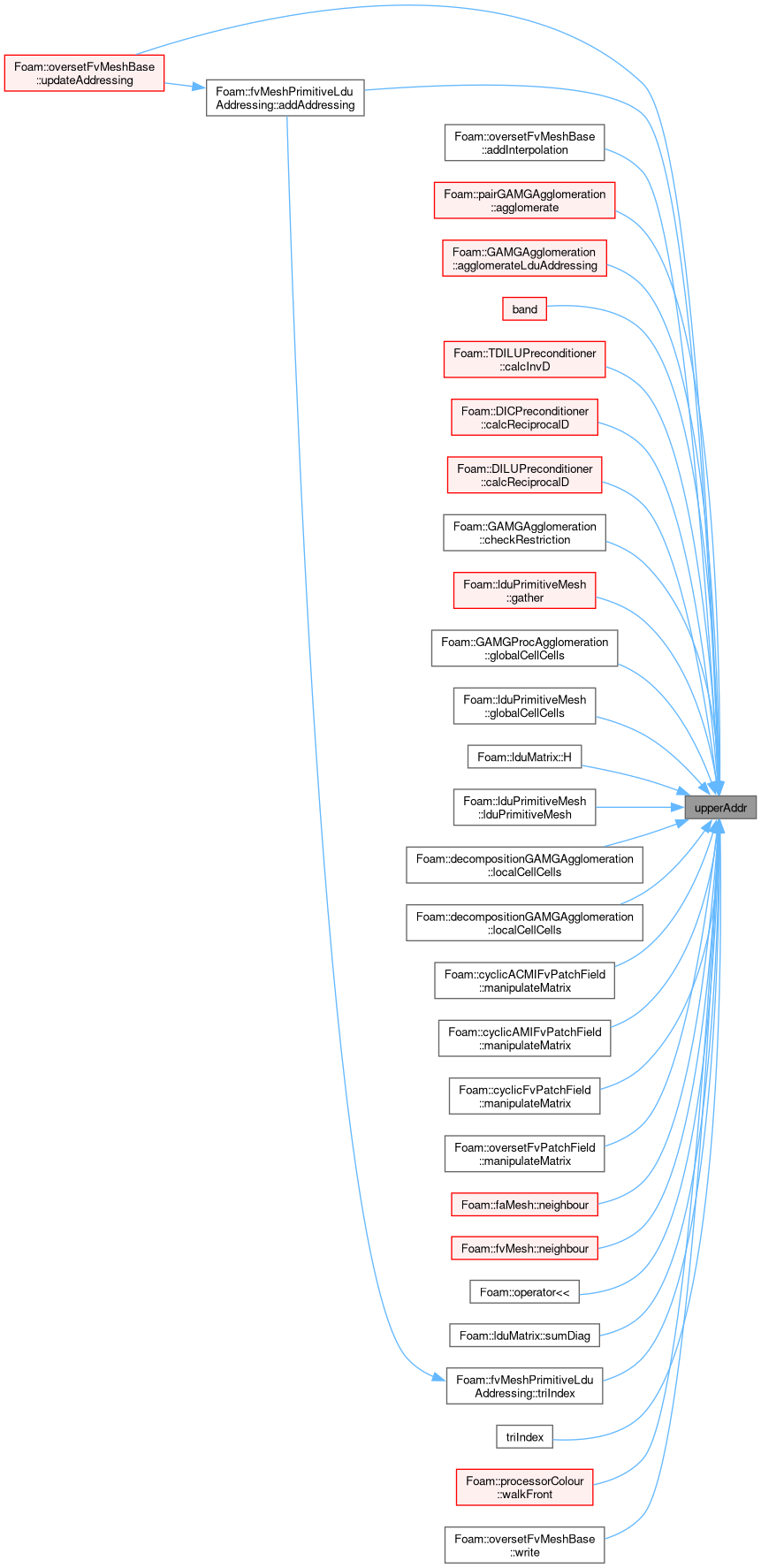

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), oversetFvMeshBase::addInterpolation(), pairGAMGAgglomeration::agglomerate(), GAMGAgglomeration::agglomerateLduAddressing(), band(), TDILUPreconditioner< Type, DType, LUType >::calcInvD(), DICPreconditioner::calcReciprocalD(), DILUPreconditioner::calcReciprocalD(), GAMGAgglomeration::checkRestriction(), lduPrimitiveMesh::gather(), GAMGProcAgglomeration::globalCellCells(), lduPrimitiveMesh::globalCellCells(), lduMatrix::H(), lduPrimitiveMesh::lduPrimitiveMesh(), decompositionGAMGAgglomeration::localCellCells(), decompositionGAMGAgglomeration::localCellCells(), cyclicACMIFvPatchField< Type >::manipulateMatrix(), cyclicAMIFvPatchField< Type >::manipulateMatrix(), cyclicFvPatchField< Type >::manipulateMatrix(), oversetFvPatchField< Type >::manipulateMatrix(), faMesh::neighbour(), fvMesh::neighbour(), Foam::operator<<(), lduMatrix::sumDiag(), fvMeshPrimitiveLduAddressing::triIndex(), triIndex(), oversetFvMeshBase::updateAddressing(), processorColour::walkFront(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ patchAddr()

virtual const labelUList & patchAddr ( const label patchNo) const
pure virtual

Return patch to internal addressing given patch number.

Implemented in faMeshLduAddressing, fvMeshLduAddressing, fvMeshPrimitiveLduAddressing, lduPrimitiveMesh, and lduPrimitiveMeshAssembly.

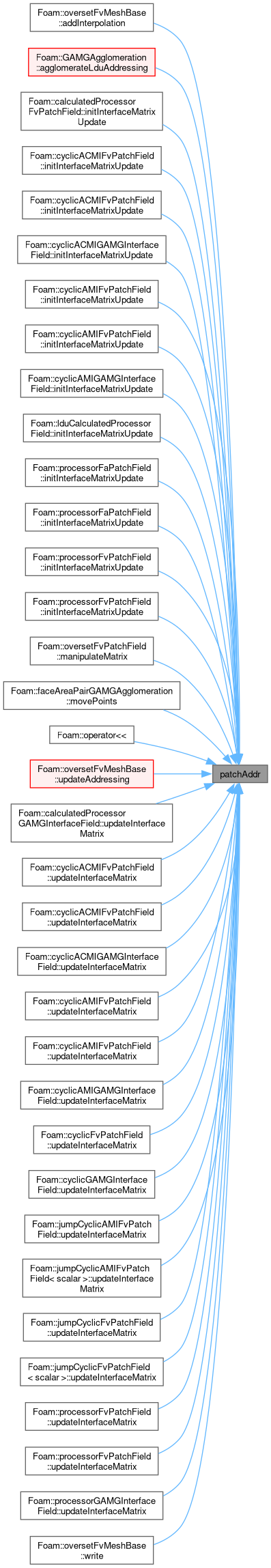

Referenced by oversetFvMeshBase::addInterpolation(), GAMGAgglomeration::agglomerateLduAddressing(), calculatedProcessorFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicACMIGAMGInterfaceField::initInterfaceMatrixUpdate(), cyclicAMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicAMIFvPatchField< Type >::initInterfaceMatrixUpdate(), cyclicAMIGAMGInterfaceField::initInterfaceMatrixUpdate(), lduCalculatedProcessorField< Type >::initInterfaceMatrixUpdate(), processorFaPatchField< Type >::initInterfaceMatrixUpdate(), processorFaPatchField< Type >::initInterfaceMatrixUpdate(), processorFvPatchField< Type >::initInterfaceMatrixUpdate(), processorFvPatchField< Type >::initInterfaceMatrixUpdate(), oversetFvPatchField< Type >::manipulateMatrix(), faceAreaPairGAMGAgglomeration::movePoints(), Foam::operator<<(), oversetFvMeshBase::updateAddressing(), calculatedProcessorGAMGInterfaceField::updateInterfaceMatrix(), cyclicACMIFvPatchField< Type >::updateInterfaceMatrix(), cyclicACMIFvPatchField< Type >::updateInterfaceMatrix(), cyclicACMIGAMGInterfaceField::updateInterfaceMatrix(), cyclicAMIFvPatchField< Type >::updateInterfaceMatrix(), cyclicAMIFvPatchField< Type >::updateInterfaceMatrix(), cyclicAMIGAMGInterfaceField::updateInterfaceMatrix(), cyclicFvPatchField< Type >::updateInterfaceMatrix(), cyclicGAMGInterfaceField::updateInterfaceMatrix(), jumpCyclicAMIFvPatchField< Type >::updateInterfaceMatrix(), jumpCyclicAMIFvPatchField< scalar >::updateInterfaceMatrix(), jumpCyclicFvPatchField< Type >::updateInterfaceMatrix(), jumpCyclicFvPatchField< scalar >::updateInterfaceMatrix(), processorFvPatchField< Type >::updateInterfaceMatrix(), processorFvPatchField< Type >::updateInterfaceMatrix(), processorGAMGInterfaceField::updateInterfaceMatrix(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ patchSchedule()

virtual const lduSchedule & patchSchedule ( ) const
pure virtual

Return patch field evaluation schedule.

Implemented in faMeshLduAddressing, fvMeshLduAddressing, fvMeshPrimitiveLduAddressing, and lduPrimitiveMesh.

References b.

Referenced by lduMatrix::patchSchedule().

Here is the caller graph for this function:

◆ clearOut()

void clearOut ( )

Clear additional addressing.

Definition at line 224 of file lduAddressing.C.

Referenced by fvMatrix< Type >::createOrUpdateLduPrimitiveAssembly().

Here is the caller graph for this function:

◆ losortAddr()

const Foam::labelUList & losortAddr ( ) const

Return losort addressing.

Definition at line 180 of file lduAddressing.C.

Referenced by map(), processorColour::walkFront(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ ownerStartAddr()

const Foam::labelUList & ownerStartAddr ( ) const

Return owner start addressing.

Definition at line 191 of file lduAddressing.C.

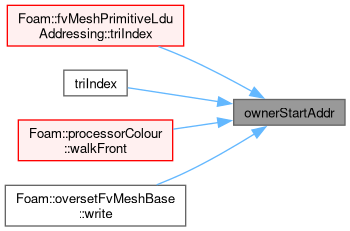

Referenced by fvMeshPrimitiveLduAddressing::triIndex(), triIndex(), processorColour::walkFront(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ losortStartAddr()

const Foam::labelUList & losortStartAddr ( ) const

Return losort start addressing.

Definition at line 202 of file lduAddressing.C.

Referenced by map(), processorColour::walkFront(), and oversetFvMeshBase::write().

Here is the caller graph for this function:

◆ lowerCSRAddr()

const Foam::labelUList & lowerCSRAddr ( ) const

Return CSR addressing.

Definition at line 213 of file lduAddressing.C.

◆ triIndex()

Foam::label triIndex ( const label a,
const label b ) const

Return off-diagonal index given owner and neighbour label.

Definition at line 233 of file lduAddressing.C.

References Foam::abort(), b, Foam::FatalError, FatalErrorInFunction, Foam::max(), Foam::min(), ownerStartAddr(), and upperAddr().

Here is the call graph for this function:

◆ band()

Foam::Tuple2< Foam::label, Foam::scalar > band ( ) const

Calculate bandwidth and profile of addressing.

Definition at line 264 of file lduAddressing.C.

References Foam::diff(), forAll, lowerAddr(), Foam::max(), size(), and upperAddr().

Referenced by GAMGAgglomeration::printLevels().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ map()

template<class Type>
void map ( const UList< Type > & faceVals,
List< Type > & vals ) const

Helper to convert lower addressing & data into CSR format.

Definition at line 26 of file lduAddressingTemplates.C.

References losortAddr(), losortStartAddr(), n, List< T >::resize_nocopy(), and UList< T >::size().

Referenced by lduPrimitiveMesh::lduPrimitiveMesh().

Here is the call graph for this function:
Here is the caller graph for this function:
