A templated (2 x 2) tensor of objects of <T> derived from VectorSpace. More...

#include <Tensor2D.H>

Inheritance diagram for Tensor2D< Cmpt >:

[legend]

Collaboration diagram for Tensor2D< Cmpt >:

[legend]

Public Types
enum	components { XX , XY , YX , YY }
	Component labeling enumeration. More...
typedef Tensor2D< label >	labelType
	Equivalent type of labels used for valid component indexing.
Public Types inherited from VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >
typedef VectorSpace< Tensor2D< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	Tensor2D ()=default
	Default construct.
	Tensor2D (const Tensor2D &)=default
	Copy construct.
Tensor2D &	operator= (const Tensor2D &)=default
	Copy assignment.
	Tensor2D (Foam::zero)
	Construct initialized to zero.
	Tensor2D (const VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 > &vs)
	Construct given VectorSpace.
	Tensor2D (const SymmTensor2D< Cmpt > &st)
	Construct given SymmTensor2D.
	Tensor2D (const SphericalTensor2D< Cmpt > &st)
	Construct given SphericalTensor2D.
	Tensor2D (const Vector2D< Cmpt > &x, const Vector2D< Cmpt > &y)
	Construct given the two row vectors.
	Tensor2D (const Cmpt txx, const Cmpt txy, const Cmpt tyx, const Cmpt tyy)
	Construct given the four components.
	Tensor2D (Istream &is)
	Construct from Istream.
const Cmpt &	xx () const noexcept
const Cmpt &	xy () const noexcept
const Cmpt &	yx () const noexcept
const Cmpt &	yy () const noexcept
Cmpt &	xx () noexcept
Cmpt &	xy () noexcept
Cmpt &	yx () noexcept
Cmpt &	yy () noexcept
Vector2D< Cmpt >	cx () const
	Extract vector for column 0.
Vector2D< Cmpt >	cy () const
	Extract vector for column 1.
template<direction Idx>
Vector2D< Cmpt >	col () const
	Extract vector for given column: compile-time check of index.
Vector2D< Cmpt >	col (const direction c) const
	Extract vector for given column (0,1): runtime check of index.
template<direction Idx>
void	col (const Vector2D< Cmpt > &v)
	Set values of given column: compile-time check of index.
void	col (const direction c, const Vector2D< Cmpt > &v)
	Set values of given column (0,1): runtime check of index.
void	cols (const Vector2D< Cmpt > &x, const Vector2D< Cmpt > &y)
	Set column values.
Vector2D< Cmpt >	x () const
	Extract vector for row 0.
Vector2D< Cmpt >	y () const
	Extract vector for row 1.
template<direction Idx>
Vector2D< Cmpt >	row () const
	Extract vector for given row: compile-time check of index.
Vector2D< Cmpt >	row (const direction r) const
	Extract vector for given row (0,1): runtime check of index.
template<direction Idx>
void	row (const Vector2D< Cmpt > &v)
	Set values of given row: compile-time check of index.
void	row (const direction r, const Vector2D< Cmpt > &v)
	Set values of given row (0,1): compile-time check of index.
void	rows (const Vector2D< Cmpt > &x, const Vector2D< Cmpt > &y)
	Set row values.
Vector2D< Cmpt >	diag () const
	Extract the diagonal as a vector.
void	diag (const Vector2D< Cmpt > &v)
	Set values of the diagonal.
scalar	diagSqr () const
	The L2-norm squared of the diagonal.
Tensor2D< Cmpt >	T () const
	Return non-Hermitian transpose.
Cmpt	det () const
	The determinate.
Tensor2D< Cmpt >	adjunct () const
	Return adjunct matrix (transpose of cofactor matrix).
Tensor2D< Cmpt >	cof () const
	Return cofactor matrix (transpose of adjunct matrix).
Tensor2D< Cmpt >	inv () const
	Return inverse.
Tensor2D< Cmpt >	inner (const Tensor2D< Cmpt > &t2) const
	Inner-product of this with another Tensor2D.
Tensor2D< Cmpt >	schur (const Tensor2D< Cmpt > &t2) const
	Schur-product of this with another Tensor2D.
void	operator= (const SymmTensor2D< Cmpt > &)
	Copy assign from SymmTensor2D.
void	operator= (const SphericalTensor2D< Cmpt > &)
	Copy assign from SphericalTensor2D.
Vector2D< Cmpt >	vectorComponent (const direction cmpt) const
	Deprecated(2018-12) Return vector for given row (0,1).
template<Foam::direction Idx>
Foam::Vector2D< Cmpt >	col () const
template<Foam::direction Idx>
Foam::Vector2D< Cmpt >	row () const
Public Member Functions inherited from VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >
const Foam::VectorSpace< Tensor2D< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< Tensor2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< Tensor2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< Tensor2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Attributes
static constexpr direction	rank = 2
	Rank of Tensor2D is 2.
static const Tensor2D	I
Static Public Attributes inherited from VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Tensor2D< Cmpt >	zero
static const Tensor2D< Cmpt >	one
static const Tensor2D< Cmpt >	max
static const Tensor2D< Cmpt >	min
static const Tensor2D< Cmpt >	rootMax
static const Tensor2D< Cmpt >	rootMin

Additional Inherited Members
Static Public Member Functions inherited from VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Tensor2D< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.
Public Attributes inherited from VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::Tensor2D< Cmpt >

A templated (2 x 2) tensor of objects of <T> derived from VectorSpace.

Source files

Definition at line 52 of file Tensor2D.H.

Member Typedef Documentation

◆ labelType

template<class Cmpt>

typedef Tensor2D<label> labelType

Equivalent type of labels used for valid component indexing.

Definition at line 63 of file Tensor2D.H.

Member Enumeration Documentation

◆ components

template<class Cmpt>

enum components

Component labeling enumeration.

Enumerator
XX
XY
YX
YY

Definition at line 82 of file Tensor2D.H.

Constructor & Destructor Documentation

◆ Tensor2D() [1/9]

template<class Cmpt>

Tensor2D ( )

default

Default construct.

Referenced by adjunct(), inner(), schur(), T(), Tensor2D(), Tensor2D(), and Tensor2D().

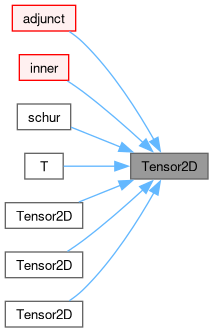

Here is the caller graph for this function:

◆ Tensor2D() [2/9]

template<class Cmpt>

Tensor2D ( const Tensor2D< Cmpt > & )

default

Copy construct.

◆ Tensor2D() [3/9]

template<class Cmpt>

Tensor2D ( Foam::zero )

inline

Construct initialized to zero.

Definition at line 25 of file Tensor2DI.H.

References Tensor2D(), and VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::zero.

Here is the call graph for this function:

◆ Tensor2D() [4/9]

template<class Cmpt>

Tensor2D ( const VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 > & vs )

inline

Construct given VectorSpace.

Definition at line 32 of file Tensor2DI.H.

References Tensor2D(), and VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::VectorSpace().

Here is the call graph for this function:

◆ Tensor2D() [5/9]

template<class Cmpt>

Tensor2D ( const SymmTensor2D< Cmpt > & st )

inline

Construct given SymmTensor2D.

Definition at line 42 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, SymmTensor2D< Cmpt >::xx(), XY, SymmTensor2D< Cmpt >::xy(), YX, YY, and SymmTensor2D< Cmpt >::yy().

Here is the call graph for this function:

◆ Tensor2D() [6/9]

template<class Cmpt>

Tensor2D ( const SphericalTensor2D< Cmpt > & st )

inline

Construct given SphericalTensor2D.

Definition at line 50 of file Tensor2DI.H.

References SphericalTensor2D< Cmpt >::ii(), VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, XY, YX, YY, and Foam::Zero.

Here is the call graph for this function:

◆ Tensor2D() [7/9]

template<class Cmpt>

Tensor2D	(	const Vector2D< Cmpt > &	x,
		const Vector2D< Cmpt > &	y )

inline

Construct given the two row vectors.

Definition at line 58 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, x(), XX, XY, y(), YX, and YY.

Here is the call graph for this function:

◆ Tensor2D() [8/9]

template<class Cmpt>

Tensor2D	(	const Cmpt	txx,
		const Cmpt	txy,
		const Cmpt	tyx,
		const Cmpt	tyy )

inline

Construct given the four components.

Definition at line 70 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, XY, YX, and YY.

◆ Tensor2D() [9/9]

template<class Cmpt>

Tensor2D ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 82 of file Tensor2DI.H.

References Tensor2D().

Here is the call graph for this function:

Member Function Documentation

◆ operator=() [1/3]

template<class Cmpt>

Tensor2D & operator= ( const Tensor2D< Cmpt > & )

default

Copy assignment.

◆ xx() [1/2]

template<class Cmpt>

const Cmpt & xx ( ) const

inlinenoexcept

Definition at line 153 of file Tensor2D.H.

Referenced by adjunct(), det(), diagSqr(), inner(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&&(), Foam::operator&&(), Foam::operator&&(), Foam::operator&&(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator/(), schur(), Foam::symm(), T(), Foam::tr(), and Foam::twoSymm().

Here is the caller graph for this function:

◆ xy() [1/2]

template<class Cmpt>

const Cmpt & xy ( ) const

inlinenoexcept

Definition at line 154 of file Tensor2D.H.

Referenced by adjunct(), det(), inner(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&&(), Foam::operator&&(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator/(), schur(), Foam::skew(), Foam::symm(), T(), and Foam::twoSymm().

Here is the caller graph for this function:

◆ yx() [1/2]

template<class Cmpt>

const Cmpt & yx ( ) const

inlinenoexcept

Definition at line 155 of file Tensor2D.H.

Referenced by adjunct(), det(), inner(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&&(), Foam::operator&&(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator/(), schur(), Foam::skew(), Foam::symm(), T(), and Foam::twoSymm().

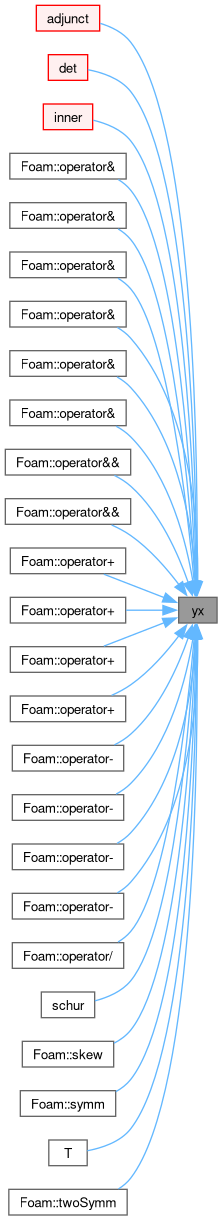

Here is the caller graph for this function:

◆ yy() [1/2]

template<class Cmpt>

const Cmpt & yy ( ) const

inlinenoexcept

Definition at line 156 of file Tensor2D.H.

Referenced by adjunct(), det(), diagSqr(), inner(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&&(), Foam::operator&&(), Foam::operator&&(), Foam::operator&&(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator+(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator-(), Foam::operator/(), schur(), Foam::symm(), T(), Foam::tr(), and Foam::twoSymm().

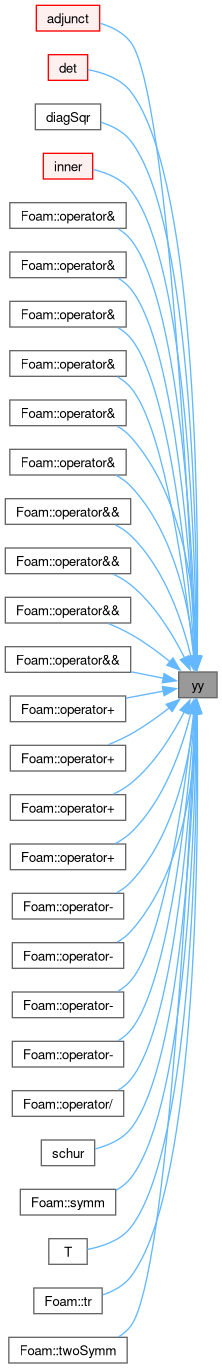

Here is the caller graph for this function:

◆ xx() [2/2]

template<class Cmpt>

Cmpt & xx ( )

inlinenoexcept

Definition at line 158 of file Tensor2D.H.

◆ xy() [2/2]

template<class Cmpt>

Cmpt & xy ( )

inlinenoexcept

Definition at line 159 of file Tensor2D.H.

◆ yx() [2/2]

template<class Cmpt>

Cmpt & yx ( )

inlinenoexcept

Definition at line 160 of file Tensor2D.H.

◆ yy() [2/2]

template<class Cmpt>

Cmpt & yy ( )

inlinenoexcept

Definition at line 161 of file Tensor2D.H.

◆ cx()

template<class Cmpt>

Foam::Vector2D< Cmpt > cx ( ) const

inline

Extract vector for column 0.

Definition at line 104 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, and YX.

Referenced by col().

Here is the caller graph for this function:

◆ cy()

template<class Cmpt>

Foam::Vector2D< Cmpt > cy ( ) const

inline

Extract vector for column 1.

Definition at line 110 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XY, and YY.

Referenced by col().

Here is the caller graph for this function:

◆ col() [1/5]

template<class Cmpt>

template<direction Idx>

Vector2D< Cmpt > col ( ) const

inline

Extract vector for given column: compile-time check of index.

Referenced by col().

Here is the caller graph for this function:

◆ col() [2/5]

template<class Cmpt>

Foam::Vector2D< Cmpt > col ( const direction c ) const

inline

Extract vector for given column (0,1): runtime check of index.

Definition at line 129 of file Tensor2DI.H.

References Foam::abort(), cx(), cy(), Foam::FatalError, FatalErrorInFunction, and Foam::Zero.

Here is the call graph for this function:

◆ col() [3/5]

template<class Cmpt>

template<Foam::direction Idx>

void col ( const Vector2D< Cmpt > & v )

inline

Set values of given column: compile-time check of index.

Definition at line 174 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, Vector2D< Cmpt >::x(), XX, XY, Vector2D< Cmpt >::y(), YX, and YY.

Here is the call graph for this function:

◆ col() [4/5]

template<class Cmpt>

void col	(	const direction	c,
		const Vector2D< Cmpt > &	v )

inline

Set values of given column (0,1): runtime check of index.

Definition at line 233 of file Tensor2DI.H.

References Foam::abort(), col(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ cols()

template<class Cmpt>

void cols	(	const Vector2D< Cmpt > &	x,
		const Vector2D< Cmpt > &	y )

inline

Set column values.

Definition at line 209 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, x(), XX, XY, y(), YX, and YY.

Here is the call graph for this function:

◆ x()

template<class Cmpt>

Foam::Vector2D< Cmpt > x ( ) const

inline

Extract vector for row 0.

Definition at line 91 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, and XY.

Referenced by cols(), triSurfaceTools::curvatures(), rows(), and Tensor2D().

Here is the caller graph for this function:

◆ y()

template<class Cmpt>

Foam::Vector2D< Cmpt > y ( ) const

inline

Extract vector for row 1.

Definition at line 97 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, YX, and YY.

Referenced by cols(), triSurfaceTools::curvatures(), rows(), and Tensor2D().

Here is the caller graph for this function:

◆ row() [1/5]

template<class Cmpt>

template<direction Idx>

Vector2D< Cmpt > row ( ) const

inline

Extract vector for given row: compile-time check of index.

Referenced by row(), and Tensor2D< scalar >::vectorComponent().

Here is the caller graph for this function:

◆ row() [2/5]

template<class Cmpt>

Foam::Vector2D< Cmpt > row ( const direction r ) const

inline

Extract vector for given row (0,1): runtime check of index.

Definition at line 157 of file Tensor2DI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, x, y, and Foam::Zero.

Here is the call graph for this function:

◆ row() [3/5]

template<class Cmpt>

template<Foam::direction Idx>

void row ( const Vector2D< Cmpt > & v )

inline

Set values of given row: compile-time check of index.

Definition at line 193 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, Vector2D< Cmpt >::x(), XX, XY, Vector2D< Cmpt >::y(), YX, and YY.

Here is the call graph for this function:

◆ row() [4/5]

template<class Cmpt>

void row	(	const direction	r,
		const Vector2D< Cmpt > &	v )

inline

Set values of given row (0,1): compile-time check of index.

Definition at line 251 of file Tensor2DI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and row().

Here is the call graph for this function:

◆ rows()

template<class Cmpt>

void rows	(	const Vector2D< Cmpt > &	x,
		const Vector2D< Cmpt > &	y )

inline

Set row values.

Definition at line 221 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, x(), XX, XY, y(), YX, and YY.

Here is the call graph for this function:

◆ diag() [1/2]

template<class Cmpt>

Foam::Vector2D< Cmpt > diag ( ) const

inline

Extract the diagonal as a vector.

Definition at line 269 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, and YY.

◆ diag() [2/2]

template<class Cmpt>

void diag ( const Vector2D< Cmpt > & v )

inline

Set values of the diagonal.

Definition at line 276 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, Vector2D< Cmpt >::x(), XX, Vector2D< Cmpt >::y(), and YY.

Here is the call graph for this function:

◆ diagSqr()

template<class Cmpt>

Foam::scalar diagSqr ( ) const

inline

The L2-norm squared of the diagonal.

Definition at line 283 of file Tensor2DI.H.

References Foam::magSqr(), xx(), and yy().

Here is the call graph for this function:

◆ T()

template<class Cmpt>

Foam::Tensor2D< Cmpt > T ( ) const

inline

Return non-Hermitian transpose.

Definition at line 296 of file Tensor2DI.H.

References Tensor2D(), xx(), xy(), yx(), and yy().

Here is the call graph for this function:

◆ det()

template<class Cmpt>

Cmpt det ( ) const

inline

The determinate.

Definition at line 307 of file Tensor2DI.H.

References xx(), xy(), yx(), and yy().

Referenced by Foam::det().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ adjunct()

template<class Cmpt>

Foam::Tensor2D< Cmpt > adjunct ( ) const

inline

Return adjunct matrix (transpose of cofactor matrix).

Definition at line 314 of file Tensor2DI.H.

References Tensor2D(), xx(), xy(), yx(), and yy().

Referenced by cof(), Foam::inv(), and inv().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cof()

template<class Cmpt>

Foam::Tensor2D< Cmpt > cof ( ) const

inline

Return cofactor matrix (transpose of adjunct matrix).

Definition at line 325 of file Tensor2DI.H.

References adjunct().

Referenced by Foam::cof().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ inv()

template<class Cmpt>

Foam::Tensor2D< Cmpt > inv ( ) const

inline

Return inverse.

Definition at line 364 of file Tensor2DI.H.

References Foam::abort(), adjunct(), Foam::det(), Foam::FatalError, FatalErrorInFunction, Foam::mag(), and Foam::nl.

Referenced by Foam::inv().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ inner()

template<class Cmpt>

Foam::Tensor2D< Cmpt > inner ( const Tensor2D< Cmpt > & t2 ) const

inline

Inner-product of this with another Tensor2D.

Definition at line 333 of file Tensor2DI.H.

References Tensor2D(), xx(), xy(), yx(), and yy().

Referenced by Foam::operator&().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ schur()

template<class Cmpt>

Foam::Tensor2D< Cmpt > schur ( const Tensor2D< Cmpt > & t2 ) const

inline

Schur-product of this with another Tensor2D.

Definition at line 350 of file Tensor2DI.H.

References Tensor2D(), xx(), xy(), yx(), and yy().

Here is the call graph for this function:

◆ operator=() [2/3]

template<class Cmpt>

void operator= ( const SymmTensor2D< Cmpt > & st )

inline

Copy assign from SymmTensor2D.

Definition at line 385 of file Tensor2DI.H.

References VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, SymmTensor2D< Cmpt >::xx(), XY, SymmTensor2D< Cmpt >::xy(), YX, YY, and SymmTensor2D< Cmpt >::yy().

Here is the call graph for this function:

◆ operator=() [3/3]

template<class Cmpt>

void operator= ( const SphericalTensor2D< Cmpt > & st )

inline

Copy assign from SphericalTensor2D.

Definition at line 393 of file Tensor2DI.H.

References SphericalTensor2D< Cmpt >::ii(), VectorSpace< Tensor2D< Cmpt >, Cmpt, 4 >::v_, XX, XY, YX, YY, and Foam::Zero.

Here is the call graph for this function:

◆ vectorComponent()

template<class Cmpt>

Vector2D< Cmpt > vectorComponent ( const direction cmpt ) const

inline

Deprecated(2018-12) Return vector for given row (0,1).

Deprecated: (2018-12) use row() method

Definition at line 321 of file Tensor2D.H.

◆ col() [5/5]

template<class Cmpt>

template<Foam::direction Idx>

Foam::Vector2D< Cmpt > col ( ) const

inline

Definition at line 118 of file Tensor2DI.H.

◆ row() [5/5]

template<class Cmpt>

template<Foam::direction Idx>

Foam::Vector2D< Cmpt > row ( ) const

inline

Definition at line 146 of file Tensor2DI.H.

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 2

staticconstexpr

Rank of Tensor2D is 2.

Definition at line 71 of file Tensor2D.H.

◆ I

template<class Cmpt>

const Tensor2D I

static

Definition at line 76 of file Tensor2D.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/Tensor/Tensor2D.H
src/OpenFOAM/primitives/Tensor/Tensor2DI.H

Public Types

Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ labelType

Member Enumeration Documentation

◆ components

Constructor & Destructor Documentation

◆ Tensor2D() [1/9]

◆ Tensor2D() [2/9]

◆ Tensor2D() [3/9]

◆ Tensor2D() [4/9]

◆ Tensor2D() [5/9]

◆ Tensor2D() [6/9]

◆ Tensor2D() [7/9]

◆ Tensor2D() [8/9]

◆ Tensor2D() [9/9]

Member Function Documentation

◆ operator=() [1/3]

◆ xx() [1/2]

◆ xy() [1/2]

◆ yx() [1/2]

◆ yy() [1/2]

◆ xx() [2/2]

◆ xy() [2/2]

◆ yx() [2/2]

◆ yy() [2/2]

◆ cx()

◆ cy()

◆ col() [1/5]

◆ col() [2/5]

◆ col() [3/5]

◆ col() [4/5]

◆ cols()

◆ x()

◆ y()

◆ row() [1/5]

◆ row() [2/5]

◆ row() [3/5]

◆ row() [4/5]

◆ rows()

◆ diag() [1/2]

◆ diag() [2/2]

◆ diagSqr()

◆ T()

◆ det()

◆ adjunct()

◆ cof()

◆ inv()

◆ inner()

◆ schur()

◆ operator=() [2/3]

◆ operator=() [3/3]

◆ vectorComponent()

◆ col() [5/5]

◆ row() [5/5]

Member Data Documentation

◆ rank

◆ I
