Templated 2D Vector derived from VectorSpace adding construction from 2 components, element access using x() and y() member functions and the inner-product (dot-product). More...

#include <Vector2D.H>

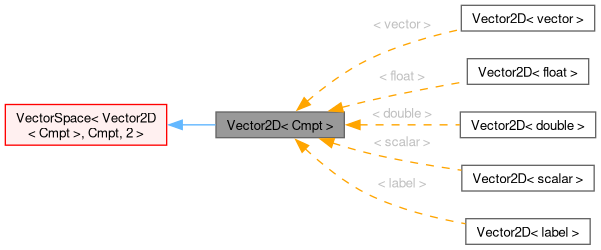

Inheritance diagram for Vector2D< Cmpt >:

[legend]

Collaboration diagram for Vector2D< Cmpt >:

[legend]

Public Types
enum	components { X , Y }
	Component labeling enumeration. More...
typedef Vector2D< label >	labelType
	Equivalent type of labels used for valid component indexing.
Public Types inherited from VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >
typedef VectorSpace< Vector2D< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	Vector2D ()=default
	Default construct.
	Vector2D (const Vector2D &)=default
	Copy construct.
Vector2D &	operator= (const Vector2D &)=default
	Copy assignment.
	Vector2D (Foam::zero)
	Construct initialized to zero.
	Vector2D (const VectorSpace< Vector2D< Cmpt >, Cmpt, 2 > &vs)
	Copy construct from VectorSpace of the same rank.
	Vector2D (const Cmpt &vx, const Cmpt &vy)
	Construct from two components.
	Vector2D (Istream &is)
	Construct from Istream.
const Cmpt &	x () const noexcept
	Access to the vector x component.
const Cmpt &	y () const noexcept
	Access to the vector y component.
Cmpt &	x () noexcept
	Access to the vector x component.
Cmpt &	y () noexcept
	Access to the vector y component.
scalar	mag () const
	The length (L2-norm) of the vector.
scalar	magSqr () const
	The length (L2-norm) squared of the vector.
scalar	dist (const Vector2D< Cmpt > &v2) const
	The L2-norm distance from another vector. The mag() of the difference.
scalar	distSqr (const Vector2D< Cmpt > &v2) const
	The L2-norm distance squared from another vector. The magSqr() of the difference.
Vector2D< Cmpt > &	normalise (const scalar tol=ROOTVSMALL)
	Normalise the vector by its magnitude.
Vector2D< Cmpt > &	removeCollinear (const Vector2D< Cmpt > &unitVec)
	Inplace removal of components that are collinear to the given unit vector.
scalar	perp (const Vector2D< Cmpt > &b) const
	Perp dot product (dot product with perpendicular vector).
bool	isClose (const Vector2D< Cmpt > &b, const scalar tol=1e-10) const
	Return true if vector is within tol.
template<class Cmpt2>
std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void >	operator+= (const Vector2D< Cmpt2 > &b)
	Add compatible 2D vector to this.
template<class Cmpt2>
std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void >	operator-= (const Vector2D< Cmpt2 > &b)
	Subtract compatible 2D vector from this.
Public Member Functions inherited from VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >
const Foam::VectorSpace< Vector2D< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< Vector2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< Vector2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< Vector2D< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Member Functions
static bool	less_xy (const Vector2D< Cmpt > &a, const Vector2D< Cmpt > &b)
	Lexicographically compare a and b with order (x:y).
static bool	less_yx (const Vector2D< Cmpt > &a, const Vector2D< Cmpt > &b)
	Lexicographically compare a and b with order (y:x).
Static Public Member Functions inherited from VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Vector2D< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.

Static Public Attributes
static constexpr direction	rank = 1
	Rank of Vector2D is 1.
Static Public Attributes inherited from VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Vector2D< Cmpt >	zero
static const Vector2D< Cmpt >	one
static const Vector2D< Cmpt >	max
static const Vector2D< Cmpt >	min
static const Vector2D< Cmpt >	rootMax
static const Vector2D< Cmpt >	rootMin

Additional Inherited Members
Public Attributes inherited from VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::Vector2D< Cmpt >

Templated 2D Vector derived from VectorSpace adding construction from 2 components, element access using x() and y() member functions and the inner-product (dot-product).

Source files

Definition at line 51 of file Vector2D.H.

Member Typedef Documentation

◆ labelType

template<class Cmpt>

typedef Vector2D<label> labelType

Equivalent type of labels used for valid component indexing.

Definition at line 62 of file Vector2D.H.

Member Enumeration Documentation

◆ components

template<class Cmpt>

enum components

Component labeling enumeration.

Enumerator
X
Y

Definition at line 76 of file Vector2D.H.

Constructor & Destructor Documentation

◆ Vector2D() [1/6]

template<class Cmpt>

Vector2D ( )

default

Default construct.

Referenced by dist(), distSqr(), isClose(), less_xy(), less_yx(), perp(), removeCollinear(), Vector2D(), Vector2D(), and Vector2D().

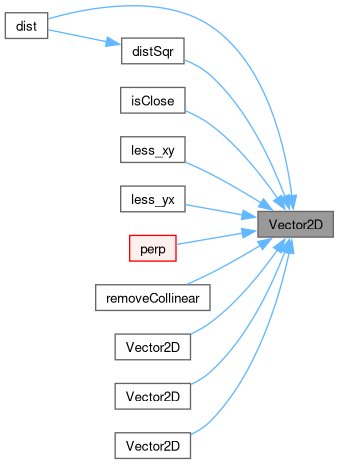

Here is the caller graph for this function:

◆ Vector2D() [2/6]

template<class Cmpt>

Vector2D ( const Vector2D< Cmpt > & )

default

Copy construct.

◆ Vector2D() [3/6]

template<class Cmpt>

Vector2D ( Foam::zero )

inline

Construct initialized to zero.

Definition at line 25 of file Vector2DI.H.

References Vector2D(), and VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >::zero.

Here is the call graph for this function:

◆ Vector2D() [4/6]

template<class Cmpt>

Vector2D ( const VectorSpace< Vector2D< Cmpt >, Cmpt, 2 > & vs )

inline

Copy construct from VectorSpace of the same rank.

Definition at line 32 of file Vector2DI.H.

References Vector2D(), and VectorSpace< Vector2D< Cmpt >, Cmpt, 2 >::VectorSpace().

Here is the call graph for this function:

◆ Vector2D() [5/6]

template<class Cmpt>

Vector2D	(	const Cmpt &	vx,
		const Cmpt &	vy )

inline

Construct from two components.

Definition at line 42 of file Vector2DI.H.

References x, and y.

◆ Vector2D() [6/6]

template<class Cmpt>

Vector2D ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 50 of file Vector2DI.H.

References Vector2D().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

template<class Cmpt>

Vector2D & operator= ( const Vector2D< Cmpt > & )

default

Copy assignment.

◆ x() [1/2]

template<class Cmpt>

const Cmpt & x ( ) const

inlinenoexcept

Access to the vector x component.

Definition at line 127 of file Vector2D.H.

Referenced by Tensor2D< Cmpt >::col(), SymmTensor2D< Cmpt >::diag(), Tensor2D< Cmpt >::diag(), distSqr(), IntegralScaleBox< Type >::initialise(), less_xy(), less_yx(), triangle2D::lineSegmentIntersectionPoint(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator*(), Foam::operator*(), Vector2D< vector >::operator+=(), Vector2D< vector >::operator-=(), Tensor2D< Cmpt >::row(), and Foam::sqr().

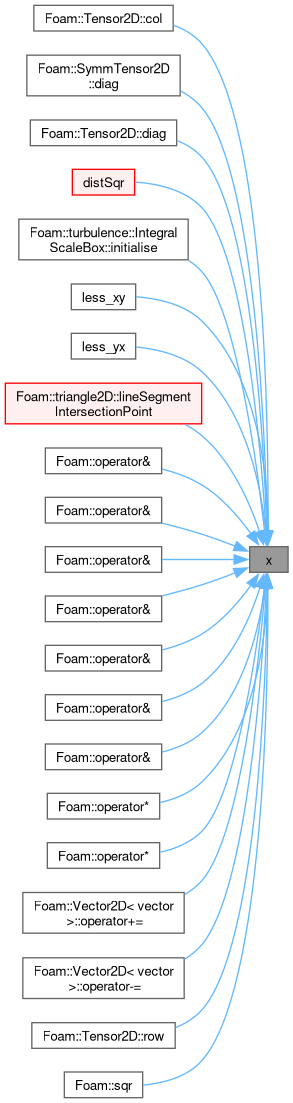

Here is the caller graph for this function:

◆ y() [1/2]

template<class Cmpt>

const Cmpt & y ( ) const

inlinenoexcept

Access to the vector y component.

Definition at line 132 of file Vector2D.H.

Referenced by Tensor2D< Cmpt >::col(), SymmTensor2D< Cmpt >::diag(), Tensor2D< Cmpt >::diag(), distSqr(), IntegralScaleBox< Type >::initialise(), isClose(), less_xy(), less_yx(), triangle2D::lineSegmentIntersectionPoint(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator*(), Foam::operator*(), Vector2D< vector >::operator+=(), Vector2D< vector >::operator-=(), Tensor2D< Cmpt >::row(), and Foam::sqr().

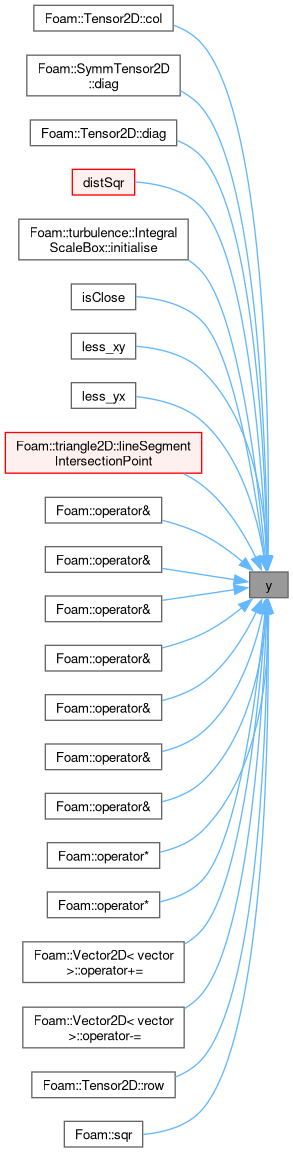

Here is the caller graph for this function:

◆ x() [2/2]

template<class Cmpt>

Cmpt & x ( )

inlinenoexcept

Access to the vector x component.

Definition at line 137 of file Vector2D.H.

◆ y() [2/2]

template<class Cmpt>

Cmpt & y ( )

inlinenoexcept

Access to the vector y component.

Definition at line 142 of file Vector2D.H.

◆ mag()

template<class Cmpt>

Foam::scalar mag ( ) const

inline

The length (L2-norm) of the vector.

Definition at line 70 of file Vector2DI.H.

References Foam::magSqr().

Here is the call graph for this function:

◆ magSqr()

template<class Cmpt>

Foam::scalar magSqr ( ) const

inline

The length (L2-norm) squared of the vector.

Definition at line 59 of file Vector2DI.H.

References Foam::magSqr(), x, and y.

Here is the call graph for this function:

◆ dist()

template<class Cmpt>

Foam::scalar dist ( const Vector2D< Cmpt > & v2 ) const

inline

The L2-norm distance from another vector. The mag() of the difference.

Definition at line 89 of file Vector2DI.H.

References distSqr(), and Vector2D().

Here is the call graph for this function:

◆ distSqr()

template<class Cmpt>

Foam::scalar distSqr ( const Vector2D< Cmpt > & v2 ) const

inline

The L2-norm distance squared from another vector. The magSqr() of the difference.

Definition at line 78 of file Vector2DI.H.

References Foam::magSqr(), Vector2D(), x(), and y().

Referenced by dist().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ normalise()

template<class Cmpt>

Foam::Vector2D< Cmpt > & normalise ( const scalar tol = ROOTVSMALL )

inline

Normalise the vector by its magnitude.

For small magnitudes (less than ROOTVSMALL) set to zero. Will not be particularly useful for a vector of labels

Definition at line 96 of file Vector2DI.H.

References Foam::mag(), s(), and Foam::Zero.

Here is the call graph for this function:

◆ removeCollinear()

template<class Cmpt>

Foam::Vector2D< Cmpt > & removeCollinear ( const Vector2D< Cmpt > & unitVec )

inline

Inplace removal of components that are collinear to the given unit vector.

Definition at line 115 of file Vector2DI.H.

References Vector2D().

Here is the call graph for this function:

◆ perp()

template<class Cmpt>

scalar perp ( const Vector2D< Cmpt > & b ) const

inline

Perp dot product (dot product with perpendicular vector).

Definition at line 163 of file Vector2DI.H.

References b, Vector2D(), x, and y.

Referenced by triangle2D::area(), triangle2D::lineSegmentIntersectionPoint(), and line< point, const point & >::nearestDist().

Here is the call graph for this function:

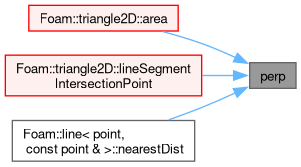

Here is the caller graph for this function:

◆ isClose()

template<class Cmpt>

bool isClose	(	const Vector2D< Cmpt > &	b,
		const scalar	tol = 1e-10 ) const

inline

Return true if vector is within tol.

Definition at line 170 of file Vector2DI.H.

References b, Foam::mag(), Vector2D(), x, and y().

Here is the call graph for this function:

◆ less_xy()

template<class Cmpt>

bool less_xy	(	const Vector2D< Cmpt > &	a,
		const Vector2D< Cmpt > &	b )

inlinestatic

Lexicographically compare a and b with order (x:y).

Definition at line 126 of file Vector2DI.H.

References b, Vector2D(), x(), and y().

Here is the call graph for this function:

◆ less_yx()

template<class Cmpt>

bool less_yx	(	const Vector2D< Cmpt > &	a,
		const Vector2D< Cmpt > &	b )

inlinestatic

Lexicographically compare a and b with order (y:x).

Definition at line 138 of file Vector2DI.H.

References b, Vector2D(), x(), and y().

Here is the call graph for this function:

◆ operator+=()

template<class Cmpt>

template<class Cmpt2>

std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void > operator+= ( const Vector2D< Cmpt2 > & b )

inline

Add compatible 2D vector to this.

Definition at line 236 of file Vector2D.H.

◆ operator-=()

template<class Cmpt>

template<class Cmpt2>

std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void > operator-= ( const Vector2D< Cmpt2 > & b )

inline

Subtract compatible 2D vector from this.

Definition at line 247 of file Vector2D.H.

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 1

staticconstexpr

Rank of Vector2D is 1.

Definition at line 70 of file Vector2D.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/Vector/Vector2D.H
src/OpenFOAM/primitives/Vector/Vector2DI.H

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ labelType

Member Enumeration Documentation

◆ components

Constructor & Destructor Documentation

◆ Vector2D() [1/6]

◆ Vector2D() [2/6]

◆ Vector2D() [3/6]

◆ Vector2D() [4/6]

◆ Vector2D() [5/6]

◆ Vector2D() [6/6]

Member Function Documentation

◆ operator=()

◆ x() [1/2]

◆ y() [1/2]

◆ x() [2/2]

◆ y() [2/2]

◆ mag()

◆ magSqr()

◆ dist()

◆ distSqr()

◆ normalise()

◆ removeCollinear()

◆ perp()

◆ isClose()

◆ less_xy()

◆ less_yx()

◆ operator+=()

◆ operator-=()

Member Data Documentation

◆ rank
