Templated wrapper class to provide compressible turbulence models thermal diffusivity based thermal transport. More...

#include <ThermalDiffusivity.H>

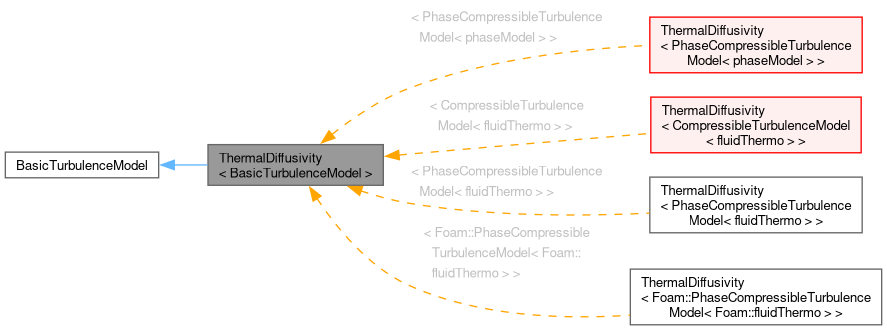

Inheritance diagram for ThermalDiffusivity< BasicTurbulenceModel >:

[legend]

Collaboration diagram for ThermalDiffusivity< BasicTurbulenceModel >:

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef volScalarField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	ThermalDiffusivity (const word &type, const alphaField &alpha, const volScalarField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct.
virtual	~ThermalDiffusivity ()=default
	Destructor.
virtual tmp< volScalarField >	kappa () const
	Return the thermal diffusivity for temperature [J/m/s/K].
virtual tmp< scalarField >	kappa (const label patchi) const
	Return the laminar thermal diffusivity for temperature on patch.
virtual tmp< volScalarField >	alpha () const
	Return the laminar thermal diffusivity for enthalpy [kg/m/s].
virtual tmp< scalarField >	alpha (const label patchi) const
	Return the laminar thermal diffusivity for enthalpy on patch.
virtual tmp< volScalarField >	alphat () const
	Return the turbulent thermal diffusivity for enthalpy [kg/m/s].
virtual tmp< scalarField >	alphat (const label patchi) const
	Return the turbulent thermal diffusivity for enthalpy for a patch.
virtual tmp< volScalarField >	kappaEff () const
	Return the effective turbulent thermal diffusivity for temperature.
virtual tmp< scalarField >	kappaEff (const label patchi) const
	Return the effective turbulent thermal diffusivity for temperature.
virtual tmp< volScalarField >	alphaEff () const
	Return the effective turbulent thermal diffusivity for enthalpy.
virtual tmp< scalarField >	alphaEff (const label patchi) const
	Return the effective turbulent thermal diffusivity for enthalpy.

Static Public Member Functions
static autoPtr< ThermalDiffusivity >	New (const alphaField &alpha, const volScalarField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transportModel, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected turbulence model.
static autoPtr< ThermalDiffusivity >	New (const volScalarField &rho, const volVectorField &U, const surfaceScalarField &phi, const transportModel &transportModel, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected turbulence model.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::ThermalDiffusivity< BasicTurbulenceModel >

Templated wrapper class to provide compressible turbulence models thermal diffusivity based thermal transport.

Source files

Definition at line 47 of file ThermalDiffusivity.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 54 of file ThermalDiffusivity.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef volScalarField rhoField

Definition at line 55 of file ThermalDiffusivity.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 56 of file ThermalDiffusivity.H.

Constructor & Destructor Documentation

◆ ThermalDiffusivity()

template<class BasicTurbulenceModel>

ThermalDiffusivity	(	const word &	type,
		const alphaField &	alpha,
		const volScalarField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName )

Construct.

Definition at line 26 of file ThermalDiffusivity.C.

References alpha(), phi, rho, and U.

Referenced by New().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~ThermalDiffusivity()

template<class BasicTurbulenceModel>

virtual ~ThermalDiffusivity ( )

virtualdefault

Destructor.

Member Function Documentation

◆ New() [1/2]

template<class BasicTurbulenceModel>

Foam::autoPtr< Foam::ThermalDiffusivity< BasicTurbulenceModel > > New	(	const alphaField &	alpha,
		const volScalarField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transportModel,
		const word &	propertiesName = turbulenceModel::propertiesName )

static

Return a reference to the selected turbulence model.

Definition at line 56 of file ThermalDiffusivity.C.

References alpha(), phi, rho, and U.

Here is the call graph for this function:

◆ New() [2/2]

template<class BasicTurbulenceModel>

Foam::autoPtr< Foam::ThermalDiffusivity< BasicTurbulenceModel > > New	(	const volScalarField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	phi,
		const transportModel &	transportModel,
		const word &	propertiesName = turbulenceModel::propertiesName )

static

Return a reference to the selected turbulence model.

Definition at line 86 of file ThermalDiffusivity.C.

References phi, rho, ThermalDiffusivity(), and U.

Here is the call graph for this function:

◆ kappa() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > kappa ( ) const

inlinevirtual

Return the thermal diffusivity for temperature [J/m/s/K].

Definition at line 118 of file ThermalDiffusivity.H.

Referenced by ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > >::kappaEff(), and ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > >::kappaEff().

Here is the caller graph for this function:

◆ kappa() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > kappa ( const label patchi ) const

inlinevirtual

Return the laminar thermal diffusivity for temperature on patch.

[J/m/s/K]

Definition at line 128 of file ThermalDiffusivity.H.

◆ alpha() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > alpha ( ) const

inlinevirtual

Return the laminar thermal diffusivity for enthalpy [kg/m/s].

Definition at line 136 of file ThermalDiffusivity.H.

Referenced by New(), and ThermalDiffusivity().

Here is the caller graph for this function:

◆ alpha() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > alpha ( const label patchi ) const

inlinevirtual

Return the laminar thermal diffusivity for enthalpy on patch.

[kg/m/s]

Definition at line 146 of file ThermalDiffusivity.H.

◆ alphat() [1/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > alphat ( ) const

virtual

Return the turbulent thermal diffusivity for enthalpy [kg/m/s].

Reimplemented in EddyDiffusivity< compressible::turbulenceModel >, EddyDiffusivity< phaseCompressibleTurbulenceModel >, and EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > >.

Definition at line 114 of file ThermalDiffusivity.C.

References Foam::dimDensity, Foam::dimViscosity, IOobject::groupName(), tmp< T >::New(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, and Foam::Zero.

Here is the call graph for this function:

◆ alphat() [2/2]

template<class BasicTurbulenceModel>

Foam::tmp< Foam::scalarField > alphat ( const label patchi ) const

virtual

Return the turbulent thermal diffusivity for enthalpy for a patch.

[kg/m/s]

Definition at line 134 of file ThermalDiffusivity.C.

References tmp< T >::New(), and Foam::Zero.

Here is the call graph for this function:

◆ kappaEff() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > kappaEff ( ) const

inlinevirtual

Return the effective turbulent thermal diffusivity for temperature.

[J/m/s/K]

Reimplemented in EddyDiffusivity< compressible::turbulenceModel >, EddyDiffusivity< phaseCompressibleTurbulenceModel >, and EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > >.

Definition at line 168 of file ThermalDiffusivity.H.

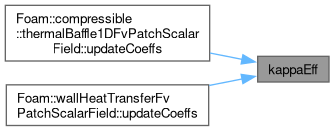

Referenced by thermalBaffle1DFvPatchScalarField< solidType >::updateCoeffs(), and wallHeatTransferFvPatchScalarField::updateCoeffs().

Here is the caller graph for this function:

◆ kappaEff() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > kappaEff ( const label patchi ) const

inlinevirtual

Return the effective turbulent thermal diffusivity for temperature.

[J/m/s/K]

Definition at line 178 of file ThermalDiffusivity.H.

◆ alphaEff() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > alphaEff ( ) const

inlinevirtual

Return the effective turbulent thermal diffusivity for enthalpy.

[kg/m/s]

Reimplemented in EddyDiffusivity< compressible::turbulenceModel >, EddyDiffusivity< phaseCompressibleTurbulenceModel >, and EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > >.

Definition at line 188 of file ThermalDiffusivity.H.

Referenced by convectiveHeatTransferFvPatchScalarField::updateCoeffs().

Here is the caller graph for this function:

◆ alphaEff() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > alphaEff ( const label patchi ) const

inlinevirtual

Return the effective turbulent thermal diffusivity for enthalpy.

for a patch [kg/m/s]

Definition at line 198 of file ThermalDiffusivity.H.

The documentation for this class was generated from the following files:

src/phaseSystemModels/reactingEuler/multiphaseSystem/turbulence/phaseCompressibleTurbulenceModelFwd.H
src/TurbulenceModels/compressible/ThermalDiffusivity/ThermalDiffusivity.H
src/TurbulenceModels/compressible/ThermalDiffusivity/ThermalDiffusivity.C
