Class to provide interfacial heat and mass transfer between a number of phases according the interfacial temperature approximated by the saturation temperature. More...

#include <ThermalPhaseChangePhaseSystem.H>

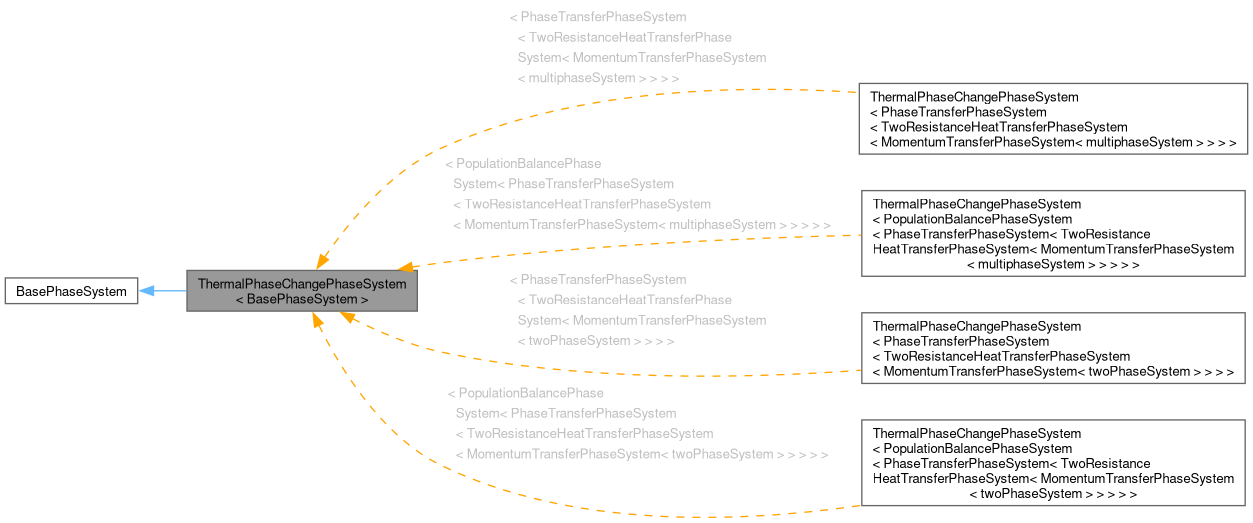

Inheritance diagram for ThermalPhaseChangePhaseSystem< BasePhaseSystem >:

[legend]

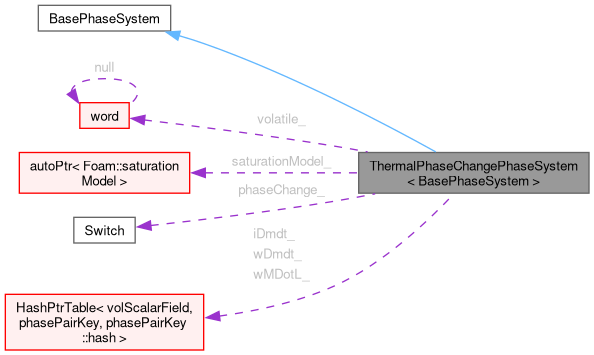

Collaboration diagram for ThermalPhaseChangePhaseSystem< BasePhaseSystem >:

[legend]

Public Member Functions
	ThermalPhaseChangePhaseSystem (const fvMesh &)
	Construct from fvMesh.
virtual	~ThermalPhaseChangePhaseSystem ()
	Destructor.
const saturationModel &	saturation () const
	Return the saturationModel.
virtual tmp< volScalarField >	dmdt (const phasePairKey &key) const
	Return the mass transfer rate for a pair.
virtual PtrList< volScalarField >	dmdts () const
	Return the mass transfer rates for each phase.
virtual autoPtr< phaseSystem::heatTransferTable >	heatTransfer () const
	Return the heat transfer matrices.
virtual autoPtr< phaseSystem::massTransferTable >	massTransfer () const
	Return the mass transfer matrices.
virtual void	correctInterfaceThermo ()
	Correct the interface thermodynamics.
virtual bool	read ()
	Read base phaseProperties dictionary.

Protected Types
typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash >	iDmdtTable
typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash >	wDmdtTable
typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash >	wMDotLTable

Protected Member Functions
tmp< volScalarField >	iDmdt (const phasePairKey &key) const
	Return the interfacial mass transfer rate for a pair.
tmp< volScalarField >	wDmdt (const phasePairKey &key) const
	Return the boundary mass transfer rate for a pair.

Protected Attributes
word	volatile_
	Name of the volatile specie.
autoPtr< saturationModel >	saturationModel_
	The saturation model used to evaluate Tsat = Tf.
Switch	phaseChange_
iDmdtTable	iDmdt_
	Interfacial Mass transfer rate.
wDmdtTable	wDmdt_
	Boundary Mass transfer rate.
wMDotLTable	wMDotL_
	Boundary thermal energy transfer rate.

Detailed Description

template<class BasePhaseSystem>
class Foam::ThermalPhaseChangePhaseSystem< BasePhaseSystem >

Class to provide interfacial heat and mass transfer between a number of phases according the interfacial temperature approximated by the saturation temperature.

Source files

Definition at line 51 of file ThermalPhaseChangePhaseSystem.H.

Member Typedef Documentation

◆ iDmdtTable

template<class BasePhaseSystem>

typedef HashPtrTable<volScalarField, phasePairKey, phasePairKey::hash> iDmdtTable

protected

Definition at line 61 of file ThermalPhaseChangePhaseSystem.H.

◆ wDmdtTable

template<class BasePhaseSystem>

typedef HashPtrTable<volScalarField, phasePairKey, phasePairKey::hash> wDmdtTable

protected

Definition at line 64 of file ThermalPhaseChangePhaseSystem.H.

◆ wMDotLTable

template<class BasePhaseSystem>

typedef HashPtrTable<volScalarField, phasePairKey, phasePairKey::hash> wMDotLTable

protected

Definition at line 67 of file ThermalPhaseChangePhaseSystem.H.

Constructor & Destructor Documentation

◆ ThermalPhaseChangePhaseSystem()

template<class BasePhaseSystem>

ThermalPhaseChangePhaseSystem ( const fvMesh & mesh )

Construct from fvMesh.

Definition at line 68 of file ThermalPhaseChangePhaseSystem.C.

References IOobjectOption::AUTO_WRITE, Foam::dimDensity, Foam::dimEnergy, Foam::dimTime, Foam::dimVolume, forAllConstIter, IOobject::groupName(), iDmdt_, mesh, phasePair::name(), Foam::New(), phasePairKey::ordered(), phaseChange_, IOobjectOption::READ_IF_PRESENT, saturationModel_, volatile_, wDmdt_, and wMDotL_.

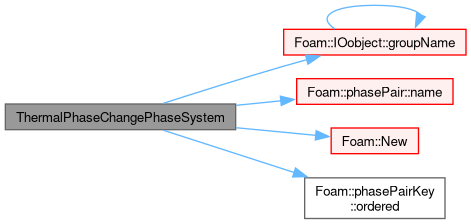

Here is the call graph for this function:

◆ ~ThermalPhaseChangePhaseSystem()

template<class BasePhaseSystem>

~ThermalPhaseChangePhaseSystem ( )

virtual

Destructor.

Definition at line 160 of file ThermalPhaseChangePhaseSystem.C.

Member Function Documentation

◆ iDmdt()

template<class BasePhaseSystem>

Foam::tmp< Foam::volScalarField > iDmdt ( const phasePairKey & key ) const

protected

Return the interfacial mass transfer rate for a pair.

Definition at line 31 of file ThermalPhaseChangePhaseSystem.C.

References Pair< T >::compare(), phaseSystem::dmdt(), and iDmdt_.

Referenced by correctInterfaceThermo(), dmdt(), dmdts(), heatTransfer(), and massTransfer().

Here is the call graph for this function:

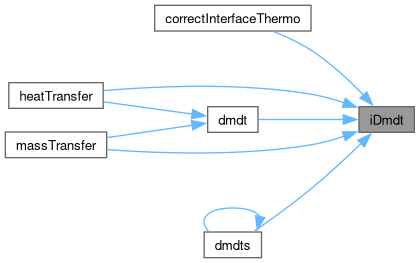

Here is the caller graph for this function:

◆ wDmdt()

template<class BasePhaseSystem>

Foam::tmp< Foam::volScalarField > wDmdt ( const phasePairKey & key ) const

protected

Return the boundary mass transfer rate for a pair.

Definition at line 49 of file ThermalPhaseChangePhaseSystem.C.

References Pair< T >::compare(), phaseSystem::dmdt(), and wDmdt_.

Referenced by correctInterfaceThermo(), dmdt(), dmdts(), heatTransfer(), and massTransfer().

Here is the call graph for this function:

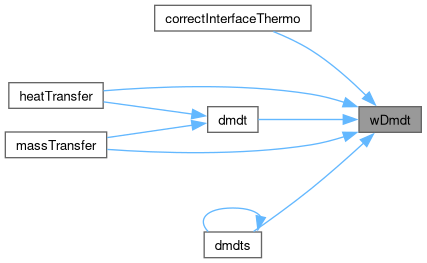

Here is the caller graph for this function:

◆ saturation()

template<class BasePhaseSystem>

const Foam::saturationModel & saturation ( ) const

Return the saturationModel.

Definition at line 169 of file ThermalPhaseChangePhaseSystem.C.

References saturationModel_.

◆ dmdt()

template<class BasePhaseSystem>

Foam::tmp< Foam::volScalarField > dmdt ( const phasePairKey & key ) const

virtual

Return the mass transfer rate for a pair.

Definition at line 177 of file ThermalPhaseChangePhaseSystem.C.

References iDmdt(), and wDmdt().

Referenced by heatTransfer(), and massTransfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmdts()

template<class BasePhaseSystem>

Foam::PtrList< Foam::volScalarField > dmdts ( ) const

virtual

Return the mass transfer rates for each phase.

Definition at line 188 of file ThermalPhaseChangePhaseSystem.C.

References dmdts(), forAllConstIter, iDmdt(), iDmdt_, phasePair::phase1(), phasePair::phase2(), wDmdt(), and wDmdt_.

Referenced by dmdts().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ heatTransfer()

template<class BasePhaseSystem>

Foam::autoPtr< Foam::phaseSystem::heatTransferTable > heatTransfer ( ) const

virtual

Return the heat transfer matrices.

Definition at line 216 of file ThermalPhaseChangePhaseSystem.C.

References dmdt(), forAllConstIter, iDmdt(), Foam::negPart(), phasePairKey::ordered(), phasePair::phase1(), phase1, phasePair::phase2(), phase2, Foam::posPart(), wDmdt(), and wMDotL_.

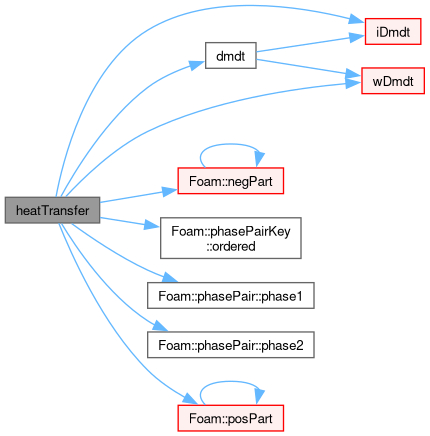

Here is the call graph for this function:

◆ massTransfer()

template<class BasePhaseSystem>

Foam::autoPtr< Foam::phaseSystem::massTransferTable > massTransfer ( ) const

virtual

Return the mass transfer matrices.

Definition at line 278 of file ThermalPhaseChangePhaseSystem.C.

References dmdt(), forAll, forAllConstIter, IOobject::groupName(), iDmdt(), Foam::name(), phase::name(), phaseModel::name(), name, phasePairKey::ordered(), phasePair::phase1(), phasePair::phase2(), volatile_, and wDmdt().

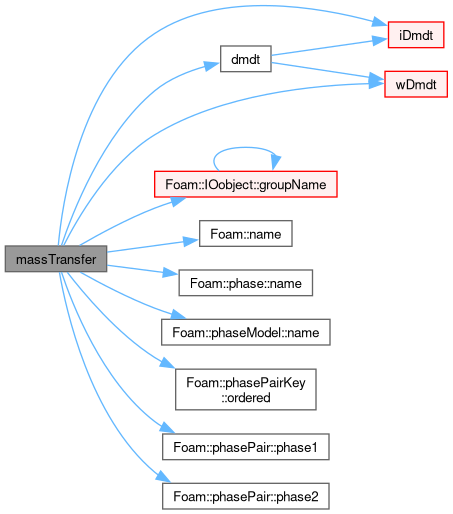

Here is the call graph for this function:

◆ correctInterfaceThermo()

template<class BasePhaseSystem>

void correctInterfaceThermo ( )

virtual

Correct the interface thermodynamics.

Definition at line 337 of file ThermalPhaseChangePhaseSystem.C.

References fvMesh::boundary(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::clamp_min(), Pair< T >::compare(), Foam::fvc::domainIntegrate(), Foam::endl(), fvPatch::faceCells(), forAll, forAllConstIter, Foam::gAverage(), Foam::gMinMax(), he2, iDmdt(), iDmdt_, Foam::Info, Foam::isA(), L, limits, IOobject::member(), DimensionedField< Type, GeoMesh >::mesh(), mesh, phase::name(), phaseModel::name(), phasePair::name(), Foam::neg(), Foam::neg0(), phaseModel::otherPhase(), p, patches, phasePair::phase1(), phase1, phasePair::phase2(), phase2, phaseChange_, Foam::pos(), Foam::pos0(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), Foam::refCast(), saturationModel_, Foam::sign(), wDmdt(), wDmdt_, wMDotL_, and Foam::Zero.

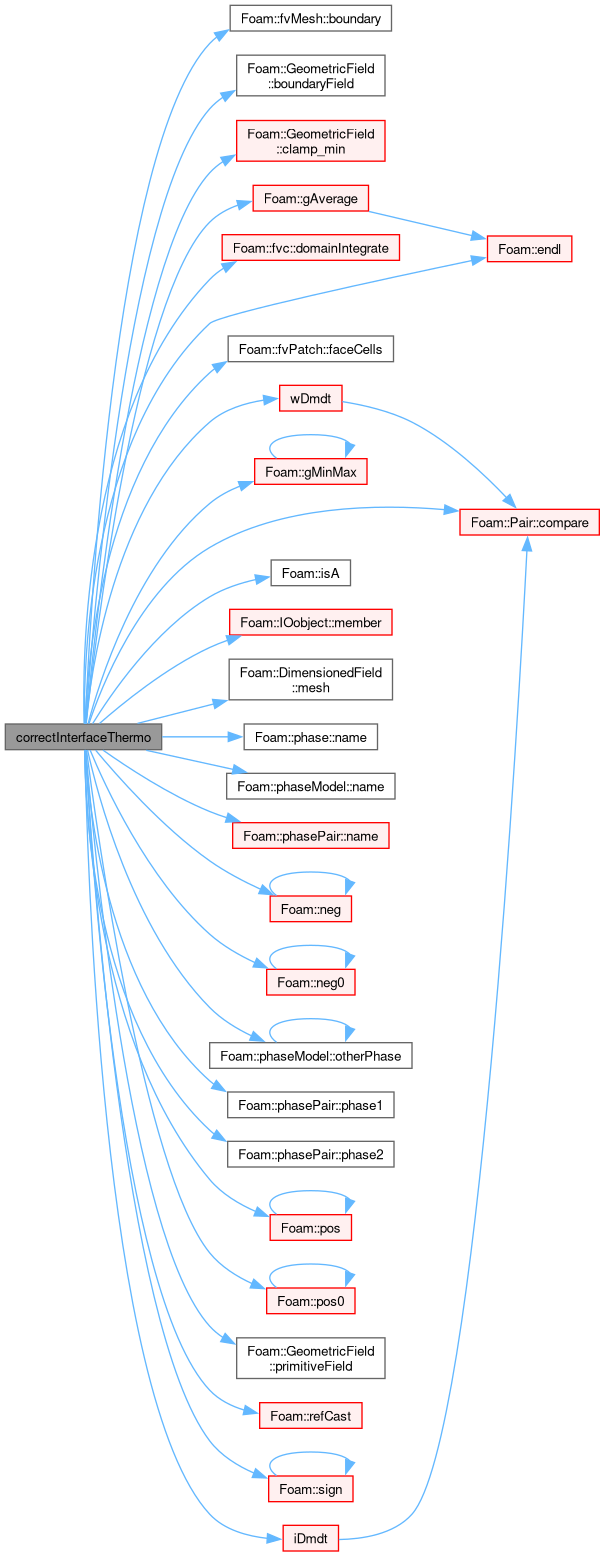

Here is the call graph for this function:

◆ read()

template<class BasePhaseSystem>

bool read ( )

virtual

Read base phaseProperties dictionary.

Definition at line 544 of file ThermalPhaseChangePhaseSystem.C.

Member Data Documentation

◆ volatile_

template<class BasePhaseSystem>

word volatile_

protected

Name of the volatile specie.

Definition at line 75 of file ThermalPhaseChangePhaseSystem.H.

Referenced by massTransfer(), and ThermalPhaseChangePhaseSystem().

◆ saturationModel_

template<class BasePhaseSystem>

autoPtr<saturationModel> saturationModel_

protected

The saturation model used to evaluate Tsat = Tf.

Definition at line 80 of file ThermalPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), saturation(), and ThermalPhaseChangePhaseSystem().

◆ phaseChange_

template<class BasePhaseSystem>

Switch phaseChange_

protected

Definition at line 83 of file ThermalPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), and ThermalPhaseChangePhaseSystem().

◆ iDmdt_

template<class BasePhaseSystem>

iDmdtTable iDmdt_

protected

Interfacial Mass transfer rate.

Definition at line 88 of file ThermalPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), dmdts(), iDmdt(), and ThermalPhaseChangePhaseSystem().

◆ wDmdt_

template<class BasePhaseSystem>

wDmdtTable wDmdt_

protected

Boundary Mass transfer rate.

Definition at line 93 of file ThermalPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), dmdts(), ThermalPhaseChangePhaseSystem(), and wDmdt().

◆ wMDotL_

template<class BasePhaseSystem>

wMDotLTable wMDotL_

protected

Boundary thermal energy transfer rate.

Definition at line 98 of file ThermalPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), heatTransfer(), and ThermalPhaseChangePhaseSystem().

The documentation for this class was generated from the following files:

src/phaseSystemModels/reactingEuler/multiphaseSystem/PhaseSystems/ThermalPhaseChangePhaseSystem/ThermalPhaseChangePhaseSystem.H
src/phaseSystemModels/reactingEuler/multiphaseSystem/PhaseSystems/ThermalPhaseChangePhaseSystem/ThermalPhaseChangePhaseSystem.C
