The time value with time-stepping information, user-defined remapping, etc. More...

#include <TimeState.H>

Inheritance diagram for TimeState:

[legend]

Collaboration diagram for TimeState:

Public Member Functions
	TimeState ()
	Construct a zero time state, using the current time formatting.
virtual	~TimeState ()=default
	Destructor.
virtual scalar	userTimeToTime (const scalar theta) const
	Convert the user-time (e.g. CA deg) to real-time (s).
virtual scalar	timeToUserTime (const scalar t) const
	Convert the real-time (s) into user-time (e.g. CA deg).
scalar	timeOutputValue () const
	Return the current user-time value. (ie, after applying any timeToUserTime() conversion).
const word &	timeName () const noexcept
	Return the current time name.
label	timeIndex () const noexcept
	Return the current time index.
scalar	deltaTValue () const noexcept
	Return time step value.
scalar	deltaT0Value () const noexcept
	Return old time step value.
dimensionedScalar	deltaT () const
	Return time step.
dimensionedScalar	deltaT0 () const
	Return old time step.
bool	writeTime () const noexcept
	True if this is a write interval.
bool	outputTime () const noexcept
	Deprecated(2016-05) return true if this is a write time.
Public Member Functions inherited from dimensioned< scalar >
	dimensioned ()
	A dimensionless Zero, named "0".
	dimensioned (const dimensionSet &dims)
	A dimensioned Zero, named "0".
	dimensioned (const dimensionSet &dims, const Foam::zero)
	A dimensioned Zero, named "0".
	dimensioned (const dimensionSet &dims, const Foam::one)
	A dimensioned pTraits::one, named "1".
	dimensioned (const scalar &val)
	Implicit construct dimensionless from given value.
	dimensioned (const dimensionSet &dims, const scalar &val)
	Construct dimensioned from given value.
	dimensioned (const word &name, const dimensionSet &dims, const scalar &val)
	Construct from components (name, dimensions, value).
	dimensioned (const word &name, const dimensioned< scalar > &dt)
	Copy construct dimensioned Type with a new name.
	dimensioned (const primitiveEntry &e)
	Construct from primitive entry with given name.
	dimensioned (const primitiveEntry &e, const dimensionSet &dims)
	Construct from primitive entry with given name and dimensions.
	dimensioned (const word &name, const dictionary &dict)
	Construct from dictionary lookup with a given name.
	dimensioned (const word &name, const dimensionSet &dims, const dictionary &dict)
	Construct from dictionary lookup with a given name and dimensions.
	dimensioned (const word &name, const dimensionSet &dims, const dictionary &dict, const word &entryName)
	Construct from dictionary lookup with a given name and dimensions.
	dimensioned (const word &name, const dimensionSet &dims, const scalar &val, const dictionary &dict)
	Construct from components (name, dimensions, value) with optional dictionary override.
const word &	name () const noexcept
	Return const reference to name.
word &	name () noexcept
	Return non-const reference to name.
const dimensionSet &	dimensions () const noexcept
	Return const reference to dimensions.
dimensionSet &	dimensions () noexcept
	Return non-const reference to dimensions.
const scalar &	value () const noexcept
	Return const reference to value.
scalar &	value () noexcept
	Return non-const reference to value.
dimensioned< cmptType >	component (const direction d) const
	Return a component as a dimensioned<cmptType>.
void	replace (const direction d, const dimensioned< cmptType > &dc)
	Return a component with a dimensioned<cmptType>.
dimensioned< scalar >	T () const
	Return transpose.
bool	read (const dictionary &dict)
	Update the value of dimensioned<Type>, lookup in dictionary with the name().
bool	readIfPresent (const dictionary &dict)
	Update the value of dimensioned<Type> if found in the dictionary, lookup in dictionary with the name().
bool	read (const word &entryName, const dictionary &dict)
	Update the value of dimensioned<Type>, using an alternative entry name.
bool	readIfPresent (const word &entryName, const dictionary &dict)
	Update the value of dimensioned<Type> if found in the dictionary, using an alternative entry name.
Istream &	read (Istream &is, const bool readName=true)
	Read (name, dimensions, value) from stream, using units from system table.
Istream &	read (Istream &is, const dictionary &readSet)
	Read (name, dimensions, value) from stream, using units from dictionary.
Istream &	read (Istream &is, const HashTable< dimensionedScalar > &readSet)
	Read (name, dimensions, value) from stream, using units from table.
void	writeEntry (const word &keyword, Ostream &os) const
	Write as a dictionary entry with keyword.
dimensioned< cmptType >	operator[] (const direction d) const
	Return a component as a dimensioned<cmptType>.
void	operator+= (const dimensioned< scalar > &dt)
void	operator-= (const dimensioned< scalar > &dt)
void	operator*= (const scalar s)
void	operator/= (const scalar s)
	dimensioned (Istream &is)
	Deprecated(2018-11) Construct from Istream (expects name, dimensions, value).
	dimensioned (const word &name, Istream &is)
	Deprecated(2018-11) Construct from Istream with given name (expects dimensions, value).
	dimensioned (const word &name, const dimensionSet &dims, Istream &is)
	Deprecated(2018-11) Construct from Istream with given name and expected dimensions.
auto	expr (const label size) const
	Wrap value as constant-value List expression.
auto	expr (const GeoField &fld) const
	Wrap value as constant-value GeometricField expression. Supplied.

Protected Member Functions
void	resetTimeState (const word &newName, const scalar newValue, const label newIndex)
	Reset some of TimeState (name, value, index).

Protected Attributes
label	timeIndex_
label	writeTimeIndex_
scalar	deltaT_
scalar	deltaT0_
scalar	deltaTSave_
bool	deltaTchanged_
bool	writeTime_

Additional Inherited Members
Public Types inherited from dimensioned< scalar >
typedef scalar	value_type
	The underlying data type.
typedef pTraits< scalar >::cmptType	cmptType
	Component type.
Static Public Member Functions inherited from dimensioned< scalar >
static dimensioned< scalar >	getOrDefault (const word &name, const dictionary &dict, const dimensionSet &dims=dimless, const scalar &deflt=scalar(Zero))
	Construct dimensioned from dictionary, with default value.
static dimensioned< scalar >	getOrDefault (const word &name, const dictionary &dict, const scalar &deflt=scalar(Zero))
	Construct dimensionless from dictionary, with default value.
static dimensioned< scalar >	getOrAddToDict (const word &name, dictionary &dict, const dimensionSet &dims=dimless, const scalar &deflt=scalar(Zero))
	Construct dimensioned from dictionary, with default value.
static dimensioned< scalar >	getOrAddToDict (const word &name, dictionary &dict, const scalar &deflt=scalar(Zero))
	Construct dimensionless from dictionary, with default value.
static dimensioned< scalar >	lookupOrDefault (const word &name, const dictionary &dict, const dimensionSet &dims=dimless, const scalar &deflt=scalar(Zero))
	Same as getOrDefault().
static dimensioned< scalar >	lookupOrDefault (const word &name, const dictionary &dict, const scalar &deflt=scalar(Zero))
	Same as getOrDefault().
static dimensioned< scalar >	lookupOrAddToDict (const word &name, dictionary &dict, const dimensionSet &dims=dimless, const scalar &deflt=scalar(Zero))
	Same as getOrAddToDict().
static dimensioned< scalar >	lookupOrAddToDict (const word &name, dictionary &dict, const scalar &deflt=scalar(Zero))
	Same as getOrAddToDict().

Detailed Description

The time value with time-stepping information, user-defined remapping, etc.

Source files

Definition at line 47 of file TimeState.H.

Constructor & Destructor Documentation

◆ TimeState()

TimeState ( )

Construct a zero time state, using the current time formatting.

Definition at line 27 of file TimeState.C.

References deltaT0_, deltaT_, deltaTchanged_, deltaTSave_, Foam::dimTime, timeIndex_, timeName(), writeTime_, and writeTimeIndex_.

Referenced by Time::prevTimeState(), and Time::subCycle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ~TimeState()

virtual ~TimeState ( )

virtualdefault

Destructor.

References deltaT(), deltaT0(), deltaT0Value(), deltaTValue(), Foam::noexcept, timeIndex(), and writeTime().

Here is the call graph for this function:

Member Function Documentation

◆ resetTimeState()

void resetTimeState	(	const word &	newName,
		const scalar	newValue,
		const label	newIndex )

inlineprotected

Reset some of TimeState (name, value, index).

Definition at line 80 of file TimeState.H.

References dimensioned< scalar >::name(), timeIndex_, and dimensioned< scalar >::value().

Referenced by Time::setTime(), Time::setTime(), and Time::setTime().

Here is the call graph for this function:

Here is the caller graph for this function:

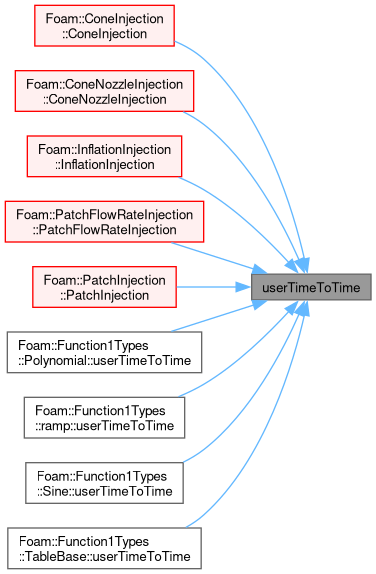

◆ userTimeToTime()

Foam::scalar userTimeToTime ( const scalar theta ) const

virtual

Convert the user-time (e.g. CA deg) to real-time (s).

Reimplemented in crankConRod.

Definition at line 42 of file TimeState.C.

Referenced by ConeInjection< CloudType >::ConeInjection(), ConeNozzleInjection< CloudType >::ConeNozzleInjection(), InflationInjection< CloudType >::InflationInjection(), PatchFlowRateInjection< CloudType >::PatchFlowRateInjection(), PatchInjection< CloudType >::PatchInjection(), Polynomial< Type >::userTimeToTime(), ramp::userTimeToTime(), Sine< Type >::userTimeToTime(), and TableBase< Type >::userTimeToTime().

Here is the caller graph for this function:

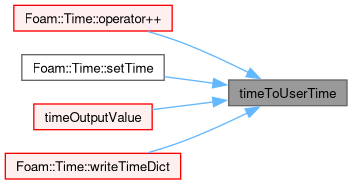

◆ timeToUserTime()

Foam::scalar timeToUserTime ( const scalar t ) const

virtual

Convert the real-time (s) into user-time (e.g. CA deg).

Reimplemented in crankConRod.

Definition at line 48 of file TimeState.C.

Referenced by Time::operator++(), Time::setTime(), timeOutputValue(), and Time::writeTimeDict().

Here is the caller graph for this function:

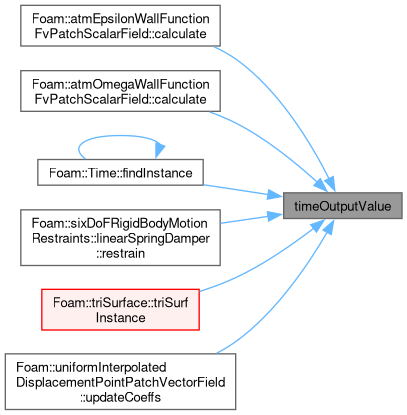

◆ timeOutputValue()

Foam::scalar timeOutputValue ( ) const

inline

Return the current user-time value. (ie, after applying any timeToUserTime() conversion).

Definition at line 24 of file TimeStateI.H.

References timeToUserTime(), and dimensioned< scalar >::value().

Referenced by atmEpsilonWallFunctionFvPatchScalarField::calculate(), atmOmegaWallFunctionFvPatchScalarField::calculate(), Time::findInstance(), linearSpringDamper::restrain(), triSurface::triSurfInstance(), and uniformInterpolatedDisplacementPointPatchVectorField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

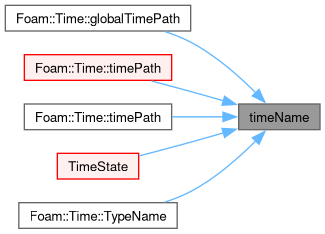

◆ timeName()

const Foam::word & timeName ( ) const

inlinenoexcept

Return the current time name.

Definition at line 30 of file TimeStateI.H.

References dimensioned< scalar >::name(), and Foam::noexcept.

Referenced by Time::globalTimePath(), Time::timePath(), Time::timePath(), TimeState(), and Time::TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

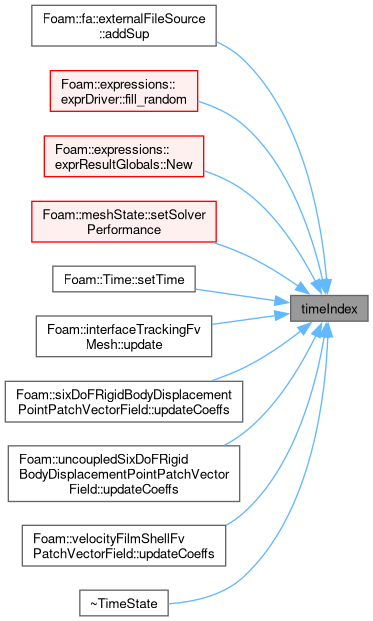

◆ timeIndex()

Foam::label timeIndex ( ) const

inlinenoexcept

Return the current time index.

Definition at line 43 of file TimeStateI.H.

References Foam::noexcept, and timeIndex_.

Referenced by externalFileSource::addSup(), exprDriver::fill_random(), exprResultGlobals::New(), meshState::setSolverPerformance(), Time::setTime(), interfaceTrackingFvMesh::update(), sixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), uncoupledSixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), velocityFilmShellFvPatchVectorField::updateCoeffs(), and ~TimeState().

Here is the caller graph for this function:

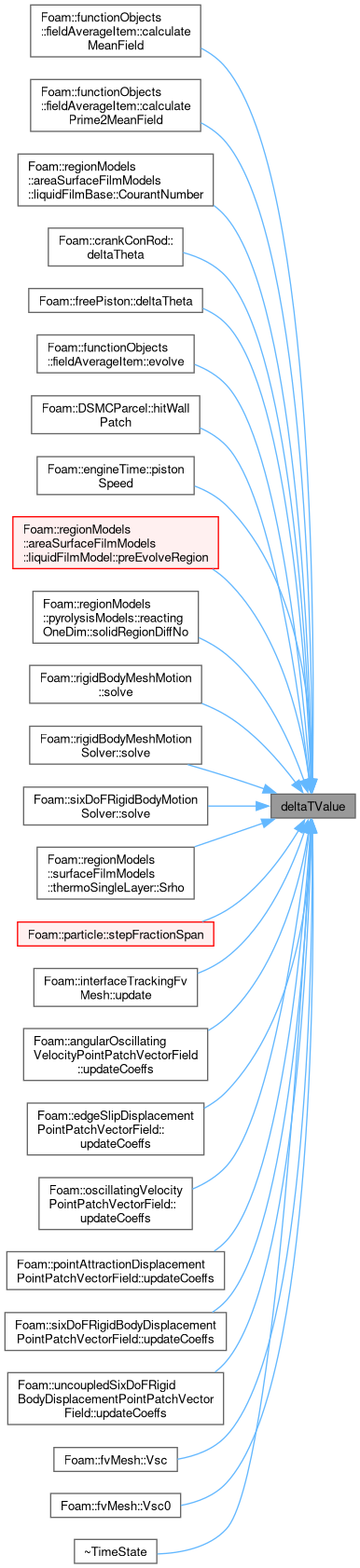

◆ deltaTValue()

Foam::scalar deltaTValue ( ) const

inlinenoexcept

Return time step value.

Definition at line 49 of file TimeStateI.H.

References deltaT_, and Foam::noexcept.

Referenced by fieldAverageItem::calculateMeanField(), fieldAverageItem::calculatePrime2MeanField(), liquidFilmBase::CourantNumber(), crankConRod::deltaTheta(), freePiston::deltaTheta(), fieldAverageItem::evolve(), DSMCParcel< ParcelType >::hitWallPatch(), engineTime::pistonSpeed(), liquidFilmModel::preEvolveRegion(), reactingOneDim::solidRegionDiffNo(), rigidBodyMeshMotion::solve(), rigidBodyMeshMotionSolver::solve(), sixDoFRigidBodyMotionSolver::solve(), thermoSingleLayer::Srho(), particle< Type >::stepFractionSpan(), interfaceTrackingFvMesh::update(), angularOscillatingVelocityPointPatchVectorField::updateCoeffs(), edgeSlipDisplacementPointPatchVectorField::updateCoeffs(), oscillatingVelocityPointPatchVectorField::updateCoeffs(), pointAttractionDisplacementPointPatchVectorField::updateCoeffs(), sixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), uncoupledSixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), fvMesh::Vsc(), fvMesh::Vsc0(), and ~TimeState().

Here is the caller graph for this function:

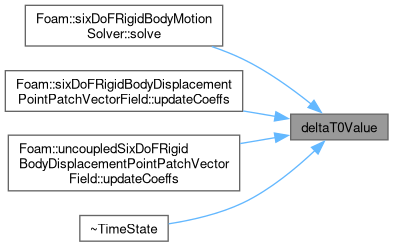

◆ deltaT0Value()

Foam::scalar deltaT0Value ( ) const

inlinenoexcept

Return old time step value.

Definition at line 55 of file TimeStateI.H.

References deltaT0_, and Foam::noexcept.

Referenced by sixDoFRigidBodyMotionSolver::solve(), sixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), uncoupledSixDoFRigidBodyDisplacementPointPatchVectorField::updateCoeffs(), and ~TimeState().

Here is the caller graph for this function:

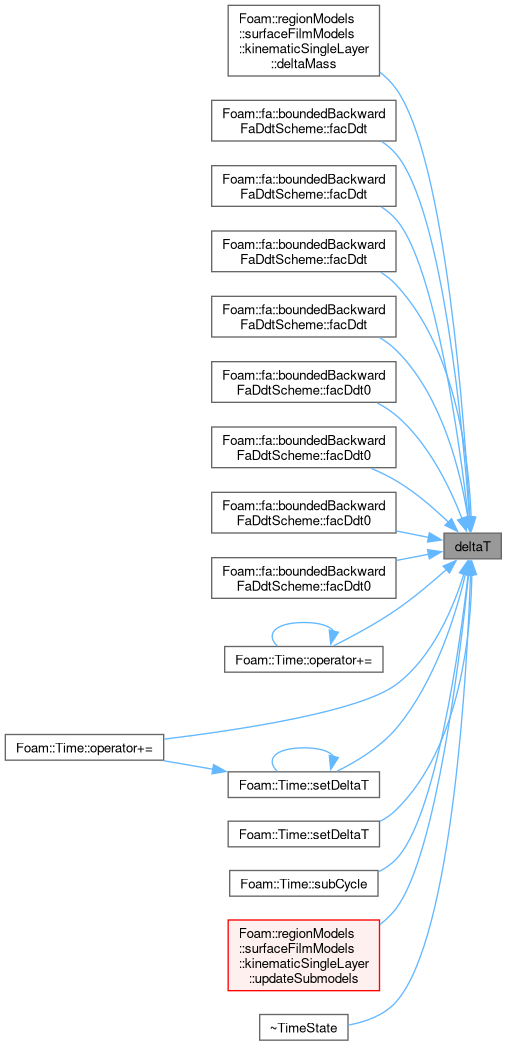

◆ deltaT()

Foam::dimensionedScalar deltaT ( ) const

inline

Return time step.

Definition at line 61 of file TimeStateI.H.

References deltaT_, and Foam::dimTime.

Here is the caller graph for this function:

◆ deltaT0()

Foam::dimensionedScalar deltaT0 ( ) const

inline

Return old time step.

Definition at line 67 of file TimeStateI.H.

References deltaT0_, and Foam::dimTime.

Referenced by ~TimeState().

Here is the caller graph for this function:

◆ writeTime()

bool writeTime ( ) const

inlinenoexcept

True if this is a write interval.

Definition at line 73 of file TimeStateI.H.

References Foam::noexcept, and writeTime_.

Referenced by outputTime(), Time::writeObject(), and ~TimeState().

Here is the caller graph for this function:

◆ outputTime()

bool outputTime ( ) const

inlinenoexcept

Deprecated(2016-05) return true if this is a write time.

Deprecated: (2016-05) - use writeTime() method

Definition at line 175 of file TimeState.H.

References Foam::noexcept, outputTime(), and writeTime().

Referenced by outputTime().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ timeIndex_

label timeIndex_

protected

Definition at line 64 of file TimeState.H.

Referenced by Time::operator++(), resetTimeState(), Time::run(), Time::setControls(), Time::setTime(), timeIndex(), TimeState(), and Time::writeTimeDict().

◆ writeTimeIndex_

label writeTimeIndex_

protected

Definition at line 65 of file TimeState.H.

Referenced by Time::adjustDeltaT(), Time::operator++(), Time::readDict(), and TimeState().

◆ deltaT_

scalar deltaT_

protected

Definition at line 67 of file TimeState.H.

Referenced by Time::adjustDeltaT(), crankConRod::crankConRod(), deltaT(), deltaTValue(), Time::end(), Time::operator++(), Time::readDict(), Time::run(), Time::setControls(), Time::setDeltaT(), Time::setTime(), Time::subCycle(), TimeState(), and Time::writeTimeDict().

◆ deltaT0_

scalar deltaT0_

protected

Definition at line 68 of file TimeState.H.

Referenced by crankConRod::crankConRod(), deltaT0(), deltaT0Value(), Time::operator++(), Time::setControls(), Time::setTime(), Time::subCycle(), TimeState(), and Time::writeTimeDict().

◆ deltaTSave_

scalar deltaTSave_

protected

Definition at line 69 of file TimeState.H.

Referenced by crankConRod::crankConRod(), Time::operator++(), Time::setControls(), Time::subCycle(), and TimeState().

◆ deltaTchanged_

bool deltaTchanged_

protected

Definition at line 71 of file TimeState.H.

Referenced by Time::readDict(), Time::setDeltaT(), and TimeState().

◆ writeTime_

bool writeTime_

protected

Definition at line 72 of file TimeState.H.

Referenced by Time::operator++(), TimeState(), Time::writeNow(), Time::writeObject(), and writeTime().

The documentation for this class was generated from the following files:

src/OpenFOAM/db/Time/TimeState.H
src/OpenFOAM/db/Time/TimeState.C
src/OpenFOAM/db/Time/TimeStateI.H

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TimeState()

◆ ~TimeState()

Member Function Documentation

◆ resetTimeState()

◆ userTimeToTime()

◆ timeToUserTime()

◆ timeOutputValue()

◆ timeName()

◆ timeIndex()

◆ deltaTValue()

◆ deltaT0Value()

◆ deltaT()

◆ deltaT0()

◆ writeTime()

◆ outputTime()

Member Data Documentation

◆ timeIndex_

◆ writeTimeIndex_

◆ deltaT_

◆ deltaT0_

◆ deltaTSave_

◆ deltaTchanged_

◆ writeTime_
