Tuple2< T1, T2 > Class Template Reference

A 2-tuple for storing two objects of dissimilar types. The container is similar in purpose to std::pair, but does not expose its members directly. More...

#include <Tuple2.H>

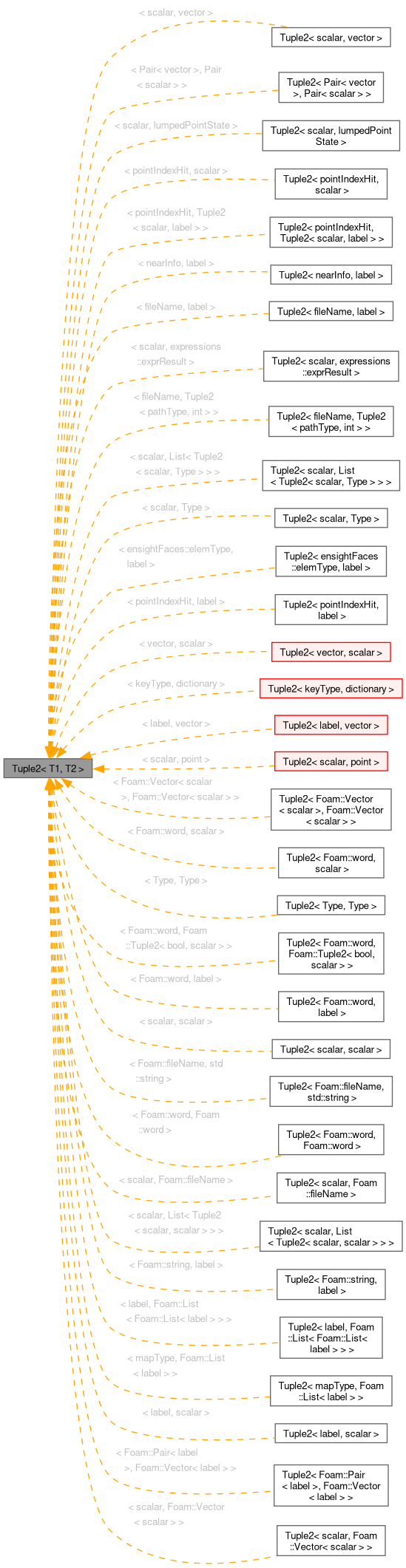

Inheritance diagram for Tuple2< T1, T2 >:

Public Types
typedef T1	first_type
	Type of member first, the first template parameter (T1).
typedef T2	second_type
	Type of member second, the second template parameter (T2).

Public Member Functions
	Tuple2 ()=default
	Default construct.
	Tuple2 (const T1 &f, const T2 &s)
	Copy construct from components.
	Tuple2 (T1 &&f, T2 &&s)
	Move construct from components.
	Tuple2 (const std::pair< T1, T2 > &vals)
	Copy construct from std::pair.
	Tuple2 (std::pair< T1, T2 > &&vals)
	Move construct from std::pair.
	Tuple2 (Istream &is)
	Construct from Istream.
const T1 &	first () const noexcept
	Access the first element.
T1 &	first () noexcept
	Access the first element.
const T2 &	second () const noexcept
	Access the second element.
T2 &	second () noexcept
	Access the second element.

Detailed Description

template<class T1, class T2 = T1>
class Foam::Tuple2< T1, T2 >

A 2-tuple for storing two objects of dissimilar types. The container is similar in purpose to std::pair, but does not expose its members directly.

See also

Foam::Pair for storing two objects of identical types.

Definition at line 50 of file Tuple2.H.

Member Typedef Documentation

first_type

template<class T1, class T2 = T1>

typedef T1 first_type

Type of member first, the first template parameter (T1).

Definition at line 64 of file Tuple2.H.

second_type

template<class T1, class T2 = T1>

typedef T2 second_type

Type of member second, the second template parameter (T2).

Definition at line 69 of file Tuple2.H.

Constructor & Destructor Documentation

Tuple2() [1/6]

template<class T1, class T2 = T1>

Tuple2 ( )

default

Default construct.

Tuple2() [2/6]

template<class T1, class T2 = T1>

Tuple2 ( const T1 & f, const T2 & s )

inline

Copy construct from components.

Definition at line 82 of file Tuple2.H.

Tuple2() [3/6]

template<class T1, class T2 = T1>

Tuple2 ( T1 && f, T2 && s )

inline

Move construct from components.

Definition at line 91 of file Tuple2.H.

Tuple2() [4/6]

template<class T1, class T2 = T1>

Tuple2 ( const std::pair< T1, T2 > & vals )

inline

Copy construct from std::pair.

Definition at line 100 of file Tuple2.H.

Tuple2() [5/6]

template<class T1, class T2 = T1>

Tuple2 ( std::pair< T1, T2 > && vals )

inline

Move construct from std::pair.

Definition at line 109 of file Tuple2.H.

Tuple2() [6/6]

template<class T1, class T2 = T1>

Tuple2 ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 118 of file Tuple2.H.

Member Function Documentation

first() [1/2]

template<class T1, class T2 = T1>

const T1 & first ( ) const

inlinenoexcept

Access the first element.

Definition at line 132 of file Tuple2.H.

Referenced by Foam::broadcastFile_single(), laplacianConstraintPointSmoother::calculate(), correctedCellVolumeWeightMethod::calculateAddressing(), pointConstraint::combine(), patchFieldProbe::findElements(), mappedPatchBase::findLocalSamples(), distributedTriSurfaceMesh::findNearest(), mappedPatchBase::findSamples(), Foam::getCommPattern(), meshToMeshMethod::interVolAndCentroid(), fileOperation::lookupAndCacheProcessorsPath(), scalars::operation(), Hash< Tuple2< T1, T2 > >::operator()(), mappedPatchBase::nearestWorldEqOp::operator()(), maxFirstOp< T1 >::operator()(), minFirstOp< T1 >::operator()(), forceSuSp::operator+=(), forceSuSp::operator-=(), Foam::operator<(), Foam::operator<<(), Foam::operator==(), Foam::operator>>(), profilingPstream::report(), Foam::reverse(), Newmark::solve(), symplectic::solve(), wallBoundedStreamLine::track(), Foam::transform(), and colourTable::value().

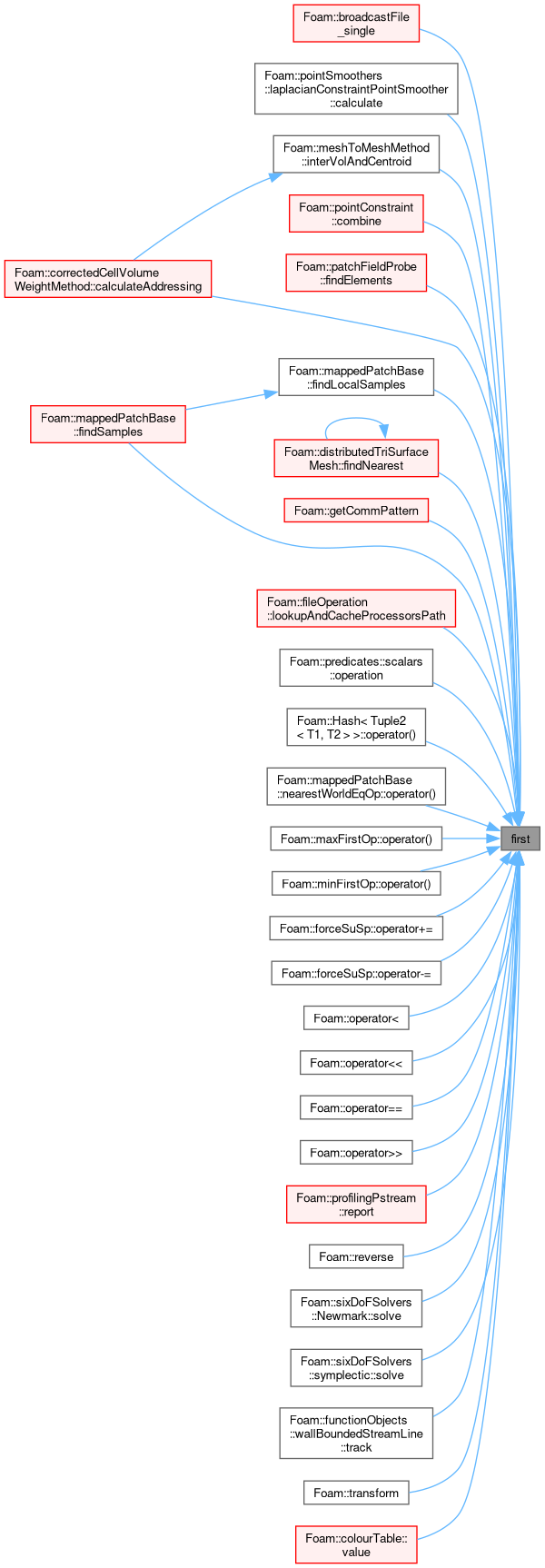

Here is the caller graph for this function:

first() [2/2]

template<class T1, class T2 = T1>

T1 & first ( )

inlinenoexcept

Access the first element.

Definition at line 137 of file Tuple2.H.

second() [1/2]

template<class T1, class T2 = T1>

const T2 & second ( ) const

inlinenoexcept

Access the second element.

Definition at line 142 of file Tuple2.H.

Referenced by Foam::broadcastFile_single(), correctedCellVolumeWeightMethod::calculateAddressing(), pointConstraint::combine(), patchFieldProbe::findElements(), mappedPatchBase::findLocalSamples(), distributedTriSurfaceMesh::findNearest(), mappedPatchBase::findSamples(), Foam::getCommPattern(), meshToMeshMethod::interVolAndCentroid(), fileOperation::lookupAndCacheProcessorsPath(), scalars::operation(), Hash< Tuple2< T1, T2 > >::operator()(), mappedPatchBase::nearestWorldEqOp::operator()(), forceSuSp::operator+=(), forceSuSp::operator-=(), Foam::operator<(), Foam::operator<<(), Foam::operator==(), Foam::operator>>(), GAMGAgglomeration::printLevels(), Foam::reverse(), symplectic::solve(), wallBoundedStreamLine::track(), and Foam::transform().

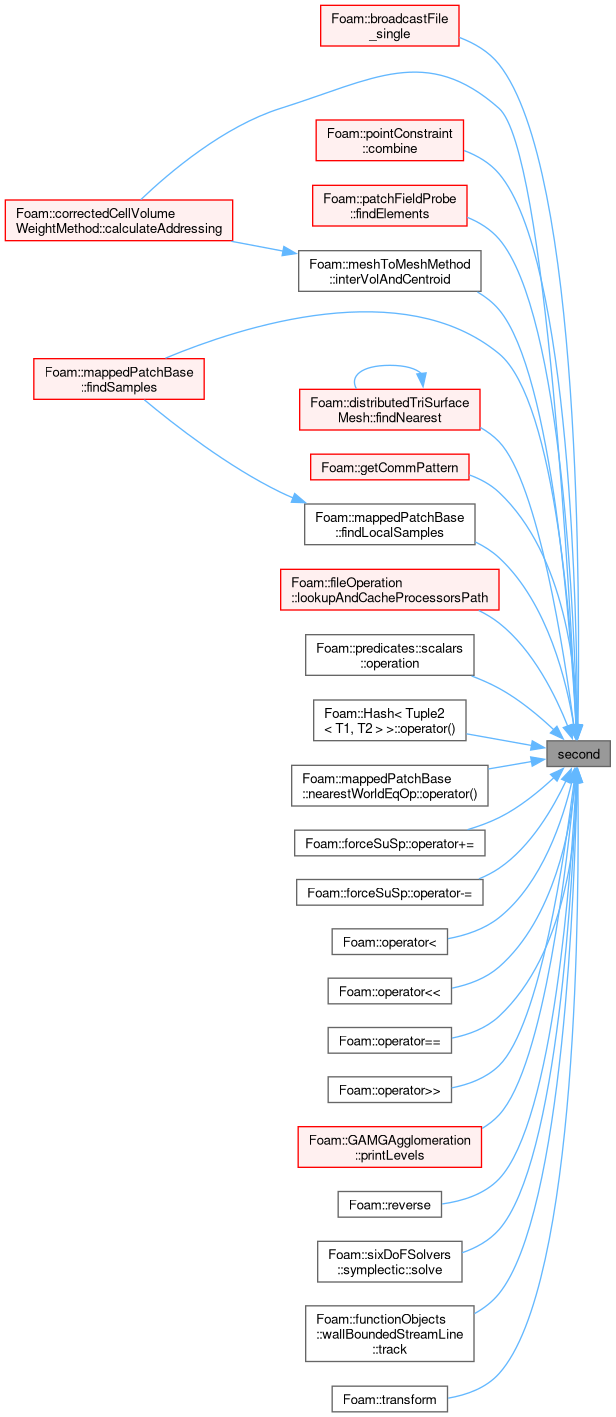

Here is the caller graph for this function:

second() [2/2]

template<class T1, class T2 = T1>

T2 & second ( )

inlinenoexcept

Access the second element.

Definition at line 147 of file Tuple2.H.

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/primitives/strings/stringOps/stringOps.H
• src/OpenFOAM/primitives/tuples/Tuple2.H
