UPstream::Communicator Class Reference

An opaque wrapper for MPI_Comm with a vendor-independent representation without any <mpi.h> header. More...

#include <UPstream.H>

Public Types
typedef std::intptr_t	value_type
	Storage for MPI_Comm (as integer or pointer).

Public Member Functions
	Communicator (const Communicator &) noexcept=default
	Copy construct.
	Communicator (Communicator &&) noexcept=default
	Move construct.
Communicator &	operator= (const Communicator &) noexcept=default
	Copy assignment.
Communicator &	operator= (Communicator &&) noexcept=default
	Move assignment.
bool	operator== (const Communicator &rhs) const noexcept
	Test for equality.
bool	operator!= (const Communicator &rhs) const noexcept
	Test for inequality.
	Communicator () noexcept
	Default construct as MPI_COMM_NULL.
	Communicator (const void *p) noexcept
	Construct from MPI_Comm (as pointer type).
	Communicator (value_type val) noexcept
	Construct from MPI_Comm (as integer type).
value_type	value () const noexcept
	Return raw value.
const void *	pointer () const noexcept
	Return as pointer value.
bool	good () const noexcept
	True if not equal to MPI_COMM_NULL.
void	reset () noexcept
	Reset to default constructed value (MPI_COMM_NULL).
int	size () const
	The number of ranks associated with the communicator.

Static Public Member Functions
static Communicator	lookup (int communicator=-1)
	Transcribe internally indexed communicator to wrapped value.

Detailed Description

An opaque wrapper for MPI_Comm with a vendor-independent representation without any <mpi.h> header.

The MPI standard states that MPI_Comm is always an opaque object. Generally it is either an integer (eg, mpich) or a pointer (eg, openmpi).

Definition at line 2759 of file UPstream.H.

Member Typedef Documentation

value_type

typedef std::intptr_t value_type

Storage for MPI_Comm (as integer or pointer).

Definition at line 2768 of file UPstream.H.

Constructor & Destructor Documentation

Communicator() [1/5]

Communicator ( const Communicator & )

defaultnoexcept

Copy construct.

References Communicator().

Referenced by Communicator(), Communicator(), Communicator(), Communicator(), operator!=(), operator=(), operator=(), and operator==().

Here is the call graph for this function:

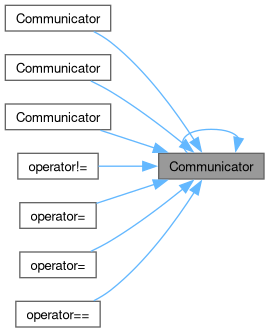

Here is the caller graph for this function:

Communicator() [2/5]

Communicator ( Communicator && )

defaultnoexcept

Move construct.

References Communicator(), and Foam::noexcept.

Here is the call graph for this function:

Communicator() [3/5]

Communicator ( )

noexcept

Default construct as MPI_COMM_NULL.

Definition at line 25 of file UPstreamCommunicator.C.

References Communicator(), Foam::noexcept, and UPstream::UPstream().

Here is the call graph for this function:

Communicator() [4/5]

Communicator ( const void * p )

inlineexplicitnoexcept

Construct from MPI_Comm (as pointer type).

Definition at line 2834 of file UPstream.H.

References Communicator(), Foam::noexcept, and p.

Here is the call graph for this function:

Communicator() [5/5]

Communicator ( value_type val )

inlineexplicitnoexcept

Construct from MPI_Comm (as integer type).

Definition at line 2842 of file UPstream.H.

References Foam::noexcept.

Member Function Documentation

operator=() [1/2]

Communicator & operator= ( const Communicator & )

defaultnoexcept

Copy assignment.

References Communicator(), and Foam::noexcept.

Here is the call graph for this function:

operator=() [2/2]

Communicator & operator= ( Communicator && )

defaultnoexcept

Move assignment.

References Communicator(), and Foam::noexcept.

Here is the call graph for this function:

operator==()

bool operator== ( const Communicator & rhs ) const

inlinenoexcept

Test for equality.

Definition at line 2810 of file UPstream.H.

References Communicator(), Foam::noexcept, and Foam::rhs().

Here is the call graph for this function:

operator!=()

bool operator!= ( const Communicator & rhs ) const

inlinenoexcept

Test for inequality.

Definition at line 2818 of file UPstream.H.

References Communicator(), and Foam::rhs().

Here is the call graph for this function:

lookup()

Foam::UPstream::Communicator lookup ( int communicator = -1 )

static

Transcribe internally indexed communicator to wrapped value.

Example,

PstreamUtils::Cast::to_mpi
(
    UPstream::Communicator::lookup(UPstream::worldComm)
)

Parameters

communicator

The internally indexed communicator. The default (-1) is the same as UPstream::worldComm.

Definition at line 34 of file UPstreamCommunicator.C.

value()

value_type value ( ) const

inlinenoexcept

Return raw value.

Definition at line 2877 of file UPstream.H.

References Foam::noexcept.

pointer()

const void * pointer ( ) const

inlinenoexcept

Return as pointer value.

Definition at line 2882 of file UPstream.H.

References Foam::noexcept.

good()

bool good ( ) const

noexcept

True if not equal to MPI_COMM_NULL.

Definition at line 42 of file UPstreamCommunicator.C.

References Foam::noexcept.

reset()

void reset ( )

noexcept

Reset to default constructed value (MPI_COMM_NULL).

Definition at line 48 of file UPstreamCommunicator.C.

References Foam::noexcept.

size()

int size

(

)

const

The number of ranks associated with the communicator.

Definition at line 52 of file UPstreamCommunicator.C.

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/db/IOstreams/Pstreams/UPstream.H
• src/Pstream/dummy/UPstreamCommunicator.C
• src/Pstream/mpi/UPstreamCommunicator.C
