UPstream::File Class Reference

An opaque wrapper for MPI_File methods without any <mpi.h> header dependency. More...

#include <UPstreamFile.H>

Classes
class	Impl

Public Member Functions
	File (const File &&)=delete
	No copy construct.
	File (File &&) noexcept
	Move construct.
File &	operator= (const File &)=delete
	No copy assignment.
File &	operator= (File &&) noexcept
	Move assignment.
	File ()
	Default construct.
	~File ()
	Destructor. Non-default in header (incomplete types).
const fileName &	name () const
	The name of the open stream.
bool	is_open () const
	True if allocated and open has been called.
bool	open_write (const int communicator, const fileName &pathname, IOstreamOption::atomicType=IOstreamOption::NON_ATOMIC)
	MPI_File_open [collective] : open file in write-only mode, no-append.
bool	close ()
	MPI_File_close [collective].
bool	set_size (std::streamsize num_bytes)
	Set the (output) file size [collective].
bool	write (std::string_view sv)
	MPI_File_write [non-collective] : write data.
template<class Type>
bool	write (const Type *buffer, std::streamsize count)
	MPI_File_write [non-collective] : write data.
bool	write_at (std::streamsize offset, std::string_view sv)
	MPI_File_write_at [non-collective] : write data at specified offset.
template<class Type>
bool	write_at (std::streamsize offset, const Type *buffer, std::streamsize count)
	MPI_File_write_at [non-collective] : write data at specified offset.
bool	write_all (std::string_view sv)
	MPI_File_write_all [collective] : write data.
template<class Type>
bool	write_all (const Type *buffer, std::streamsize count)
	MPI_File_write_all [collective] : write data.
bool	write_at_all (std::streamsize offset, std::string_view sv)
	MPI_File_write_at_all [collective] : write data at specified offset.
template<class Type>
bool	write_at_all (std::streamsize offset, const Type *buffer, std::streamsize count)
	MPI_File_write_at_all [collective] : write data at specified offset.

Static Public Member Functions
static bool	supported ()
	True if MPI/IO appears to be supported.

Protected Member Functions
bool	write_data (const void *buffer, std::streamsize count, const UPstream::dataTypes dataTypeId)
	MPI_File_write [non-collective] : write data.
bool	write_data_at (std::streamsize offset, const void *buffer, std::streamsize count, const UPstream::dataTypes dataTypeId)
	MPI_File_write_at [non-collective] : write data at specified offset.
bool	write_data_all (const void *buffer, std::streamsize count, const UPstream::dataTypes dataTypeId)
	MPI_File_write_all [collective] : write data.
bool	write_data_at_all (std::streamsize offset, const void *buffer, std::streamsize count, const UPstream::dataTypes dataTypeId)
	MPI_File_write_at_all [collective] : write data at specified offset.

Detailed Description

An opaque wrapper for MPI_File methods without any <mpi.h> header dependency.

Note

Not included as part of UPstream.H - only include locally as required

Source files

• UPstreamFile.H
• UPstreamFile.txx

Definition at line 51 of file UPstreamFile.H.

Constructor & Destructor Documentation

File() [1/3]

File ( const File && )

delete

No copy construct.

References File().

Referenced by File(), File(), operator=(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

File() [2/3]

File ( File && )

noexcept

Move construct.

References File(), and Foam::noexcept.

Here is the call graph for this function:

File() [3/3]

File

(

)

Default construct.

Definition at line 48 of file UPstreamFile.C.

~File()

~File

(

)

Destructor. Non-default in header (incomplete types).

Definition at line 53 of file UPstreamFile.C.

Member Function Documentation

write_data()

bool write_data ( const void * buffer, std::streamsize count, const UPstream::dataTypes dataTypeId )

protected

MPI_File_write [non-collective] : write data.

Parameters

buffer	Source buffer
count	The data count - number of elements

Definition at line 106 of file UPstreamFile.C.

References NotImplemented.

write_data_at()

bool write_data_at ( std::streamsize offset, const void * buffer, std::streamsize count, const UPstream::dataTypes dataTypeId )

protected

MPI_File_write_at [non-collective] : write data at specified offset.

Parameters

offset	The offset - number of 'view' elements (default: byte)
buffer	Source buffer
count	The data count - number of elements

Definition at line 118 of file UPstreamFile.C.

References NotImplemented.

write_data_all()

bool write_data_all ( const void * buffer, std::streamsize count, const UPstream::dataTypes dataTypeId )

protected

MPI_File_write_all [collective] : write data.

Parameters

buffer	Source buffer
count	The data count - number of elements

Definition at line 131 of file UPstreamFile.C.

References NotImplemented.

write_data_at_all()

bool write_data_at_all ( std::streamsize offset, const void * buffer, std::streamsize count, const UPstream::dataTypes dataTypeId )

protected

MPI_File_write_at_all [collective] : write data at specified offset.

Parameters

offset	The offset - number of 'view' elements (default: byte)
buffer	Source buffer
count	The data count - number of elements

Definition at line 143 of file UPstreamFile.C.

References NotImplemented.

operator=() [1/2]

File & operator= ( const File & )

delete

No copy assignment.

References File().

Here is the call graph for this function:

operator=() [2/2]

File & operator= ( File && )

noexcept

Move assignment.

References close(), File(), is_open(), name(), Foam::noexcept, open_write(), set_size(), and supported().

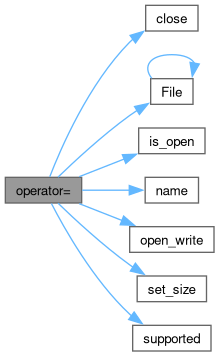

Here is the call graph for this function:

supported()

bool supported ( )

static

True if MPI/IO appears to be supported.

Definition at line 40 of file UPstreamFile.C.

Referenced by operator=(), collatedFileOperation::printBanner(), and collatedFileOperation::writeObject().

Here is the caller graph for this function:

name()

const Foam::fileName & name

(

)

const

The name of the open stream.

Definition at line 59 of file UPstreamFile.C.

References fileName::null.

Referenced by operator=().

Here is the caller graph for this function:

is_open()

bool is_open

(

)

const

True if allocated and open has been called.

Definition at line 65 of file UPstreamFile.C.

Referenced by operator=().

Here is the caller graph for this function:

open_write()

bool open_write	(	const int	communicator,
		const fileName &	pathname,
		IOstreamOption::atomicType	atomicType = IOstreamOption::NON_ATOMIC )

MPI_File_open [collective] : open file in write-only mode, no-append.

Parameters

communicator	The OpenFOAM communicator index
pathname	Full file path (parent directory must exist before calling)
atomicType	Simulated atomic file handling

Definition at line 94 of file UPstreamFile.C.

References NotImplemented.

Referenced by operator=().

Here is the caller graph for this function:

close()

bool close

(

)

MPI_File_close [collective].

Definition at line 71 of file UPstreamFile.C.

Referenced by operator=().

Here is the caller graph for this function:

set_size()

bool set_size

(

std::streamsize

num_bytes

)

Set the (output) file size [collective].

Definition at line 156 of file UPstreamFile.C.

References NotImplemented.

Referenced by operator=().

Here is the caller graph for this function:

write() [1/2]

bool write ( std::string_view sv )

inline

MPI_File_write [non-collective] : write data.

A no-op and return true if content is empty

References write().

Referenced by write(), and write().

Here is the call graph for this function:

Here is the caller graph for this function:

write() [2/2]

template<class Type>

bool write ( const Type * buffer, std::streamsize count )

inline

MPI_File_write [non-collective] : write data.

A no-op and return true if buffer is nullptr or count is zero

Parameters

buffer	The content
count	The data count - number of elements

References write().

Here is the call graph for this function:

write_at() [1/2]

bool write_at ( std::streamsize offset, std::string_view sv )

inline

MPI_File_write_at [non-collective] : write data at specified offset.

A no-op and return true if content is empty

References write_at().

Referenced by write_at(), and write_at().

Here is the call graph for this function:

Here is the caller graph for this function:

write_at() [2/2]

template<class Type>

bool write_at ( std::streamsize offset, const Type * buffer, std::streamsize count )

inline

MPI_File_write_at [non-collective] : write data at specified offset.

A no-op and return true if buffer is nullptr or count is zero

Parameters

offset	The offset within the file - number of 'view' elements
buffer	The content
count	The data count - number of elements

References write_at().

Here is the call graph for this function:

write_all() [1/2]

bool write_all ( std::string_view sv )

inline

MPI_File_write_all [collective] : write data.

References write_all().

Referenced by write_all(), and write_all().

Here is the call graph for this function:

Here is the caller graph for this function:

write_all() [2/2]

template<class Type>

bool write_all ( const Type * buffer, std::streamsize count )

inline

MPI_File_write_all [collective] : write data.

Parameters

buffer	The content
count	The data count - number of elements

References write_all().

Here is the call graph for this function:

write_at_all() [1/2]

bool write_at_all ( std::streamsize offset, std::string_view sv )

inline

MPI_File_write_at_all [collective] : write data at specified offset.

Parameters

offset	The offset within the file - number of 'view' elements
sv	The content

References write_at_all().

Referenced by write_at_all(), and write_at_all().

Here is the call graph for this function:

Here is the caller graph for this function:

write_at_all() [2/2]

template<class Type>

bool write_at_all ( std::streamsize offset, const Type * buffer, std::streamsize count )

inline

MPI_File_write_at_all [collective] : write data at specified offset.

Parameters

offset	The offset within the file - number of 'view' elements
buffer	The content
count	The data count - number of elements

References write_at_all().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/db/IOstreams/Pstreams/UPstreamFile.H
• src/Pstream/dummy/UPstreamFile.C
• src/Pstream/mpi/UPstreamFile.C
