Templated 3D Vector derived from VectorSpace adding construction from 3 components, element access using x(), y() and z() member functions and the inner-product (dot-product) and cross-product operators. More...

#include <Vector.H>

Inheritance diagram for Vector< Cmpt >:

[legend]

Collaboration diagram for Vector< Cmpt >:

[legend]

Public Types
enum	components { X , Y , Z }
	Component labeling enumeration. More...
typedef Vector< label >	labelType
	Equivalent type of labels used for valid component indexing.
Public Types inherited from VectorSpace< Vector< Cmpt >, Cmpt, 3 >
typedef VectorSpace< Vector< Cmpt >, Cmpt, Ncmpts >	vsType
	VectorSpace type.
typedef Cmpt	cmptType
	Component type.
typedef Cmpt	magType
	Magnitude type.
typedef direction	size_type
	The type to represent the size of a VectorSpace.
typedef Cmpt *	iterator
	Random access iterator for traversing VectorSpace.
typedef const Cmpt *	const_iterator
	Random access iterator for traversing VectorSpace.

Public Member Functions
	Vector ()=default
	Default construct.
	Vector (const Vector &)=default
	Copy construct.
Vector &	operator= (const Vector &)=default
	Copy assignment.
	Vector (Foam::zero)
	Construct initialized to zero.
template<class Cmpt2>
	Vector (const VectorSpace< Vector< Cmpt2 >, Cmpt2, 3 > &vs)
	Copy construct from VectorSpace of the same rank.
	Vector (const Cmpt &vx, const Cmpt &vy, const Cmpt &vz)
	Construct from three components.
	Vector (Istream &is)
	Construct from Istream.
const Cmpt &	x () const noexcept
	Access to the vector x component.
const Cmpt &	y () const noexcept
	Access to the vector y component.
const Cmpt &	z () const noexcept
	Access to the vector z component.
Cmpt &	x () noexcept
	Access to the vector x component.
Cmpt &	y () noexcept
	Access to the vector y component.
Cmpt &	z () noexcept
	Access to the vector z component.
const Vector< Cmpt > &	centre (const Foam::UList< Vector< Cmpt > > &) const noexcept
	Return `this` (for point which is a typedef to Vector<scalar>).
scalar	mag () const
	The length (L2-norm) of the vector.
scalar	magSqr () const
	The length (L2-norm) squared of the vector.
scalar	dist (const Vector< Cmpt > &v2) const
	The L2-norm distance from another vector. The mag() of the difference.
scalar	distSqr (const Vector< Cmpt > &v2) const
	The L2-norm distance squared from another vector. The magSqr() of the difference.
Vector< Cmpt > &	normalise (const scalar tol=ROOTVSMALL)
	Inplace normalise the vector by its magnitude.
Vector< Cmpt > &	removeCollinear (const Vector< Cmpt > &unitVec)
	Inplace removal of components that are collinear to the given unit vector.
Cmpt	inner (const Vector< Cmpt > &v2) const
	Scalar-product of `this` with another Vector.
Vector< Cmpt >	cross (const Vector< Cmpt > &v2) const
	Cross-product of `this` with another Vector.
template<class Cmpt2>
std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void >	operator+= (const Vector< Cmpt2 > &b)
	Add compatible vector to this.
template<class Cmpt2>
std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void >	operator-= (const Vector< Cmpt2 > &b)
	Subtract compatible vector from this.
Public Member Functions inherited from VectorSpace< Vector< Cmpt >, Cmpt, 3 >
const Foam::VectorSpace< Vector< Cmpt >, Cmpt, Ncmpts >::template ConstBlock< SubVector, BStart >	block () const
	VectorSpace ()=default
	Default construct.
const Cmpt &	component (const direction) const
void	replace (const direction, const Cmpt &)
const Cmpt *	cdata () const noexcept
	Return const pointer to the first data element.
Cmpt *	data () noexcept
	Return pointer to the first data element.
void	fill (const Cmpt &s)
	Assign all components to given value.
const Cmpt &	operator[] (const direction) const
void	operator= (const VectorSpace< Vector< Cmpt >, Cmpt, Ncmpts > &)
void	operator+= (const VectorSpace< Vector< Cmpt >, Cmpt, Ncmpts > &)
void	operator-= (const VectorSpace< Vector< Cmpt >, Cmpt, Ncmpts > &)
void	operator*= (const scalar)
void	operator/= (const scalar)
iterator	begin () noexcept
	Return an iterator (pointer) to begin of VectorSpace.
const_iterator	cbegin () const noexcept
	Return const_iterator (const pointer) to begin of VectorSpace.
iterator	end () noexcept
	Return an iterator (pointer) to end of VectorSpace.
const_iterator	cend () const noexcept
	Return const_iterator (const pointer) to end of VectorSpace.

Static Public Member Functions
static bool	less_xyz (const Vector< Cmpt > &a, const Vector< Cmpt > &b)
	Lexicographically compare a and b with order (x:y:z).
static bool	less_yzx (const Vector< Cmpt > &a, const Vector< Cmpt > &b)
	Lexicographically compare a and b with order (y:z:x).
static bool	less_zxy (const Vector< Cmpt > &a, const Vector< Cmpt > &b)
	Lexicographically compare a and b with order (z:x:y).
Static Public Member Functions inherited from VectorSpace< Vector< Cmpt >, Cmpt, 3 >
static constexpr direction	size () noexcept
	The number of elements in the VectorSpace = Ncmpts.
static Vector< Cmpt >	uniform (const Cmpt &s)
	Return a VectorSpace with all elements = s.

Static Public Attributes
static constexpr direction	rank = 1
	Rank of Vector is 1.
Static Public Attributes inherited from VectorSpace< Vector< Cmpt >, Cmpt, 3 >
static constexpr direction	dim
	Dimensionality of space.
static constexpr direction	nComponents
	Number of components in this vector space.
static constexpr direction	mRows
static constexpr direction	nCols
static const char *const	typeName
static const char *const	componentNames []
static const Vector< Cmpt >	zero
static const Vector< Cmpt >	one
static const Vector< Cmpt >	max
static const Vector< Cmpt >	min
static const Vector< Cmpt >	rootMax
static const Vector< Cmpt >	rootMin

Additional Inherited Members
Public Attributes inherited from VectorSpace< Vector< Cmpt >, Cmpt, 3 >
Cmpt	v_ [Ncmpts]
	The components of this vector space.

Detailed Description

template<class Cmpt>
class Foam::Vector< Cmpt >

Templated 3D Vector derived from VectorSpace adding construction from 3 components, element access using x(), y() and z() member functions and the inner-product (dot-product) and cross-product operators.

A centre() member function which returns the Vector for which it is called is defined so that point which is a typedef to Vector<scalar> behaves as other shapes in the shape hierarchy.

Source files

Definition at line 58 of file Vector.H.

Member Typedef Documentation

◆ labelType

template<class Cmpt>

typedef Vector<label> labelType

Equivalent type of labels used for valid component indexing.

Definition at line 69 of file Vector.H.

Member Enumeration Documentation

◆ components

template<class Cmpt>

enum components

Component labeling enumeration.

Enumerator
X
Y
Z

Definition at line 83 of file Vector.H.

Constructor & Destructor Documentation

◆ Vector() [1/6]

template<class Cmpt>

Vector ( )

default

Default construct.

Referenced by centre(), cross(), dist(), distSqr(), inner(), less_xyz(), less_yzx(), less_zxy(), removeCollinear(), Vector(), Vector(), and Vector().

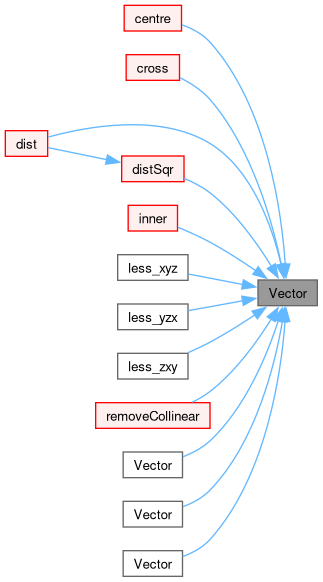

Here is the caller graph for this function:

◆ Vector() [2/6]

template<class Cmpt>

Vector ( const Vector< Cmpt > & )

default

Copy construct.

◆ Vector() [3/6]

template<class Cmpt>

Vector ( Foam::zero )

inline

Construct initialized to zero.

Definition at line 25 of file VectorI.H.

References Vector(), and VectorSpace< Vector< Cmpt >, Cmpt, 3 >::zero.

Here is the call graph for this function:

◆ Vector() [4/6]

template<class Cmpt>

template<class Cmpt2>

Vector ( const VectorSpace< Vector< Cmpt2 >, Cmpt2, 3 > & vs )

inline

Copy construct from VectorSpace of the same rank.

Definition at line 33 of file VectorI.H.

References Vector(), and VectorSpace< Vector< Cmpt >, Cmpt, 3 >::VectorSpace().

Here is the call graph for this function:

◆ Vector() [5/6]

template<class Cmpt>

Vector	(	const Cmpt &	vx,
		const Cmpt &	vy,
		const Cmpt &	vz )

inline

Construct from three components.

Definition at line 43 of file VectorI.H.

References x, y, and z().

Here is the call graph for this function:

◆ Vector() [6/6]

template<class Cmpt>

Vector ( Istream & is )

inlineexplicit

Construct from Istream.

Definition at line 57 of file VectorI.H.

References Vector().

Here is the call graph for this function:

Member Function Documentation

◆ operator=()

template<class Cmpt>

Vector & operator= ( const Vector< Cmpt > & )

default

Copy assignment.

Referenced by triad::operator=().

Here is the caller graph for this function:

◆ x() [1/2]

template<class Cmpt>

const Cmpt & x ( ) const

inlinenoexcept

Access to the vector x component.

Definition at line 135 of file Vector.H.

Referenced by biLinearFitPolynomial::addCoeffs(), cubicUpwindFitPolynomial::addCoeffs(), linearFitPolynomial::addCoeffs(), quadraticFitPolynomial::addCoeffs(), quadraticLinearFitPolynomial::addCoeffs(), quadraticLinearUpwindFitPolynomial::addCoeffs(), quadraticUpwindFitPolynomial::addCoeffs(), SymmTensor< Cmpt >::addDiag(), Tensor< Cmpt >::addDiag(), triad::align(), sensitivitySurface::assembleSensitivities(), sensitivitySurfacePoints::assembleSensitivities(), tetIndices::barycentricToPoint(), blockDescriptor::blockDescriptor(), PDRblock::blockMeshDict(), NURBS3DVolume::bound(), boundBox::box_box_overlaps(), PDRblock::C(), energySpectrum::calcAndWriteSpectrum(), CentredFitSnGradData< Polynomial >::calcFit(), FitData< FitDataType, ExtendedStencil, Polynomial >::calcFit(), rotorDiskSource::calculate(), ijkAddressing::checkIndex(), Tensor< Cmpt >::col(), axisAligned::computeControlPoints(), transformBox::computeControlPoints(), NURBS3DVolume::confineInertControlPoints(), boundBox::contains(), boundBox::containsInside(), NURBS3DVolume::coordinates(), cyclicPolyPatch::coupledEdges(), cyclicPolyPatch::coupledPoints(), cross(), volumetricBSplinesDesignVariables::dCdb(), volBSplinesBase::decomposeDV(), SymmTensor< Cmpt >::diag(), Tensor< Cmpt >::diag(), distSqr(), volumetricBSplinesDesignVariables::dndb(), volumetricBSplinesDesignVariables::dSdb(), PDRblock::dx(), volumetricBSplinesDesignVariables::dxdbFace(), adjointRotatingWallVelocityFvPatchVectorField::dxdbMult(), volumetricBSplinesDesignVariables::dxdbVol(), pitchForkRing::energy(), forceCoeffs::execute(), Foam::faceNij(), Foam::facePoint(), Foam::facePointN(), Foam::facePointN(), NURBS3DVolume::findPointsInBox(), pitchForkRing::force(), rigidBodyModel::forwardDynamics(), Foam::fromCartesian(), FIRECore::getFirePoint(), boundaryMesh::getNearest(), PDRblock::grid(), ijkAddressing::index(), voxelMeshSearch::index(), voxelMeshSearch::index(), voxelMeshSearch::index3(), voxelMeshSearch::index3(), waveMakerPointPatchVectorField::initialiseGeometry(), waveModel::initialiseGeometry(), inner(), cellShapeControlMesh::insert(), cellShapeControlMesh::insertFar(), NURBS3DVolume::JacobianUVW(), Rxyz::jcalc(), Ryxz::jcalc(), Rzyx::jcalc(), Foam::lerp(), cellMDLimitedGrad< Type >::limitFace(), momentOfInertia::massPropertiesSolid(), twoDPointCorrector::normalDir(), Field< T >::normalise(), NURBS3DCurve::nrm2D(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Vector< vector >::operator+=(), Vector< vector >::operator-=(), Foam::operator/(), Foam::operator/(), Foam::operator/(), Foam::operator^(), Foam::operator^(), plane::planeIntersect(), ijkMesh::pointLabel(), polyTopoChange::pointRemoved(), tetrahedron< Point, PointRef >::pointToBarycentric(), triad::primaryDirection(), projectFace::project(), FIRECore::putFirePoint(), quaternion::quaternion(), Foam::Ra(), AC3DsurfaceFormat< Face >::read(), energySpectrum::read(), volumetricBSplinesDesignVariables::readBounds(), PDRblock::reset(), IjkField< Type >::resize(), linearSpringDamper::restrain(), euler::rotation(), SymmTensor< Cmpt >::row(), Tensor< Cmpt >::row(), treeBoundBox::searchOrder(), BezierDesignVariables::setBounds(), NURBS3DCurve::setNrm2DOrientation(), KinematicLookupTableInjection< CloudType >::setPositionAndCell(), ReactingLookupTableInjection< CloudType >::setPositionAndCell(), ReactingMultiphaseLookupTableInjection< CloudType >::setPositionAndCell(), ThermoLookupTableInjection< CloudType >::setPositionAndCell(), snappyVoxelMeshDriver::snappyVoxelMeshDriver(), Foam::sqr(), leastSquares::stencilWeights(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), SymmTensor< Cmpt >::subtractDiag(), Tensor< Cmpt >::subtractDiag(), Foam::toCartesian(), NURBS3DVolumeCylindrical::transformationTensorDxDb(), controlPointsDefinition::transformControlPoints(), NURBS3DVolumeCylindrical::transformPointToCartesian(), Foam::transformPrincipal_vector(), pointConstraint::unconstrainedDirections(), joint::unitQuaternion(), NURBS3DVolumeCylindrical::updateLocalCoordinateSystem(), PDRblock::V(), ijkMesh::vertLabels(), NURBS3DVolume::volumeDerivativeCP(), wallLayerCells::wallLayerCells(), SMESHsurfaceFormat< Face >::write(), sixDoFRigidBodyState::write(), STLtriangle::write(), meshToMeshMethod::writeConnectivity(), forceCoeffs::writeIntegratedDataFile(), cellCuts::writeOBJ(), coupledPolyPatch::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), triSurfaceTools::writeOBJ(), Cloud< ParticleType >::writePositions(), moleculeCloud::writeXYZ(), Foam::Xinterpolate(), Foam::XstepForwardsToNextPoint(), and Foam::zip().

◆ y() [1/2]

template<class Cmpt>

const Cmpt & y ( ) const

inlinenoexcept

Access to the vector y component.

Definition at line 140 of file Vector.H.

Referenced by biLinearFitPolynomial::addCoeffs(), cubicUpwindFitPolynomial::addCoeffs(), linearFitPolynomial::addCoeffs(), quadraticFitPolynomial::addCoeffs(), quadraticLinearFitPolynomial::addCoeffs(), quadraticLinearUpwindFitPolynomial::addCoeffs(), quadraticUpwindFitPolynomial::addCoeffs(), SymmTensor< Cmpt >::addDiag(), Tensor< Cmpt >::addDiag(), triad::align(), sensitivitySurface::assembleSensitivities(), sensitivitySurfacePoints::assembleSensitivities(), tetIndices::barycentricToPoint(), blockDescriptor::blockDescriptor(), PDRblock::blockMeshDict(), NURBS3DVolume::bound(), boundBox::box_box_overlaps(), PDRblock::C(), energySpectrum::calcAndWriteSpectrum(), CentredFitSnGradData< Polynomial >::calcFit(), FitData< FitDataType, ExtendedStencil, Polynomial >::calcFit(), rotorDiskSource::calculate(), ijkAddressing::checkIndex(), Tensor< Cmpt >::col(), axisAligned::computeControlPoints(), transformBox::computeControlPoints(), NURBS3DVolume::confineInertControlPoints(), boundBox::contains(), boundBox::containsInside(), NURBS3DVolume::coordinates(), cyclicPolyPatch::coupledEdges(), cyclicPolyPatch::coupledPoints(), cross(), volumetricBSplinesDesignVariables::dCdb(), volBSplinesBase::decomposeDV(), SymmTensor< Cmpt >::diag(), Tensor< Cmpt >::diag(), distSqr(), volumetricBSplinesDesignVariables::dndb(), volumetricBSplinesDesignVariables::dSdb(), volumetricBSplinesDesignVariables::dxdbFace(), adjointRotatingWallVelocityFvPatchVectorField::dxdbMult(), volumetricBSplinesDesignVariables::dxdbVol(), PDRblock::dy(), pitchForkRing::energy(), forceCoeffs::execute(), Foam::faceNij(), Foam::facePoint(), Foam::facePointN(), Foam::facePointN(), NURBS3DVolume::findPointsInBox(), pitchForkRing::force(), rigidBodyModel::forwardDynamics(), Foam::fromCartesian(), FIRECore::getFirePoint(), boundaryMesh::getNearest(), PDRblock::grid(), ijkAddressing::index(), voxelMeshSearch::index(), voxelMeshSearch::index(), voxelMeshSearch::index3(), voxelMeshSearch::index3(), waveMakerPointPatchVectorField::initialiseGeometry(), waveModel::initialiseGeometry(), inner(), cellShapeControlMesh::insert(), cellShapeControlMesh::insertFar(), NURBS3DVolume::JacobianUVW(), Rxyz::jcalc(), Ryxz::jcalc(), Rzyx::jcalc(), Foam::lerp(), cellMDLimitedGrad< Type >::limitFace(), momentOfInertia::massPropertiesSolid(), twoDPointCorrector::normalDir(), Field< T >::normalise(), NURBS3DCurve::nrm2D(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Vector< vector >::operator+=(), Vector< vector >::operator-=(), Foam::operator/(), Foam::operator/(), Foam::operator/(), Foam::operator^(), Foam::operator^(), plane::planeIntersect(), ijkMesh::pointLabel(), polyTopoChange::pointRemoved(), tetrahedron< Point, PointRef >::pointToBarycentric(), triad::primaryDirection(), projectFace::project(), FIRECore::putFirePoint(), quaternion::quaternion(), Foam::Ra(), AC3DsurfaceFormat< Face >::read(), energySpectrum::read(), volumetricBSplinesDesignVariables::readBounds(), PDRblock::reset(), IjkField< Type >::resize(), linearSpringDamper::restrain(), euler::rotation(), SymmTensor< Cmpt >::row(), Tensor< Cmpt >::row(), treeBoundBox::searchOrder(), BezierDesignVariables::setBounds(), NURBS3DCurve::setNrm2DOrientation(), snappyVoxelMeshDriver::snappyVoxelMeshDriver(), Foam::sqr(), leastSquares::stencilWeights(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), SymmTensor< Cmpt >::subtractDiag(), Tensor< Cmpt >::subtractDiag(), Foam::toCartesian(), NURBS3DVolumeCylindrical::transformationTensorDxDb(), controlPointsDefinition::transformControlPoints(), NURBS3DVolumeCylindrical::transformPointToCartesian(), Foam::transformPrincipal_vector(), pointConstraint::unconstrainedDirections(), joint::unitQuaternion(), NURBS3DVolumeCylindrical::updateLocalCoordinateSystem(), PDRblock::V(), ijkMesh::vertLabels(), NURBS3DVolume::volumeDerivativeCP(), wallLayerCells::wallLayerCells(), SMESHsurfaceFormat< Face >::write(), sixDoFRigidBodyState::write(), STLtriangle::write(), meshToMeshMethod::writeConnectivity(), forceCoeffs::writeIntegratedDataFile(), cellCuts::writeOBJ(), coupledPolyPatch::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), triSurfaceTools::writeOBJ(), Cloud< ParticleType >::writePositions(), moleculeCloud::writeXYZ(), Foam::Xinterpolate(), and Foam::zip().

◆ z() [1/2]

template<class Cmpt>

const Cmpt & z ( ) const

inlinenoexcept

Access to the vector z component.

Definition at line 145 of file Vector.H.

Referenced by biLinearFitPolynomial::addCoeffs(), cubicUpwindFitPolynomial::addCoeffs(), linearFitPolynomial::addCoeffs(), quadraticFitPolynomial::addCoeffs(), quadraticLinearFitPolynomial::addCoeffs(), quadraticLinearUpwindFitPolynomial::addCoeffs(), quadraticUpwindFitPolynomial::addCoeffs(), SymmTensor< Cmpt >::addDiag(), Tensor< Cmpt >::addDiag(), triad::align(), sensitivitySurface::assembleSensitivities(), sensitivitySurfacePoints::assembleSensitivities(), tetIndices::barycentricToPoint(), blockDescriptor::blockDescriptor(), PDRblock::blockMeshDict(), NURBS3DVolume::bound(), boundBox::box_box_overlaps(), PDRblock::C(), energySpectrum::calcAndWriteSpectrum(), CentredFitSnGradData< Polynomial >::calcFit(), FitData< FitDataType, ExtendedStencil, Polynomial >::calcFit(), rotorDiskSource::calculate(), ijkAddressing::checkIndex(), Tensor< Cmpt >::col(), axisAligned::computeControlPoints(), transformBox::computeControlPoints(), NURBS3DVolume::confineInertControlPoints(), boundBox::contains(), boundBox::containsInside(), NURBS3DVolume::coordinates(), cyclicPolyPatch::coupledEdges(), cyclicPolyPatch::coupledPoints(), cross(), volumetricBSplinesDesignVariables::dCdb(), volBSplinesBase::decomposeDV(), SymmTensor< Cmpt >::diag(), Tensor< Cmpt >::diag(), distSqr(), volumetricBSplinesDesignVariables::dndb(), volumetricBSplinesDesignVariables::dSdb(), volumetricBSplinesDesignVariables::dxdbFace(), adjointRotatingWallVelocityFvPatchVectorField::dxdbMult(), volumetricBSplinesDesignVariables::dxdbVol(), PDRblock::dz(), pitchForkRing::energy(), forceCoeffs::execute(), Foam::faceNij(), Foam::facePoint(), Foam::facePointN(), Foam::facePointN(), NURBS3DVolume::findPointsInBox(), pitchForkRing::force(), rigidBodyModel::forwardDynamics(), Foam::fromCartesian(), FIRECore::getFirePoint(), boundaryMesh::getNearest(), PDRblock::grid(), ijkAddressing::index(), voxelMeshSearch::index(), voxelMeshSearch::index(), voxelMeshSearch::index3(), voxelMeshSearch::index3(), waveMakerPointPatchVectorField::initialiseGeometry(), waveModel::initialiseGeometry(), inner(), cellShapeControlMesh::insert(), cellShapeControlMesh::insertFar(), NURBS3DVolume::JacobianUVW(), Rxyz::jcalc(), Ryxz::jcalc(), Rzyx::jcalc(), Foam::lerp(), cellMDLimitedGrad< Type >::limitFace(), magSqr(), momentOfInertia::massPropertiesSolid(), twoDPointCorrector::normalDir(), Field< T >::normalise(), NURBS3DCurve::nrm2D(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator&(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Foam::operator*(), Vector< vector >::operator+=(), Vector< vector >::operator-=(), Foam::operator/(), Foam::operator/(), Foam::operator/(), Foam::operator^(), Foam::operator^(), plane::planeIntersect(), ijkMesh::pointLabel(), polyTopoChange::pointRemoved(), tetrahedron< Point, PointRef >::pointToBarycentric(), triad::primaryDirection(), projectFace::project(), FIRECore::putFirePoint(), quaternion::quaternion(), Foam::Ra(), AC3DsurfaceFormat< Face >::read(), energySpectrum::read(), volumetricBSplinesDesignVariables::readBounds(), PDRblock::reset(), IjkField< Type >::resize(), linearSpringDamper::restrain(), euler::rotation(), SymmTensor< Cmpt >::row(), Tensor< Cmpt >::row(), treeBoundBox::searchOrder(), BezierDesignVariables::setBounds(), NURBS3DCurve::setNrm2DOrientation(), snappyVoxelMeshDriver::snappyVoxelMeshDriver(), Foam::sqr(), leastSquares::stencilWeights(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), treeBoundBox::subOctant(), SymmTensor< Cmpt >::subtractDiag(), Tensor< Cmpt >::subtractDiag(), Foam::toCartesian(), controlPointsDefinition::transformControlPoints(), NURBS3DVolumeCylindrical::transformPointToCartesian(), Foam::transformPrincipal_vector(), joint::unitQuaternion(), NURBS3DVolumeCylindrical::updateLocalCoordinateSystem(), PDRblock::V(), Vector(), ijkMesh::vertLabels(), NURBS3DVolume::volumeDerivativeCP(), wallLayerCells::wallLayerCells(), SMESHsurfaceFormat< Face >::write(), sixDoFRigidBodyState::write(), STLtriangle::write(), meshToMeshMethod::writeConnectivity(), forceCoeffs::writeIntegratedDataFile(), cellCuts::writeOBJ(), coupledPolyPatch::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), Foam::meshTools::writeOBJ(), triSurfaceTools::writeOBJ(), Cloud< ParticleType >::writePositions(), moleculeCloud::writeXYZ(), and Foam::zip().

◆ x() [2/2]

template<class Cmpt>

Cmpt & x ( )

inlinenoexcept

Access to the vector x component.

Definition at line 150 of file Vector.H.

◆ y() [2/2]

template<class Cmpt>

Cmpt & y ( )

inlinenoexcept

Access to the vector y component.

Definition at line 155 of file Vector.H.

◆ z() [2/2]

template<class Cmpt>

Cmpt & z ( )

inlinenoexcept

Access to the vector z component.

Definition at line 160 of file Vector.H.

◆ centre()

template<class Cmpt>

const Foam::Vector< Cmpt > & centre ( const Foam::UList< Vector< Cmpt > > & ) const

inlinenoexcept

Return this (for point which is a typedef to Vector<scalar>).

Definition at line 66 of file VectorI.H.

References Foam::noexcept, and Vector().

Referenced by cellShape::centre(), treeDataEdge::centre(), and extendedEdgeMesh::sortPointsAndEdges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mag()

template<class Cmpt>

Foam::scalar mag ( ) const

inline

The length (L2-norm) of the vector.

Definition at line 88 of file VectorI.H.

References Foam::magSqr().

Referenced by cellShape::mag().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ magSqr()

template<class Cmpt>

Foam::scalar magSqr ( ) const

inline

The length (L2-norm) squared of the vector.

Definition at line 76 of file VectorI.H.

References Foam::magSqr(), x, y, and z().

Referenced by faNVDscheme< Type, NVDweight >::weights().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dist()

template<class Cmpt>

Foam::scalar dist ( const Vector< Cmpt > & v2 ) const

inline

The L2-norm distance from another vector. The mag() of the difference.

Definition at line 107 of file VectorI.H.

References distSqr(), and Vector().

Referenced by triSurfaceTools::calcInterpolationWeights(), Foam::calcProximityOfFeatureEdges(), Foam::calcProximityOfFeaturePoints(), sampledSet::findNearFace(), boundaryMesh::getNearest(), boundBox::mag(), triangle< Point, PointRef >::nearestPoint(), and face::ray().

Here is the call graph for this function:

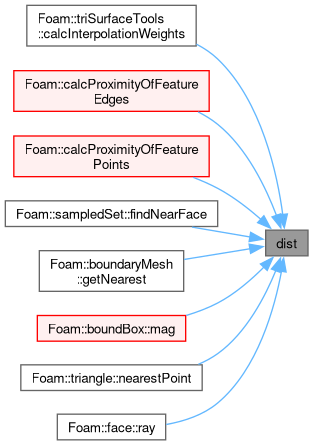

Here is the caller graph for this function:

◆ distSqr()

template<class Cmpt>

Foam::scalar distSqr ( const Vector< Cmpt > & v2 ) const

inline

The L2-norm distance squared from another vector. The magSqr() of the difference.

Definition at line 95 of file VectorI.H.

References Foam::magSqr(), Vector(), x(), y(), and z().

Referenced by triSurfaceMesh::boundingSpheres(), dist(), patchFieldProbe::findElements(), dynamicTreeDataPoint::findNearest(), mapNearestMethod::findNearestCell(), treeDataFace::getVolumeType(), surfaceFeatures::nearestEdges(), surfaceFeatures::nearestSamples(), and faceCollapser::setRefinement().

Here is the call graph for this function:

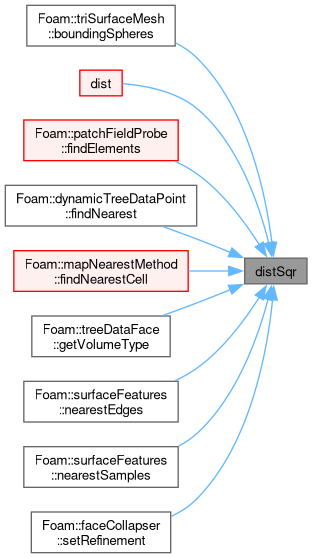

Here is the caller graph for this function:

◆ normalise()

template<class Cmpt>

Foam::Vector< Cmpt > & normalise ( const scalar tol = ROOTVSMALL )

inline

Inplace normalise the vector by its magnitude.

For small magnitudes (less than ROOTVSMALL) set to zero. Will not be particularly useful for a vector of labels

Definition at line 114 of file VectorI.H.

References Foam::mag(), s(), and Foam::Zero.

Referenced by cutCell::calcIsoFacePointsFromEdges(), ConeInjection< CloudType >::ConeInjection(), rotorDiskSource::createCoordinateSystem(), Foam::meshTools::edgeToCutDir(), pointMeshTools::featurePointsEdges(), searchableExtrudedCircle::findParametricNearest(), NURBS3DCurve::nrm3D(), Foam::rotation_e3e1(), propellerInfo::setCoordinateSystem(), ConeNozzleInjection< CloudType >::setProperties(), searchableSphere::surfaceNormal(), wallBoundedParticle::trackFaceTri(), edge::unitVec(), surfaceIteratorPLIC::vofCutCell(), faNVDscheme< Type, NVDweight >::weights(), and topOVariablesBase::writeFluidSolidInterface().

Here is the call graph for this function:

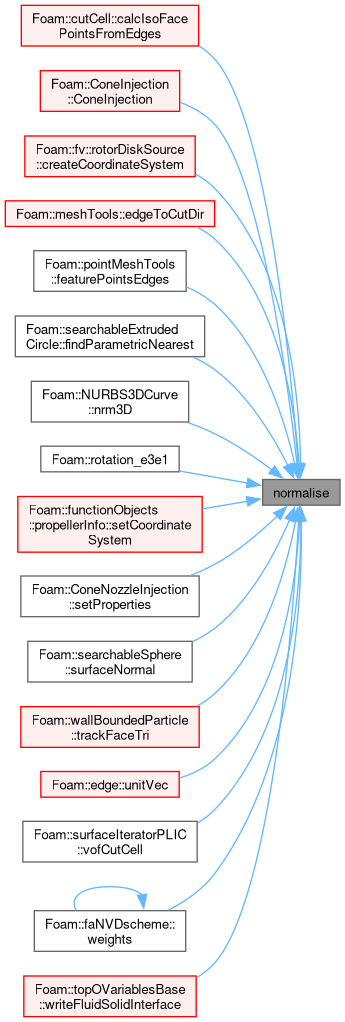

Here is the caller graph for this function:

◆ removeCollinear()

template<class Cmpt>

Foam::Vector< Cmpt > & removeCollinear ( const Vector< Cmpt > & unitVec )

inline

Inplace removal of components that are collinear to the given unit vector.

Definition at line 136 of file VectorI.H.

References Vector().

Referenced by Foam::calcLeVector(), searchableSurfacesQueries::findNearest(), searchableExtrudedCircle::findParametricNearest(), cylindrical::R(), axes::rotation(), Foam::rotation_e3e1(), and faNVDscheme< Type, NVDweight >::weights().

Here is the call graph for this function:

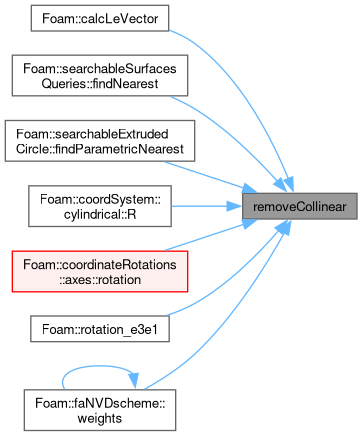

Here is the caller graph for this function:

◆ inner()

template<class Cmpt>

Cmpt inner ( const Vector< Cmpt > & v2 ) const

inline

Scalar-product of this with another Vector.

Definition at line 146 of file VectorI.H.

References Vector(), x(), y(), and z().

Referenced by Foam::operator&(), and Foam::operator&().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cross()

template<class Cmpt>

Foam::Vector< Cmpt > cross ( const Vector< Cmpt > & v2 ) const

inline

Cross-product of this with another Vector.

Definition at line 156 of file VectorI.H.

References Vector(), x(), y(), and z().

Referenced by Foam::operator^().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ less_xyz()

template<class Cmpt>

bool less_xyz	(	const Vector< Cmpt > &	a,
		const Vector< Cmpt > &	b )

inlinestatic

Lexicographically compare a and b with order (x:y:z).

Definition at line 173 of file VectorI.H.

References b, and Vector().

Here is the call graph for this function:

◆ less_yzx()

template<class Cmpt>

bool less_yzx	(	const Vector< Cmpt > &	a,
		const Vector< Cmpt > &	b )

inlinestatic

Lexicographically compare a and b with order (y:z:x).

Definition at line 197 of file VectorI.H.

References b, and Vector().

Here is the call graph for this function:

◆ less_zxy()

template<class Cmpt>

bool less_zxy	(	const Vector< Cmpt > &	a,
		const Vector< Cmpt > &	b )

inlinestatic

Lexicographically compare a and b with order (z:x:y).

Definition at line 221 of file VectorI.H.

References b, and Vector().

Here is the call graph for this function:

◆ operator+=()

template<class Cmpt>

template<class Cmpt2>

std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void > operator+= ( const Vector< Cmpt2 > & b )

inline

Add compatible vector to this.

Definition at line 267 of file Vector.H.

◆ operator-=()

template<class Cmpt>

template<class Cmpt2>

std::enable_if_t< std::is_convertible_v< Cmpt2, Cmpt >, void > operator-= ( const Vector< Cmpt2 > & b )

inline

Subtract compatible vector from this.

Definition at line 279 of file Vector.H.

Member Data Documentation

◆ rank

template<class Cmpt>

direction rank = 1

staticconstexpr

Rank of Vector is 1.

Definition at line 77 of file Vector.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/Vector/Vector.H
src/OpenFOAM/primitives/Vector/VectorI.H

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ labelType

Member Enumeration Documentation

◆ components

Constructor & Destructor Documentation

◆ Vector() [1/6]

◆ Vector() [2/6]

◆ Vector() [3/6]

◆ Vector() [4/6]

◆ Vector() [5/6]

◆ Vector() [6/6]

Member Function Documentation

◆ operator=()

◆ x() [1/2]

◆ y() [1/2]

◆ z() [1/2]

◆ x() [2/2]

◆ y() [2/2]

◆ z() [2/2]

◆ centre()

◆ mag()

◆ magSqr()

◆ dist()

◆ distSqr()

◆ normalise()

◆ removeCollinear()

◆ inner()

◆ cross()

◆ less_xyz()

◆ less_yzx()

◆ less_zxy()

◆ operator+=()

◆ operator-=()

Member Data Documentation

◆ rank
