namedVertex Class Reference

Gives name to a vertex. More...

#include <namedVertex.H>

Inheritance diagram for namedVertex:

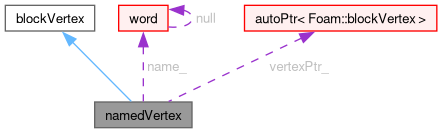

Collaboration diagram for namedVertex:

Public Member Functions
	TypeName ("name")
	Runtime type information.
	namedVertex (const dictionary &dict, const label index, const searchableSurfaces &geometry, Istream &is)
	Construct from Istream setting pointsList.
virtual	~namedVertex ()=default
	Destructor.
virtual	operator point () const
Public Member Functions inherited from blockVertex
	TypeName ("blockVertex")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, blockVertex, Istream,(const dictionary &dict, const label index, const searchableSurfaces &geometry, Istream &is),(dict, index, geometry, is))
	blockVertex () noexcept=default
	Default construct.
virtual autoPtr< blockVertex >	clone () const
	Clone function.
virtual	~blockVertex ()=default
	Destructor.

Protected Attributes
word	name_
	The dictionary variable name for the vertex number.
autoPtr< blockVertex >	vertexPtr_
	The vertex location.

Additional Inherited Members
Static Public Member Functions inherited from blockVertex
static autoPtr< blockVertex >	New (const dictionary &dict, const label index, const searchableSurfaces &geometry, Istream &)
	New function which constructs and returns pointer to a blockVertex.
static label	read (Istream &, const dictionary &)
	Read vertex index with optional name lookup.
static void	write (Ostream &, const label, const dictionary &)
	Write vertex index with optional name backsubstitution.

Detailed Description

Gives name to a vertex.

Source files

• namedVertex.H
• namedVertex.C

Definition at line 49 of file namedVertex.H.

Constructor & Destructor Documentation

namedVertex()

namedVertex	(	const dictionary &	dict,
		const label	index,
		const searchableSurfaces &	geometry,
		Istream &	is )

Construct from Istream setting pointsList.

Definition at line 38 of file namedVertex.C.

References dictionary::add(), blockVertex::blockVertex(), dict, dictionary::findDict(), name_, blockVertex::New(), and vertexPtr_.

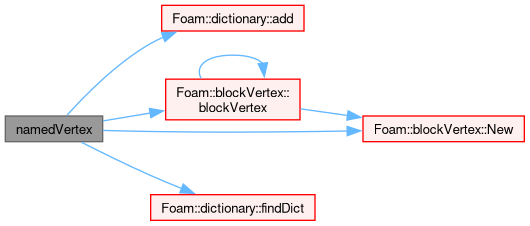

Here is the call graph for this function:

~namedVertex()

virtual ~namedVertex ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"name"

)

Runtime type information.

References dict.

operator point()

operator point ( ) const

virtual

Implements blockVertex.

Definition at line 67 of file namedVertex.C.

References vertexPtr_.

Member Data Documentation

name_

word name_

protected

The dictionary variable name for the vertex number.

Definition at line 60 of file namedVertex.H.

Referenced by namedVertex().

vertexPtr_

autoPtr<blockVertex> vertexPtr_

protected

The vertex location.

Definition at line 65 of file namedVertex.H.

Referenced by namedVertex(), and operator point().

---

The documentation for this class was generated from the following files:

• src/mesh/blockMesh/blockVertices/namedVertex/namedVertex.H
• src/mesh/blockMesh/blockVertices/namedVertex/namedVertex.C
