Container for searchableSurfaces. The collection is specified as a dictionary. For example,. More...

#include <searchableSurfaces.H>

Inheritance diagram for searchableSurfaces:

Collaboration diagram for searchableSurfaces:

Public Member Functions
	ClassName ("searchableSurfaces")
	searchableSurfaces (const label)
	Construct with length specified. Fill later.
	searchableSurfaces (const IOobject &, const dictionary &, const bool singleRegionName)
	Construct from dictionary.
const wordList &	names () const
	Surface names, not region names.
wordList &	names ()
	Surface names, not region names.
const List< wordList > &	regionNames () const
	Region names per surface.
List< wordList > &	regionNames ()
	Region names per surface.
label	findSurfaceID (const word &name) const
	Find index of surface. Return -1 if not found.
label	findSurfaceRegionID (const word &surfaceName, const word &regionName) const
void	findAnyIntersection (const pointField &start, const pointField &end, labelList &surfaces, List< pointIndexHit > &) const
	Find any intersection. Return hit point information and.
void	findAllIntersections (const pointField &start, const pointField &end, labelListList &surfaces, List< List< pointIndexHit > > &) const
	Find all intersections in order from start to end. Returns for.
void	findNearestIntersection (const pointField &start, const pointField &end, labelList &surface1, List< pointIndexHit > &hit1, labelList &surface2, List< pointIndexHit > &hit2) const
void	findNearest (const pointField &, const scalarField &nearestDistSqr, labelList &surfaces, List< pointIndexHit > &) const
	Find nearest. Return -1 (and a miss()) or surface and nearest.
void	findNearest (const labelListList &regionIndices, const pointField &samples, const scalarField &nearestDistSqr, labelList &nearestSurfaces, List< pointIndexHit > &nearestInfo) const
boundBox	bounds () const
	Calculate bounding box.

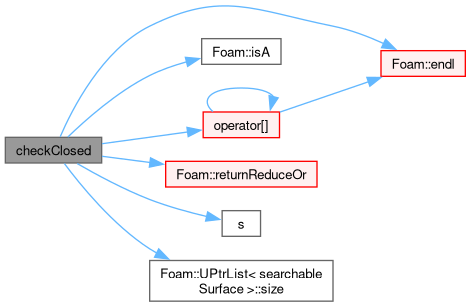

bool	checkClosed (const bool report) const
	Are all surfaces closed and manifold.

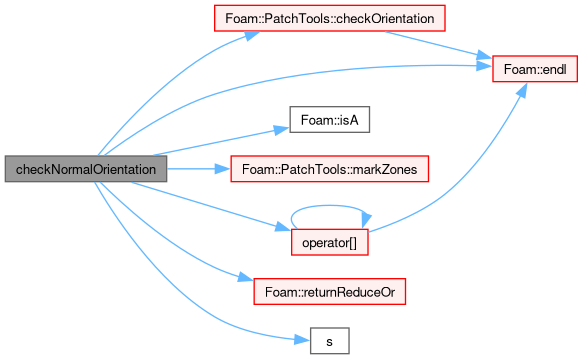

bool	checkNormalOrientation (const bool report) const
	Are all (triangulated) surfaces consistent normal orientation.

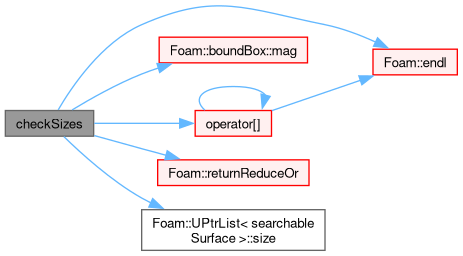

bool	checkSizes (const scalar maxRatio, const bool report) const
	Are all bounding boxes of similar size.

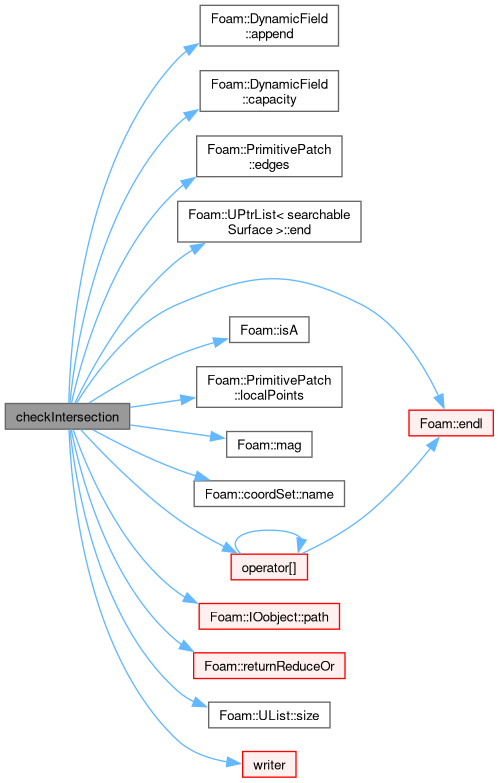

bool	checkIntersection (const scalar tol, autoPtr< coordSetWriter > &setWriter, const bool report) const
	Do surfaces self-intersect or intersect others.
bool	checkQuality (const scalar minQuality, const bool report) const
	Check triangle quality.
label	checkTopology (const bool report) const
	All topological checks. Return number of failed checks.
label	checkGeometry (const scalar maxRatio, const scalar tolerance, autoPtr< coordSetWriter > &setWriter, const scalar minQuality, const bool report) const
	All geometric checks. Return number of failed checks.

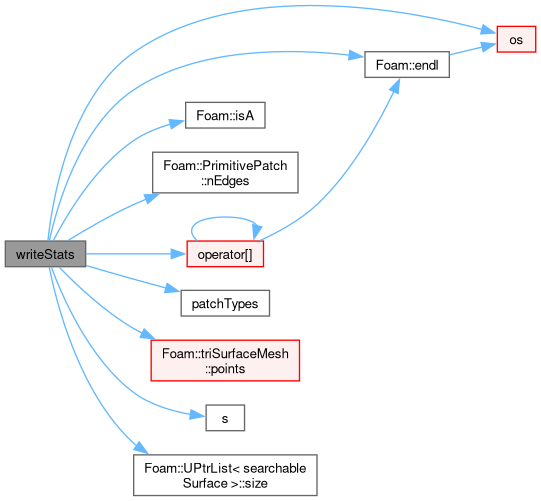

void	writeStats (const List< wordList > &, Ostream &) const
	Write some stats.
const searchableSurface &	operator[] (const word &) const
	Return const reference to searchableSurface by name.
searchableSurface &	operator[] (const word &)
	Return reference to searchableSurface by name.
Public Member Functions inherited from PtrList< searchableSurface >
Foam::PtrList< searchableSurface >	clone (Args &&... args) const
constexpr	PtrList () noexcept
	Default construct.
	~PtrList ()
	Destructor. Frees all pointers.
const searchableSurface *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Clear the PtrList. Delete allocated entries and set size to zero.
void	free ()
	Free memory and nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Adjust size of PtrList.
void	resize_null (const label newLen)
	Set the addressed list to the given size, deleting all existing entries. Afterwards the list contains all `nullptr` entries.
searchableSurface &	emplace_back (Args &&... args)
	Construct and append an element to the end of the list, return reference to the new list element.
void	push_back (searchableSurface *ptr)
	Append an element to the end of the list.
searchableSurface &	emplace_set (const label i, Args &&... args)
	Construct and set a new element at given position, (discard old element at that location).
searchableSurface &	emplace (const label i, Args &&... args)
	Same as emplace_set().
searchableSurface &	try_emplace (const label i, Args &&... args)
	Like emplace_set() but will not overwrite an occupied (non-null) location.
autoPtr< searchableSurface >	release (const label i)
	Release ownership of the pointer at the given position.
void	transfer (PtrList< searchableSurface > &list)
	Transfer into this list and annul the argument list.
void	operator= (const UPtrList< searchableSurface > &list)
	Copy assignment.
void	setSize (const label n)
	Same as resize().
void	append (autoPtr< searchableSurface > &ptr)
	Move append an element to the end of the list.
Public Member Functions inherited from UPtrList< searchableSurface >
bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	The number of entries in the list.
label	capacity () const noexcept
	Size of the underlying storage.
label	count_nonnull () const noexcept
	The number of non-nullptr entries in the list.
searchableSurface &	front ()
	Reference to the first element of the list.
searchableSurface &	back ()
	Reference to the last element of the list.
const searchableSurface *	test (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const searchableSurface *	get (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const searchableSurface *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Set list size to zero.
void	free ()
	Nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Change the size of the list. Any new entries are `nullptr`.
void	resize_null (const label newLen)
	Set the list to the given size and set all entries to `nullptr`.
label	squeezeNull ()
	Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.
void	push_back (searchableSurface *ptr)
	Append an element to the end of the list.
void	swap (UPtrList< searchableSurface > &list) noexcept
	Swap content.
void	transfer (UPtrList< searchableSurface > &list)
	Transfer contents into this list and annul the argument.
void	reorder (const labelUList &oldToNew, const bool check=false)
	Reorder elements. Reordering must be unique (ie, shuffle).
void	sortOrder (const labelUList &order, const bool check=false)
	Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).
void	checkNonNull () const
	Check and raise FatalError if any nullptr exists in the list.
const searchableSurface &	at (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr.
const searchableSurface &	operator[] (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
	FOAM_DEPRECATED_FOR (2022-09, "get(), set() or test() methods") const searchableSurface *operator()(const label i) const
	Deprecated(2022-09) - same as get().
void	operator= (const UPtrList< searchableSurface > &list)
	Copy assignment (shallow copies addresses).
Ostream &	printAddresses (Ostream &os) const
	Print pointer addresses to Ostream (debugging only).
Ostream &	writeList (Ostream &os, const bool trimNull=false) const
	Write UPtrList to Ostream, optionally ignoring null entries.
searchableSurface **	begin_ptr () noexcept
	Iterator to begin of raw pointers traversal (use with caution).
searchableSurface **	end_ptr () noexcept
	Iterator beyond end of raw pointers traversal (use with caution).
iterator	begin ()
	Return iterator to begin traversal of non-nullptr entries.
iterator	end () noexcept
	Return iterator beyond end of UPtrList traversal.
const_iterator	cbegin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	cend () const noexcept
	Return const_iterator beyond end of UPtrList traversal.
void	setSize (const label n)
	Alias for resize().
searchableSurface &	first ()
	Reference to the first element of the list.
searchableSurface &	last ()
	Return reference to the last element of the list.
void	append (searchableSurface *ptr)
	Append an element to the end of the list.
label	count () const noexcept
	The number of non-nullptr entries in the list.

Additional Inherited Members
Public Types inherited from UPtrList< searchableSurface >
typedef searchableSurface	value_type
	Type of values the list contains.
typedef searchableSurface &	reference
	A non-const reference to the value_type.
typedef const searchableSurface &	const_reference
	A const reference to the value_type.
Protected Member Functions inherited from PtrList< searchableSurface >
void	readIstream (Istream &is, const INew &inew)
	Read from Istream using Istream constructor class.
Protected Member Functions inherited from UPtrList< searchableSurface >
void	setAddressableSize (const label n) noexcept
	Adjust addressable size.
label	find_next (label pos) const
	The next non-null entry after the specified position.
	UPtrList (Detail::PtrListDetail< searchableSurface > &&ptrs) noexcept
	Low-level move construct.
Protected Attributes inherited from UPtrList< searchableSurface >
Detail::PtrListDetail< searchableSurface >	ptrs_
	The list of pointers.

Detailed Description

Container for searchableSurfaces. The collection is specified as a dictionary. For example,.

geometry
{
    surface1
    {
        type  ...;
    }
    surface2
    {
        type  ...;
    }
}

The Sub-dictionary parameters

Property	Description	Required	Default
`name`	alternative name for surface	no	dict name
`regions`	Region names sub-dictionary	no

Source files

Definition at line 89 of file searchableSurfaces.H.

Constructor & Destructor Documentation

◆ searchableSurfaces() [1/2]

searchableSurfaces ( const label size )

explicit

Construct with length specified. Fill later.

Definition at line 92 of file searchableSurfaces.C.

References Foam::identity(), PtrList< searchableSurface >::PtrList(), and UPtrList< searchableSurface >::size().

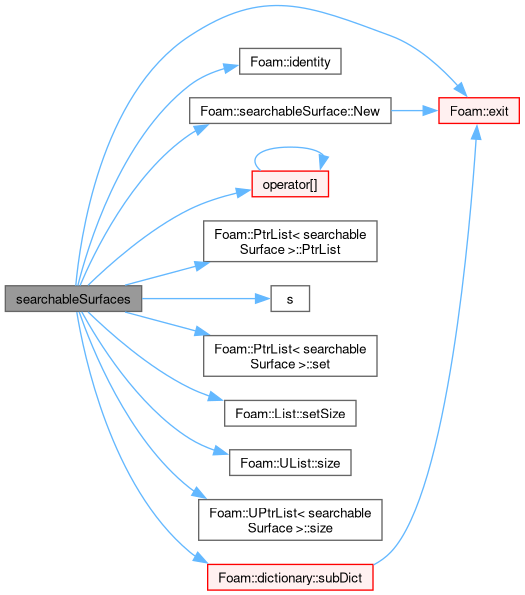

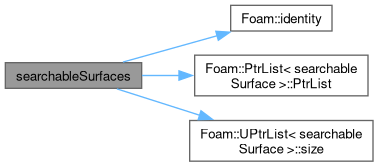

Here is the call graph for this function:

◆ searchableSurfaces() [2/2]

searchableSurfaces	(	const IOobject &	io,
		const dictionary &	topDict,
		const bool	singleRegionName )

Construct from dictionary.

Parameters

singleRegionName controls if names are constructed as surfaceName "_" regionName (singleRegionName false) or for single region surfaces as surfaceName only (singleRegionName true)

Definition at line 190 of file searchableSurfaces.C.

References dict, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::identity(), io, searchableSurface::New(), operator[](), PtrList< searchableSurface >::PtrList(), s(), PtrList< searchableSurface >::set(), List< T >::setSize(), UList< T >::size(), UPtrList< searchableSurface >::size(), and dictionary::subDict().

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "searchableSurfaces" )

◆ names() [1/2]

const wordList & names ( ) const

inline

Surface names, not region names.

Definition at line 172 of file searchableSurfaces.H.

◆ names() [2/2]

wordList & names ( )

inline

Surface names, not region names.

Definition at line 180 of file searchableSurfaces.H.

◆ regionNames() [1/2]

const List< wordList > & regionNames ( ) const

inline

Region names per surface.

Definition at line 188 of file searchableSurfaces.H.

◆ regionNames() [2/2]

List< wordList > & regionNames ( )

inline

Region names per surface.

Definition at line 196 of file searchableSurfaces.H.

◆ findSurfaceID()

Foam::label findSurfaceID ( const word & name ) const

Find index of surface. Return -1 if not found.

Definition at line 302 of file searchableSurfaces.C.

Referenced by findSurfaceRegionID(), operator[](), and operator[]().

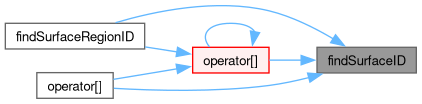

Here is the caller graph for this function:

◆ findSurfaceRegionID()

Foam::label findSurfaceRegionID	(	const word &	surfaceName,
		const word &	regionName ) const

Definition at line 311 of file searchableSurfaces.C.

References findSurfaceID(), operator[](), and regionName.

Here is the call graph for this function:

◆ findAnyIntersection()

void findAnyIntersection	(	const pointField &	start,
		const pointField &	end,
		labelList &	surfaces,
		List< pointIndexHit > &	hitInfo ) const

Find any intersection. Return hit point information and.

surface number. If multiple surfaces hit the first surface is returned, not necessarily the nearest (to start).

Definition at line 324 of file searchableSurfaces.C.

References UPtrList< searchableSurface >::end(), and searchableSurfacesQueries::findAnyIntersection().

Here is the call graph for this function:

◆ findAllIntersections()

void findAllIntersections	(	const pointField &	start,
		const pointField &	end,
		labelListList &	surfaces,
		List< List< pointIndexHit > > &	hitInfo ) const

Find all intersections in order from start to end. Returns for.

every hit the surface and the hit info.

Definition at line 344 of file searchableSurfaces.C.

References UPtrList< searchableSurface >::end(), and searchableSurfacesQueries::findAllIntersections().

Here is the call graph for this function:

◆ findNearestIntersection()

void findNearestIntersection	(	const pointField &	start,
		const pointField &	end,
		labelList &	surface1,
		List< pointIndexHit > &	hit1,
		labelList &	surface2,
		List< pointIndexHit > &	hit2 ) const

Definition at line 365 of file searchableSurfaces.C.

References UPtrList< searchableSurface >::end(), and searchableSurfacesQueries::findNearestIntersection().

Here is the call graph for this function:

◆ findNearest() [1/2]

void findNearest	(	const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	surfaces,
		List< pointIndexHit > &	nearestInfo ) const

Find nearest. Return -1 (and a miss()) or surface and nearest.

point.

Definition at line 389 of file searchableSurfaces.C.

References searchableSurfacesQueries::findNearest(), and samples().

Here is the call graph for this function:

◆ findNearest() [2/2]

void findNearest	(	const labelListList &	regionIndices,
		const pointField &	samples,
		const scalarField &	nearestDistSqr,
		labelList &	nearestSurfaces,
		List< pointIndexHit > &	nearestInfo ) const

Definition at line 409 of file searchableSurfaces.C.

References searchableSurfacesQueries::findNearest(), and samples().

Here is the call graph for this function:

◆ bounds()

Foam::boundBox bounds ( ) const

Calculate bounding box.

Definition at line 433 of file searchableSurfaces.C.

References searchableSurfacesQueries::bounds().

Here is the call graph for this function:

◆ checkClosed()

bool checkClosed ( const bool report ) const

Are all surfaces closed and manifold.

Definition at line 443 of file searchableSurfaces.C.

References Foam::endl(), forAll, Foam::Info, Foam::isA(), names, Foam::nl, operator[](), Foam::returnReduceOr(), s(), and UPtrList< searchableSurface >::size().

Referenced by checkTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkNormalOrientation()

bool checkNormalOrientation ( const bool report ) const

Are all (triangulated) surfaces consistent normal orientation.

Definition at line 510 of file searchableSurfaces.C.

References PatchTools::checkOrientation(), Foam::endl(), forAll, Foam::Info, Foam::isA(), PatchTools::markZones(), names, operator[](), Foam::returnReduceOr(), and s().

Referenced by checkTopology().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkSizes()

bool checkSizes	(	const scalar	maxRatio,
		const bool	report ) const

Are all bounding boxes of similar size.

Definition at line 556 of file searchableSurfaces.C.

References Foam::endl(), forAll, Foam::Info, boundBox::mag(), names, Foam::nl, operator[](), Foam::returnReduceOr(), and UPtrList< searchableSurface >::size().

Referenced by checkGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkIntersection()

bool checkIntersection	(	const scalar	tol,
		autoPtr< coordSetWriter > &	setWriter,
		const bool	report ) const

Do surfaces self-intersect or intersect others.

Definition at line 604 of file searchableSurfaces.C.

References DynamicField< T, SizeMin >::append(), DynamicField< T, SizeMin >::capacity(), e, PrimitivePatch< FaceList, PointField >::edges(), UPtrList< searchableSurface >::end(), Foam::endl(), forAll, Foam::Info, Foam::isA(), PrimitivePatch< FaceList, PointField >::localPoints(), Foam::mag(), coordSet::name(), names, operator[](), IOobject::path(), Foam::returnReduceOr(), UList< T >::size(), and writer().

Referenced by checkGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkQuality()

bool checkQuality	(	const scalar	minQuality,
		const bool	report ) const

Check triangle quality.

Definition at line 744 of file searchableSurfaces.C.

References Foam::endl(), f(), forAll, Foam::Info, Foam::isA(), names, operator[](), triangle< Point, PointRef >::quality(), Foam::returnReduceOr(), and s().

Referenced by checkGeometry().

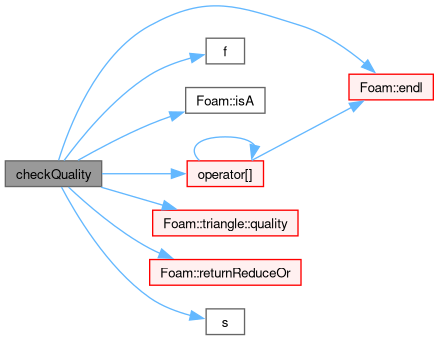

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkTopology()

Foam::label checkTopology ( const bool report ) const

All topological checks. Return number of failed checks.

Definition at line 809 of file searchableSurfaces.C.

References checkClosed(), and checkNormalOrientation().

Here is the call graph for this function:

◆ checkGeometry()

Foam::label checkGeometry	(	const scalar	maxRatio,
		const scalar	tolerance,
		autoPtr< coordSetWriter > &	setWriter,
		const scalar	minQuality,
		const bool	report ) const
