Contributions of objective function differentiation to adjoint boundary conditions for incompressible flows. More...

#include <boundaryAdjointContributionIncompressible.H>

Inheritance diagram for boundaryAdjointContributionIncompressible:

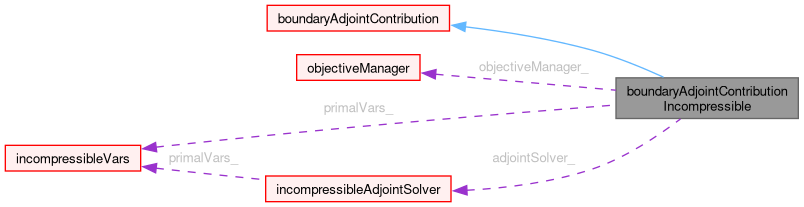

Collaboration diagram for boundaryAdjointContributionIncompressible:

[legend]

Public Member Functions
	TypeName ("incompressible")
	Runtime type information.
	boundaryAdjointContributionIncompressible (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Construct from components.
virtual	~boundaryAdjointContributionIncompressible ()=default
	Destructor.
tmp< scalarField >	pressureSource ()
tmp< vectorField >	velocitySource ()
tmp< vectorField >	tangentVelocitySource ()
tmp< vectorField >	normalVelocitySource ()
tmp< scalarField >	energySource ()
tmp< scalarField >	adjointTMVariable1Source ()
tmp< scalarField >	adjointTMVariable2Source ()
tmp< scalarField >	dJdnut ()
tmp< tensorField >	dJdGradU ()
tmp< scalarField >	momentumDiffusion ()
tmp< scalarField >	laminarDiffusivity ()
tmp< scalarField >	thermalDiffusion ()
tmp< scalarField >	wallDistance ()
tmp< scalarField >	TMVariable1Diffusion ()
tmp< scalarField >	TMVariable2Diffusion ()
tmp< scalarField >	TMVariable1 ()
tmp< scalarField >	TMVariable2 ()
const fvPatchVectorField &	Ub () const
const fvPatchScalarField &	pb () const
const fvsPatchScalarField &	phib () const
tmp< fvPatchScalarField >	turbulentDiffusivity () const
const fvPatchVectorField &	Uab () const
const fvPatchScalarField &	pab () const
const fvsPatchScalarField &	phiab () const
const word	primalSolverName () const
const word	adjointSolverName () const
const incompressibleVars &	primalVars () const
const incompressibleAdjointVars &	adjointVars () const
objectiveManager &	getObjectiveManager ()
Public Member Functions inherited from boundaryAdjointContribution
	TypeName ("boundaryAdjointContribution")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, boundaryAdjointContribution, dictionary,(const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch),(managerName, adjointSolverName, simulationType, patch))
	boundaryAdjointContribution (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Construct from components.
virtual	~boundaryAdjointContribution ()=default
	Destructor.
template<class returnType, class sourceType, class castType>
Foam::tmp< Foam::Field< returnType > >	sumContributions (PtrList< sourceType > &sourceList, const fvPatchField< returnType > &(castType::boundaryFunction)(const label), bool(castType::hasFunction)() const)

Protected Attributes
objectiveManager &	objectiveManager_
const incompressibleVars &	primalVars_
const incompressibleAdjointSolver &	adjointSolver_
	Note: getting a reference to the adjoint vars in the constructor of boundaryAdjointContributionIncompressible is dangerous since the autoPtr that holds them has not been completed yet. Instead, get a reference to the solver and grab the adjoint vars from there, when necessary.
Protected Attributes inherited from boundaryAdjointContribution
const fvPatch &	patch_

Additional Inherited Members
Static Public Member Functions inherited from boundaryAdjointContribution
static autoPtr< boundaryAdjointContribution >	New (const word &managerName, const word &adjointSolverName, const word &simulationType, const fvPatch &patch)
	Return a reference to the selected turbulence model.
Protected Member Functions inherited from boundaryAdjointContribution
template<class returnType, class sourceType, class castType>
tmp< Field< returnType > >	sumContributions (PtrList< sourceType > &sourceList, const fvPatchField< returnType > &(castType::boundaryFunction)(const label), bool(castType::hasFunction)() const)

Detailed Description

Contributions of objective function differentiation to adjoint boundary conditions for incompressible flows.

Source files

Definition at line 57 of file boundaryAdjointContributionIncompressible.H.

Constructor & Destructor Documentation

◆ boundaryAdjointContributionIncompressible()

boundaryAdjointContributionIncompressible	(	const word &	managerName,
		const word &	adjointSolverName,
		const word &	simulationType,
		const fvPatch &	patch )

Construct from components.

Definition at line 45 of file boundaryAdjointContributionIncompressible.C.

References adjointSolver_, adjointSolverName(), mesh, objectiveManager_, boundaryAdjointContribution::patch_, and primalVars_.

Here is the call graph for this function:

◆ ~boundaryAdjointContributionIncompressible()

virtual ~boundaryAdjointContributionIncompressible ( )

virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "incompressible" )

Runtime type information.

References adjointSolverName().

Here is the call graph for this function:

◆ pressureSource()

tmp< scalarField > pressureSource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 103 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), objectiveIncompressible::boundarydJdvn(), objectiveIncompressible::hasBoundarydJdvn(), objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContribution::sumContributions().

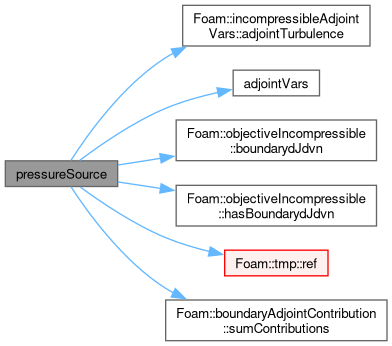

Here is the call graph for this function:

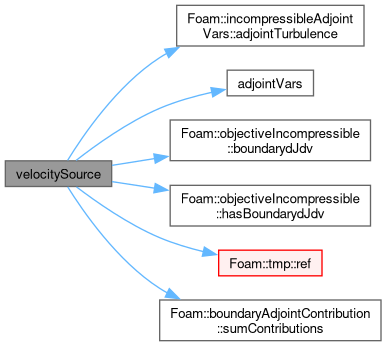

◆ velocitySource()

tmp< vectorField > velocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 82 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), objectiveIncompressible::boundarydJdv(), objectiveIncompressible::hasBoundarydJdv(), objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

◆ tangentVelocitySource()

tmp< vectorField > tangentVelocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 129 of file boundaryAdjointContributionIncompressible.C.

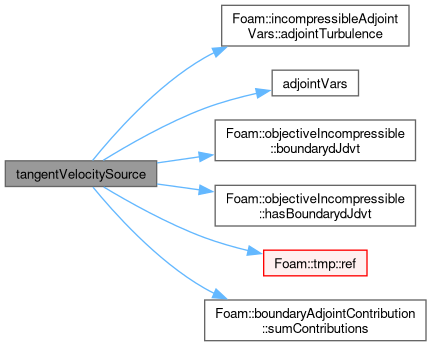

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), objectiveIncompressible::boundarydJdvt(), objectiveIncompressible::hasBoundarydJdvt(), objectiveManager_, boundaryAdjointContribution::patch_, tmp< T >::ref(), and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

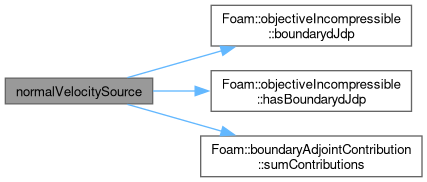

◆ normalVelocitySource()

tmp< vectorField > normalVelocitySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 158 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdp(), objectiveIncompressible::hasBoundarydJdp(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

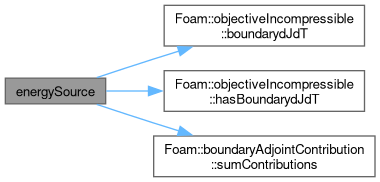

◆ energySource()

tmp< scalarField > energySource ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 171 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdT(), objectiveIncompressible::hasBoundarydJdT(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

◆ adjointTMVariable1Source()

tmp< scalarField > adjointTMVariable1Source ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 185 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdTMvar1(), objectiveIncompressible::hasBoundarydJdTMVar1(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

◆ adjointTMVariable2Source()

tmp< scalarField > adjointTMVariable2Source ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 199 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdTMvar2(), objectiveIncompressible::hasBoundarydJdTMVar2(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

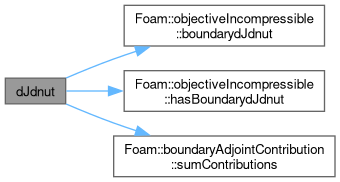

◆ dJdnut()

tmp< scalarField > dJdnut ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 213 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdnut(), objectiveIncompressible::hasBoundarydJdnut(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

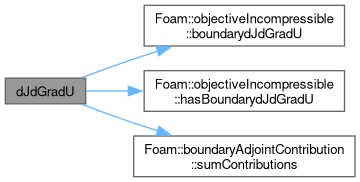

◆ dJdGradU()

tmp< tensorField > dJdGradU ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 226 of file boundaryAdjointContributionIncompressible.C.

References objectiveIncompressible::boundarydJdGradU(), objectiveIncompressible::hasBoundarydJdGradU(), objectiveManager_, and boundaryAdjointContribution::sumContributions().

Here is the call graph for this function:

◆ momentumDiffusion()

tmp< scalarField > momentumDiffusion ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 238 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

◆ laminarDiffusivity()

tmp< scalarField > laminarDiffusivity ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 245 of file boundaryAdjointContributionIncompressible.C.

References tmp< T >::New(), turbulenceModel::nu(), nu, boundaryAdjointContribution::patch_, primalVars_, and Foam::Zero.

Here is the call graph for this function:

◆ thermalDiffusion()

tmp< scalarField > thermalDiffusion ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 259 of file boundaryAdjointContributionIncompressible.C.

References tmp< T >::New(), boundaryAdjointContribution::patch_, WarningInFunction, and Foam::Zero.

Here is the call graph for this function:

◆ wallDistance()

tmp< scalarField > wallDistance ( )

virtual

Implements boundaryAdjointContribution.

Definition at line 275 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ TMVariable1Diffusion()

tmp< scalarField > TMVariable1Diffusion ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 282 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

◆ TMVariable2Diffusion()

tmp< scalarField > TMVariable2Diffusion ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 291 of file boundaryAdjointContributionIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointVars(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

◆ TMVariable1()

tmp< scalarField > TMVariable1 ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 298 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ TMVariable2()

tmp< scalarField > TMVariable2 ( )

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 306 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ Ub()

const fvPatchVectorField & Ub ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 314 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ pb()

const fvPatchScalarField & pb ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 320 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ phib()

const fvsPatchScalarField & phib ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 327 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ turbulentDiffusivity()

tmp< fvPatchScalarField > turbulentDiffusivity ( ) const

virtual

Reimplemented from boundaryAdjointContribution.

Definition at line 334 of file boundaryAdjointContributionIncompressible.C.

References boundaryAdjointContribution::patch_, and primalVars_.

◆ Uab()

const fvPatchVectorField & Uab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 340 of file boundaryAdjointContributionIncompressible.C.

References adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), boundaryAdjointContribution::patch_, and incompressibleAdjointMeanFlowVars::UaInst().

Here is the call graph for this function:

◆ pab()

const fvPatchScalarField & pab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 346 of file boundaryAdjointContributionIncompressible.C.

References adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), incompressibleAdjointMeanFlowVars::paInst(), and boundaryAdjointContribution::patch_.

Here is the call graph for this function:

◆ phiab()

const fvsPatchScalarField & phiab ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 353 of file boundaryAdjointContributionIncompressible.C.

References adjointVars(), GeometricField< Type, PatchField, GeoMesh >::boundaryField(), boundaryAdjointContribution::patch_, and incompressibleAdjointMeanFlowVars::phiaInst().

Here is the call graph for this function:

◆ primalSolverName()

const word primalSolverName ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 359 of file boundaryAdjointContributionIncompressible.C.

References primalVars_.

◆ adjointSolverName()

const word adjointSolverName ( ) const

virtual

Implements boundaryAdjointContribution.

Definition at line 365 of file boundaryAdjointContributionIncompressible.C.

References adjointVars(), and variablesSet::solverName().

Referenced by boundaryAdjointContributionIncompressible(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ primalVars()

const incompressibleVars & primalVars ( ) const

Definition at line 372 of file boundaryAdjointContributionIncompressible.C.

References primalVars_.

◆ adjointVars()

const incompressibleAdjointVars & adjointVars ( ) const

Definition at line 379 of file boundaryAdjointContributionIncompressible.C.

References adjointSolver_.

Referenced by adjointSolverName(), momentumDiffusion(), pab(), phiab(), pressureSource(), tangentVelocitySource(), TMVariable1Diffusion(), TMVariable2Diffusion(), Uab(), and velocitySource().

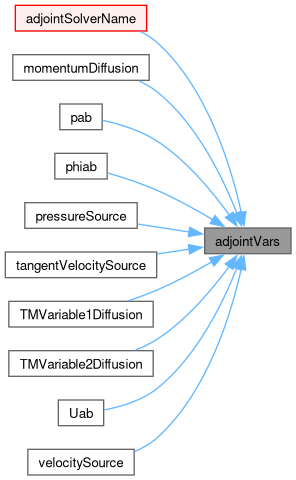

Here is the caller graph for this function:

◆ getObjectiveManager()

objectiveManager & getObjectiveManager ( )

Definition at line 386 of file boundaryAdjointContributionIncompressible.C.

References objectiveManager_.

Member Data Documentation

◆ objectiveManager_

objectiveManager& objectiveManager_

protected

Definition at line 86 of file boundaryAdjointContributionIncompressible.H.

Referenced by adjointTMVariable1Source(), adjointTMVariable2Source(), boundaryAdjointContributionIncompressible(), dJdGradU(), dJdnut(), energySource(), getObjectiveManager(), normalVelocitySource(), pressureSource(), tangentVelocitySource(), and velocitySource().

◆ primalVars_

const incompressibleVars& primalVars_

protected

Definition at line 88 of file boundaryAdjointContributionIncompressible.H.

Referenced by boundaryAdjointContributionIncompressible(), laminarDiffusivity(), pb(), phib(), primalSolverName(), primalVars(), TMVariable1(), TMVariable2(), turbulentDiffusivity(), Ub(), and wallDistance().

◆ adjointSolver_

const incompressibleAdjointSolver& adjointSolver_

protected

Note: getting a reference to the adjoint vars in the constructor of boundaryAdjointContributionIncompressible is dangerous since the autoPtr that holds them has not been completed yet. Instead, get a reference to the solver and grab the adjoint vars from there, when necessary.

Definition at line 97 of file boundaryAdjointContributionIncompressible.H.

Referenced by adjointVars(), and boundaryAdjointContributionIncompressible().

The documentation for this class was generated from the following files:

src/optimisation/adjointOptimisation/adjoint/boundaryAdjointContributions/boundaryAdjointContributionIncompressible/boundaryAdjointContributionIncompressible.H
src/optimisation/adjointOptimisation/adjoint/boundaryAdjointContributions/boundaryAdjointContributionIncompressible/boundaryAdjointContributionIncompressible.C

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ boundaryAdjointContributionIncompressible()

◆ ~boundaryAdjointContributionIncompressible()

Member Function Documentation

◆ TypeName()

◆ pressureSource()

◆ velocitySource()

◆ tangentVelocitySource()

◆ normalVelocitySource()

◆ energySource()

◆ adjointTMVariable1Source()

◆ adjointTMVariable2Source()

◆ dJdnut()

◆ dJdGradU()

◆ momentumDiffusion()

◆ laminarDiffusivity()

◆ thermalDiffusion()

◆ wallDistance()

◆ TMVariable1Diffusion()

◆ TMVariable2Diffusion()

◆ TMVariable1()

◆ TMVariable2()

◆ Ub()

◆ pb()

◆ phib()

◆ turbulentDiffusivity()

◆ Uab()

◆ pab()

◆ phiab()

◆ primalSolverName()

◆ adjointSolverName()

◆ primalVars()

◆ adjointVars()

◆ getObjectiveManager()

Member Data Documentation

◆ objectiveManager_

◆ primalVars_

◆ adjointSolver_
