fvPatch Class Reference

A finiteVolume patch using a polyPatch and a fvBoundaryMesh. More...

#include <fvPatch.H>

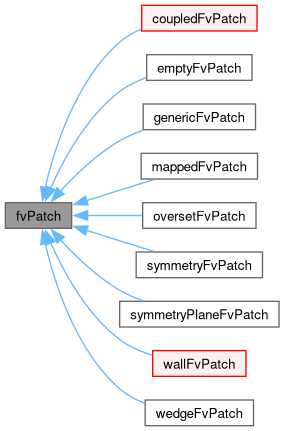

Inheritance diagram for fvPatch:

Public Types
typedef fvBoundaryMesh	BoundaryMesh
	The boundary type associated with the patch.

Public Member Functions
virtual void	makeWeights (scalarField &) const
	Make patch weighting factors.
virtual void	makeDeltaCoeffs (scalarField &) const
	Correct patch deltaCoeffs.
virtual void	makeNonOrthoDeltaCoeffs (scalarField &) const
	Correct patch non-ortho deltaCoeffs.
virtual void	makeNonOrthoCorrVectors (vectorField &) const
	Correct patch non-ortho correction vectors.
virtual void	initMovePoints ()
	Initialise the patches for moving points.
virtual void	movePoints ()
	Correct patches after moving points.
	TypeName (polyPatch::typeName_())
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, fvPatch, polyPatch,(const polyPatch &patch, const fvBoundaryMesh &bm),(patch, bm))
	fvPatch (const polyPatch &, const fvBoundaryMesh &)
	Construct from polyPatch and fvBoundaryMesh.
virtual	~fvPatch ()
	Destructor.
const polyPatch &	patch () const noexcept
	Return the polyPatch.
virtual const word &	name () const
	Return name.
label	index () const noexcept
	The index of this patch in the boundary mesh.
label	start () const noexcept
	The patch start within the polyMesh face list.
label	offset () const noexcept
	The offset of this patch within the boundary face list.
virtual label	size () const
	Patch size is the number of faces, but can be overloaded.
virtual bool	coupled () const
	Return true if this patch is coupled.
const fvBoundaryMesh &	boundaryMesh () const noexcept
	Return boundaryMesh reference.
template<class T>
const List< T >::subList	patchSlice (const UList< T > &values) const
	This patch slice from the complete list, which has size mesh::nFaces(), using the virtual patch size.
template<class T>
const List< T >::subList	boundarySlice (const UList< T > &values) const
	This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the virtual patch size.
virtual const labelUList &	faceCells () const
	Return faceCells.

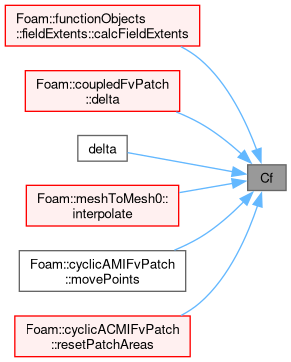

const vectorField &	Cf () const
	Return face centres.
tmp< vectorField >	Cn () const
	Return neighbour cell centres.

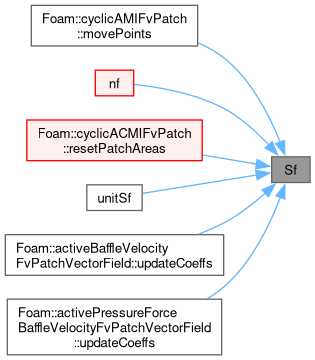

const vectorField &	Sf () const
	Return face area vectors, like the fvMesh::Sf() method.

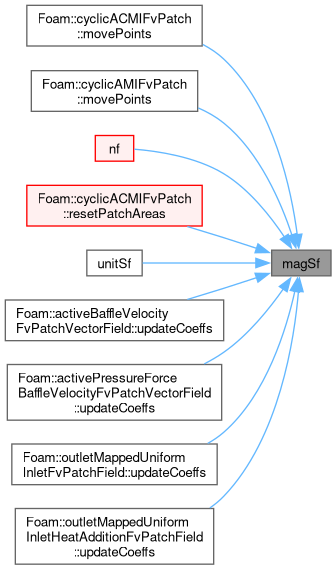

const scalarField &	magSf () const
	Return face area magnitudes, like the fvMesh::magSf() method.
tmp< vectorField >	unitSf () const
	Return face unit normals, like the fvMesh::unitSf() method. Same as nf().

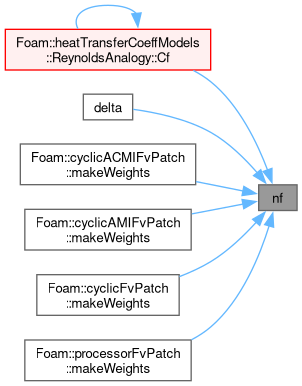

tmp< vectorField >	nf () const
	Return face unit normals, like the fvMesh::unitSf() method Same as unitSf().
virtual tmp< vectorField >	delta () const
	Return cell-centre to face-centre vector except for coupled patches for which the cell-centre to coupled-cell-centre vector is returned.
const scalarField &	weights () const
	Return patch weighting factors.

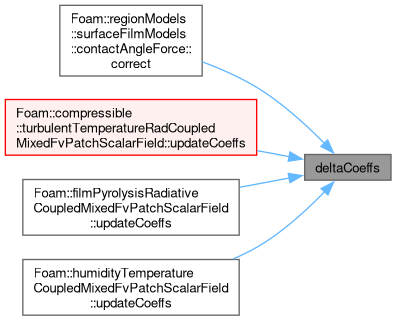

const scalarField &	deltaCoeffs () const
	Return the face - cell distance coefficient except for coupled patches for which the cell-centre to coupled-cell-centre distance coefficient is returned.

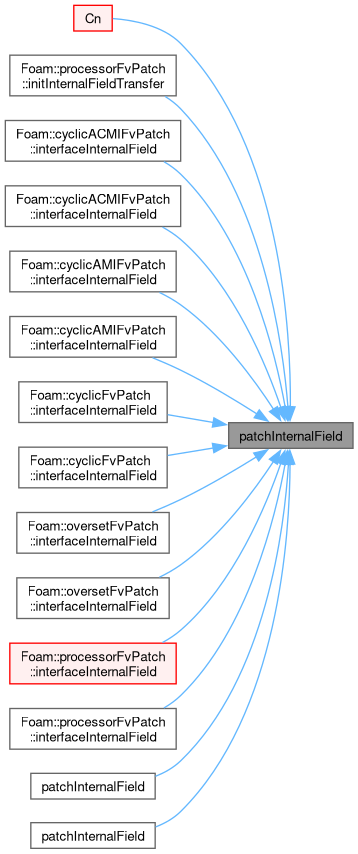

template<class Type>
void	patchInternalField (const UList< Type > &internalData, const labelUList &addressing, UList< Type > &pfld) const
	Extract internal field next to patch using specified addressing.
template<class Type>
void	patchInternalField (const UList< Type > &internalData, UList< Type > &pfld) const
	Extract internal field next to patch as patch field using faceCells() mapping.
template<class Type>

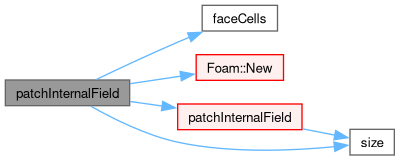

tmp< Field< Type > >	patchInternalField (const UList< Type > &internalData) const
	Return given internal field next to patch as patch field using faceCells() mapping.
template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	patchField (const GeometricField &gf) const
	Return the patch field of the GeometricField corresponding to this patch.

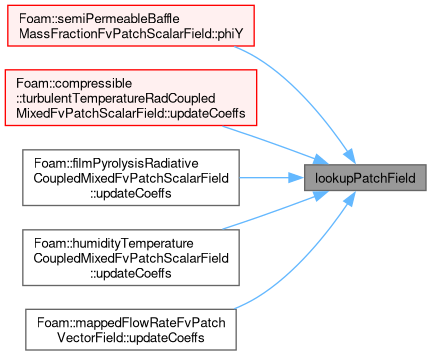

template<class GeometricField, class AnyType = bool>
const GeometricField::Patch &	lookupPatchField (const word &name) const
	Lookup the named field from the local registry and return the patch field corresponding to this patch.
template<class GeometricField>
const GeometricField::Patch *	cfindPatchField (const word &name) const
	Find the named field (if any) from the local registry and return the patch field corresponding to this patch.
template<class Type>
Foam::tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &internalData) const

Static Public Member Functions
static autoPtr< fvPatch >	New (const polyPatch &, const fvBoundaryMesh &)
	Return a pointer to a new patch created on freestore from polyPatch.
static const fvPatch &	lookupPatch (const polyPatch &p)
	Lookup the polyPatch index on corresponding fvMesh.
static bool	constraintType (const word &patchType)
	Return true if the given type is a constraint type.
static wordList	constraintTypes ()
	Return a list of all the constraint patch types.

Friends
class	fvBoundaryMesh
class	surfaceInterpolation

Detailed Description

A finiteVolume patch using a polyPatch and a fvBoundaryMesh.

Source files

• fvPatch.H
• fvPatch.C
• fvPatchNew.C
• fvPatchTemplates.C
• fvPatchFvMeshTemplates.C

Definition at line 70 of file fvPatch.H.

Member Typedef Documentation

BoundaryMesh

typedef fvBoundaryMesh BoundaryMesh

The boundary type associated with the patch.

Definition at line 138 of file fvPatch.H.

Constructor & Destructor Documentation

fvPatch()

fvPatch	(	const polyPatch &	p,
		const fvBoundaryMesh &	bm )

Construct from polyPatch and fvBoundaryMesh.

Definition at line 59 of file fvPatch.C.

References fvBoundaryMesh, and p.

Here is the call graph for this function:

~fvPatch()

~fvPatch ( )

virtual

Destructor.

Definition at line 68 of file fvPatch.C.

Member Function Documentation

makeWeights()

void makeWeights ( scalarField & w ) const

virtual

Make patch weighting factors.

Reimplemented in coupledFvPatch, cyclicACMIFvPatch, cyclicAMIFvPatch, cyclicFvPatch, and processorFvPatch.

Definition at line 157 of file fvPatch.C.

Referenced by cyclicACMIFvPatch::makeWeights(), and cyclicAMIFvPatch::makeWeights().

Here is the caller graph for this function:

makeDeltaCoeffs()

void makeDeltaCoeffs ( scalarField & w ) const

virtual

Correct patch deltaCoeffs.

Reimplemented in cyclicAMIFvPatch, and mappedVariableThicknessWallFvPatch.

Definition at line 163 of file fvPatch.C.

makeNonOrthoDeltaCoeffs()

void makeNonOrthoDeltaCoeffs ( scalarField & w ) const

virtual

Correct patch non-ortho deltaCoeffs.

Reimplemented in cyclicAMIFvPatch.

Definition at line 167 of file fvPatch.C.

makeNonOrthoCorrVectors()

void makeNonOrthoCorrVectors ( vectorField & w ) const

virtual

Correct patch non-ortho correction vectors.

Reimplemented in cyclicAMIFvPatch.

Definition at line 171 of file fvPatch.C.

initMovePoints()

void initMovePoints ( )

virtual

Initialise the patches for moving points.

Definition at line 175 of file fvPatch.C.

movePoints()

void movePoints ( )

virtual

Correct patches after moving points.

Reimplemented in cyclicACMIFvPatch, and cyclicAMIFvPatch.

Definition at line 179 of file fvPatch.C.

TypeName()

TypeName

(

polyPatch::typeName_()

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		fvPatch	,
		polyPatch	,
		(const polyPatch &patch, const fvBoundaryMesh &bm)	,
		(patch, bm)	)

References fvBoundaryMesh, p, and patch().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::fvPatch > New ( const polyPatch & patch, const fvBoundaryMesh & bm )

static

Return a pointer to a new patch created on freestore from polyPatch.

Definition at line 27 of file fvPatchNew.C.

References DebugInFunction, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, fvBoundaryMesh, and patch().

Referenced by fvMeshAdder::add(), fvMeshTools::addPatch(), and meshRefinement::appendPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

lookupPatch()

const Foam::fvPatch & lookupPatch ( const polyPatch & p )

static

Lookup the polyPatch index on corresponding fvMesh.

Note

Fatal if the polyPatch is not associated with a fvMesh

Definition at line 42 of file fvPatch.C.

References fvMesh::boundary(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::isA(), Foam::nl, and p.

Here is the call graph for this function:

patch()

const polyPatch & patch ( ) const

inlinenoexcept

Return the polyPatch.

Definition at line 202 of file fvPatch.H.

References Foam::noexcept.

Referenced by reconstructedDistanceFunction::constructRDF(), coupledFvPatch::coupledFvPatch(), cyclicACMIFvPatch::cyclicACMIFvPatch(), cyclicAMIFvPatch::cyclicAMIFvPatch(), cyclicFvPatch::cyclicFvPatch(), cyclicSlipFvPatch::cyclicSlipFvPatch(), declareRunTimeSelectionTable(), emptyFvPatch::emptyFvPatch(), genericFvPatch::genericFvPatch(), fvMeshSubset::interpolate(), mappedVariableThicknessWallFvPatch::makeDeltaCoeffs(), mappedFvPatch::mappedFvPatch(), mappedVariableThicknessWallFvPatch::mappedVariableThicknessWallFvPatch(), mappedWallFvPatch::mappedWallFvPatch(), inverseDistance::markBoundaries(), trackingInverseDistance::markBoundaries(), cyclicACMIFvPatch::movePoints(), cyclicAMIFvPatch::movePoints(), New(), nonuniformTransformCyclicFvPatch::nonuniformTransformCyclicFvPatch(), oversetFvPatch::oversetFvPatch(), processorCyclicFvPatch::processorCyclicFvPatch(), processorFvPatch::processorFvPatch(), cyclicACMIFvPatch::resetPatchAreas(), symmetryFvPatch::symmetryFvPatch(), symmetryPlaneFvPatch::symmetryPlaneFvPatch(), cyclicACMIFvPatch::TypeName(), emptyFvPatch::TypeName(), wedgeFvPatch::TypeName(), activeBaffleVelocityFvPatchVectorField::updateCoeffs(), activePressureForceBaffleVelocityFvPatchVectorField::updateCoeffs(), outletMappedUniformInletHeatAdditionFvPatchField::updateCoeffs(), wallFvPatch::wallFvPatch(), wedgeFvPatch::wedgeFvPatch(), and regionSizeDistribution::write().

Here is the caller graph for this function:

name()

virtual const word & name ( ) const

inlinevirtual

Return name.

Definition at line 210 of file fvPatch.H.

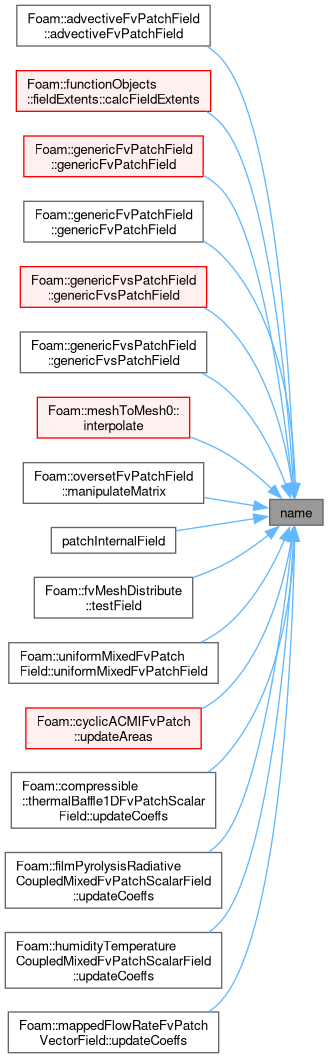

Referenced by advectiveFvPatchField< Type >::advectiveFvPatchField(), fieldExtents::calcFieldExtents(), genericFvPatchField< Type >::genericFvPatchField(), genericFvPatchField< Type >::genericFvPatchField(), genericFvsPatchField< Type >::genericFvsPatchField(), genericFvsPatchField< Type >::genericFvsPatchField(), meshToMesh0::interpolate(), oversetFvPatchField< Type >::manipulateMatrix(), patchInternalField(), fvMeshDistribute::testField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), cyclicACMIFvPatch::updateAreas(), thermalBaffle1DFvPatchScalarField< solidType >::updateCoeffs(), filmPyrolysisRadiativeCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), and mappedFlowRateFvPatchVectorField::updateCoeffs().

Here is the caller graph for this function:

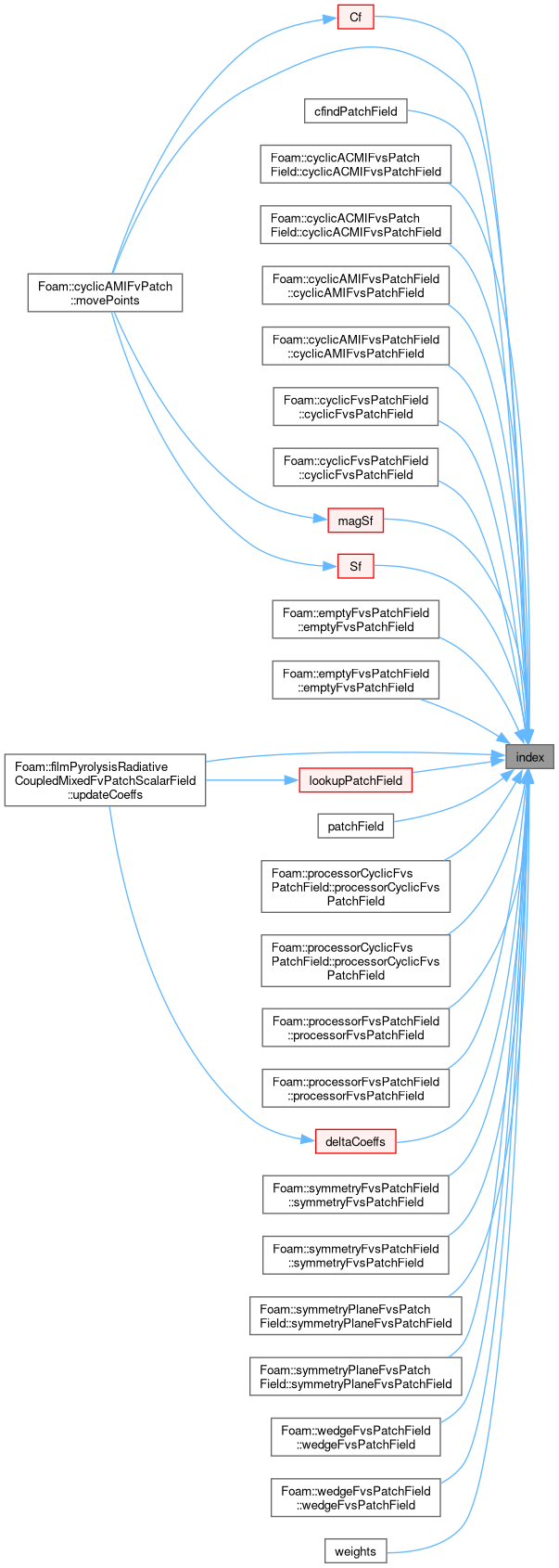

index()

label index ( ) const

inlinenoexcept

The index of this patch in the boundary mesh.

Definition at line 218 of file fvPatch.H.

References Foam::noexcept.

Referenced by Cf(), cfindPatchField(), cyclicACMIFvsPatchField< Type >::cyclicACMIFvsPatchField(), cyclicACMIFvsPatchField< Type >::cyclicACMIFvsPatchField(), cyclicAMIFvsPatchField< Type >::cyclicAMIFvsPatchField(), cyclicAMIFvsPatchField< Type >::cyclicAMIFvsPatchField(), cyclicFvsPatchField< Type >::cyclicFvsPatchField(), cyclicFvsPatchField< Type >::cyclicFvsPatchField(), deltaCoeffs(), emptyFvsPatchField< Type >::emptyFvsPatchField(), emptyFvsPatchField< Type >::emptyFvsPatchField(), lookupPatchField(), magSf(), cyclicAMIFvPatch::movePoints(), patchField(), processorCyclicFvsPatchField< Type >::processorCyclicFvsPatchField(), processorCyclicFvsPatchField< Type >::processorCyclicFvsPatchField(), processorFvsPatchField< Type >::processorFvsPatchField(), processorFvsPatchField< Type >::processorFvsPatchField(), Sf(), symmetryFvsPatchField< Type >::symmetryFvsPatchField(), symmetryFvsPatchField< Type >::symmetryFvsPatchField(), symmetryPlaneFvsPatchField< Type >::symmetryPlaneFvsPatchField(), symmetryPlaneFvsPatchField< Type >::symmetryPlaneFvsPatchField(), filmPyrolysisRadiativeCoupledMixedFvPatchScalarField::updateCoeffs(), wedgeFvsPatchField< Type >::wedgeFvsPatchField(), wedgeFvsPatchField< Type >::wedgeFvsPatchField(), and weights().

Here is the caller graph for this function:

start()

label start ( ) const

inlinenoexcept

The patch start within the polyMesh face list.

Definition at line 226 of file fvPatch.H.

References Foam::noexcept.

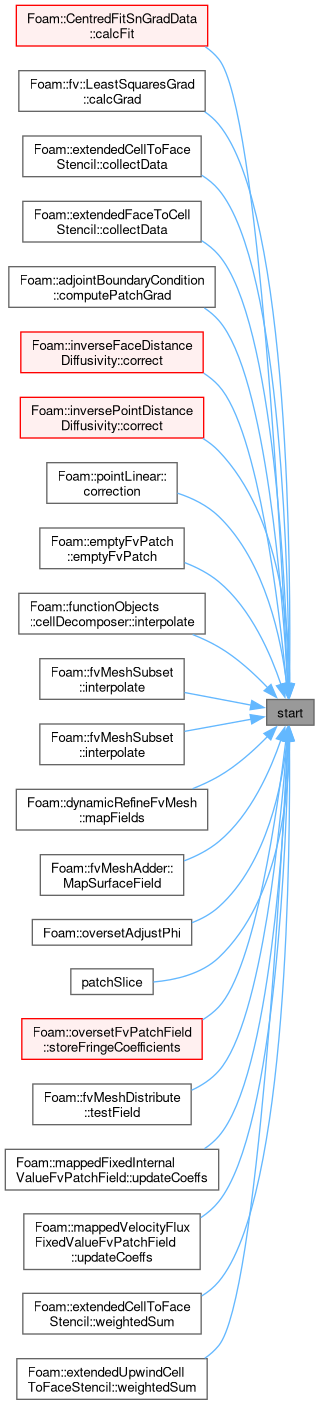

Referenced by CentredFitSnGradData< Polynomial >::calcFit(), LeastSquaresGrad< Type, Stencil >::calcGrad(), extendedCellToFaceStencil::collectData(), extendedFaceToCellStencil::collectData(), adjointBoundaryCondition< Type >::computePatchGrad(), inverseFaceDistanceDiffusivity::correct(), inversePointDistanceDiffusivity::correct(), pointLinear< Type >::correction(), emptyFvPatch::emptyFvPatch(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), dynamicRefineFvMesh::mapFields(), fvMeshAdder::MapSurfaceField(), Foam::oversetAdjustPhi(), patchSlice(), oversetFvPatchField< Type >::storeFringeCoefficients(), fvMeshDistribute::testField(), mappedFixedInternalValueFvPatchField< Type >::updateCoeffs(), mappedVelocityFluxFixedValueFvPatchField::updateCoeffs(), extendedCellToFaceStencil::weightedSum(), and extendedUpwindCellToFaceStencil::weightedSum().

Here is the caller graph for this function:

offset()

label offset ( ) const

inlinenoexcept

The offset of this patch within the boundary face list.

Definition at line 234 of file fvPatch.H.

References Foam::noexcept.

Referenced by boundarySlice().

Here is the caller graph for this function:

size()

virtual label size ( ) const

inlinevirtual

Patch size is the number of faces, but can be overloaded.

Reimplemented in emptyFvPatch.

Definition at line 242 of file fvPatch.H.

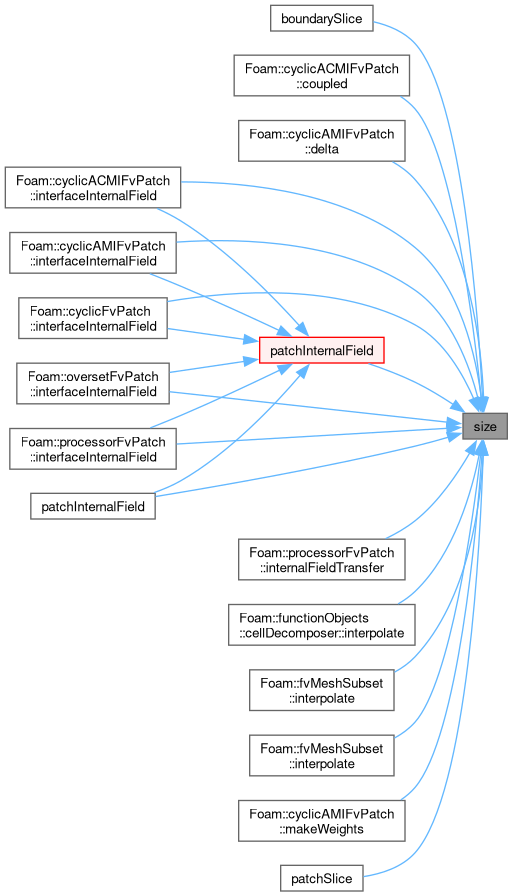

Referenced by boundarySlice(), cyclicACMIFvPatch::coupled(), cyclicAMIFvPatch::delta(), cyclicACMIFvPatch::interfaceInternalField(), cyclicAMIFvPatch::interfaceInternalField(), cyclicFvPatch::interfaceInternalField(), oversetFvPatch::interfaceInternalField(), processorFvPatch::interfaceInternalField(), processorFvPatch::internalFieldTransfer(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), cyclicAMIFvPatch::makeWeights(), patchInternalField(), patchInternalField(), and patchSlice().

Here is the caller graph for this function:

coupled()

virtual bool coupled ( ) const

inlinevirtual

Return true if this patch is coupled.

Reimplemented in coupledFvPatch, cyclicACMIFvPatch, cyclicAMIFvPatch, and processorFvPatch.

Definition at line 250 of file fvPatch.H.

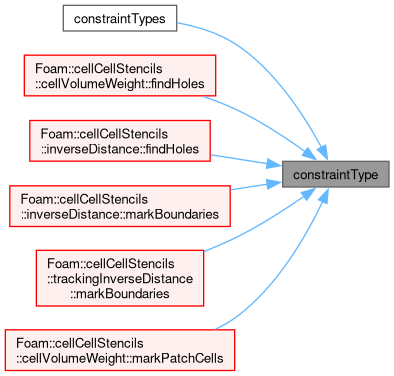

constraintType()

bool constraintType ( const word & patchType )

static

Return true if the given type is a constraint type.

Definition at line 74 of file fvPatch.C.

References UList< T >::found().

Referenced by constraintTypes(), cellVolumeWeight::findHoles(), inverseDistance::findHoles(), inverseDistance::markBoundaries(), trackingInverseDistance::markBoundaries(), and cellVolumeWeight::markPatchCells().

Here is the call graph for this function:

Here is the caller graph for this function:

constraintTypes()

Foam::wordList constraintTypes ( )

static

Return a list of all the constraint patch types.

Definition at line 85 of file fvPatch.C.

References constraintType(), forAllConstIters, and List< T >::resize().

Here is the call graph for this function:

boundaryMesh()

const fvBoundaryMesh & boundaryMesh ( ) const

inlinenoexcept

Return boundaryMesh reference.

Definition at line 268 of file fvPatch.H.

References fvBoundaryMesh, and Foam::noexcept.

Referenced by Cf(), cfindPatchField(), Cn(), cyclicAMIFvPatch::coupled(), deltaCoeffs(), emptyFvPatch::emptyFvPatch(), lookupPatchField(), magSf(), waWallFunctionFvPatchScalarField::manipulateMatrix(), cyclicACMIFvPatch::neighbFvPatch(), cyclicAMIFvPatch::neighbFvPatch(), cyclicFvPatch::neighbFvPatch(), cyclicACMIFvPatch::neighbPatch(), cyclicAMIFvPatch::neighbPatch(), cyclicFvPatch::neighbPatch(), cyclicACMIFvPatch::nonOverlapPatch(), Sf(), outletMappedUniformInletHeatAdditionFvPatchField::updateCoeffs(), and weights().

Here is the call graph for this function:

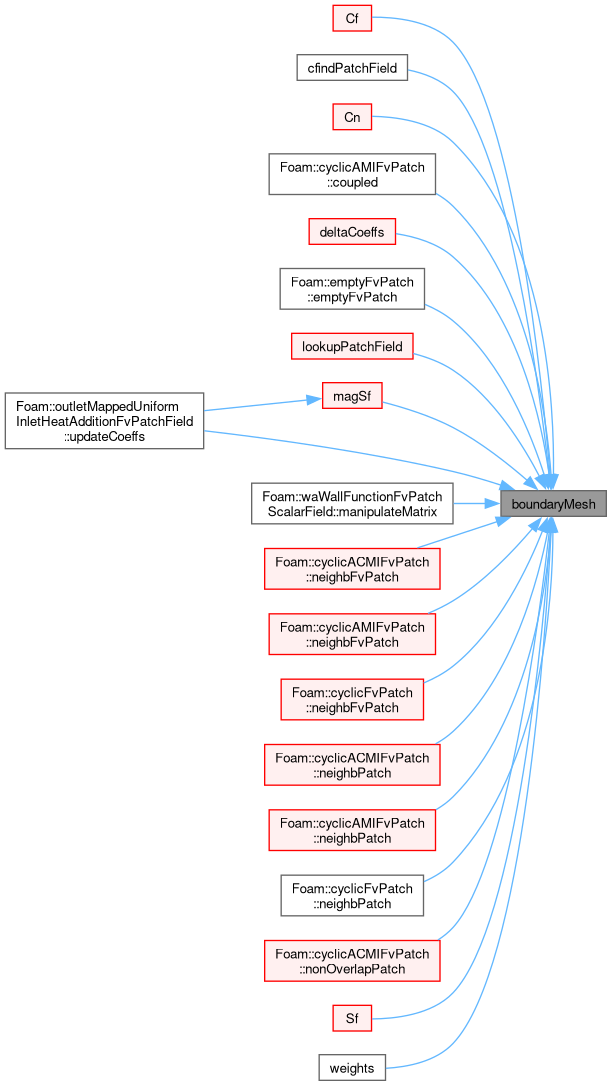

Here is the caller graph for this function:

patchSlice()

template<class T>

const List< T >::subList patchSlice ( const UList< T > & values ) const

inline

This patch slice from the complete list, which has size mesh::nFaces(), using the virtual patch size.

Definition at line 279 of file fvPatch.H.

References size(), and start().

Here is the call graph for this function:

boundarySlice()

template<class T>

const List< T >::subList boundarySlice ( const UList< T > & values ) const

inline

This patch slice from the list of boundary values, which has size mesh::nBoundaryFaces(), using the virtual patch size.

Definition at line 290 of file fvPatch.H.

References offset(), and size().

Here is the call graph for this function:

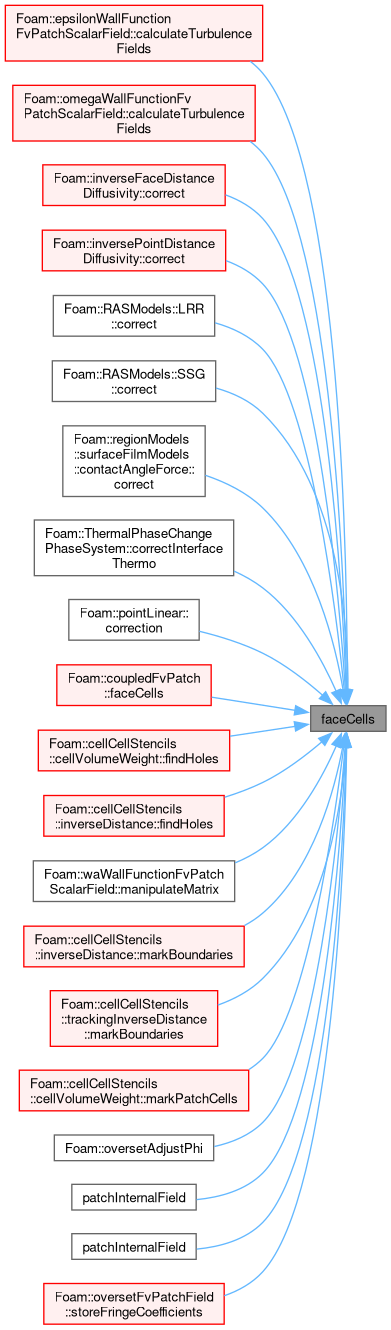

faceCells()

const Foam::labelUList & faceCells ( ) const

virtual

Return faceCells.

Reimplemented in coupledFvPatch, emptyFvPatch, and oversetFvPatch.

Definition at line 107 of file fvPatch.C.

Referenced by epsilonWallFunctionFvPatchScalarField::calculateTurbulenceFields(), omegaWallFunctionFvPatchScalarField::calculateTurbulenceFields(), inverseFaceDistanceDiffusivity::correct(), inversePointDistanceDiffusivity::correct(), LRR< BasicTurbulenceModel >::correct(), SSG< BasicTurbulenceModel >::correct(), contactAngleForce::correct(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), pointLinear< Type >::correction(), coupledFvPatch::faceCells(), cellVolumeWeight::findHoles(), inverseDistance::findHoles(), waWallFunctionFvPatchScalarField::manipulateMatrix(), inverseDistance::markBoundaries(), trackingInverseDistance::markBoundaries(), cellVolumeWeight::markPatchCells(), Foam::oversetAdjustPhi(), patchInternalField(), patchInternalField(), and oversetFvPatchField< Type >::storeFringeCoefficients().

Here is the caller graph for this function:

Cf()

const Foam::vectorField & Cf

(

)

const

Return face centres.

Definition at line 113 of file fvPatch.C.

References boundaryMesh(), and index().

Referenced by fieldExtents::calcFieldExtents(), coupledFvPatch::delta(), delta(), meshToMesh0::interpolate(), cyclicAMIFvPatch::movePoints(), and cyclicACMIFvPatch::resetPatchAreas().

Here is the call graph for this function:

Here is the caller graph for this function:

Cn()

Foam::tmp< Foam::vectorField > Cn

(

)

const

Return neighbour cell centres.

Definition at line 119 of file fvPatch.C.

References boundaryMesh(), mesh, and patchInternalField().

Referenced by coupledFvPatch::delta(), and delta().

Here is the call graph for this function:

Here is the caller graph for this function:

Sf()

const Foam::vectorField & Sf

(

)

const

Return face area vectors, like the fvMesh::Sf() method.

Definition at line 125 of file fvPatch.C.

References boundaryMesh(), and index().

Referenced by cyclicAMIFvPatch::movePoints(), nf(), cyclicACMIFvPatch::resetPatchAreas(), unitSf(), activeBaffleVelocityFvPatchVectorField::updateCoeffs(), and activePressureForceBaffleVelocityFvPatchVectorField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

magSf()

const Foam::scalarField & magSf

(

)

const

Return face area magnitudes, like the fvMesh::magSf() method.

Definition at line 131 of file fvPatch.C.

References boundaryMesh(), and index().

Referenced by cyclicACMIFvPatch::movePoints(), cyclicAMIFvPatch::movePoints(), nf(), cyclicACMIFvPatch::resetPatchAreas(), unitSf(), activeBaffleVelocityFvPatchVectorField::updateCoeffs(), activePressureForceBaffleVelocityFvPatchVectorField::updateCoeffs(), outletMappedUniformInletFvPatchField< Type >::updateCoeffs(), and outletMappedUniformInletHeatAdditionFvPatchField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

unitSf()

Foam::tmp< Foam::vectorField > unitSf

(

)

const

Return face unit normals, like the fvMesh::unitSf() method. Same as nf().

Definition at line 137 of file fvPatch.C.

References magSf(), and Sf().

Here is the call graph for this function:

nf()

Foam::tmp< Foam::vectorField > nf

(

)

const

Return face unit normals, like the fvMesh::unitSf() method Same as unitSf().

Definition at line 143 of file fvPatch.C.

References magSf(), and Sf().

Referenced by ReynoldsAnalogy::Cf(), delta(), cyclicACMIFvPatch::makeWeights(), cyclicAMIFvPatch::makeWeights(), cyclicFvPatch::makeWeights(), and processorFvPatch::makeWeights().

Here is the call graph for this function:

Here is the caller graph for this function:

delta()

Foam::tmp< Foam::vectorField > delta ( ) const

virtual

Return cell-centre to face-centre vector except for coupled patches for which the cell-centre to coupled-cell-centre vector is returned.

Reimplemented in coupledFvPatch, cyclicACMIFvPatch, cyclicAMIFvPatch, cyclicFvPatch, and processorFvPatch.

Definition at line 149 of file fvPatch.C.

References Cf(), Cn(), and nf().

Here is the call graph for this function:

weights()

const Foam::scalarField & weights

(

)

const

Return patch weighting factors.

Definition at line 189 of file fvPatch.C.

References boundaryMesh(), and index().

Here is the call graph for this function:

deltaCoeffs()

const Foam::scalarField & deltaCoeffs

(

)

const

Return the face - cell distance coefficient except for coupled patches for which the cell-centre to coupled-cell-centre distance coefficient is returned.

Definition at line 183 of file fvPatch.C.

References boundaryMesh(), and index().

Referenced by contactAngleForce::correct(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), filmPyrolysisRadiativeCoupledMixedFvPatchScalarField::updateCoeffs(), and humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

patchInternalField() [1/4]

template<class Type>

void patchInternalField ( const UList< Type > & internalData, const labelUList & addressing, UList< Type > & pfld ) const

inline

Extract internal field next to patch using specified addressing.

Parameters

	internalData	The internal field to extract from
	addressing	Addressing from patch into internal field
[out]	pfld	The extracted patch field. Should normally be sized according to the patch size(), which can be smaller than the addressing size

Definition at line 27 of file fvPatchTemplates.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, FOAM_UNLIKELY, Foam::nl, size(), and UList< T >::size().

Referenced by Cn(), processorFvPatch::initInternalFieldTransfer(), cyclicACMIFvPatch::interfaceInternalField(), cyclicACMIFvPatch::interfaceInternalField(), cyclicAMIFvPatch::interfaceInternalField(), cyclicAMIFvPatch::interfaceInternalField(), cyclicFvPatch::interfaceInternalField(), cyclicFvPatch::interfaceInternalField(), oversetFvPatch::interfaceInternalField(), oversetFvPatch::interfaceInternalField(), processorFvPatch::interfaceInternalField(), processorFvPatch::interfaceInternalField(), patchInternalField(), and patchInternalField().

Here is the call graph for this function:

Here is the caller graph for this function:

patchInternalField() [2/4]

template<class Type>

void patchInternalField	(	const UList< Type > &	internalData,
		UList< Type > &	pfld ) const

Extract internal field next to patch as patch field using faceCells() mapping.

Parameters

	internalData	The internal field to extract from
[out]	pfld	The extracted patch field. Should normally be sized according to the patch size(), which can be smaller than the faceCells() size

Definition at line 61 of file fvPatchTemplates.C.

References faceCells(), and patchInternalField().

Here is the call graph for this function:

patchInternalField() [3/4]

template<class Type>

tmp< Field< Type > > patchInternalField ( const UList< Type > & internalData ) const

nodiscard

Return given internal field next to patch as patch field using faceCells() mapping.

Parameters

internalData

The internal field to extract from

References name().

Here is the call graph for this function:

patchField()

template<class GeometricField, class AnyType>

const GeometricField::Patch & patchField

(

const GeometricField &

gf

)

const

Return the patch field of the GeometricField corresponding to this patch.

Definition at line 89 of file fvPatchTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), and index().

Here is the call graph for this function:

lookupPatchField()

template<class GeometricField, class AnyType>

const GeometricField::Patch & lookupPatchField

(

const word &

name

)

const

Lookup the named field from the local registry and return the patch field corresponding to this patch.

Definition at line 28 of file fvPatchFvMeshTemplates.C.

References boundaryMesh(), index(), fvBoundaryMesh::mesh(), and fvMesh::thisDb().

Referenced by semiPermeableBaffleMassFractionFvPatchScalarField::phiY(), turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs(), filmPyrolysisRadiativeCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), and mappedFlowRateFvPatchVectorField::updateCoeffs().

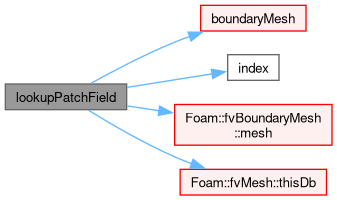

Here is the call graph for this function:

Here is the caller graph for this function:

cfindPatchField()

template<class GeometricField>

const GeometricField::Patch * cfindPatchField

(

const word &

name

)

const

Find the named field (if any) from the local registry and return the patch field corresponding to this patch.

Definition at line 39 of file fvPatchFvMeshTemplates.C.

References boundaryMesh(), and index().

Here is the call graph for this function:

patchInternalField() [4/4]

template<class Type>

Foam::tmp< Foam::Field< Type > > patchInternalField

(

const UList< Type > &

internalData

)

const

Definition at line 77 of file fvPatchTemplates.C.

References faceCells(), Foam::New(), patchInternalField(), and size().

Here is the call graph for this function:

Friends And Related Symbol Documentation

fvBoundaryMesh

friend class fvBoundaryMesh

friend

Definition at line 140 of file fvPatch.H.

References fvBoundaryMesh.

Referenced by boundaryMesh(), coupledFvPatch::coupledFvPatch(), declareRunTimeSelectionTable(), emptyFvPatch::emptyFvPatch(), fvBoundaryMesh, fvPatch(), genericFvPatch::genericFvPatch(), mappedFvPatch::mappedFvPatch(), New(), oversetFvPatch::oversetFvPatch(), symmetryFvPatch::symmetryFvPatch(), symmetryPlaneFvPatch::symmetryPlaneFvPatch(), emptyFvPatch::TypeName(), wedgeFvPatch::TypeName(), wallFvPatch::wallFvPatch(), and wedgeFvPatch::wedgeFvPatch().

surfaceInterpolation

friend class surfaceInterpolation

friend

Definition at line 141 of file fvPatch.H.

References surfaceInterpolation.

Referenced by surfaceInterpolation.

---

The documentation for this class was generated from the following files:

• src/finiteVolume/fvMesh/fvPatches/fvPatch/fvPatch.H
• src/finiteVolume/fvMesh/fvPatches/fvPatch/fvPatch.C
• src/finiteVolume/fvMesh/fvPatches/fvPatch/fvPatchFvMeshTemplates.C
• src/finiteVolume/fvMesh/fvPatches/fvPatch/fvPatchNew.C
• src/finiteVolume/fvMesh/fvPatches/fvPatch/fvPatchTemplates.C
