The boundaryRegion persistent data saved as a Map<dictionary>. More...

#include <boundaryRegion.H>

Inheritance diagram for boundaryRegion:

Collaboration diagram for boundaryRegion:

Public Member Functions
	boundaryRegion (const boundaryRegion &)=delete
	No copy construct.
	boundaryRegion () noexcept=default
	Default construct.
	boundaryRegion (const objectRegistry &obr, const word &name="boundaryRegion", const fileName &instance="constant")
	Read construct from registry, name, instance.
	~boundaryRegion ()=default
	Destructor.
label	push_back (const dictionary &dict)
	Add to the end, return index.
label	maxIndex () const
	The max table index, -1 if empty.
label	findIndex (const word &name) const
	The index corresponding to entry with 'Label' of given name, or -1 if not found.
word	name (const label id) const
	The 'Label' name corresponding to id, or boundaryRegion_ID if not otherwise defined.
Map< word >	names () const
	Return the extracted Map of (id => name).
Map< word >	names (const wordRes &patterns) const
	Return the extracted Map of (id => names) selected by patterns.

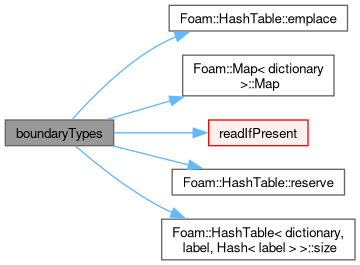

Map< word >	boundaryTypes () const
	Return the extracted Map of (id => type).
word	boundaryType (const word &name) const
	Return BoundaryType corresponding to patch 'name', "patch" if not found.

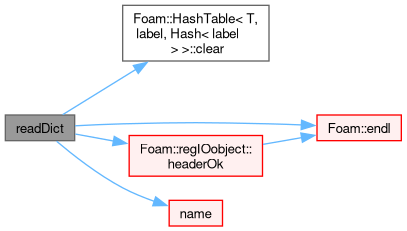

void	readDict (const objectRegistry &obr, const word &name="boundaryRegion", const fileName &instance="constant")
	Read constant/boundaryRegion.

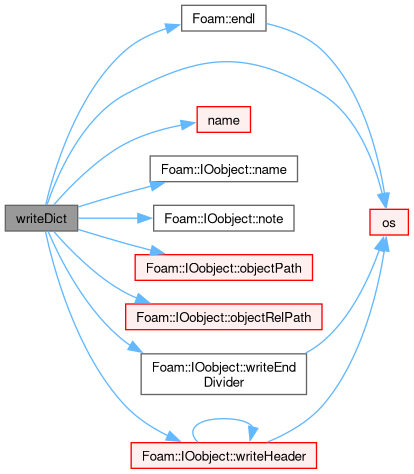

void	writeDict (const objectRegistry &obr, const word &name="boundaryRegion", const fileName &instance="constant") const
	Write constant/boundaryRegion for later reuse.
void	operator= (const boundaryRegion &)
	Copy assignment.
void	operator= (const Map< dictionary > &)
	Assign from Map<dictionary>.

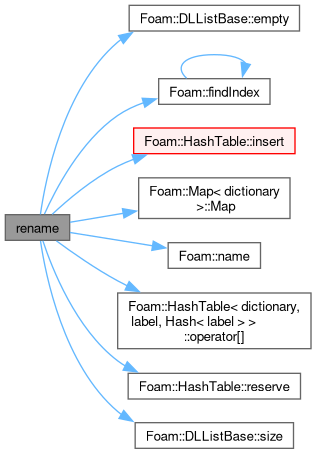

void	rename (const dictionary &)
	Rename regions.
label	append (const dictionary &dict)
	Add to the end, return index.
Public Member Functions inherited from Map< dictionary >
void	operator= (const this_type &rhs)
	Copy assign.
void	operator= (std::initializer_list< std::pair< label, dictionary > > rhs)
	Copy assign from an initializer list.
void	operator= (this_type &&rhs)
	Move assign.
constexpr	Map () noexcept=default
	Default construct: empty without allocation (capacity=0).
Public Member Functions inherited from HashTable< dictionary, label, Hash< label > >
Foam::List< label >	sortedToc (const Compare &comp) const
Foam::List< label >	tocKeys (const UnaryPredicate &pred, const bool invert) const
Foam::List< label >	tocValues (const UnaryPredicate &pred, const bool invert) const
Foam::List< label >	tocEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	countKeys (const UnaryPredicate &pred, const bool invert) const
Foam::label	countValues (const UnaryPredicate &pred, const bool invert) const
Foam::label	countEntries (const BinaryPredicate &pred, const bool invert) const
Foam::label	erase (InputIter first, InputIter last)
Foam::label	erase (const FixedList< label, N > &keys)
Foam::label	erase (const HashTable< AnyType, label, AnyHash > &other)
Foam::label	retain (const HashTable< AnyType, label, AnyHash > &other)
Foam::label	filterKeys (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterValues (const UnaryPredicate &pred, const bool pruning)
Foam::label	filterEntries (const BinaryPredicate &pred, const bool pruning)
constexpr	HashTable () noexcept
	Default construct: empty without allocation (capacity=0).
	~HashTable ()
	Destructor.
bool	empty () const noexcept
	True if the hash table is empty.
label	size () const noexcept
	The number of elements in table.
label	capacity () const noexcept
	The size of the underlying table (the number of buckets).
dictionary &	at (const label &key)
	Find and return a hashed entry. FatalError if it does not exist.
bool	contains (const label &key) const
	True if hashed key is contained (found) in table.
iterator	find (const label &key)
	Find and return an iterator set at the hashed entry.
const_iterator	cfind (const label &key) const
	Find and return an const_iterator set at the hashed entry.
const dictionary &	lookup (const label &key, const dictionary &deflt) const
	Return hashed entry if it exists, or return the given default.
List< label >	toc () const
	The table of contents (the keys) in unsorted order.
UPtrList< const node_type >	csorted () const
	Const access to the hash-table contents in sorted order (sorted by keys).
UPtrList< node_type >	sorted ()
	Non-const access to the hash-table contents in sorted order (sorted by keys).
bool	emplace (const label &key, Args &&... args)
	Emplace insert a new entry, not overwriting existing entries.
bool	emplace_set (const label &key, Args &&... args)
	Emplace set an entry, overwriting any existing entries.
bool	insert (const label &key, const dictionary &obj)
	Copy insert a new entry, not overwriting existing entries.
bool	set (const label &key, const dictionary &obj)
	Copy assign a new entry, overwriting existing entries.
void	clear ()
	Remove all entries from table.
void	clearStorage ()
	Remove all entries from table and the table itself.
void	setCapacity (label newCapacity)
	Change the hash table capacity (number of buckets).
void	resize (label newCapacity)
	Rehash the hash table with new number of buckets. Currently identical to setCapacity().
void	reserve (label numEntries)
	Reserve space for at least the specified number of elements (not the number of buckets) and regenerates the hash table.
void	swap (HashTable< dictionary, label, Hash > &rhs) noexcept
	Swap contents into this table.
void	transfer (HashTable< dictionary, label, Hash > &rhs)
	Transfer contents into this table.
void	merge (HashTable< dictionary, label, Hash > &source)
	Attempts to extract entries from source parameter and insert them into `this`, does not overwrite existing entries. The source will contains any items that could not be merged.
dictionary &	operator[] (const label &key)
	Find and return a hashed entry. FatalError if it does not exist.
dictionary &	operator() (const label &key)
	Return existing entry or create a new entry.
void	operator= (const this_type &rhs)
	Copy assign.
bool	operator== (const this_type &rhs) const
	Equality. Tables are equal if all keys and values are equal, independent of order or underlying storage size.
bool	operator!= (const this_type &rhs) const
	The opposite of the equality operation.
this_type &	operator+= (const this_type &rhs)
	Add entries into this HashTable.
const_iterator_pair< const_key_iterator, this_type >	keys () const
	A const iterator begin/end pair for iterating over keys.
iterator	begin ()
	iterator set to the beginning of the HashTable
const_iterator	cbegin () const
	const_iterator set to the beginning of the HashTable
iterator	end () noexcept
	iterator to signal the end (for any HashTable)
constexpr const_iterator	cend () const noexcept
	const_iterator to signal the end (for any HashTable)
Ostream &	printInfo (Ostream &os) const
	Print information.
Ostream &	writeKeys (Ostream &os, const label shortLen=0) const
	Write unordered keys (list), with line-breaks when length exceeds shortLen.
bool	found (const label &key) const
	Same as contains().
Public Member Functions inherited from HashTableCore
	ClassName ("HashTable")
	Declare type-name (with debug switch).
constexpr	HashTableCore () noexcept=default
	Default construct.

Additional Inherited Members
Public Types inherited from Map< dictionary >
typedef Map< dictionary >	this_type
	The template instance used for this Map.
typedef HashTable< dictionary, label, Hash< label > >	parent_type
	The template instance used for the parent HashTable.
using	iterator
using	const_iterator
Public Types inherited from HashTable< dictionary, label, Hash< label > >
typedef HashTable< dictionary, label, Hash >	this_type
	The template instance used for this HashTable.
using	node_type
	A table entry (node) that encapsulates the key/val tuple with an additional linked-list entry for hash collisions.
typedef label	key_type
	The second template parameter, type of keys used.
typedef dictionary	mapped_type
	The first template parameter, type of objects contained.
typedef dictionary	value_type
	Same as mapped_type for OpenFOAM HashTables.
typedef Hash	hasher
	The third template parameter, the hash index method.
typedef dictionary *	pointer
	Pointer type for storing into value_type objects.
typedef dictionary &	reference
	Reference to the stored value_type.
typedef const dictionary *	const_pointer
	Const pointer type for the stored value_type.
typedef const dictionary &	const_reference
	Const reference to the stored value_type.
typedef label	difference_type
	The type to represent the difference between two iterators.
typedef label	size_type
	The type that can represent the size of a HashTable.
using	key_iterator
	Forward iterator returning the key.
using	const_key_iterator
	Forward const iterator returning the key.
Static Public Member Functions inherited from HashTableCore
static label	canonicalSize (const label size) noexcept
	Return a canonical (power-of-two) of the requested size.
Static Public Attributes inherited from HashTableCore
static constexpr int32_t	maxTableSize = (1 << (32-3))
	Maximum allowable internal table size (must be a power of two!).

Detailed Description

The boundaryRegion persistent data saved as a Map<dictionary>.

The meshReader supports boundaryRegion information.

The constant/boundaryRegion file is an IOMap<dictionary> that is used to save the information persistently. It contains the boundaryRegion information of the following form:

    (
        INT
        {
            BoundaryType    WORD;
            Label           WORD;
        }
        ...
    )

Source files

Definition at line 70 of file boundaryRegion.H.

Constructor & Destructor Documentation

◆ boundaryRegion() [1/3]

boundaryRegion ( const boundaryRegion & )

delete

No copy construct.

References boundaryRegion().

Referenced by boundaryRegion(), boundaryRegion(), operator=(), and ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ boundaryRegion() [2/3]

boundaryRegion ( )

defaultnoexcept

Default construct.

References boundaryRegion(), name(), and Foam::noexcept.

Here is the call graph for this function:

◆ boundaryRegion() [3/3]

boundaryRegion	(	const objectRegistry &	obr,
		const word &	name = "boundaryRegion",
		const fileName &	instance = "constant" )

explicit

Read construct from registry, name, instance.

Definition at line 64 of file boundaryRegion.C.

References name(), and readDict().

Here is the call graph for this function:

◆ ~boundaryRegion()

~boundaryRegion ( )

default

Destructor.

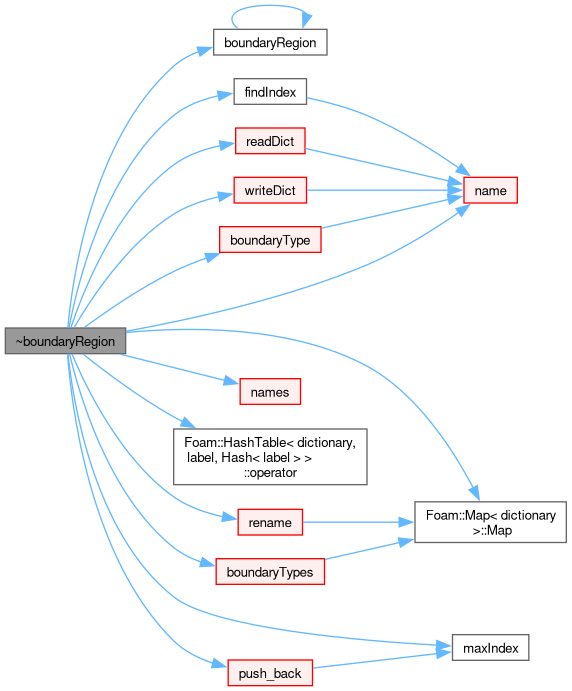

References boundaryRegion(), boundaryType(), boundaryTypes(), dict, findIndex(), Map< dictionary >::Map(), maxIndex(), name(), names(), HashTable< dictionary, label, Hash< label > >::operator, push_back(), readDict(), rename(), and writeDict().

Here is the call graph for this function:

Member Function Documentation

◆ push_back()

Foam::label push_back ( const dictionary & dict )

Add to the end, return index.

Definition at line 92 of file boundaryRegion.C.

References dict, insert(), and maxIndex().

Referenced by append(), and ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxIndex()

Foam::label maxIndex ( ) const

The max table index, -1 if empty.

Definition at line 77 of file boundaryRegion.C.

References forAllConstIters.

Referenced by push_back(), and ~boundaryRegion().

Here is the caller graph for this function:

◆ findIndex()

Foam::label findIndex ( const word & name ) const

The index corresponding to entry with 'Label' of given name, or -1 if not found.

Definition at line 152 of file boundaryRegion.C.

References dict, forAllConstIters, and name().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

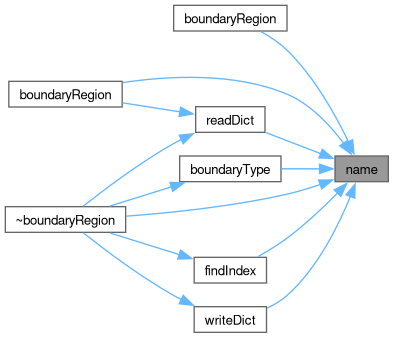

◆ name()

Foam::word name ( const label id ) const

The 'Label' name corresponding to id, or boundaryRegion_ID if not otherwise defined.

Definition at line 133 of file boundaryRegion.C.

References HashTable< dictionary, label, Hash< label > >::cfind(), and Foam::name().

Referenced by boundaryRegion(), boundaryRegion(), boundaryType(), findIndex(), readDict(), writeDict(), and ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ names() [1/2]

Foam::Map< Foam::word > names ( ) const

Return the extracted Map of (id => name).

Definition at line 101 of file boundaryRegion.C.

References Foam::names_impl().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ names() [2/2]

Foam::Map< Foam::word > names ( const wordRes & patterns ) const

Return the extracted Map of (id => names) selected by patterns.

Definition at line 107 of file boundaryRegion.C.

References Foam::names_impl().

Here is the call graph for this function:

◆ boundaryTypes()

Foam::Map< Foam::word > boundaryTypes ( ) const

Return the extracted Map of (id => type).

Definition at line 113 of file boundaryRegion.C.

References HashTable< T, Key, Hash >::emplace(), forAllConstIters, Map< dictionary >::Map(), readIfPresent(), HashTable< T, Key, Hash >::reserve(), and HashTable< dictionary, label, Hash< label > >::size().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ boundaryType()

Foam::word boundaryType ( const word & name ) const

Return BoundaryType corresponding to patch 'name', "patch" if not found.

Definition at line 174 of file boundaryRegion.C.

References Foam::findIndex(), name(), and HashTable< dictionary, label, Hash< label > >::operator[]().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readDict()

void readDict	(	const objectRegistry &	obr,
		const word &	name = "boundaryRegion",
		const fileName &	instance = "constant" )

Read constant/boundaryRegion.

Definition at line 188 of file boundaryRegion.C.

References HashTable< T, label, Hash< label > >::clear(), Foam::endl(), regIOobject::headerOk(), Foam::Info, name(), IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, and IOobjectOption::READ_IF_PRESENT.

Referenced by boundaryRegion(), and ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeDict()

void writeDict	(	const objectRegistry &	obr,
		const word &	name = "boundaryRegion",
		const fileName &	instance = "constant" ) const

Write constant/boundaryRegion for later reuse.

Definition at line 222 of file boundaryRegion.C.

References Foam::endl(), Foam::Info, name(), IOobject::name(), IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, IOobject::note(), IOobject::objectPath(), IOobject::objectRelPath(), os(), IOobject::writeEndDivider(), and IOobject::writeHeader().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/2]

void operator= ( const boundaryRegion & rhs )

Copy assignment.

Definition at line 259 of file boundaryRegion.C.

References boundaryRegion(), Map< T >::operator=(), and Foam::rhs().

Here is the call graph for this function:

◆ operator=() [2/2]

void operator= ( const Map< dictionary > & rhs )

Assign from Map<dictionary>.

Definition at line 265 of file boundaryRegion.C.

References Map< dictionary >::Map(), Map< T >::operator=(), and Foam::rhs().

Here is the call graph for this function:

◆ rename()

void rename ( const dictionary & mapDict )

Rename regions.

each dictionary entry is a single word:

*     newPatchName    originalName;
*

Definition at line 273 of file boundaryRegion.C.

References dict, DLListBase::empty(), Foam::findIndex(), forAllConstIters, Foam::Info, HashTable< T, Key, Hash >::insert(), Map< dictionary >::Map(), Foam::name(), Foam::nl, HashTable< dictionary, label, Hash< label > >::operator[](), HashTable< T, Key, Hash >::reserve(), and DLListBase::size().

Referenced by ~boundaryRegion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ append()

label append ( const dictionary & dict )

inline

Add to the end, return index.

Definition at line 204 of file boundaryRegion.H.

References append(), dict, and push_back().

Referenced by append().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

src/conversion/common/tables/boundaryRegion.H
src/conversion/common/tables/boundaryRegion.C

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ boundaryRegion() [1/3]

◆ boundaryRegion() [2/3]

◆ boundaryRegion() [3/3]

◆ ~boundaryRegion()

Member Function Documentation

◆ push_back()

◆ maxIndex()

◆ findIndex()

◆ name()

◆ names() [1/2]

◆ names() [2/2]

◆ boundaryTypes()

◆ boundaryType()

◆ readDict()

◆ writeDict()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ rename()

◆ append()
