An abstract class for chemistry tabulation. More...

#include <chemistryTabulationMethod.H>

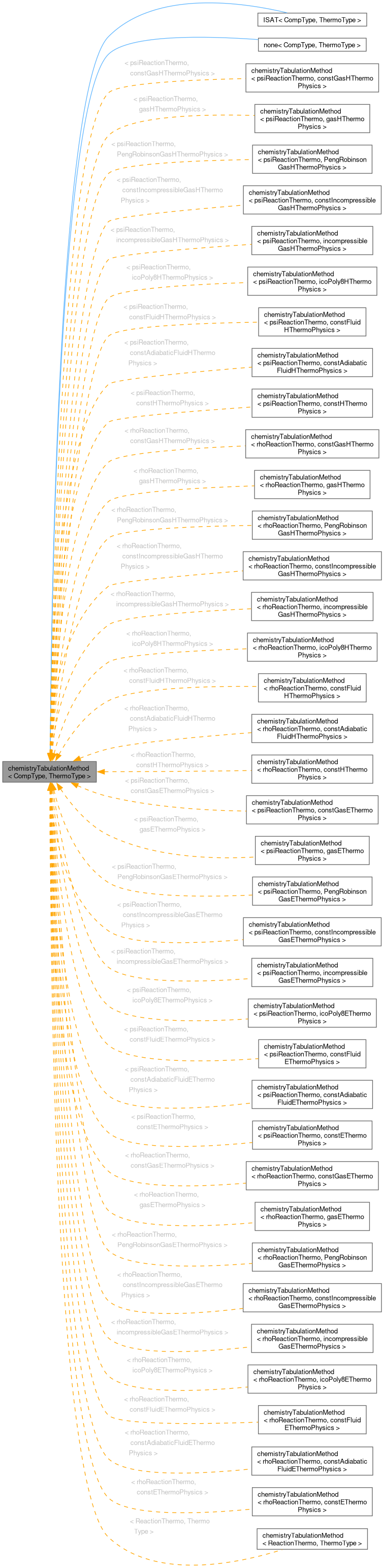

Inheritance diagram for chemistryTabulationMethod< CompType, ThermoType >:

[legend]

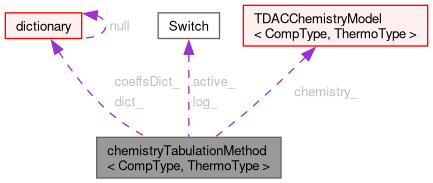

Collaboration diagram for chemistryTabulationMethod< CompType, ThermoType >:

[legend]

Public Member Functions
	TypeName ("chemistryTabulationMethod")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, chemistryTabulationMethod, dictionary,(const dictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry),(dict, chemistry))
	chemistryTabulationMethod (const dictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry)
	Construct from components.
virtual	~chemistryTabulationMethod ()
	Destructor.
bool	active ()
bool	log ()
bool	variableTimeStep ()
scalar	tolerance () const
virtual label	size ()=0
virtual void	writePerformance ()=0
virtual bool	retrieve (const scalarField &phiQ, scalarField &RphiQ)=0
virtual label	add (const scalarField &phiQ, const scalarField &RphiQ, const scalar rho, const scalar deltaT)=0
virtual bool	update ()=0

Static Public Member Functions
static autoPtr< chemistryTabulationMethod >	New (const IOdictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry)

Protected Attributes
const dictionary &	dict_
const dictionary	coeffsDict_
Switch	active_
	Is tabulation active?
Switch	log_
	Switch to select performance logging.
TDACChemistryModel< CompType, ThermoType > &	chemistry_
scalar	tolerance_

Detailed Description

template<class CompType, class ThermoType>
class Foam::chemistryTabulationMethod< CompType, ThermoType >

An abstract class for chemistry tabulation.

Source files

Definition at line 55 of file chemistryTabulationMethod.H.

Constructor & Destructor Documentation

◆ chemistryTabulationMethod()

template<class CompType, class ThermoType>

chemistryTabulationMethod	(	const dictionary &	dict,
		TDACChemistryModel< CompType, ThermoType > &	chemistry )

Construct from components.

Definition at line 28 of file chemistryTabulationMethod.C.

References active_, chemistry, chemistry_, coeffsDict_, dict, dict_, e, log_, and tolerance_.

Referenced by ISAT< CompType, ThermoType >::ISAT(), and none< CompType, ThermoType >::none().

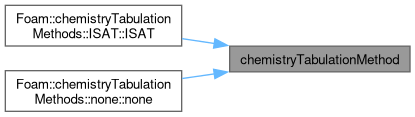

Here is the caller graph for this function:

◆ ~chemistryTabulationMethod()

template<class CompType, class ThermoType>

~chemistryTabulationMethod ( )

virtual

Destructor.

Definition at line 46 of file chemistryTabulationMethod.C.

Member Function Documentation

◆ TypeName()

template<class CompType, class ThermoType>

TypeName ( "chemistryTabulationMethod< CompType, ThermoType >" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class CompType, class ThermoType>

declareRunTimeSelectionTable	(	autoPtr	,
		chemistryTabulationMethod< CompType, ThermoType >	,
		dictionary	,
		(const dictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry)	,
		(dict, chemistry)	)

◆ New()

template<class CompType, class ThermoType>

Foam::autoPtr< Foam::chemistryTabulationMethod< CompType, ThermoType > > New	(	const IOdictionary &	dict,
		TDACChemistryModel< CompType, ThermoType > &	chemistry )

static

DynamicList<word> thisCmpts(6); thisCmpts.append(CompType::typeName); thisCmpts.append ( basicThermo::splitThermoName(ThermoType::typeName(), 5) );

DynamicList<word> validNames;

if (thisCmpts == SubList<word>(cmpts, 6, 1)) { validNames.append(cmpts[0]); }

Definition at line 29 of file chemistryTabulationMethodNew.C.

References DynamicList< T, SizeMin >::append(), chemistry, dict, UList< T >::empty(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, dictionary::get(), Foam::Info, names, Foam::nl, Foam::printTable(), UList< T >::size(), and basicThermo::splitThermoName().

Referenced by TDACChemistryModel< ReactionThermo, ThermoType >::TDACChemistryModel().

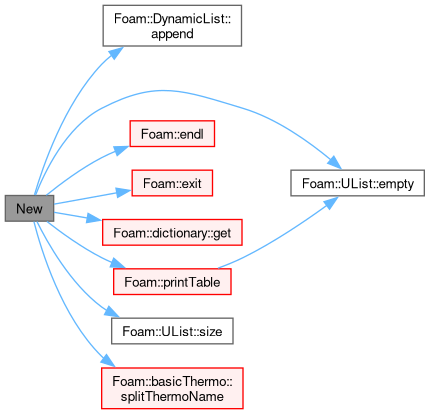

Here is the call graph for this function:

Here is the caller graph for this function:

◆ active()

template<class CompType, class ThermoType>

bool active ( )

inline

Definition at line 130 of file chemistryTabulationMethod.H.

◆ log()

template<class CompType, class ThermoType>

bool log ( )

inline

Definition at line 135 of file chemistryTabulationMethod.H.

Referenced by ISAT< CompType, ThermoType >::ISAT().

Here is the caller graph for this function:

◆ variableTimeStep()

template<class CompType, class ThermoType>

bool variableTimeStep ( )

inline

Definition at line 140 of file chemistryTabulationMethod.H.

Referenced by ISAT< CompType, ThermoType >::ISAT().

Here is the caller graph for this function:

◆ tolerance()

template<class CompType, class ThermoType>

scalar tolerance ( ) const

inline

Definition at line 145 of file chemistryTabulationMethod.H.

Referenced by ISAT< CompType, ThermoType >::add().

Here is the caller graph for this function:

◆ size()

template<class CompType, class ThermoType>

virtual label size ( )

pure virtual

Implemented in ISAT< CompType, ThermoType >, and none< CompType, ThermoType >.

◆ writePerformance()

template<class CompType, class ThermoType>

virtual void writePerformance ( )

pure virtual

Implemented in ISAT< CompType, ThermoType >, and none< CompType, ThermoType >.

◆ retrieve()

template<class CompType, class ThermoType>

virtual bool retrieve	(	const scalarField &	phiQ,
		scalarField &	RphiQ )

pure virtual

Implemented in ISAT< CompType, ThermoType >, and none< CompType, ThermoType >.

◆ add()

template<class CompType, class ThermoType>

virtual label add	(	const scalarField &	phiQ,
		const scalarField &	RphiQ,
		const scalar	rho,
		const scalar	deltaT )

pure virtual

Implemented in ISAT< CompType, ThermoType >, and none< CompType, ThermoType >.

◆ update()

template<class CompType, class ThermoType>

virtual bool update ( )

pure virtual

Implemented in ISAT< CompType, ThermoType >, and none< CompType, ThermoType >.

Member Data Documentation

◆ dict_

template<class CompType, class ThermoType>

const dictionary& dict_

protected

Definition at line 60 of file chemistryTabulationMethod.H.

Referenced by chemistryTabulationMethod().

◆ coeffsDict_

template<class CompType, class ThermoType>

const dictionary coeffsDict_

protected

Definition at line 62 of file chemistryTabulationMethod.H.

Referenced by chemistryTabulationMethod(), and ISAT< CompType, ThermoType >::ISAT().

◆ active_

template<class CompType, class ThermoType>

Switch active_

protected

Is tabulation active?

Definition at line 67 of file chemistryTabulationMethod.H.

Referenced by chemistryTabulationMethod(), ISAT< CompType, ThermoType >::ISAT(), and none< CompType, ThermoType >::none().

◆ log_

template<class CompType, class ThermoType>

Switch log_

protected

Switch to select performance logging.

Definition at line 72 of file chemistryTabulationMethod.H.

Referenced by chemistryTabulationMethod().

◆ chemistry_

template<class CompType, class ThermoType>

TDACChemistryModel<CompType, ThermoType>& chemistry_

protected

Definition at line 74 of file chemistryTabulationMethod.H.

Referenced by ISAT< CompType, ThermoType >::add(), chemistryTabulationMethod(), ISAT< CompType, ThermoType >::ISAT(), and ISAT< CompType, ThermoType >::retrieve().

◆ tolerance_

template<class CompType, class ThermoType>

scalar tolerance_

protected

Definition at line 76 of file chemistryTabulationMethod.H.

Referenced by chemistryTabulationMethod().

The documentation for this class was generated from the following files:

src/thermophysicalModels/chemistryModel/chemistryModel/TDACChemistryModel/tabulation/chemistryTabulationMethod/chemistryTabulationMethod.H
src/thermophysicalModels/chemistryModel/chemistryModel/TDACChemistryModel/tabulation/chemistryTabulationMethod/chemistryTabulationMethod.C
src/thermophysicalModels/chemistryModel/chemistryModel/TDACChemistryModel/tabulation/chemistryTabulationMethod/chemistryTabulationMethodNew.C
