Implementation of the ISAT (In-situ adaptive tabulation), for chemistry calculation. More...

#include <ISAT.H>

Inheritance diagram for ISAT< CompType, ThermoType >:

Collaboration diagram for ISAT< CompType, ThermoType >:

Public Member Functions
	TypeName ("ISAT")
	Runtime type information.
	ISAT (const dictionary &chemistryProperties, TDACChemistryModel< CompType, ThermoType > &chemistry)
	Construct from dictionary.
virtual	~ISAT ()
binaryTree< CompType, ThermoType > &	chemisTree ()
const scalarField &	scaleFactor () const
virtual label	size ()
	Return the size of the binary tree.
virtual void	writePerformance ()
virtual bool	retrieve (const Foam::scalarField &phiq, scalarField &Rphiq)
	Find the closest stored leaf of phiQ and store the result in RphiQ or return false.
virtual label	add (const scalarField &phiq, const scalarField &Rphiq, const scalar rho, const scalar deltaT)
	Add information to the tabulation.
virtual bool	update ()
Public Member Functions inherited from chemistryTabulationMethod< CompType, ThermoType >
	TypeName ("chemistryTabulationMethod")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, chemistryTabulationMethod, dictionary,(const dictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry),(dict, chemistry))
	chemistryTabulationMethod (const dictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry)
	Construct from components.
virtual	~chemistryTabulationMethod ()
	Destructor.
bool	active ()
bool	log ()
bool	variableTimeStep ()
scalar	tolerance () const

Additional Inherited Members
Static Public Member Functions inherited from chemistryTabulationMethod< CompType, ThermoType >
static autoPtr< chemistryTabulationMethod >	New (const IOdictionary &dict, TDACChemistryModel< CompType, ThermoType > &chemistry)
Protected Attributes inherited from chemistryTabulationMethod< CompType, ThermoType >
const dictionary &	dict_
const dictionary	coeffsDict_
Switch	active_
	Is tabulation active?
Switch	log_
	Switch to select performance logging.
TDACChemistryModel< CompType, ThermoType > &	chemistry_
scalar	tolerance_

Detailed Description

template<class CompType, class ThermoType>
class Foam::chemistryTabulationMethods::ISAT< CompType, ThermoType >

Implementation of the ISAT (In-situ adaptive tabulation), for chemistry calculation.

Reference:

    Pope, S. B. (1997).
    Computationally efficient implementation of combustion chemistry using
    in situ adaptive tabulation.
    Combustion Theory and Modelling, 1, 41-63.

Definition at line 53 of file ISAT.H.

Constructor & Destructor Documentation

◆ ISAT()

template<class CompType, class ThermoType>

ISAT	(	const dictionary &	chemistryProperties,
		TDACChemistryModel< CompType, ThermoType > &	chemistry )

Construct from dictionary.

Definition at line 29 of file ISAT.C.

References chemistryTabulationMethod< CompType, ThermoType >::active_, chemistry, chemistryTabulationMethod< CompType, ThermoType >::chemistry_, chemistryTabulationMethod< CompType, ThermoType >::chemistryTabulationMethod(), chemistryTabulationMethod< CompType, ThermoType >::coeffsDict_, dictionary::found(), dictionary::get(), chemistryTabulationMethod< CompType, ThermoType >::log(), dictionary::readEntry(), and chemistryTabulationMethod< CompType, ThermoType >::variableTimeStep().

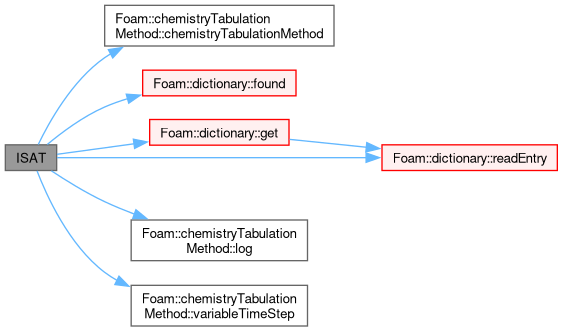

Here is the call graph for this function:

◆ ~ISAT()

template<class CompType, class ThermoType>

~ISAT ( )

virtual

Definition at line 126 of file ISAT.C.

Member Function Documentation

◆ TypeName()

template<class CompType, class ThermoType>

TypeName ( "ISAT< CompType, ThermoType >" )

Runtime type information.

References chemistry.

◆ chemisTree()

template<class CompType, class ThermoType>

binaryTree< CompType, ThermoType > & chemisTree ( )

inline

Definition at line 241 of file ISAT.H.

Referenced by add().

Here is the caller graph for this function:

◆ scaleFactor()

template<class CompType, class ThermoType>

const scalarField & scaleFactor ( ) const

inline

Definition at line 246 of file ISAT.H.

Referenced by add().

Here is the caller graph for this function:

◆ size()

template<class CompType, class ThermoType>

virtual label size ( )

inlinevirtual

Return the size of the binary tree.

Implements chemistryTabulationMethod< CompType, ThermoType >.

Definition at line 254 of file ISAT.H.

Referenced by writePerformance().

Here is the caller graph for this function:

◆ writePerformance()

template<class CompType, class ThermoType>

void writePerformance ( )

virtual

Implements chemistryTabulationMethod< CompType, ThermoType >.

Definition at line 602 of file ISAT.C.

References Foam::endl(), Foam::log(), and size().

Here is the call graph for this function:

◆ retrieve()

template<class CompType, class ThermoType>

bool retrieve	(	const Foam::scalarField &	phiq,
		scalarField &	Rphiq )

virtual

Find the closest stored leaf of phiQ and store the result in RphiQ or return false.

Implements chemistryTabulationMethod< CompType, ThermoType >.

Definition at line 427 of file ISAT.C.

References chemistryTabulationMethod< CompType, ThermoType >::chemistry_, and forAllConstIters.

◆ add()

template<class CompType, class ThermoType>

Foam::label add	(	const scalarField &	phiq,
		const scalarField &	Rphiq,
		const scalar	rho,
		const scalar	deltaT )

virtual

Add information to the tabulation.

This function can grow an existing point or add a new leaf to the binary tree Input : phiq the new composition to store Rphiq the mapping of the new composition point

Implements chemistryTabulationMethod< CompType, ThermoType >.

Definition at line 502 of file ISAT.C.

References A, DynamicList< T, SizeMin >::append(), chemisTree(), chemistryTabulationMethod< CompType, ThermoType >::chemistry_, Foam::deleteDemandDrivenData(), forAllConstIters, rho, scaleFactor(), chemistryTabulationMethod< CompType, ThermoType >::tolerance(), and Foam::Zero.

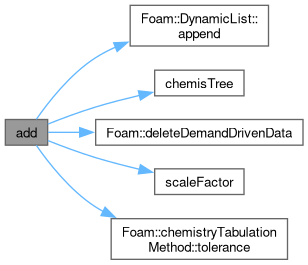

Here is the call graph for this function:

◆ update()

template<class CompType, class ThermoType>

virtual bool update ( )

inlinevirtual

Implements chemistryTabulationMethod< CompType, ThermoType >.

Definition at line 286 of file ISAT.H.

The documentation for this class was generated from the following files:

src/thermophysicalModels/chemistryModel/chemistryModel/TDACChemistryModel/tabulation/ISAT/ISAT.H
src/thermophysicalModels/chemistryModel/chemistryModel/TDACChemistryModel/tabulation/ISAT/ISAT.C
