Calculates the face fluxes. More...

#include <cutFaceAdvect.H>

Inheritance diagram for cutFaceAdvect:

Collaboration diagram for cutFaceAdvect:

Public Member Functions
	cutFaceAdvect (const fvMesh &mesh, const volScalarField &alpha1)
	Construct from fvMesh and a scalarField.
label	calcSubFace (const label faceI, const vector &normal, const vector &base)
	Calculates cut centre and cut area (plicReconstruction).
label	calcSubFace (const face &f, const pointField &points, const scalarField &val, const scalar cutValue)
	Calculates cut centre and cut area (iso reconstruction).
label	calcSubFace (const label faceI, const label sign, const scalar cutValue)
	Calculates cut centre and cut area (iso reconstruction).
scalar	timeIntegratedFaceFlux (const label faceI, const vector &x0, const vector &n0, const scalar Un0, const scalar dt, const scalar phi, const scalar magSf)
	Calculate time integrated flux for a face.
scalar	timeIntegratedFaceFlux (const label faceI, const scalarField &times, const scalar Un0, const scalar dt, const scalar phi, const scalar magSf)
	Calculate time integrated flux for a face.
scalar	timeIntegratedArea (const label faceI, const scalar dt, const scalar magSf, const scalar Un0)
	Calculate time integrated area for a face.
scalar	timeIntegratedArea (const pointField &fPts, const scalarField &pTimes, const scalar dt, const scalar magSf, const scalar Un0)
	Calculate time integrated area for a face.
void	quadAreaCoeffs (const DynamicPointList &pf0, const DynamicPointList &pf1, scalar &quadArea, scalar &intQuadArea) const
	For face with vertices p calculate its area and integrated area.
void	cutPoints (const label faceI, const scalar f0, DynamicList< point > &cutPoints)
	Get cutPoints of face.
void	cutPoints (const pointField &pts, const scalarField &f, const scalar f0, DynamicList< point > &cutPoints)
	Get cutPoints of face.
const point &	subFaceCentre () const noexcept
	Returns centre of cutted face.
const vector &	subFaceArea () const noexcept
	Returns area vector of cutted face.
const DynamicList< point > &	subFacePoints () const noexcept
	Returns the cut edge of the cutted face.
const DynamicList< point > &	surfacePoints () const noexcept
	Returns point of the face in sorted of cutted face.
void	clearStorage ()
	Resets internal variables.
Public Member Functions inherited from cutFace
	cutFace (const fvMesh &mesh)
	Construct from fvMesh.

Additional Inherited Members
Static Public Attributes inherited from cutFace
static int	debug = 0
Protected Member Functions inherited from cutFace
void	calcSubFace (const label faceI, const scalarList &pointStatus, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield and computes geometric information and the face status where:
void	calcSubFace (const label faceI, const scalarList &pointStatus, const scalarList &weights, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield, weights and computes geometric information and the face status where:
void	calcSubFaceCentreAndArea (DynamicList< point > &subFacePoints, vector &subFaceCentre, vector &subFaceArea)
	Calculates centre and normal of the face.
void	calcSubFace (const face &f, const pointField &points, const scalarList &pointStatus, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield and computes geometric information and the face status where:

Detailed Description

Calculates the face fluxes.

Reference:

    Roenby, J., Bredmose, H. and Jasak, H. (2016).
    A computational method for sharp interface advection
    Royal Society Open Science, 3
    doi 10.1098/rsos.160405

Original code supplied by Johan Roenby, DHI (2016)

Source files

Definition at line 62 of file cutFaceAdvect.H.

Constructor & Destructor Documentation

◆ cutFaceAdvect()

cutFaceAdvect	(	const fvMesh &	mesh,
		const volScalarField &	alpha1 )

Construct from fvMesh and a scalarField.

Length of scalarField should equal number of mesh points

Definition at line 28 of file cutFaceAdvect.C.

References alpha1, clearStorage(), cutFace::cutFace(), mesh, and Foam::Zero.

Here is the call graph for this function:

Member Function Documentation

◆ calcSubFace() [1/3]

Foam::label calcSubFace	(	const label	faceI,
		const vector &	normal,
		const vector &	base )

Calculates cut centre and cut area (plicReconstruction).

Returns: face status

Definition at line 52 of file cutFaceAdvect.C.

References cutFace::calcSubFace(), clearStorage(), f(), forAll, Foam::mag(), and Foam::Zero.

Referenced by timeIntegratedArea(), timeIntegratedArea(), and timeIntegratedFaceFlux().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcSubFace() [2/3]

Foam::label calcSubFace	(	const face &	f,
		const pointField &	points,
		const scalarField &	val,
		const scalar	cutValue )

Calculates cut centre and cut area (iso reconstruction).

Returns: face status

Definition at line 116 of file cutFaceAdvect.C.

References cutFace::calcSubFace(), clearStorage(), f(), forAll, Foam::mag(), points, and Foam::Zero.

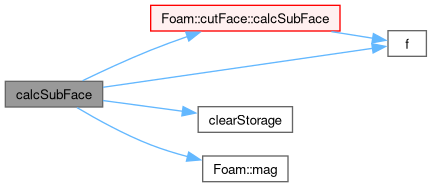

Here is the call graph for this function:

◆ calcSubFace() [3/3]

Foam::label calcSubFace	(	const label	faceI,
		const label	sign,
		const scalar	cutValue )

Calculates cut centre and cut area (iso reconstruction).

Returns: face status

Definition at line 569 of file cutFaceAdvect.C.

References cutFace::calcSubFace(), f(), forAll, Foam::mag(), Foam::sign(), and Foam::Zero.

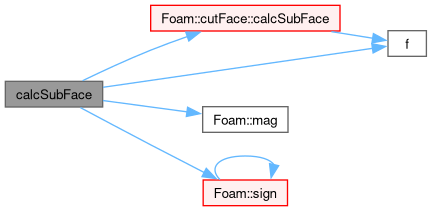

Here is the call graph for this function:

◆ timeIntegratedFaceFlux() [1/2]

Foam::scalar timeIntegratedFaceFlux	(	const label	faceI,
		const vector &	x0,
		const vector &	n0,
		const scalar	Un0,
		const scalar	dt,
		const scalar	phi,
		const scalar	magSf )

Calculate time integrated flux for a face.

Definition at line 180 of file cutFaceAdvect.C.

References calcSubFace(), clearStorage(), cutFace::debug, e, Foam::endl(), f(), forAll, Foam::mag(), nPoints, phi, pi(), Foam::sign(), subFaceArea(), timeIntegratedArea(), and WarningInFunction.

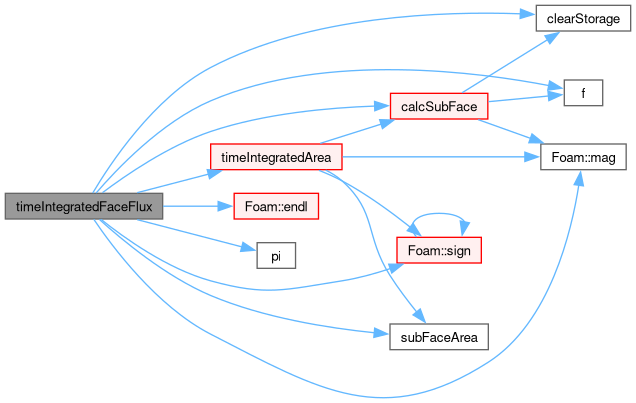

Here is the call graph for this function:

◆ timeIntegratedFaceFlux() [2/2]

Foam::scalar timeIntegratedFaceFlux	(	const label	faceI,
		const scalarField &	times,
		const scalar	Un0,
		const scalar	dt,
		const scalar	phi,
		const scalar	magSf )
