A face is a list of labels corresponding to mesh vertices. More...

#include <face.H>

Inheritance diagram for face:

[legend]

Collaboration diagram for face:

Classes
struct	hasher
	Hashing functor for face. More...
struct	symmHasher
	Symmetric hashing functor for face. More...

Public Types
enum	proxType { NONE = 0 , POINT , EDGE }
	The proximity classifications. More...
Public Types inherited from List< label >
typedef SubList< label >	subList
	Declare type of subList.
Public Types inherited from UList< label >
typedef label	value_type
	The value type the list contains.
typedef label *	pointer
	The pointer type for non-const access to value_type items.
typedef const label *	const_pointer
	The pointer type for const access to value_type items.
typedef label &	reference
	The type used for storing into value_type objects.
typedef const label &	const_reference
	The type used for reading from constant value_type objects.
typedef label *	iterator
	Random access iterator for traversing a UList.
typedef const label *	const_iterator
	Random access iterator for traversing a UList.
typedef label	size_type
	The type to represent the size of a UList.
typedef label	difference_type
	The difference between iterator objects.
typedef std::reverse_iterator< iterator >	reverse_iterator
	Reverse iterator (non-const access).
typedef std::reverse_iterator< const_iterator >	const_reverse_iterator
	Reverse iterator (const access).
using	is_List
	Have unique tag.

Public Member Functions

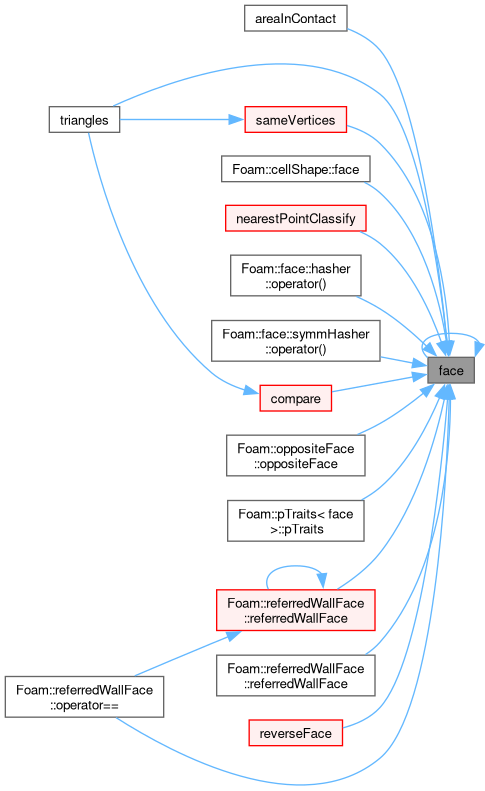

constexpr	face () noexcept=default
	Default construct.
	face (const label sz)
	Construct given size, with invalid vertex labels (-1).
	face (const labelUList &list)
	Copy construct from list of vertex labels.
	face (labelList &&list)
	Move construct from list of vertex labels.
	face (std::initializer_list< label > list)
	Copy construct from an initializer list of vertex labels.
template<unsigned N>
	face (const FixedList< label, N > &list)
	Copy construct from list of vertex labels.
	face (const labelUList &list, const labelUList &indices)
	Copy construct from subset of vertex labels.
template<unsigned N>
	face (const labelUList &list, const FixedList< label, N > &indices)
	Copy construct from subset of vertex labels.
	face (const triFace &f)
	Copy construct from triFace.
	face (Istream &is)
	Construct from Istream.
label	collapse ()
	Collapse face by removing duplicate vertex labels.
void	flip ()
	Flip the face in-place.

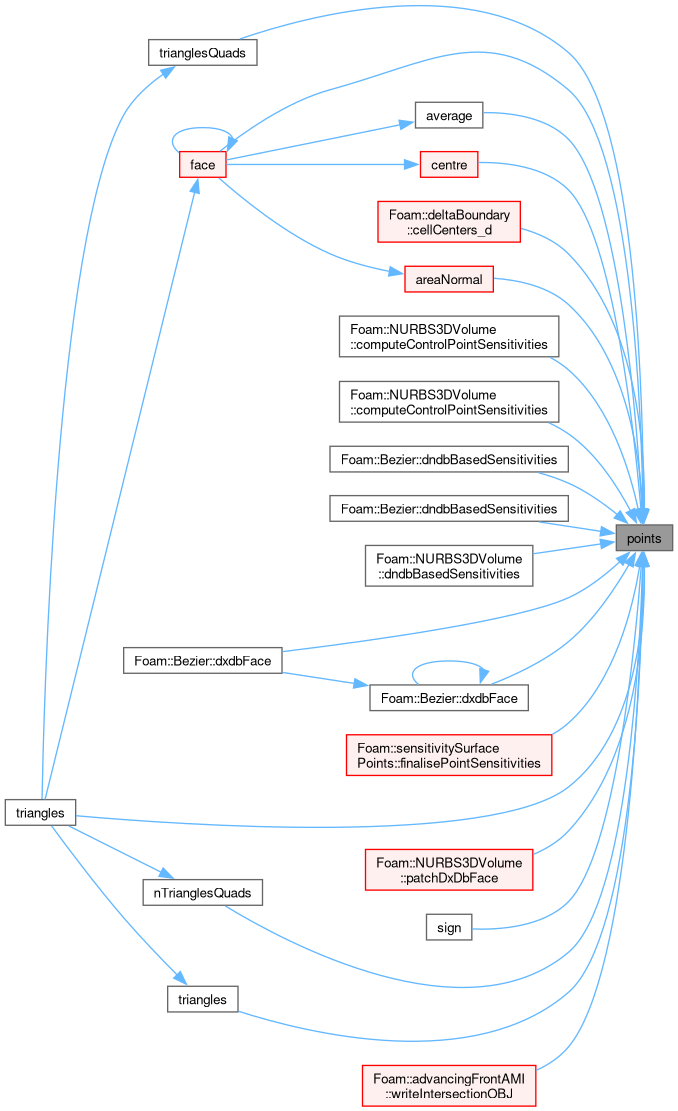

pointField	points (const UList< point > &pts) const
	Return the points corresponding to this face.

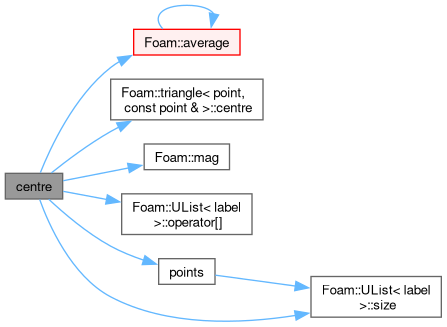

point	centre (const UList< point > &points) const

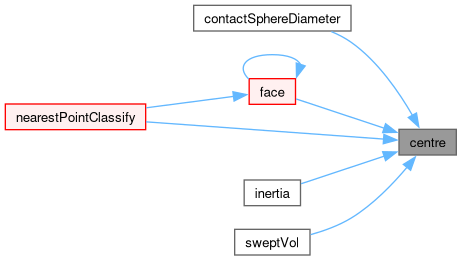

	Centre point of face.
point	average (const UList< point > &points) const
	Average of face points: a quick estimate of the face centre.
template<class Type>
Type	average (const UList< point > &meshPoints, const Field< Type > &fld) const
	Calculate average value at centroid of face.

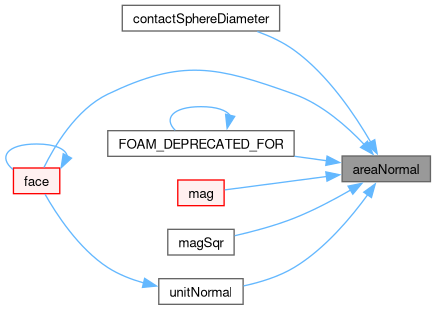

vector	areaNormal (const UList< point > &p) const

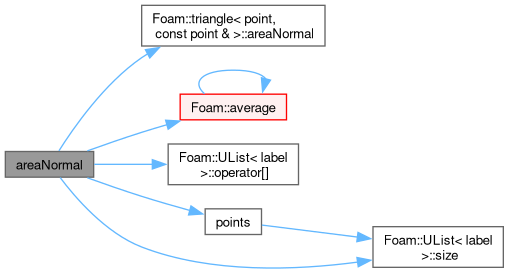

	The area normal - with magnitude equal to area of face.
vector	unitNormal (const UList< point > &p) const
	The unit normal.
	FOAM_DEPRECATED_FOR (2018-12, "areaNormal() or unitNormal()") vector normal(const UList< point > &p) const
	Legacy name for areaNormal().
scalar	mag (const UList< point > &p) const
	Magnitude of face area.
scalar	magSqr (const UList< point > &p) const
	Magnitude squared of face area.
Pair< point >	box (const UList< point > &pts) const
	The enclosing (bounding) box for the face.
face	reverseFace () const
	Return face with reverse direction.
label	which (const label vertex) const
	Find local vertex on face for the vertex label, same as find().
label	thisLabel (const label i) const
	The vertex on face - identical to operator[], but with naming similar to nextLabel(), prevLabel().
label	nextLabel (const label i) const

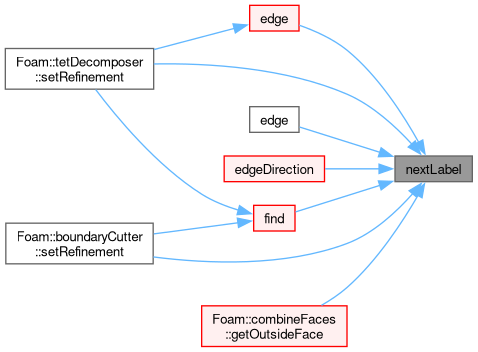

	Next vertex on face.
label	prevLabel (const label i) const
	Previous vertex on face.
scalar	sweptVol (const UList< point > &oldPoints, const UList< point > &newPoints) const

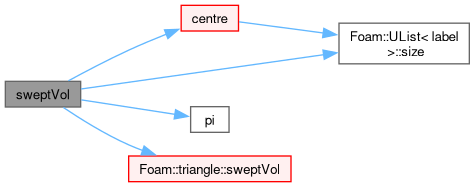

	Return the volume swept out by the face when its points move.
tensor	inertia (const UList< point > &p, const point &refPt=vector::zero, scalar density=1.0) const

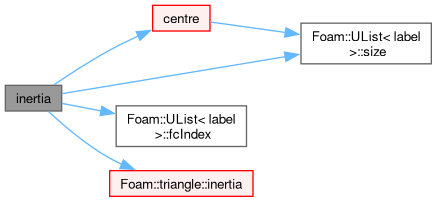

	Return the inertia tensor, with optional reference point and density specification.
pointHit	ray (const point &p, const vector &n, const UList< point > &meshPoints, const intersection::algorithm alg=intersection::FULL_RAY, const intersection::direction dir=intersection::VECTOR) const

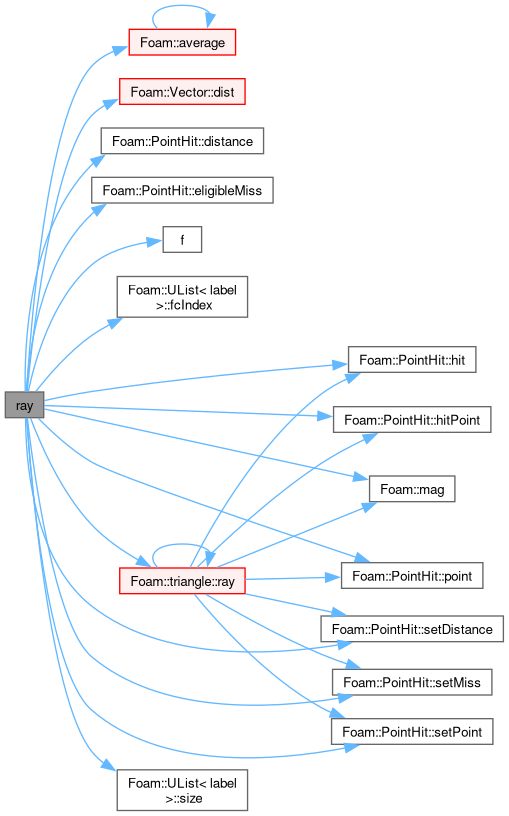

	Return potential intersection with face with a ray starting at p, direction n (does not need to be normalized).

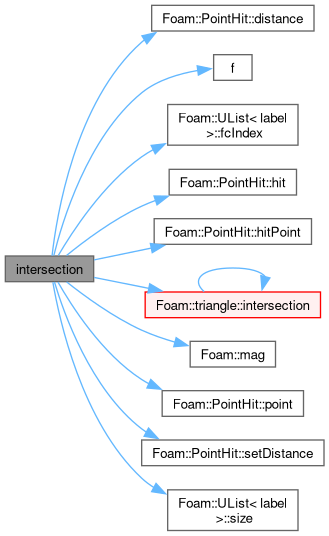

pointHit	intersection (const point &p, const vector &q, const point &ctr, const UList< point > &meshPoints, const intersection::algorithm alg, const scalar tol=0.0) const
	Fast intersection with a ray.
pointHit	nearestPoint (const point &p, const UList< point > &meshPoints) const
	Return nearest point to face.
pointHit	nearestPointClassify (const point &p, const UList< point > &meshPoints, label &nearType, label &nearLabel) const
	Return nearest point to face and classify it:
int	sign (const point &p, const UList< point > &points, const scalar tol=SMALL) const
	The sign for the side of the face plane the point is on, using three evenly distributed face points for the estimated normal.
scalar	contactSphereDiameter (const point &p, const vector &n, const UList< point > &meshPoints) const
	Return contact sphere diameter.

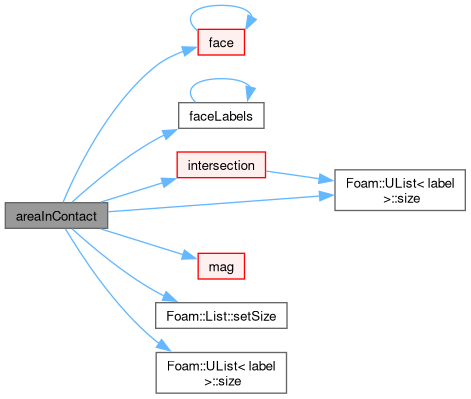

scalar	areaInContact (const UList< point > &meshPoints, const scalarField &v) const
	Return area in contact, given the displacement in vertices.
label	nEdges () const noexcept
	Return number of edges.
Foam::edge	edge (const label edgei) const
	Return i-th face edge (forward walk order).
vector	edge (const label edgei, const UList< point > &pts) const
	Return vector of i-th face edge (forward walk order).
Foam::edge	rcEdge (const label edgei) const
	Return i-th face edge in reverse walk order.
vector	rcEdge (const label edgei, const UList< point > &pts) const
	Return vector of i-th face edge in reverse walk order.

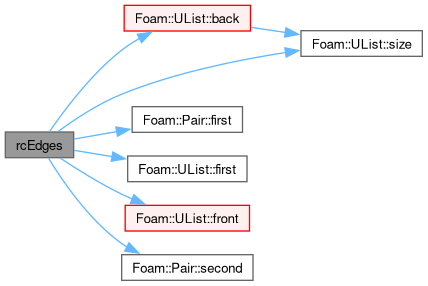

edgeList	edges () const
	Return list of edges in forward walk order.
edgeList	rcEdges () const
	Return list of edges in reverse walk order.
bool	contains (const Foam::edge &e) const
	True if face contains(edge).
label	find (const Foam::edge &e) const
	Find the edge within the face.
int	edgeDirection (const Foam::edge &e) const
	Test the edge direction on the face.
label	longestEdge (const UList< point > &pts) const
	Find the longest edge on a face.
label	nTriangles () const noexcept
	Number of triangles after splitting.
label	nTriangles (const UList< point > &unused) const
	Number of triangles after splitting.

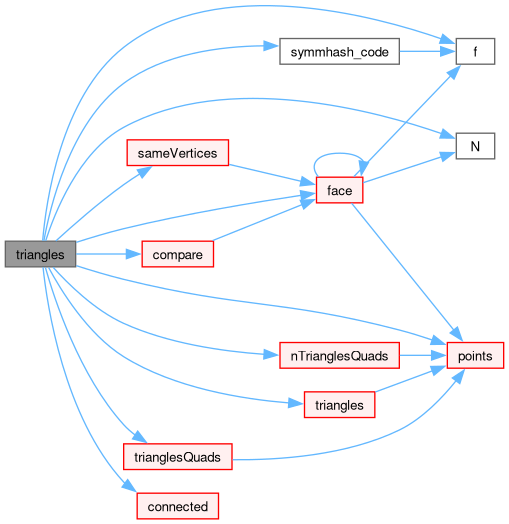

label	triangles (const UList< point > &points, label &triI, faceList &triFaces) const
	Split into triangles using existing points.
template<int SizeMin>
label	triangles (const UList< point > &points, DynamicList< face, SizeMin > &triFaces) const
	Split into triangles using existing points.
label	nTrianglesQuads (const UList< point > &points, label &nTris, label &nQuads) const
	Number of triangles and quads after splitting.
label	trianglesQuads (const UList< point > &points, label &triI, label &quadI, faceList &triFaces, faceList &quadFaces) const
	Split into triangles and quads.
bool	connected (const labelUList &other) const
	True if the face has at least one vertex in common with other.
template<unsigned N>
bool	connected (const FixedList< label, N > &other) const
	True if the face has at least one vertex in common with other.
void	operator+= (const label vertexOffset)
	Increment (offset) vertices by given amount.
unsigned	hash_code (unsigned seed=0) const
	The hash value for face.
unsigned	symmhash_code (unsigned seed=0) const
	The symmetric hash value for face.
Foam::edge	faceEdge (label edgei) const
	Identical to edge().
template<int SizeMin>
Foam::label	triangles (const UList< point > &points, DynamicList< face, SizeMin > &triFaces) const
Public Member Functions inherited from List< label >
constexpr	List () noexcept
	Default construct.
	List (const label len)
	Construct with given size.
	List (const label len, const label &val)
	Construct with given size and value for all elements.
	List (const label len, Foam::zero)
	Construct with given size initializing all elements to zero.
	List (Foam::one, const label &val)
	Construct with length=1, copying the value as the only content.
	List (Foam::one, label &&val)
	Construct with length=1, moving the value as the only content.
	List (Foam::one, Foam::zero)
	Construct with length=1, initializing content to zero.
	List (const List< label > &list)
	Copy construct from list.
	List (const UList< label > &list)
	Copy construct contents from list.
	List (List< label > &list, bool reuse)
	Construct as copy or re-use as specified.
	List (const UList< label > &list, const labelUList &indices)
	Copy construct subset of list.
	List (const UList< label > &list, const FixedList< label, N > &indices)
	Copy construct subset of list.
	List (const FixedList< label, N > &list)
	Construct as copy of FixedList<T, N>.
	List (const UPtrList< label > &list)
	Construct as copy of UPtrList<T> content.
	List (const IndirectListBase< label, Addr > &list)
	Construct as copy of IndirectList contents.
	List (std::initializer_list< label > list)
	Construct from an initializer list.
	List (List< label > &&list) noexcept
	Move construct from List.
	List (DynamicList< label, SizeMin > &&list)
	Move construct from DynamicList.
	List (Istream &is)
	Construct from Istream.
autoPtr< List< label > >	clone () const
	Clone.
	~List ()
	Destructor.
void	clear ()
	Clear the list, i.e. set size to zero.
void	resize (const label len)
	Adjust allocated size of list.
void	resize (const label len, const label &val)
	Adjust allocated size of list and set val for new elements.
void	resize_copy (label count, const label len)
	Change allocated size of list, retaining the first count elements.
void	resize_fill (const label len, const label &val)
	Adjust allocated size of list and set val for all elements.
void	resize_nocopy (const label len)
	Adjust allocated size of list without necessarily.
void	transfer (List< label > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
void	transfer (DynamicList< label, SizeMin > &list)
	Transfer the contents of the argument List into this list and annul the argument list.
label &	newElmt (const label i)
	Return subscript-checked element of UList and resizing the list if required.
label &	emplace_back (Args &&... args)
	Construct an element at the end of the list, return reference to the new list element.
void	push_back (const label &val)
	Append an element at the end of the list.
void	push_back (label &&val)
	Move append an element at the end of the list.
void	push_back (const UList< label > &list)
	Append a List to the end of this list.
void	push_back (const IndirectListBase< label, Addr > &list)
	Append IndirectList contents at the end of this list.
label	push_uniq (const label &val)
	Append an element if not already in the list.
void	pop_back (label n=1)
	Reduce size by 1 or more elements. Can be called on an empty list.
void	operator= (const UList< label > &list)
	Assignment to UList operator. Takes linear time.
void	operator= (const List< label > &list)
	Assignment operator. Takes linear time.
void	operator= (const IndirectListBase< label, Addr > &list)
	Assignment from IndirectList. Takes linear time.
void	operator= (const FixedList< label, N > &list)
	Copy assignment from FixedList.
void	operator= (std::initializer_list< label > list)
	Assignment to an initializer list.
void	operator= (const label &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
void	operator= (List< label > &&list)
	Move assignment. Takes constant time.
void	operator= (DynamicList< label, SizeMin > &&list)
	Move assignment. Takes constant time.
Istream &	readList (Istream &is)
	Read List from Istream, discarding contents of existing List.
void	shallowCopy (const UList< label > &)=delete
	No shallowCopy permitted.
bool	set (const label i, bool val=true)
	A bitSet::set() method for a list of bool.
void	append (const label &val)
	Append an element at the end of the list.
void	append (label &&val)
	Move append an element at the end of the list.
void	append (const UList< label > &list)
	Append a List to the end of this list.
void	append (const IndirectListBase< label, Addr > &list)
	Append IndirectList contents at the end of this list.
label	appendUniq (const label &val)
	Same as push_uniq().
void	setSize (label n)
	Alias for resize().
void	setSize (label n, const label &val)
	Alias for resize().
	List (const Expression::ListExpression< E > &expr)
	Construct from value expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
void	resize (const label len)
Public Member Functions inherited from UList< label >
	UList (const UList< label > &) noexcept=default
	Copy construct, shallow copy.
	UList (UList< label > &&) noexcept=default
	Move construct, shallow copy.
UList< label > &	operator= (const UList< label > &)=delete
	No copy assignment (default: shallow copy).
UList< label > &	operator= (UList< label > &&) noexcept=default
	Move assignment, shallow copy.
constexpr	UList () noexcept
	Default construct, zero-sized and nullptr.
	UList (label *__restrict__ ptr, const label len) noexcept
	Construct from components.
	UList (SubList< label > &&) noexcept
	Move construct from a SubList, shallow copy.
label	fcIndex (const label i) const noexcept
	The forward circular index. The next index in the list which returns to the first at the end of the list.
label	rcIndex (const label i) const noexcept
	The reverse circular index. The previous index in the list which returns to the last at the beginning of the list.
const label &	fcValue (const label i) const
	Return forward circular value (ie, next value in the list).
label &	fcValue (const label i)
	Return forward circular value (ie, next value in the list).
const label &	rcValue (const label i) const
	Return reverse circular value (ie, previous value in the list).
label &	rcValue (const label i)
	Return reverse circular value (ie, previous value in the list).
const label *	cdata () const noexcept
	Return pointer to the underlying array serving as data storage.
label *	data () noexcept
	Return pointer to the underlying array serving as data storage.
const char *	cdata_bytes () const noexcept
	Return pointer to the underlying array serving as data storage,.
char *	data_bytes () noexcept
	Return pointer to the underlying array serving as data storage,.
label &	front ()
	Access first element of the list, position [0].
const label &	front () const
	Access first element of the list.
label &	back ()
	Access last element of the list, position [size()-1].
const label &	back () const
	Access last element of the list, position [size()-1].
std::streamsize	size_bytes () const noexcept
	Number of contiguous bytes for the List data.
std::streamsize	byteSize () const
	Number of contiguous bytes for the List data, runtime FatalError if type is not contiguous.
void	checkStart (const label start) const
	Check start is within valid range [0,size).
void	checkSize (const label size) const
	Check size is within valid range [0,size].
void	checkRange (const label start, const label len) const
	Check that start and length define a valid range.
void	checkIndex (const label i) const
	Check index is within valid range [0,size).
bool	uniform () const
	True if all entries have identical values, and list is non-empty.
bool	contains (const label &val) const
	True if the value is contained in the list.
bool	contains (const label &val, label pos, label len=-1) const
	Is the value contained in the list?
label	find (const label &val) const
	Find index of the first occurrence of the value.
label	find (const label &val, label pos, label len=-1) const
	Find index of the first occurrence of the value.
label	rfind (const label &val, label pos=-1) const
	Find index of the last occurrence of the value.
void	moveFirst (const label i)
	Move element to the first position.
void	moveLast (const label i)
	Move element to the last position.
void	swapFirst (const label i)
	Swap element with the first element. Fatal on an empty list.
void	swapLast (const label i)
	Swap element with the last element. Fatal on an empty list.
void	shallowCopy (label *__restrict__ ptr, const label len) noexcept
	Copy the pointer and size.
void	shallowCopy (std::nullptr_t) noexcept
	Copy nullptr and zero size.
void	shallowCopy (const UList< label > &list) noexcept
	Copy the pointer and size held by the given UList.
void	deepCopy (const UList< label > &list)
	Copy elements of the given UList. Sizes must match!
void	deepCopy (const IndirectListBase< label, Addr > &list)
	Copy elements of the given indirect list. Sizes must match!
SubList< label >	slice (const label pos, label len=-1)
	Return SubList slice (non-const access) - no range checking.
const SubList< label >	slice (const label pos, label len=-1) const
	Return SubList slice (const access) - no range checking.
SubList< label >	slice (const labelRange &range)
	Return SubList slice (non-const access) - with range checking.
const SubList< label >	slice (const labelRange &range) const
	Return SubList slice (const access) - with range checking.
label &	operator[] (const label i)
	Return element of UList.
const label &	operator[] (const label i) const
	Return element of constant UList.
	operator const Foam::List< label > & () const
	Allow cast to a const List<T>&.
void	operator= (const label &val)
	Assignment of all entries to the given value.
void	operator= (Foam::zero)
	Assignment of all entries to zero.
iterator	begin () noexcept
	Return an iterator to begin traversing the UList.
iterator	end () noexcept
	Return an iterator to end traversing the UList.
iterator	begin (const label i) noexcept
	Return iterator at offset i from begin, clamped to [0,size] range.
const_iterator	cbegin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	cend () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	begin () const noexcept
	Return const_iterator to begin traversing the constant UList.
const_iterator	end () const noexcept
	Return const_iterator to end traversing the constant UList.
const_iterator	cbegin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
const_iterator	begin (const label i) const noexcept
	Return const_iterator at offset i from begin, clamped to [0,size] range.
reverse_iterator	rbegin ()
	Return reverse_iterator to begin reverse traversing the UList.
reverse_iterator	rend ()
	Return reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	crbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	crend () const
	Return const_reverse_iterator to end reverse traversing the UList.
const_reverse_iterator	rbegin () const
	Return const_reverse_iterator to begin reverse traversing the UList.
const_reverse_iterator	rend () const
	Return const_reverse_iterator to end reverse traversing the UList.
bool	empty () const noexcept
	True if List is empty (ie, size() is zero).
label	size () const noexcept
	The number of elements in the container.
label	capacity () const noexcept
	Size of the underlying storage.
void	swap (UList< label > &list) noexcept
	Swap content with another UList of the same type in constant time.
bool	operator== (const UList< label > &list) const
	Equality operation on ULists of the same type.
bool	operator!= (const UList< label > &list) const
	The opposite of the equality operation. Takes linear time.
bool	operator< (const UList< label > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator> (const UList< label > &list) const
	Compare two ULists lexicographically. Takes linear time.
bool	operator<= (const UList< label > &list) const
	Return true if !(a > b). Takes linear time.
bool	operator>= (const UList< label > &list) const
	Return true if !(a < b). Takes linear time.
Istream &	readList (Istream &is)
	Read List contents from Istream.
void	writeEntry (const word &keyword, Ostream &os) const
	Write the List as a dictionary entry with keyword.
Ostream &	writeList (Ostream &os, const label shortLen=0) const
	Write List, with line-breaks in ASCII when length exceeds shortLen.
bool	all () const
	True if all entries are 'true' or if the list is empty.
bool	any () const
	True if any entries are 'true'.
bool	none () const
	True if no entries are 'true'.
bool	test (const label i) const
	Test `bool` value at specified position, always false for out-of-range access.
bool	get (const label i) const
	Return `bool` value at specified position, always false for out-of-range access.
bool	unset (const label i)
	Unset the `bool` entry at specified position, always false for out-of-range access.
std::string_view	view () const
	Return a string_view of the charList. Content is non-modifiable.
label &	first ()
	Access first element of the list, position [0].
const label &	first () const
	Access first element of the list.
label &	last ()
	Access last element of the list, position [size()-1].
const label &	last () const
	Access last element of the list, position [size()-1].
bool	found (const label &val, label pos=0) const
	Same as contains().
auto	expr () const
	Wrap value as expression.
void	operator= (const Expression::ListExpression< E > &expr)
	Assign values from expression.
	operator const Foam::List< label > & () const
	Allow cast to a const List<T>&.

Static Public Member Functions
static int	compare (const face &a, const face &b)
	Compare faces.
static bool	sameVertices (const face &a, const face &b)
	True if the faces have all the same vertices.
static unsigned	symmhash_code (const UList< label > &f, unsigned seed=0)
	The symmetric hash value for face.
Static Public Member Functions inherited from List< label >
static const List< label > &	null () noexcept
	Return a null List (reference to a nullObject). Behaves like an empty List.
Static Public Member Functions inherited from UList< label >
static const UList< label > &	null () noexcept
	Return a null UList (reference to a nullObject). Behaves like an empty UList.
static constexpr label	max_size () noexcept
	The size of the largest possible UList.

Static Public Attributes
static const char *const	typeName = "face"

Additional Inherited Members
Protected Member Functions inherited from UList< label >
void	setAddressableSize (const label n) noexcept
	Set addressed size to be inconsistent with allocated storage.
void	size (const label n)
	Older name for setAddressableSize.
void	writeEntry (Ostream &os) const
	Write the UList with its compound type.
labelRange	validateRange (const labelRange &requestedRange) const
	Return a validated (start,size) subset range, which means that it always addresses a valid section of the list.
void	fill_uniform (const label &val)
	Assign all entries to the given value.
void	fill_uniform (Foam::zero)
	Assign all entries to zero.

Detailed Description

A face is a list of labels corresponding to mesh vertices.

See also: Foam::triFace

Source files

Definition at line 68 of file face.H.

Member Enumeration Documentation

◆ proxType

enum proxType

The proximity classifications.

Enumerator
NONE	Unknown proximity.
POINT	Close to point.
EDGE	Close to edge.

Definition at line 127 of file face.H.

Constructor & Destructor Documentation

◆ face() [1/10]

face ( )

constexprdefaultnoexcept

Default construct.

References areaNormal(), average(), centre(), collapse(), f(), face(), fld(), flip(), N(), Foam::noexcept, p, points(), pts, and unitNormal().

Referenced by areaInContact(), compare(), cellShape::face(), face(), nearestPointClassify(), face::hasher::operator()(), face::symmHasher::operator()(), referredWallFace::operator==(), oppositeFace::oppositeFace(), pTraits< face >::pTraits(), referredWallFace::referredWallFace(), referredWallFace::referredWallFace(), reverseFace(), sameVertices(), and triangles().

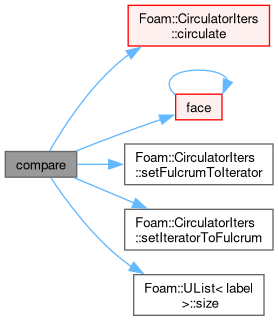

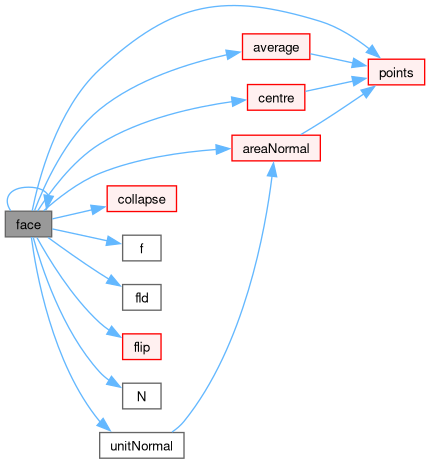

Here is the call graph for this function:

Here is the caller graph for this function:

◆ face() [2/10]

face ( const label sz )

inlineexplicit

Construct given size, with invalid vertex labels (-1).

Definition at line 24 of file faceI.H.

◆ face() [3/10]

face ( const labelUList & list )

inlineexplicit

Copy construct from list of vertex labels.

Definition at line 30 of file faceI.H.

◆ face() [4/10]

face ( labelList && list )

inlineexplicit

Move construct from list of vertex labels.

Definition at line 36 of file faceI.H.

◆ face() [5/10]

face ( std::initializer_list< label > list )

inlineexplicit

Copy construct from an initializer list of vertex labels.

Definition at line 42 of file faceI.H.

◆ face() [6/10]

template<unsigned N>

face ( const FixedList< label, N > & list )

inlineexplicit

Copy construct from list of vertex labels.

Definition at line 49 of file faceI.H.

◆ face() [7/10]

face	(	const labelUList &	list,
		const labelUList &	indices )

inline

Copy construct from subset of vertex labels.

Definition at line 55 of file faceI.H.

◆ face() [8/10]

template<unsigned N>

face	(	const labelUList &	list,
		const FixedList< label, N > &	indices )

inline

Copy construct from subset of vertex labels.

Definition at line 62 of file faceI.H.

◆ face() [9/10]

face ( const triFace & f )

Copy construct from triFace.

Definition at line 265 of file face.C.

References f().

Here is the call graph for this function:

◆ face() [10/10]

face ( Istream & is )

inline

Construct from Istream.

Definition at line 72 of file faceI.H.

Member Function Documentation

◆ collapse()

Foam::label collapse ( )

Collapse face by removing duplicate vertex labels.

Returns: the collapsed size

Definition at line 467 of file face.C.

References UList< label >::operator[](), setSize(), and UList< label >::size().

Referenced by face().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flip()

void flip ( )

Flip the face in-place.

The starting vertex of the original and flipped face are identical.

Definition at line 492 of file face.C.

References n, and UList< label >::size().

Referenced by polyMeshAdder::add(), face(), and createShellMesh::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ points()

Foam::pointField points ( const UList< point > & pts ) const

inline

Return the points corresponding to this face.

Definition at line 80 of file faceI.H.

References p, pts, and UList< label >::size().

Referenced by areaNormal(), average(), deltaBoundary::cellCenters_d(), centre(), NURBS3DVolume::computeControlPointSensitivities(), NURBS3DVolume::computeControlPointSensitivities(), Bezier::dndbBasedSensitivities(), Bezier::dndbBasedSensitivities(), NURBS3DVolume::dndbBasedSensitivities(), Bezier::dxdbFace(), Bezier::dxdbFace(), face(), sensitivitySurfacePoints::finalisePointSensitivities(), nTrianglesQuads(), NURBS3DVolume::patchDxDbFace(), sign(), triangles(), triangles(), trianglesQuads(), and advancingFrontAMI::writeIntersectionOBJ().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ centre()

Foam::point centre ( const UList< point > & points ) const

Centre point of face.

Definition at line 506 of file face.C.

References Foam::average(), triangle< point, const point & >::centre(), Foam::mag(), nPoints, UList< label >::operator[](), points(), UList< label >::size(), and Foam::Zero.

Referenced by contactSphereDiameter(), face(), inertia(), nearestPointClassify(), and sweptVol().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ average() [1/2]

Foam::point average ( const UList< point > & points ) const

inline

Average of face points: a quick estimate of the face centre.

Definition at line 133 of file faceI.H.

References n, points(), UList< label >::size(), and Foam::Zero.

Referenced by face().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ average() [2/2]

template<class Type>

Type average	(	const UList< point > &	meshPoints,
		const Field< Type > &	fld ) const

Calculate average value at centroid of face.

Definition at line 45 of file faceTemplates.C.

References Foam::average(), fld(), Foam::mag(), nPoints, UList< label >::operator[](), UList< label >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ areaNormal()

Foam::vector areaNormal ( const UList< point > & p ) const

The area normal - with magnitude equal to area of face.

Definition at line 569 of file face.C.

References triangle< point, const point & >::areaNormal(), Foam::average(), n, nPoints, UList< label >::operator[](), points(), UList< label >::size(), and Foam::Zero.

Referenced by contactSphereDiameter(), face(), FOAM_DEPRECATED_FOR(), mag(), magSqr(), and unitNormal().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ unitNormal()

Foam::vector unitNormal ( const UList< point > & p ) const

inline

The unit normal.

Definition at line 97 of file faceI.H.

References areaNormal(), n, and p.

Referenced by face().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FOAM_DEPRECATED_FOR()

FOAM_DEPRECATED_FOR	(	2018-	12,
		"areaNormal() or unitNormal()"	) const &

inline

Legacy name for areaNormal().

Deprecated: (2018-06) Deprecated for new use

Definition at line 251 of file face.H.

References areaNormal(), FOAM_DEPRECATED_FOR(), and p.

Referenced by FOAM_DEPRECATED_FOR().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mag()

Foam::scalar mag ( const UList< point > & p ) const

inline

Magnitude of face area.

Definition at line 105 of file faceI.H.

References areaNormal(), and p.

Referenced by areaInContact(), hexCellLooper::cut(), and cyclicACMIFvPatch::movePoints().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ magSqr()

Foam::scalar magSqr ( const UList< point > & p ) const

inline

Magnitude squared of face area.

Definition at line 111 of file faceI.H.

References areaNormal(), and p.

Here is the call graph for this function:

◆ box()

Foam::Pair< Foam::point > box ( const UList< point > & pts ) const

inline

The enclosing (bounding) box for the face.

Definition at line 118 of file faceI.H.

References Pair< T >::first(), Foam::max(), Foam::min(), pts, VectorSpace< Form, Cmpt, Ncmpts >::rootMax, VectorSpace< Form, Cmpt, Ncmpts >::rootMin, and Pair< T >::second().

Here is the call graph for this function:

◆ reverseFace()

Foam::face reverseFace ( ) const

Return face with reverse direction.

The starting vertex of the original and reverse face are identical.

Definition at line 612 of file face.C.

References face(), and UList< T >::size().

Referenced by addPatchCellLayer::setRefinement(), and perfectInterface::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ which()

Foam::label which ( const label vertex ) const

inline

Find local vertex on face for the vertex label, same as find().

Returns: position in face (0,1,2,...) or -1 if not found.

Definition at line 196 of file faceI.H.

References UList< label >::find().

Here is the call graph for this function:

◆ thisLabel()

Foam::label thisLabel ( const label i ) const

inline

The vertex on face - identical to operator[], but with naming similar to nextLabel(), prevLabel().

Definition at line 202 of file faceI.H.

References UList< label >::operator[]().

Referenced by edge(), edge(), rcEdge(), and rcEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nextLabel()

Foam::label nextLabel ( const label i ) const

inline

Next vertex on face.

Definition at line 208 of file faceI.H.

References UList< label >::fcValue().

Referenced by edge(), edge(), edgeDirection(), find(), combineFaces::getOutsideFace(), boundaryCutter::setRefinement(), and tetDecomposer::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prevLabel()

Foam::label prevLabel ( const label i ) const

inline

Previous vertex on face.

Definition at line 214 of file faceI.H.

References UList< label >::rcValue().

Referenced by edgeDirection(), find(), rcEdge(), rcEdge(), and tetDecomposer::setRefinement().

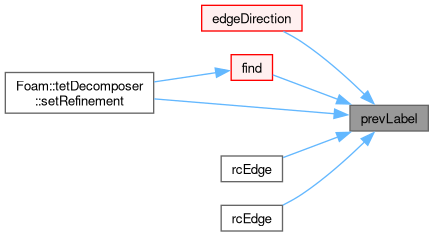

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sweptVol()

Foam::scalar sweptVol	(	const UList< point > &	oldPoints,
		const UList< point > &	newPoints ) const

Return the volume swept out by the face when its points move.

Definition at line 634 of file face.C.

References centre(), nPoints, pi(), UList< label >::size(), and triangle< Point, PointRef >::sweptVol().

Here is the call graph for this function:

◆ inertia()

Foam::tensor inertia	(	const UList< point > &	p,
		const point &	refPt = vector::zero,
		scalar	density = 1.0 ) const

Return the inertia tensor, with optional reference point and density specification.

Definition at line 713 of file face.C.

References centre(), UList< label >::fcIndex(), forAll, triangle< Point, PointRef >::inertia(), p, UList< label >::size(), and Foam::Zero.

Here is the call graph for this function:

◆ ray()

Foam::pointHit ray	(	const point &	p,
		const vector &	n,
		const UList< point > &	meshPoints,
		const intersection::algorithm	alg = intersection::FULL_RAY,
		const intersection::direction	dir = intersection::VECTOR ) const

Return potential intersection with face with a ray starting at p, direction n (does not need to be normalized).

Does face-centre decomposition and returns triangle intersection point closest to p. Face-centre is calculated from point average. For a hit, the distance is signed. Positive number represents the point in front of triangle In case of miss the point is the nearest point on the face and the distance is the distance between the intersection point and the original point. The half-ray or full-ray intersection and the contact sphere adjustment of the projection vector is set by the intersection parameters

Definition at line 29 of file faceIntersection.C.

References Foam::average(), Vector< Cmpt >::dist(), PointHit< PointType >::distance(), PointHit< PointType >::eligibleMiss(), f(), UList< label >::fcIndex(), PointHit< PointType >::hit(), PointHit< PointType >::hitPoint(), Foam::mag(), n, nPoints, p, PointHit< PointType >::point(), points, triangle< Point, PointRef >::ray(), PointHit< PointType >::setDistance(), PointHit< PointType >::setMiss(), PointHit< PointType >::setPoint(), and UList< label >::size().

Here is the call graph for this function:

◆ intersection()

Foam::pointHit intersection	(	const point &	p,
		const vector &	q,
		const point &	ctr,
		const UList< point > &	meshPoints,
		const intersection::algorithm	alg,
		const scalar	tol = 0.0 ) const

Fast intersection with a ray.

Does face-centre decomposition and returns triangle intersection point closest to p. See triangle::intersection for details.

Definition at line 129 of file faceIntersection.C.

References PointHit< PointType >::distance(), f(), UList< label >::fcIndex(), forAll, PointHit< PointType >::hit(), PointHit< PointType >::hitPoint(), triangle< Point, PointRef >::intersection(), Foam::mag(), p, PointHit< PointType >::point(), PointHit< PointType >::setDistance(), and UList< label >::size().

Referenced by areaInContact().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nearestPoint()

Foam::pointHit nearestPoint	(	const point &	p,
		const UList< point > &	meshPoints ) const

Return nearest point to face.

Definition at line 186 of file faceIntersection.C.

References nearestPointClassify(), and p.

Here is the call graph for this function:

◆ nearestPointClassify()

Foam::pointHit nearestPointClassify	(	const point &	p,
		const UList< point > &	meshPoints,
		label &	nearType,
		label &	nearLabel ) const

Return nearest point to face and classify it:

+ near point (nearType=POINT, nearLabel=0, 1, 2) + near edge (nearType=EDGE, nearLabel=0, 1, 2) Note: edges are counted from starting vertex so e.g. edge n is from f[n] to f[0], where the face has n + 1 points

Definition at line 200 of file faceIntersection.C.

References centre(), PointHit< PointType >::distance(), EDGE, triangle< point, const point & >::EDGE, f(), face(), UList< label >::fcIndex(), PointHit< PointType >::hit(), PointHit< PointType >::hitPoint(), Foam::mag(), triangle< Point, PointRef >::nearestPointClassify(), NONE, nPoints, p, POINT, triangle< point, const point & >::POINT, PointHit< PointType >::point(), PointHit< PointType >::setDistance(), PointHit< PointType >::setMiss(), PointHit< PointType >::setPoint(), and UList< label >::size().

Referenced by nearestPoint().

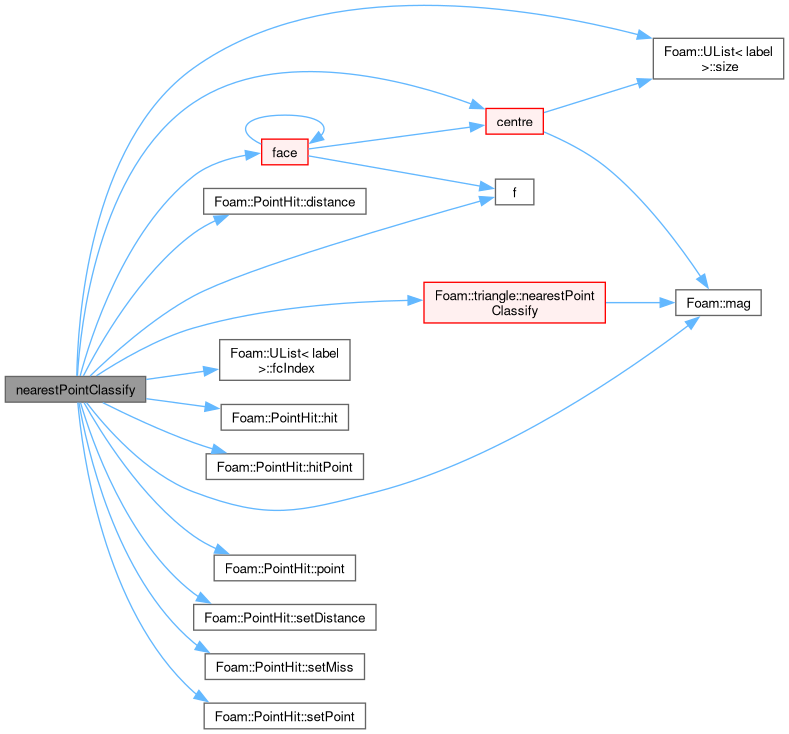

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sign()

int sign	(	const point &	p,
		const UList< point > &	points,
		const scalar	tol = SMALL ) const

The sign for the side of the face plane the point is on, using three evenly distributed face points for the estimated normal.

Uses the supplied tolerance for rounding around zero.

Returns

0: on plane
+1: front-side
-1: back-side

Definition at line 300 of file faceIntersection.C.

References p, points(), triangle< Point, PointRef >::sign(), and UList< label >::size().

Here is the call graph for this function:

◆ contactSphereDiameter()

Foam::scalar contactSphereDiameter	(	const point &	p,
		const vector &	n,
		const UList< point > &	meshPoints ) const

Return contact sphere diameter.

Definition at line 29 of file faceContactSphere.C.

References areaNormal(), centre(), Foam::mag(), n, and p.

Here is the call graph for this function:

◆ areaInContact()

Foam::scalar areaInContact	(	const UList< point > &	meshPoints,
		const scalarField &	v ) const

Return area in contact, given the displacement in vertices.

Definition at line 27 of file faceAreaInContact.C.

References face(), faceLabels(), forAll, intersection(), mag(), List< T >::setSize(), UList< T >::size(), and UList< label >::size().

Here is the call graph for this function:

◆ nEdges()

Foam::label nEdges ( ) const

inlinenoexcept

Return number of edges.

Definition at line 151 of file faceI.H.

References Foam::noexcept, and UList< label >::size().

Referenced by rcEdge(), and rcEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edge() [1/2]

Foam::edge edge ( const label edgei ) const

inline

Return i-th face edge (forward walk order).

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 158 of file faceI.H.

References nextLabel(), and thisLabel().

Referenced by Foam::checkFireEdges(), faceEdge(), and tetDecomposer::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edge() [2/2]

Foam::vector edge	(	const label	edgei,
		const UList< point > &	pts ) const

inline

Return vector of i-th face edge (forward walk order).

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 164 of file faceI.H.

References nextLabel(), pts, and thisLabel().

Here is the call graph for this function:

◆ rcEdge() [1/2]

Foam::edge rcEdge ( const label edgei ) const

inline

Return i-th face edge in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 174 of file faceI.H.

References nEdges(), prevLabel(), and thisLabel().

Here is the call graph for this function:

◆ rcEdge() [2/2]

Foam::vector rcEdge	(	const label	edgei,
		const UList< point > &	pts ) const

inline

Return vector of i-th face edge in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 183 of file faceI.H.

References nEdges(), prevLabel(), pts, and thisLabel().

Here is the call graph for this function:

◆ edges()

Foam::edgeList edges ( ) const

Return list of edges in forward walk order.

The edge 0 is from [0] to [1] and edge 1 is from [1] to [2]

Definition at line 749 of file face.C.

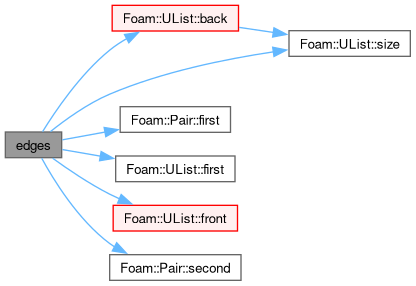

References UList< T >::back(), Pair< T >::first(), UList< T >::first(), UList< T >::front(), Pair< T >::second(), and UList< T >::size().

Referenced by Foam::polyMeshZipUpCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rcEdges()

Foam::edgeList rcEdges ( ) const

Return list of edges in reverse walk order.

The rcEdge 0 is from [0] to [n-1] and rcEdge 1 is from [n-1] to [n-2]

Definition at line 770 of file face.C.

References UList< T >::back(), Pair< T >::first(), UList< T >::first(), UList< T >::front(), Pair< T >::second(), and UList< T >::size().

Here is the call graph for this function:

◆ contains()

bool contains ( const Foam::edge & e ) const

inline

True if face contains(edge).

Definition at line 253 of file faceI.H.

References e, and edgeDirection().

Here is the call graph for this function:

◆ find()

Foam::label find ( const Foam::edge & e ) const

Find the edge within the face.

Returns: the edge index or -1 if not found

Definition at line 791 of file face.C.

References e, UList< label >::find(), nextLabel(), prevLabel(), and UList< label >::rcIndex().

Referenced by primitiveMesh::checkCommonOrder(), boundaryCutter::setRefinement(), and tetDecomposer::setRefinement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edgeDirection()

int edgeDirection ( const Foam::edge & e ) const

Test the edge direction on the face.

Returns

0: edge not found on the face
+1: forward (counter-clockwise) on the face
-1: reverse (clockwise) on the face

Definition at line 816 of file face.C.

References e, UList< label >::find(), nextLabel(), and prevLabel().

Referenced by contains().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ longestEdge()

Foam::label longestEdge ( const UList< point > & pts ) const

Find the longest edge on a face.

Definition at line 885 of file face.C.

References UList< T >::back(), UList< T >::front(), pts, and UList< T >::size().

Here is the call graph for this function:

◆ nTriangles() [1/2]

Foam::label nTriangles ( ) const

inlinenoexcept

Number of triangles after splitting.

Definition at line 220 of file faceI.H.

References Foam::noexcept, and UList< label >::size().

Referenced by nTriangles(), and triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ nTriangles() [2/2]

Foam::label nTriangles ( const UList< point > & unused ) const

Number of triangles after splitting.

Definition at line 838 of file face.C.

References nTriangles().

Here is the call graph for this function:

◆ triangles() [1/3]

Foam::label triangles	(	const UList< point > &	points,
		label &	triI,
		faceList &	triFaces ) const

Split into triangles using existing points.

Result in triFaces[triI..triI+nTri]. Splits intelligently to maximize triangle quality. \Return number of faces created.

Definition at line 844 of file face.C.

References points(), and split().

Referenced by triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ triangles() [2/3]

template<int SizeMin>

label triangles	(	const UList< point > &	points,
		DynamicList< face, SizeMin > &	triFaces ) const

Split into triangles using existing points.

Append to DynamicList. \Return number of faces created.

References b, compare(), connected(), f(), face(), N(), nTrianglesQuads(), points(), sameVertices(), symmhash_code(), triangles(), and trianglesQuads().

Here is the call graph for this function:

◆ nTrianglesQuads()

Foam::label nTrianglesQuads	(	const UList< point > &	points,
		label &	nTris,
		label &	nQuads ) const

Number of triangles and quads after splitting.

Returns the sum of both

Definition at line 858 of file face.C.

References points(), and split().

Referenced by triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ trianglesQuads()

Foam::label trianglesQuads	(	const UList< point > &	points,
		label &	triI,
		label &	quadI,
		faceList &	triFaces,
		faceList &	quadFaces ) const

Split into triangles and quads.

Results in triFaces (starting at triI) and quadFaces (starting at quadI). Returns number of new faces created.

Definition at line 872 of file face.C.

References points(), and split().

Referenced by triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ connected() [1/2]

bool connected ( const labelUList & other ) const

inline

True if the face has at least one vertex in common with other.

Definition at line 226 of file faceI.H.

References UList< T >::contains().

Referenced by triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ connected() [2/2]

template<unsigned N>

bool connected ( const FixedList< label, N > & other ) const

inline

True if the face has at least one vertex in common with other.

Definition at line 240 of file faceI.H.

References FixedList< T, N >::contains().

Here is the call graph for this function:

◆ compare()

int compare	(	const face &	a,
		const face &	b )

static

Compare faces.

Returns

0: different
+1: identical
-1: same face, but different orientation

Definition at line 273 of file face.C.

References CirculatorBase::ANTICLOCKWISE, b, CirculatorIters< Container, Const >::circulate(), CirculatorBase::CLOCKWISE, face(), CirculatorIters< Container, Const >::setFulcrumToIterator(), CirculatorIters< Container, Const >::setIteratorToFulcrum(), and UList< T >::size().

Referenced by Foam::operator!=(), Foam::operator==(), and triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sameVertices()

bool sameVertices	(	const face &	a,
		const face &	b )

static

True if the faces have all the same vertices.

Definition at line 374 of file face.C.

References b, face(), forAll, and UList< T >::size().

Referenced by blockFace::compare(), and triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator+=()

void operator+= ( const label vertexOffset )

inline

Increment (offset) vertices by given amount.

Definition at line 262 of file faceI.H.

◆ symmhash_code() [1/2]

unsigned symmhash_code	(	const UList< label > &	f,
		unsigned	seed = 0 )

static

The symmetric hash value for face.

Starts with lowest vertex value and walks in the direction of the next lowest value.

Definition at line 414 of file face.C.

References f().

Referenced by face::symmHasher::operator()(), symmhash_code(), and triangles().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hash_code()

unsigned hash_code ( unsigned seed = 0 ) const

inline

The hash value for face.

Currently hashes as sequential contiguous data, but could/should be commutative

Definition at line 641 of file face.H.

References UList< label >::cdata(), hash_code(), Foam::Hasher(), and UList< label >::size_bytes().

Referenced by hash_code(), and face::hasher::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ symmhash_code() [2/2]

unsigned symmhash_code ( unsigned seed = 0 ) const

inline

The symmetric hash value for face.

Starts with lowest vertex value and walks in the direction of the next lowest value.

Definition at line 652 of file face.H.

References symmhash_code().

Here is the call graph for this function:

◆ faceEdge()

Foam::edge faceEdge ( label edgei ) const

inline

Identical to edge().

Definition at line 685 of file face.H.

References edge().

Here is the call graph for this function:

◆ triangles() [3/3]

template<int SizeMin>

Foam::label triangles	(	const UList< point > &	points,
		DynamicList< face, SizeMin > &	triFaces ) const

Definition at line 27 of file faceTemplates.C.

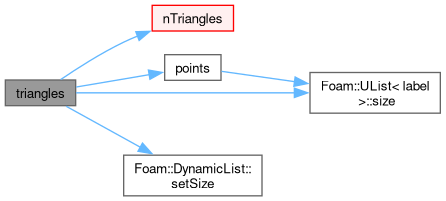

References nTriangles(), points(), DynamicList< T, SizeMin >::setSize(), and UList< T >::size().

Here is the call graph for this function:

Member Data Documentation

◆ typeName

const char *const typeName = "face"

static

Definition at line 137 of file face.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/meshShapes/face/face.H
src/OpenFOAM/meshes/meshShapes/face/face.C
src/OpenFOAM/meshes/meshShapes/face/faceAreaInContact.C
src/OpenFOAM/meshes/meshShapes/face/faceContactSphere.C
src/OpenFOAM/meshes/meshShapes/face/faceI.H
src/OpenFOAM/meshes/meshShapes/face/faceIntersection.C
src/OpenFOAM/meshes/meshShapes/face/faceTemplates.C

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ proxType

Constructor & Destructor Documentation

◆ face() [1/10]

◆ face() [2/10]

◆ face() [3/10]

◆ face() [4/10]

◆ face() [5/10]

◆ face() [6/10]

◆ face() [7/10]

◆ face() [8/10]

◆ face() [9/10]

◆ face() [10/10]

Member Function Documentation

◆ collapse()

◆ flip()

◆ points()

◆ centre()

◆ average() [1/2]

◆ average() [2/2]

◆ areaNormal()

◆ unitNormal()

◆ FOAM_DEPRECATED_FOR()

◆ mag()

◆ magSqr()

◆ box()

◆ reverseFace()

◆ which()

◆ thisLabel()

◆ nextLabel()

◆ prevLabel()

◆ sweptVol()

◆ inertia()

◆ ray()

◆ intersection()

◆ nearestPoint()

◆ nearestPointClassify()

◆ sign()

◆ contactSphereDiameter()

◆ areaInContact()

◆ nEdges()

◆ edge() [1/2]

◆ edge() [2/2]

◆ rcEdge() [1/2]

◆ rcEdge() [2/2]

◆ edges()

◆ rcEdges()

◆ contains()

◆ find()

◆ edgeDirection()

◆ longestEdge()

◆ nTriangles() [1/2]

◆ nTriangles() [2/2]

◆ triangles() [1/3]

◆ triangles() [2/3]

◆ nTrianglesQuads()

◆ trianglesQuads()

◆ connected() [1/2]

◆ connected() [2/2]

◆ compare()

◆ sameVertices()

◆ operator+=()

◆ symmhash_code() [1/2]

◆ hash_code()

◆ symmhash_code() [2/2]

◆ faceEdge()

◆ triangles() [3/3]

Member Data Documentation

◆ typeName
