cutFaceIso Class Reference

Class for cutting a face, faceI, of an fvMesh, mesh_, at its intersection with an isosurface defined by the mesh point values f_ and the isovalue, cutValue. More...

#include <cutFaceIso.H>

Inheritance diagram for cutFaceIso:

Collaboration diagram for cutFaceIso:

Public Member Functions
	cutFaceIso (const fvMesh &mesh, scalarField &f)
	Construct from fvMesh and a scalarField.
label	calcSubFace (const label faceI, const scalar cutValue)
	Calculate cut points along edges of faceI.
const point &	subFaceCentre () const noexcept
	Returns centre of cutted face.
const vector &	subFaceArea () const noexcept
	Returns area vector of cutted face.
const DynamicList< point > &	subFacePoints () const noexcept
	Returns the cut edge of the cutted face.
const DynamicList< point > &	surfacePoints () const noexcept
	Returns point of the face in sorted of cutted face.
void	clearStorage ()
	Resets internal variables.
Public Member Functions inherited from cutFace
	cutFace (const fvMesh &mesh)
	Construct from fvMesh.

Additional Inherited Members
Static Public Attributes inherited from cutFace
static int	debug = 0
Protected Member Functions inherited from cutFace
void	calcSubFace (const label faceI, const scalarList &pointStatus, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield and computes geometric information and the face status where:
void	calcSubFace (const label faceI, const scalarList &pointStatus, const scalarList &weights, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield, weights and computes geometric information and the face status where:
void	calcSubFaceCentreAndArea (DynamicList< point > &subFacePoints, vector &subFaceCentre, vector &subFaceArea)
	Calculates centre and normal of the face.
void	calcSubFace (const face &f, const pointField &points, const scalarList &pointStatus, label firstFullySubmergedPoint, DynamicList< point > &subFacePoints, DynamicList< point > &surfacePoints, label &faceStatus, vector &subFaceCentre, vector &subFaceArea)
	Calculate cut points along edges of face with pointStatus, pointfield and computes geometric information and the face status where:

Detailed Description

Class for cutting a face, faceI, of an fvMesh, mesh_, at its intersection with an isosurface defined by the mesh point values f_ and the isovalue, cutValue.

Reference:

    Roenby, J., Bredmose, H. and Jasak, H. (2016).
    A computational method for sharp interface advection
    Royal Society Open Science, 3
    doi 10.1098/rsos.160405

Original code supplied by Johan Roenby, DHI (2016)

Source files

• cutFaceIso.H
• cutFaceIso.C

Definition at line 64 of file cutFaceIso.H.

Constructor & Destructor Documentation

cutFaceIso()

cutFaceIso	(	const fvMesh &	mesh,
		scalarField &	f )

Construct from fvMesh and a scalarField.

length of scalarField should equal number of mesh points

Definition at line 27 of file cutFaceIso.C.

References clearStorage(), cutFace::cutFace(), f(), mesh, and Foam::Zero.

Here is the call graph for this function:

Member Function Documentation

calcSubFace()

Foam::label calcSubFace	(	const label	faceI,
		const scalar	cutValue )

Calculate cut points along edges of faceI.

Definition at line 46 of file cutFaceIso.C.

References cutFace::calcSubFace(), clearStorage(), f(), forAll, Foam::mag(), and Foam::Zero.

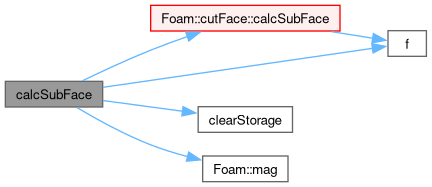

Here is the call graph for this function:

subFaceCentre()

const point & subFaceCentre ( ) const

inlinenoexcept

Returns centre of cutted face.

Definition at line 148 of file cutFaceIso.H.

References Foam::noexcept.

subFaceArea()

const vector & subFaceArea ( ) const

inlinenoexcept

Returns area vector of cutted face.

Definition at line 156 of file cutFaceIso.H.

References Foam::noexcept.

subFacePoints()

const DynamicList< point > & subFacePoints ( ) const

inlinenoexcept

Returns the cut edge of the cutted face.

Definition at line 164 of file cutFaceIso.H.

References Foam::noexcept.

surfacePoints()

const DynamicList< point > & surfacePoints ( ) const

inlinenoexcept

Returns point of the face in sorted of cutted face.

Definition at line 172 of file cutFaceIso.H.

References Foam::noexcept.

clearStorage()

void clearStorage

(

)

Resets internal variables.

Definition at line 107 of file cutFaceIso.C.

References Foam::Zero.

Referenced by calcSubFace(), and cutFaceIso().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/transportModels/geometricVoF/cellCuts/cutFace/cutFaceIso.H
• src/transportModels/geometricVoF/cellCuts/cutFace/cutFaceIso.C
