preserveBaffles Class Reference

Detects baffles and keeps owner and neighbour on same processor. More...

#include <preserveBafflesConstraint.H>

Inheritance diagram for preserveBaffles:

Collaboration diagram for preserveBaffles:

Public Member Functions
	TypeName ("preserveBaffles")
	Runtime type information.
	preserveBaffles (const dictionary &dict)
	Construct with constraint dictionary.
	preserveBaffles ()
	Construct from components.
virtual	~preserveBaffles ()=default
	Destructor.
virtual void	add (const polyMesh &mesh, boolList &blockedFace, PtrList< labelList > &specifiedProcessorFaces, labelList &specifiedProcessor, List< labelPair > &explicitConnections) const
	Add my constraints to list of constraints.
virtual void	apply (const polyMesh &mesh, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections, labelList &decomposition) const
	Apply any additional post-decomposition constraints.
Public Member Functions inherited from decompositionConstraint
	TypeName ("decompositionConstraint")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, decompositionConstraint, dictionary,(const dictionary &dict),(dict))
	decompositionConstraint (const dictionary &constraintDict)
	Construct with constraint dictionary.
	decompositionConstraint (const dictionary &constraintDict, const word &modelType)
	Construct with constraint dictionary and model type.
virtual	~decompositionConstraint ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from decompositionConstraint
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict)
	Return a reference to the selected decompositionConstraint.
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict, const word &modelType)
	Return a reference to the selected decompositionConstraint.
Protected Member Functions inherited from decompositionConstraint
void	getMinBoundaryValue (const polyMesh &mesh, const labelList &decomposition, labelList &destProc) const
	Get minimum label across coupled boundary faces.
	decompositionConstraint (const decompositionConstraint &)=delete
	No copy construct.
void	operator= (const decompositionConstraint &)=delete
	No copy assignment.
Protected Attributes inherited from decompositionConstraint
dictionary	coeffDict_
	Constraint coefficients dictionary.

Detailed Description

Detects baffles and keeps owner and neighbour on same processor.

Dictionary parameters

Property	Description	Required	Default
type	preserveBaffles	yes

Source files

• preserveBafflesConstraint.H
• preserveBafflesConstraint.C

Definition at line 65 of file preserveBafflesConstraint.H.

Constructor & Destructor Documentation

preserveBaffles() [1/2]

preserveBaffles ( const dictionary & dict )

explicit

Construct with constraint dictionary.

Definition at line 47 of file preserveBafflesConstraint.C.

References decompositionConstraint::decompositionConstraint(), dict, Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

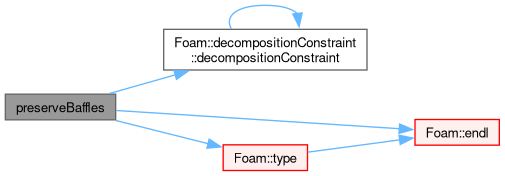

Here is the call graph for this function:

preserveBaffles() [2/2]

preserveBaffles

(

)

Construct from components.

Definition at line 64 of file preserveBafflesConstraint.C.

References decompositionConstraint::decompositionConstraint(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

Here is the call graph for this function:

~preserveBaffles()

virtual ~preserveBaffles ( )

virtualdefault

Destructor.

References mesh.

Member Function Documentation

TypeName()

TypeName

(

"preserveBaffles"

)

Runtime type information.

References dict.

add()

void add ( const polyMesh & mesh, boolList & blockedFace, PtrList< labelList > & specifiedProcessorFaces, labelList & specifiedProcessor, List< labelPair > & explicitConnections ) const

virtual

Add my constraints to list of constraints.

Implements decompositionConstraint.

Definition at line 80 of file preserveBafflesConstraint.C.

References decompositionConstraint::coeffDict_, Pair< label >::compare(), Foam::endl(), localPointRegion::findDuplicateFacePairs(), forAll, Foam::Info, IOWarningInFunction, mesh, n, p, Foam::returnReduce(), List< T >::setSize(), UList< T >::size(), syncTools::syncFaceList(), and Foam::type().

Here is the call graph for this function:

apply()

void apply ( const polyMesh & mesh, const boolList & blockedFace, const PtrList< labelList > & specifiedProcessorFaces, const labelList & specifiedProcessor, const List< labelPair > & explicitConnections, labelList & decomposition ) const

virtual

Apply any additional post-decomposition constraints.

Reimplemented from decompositionConstraint.

Definition at line 175 of file preserveBafflesConstraint.C.

References Foam::endl(), localPointRegion::findDuplicateFacePairs(), Foam::Info, mesh, Foam::returnReduce(), and Foam::type().

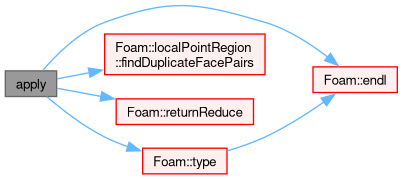

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/parallel/decompose/decompositionMethods/decompositionConstraints/preserveBaffles/preserveBafflesConstraint.H
• src/parallel/decompose/decompositionMethods/decompositionConstraints/preserveBaffles/preserveBafflesConstraint.C
