preserveFaceZones Class Reference

Constraint to keep/move owner and neighbour of faceZone onto same processor. More...

#include <preserveFaceZonesConstraint.H>

Inheritance diagram for preserveFaceZones:

Collaboration diagram for preserveFaceZones:

Public Member Functions
	TypeName ("preserveFaceZones")
	Runtime type information.
	preserveFaceZones (const dictionary &dict)
	Construct with constraint dictionary.
	preserveFaceZones (const UList< wordRe > &zones)
	Construct from components.
virtual	~preserveFaceZones ()=default
	Destructor.
virtual void	add (const polyMesh &mesh, boolList &blockedFace, PtrList< labelList > &specifiedProcessorFaces, labelList &specifiedProcessor, List< labelPair > &explicitConnections) const
	Add my constraints to list of constraints.
virtual void	apply (const polyMesh &mesh, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections, labelList &decomposition) const
	Apply any additional post-decomposition constraints.
Public Member Functions inherited from decompositionConstraint
	TypeName ("decompositionConstraint")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, decompositionConstraint, dictionary,(const dictionary &dict),(dict))
	decompositionConstraint (const dictionary &constraintDict)
	Construct with constraint dictionary.
	decompositionConstraint (const dictionary &constraintDict, const word &modelType)
	Construct with constraint dictionary and model type.
virtual	~decompositionConstraint ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from decompositionConstraint
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict)
	Return a reference to the selected decompositionConstraint.
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict, const word &modelType)
	Return a reference to the selected decompositionConstraint.
Protected Member Functions inherited from decompositionConstraint
void	getMinBoundaryValue (const polyMesh &mesh, const labelList &decomposition, labelList &destProc) const
	Get minimum label across coupled boundary faces.
	decompositionConstraint (const decompositionConstraint &)=delete
	No copy construct.
void	operator= (const decompositionConstraint &)=delete
	No copy assignment.
Protected Attributes inherited from decompositionConstraint
dictionary	coeffDict_
	Constraint coefficients dictionary.

Detailed Description

Constraint to keep/move owner and neighbour of faceZone onto same processor.

Dictionary parameters

Property	Description	Required	Default
type	preserveFaceZones	yes
zones	List of face zone names or regexs	yes

Source files

• preserveFaceZonesConstraint.H
• preserveFaceZonesConstraint.C

Definition at line 72 of file preserveFaceZonesConstraint.H.

Constructor & Destructor Documentation

preserveFaceZones() [1/2]

preserveFaceZones ( const dictionary & dict )

explicit

Construct with constraint dictionary.

Definition at line 46 of file preserveFaceZonesConstraint.C.

References decompositionConstraint::coeffDict_, decompositionConstraint::decompositionConstraint(), dict, Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

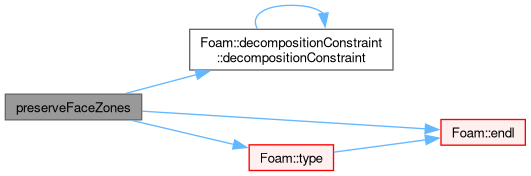

Here is the call graph for this function:

preserveFaceZones() [2/2]

preserveFaceZones ( const UList< wordRe > & zones )

explicit

Construct from components.

Definition at line 63 of file preserveFaceZonesConstraint.C.

References decompositionConstraint::decompositionConstraint(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

Here is the call graph for this function:

~preserveFaceZones()

virtual ~preserveFaceZones ( )

virtualdefault

Destructor.

References mesh.

Member Function Documentation

TypeName()

TypeName

(

"preserveFaceZones"

)

Runtime type information.

References dict.

add()

void add ( const polyMesh & mesh, boolList & blockedFace, PtrList< labelList > & specifiedProcessorFaces, labelList & specifiedProcessor, List< labelPair > & explicitConnections ) const

virtual

Add my constraints to list of constraints.

Implements decompositionConstraint.

Definition at line 82 of file preserveFaceZonesConstraint.C.

References Foam::endl(), Foam::Info, mesh, ZoneMesh< ZoneType, MeshType >::names(), Foam::returnReduce(), List< T >::setSize(), syncTools::syncFaceList(), Foam::type(), and zoneIDs.

Here is the call graph for this function:

apply()

void apply ( const polyMesh & mesh, const boolList & blockedFace, const PtrList< labelList > & specifiedProcessorFaces, const labelList & specifiedProcessor, const List< labelPair > & explicitConnections, labelList & decomposition ) const

virtual

Apply any additional post-decomposition constraints.

Reimplemented from decompositionConstraint.

Definition at line 123 of file preserveFaceZonesConstraint.C.

References Foam::endl(), decompositionConstraint::getMinBoundaryValue(), Foam::Info, mesh, ZoneMesh< ZoneType, MeshType >::names(), Foam::returnReduce(), Foam::returnReduceOr(), Foam::type(), and zoneIDs.

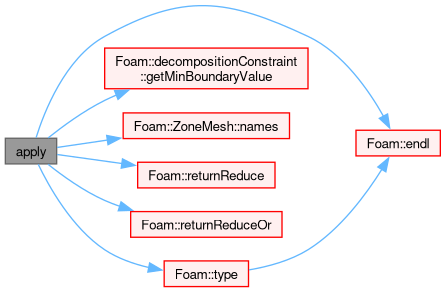

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/parallel/decompose/decompositionMethods/decompositionConstraints/preserveFaceZones/preserveFaceZonesConstraint.H
• src/parallel/decompose/decompositionMethods/decompositionConstraints/preserveFaceZones/preserveFaceZonesConstraint.C
