refinementHistory Class Reference

Constraint to keep all cells originating from refining the same cell onto the same processor. Reads polyMesh/refinementHistory. More...

#include <refinementHistoryConstraint.H>

Inheritance diagram for refinementHistory:

Collaboration diagram for refinementHistory:

Public Member Functions
	TypeName ("refinementHistory")
	Runtime type information.
	refinementHistory (const dictionary &dict)
	Construct with constraint dictionary.
	refinementHistory ()
	Construct from components.
virtual	~refinementHistory ()=default
	Destructor.
virtual void	add (const polyMesh &mesh, boolList &blockedFace, PtrList< labelList > &specifiedProcessorFaces, labelList &specifiedProcessor, List< labelPair > &explicitConnections) const
	Add this constraint to list of constraints.
virtual void	apply (const polyMesh &mesh, const boolList &blockedFace, const PtrList< labelList > &specifiedProcessorFaces, const labelList &specifiedProcessor, const List< labelPair > &explicitConnections, labelList &decomposition) const
	Apply this constraint post-decomposition.
Public Member Functions inherited from decompositionConstraint
	TypeName ("decompositionConstraint")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, decompositionConstraint, dictionary,(const dictionary &dict),(dict))
	decompositionConstraint (const dictionary &constraintDict)
	Construct with constraint dictionary.
	decompositionConstraint (const dictionary &constraintDict, const word &modelType)
	Construct with constraint dictionary and model type.
virtual	~decompositionConstraint ()=default
	Destructor.

Additional Inherited Members
Static Public Member Functions inherited from decompositionConstraint
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict)
	Return a reference to the selected decompositionConstraint.
static autoPtr< decompositionConstraint >	New (const dictionary &constraintDict, const word &modelType)
	Return a reference to the selected decompositionConstraint.
Protected Member Functions inherited from decompositionConstraint
void	getMinBoundaryValue (const polyMesh &mesh, const labelList &decomposition, labelList &destProc) const
	Get minimum label across coupled boundary faces.
	decompositionConstraint (const decompositionConstraint &)=delete
	No copy construct.
void	operator= (const decompositionConstraint &)=delete
	No copy assignment.
Protected Attributes inherited from decompositionConstraint
dictionary	coeffDict_
	Constraint coefficients dictionary.

Detailed Description

Constraint to keep all cells originating from refining the same cell onto the same processor. Reads polyMesh/refinementHistory.

Dictionary parameters

Property	Description	Required	Default
type	refinementHistory	yes

Source files

• refinementHistoryConstraint.H
• refinementHistoryConstraint.C

Definition at line 66 of file refinementHistoryConstraint.H.

Constructor & Destructor Documentation

refinementHistory() [1/2]

refinementHistory ( const dictionary & dict )

explicit

Construct with constraint dictionary.

Definition at line 47 of file refinementHistoryConstraint.C.

References decompositionConstraint::decompositionConstraint(), dict, Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

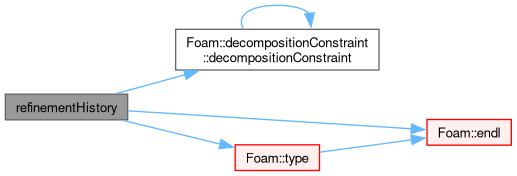

Here is the call graph for this function:

refinementHistory() [2/2]

refinementHistory

(

)

Construct from components.

Definition at line 62 of file refinementHistoryConstraint.C.

References decompositionConstraint::decompositionConstraint(), Foam::endl(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, and Foam::type().

Here is the call graph for this function:

~refinementHistory()

virtual ~refinementHistory ( )

virtualdefault

Destructor.

References mesh.

Member Function Documentation

TypeName()

TypeName

(

"refinementHistory"

)

Runtime type information.

References dict.

add()

void add ( const polyMesh & mesh, boolList & blockedFace, PtrList< labelList > & specifiedProcessorFaces, labelList & specifiedProcessor, List< labelPair > & explicitConnections ) const

virtual

Add this constraint to list of constraints.

Implements decompositionConstraint.

Definition at line 76 of file refinementHistoryConstraint.C.

References Foam::endl(), autoPtr< T >::get(), Foam::Info, mesh, polyMesh::meshSubDir, IOobjectOption::NO_WRITE, IOobjectOption::READ_IF_PRESENT, autoPtr< T >::reset(), and Foam::type().

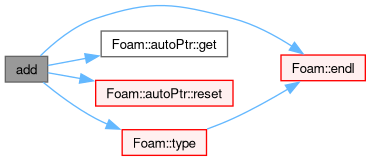

Here is the call graph for this function:

apply()

void apply ( const polyMesh & mesh, const boolList & blockedFace, const PtrList< labelList > & specifiedProcessorFaces, const labelList & specifiedProcessor, const List< labelPair > & explicitConnections, labelList & decomposition ) const

virtual

Apply this constraint post-decomposition.

Reimplemented from decompositionConstraint.

Definition at line 145 of file refinementHistoryConstraint.C.

References autoPtr< T >::get(), mesh, polyMesh::meshSubDir, IOobjectOption::NO_WRITE, IOobjectOption::READ_IF_PRESENT, and autoPtr< T >::reset().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/parallel/decompose/decompositionMethods/decompositionConstraints/refinementHistory/refinementHistoryConstraint.H
• src/parallel/decompose/decompositionMethods/decompositionConstraints/refinementHistory/refinementHistoryConstraint.C
