driftModel Class Reference

Base class for drift models. More...

#include <driftModel.H>

Inheritance diagram for driftModel:

Collaboration diagram for driftModel:

Classes
class	iNew
	Class used for the read-construction of. More...

Public Member Functions
	TypeName ("driftModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, driftModel, dictionary,(const populationBalanceModel &popBal, const dictionary &dict),(popBal, dict))
	driftModel (const populationBalanceModel &popBal, const dictionary &dict)
autoPtr< driftModel >	clone () const
virtual	~driftModel ()=default
	Destructor.
const populationBalanceModel &	popBal () const
	Return reference to the populationBalanceModel.
virtual void	correct ()
	Correct diameter independent expressions.
virtual void	addToDriftRate (volScalarField &driftRate, const label i)=0
	Add to driftRate.

Static Public Member Functions
static autoPtr< driftModel >	New (const word &type, const populationBalanceModel &popBal, const dictionary &dict)

Protected Attributes
const populationBalanceModel &	popBal_
	Reference to the populationBalanceModel.

Detailed Description

Base class for drift models.

Source files

• driftModel.H
• driftModel.C

Definition at line 48 of file driftModel.H.

Constructor & Destructor Documentation

driftModel()

driftModel	(	const populationBalanceModel &	popBal,
		const dictionary &	dict )

Definition at line 66 of file driftModel.C.

References dict, popBal(), and popBal_.

Referenced by constantDrift::constantDrift(), declareRunTimeSelectionTable(), densityChangeDrift::densityChangeDrift(), and phaseChange::phaseChange().

Here is the call graph for this function:

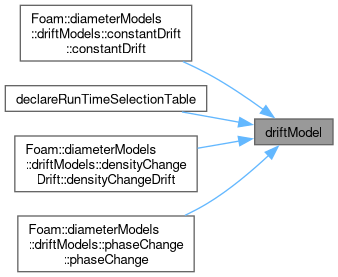

Here is the caller graph for this function:

~driftModel()

virtual ~driftModel ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"driftModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		driftModel	,
		dictionary	,
		(const populationBalanceModel &popBal, const dictionary &dict)	,
		(popBal, dict)	)

References dict, driftModel(), and popBal().

Here is the call graph for this function:

clone()

autoPtr< driftModel > clone ( ) const

inline

Definition at line 116 of file driftModel.H.

References NotImplemented.

New()

Foam::autoPtr< Foam::diameterModels::driftModel > New ( const word & type, const populationBalanceModel & popBal, const dictionary & dict )

static

Definition at line 40 of file driftModel.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and popBal().

Referenced by driftModel::iNew::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

popBal()

const populationBalanceModel & popBal ( ) const

inline

Return reference to the populationBalanceModel.

Definition at line 144 of file driftModel.H.

References popBal_.

Referenced by constantDrift::constantDrift(), declareRunTimeSelectionTable(), densityChangeDrift::densityChangeDrift(), driftModel(), driftModel::iNew::iNew(), New(), phaseChange::phaseChange(), constantDrift::TypeName(), densityChangeDrift::TypeName(), and phaseChange::TypeName().

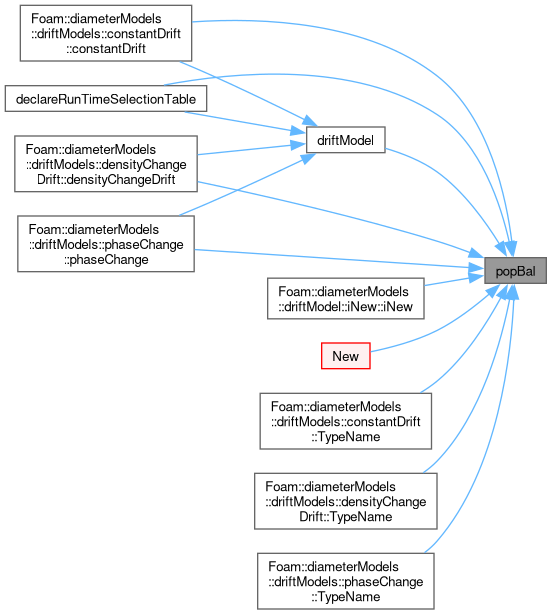

Here is the caller graph for this function:

correct()

void correct ( )

virtual

Correct diameter independent expressions.

Reimplemented in constantDrift, and phaseChange.

Definition at line 78 of file driftModel.C.

addToDriftRate()

virtual void addToDriftRate ( volScalarField & driftRate, const label i )

pure virtual

Add to driftRate.

Implemented in constantDrift, densityChangeDrift, and phaseChange.

Member Data Documentation

popBal_

const populationBalanceModel& popBal_

protected

Reference to the populationBalanceModel.

Definition at line 57 of file driftModel.H.

Referenced by constantDrift::addToDriftRate(), densityChangeDrift::addToDriftRate(), phaseChange::addToDriftRate(), constantDrift::correct(), phaseChange::correct(), driftModel(), phaseChange::phaseChange(), and popBal().

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/driftModels/driftModel/driftModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/driftModels/driftModel/driftModel.C
