phaseChange Class Reference

Drift induced by interfacial phase change. By default phase change mass flux is distributed between sizeGroups of each velocityGroup with phase change based on interfacial area of each size group. More...

#include <phaseChange.H>

Inheritance diagram for phaseChange:

Collaboration diagram for phaseChange:

Public Member Functions
	TypeName ("phaseChange")
	Runtime type information.
	phaseChange (const populationBalanceModel &popBal, const dictionary &dict)
	Construct from a population balance model and a dictionary.
virtual	~phaseChange ()=default
	Destructor.
virtual void	correct ()
	Correct diameter independent expressions.
virtual void	addToDriftRate (volScalarField &driftRate, const label i)
	Add to driftRate.
Public Member Functions inherited from driftModel
	TypeName ("driftModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, driftModel, dictionary,(const populationBalanceModel &popBal, const dictionary &dict),(popBal, dict))
	driftModel (const populationBalanceModel &popBal, const dictionary &dict)
autoPtr< driftModel >	clone () const
virtual	~driftModel ()=default
	Destructor.
const populationBalanceModel &	popBal () const
	Return reference to the populationBalanceModel.

Additional Inherited Members
Static Public Member Functions inherited from driftModel
static autoPtr< driftModel >	New (const word &type, const populationBalanceModel &popBal, const dictionary &dict)
Protected Attributes inherited from driftModel
const populationBalanceModel &	popBal_
	Reference to the populationBalanceModel.

Detailed Description

Drift induced by interfacial phase change. By default phase change mass flux is distributed between sizeGroups of each velocityGroup with phase change based on interfacial area of each size group.

Source files

• phaseChange.H
• phaseChange.C

Definition at line 52 of file phaseChange.H.

Constructor & Destructor Documentation

phaseChange()

phaseChange	(	const populationBalanceModel &	popBal,
		const dictionary &	dict )

Construct from a population balance model and a dictionary.

Definition at line 44 of file phaseChange.C.

References dict, Foam::dimLength, Foam::dimVolume, driftModel::driftModel(), fluid, forAll, IOobject::groupName(), Foam::inv(), phasePair::name(), driftModel::popBal(), driftModel::popBal_, IOobject::scopedName(), Foam::type(), and Foam::Zero.

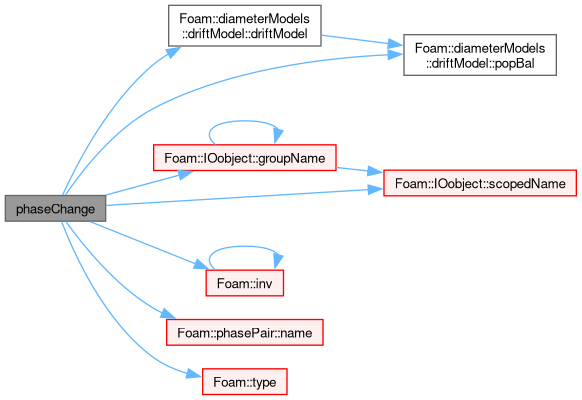

Here is the call graph for this function:

~phaseChange()

virtual ~phaseChange ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"phaseChange"

)

Runtime type information.

References dict, and driftModel::popBal().

Here is the call graph for this function:

correct()

void correct ( )

virtual

Correct diameter independent expressions.

Reimplemented from driftModel.

Definition at line 86 of file phaseChange.C.

References phasePair::contains(), sizeGroup::d(), fluid, forAll, k, Foam::max(), diameterModel::phase(), sizeGroup::phase(), driftModel::popBal_, velocityGroup::sizeGroups(), and sizeGroup::x().

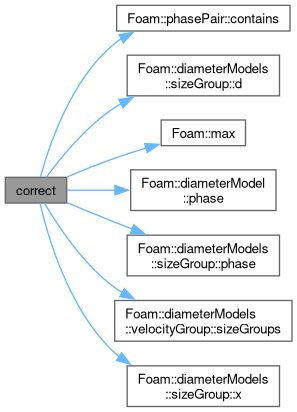

Here is the call graph for this function:

addToDriftRate()

void addToDriftRate ( volScalarField & driftRate, const label i )

virtual

Add to driftRate.

Implements driftModel.

Definition at line 121 of file phaseChange.C.

References phasePair::contains(), sizeGroup::d(), Pair< T >::first(), forAll, IOobject::groupName(), k, phaseModel::name(), phasePair::name(), diameterModel::phase(), sizeGroup::phase(), driftModel::popBal_, tmp< T >::ref(), phaseModel::rho(), and sizeGroup::x().

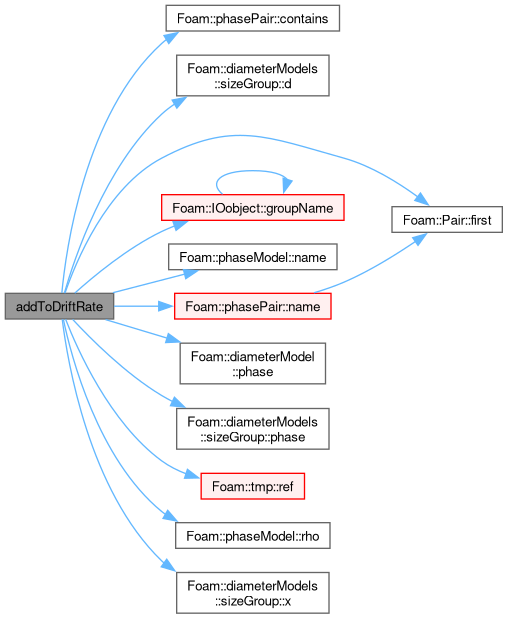

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/driftModels/phaseChange/phaseChange.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/populationBalanceModel/driftModels/phaseChange/phaseChange.C
