extendedCellToFaceStencil Class Reference

Calculates/constains the extended cell-to-face stencil. More...

#include <extendedCellToFaceStencil.H>

Inheritance diagram for extendedCellToFaceStencil:
Inheritance graph
[legend]
Collaboration diagram for extendedCellToFaceStencil:
Collaboration graph
[legend]

Public Member Functions

 ClassName ("extendedCellToFaceStencil")
 extendedCellToFaceStencil (const polyMesh &)
 Construct from mesh.
template<class Type>
void collectData (const mapDistribute &map, const labelListList &stencil, const GeometricField< Type, fvPatchField, volMesh > &fld, List< List< Type > > &stencilFld)
template<class Type>
Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > weightedSum (const mapDistribute &map, const labelListList &stencil, const GeometricField< Type, fvPatchField, volMesh > &fld, const List< List< scalar > > &stencilWeights)

Static Public Member Functions

template<class T>
static void collectData (const mapDistribute &map, const labelListList &stencil, const GeometricField< T, fvPatchField, volMesh > &fld, List< List< T > > &stencilFld)
 Use map to get the data into stencil order.
template<class Type>
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > weightedSum (const mapDistribute &map, const labelListList &stencil, const GeometricField< Type, fvPatchField, volMesh > &fld, const List< List< scalar > > &stencilWeights)
 Sum vol field contributions to create face values.

Static Protected Member Functions

static void writeStencilStats (Ostream &os, const labelListList &stencil, const mapDistribute &map)
 Write some statistics about stencil.

Protected Attributes

const polyMesh & mesh_

Detailed Description

Calculates/constains the extended cell-to-face stencil.

The stencil is a list of indices into either cells or boundary faces in a compact way. (element 0 is owner, 1 is neighbour). The index numbering is

  • cells first
  • then all (non-empty patch) boundary faces

When used in evaluation is a two stage process:

  • collect the data (cell data and non-empty boundaries) into a single field
  • (parallel) distribute the field
  • sum the weights*field.
Source files

Definition at line 63 of file extendedCellToFaceStencil.H.

Constructor & Destructor Documentation

◆ extendedCellToFaceStencil()

extendedCellToFaceStencil ( const polyMesh & mesh)
explicit

Construct from mesh.

Definition at line 94 of file extendedCellToFaceStencil.C.

References coupled, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, mesh, mesh_, patchIdentifier::name(), coupledPolyPatch::parallel(), patches, Foam::refCast(), and coupledPolyPatch::separated().

Referenced by extendedCentredCellToFaceStencil::extendedCentredCellToFaceStencil(), extendedUpwindCellToFaceStencil::extendedUpwindCellToFaceStencil(), and extendedUpwindCellToFaceStencil::extendedUpwindCellToFaceStencil().

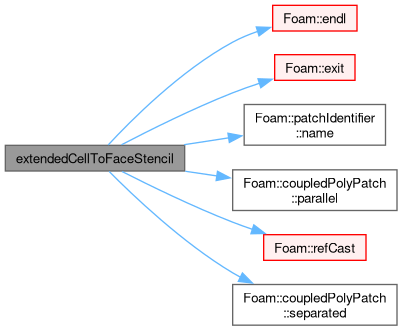

Here is the call graph for this function:

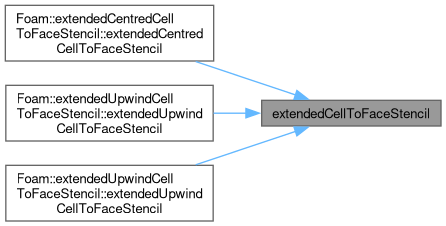

Here is the caller graph for this function:

Member Function Documentation

◆ writeStencilStats()

void writeStencilStats ( Ostream & os,
const labelListList & stencil,
const mapDistribute & map )
staticprotected

Write some statistics about stencil.

Definition at line 35 of file extendedCellToFaceStencil.C.

References Foam::endl(), forAll, Foam::labelMax, Foam::labelMin, Foam::max(), Foam::min(), UPstream::myProcNo(), Foam::nl, os(), Foam::reduce(), Foam::returnReduce(), UList< T >::size(), and mapDistributeBase::subMap().

Referenced by centredCECCellToFaceStencilObject::centredCECCellToFaceStencilObject(), centredCFCCellToFaceStencilObject::centredCFCCellToFaceStencilObject(), centredCPCCellToFaceStencilObject::centredCPCCellToFaceStencilObject(), centredFECCellToFaceStencilObject::centredFECCellToFaceStencilObject(), pureUpwindCFCCellToFaceStencilObject::pureUpwindCFCCellToFaceStencilObject(), upwindCECCellToFaceStencilObject::upwindCECCellToFaceStencilObject(), upwindCFCCellToFaceStencilObject::upwindCFCCellToFaceStencilObject(), upwindCPCCellToFaceStencilObject::upwindCPCCellToFaceStencilObject(), and upwindFECCellToFaceStencilObject::upwindFECCellToFaceStencilObject().

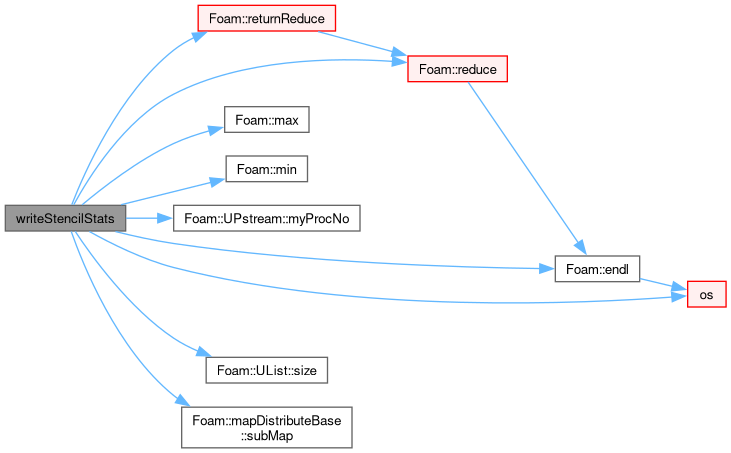

Here is the call graph for this function:

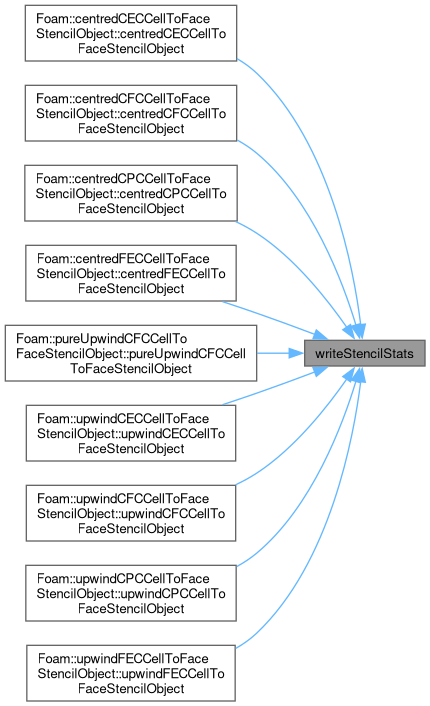

Here is the caller graph for this function:

◆ ClassName()

ClassName ( "extendedCellToFaceStencil" )

◆ collectData() [1/2]

template<class T>
void collectData ( const mapDistribute & map,
const labelListList & stencil,
const GeometricField< T, fvPatchField, volMesh > & fld,
List< List< T > > & stencilFld )
static

Use map to get the data into stencil order.

References fld().

Referenced by extendedCentredCellToCellStencil::collectData(), extendedCentredCellToFaceStencil::collectData(), extendedUpwindCellToFaceStencil::extendedUpwindCellToFaceStencil(), extendedUpwindCellToFaceStencil::extendedUpwindCellToFaceStencil(), extendedCellToCellStencil::weightedSum(), weightedSum(), and extendedUpwindCellToFaceStencil::weightedSum().

Here is the call graph for this function:

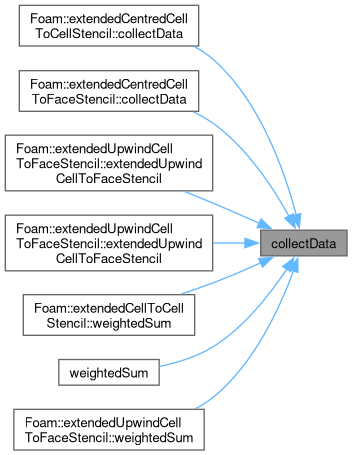

Here is the caller graph for this function:

◆ weightedSum() [1/2]

template<class Type>
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > weightedSum ( const mapDistribute & map,
const labelListList & stencil,
const GeometricField< Type, fvPatchField, volMesh > & fld,
const List< List< scalar > > & stencilWeights )
static

Sum vol field contributions to create face values.

References fld().

Referenced by extendedCentredCellToFaceStencil::weightedSum().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ collectData() [2/2]

template<class Type>
void collectData ( const mapDistribute & map,
const labelListList & stencil,
const GeometricField< Type, fvPatchField, volMesh > & fld,
List< List< Type > > & stencilFld )

Definition at line 26 of file extendedCellToFaceStencilTemplates.C.

References mapDistributeBase::constructSize(), mapDistribute::distribute(), fld(), forAll, fvPatchFieldBase::patch(), List< T >::setSize(), UList< T >::size(), fvPatch::start(), and Foam::Zero.

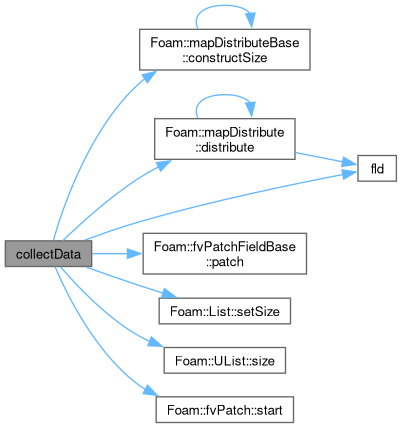

Here is the call graph for this function:

◆ weightedSum() [2/2]

template<class Type>
Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > weightedSum ( const mapDistribute & map,
const labelListList & stencil,
const GeometricField< Type, fvPatchField, volMesh > & fld,
const List< List< scalar > > & stencilWeights )

Definition at line 80 of file extendedCellToFaceStencilTemplates.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), collectData(), fvsPatchFieldBase::coupled(), fld(), forAll, mesh, IOobjectOption::NO_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, fvsPatchFieldBase::patch(), tmp< T >::ref(), fvPatch::start(), and Foam::Zero.

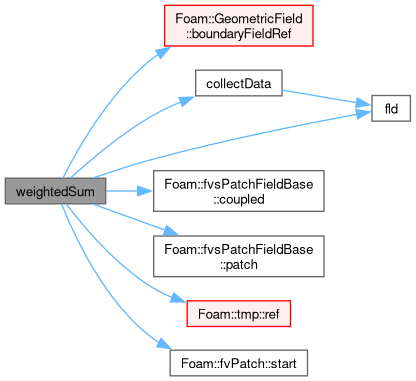

Here is the call graph for this function:

Member Data Documentation

◆ mesh_

const polyMesh& mesh_
protected

Definition at line 69 of file extendedCellToFaceStencil.H.

Referenced by extendedCellToFaceStencil().

The documentation for this class was generated from the following files:
