extrudeModel Class Reference

Top level extrusion model class. More...

#include <extrudeModel.H>

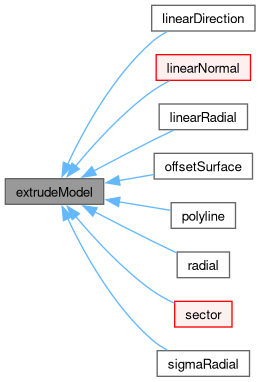

Inheritance diagram for extrudeModel:

Collaboration diagram for extrudeModel:

Public Member Functions
	TypeName ("extrudeModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, extrudeModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime constructor selection table.
	extrudeModel (const word &modelType, const dictionary &dict)
	Construct from dictionary for given model type.
virtual	~extrudeModel ()=default
	Destructor.
label	nLayers () const
	Return the number of layers.
scalar	expansionRatio () const
	Return the expansion ratio.
scalar	sumThickness (const label layer) const
	Helper: calculate cumulative relative thickness for layer.
virtual point	operator() (const point &surfacePoint, const vector &surfaceNormal, const label layer) const =0

Static Public Member Functions
static autoPtr< extrudeModel >	New (const dictionary &dict)
	Select null constructed.

Protected Member Functions
	extrudeModel (const extrudeModel &)=delete
	No copy construct.
void	operator= (const extrudeModel &)=delete
	No copy assignment.

Protected Attributes
label	nLayers_
const scalar	expansionRatio_
const dictionary &	coeffDict_

Detailed Description

Top level extrusion model class.

Dictionary entries

Property	Description	Required	Default
nLayer	Number of extrusion layers	no	1
expansionRatio	Expansion ratio	no	1

Source files

• extrudeModel.H
• extrudeModel.C

Definition at line 72 of file extrudeModel.H.

Constructor & Destructor Documentation

extrudeModel() [1/2]

extrudeModel ( const extrudeModel & )

protecteddelete

No copy construct.

References extrudeModel().

Referenced by declareRunTimeSelectionTable(), extrudeModel(), linearDirection::linearDirection(), linearNormal::linearNormal(), linearRadial::linearRadial(), offsetSurface::offsetSurface(), operator=(), polyline::polyline(), radial::radial(), sector::sector(), and sigmaRadial::sigmaRadial().

Here is the call graph for this function:

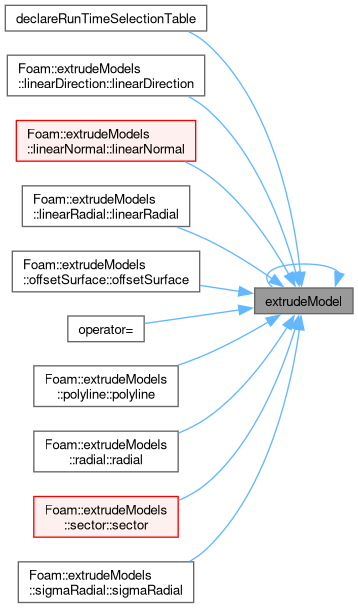

Here is the caller graph for this function:

extrudeModel() [2/2]

extrudeModel	(	const word &	modelType,
		const dictionary &	dict )

Construct from dictionary for given model type.

The corresponding model Coeffs dictionary must exist.

Definition at line 34 of file extrudeModel.C.

References coeffDict_, DebugInfo, dict, expansionRatio_, Foam::nl, and nLayers_.

~extrudeModel()

virtual ~extrudeModel ( )

virtualdefault

Destructor.

Member Function Documentation

operator=()

void operator= ( const extrudeModel & )

protecteddelete

No copy assignment.

References extrudeModel().

Here is the call graph for this function:

TypeName()

TypeName

(

"extrudeModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		extrudeModel	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

Declare runtime constructor selection table.

References dict, and extrudeModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::extrudeModel > New ( const dictionary & dict )

static

Select null constructed.

Definition at line 26 of file extrudeModelNew.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Referenced by radial::radial().

Here is the call graph for this function:

Here is the caller graph for this function:

nLayers()

Foam::label nLayers

(

)

const

Return the number of layers.

Definition at line 52 of file extrudeModel.C.

References nLayers_.

expansionRatio()

Foam::scalar expansionRatio

(

)

const

Return the expansion ratio.

Definition at line 58 of file extrudeModel.C.

References expansionRatio_.

Referenced by sigmaRadial::sigmaRadial().

Here is the caller graph for this function:

sumThickness()

Foam::scalar sumThickness

(

const label

layer

)

const

Helper: calculate cumulative relative thickness for layer.

(layer=0 -> 0; layer=nLayers -> 1)

Definition at line 64 of file extrudeModel.C.

References expansionRatio_, Foam::mag(), nLayers_, and Foam::pow().

Referenced by linearNormal::linearNormal(), linearDirection::operator()(), linearRadial::operator()(), offsetSurface::operator()(), polyline::operator()(), and sector::operator()().

Here is the call graph for this function:

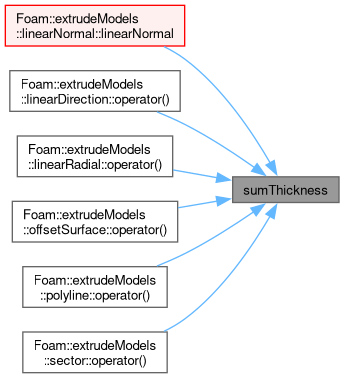

Here is the caller graph for this function:

operator()()

virtual point operator() ( const point & surfacePoint, const vector & surfaceNormal, const label layer ) const

pure virtual

Implemented in linearDirection, linearNormal, linearRadial, offsetSurface, polyline, radial, sector, and sigmaRadial.

Member Data Documentation

nLayers_

label nLayers_

protected

Definition at line 78 of file extrudeModel.H.

Referenced by extrudeModel(), linearNormal::linearNormal(), nLayers(), sector::operator()(), sigmaRadial::operator()(), plane::plane(), sumThickness(), and wedge::wedge().

expansionRatio_

const scalar expansionRatio_

protected

Definition at line 80 of file extrudeModel.H.

Referenced by expansionRatio(), extrudeModel(), and sumThickness().

coeffDict_

const dictionary& coeffDict_

protected

Definition at line 82 of file extrudeModel.H.

Referenced by extrudeModel(), linearDirection::linearDirection(), linearNormal::linearNormal(), linearRadial::linearRadial(), offsetSurface::offsetSurface(), polyline::polyline(), radial::radial(), sector::sector(), and sigmaRadial::sigmaRadial().

---

The documentation for this class was generated from the following files:

• src/mesh/extrudeModel/extrudeModel/extrudeModel.H
• src/mesh/extrudeModel/extrudeModel/extrudeModel.C
• src/mesh/extrudeModel/extrudeModel/extrudeModelNew.C
