Extrudes by transforming points along a polyline provided as a series of points and edge segments. Supports all blockMesh edge types, e.g. line, arc, spline. The surface points are rotated to follow the path. More...
#include <polyline.H>
Public Member Functions | |
| TypeName ("polyline") | |
| Runtime type information. | |
| polyline (const dictionary &dict) | |
| Construct from dictionary. | |
| virtual | ~polyline ()=default |
| Destructor. | |
| point | operator() (const point &surfacePoint, const vector &surfaceNormal, const label layer) const |
| void | positionAndDirection (const scalar lambda, vector &p, vector &n) const |
| The point and direction vector corresponding to the polyline parameter [0-1]. | |
| Public Member Functions inherited from extrudeModel | |
| TypeName ("extrudeModel") | |
| Runtime type information. | |
| declareRunTimeSelectionTable (autoPtr, extrudeModel, dictionary,(const dictionary &dict),(dict)) | |
| Declare runtime constructor selection table. | |
| extrudeModel (const word &modelType, const dictionary &dict) | |
| Construct from dictionary for given model type. | |
| virtual | ~extrudeModel ()=default |
| Destructor. | |
| label | nLayers () const |
| Return the number of layers. | |
| scalar | expansionRatio () const |
| Return the expansion ratio. | |
| scalar | sumThickness (const label layer) const |
| Helper: calculate cumulative relative thickness for layer. | |
Additional Inherited Members | |
| Static Public Member Functions inherited from extrudeModel | |
| static autoPtr< extrudeModel > | New (const dictionary &dict) |
| Select null constructed. | |
| Protected Member Functions inherited from extrudeModel | |
| extrudeModel (const extrudeModel &)=delete | |
| No copy construct. | |
| void | operator= (const extrudeModel &)=delete |
| No copy assignment. | |
| Protected Attributes inherited from extrudeModel | |
| label | nLayers_ |
| const scalar | expansionRatio_ |
| const dictionary & | coeffDict_ |
Extrudes by transforming points along a polyline provided as a series of points and edge segments. Supports all blockMesh edge types, e.g. line, arc, spline. The surface points are rotated to follow the path.
| Property | Description | Required | Default |
|---|---|---|---|
vertices | List of vertices | yes | |
edges | List of blockEdge segments | yes | |
toleranceCheck | Relative tolerance for polyline checks | no | SMALL |
Definition at line 74 of file polyline.H.
|
explicit |
Construct from dictionary.
Definition at line 42 of file polyline.C.

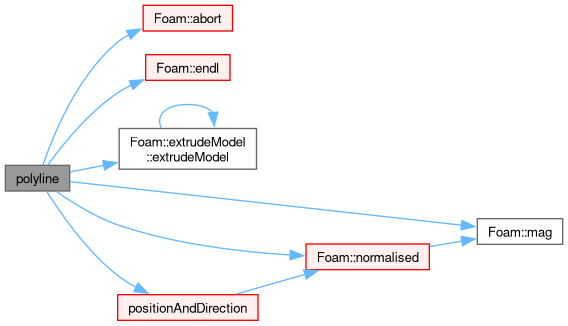

References Foam::abort(), extrudeModel::coeffDict_, dict, Foam::endl(), extrudeModel::extrudeModel(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, Foam::Info, Foam::mag(), Foam::nl, Foam::normalised(), positionAndDirection(), and Foam::tab.
|
virtualdefault |
| TypeName | ( | "polyline" | ) |
Runtime type information.
References dict.
|
virtual |
Implements extrudeModel.
Definition at line 124 of file polyline.C.

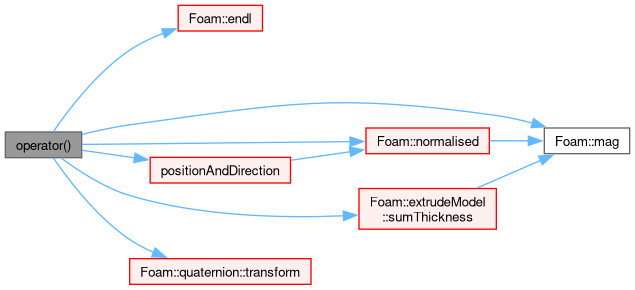

References Foam::endl(), Foam::mag(), n, Foam::normalised(), p, positionAndDirection(), extrudeModel::sumThickness(), quaternion::transform(), and WarningInFunction.
The point and direction vector corresponding to the polyline parameter [0-1].
Definition at line 167 of file polyline.C.

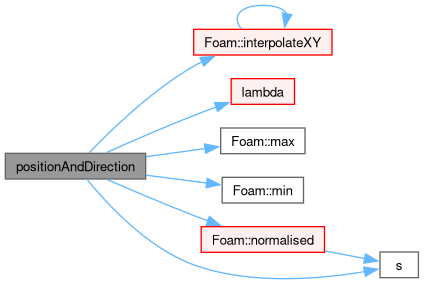

References Foam::interpolateXY(), lambda(), Foam::max(), Foam::min(), n, Foam::normalised(), p, s(), and y.
Referenced by operator()(), and polyline().
