limitedLnGrad< Type > Class Template Reference

Central-difference lnGrad scheme with limited non-orthogonal correction. More...

#include <limitedLnGrad.H>

Inheritance diagram for limitedLnGrad< Type >:

Collaboration diagram for limitedLnGrad< Type >:

Public Member Functions
	TypeName ("limited")
	Runtime type information.
	limitedLnGrad (const limitedLnGrad &)=delete
	No copy construct.
void	operator= (const limitedLnGrad &)=delete
	No copy assignment.
	limitedLnGrad (const faMesh &mesh)
	Construct from mesh.
	limitedLnGrad (const faMesh &mesh, Istream &is)
	Construct from mesh and data stream.
virtual	~limitedLnGrad ()
virtual tmp< edgeScalarField >	deltaCoeffs (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the interpolation weighting factors for the given field.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	correction (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the explicit correction to the limitedLnGrad.
Public Member Functions inherited from lnGradScheme< Type >
	declareRunTimeSelectionTable (tmp, lnGradScheme, Mesh,(const faMesh &mesh, Istream &schemeData),(mesh, schemeData))
	lnGradScheme (const lnGradScheme &)=delete
	No copy construct.
void	operator= (const lnGradScheme &)=delete
	No copy assignment.
	lnGradScheme (const faMesh &mesh)
	Construct from mesh.
virtual	~lnGradScheme ()
	Destructor.
const faMesh &	mesh () const noexcept
	Return mesh reference.
virtual tmp< GeometricField< Type, faePatchField, edgeMesh > >	lnGrad (const GeometricField< Type, faPatchField, areaMesh > &) const
	Return the lnGrad of the given cell field.
tmp< GeometricField< Type, faePatchField, edgeMesh > >	lnGrad (const tmp< GeometricField< Type, faPatchField, areaMesh > > &) const
	Return the lnGrad of the given tmp cell field.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from lnGradScheme< Type >
static tmp< lnGradScheme< Type > >	New (const faMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, faePatchField, edgeMesh > >	lnGrad (const GeometricField< Type, faPatchField, areaMesh > &, const tmp< edgeScalarField > &, const word &snGradName="lnGrad")
	Return the lnGrad of the given cell field.

Detailed Description

template<class Type>
class Foam::fa::limitedLnGrad< Type >

Central-difference lnGrad scheme with limited non-orthogonal correction.

The limiter is controlled by a coefficient with a value between 0 and 1 which when 0 switches the correction off and the scheme behaves as uncorrectedSnGrad, when set to 1 the full correction is applied and the scheme behaves as correctedSnGrad and when set to 0.5 the limiter is calculated such that the non-orthogonal contribution does not exceed the orthogonal part.

Author Hrvoje Jasak, Wikki Ltd.

Source files

• limitedLnGrad.H
• limitedLnGrad.C

Definition at line 62 of file limitedLnGrad.H.

Constructor & Destructor Documentation

limitedLnGrad() [1/3]

template<class Type>

limitedLnGrad ( const limitedLnGrad< Type > & )

delete

No copy construct.

References limitedLnGrad().

Referenced by limitedLnGrad(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

limitedLnGrad() [2/3]

template<class Type>

limitedLnGrad ( const faMesh & mesh )

inline

Construct from mesh.

Definition at line 100 of file limitedLnGrad.H.

References lnGradScheme< Type >::lnGradScheme(), and lnGradScheme< Type >::mesh().

Here is the call graph for this function:

limitedLnGrad() [3/3]

template<class Type>

limitedLnGrad ( const faMesh & mesh, Istream & is )

inline

Construct from mesh and data stream.

Definition at line 109 of file limitedLnGrad.H.

References Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, lnGradScheme< Type >::lnGradScheme(), and lnGradScheme< Type >::mesh().

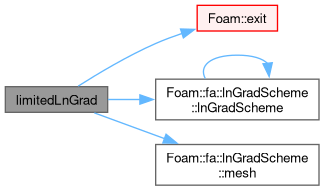

Here is the call graph for this function:

~limitedLnGrad()

template<class Type>

~limitedLnGrad ( )

virtual

Definition at line 40 of file limitedLnGrad.C.

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"limited"

)

Runtime type information.

operator=()

template<class Type>

void operator= ( const limitedLnGrad< Type > & )

delete

No copy assignment.

References limitedLnGrad().

Here is the call graph for this function:

deltaCoeffs()

template<class Type>

virtual tmp< edgeScalarField > deltaCoeffs ( const GeometricField< Type, faPatchField, areaMesh > & ) const

inlinevirtual

Return the interpolation weighting factors for the given field.

Implements lnGradScheme< Type >.

Definition at line 134 of file limitedLnGrad.H.

References edgeInterpolation::deltaCoeffs(), and lnGradScheme< Type >::mesh().

Referenced by correction().

Here is the call graph for this function:

Here is the caller graph for this function:

corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented from lnGradScheme< Type >.

Definition at line 145 of file limitedLnGrad.H.

References lnGradScheme< Type >::mesh(), and edgeInterpolation::orthogonal().

Here is the call graph for this function:

correction()

template<class Type>

tmp< GeometricField< Type, faePatchField, edgeMesh > > correction ( const GeometricField< Type, faPatchField, areaMesh > & vf ) const

virtual

Return the explicit correction to the limitedLnGrad.

for the given field

Reimplemented from lnGradScheme< Type >.

Definition at line 48 of file limitedLnGrad.C.

References Foam::average(), Foam::correction(), deltaCoeffs(), DimensionedField< Type, GeoMesh >::dimensions(), Foam::dimless, Foam::endl(), Foam::Info, Foam::limiter(), lnGradScheme< Type >::lnGrad(), Foam::mag(), Foam::max(), mesh, and Foam::min().

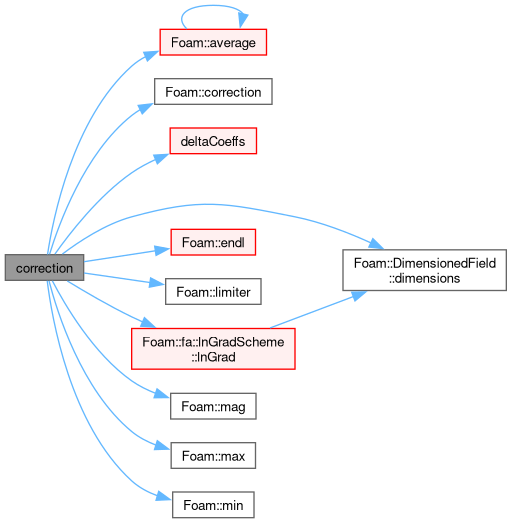

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/finiteArea/finiteArea/lnGradSchemes/limitedLnGrad/limitedLnGrad.H
• src/finiteArea/finiteArea/lnGradSchemes/limitedLnGrad/limitedLnGrad.C
