Mesh data needed to do the Finite Area discretisation. More...

#include <edgeFaMesh.H>

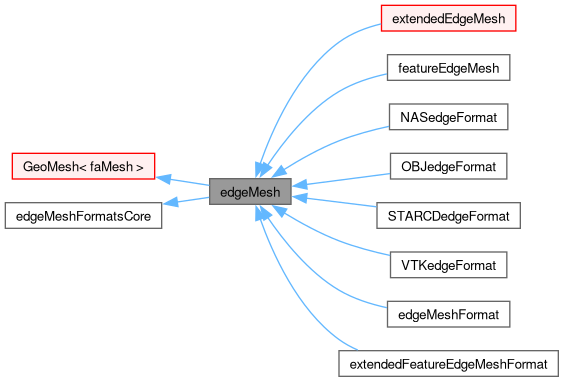

Inheritance diagram for edgeMesh:

[legend]

Collaboration diagram for edgeMesh:

[legend]

Public Member Functions
	edgeMesh (const faMesh &mesh)
	Construct finite-area edge mesh faMesh reference.
label	size () const noexcept
	The geometric (internal) size - number of internal edges.
const edgeVectorField &	C () const
	Field of edge centres.
	TypeName ("edgeMesh")
	Runtime type information.
	edgeMesh ()
	Default construct.
	edgeMesh (const edgeMesh &em)
	Copy construct.
	edgeMesh (edgeMesh &&em)
	Move construct.
	edgeMesh (const pointField &points, const edgeList &edges)
	Copy construct from components.
	edgeMesh (pointField &&pointLst, edgeList &&edgeLst)
	Move construct from components.
	edgeMesh (const fileName &name)
	Construct from file name (uses extension to determine type).
	edgeMesh (const fileName &name, const word &fileType)
	Construct from file name with specified type.
	declareRunTimeSelectionTable (autoPtr, edgeMesh, fileExtension,(const fileName &name),(name))
virtual	~edgeMesh ()=default
	Destructor.

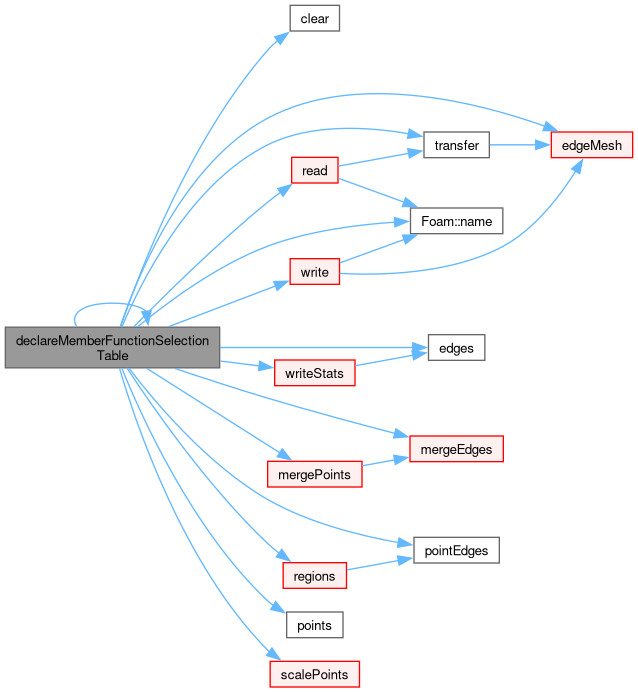

	declareMemberFunctionSelectionTable (void, edgeMesh, write, fileExtension,(const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt, const dictionary &options),(name, mesh, streamOpt, options))

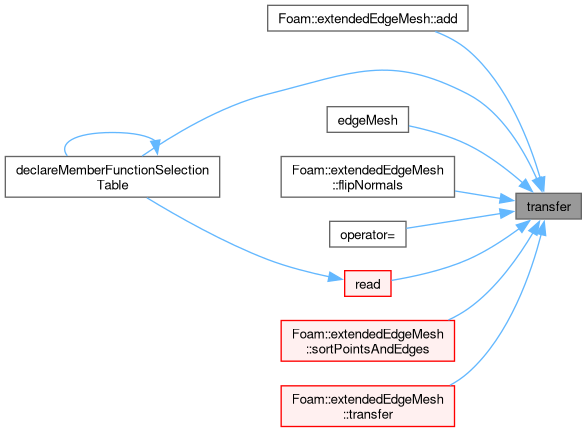

void	transfer (edgeMesh &mesh)
	Transfer the contents of the argument and annul the argument.
bool	read (const fileName &name, const word &fileType)
	Read from file. Chooses reader based on explicit extension.
virtual bool	read (const fileName &name)
	Read from file. Chooses reader based on detected extension.

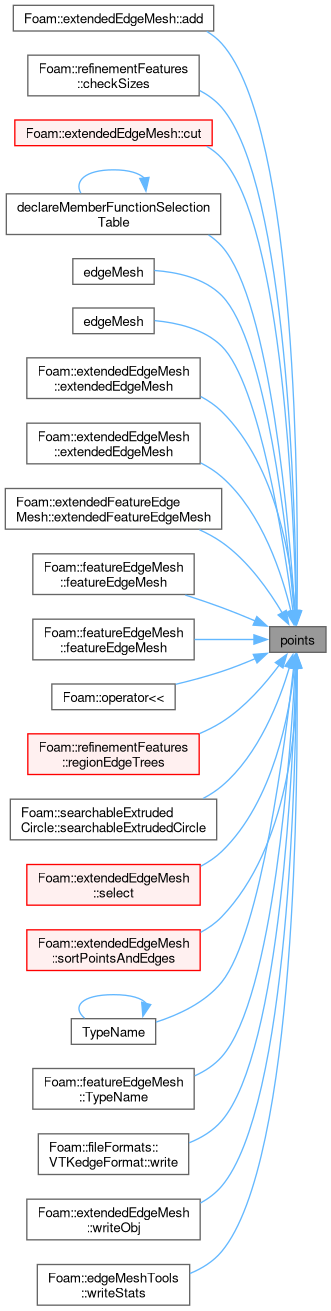

const pointField &	points () const noexcept
	Return points.

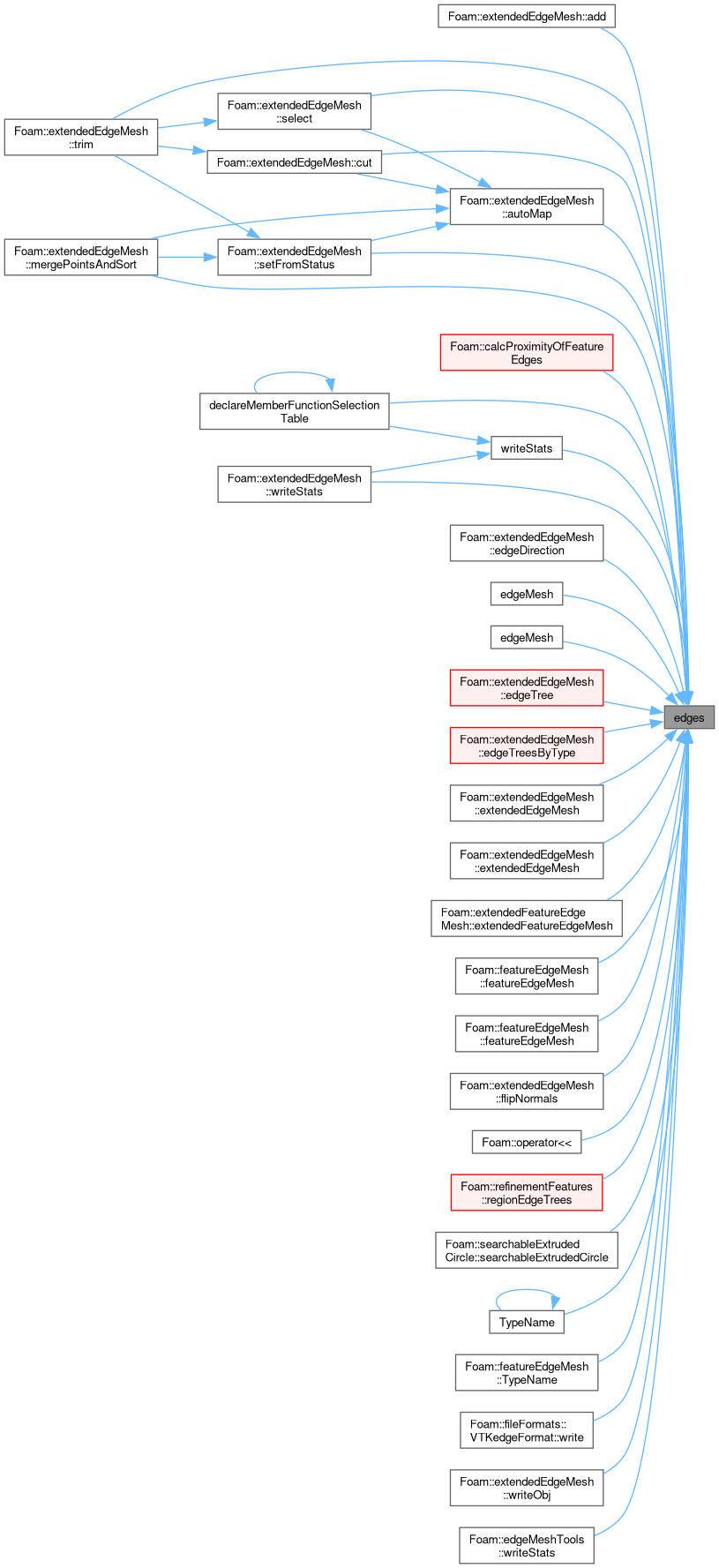

const edgeList &	edges () const noexcept
	Return edges.

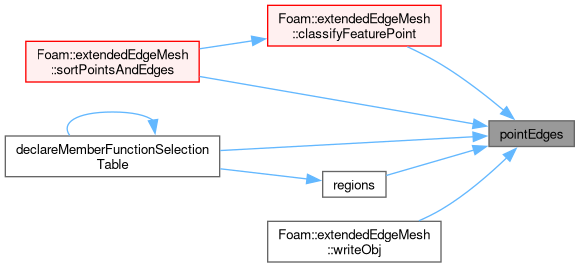

const labelListList &	pointEdges () const
	Return edges.
label	regions (labelList &edgeRegion) const
	Find connected regions. Set region number per edge.
virtual void	clear ()
	Clear all storage.
virtual void	scalePoints (const scalar scaleFactor)
	Scale points. A non-positive factor is ignored.
virtual void	mergePoints (const scalar mergeDist)
	Geometric merge points (points within mergeDist) prior to.
virtual void	mergeEdges ()
	Merge duplicate edges and eliminate unused points.
virtual void	writeStats (Ostream &) const
virtual void	write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const
	Write to file, choosing writer based on the file extension.
virtual void	write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const
	Write to file with given format type.
void	operator= (const edgeMesh &rhs)
	Copy assignment.
void	operator= (edgeMesh &&rhs)
	Move assignment.
Public Member Functions inherited from GeoMesh< faMesh >
	GeoMesh (const faMesh &mesh)
	Construct from mesh reference.
bool	hasDb () const
	Return true if thisDb() is a valid DB - here = false.
const objectRegistry &	thisDb () const
	Return the object registry.
const faMesh &	operator() () const
	Return reference to the underlying mesh.
Public Member Functions inherited from edgeMeshFormatsCore
	edgeMeshFormatsCore ()=default
	Default construct.
virtual	~edgeMeshFormatsCore ()=default
	Destructor.

Static Public Member Functions
static label	size (const faMesh &mesh) noexcept
	The geometric (internal) size - number of internal edges.
static label	boundary_size (const faMesh &mesh) noexcept
	The geometric boundary size - number of boundary edges.
static wordHashSet	readTypes ()
	Summary of supported read file types.
static wordHashSet	writeTypes ()
	Summary of supported write file types.
static bool	canReadType (const word &fileType, bool verbose=false)
	Can we read this file format?
static bool	canWriteType (const word &fileType, bool verbose=false)
	Can we write this file format type?
static bool	canRead (const fileName &name, bool verbose=false)
	Can we read this file format?
static autoPtr< edgeMesh >	New (const fileName &name, const word &fileType)
	Read construct from filename with given format.
static autoPtr< edgeMesh >	New (const fileName &name)
	Select constructed from filename (implicit extension).
static void	write (const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file (format implicit in the extension).
static void	write (const fileName &name, const word &fileType, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)
	Write to file, with given format.
Static Public Member Functions inherited from edgeMeshFormatsCore
static bool	checkSupport (const wordHashSet &available, const word &fileType, const bool verbose=false, const char *functionName=nullptr)
	Verbose checking of fileType in the list of available types.

Protected Member Functions
pointField &	storedPoints () noexcept
	Non-const access to global points.
edgeList &	storedEdges () noexcept
	Non-const access to the edges.

Friends
Ostream &	operator<< (Ostream &os, const edgeMesh &em)
Istream &	operator>> (Istream &is, edgeMesh &em)

Additional Inherited Members
Public Types inherited from GeoMesh< faMesh >
typedef faMesh	Mesh
typedef faMesh::BoundaryMesh	BoundaryMesh
Static Public Attributes inherited from edgeMeshFormatsCore
static word	nativeExt
	The file extension corresponding to 'native' edge format.
Static Protected Member Functions inherited from edgeMeshFormatsCore
static string	getLineNoComment (ISstream &is, const char comment='#')
	Read non-comment line.
Protected Attributes inherited from GeoMesh< faMesh >
const faMesh &	mesh_
	Reference to Mesh.

Detailed Description

Mesh data needed to do the Finite Area discretisation.

Points connected by edges.

Author Zeljko Tukovic, FMENA Hrvoje Jasak, Wikki Ltd.

Can be read from fileName based on extension. Uses ::New factory method to select the reader and transfer the result.

Source files

Definition at line 47 of file edgeFaMesh.H.

Constructor & Destructor Documentation

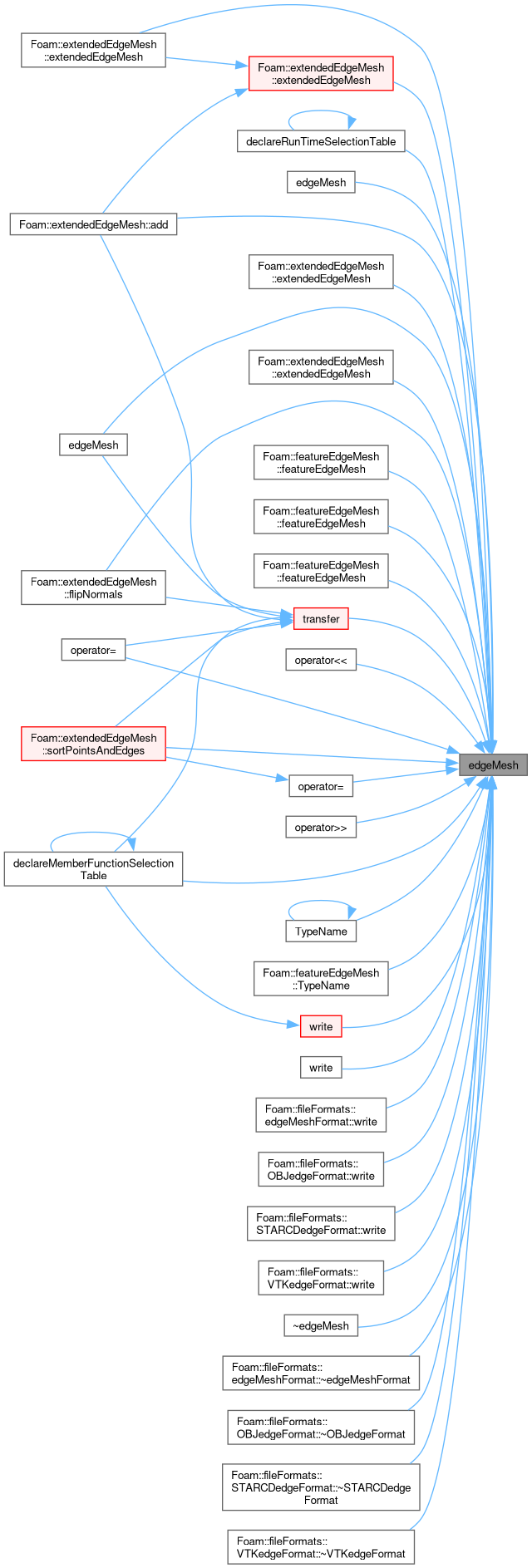

◆ edgeMesh() [1/8]

edgeMesh ( const faMesh & mesh )

inlineexplicit

Construct finite-area edge mesh faMesh reference.

Definition at line 58 of file edgeFaMesh.H.

References GeoMesh< faMesh >::GeoMesh(), and mesh.

Referenced by extendedEdgeMesh::add(), declareMemberFunctionSelectionTable(), declareRunTimeSelectionTable(), edgeMesh(), edgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), extendedEdgeMesh::flipNormals(), operator<<, operator=(), operator=(), operator>>, extendedEdgeMesh::sortPointsAndEdges(), transfer(), TypeName(), featureEdgeMesh::TypeName(), write(), write(), edgeMeshFormat::write(), OBJedgeFormat::write(), STARCDedgeFormat::write(), VTKedgeFormat::write(), ~edgeMesh(), edgeMeshFormat::~edgeMeshFormat(), OBJedgeFormat::~OBJedgeFormat(), STARCDedgeFormat::~STARCDedgeFormat(), and VTKedgeFormat::~VTKedgeFormat().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edgeMesh() [2/8]

edgeMesh ( )

inline

Default construct.

Definition at line 38 of file edgeMeshI.H.

References edgeMeshFormatsCore::edgeMeshFormatsCore().

Referenced by extendedEdgeMesh::sortPointsAndEdges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ edgeMesh() [3/8]

edgeMesh ( const edgeMesh & em )

inline

Copy construct.

Definition at line 47 of file edgeMeshI.H.

References edgeMesh(), and edgeMeshFormatsCore::edgeMeshFormatsCore().

Here is the call graph for this function:

◆ edgeMesh() [4/8]

edgeMesh ( edgeMesh && em )

inline

Move construct.

Definition at line 56 of file edgeMeshI.H.

References edgeMesh(), and transfer().

Here is the call graph for this function:

◆ edgeMesh() [5/8]

edgeMesh	(	const pointField &	points,
		const edgeList &	edges )

inline

Copy construct from components.

Definition at line 64 of file edgeMeshI.H.

References edgeMeshFormatsCore::edgeMeshFormatsCore(), edges(), and points().

Here is the call graph for this function:

◆ edgeMesh() [6/8]

edgeMesh	(	pointField &&	pointLst,
		edgeList &&	edgeLst )

inline

Move construct from components.

Definition at line 77 of file edgeMeshI.H.

References edgeMeshFormatsCore::edgeMeshFormatsCore(), edges(), and points().

Here is the call graph for this function:

◆ edgeMesh() [7/8]

edgeMesh ( const fileName & name )

explicit

Construct from file name (uses extension to determine type).

Definition at line 42 of file edgeMeshIO.C.

References Foam::name(), and read().

Here is the call graph for this function:

◆ edgeMesh() [8/8]

edgeMesh	(	const fileName &	name,
		const word &	fileType )

Construct from file name with specified type.

Definition at line 28 of file edgeMeshIO.C.

References Foam::name(), and read().

Here is the call graph for this function:

◆ ~edgeMesh()

virtual ~edgeMesh ( )

virtualdefault

Destructor.

References edgeMesh().

Here is the call graph for this function:

Member Function Documentation

◆ size() [1/2]

label size ( const faMesh & mesh )

inlinestaticnoexcept

The geometric (internal) size - number of internal edges.

Method name expected by GeoMesh interface

Definition at line 71 of file edgeFaMesh.H.

References mesh.

Referenced by extendedEdgeMesh::add(), extendedEdgeMesh::autoMap(), extendedEdgeMesh::edgeTreesByType(), extendedEdgeMesh::flipNormals(), extendedEdgeMesh::mergePointsAndSort(), NASedgeFormat::read(), STARCDedgeFormat::read(), extendedEdgeMesh::setFromStatus(), and extendedEdgeMesh::trim().

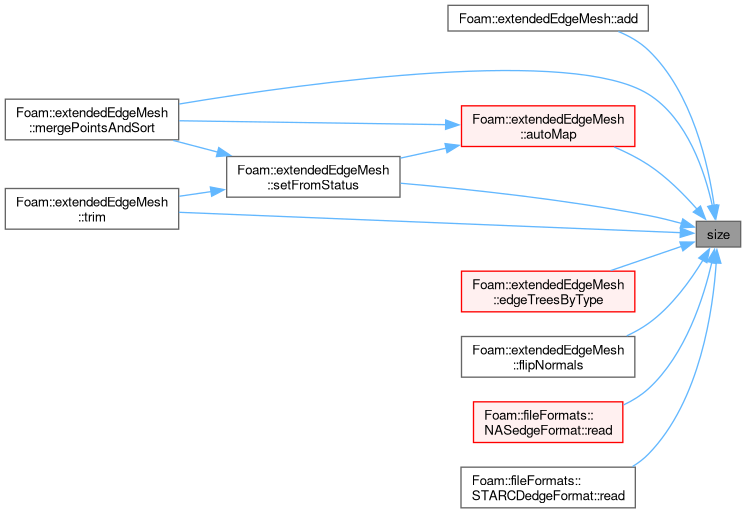

Here is the caller graph for this function:

◆ boundary_size()

label boundary_size ( const faMesh & mesh )

inlinestaticnoexcept

The geometric boundary size - number of boundary edges.

Method name expected by GeoMesh interface

Definition at line 81 of file edgeFaMesh.H.

References mesh.

◆ size() [2/2]

label size ( ) const

inlinenoexcept

The geometric (internal) size - number of internal edges.

Method name expected by GeoMesh interface

Definition at line 94 of file edgeFaMesh.H.

References GeoMesh< faMesh >::mesh_, Foam::noexcept, and size().

Referenced by size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ C()

const edgeVectorField & C ( ) const

inline

Field of edge centres.

Definition at line 103 of file edgeFaMesh.H.

References GeoMesh< faMesh >::mesh_.

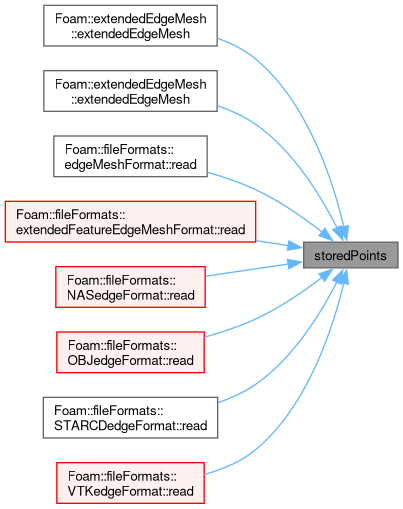

◆ storedPoints()

Foam::pointField & storedPoints ( )

inlineprotectednoexcept

Non-const access to global points.

Definition at line 24 of file edgeMeshI.H.

References Foam::noexcept.

Referenced by extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), edgeMeshFormat::read(), extendedFeatureEdgeMeshFormat::read(), NASedgeFormat::read(), OBJedgeFormat::read(), STARCDedgeFormat::read(), and VTKedgeFormat::read().

Here is the caller graph for this function:

◆ storedEdges()

Foam::edgeList & storedEdges ( )

inlineprotectednoexcept

Non-const access to the edges.

Definition at line 30 of file edgeMeshI.H.

References Foam::noexcept.

Referenced by extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), edgeMeshFormat::read(), extendedFeatureEdgeMeshFormat::read(), NASedgeFormat::read(), OBJedgeFormat::read(), STARCDedgeFormat::read(), and VTKedgeFormat::read().

Here is the caller graph for this function:

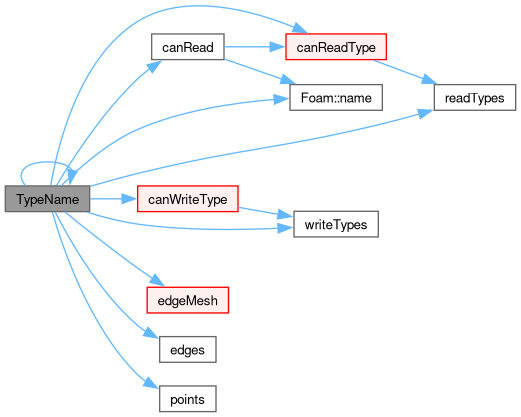

◆ TypeName()

TypeName ( "edgeMesh" )

Runtime type information.

References canRead(), canReadType(), canWriteType(), edgeMesh(), edges(), Foam::name(), points(), readTypes(), TypeName(), and writeTypes().

Referenced by TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ readTypes()

Foam::wordHashSet readTypes ( )

static

Summary of supported read file types.

Definition at line 42 of file edgeMesh.C.

Referenced by canReadType(), and TypeName().

Here is the caller graph for this function:

◆ writeTypes()

Foam::wordHashSet writeTypes ( )

static

Summary of supported write file types.

Definition at line 48 of file edgeMesh.C.

Referenced by canWriteType(), and TypeName().

Here is the caller graph for this function:

◆ canReadType()

bool canReadType	(	const word &	fileType,
		bool	verbose = false )

static

Can we read this file format?

Definition at line 54 of file edgeMesh.C.

References edgeMeshFormatsCore::checkSupport(), and readTypes().

Referenced by canRead(), and TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canWriteType()

bool canWriteType	(	const word &	fileType,
		bool	verbose = false )

static

Can we write this file format type?

Definition at line 66 of file edgeMesh.C.

References edgeMeshFormatsCore::checkSupport(), and writeTypes().

Referenced by TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ canRead()

bool canRead	(	const fileName &	name,
		bool	verbose = false )

static

Can we read this file format?

Definition at line 78 of file edgeMesh.C.

References canReadType(), and Foam::name().

Referenced by TypeName().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		edgeMesh	,
		fileExtension	,
		(const fileName &name)	,
		(name)	)

References declareRunTimeSelectionTable(), edgeMesh(), Foam::name(), and New().

Referenced by declareRunTimeSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [1/2]

Foam::autoPtr< Foam::edgeMesh > New	(	const fileName &	name,
		const word &	fileType )

static

Read construct from filename with given format.

Definition at line 26 of file edgeMeshNew.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::name(), and Foam::nl.

Referenced by declareRunTimeSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::edgeMesh > New ( const fileName & name )

static

Select constructed from filename (implicit extension).

Definition at line 48 of file edgeMeshNew.C.

References Foam::name(), and Foam::New().

Here is the call graph for this function:

◆ declareMemberFunctionSelectionTable()

declareMemberFunctionSelectionTable	(	void	,
		edgeMesh	,
		write	,
		fileExtension	,
		(const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt, const dictionary &options)	,
		(name, mesh, streamOpt, options)	)

References clear(), declareMemberFunctionSelectionTable(), edgeMesh(), edges(), mergeEdges(), mergePoints(), mesh, Foam::name(), Foam::noexcept, pointEdges(), points(), read(), regions(), scalePoints(), transfer(), write(), and writeStats().

Referenced by declareMemberFunctionSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [1/4]

void write	(	const fileName &	name,
		const edgeMesh &	mesh,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null )

static

Write to file (format implicit in the extension).

Definition at line 104 of file edgeMeshIO.C.

References edgeMesh(), mesh, Foam::name(), and write().

Referenced by declareMemberFunctionSelectionTable(), write(), and extendedEdgeMesh::writeObj().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [2/4]

void write	(	const fileName &	name,
		const word &	fileType,
		const edgeMesh &	mesh,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null )

static

Write to file, with given format.

Definition at line 77 of file edgeMeshIO.C.

References DebugInFunction, edgeMesh(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInLookup, mesh, and Foam::name().

Here is the call graph for this function:

◆ transfer()

void transfer ( edgeMesh & mesh )

Transfer the contents of the argument and annul the argument.

Definition at line 119 of file edgeMesh.C.

References edgeMesh(), and mesh.

Referenced by extendedEdgeMesh::add(), declareMemberFunctionSelectionTable(), edgeMesh(), extendedEdgeMesh::flipNormals(), operator=(), read(), extendedEdgeMesh::sortPointsAndEdges(), and extendedEdgeMesh::transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [1/2]

bool read	(	const fileName &	name,
		const word &	fileType )

Read from file. Chooses reader based on explicit extension.

Definition at line 65 of file edgeMeshIO.C.

References Foam::name(), Foam::New(), and transfer().

Referenced by declareMemberFunctionSelectionTable(), edgeMesh(), and edgeMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [2/2]

bool read ( const fileName & name )

virtual

Read from file. Chooses reader based on detected extension.

Reimplemented in extendedEdgeMesh, edgeMeshFormat, extendedEdgeMeshFormat, extendedFeatureEdgeMeshFormat, NASedgeFormat, OBJedgeFormat, STARCDedgeFormat, and VTKedgeFormat.

Definition at line 54 of file edgeMeshIO.C.

References Foam::name(), and Foam::read().

Here is the call graph for this function:

◆ points()

const Foam::pointField & points ( ) const

inlinenoexcept

Return points.

Definition at line 92 of file edgeMeshI.H.

References Foam::noexcept.

Referenced by extendedEdgeMesh::add(), refinementFeatures::checkSizes(), extendedEdgeMesh::cut(), declareMemberFunctionSelectionTable(), edgeMesh(), edgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), extendedEdgeMesh::extendedEdgeMesh(), extendedFeatureEdgeMesh::extendedFeatureEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), featureEdgeMesh::featureEdgeMesh(), Foam::operator<<(), refinementFeatures::regionEdgeTrees(), searchableExtrudedCircle::searchableExtrudedCircle(), extendedEdgeMesh::select(), extendedEdgeMesh::sortPointsAndEdges(), TypeName(), featureEdgeMesh::TypeName(), VTKedgeFormat::write(), extendedEdgeMesh::writeObj(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

◆ edges()

const Foam::edgeList & edges ( ) const

inlinenoexcept

Return edges.

Definition at line 98 of file edgeMeshI.H.

References Foam::noexcept.

Here is the caller graph for this function:

◆ pointEdges()

const Foam::labelListList & pointEdges ( ) const

inline

Return edges.

Definition at line 104 of file edgeMeshI.H.

Referenced by extendedEdgeMesh::classifyFeaturePoint(), declareMemberFunctionSelectionTable(), regions(), extendedEdgeMesh::sortPointsAndEdges(), and extendedEdgeMesh::writeObj().

Here is the caller graph for this function:

◆ regions()

Foam::label regions ( labelList & edgeRegion ) const

Find connected regions. Set region number per edge.

Returns number of regions.

Definition at line 132 of file edgeMesh.C.

References DynamicList< T, SizeMin >::append(), e, forAll, pointEdges(), List< T >::setSize(), UList< T >::size(), and List< T >::transfer().

Referenced by declareMemberFunctionSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear()

void clear ( )

virtual

Clear all storage.

Reimplemented in extendedEdgeMesh.

Definition at line 111 of file edgeMesh.C.

Referenced by extendedEdgeMesh::clear(), and declareMemberFunctionSelectionTable().

Here is the caller graph for this function:

◆ scalePoints()

void scalePoints ( const scalar scaleFactor )

virtual

Scale points. A non-positive factor is ignored.

Definition at line 198 of file edgeMesh.C.

References Foam::equal().

Referenced by declareMemberFunctionSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mergePoints()

void mergePoints ( const scalar mergeDist )

virtual

Geometric merge points (points within mergeDist) prior to.

automatically calling mergeEdges().

Definition at line 208 of file edgeMesh.C.

References e, Foam::inplaceMergePoints(), and mergeEdges().

Referenced by declareMemberFunctionSelectionTable().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mergeEdges()

void mergeEdges ( )

virtual

Merge duplicate edges and eliminate unused points.

Definition at line 234 of file edgeMesh.C.

References e, Foam::endl(), forAll, Foam::Info, HashSet< Key, Hash >::insert(), bitSet::set(), and bitSet::test().

Referenced by declareMemberFunctionSelectionTable(), and mergePoints().

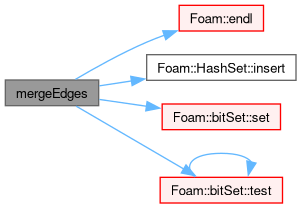

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeStats()

void writeStats ( Ostream & os ) const

virtual

Reimplemented in extendedEdgeMesh.

Definition at line 116 of file edgeMeshIO.C.

References edges(), Foam::endl(), Foam::indent(), Foam::nl, os(), points, and UList< T >::size().

Referenced by declareMemberFunctionSelectionTable(), and extendedEdgeMesh::writeStats().

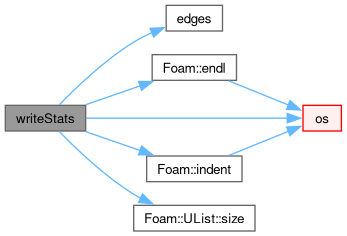

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write() [3/4]

virtual void write	(	const fileName &	name,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlinevirtual

Write to file, choosing writer based on the file extension.

Reimplemented in edgeMeshFormat, OBJedgeFormat, STARCDedgeFormat, and VTKedgeFormat.

Definition at line 340 of file edgeMesh.H.

References Foam::name(), write(), and write().

Here is the call graph for this function:

◆ write() [4/4]

virtual void write	(	const fileName &	name,
		const word &	fileType,
		IOstreamOption	streamOpt = IOstreamOption(),
		const dictionary &	options = dictionary::null ) const

inlinevirtual

Write to file with given format type.

If the format type is "", uses the file extension.

Reimplemented in edgeMeshFormat, OBJedgeFormat, STARCDedgeFormat, and VTKedgeFormat.

Definition at line 355 of file edgeMesh.H.

References Foam::name(), dictionary::null, and write().

Here is the call graph for this function:

◆ operator=() [1/2]

void operator= ( const edgeMesh & rhs )

inline

Copy assignment.

Definition at line 116 of file edgeMeshI.H.

References edgeMesh(), and Foam::rhs().

Referenced by extendedEdgeMesh::sortPointsAndEdges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [2/2]

void operator= ( edgeMesh && rhs )

inline

Move assignment.

Definition at line 124 of file edgeMeshI.H.

References edgeMesh(), Foam::rhs(), and transfer().

Here is the call graph for this function:

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const edgeMesh &	em )

friend

References edgeMesh(), and os().

◆ operator>>

Istream & operator>>	(	Istream &	is,
		edgeMesh &	em )

friend

References edgeMesh().

The documentation for this class was generated from the following files:

src/finiteArea/edgeMesh/edgeFaMesh.H
src/meshTools/edgeMesh/edgeMesh.H
src/meshTools/edgeMesh/edgeMesh.C
src/meshTools/edgeMesh/edgeMeshI.H
src/meshTools/edgeMesh/edgeMeshIO.C
src/meshTools/edgeMesh/edgeMeshNew.C

Public Member Functions

Static Public Member Functions

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ edgeMesh() [1/8]

◆ edgeMesh() [2/8]

◆ edgeMesh() [3/8]

◆ edgeMesh() [4/8]

◆ edgeMesh() [5/8]

◆ edgeMesh() [6/8]

◆ edgeMesh() [7/8]

◆ edgeMesh() [8/8]

◆ ~edgeMesh()

Member Function Documentation

◆ size() [1/2]

◆ boundary_size()

◆ size() [2/2]

◆ C()

◆ storedPoints()

◆ storedEdges()

◆ TypeName()

◆ readTypes()

◆ writeTypes()

◆ canReadType()

◆ canWriteType()

◆ canRead()

◆ declareRunTimeSelectionTable()

◆ New() [1/2]

◆ New() [2/2]

◆ declareMemberFunctionSelectionTable()

◆ write() [1/4]

◆ write() [2/4]

◆ transfer()

◆ read() [1/2]

◆ read() [2/2]

◆ points()

◆ edges()

◆ pointEdges()

◆ regions()

◆ clear()

◆ scalePoints()

◆ mergePoints()

◆ mergeEdges()

◆ writeStats()

◆ write() [3/4]

◆ write() [4/4]

◆ operator=() [1/2]

◆ operator=() [2/2]

Friends And Related Symbol Documentation

◆ operator<<

◆ operator>>
