Constrain values of given fields of Type with a given maximum value within a specified region, where <Type>=Scalar/Vector/SphericalTensor/SymmTensor/Tensor. More...

#include <FixedValueConstraint.H>

Inheritance diagram for FixedValueConstraint< Type >:

[legend]

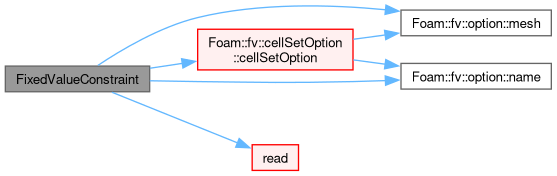

Collaboration diagram for FixedValueConstraint< Type >:

[legend]

Public Member Functions
	TypeName ("FixedValueConstraint")
	Runtime type information.
	FixedValueConstraint (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
	FixedValueConstraint (const FixedValueConstraint &)=delete
	No copy construct.
void	operator= (const FixedValueConstraint &)=delete
	No copy assignment.
virtual	~FixedValueConstraint ()=default
	Destructor.
virtual bool	read (const dictionary &dict)
	Read source dictionary.
virtual void	constrain (fvMatrix< Type > &eqn, const label fieldi)
	Set value on field.
Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")
	Runtime type information.
	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
virtual	~cellSetOption ()=default
	Destructor.
scalar	timeStart () const noexcept
	Return const access to the time start.
scalar	duration () const noexcept
	Return const access to the duration.
bool	inTimeLimits (const scalar timeValue) const
	True if within time limits.
bool	useSubMesh () const noexcept
	True if sub-selection should be used.
selectionModeType	selectionMode () const noexcept
	Return the cell selection mode.
const wordRes &	selectionNames () const noexcept
	Return const access to the selection names (set or zone selection).
const wordRe &	zoneName () const
	Return const access to the first set/zone name.
scalar	V () const noexcept
	Return const access to the total cell volume.
const labelList &	cells () const noexcept
	Return const access to the cell selection.
bool	isSelectionUpdated () const noexcept
	Return flag for selection updates.
scalar	timeStart (scalar val) noexcept
	Adjust the time start, return the old value.
scalar	duration (scalar val) noexcept
	Adjust the duration, return the old value.
virtual bool	isActive ()
	Is the source active?
const word &	cellSetName () const
	The name of the cell set/zone [as a word] for "cellSet" / "cellZone" selection modes).
Public Member Functions inherited from option
	TypeName ("option")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))
	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)
	Construct from components.
autoPtr< option >	clone () const
	Return clone.
virtual	~option ()=default
	Destructor.
const word &	name () const noexcept
	Return const access to the source name.
const fvMesh &	mesh () const noexcept
	Return const access to the mesh database.
const dictionary &	coeffs () const noexcept
	Return dictionary.
bool	active () const noexcept
	True if source is active.
void	setApplied (const label fieldi)
	Set the applied flag to true for field index fieldi.
bool	active (const bool on) noexcept
	Change source active flag, return previous value.
virtual label	applyToField (const word &fieldName) const
	Return index of field name if found in fieldNames list.
virtual void	checkApplied () const
	Check that the source has been applied.
virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)
virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)
virtual void	correct (volScalarField &field)
virtual void	correct (volVectorField &field)
virtual void	correct (volSphericalTensorField &field)
virtual void	correct (volSymmTensorField &field)
virtual void	correct (volTensorField &field)
virtual void	correct (surfaceScalarField &field)
virtual void	correct (surfaceVectorField &field)
virtual void	correct (surfaceTensorField &field)
virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)
virtual void	postProcessAuxSens (const volScalarField &primalField, const volScalarField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volVectorField &primalField, const volVectorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	postProcessAuxSens (const volTensorField &primalField, const volTensorField &adjointField, scalarField &sensField, const word &fieldName=word::null)
virtual void	writeHeader (Ostream &) const
	Write the source header information.
virtual void	writeFooter (Ostream &) const
	Write the source footer information.
virtual void	writeData (Ostream &) const
	Write the source properties.

Additional Inherited Members
Public Types inherited from cellSetOption
enum	selectionModeType : char { smAll , smCellSet , smCellZone , smPoints , smMovingPoints , smGeometric , smCellType }
	Enumeration for selection mode types. More...
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)
	Return a reference to the selected fvOption model.
Public Attributes inherited from option
bool	log
	Switch write log to Info.
Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_
	List of selection mode type names.
Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)
	Set cell selection name or points selection from dictionary input.
void	setCellSelection ()
	Set the cell selection based on user input selection mode.
void	setVol ()
	Recalculate the volume.
Protected Member Functions inherited from option
void	resetApplied ()
	Resize/reset applied flag list for all fieldNames_ entries.
Protected Attributes inherited from cellSetOption
selectionModeType	selectionMode_
	Cell selection mode.
bool	updateSelection_
	Flag to enable dictionary-based updates of selections.
scalar	timeStart_
	Start time of fvOption.
scalar	duration_
	Duration of fvOption execution starting from timeStart.
wordRes	selectionNames_
	Face selection names (for set or zone selections).
List< point >	points_
	List of points for "points" selectionMode.
PtrList< Function1< point > >	movingPoints_
	List of points for "movingPoints" selectionMode.
dictionary	geometricSelection_
	Dictionary entries for "geometric" (topoSetCellSource) selection.
labelList	cells_
	Set of cells to apply source to.
scalar	V_
	Sum of cell volumes.
Protected Attributes inherited from option
const word	name_
	Source name.
const word	modelType_
	Model type.
const fvMesh &	mesh_
	Reference to the mesh database.
dictionary	dict_
	Top level source dictionary.
dictionary	coeffs_
	Dictionary containing source coefficients.
wordList	fieldNames_
	Field names to apply source to - populated by derived models.
List< bool >	applied_
	Applied flag list - corresponds to each fieldNames_ entry.
bool	active_
	Source active flag.

Detailed Description

template<class Type>
class Foam::fv::FixedValueConstraint< Type >

Constrain values of given fields of Type with a given maximum value within a specified region, where <Type>=Scalar/Vector/SphericalTensor/SymmTensor/Tensor.

Usage

Minimal example by using constant/fvOptions:

\<Type\>FixedValueConstraint1
{
    // Mandatory entries (unmodifiable)
    type            \<Type\>FixedValueConstraint;

    // Mandatory entries (runtime modifiable)
    fieldValues
    {
        \<fieldName1\>           \<value1\>;
        \<fieldName2\>           \<value2\>;
        ...
        \<fieldNameN\>           \<valueN\>;
    }

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: <Type>FixedValueConstraint	word	yes	-
`fieldValues`	Dictionary containing pairs of names and maximum values of operand fields of <Type>	dictionary	yes	-

The inherited entries are elaborated in:

For example to set the turbulence properties within a porous region:

    porosityTurbulence
    {
        type            scalarFixedValueConstraint;
        active          yes;

        selectionMode   cellZone;
        cellZone        porosity;
        fieldValues
        {
            k           1;
            epsilon     150;
        }
    }

See also

Source files

Definition at line 132 of file FixedValueConstraint.H.
